Logic and data representation Revision AND gate A

Logic and data representation Revision

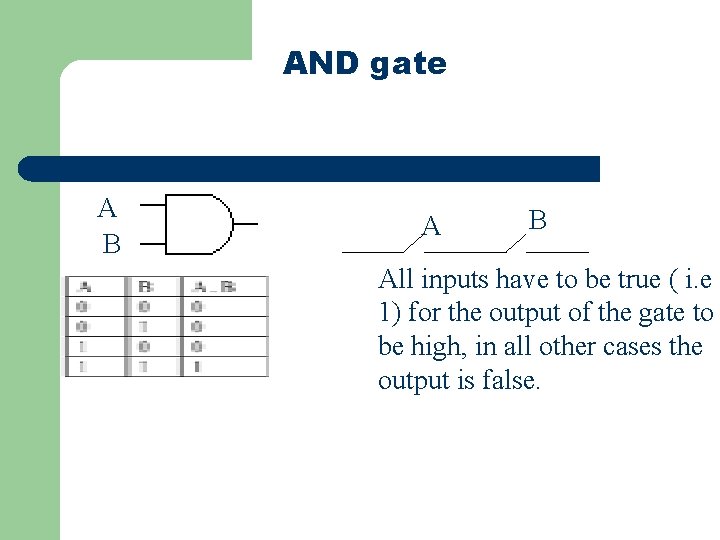

AND gate A B All inputs have to be true ( i. e 1) for the output of the gate to be high, in all other cases the output is false.

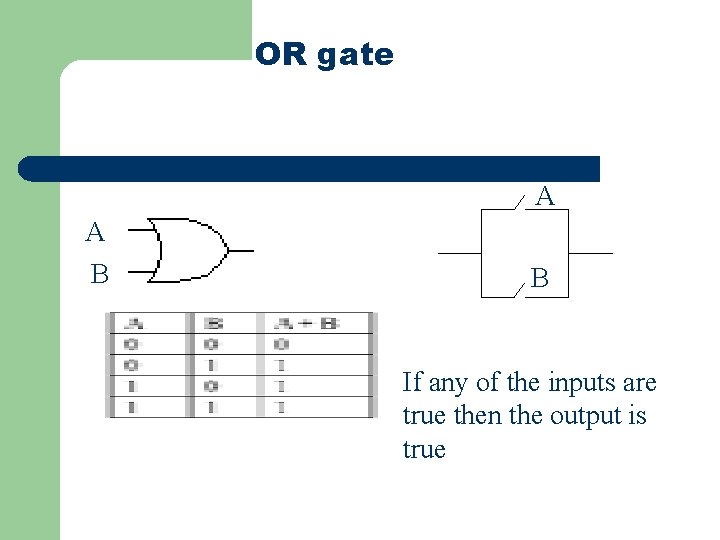

OR gate A A B B If any of the inputs are true then the output is true

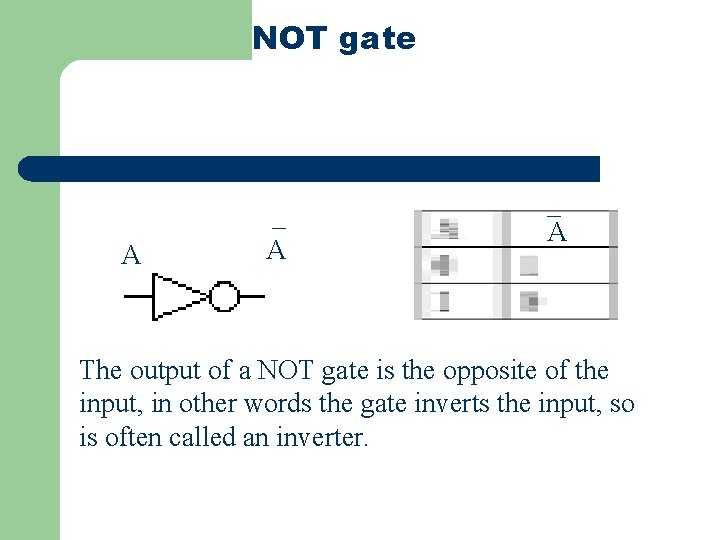

NOT gate A _ A The output of a NOT gate is the opposite of the input, in other words the gate inverts the input, so is often called an inverter.

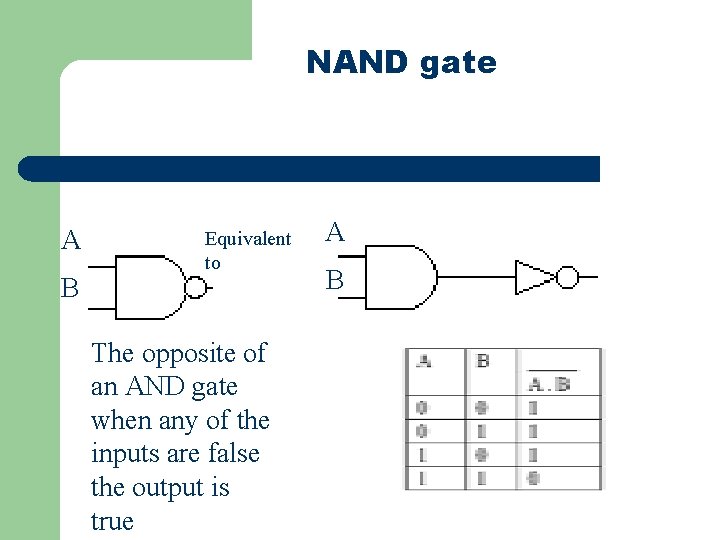

NAND gate A B Equivalent to The opposite of an AND gate when any of the inputs are false the output is true A B

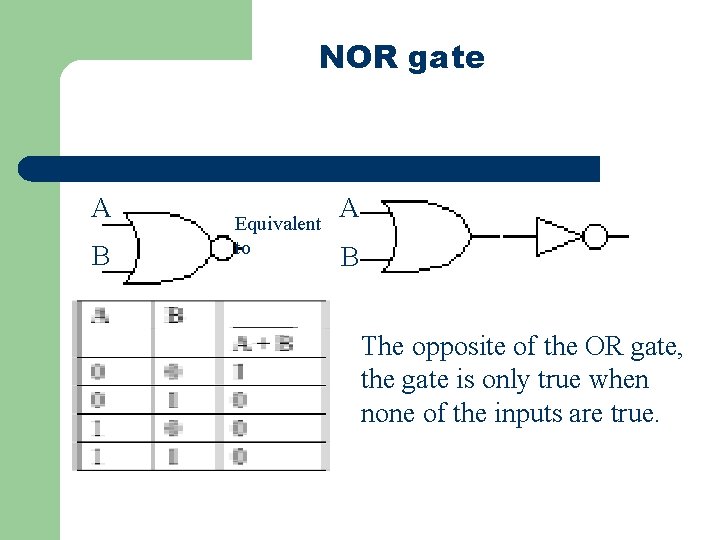

NOR gate A B Equivalent to A B The opposite of the OR gate, the gate is only true when none of the inputs are true.

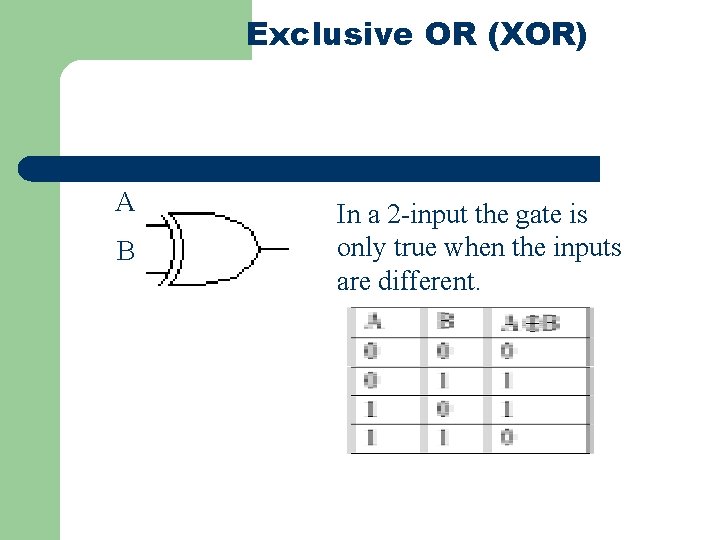

Exclusive OR (XOR) A B In a 2 -input the gate is only true when the inputs are different.

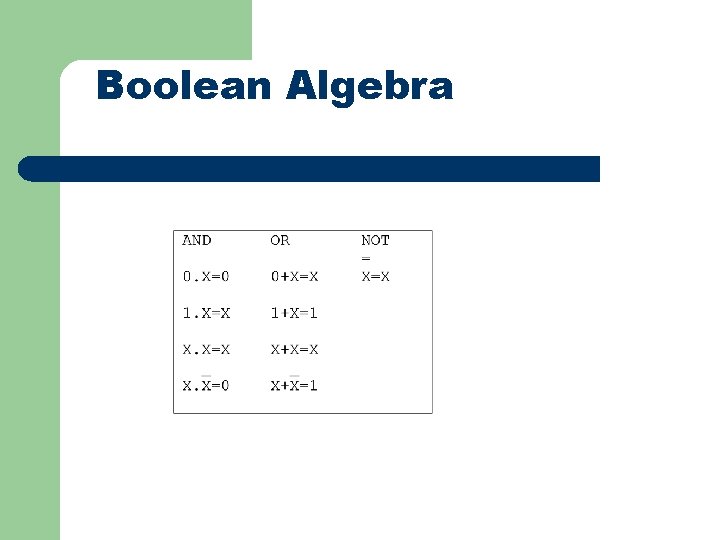

Boolean Algebra

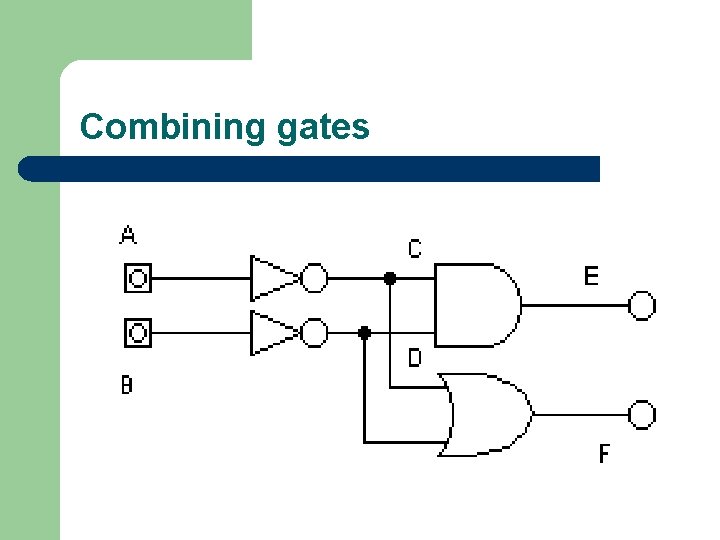

Combining gates

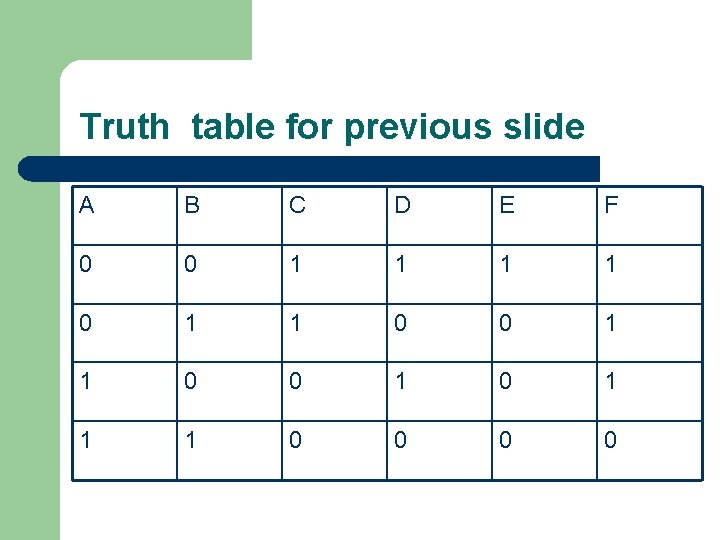

Truth table for previous slide A B C D E F 0 0 1 1 0 0 1 1 1 0 0

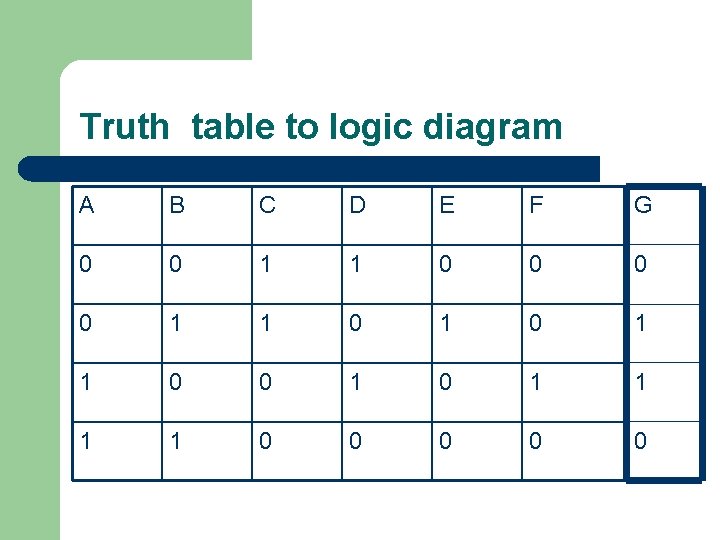

Truth table to logic diagram A B C D E F G 0 0 1 1 0 1 1 0 0 1 1 1 1 0 0 0

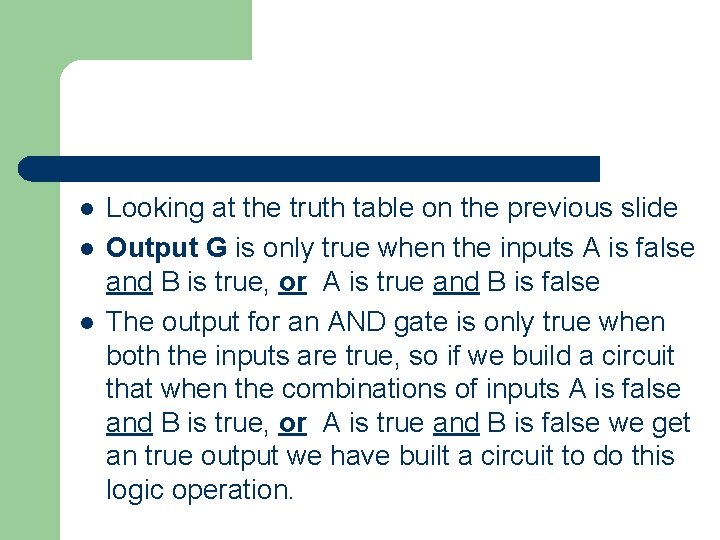

l l l Looking at the truth table on the previous slide Output G is only true when the inputs A is false and B is true, or A is true and B is false The output for an AND gate is only true when both the inputs are true, so if we build a circuit that when the combinations of inputs A is false and B is true, or A is true and B is false we get an true output we have built a circuit to do this logic operation.

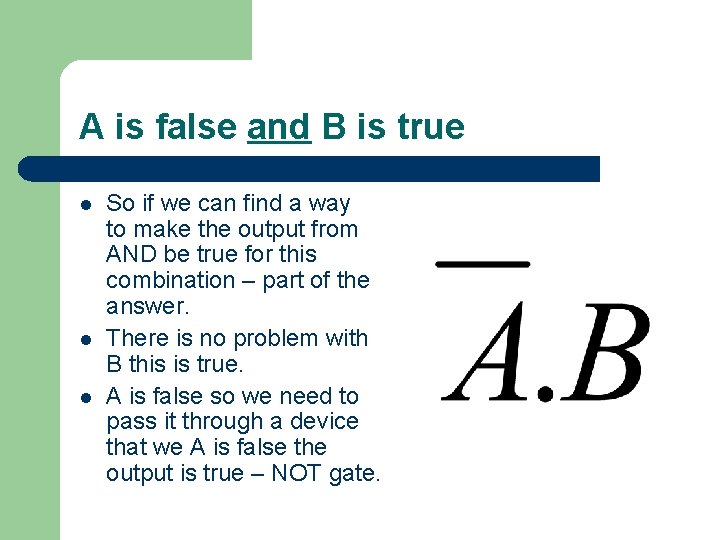

A is false and B is true l l l So if we can find a way to make the output from AND be true for this combination – part of the answer. There is no problem with B this is true. A is false so we need to pass it through a device that we A is false the output is true – NOT gate.

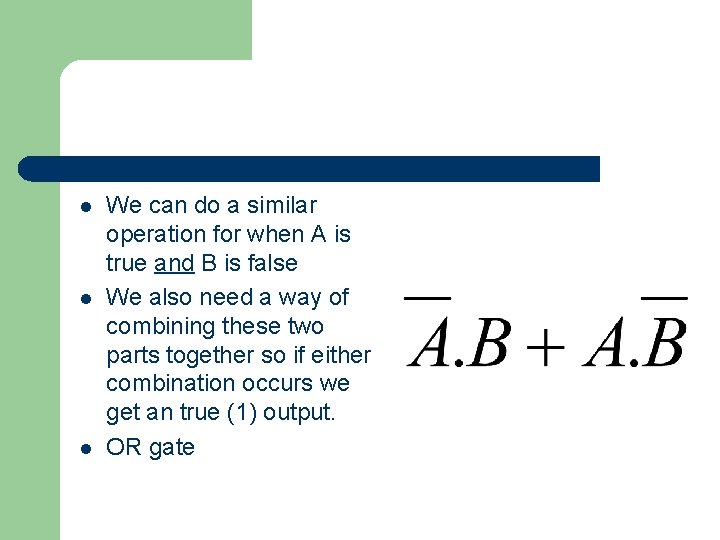

l l l We can do a similar operation for when A is true and B is false We also need a way of combining these two parts together so if either combination occurs we get an true (1) output. OR gate

Combining gates

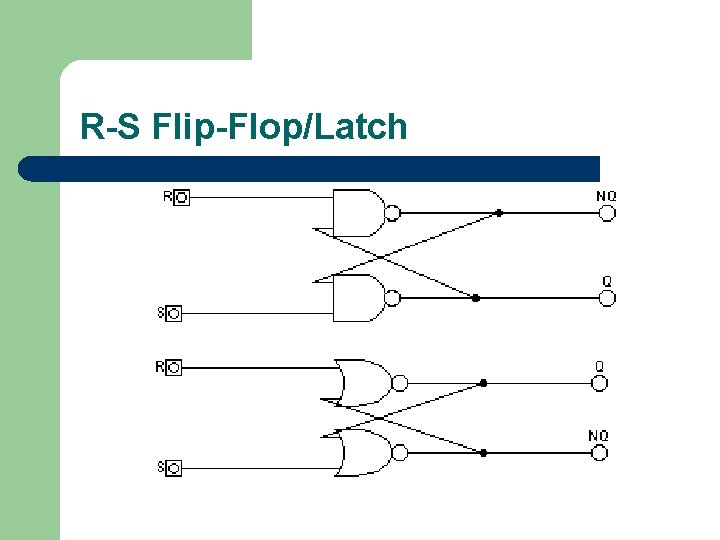

R-S Flip-Flop/Latch

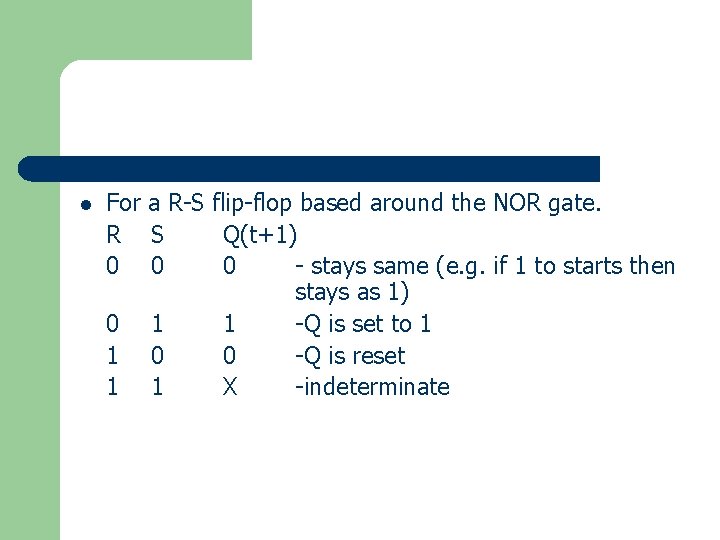

l For a R-S flip-flop based around the NOR gate. R S Q(t+1) 0 0 0 - stays same (e. g. if 1 to starts then stays as 1) 0 1 1 -Q is set to 1 1 0 0 -Q is reset 1 1 X -indeterminate

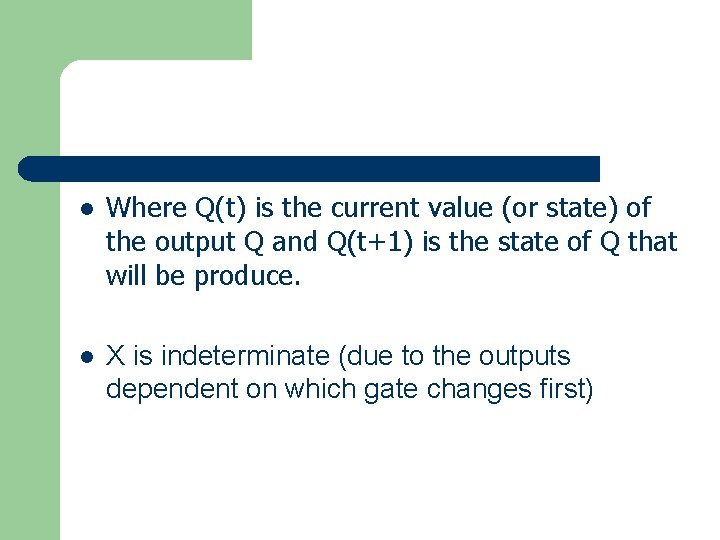

l Where Q(t) is the current value (or state) of the output Q and Q(t+1) is the state of Q that will be produce. l X is indeterminate (due to the outputs dependent on which gate changes first)

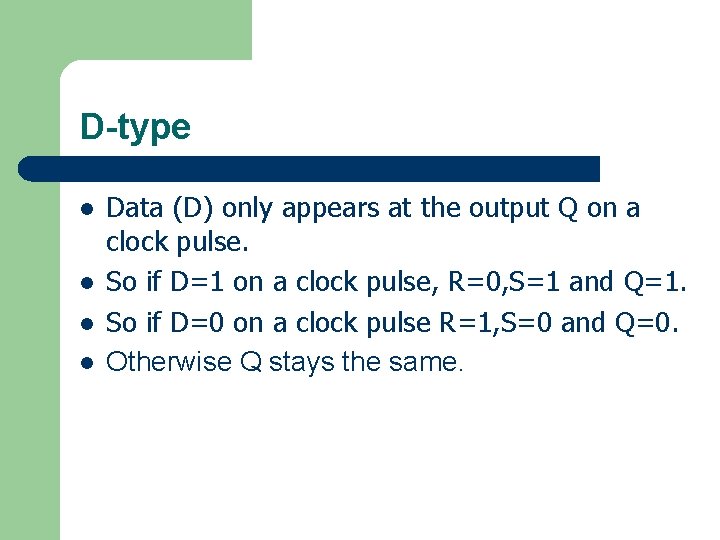

D-type l l Data (D) only appears at the output Q on a clock pulse. So if D=1 on a clock pulse, R=0, S=1 and Q=1. So if D=0 on a clock pulse R=1, S=0 and Q=0. Otherwise Q stays the same.

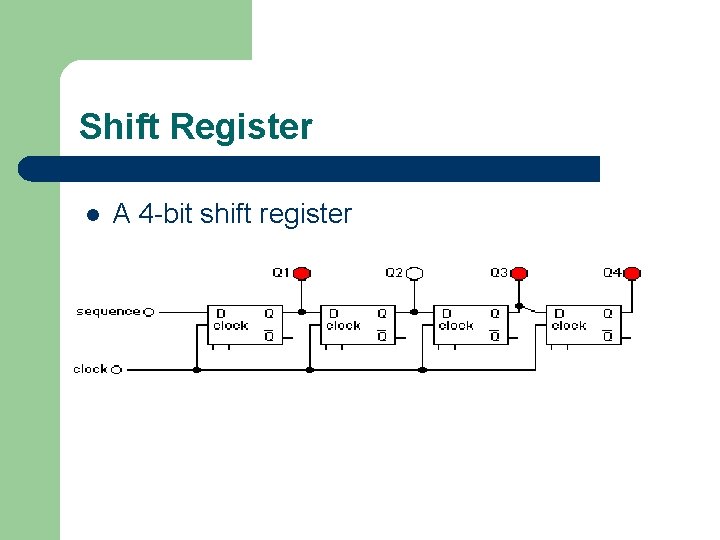

Shift Register l A 4 -bit shift register

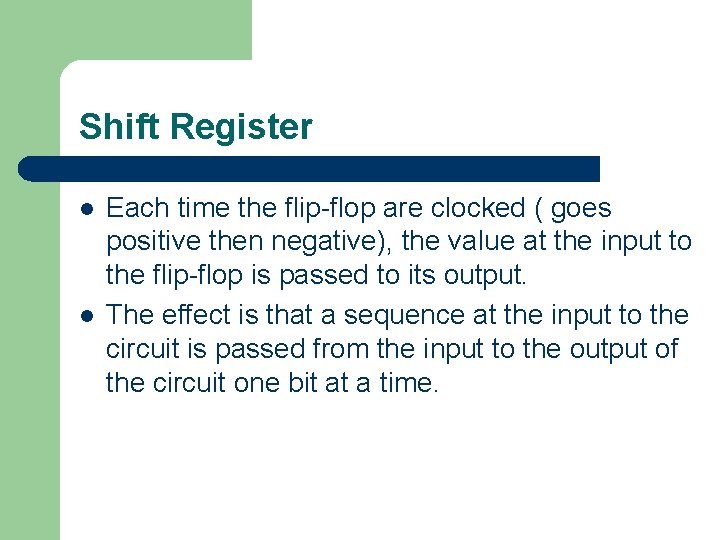

Shift Register l l Each time the flip-flop are clocked ( goes positive then negative), the value at the input to the flip-flop is passed to its output. The effect is that a sequence at the input to the circuit is passed from the input to the output of the circuit one bit at a time.

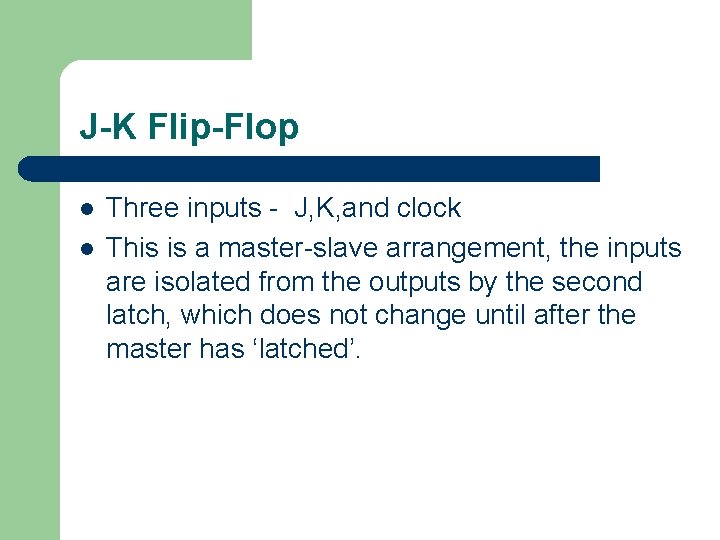

J-K Flip-Flop l l Three inputs - J, K, and clock This is a master-slave arrangement, the inputs are isolated from the outputs by the second latch, which does not change until after the master has ‘latched’.

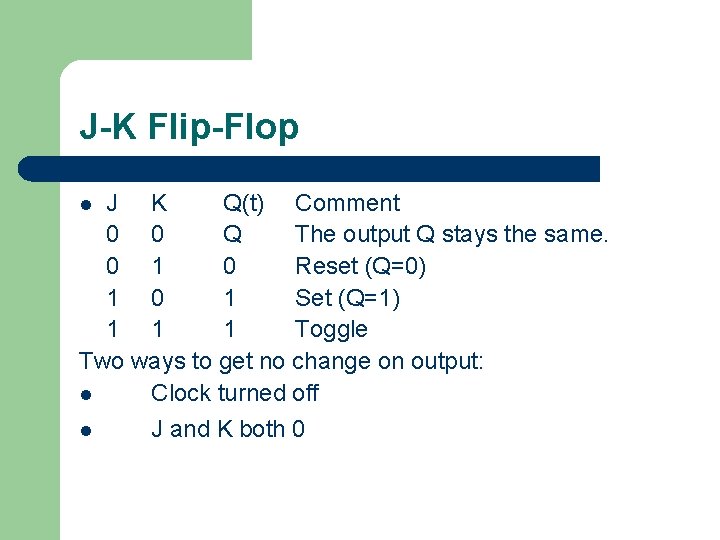

J-K Flip-Flop J K Q(t) Comment 0 0 Q The output Q stays the same. 0 1 0 Reset (Q=0) 1 0 1 Set (Q=1) 1 1 1 Toggle Two ways to get no change on output: l Clock turned off l l J and K both 0

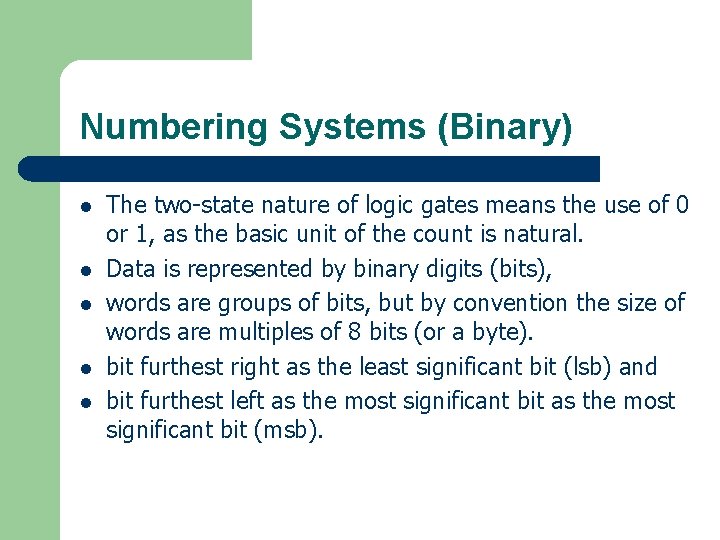

Numbering Systems (Binary) l l l The two-state nature of logic gates means the use of 0 or 1, as the basic unit of the count is natural. Data is represented by binary digits (bits), words are groups of bits, but by convention the size of words are multiples of 8 bits (or a byte). bit furthest right as the least significant bit (lsb) and bit furthest left as the most significant bit (msb).

Decimal msb Lsb 128 64 32 16 8 4 2 1 255 1 1 1 1 8 0 0 1 0 0 0 33 0 0 1 99 0 1 1 0 0 0 1 1 46 0 0 1 1 1 0

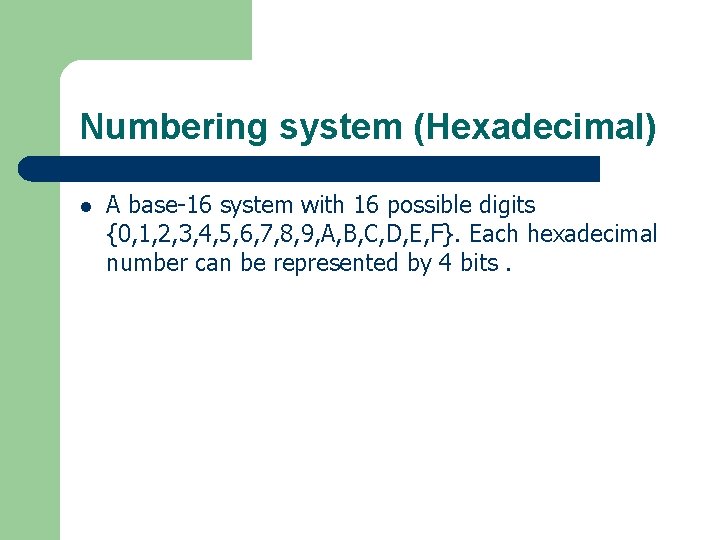

Numbering system (Hexadecimal) l A base-16 system with 16 possible digits {0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, F}. Each hexadecimal number can be represented by 4 bits.

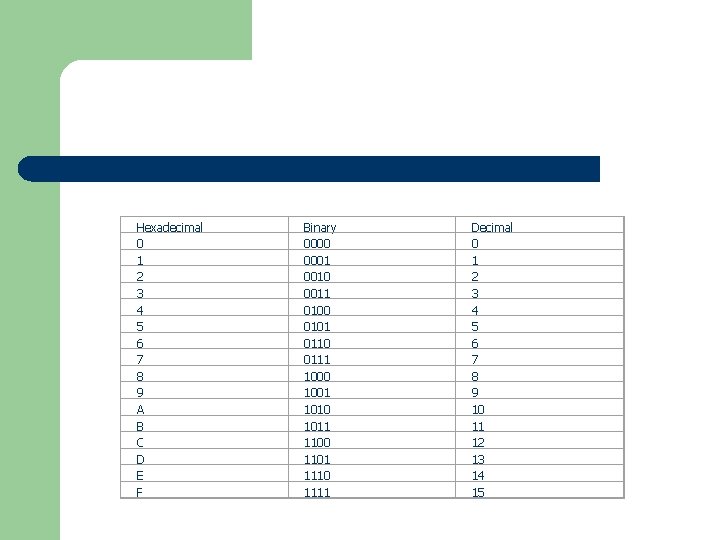

Hexadecimal 0 1 2 3 4 5 6 7 8 9 A B C D E F Binary 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111 Decimal 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

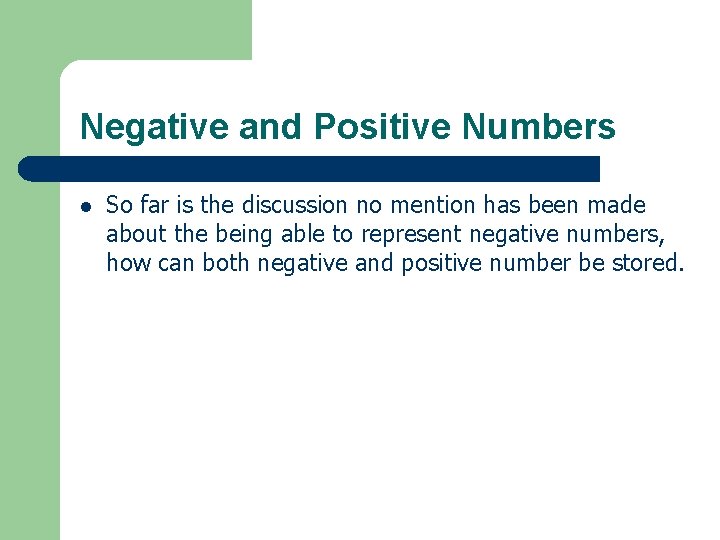

Negative and Positive Numbers l So far is the discussion no mention has been made about the being able to represent negative numbers, how can both negative and positive number be stored.

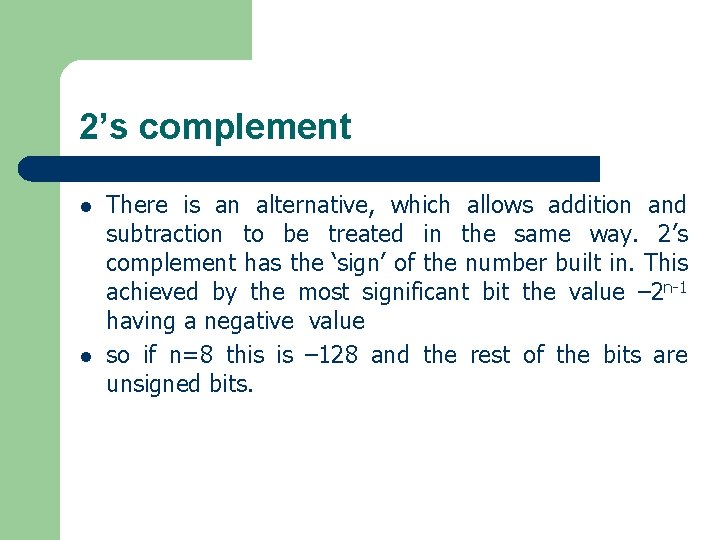

2’s complement l l There is an alternative, which allows addition and subtraction to be treated in the same way. 2’s complement has the ‘sign’ of the number built in. This achieved by the most significant bit the value – 2 n-1 having a negative value so if n=8 this is – 128 and the rest of the bits are unsigned bits.

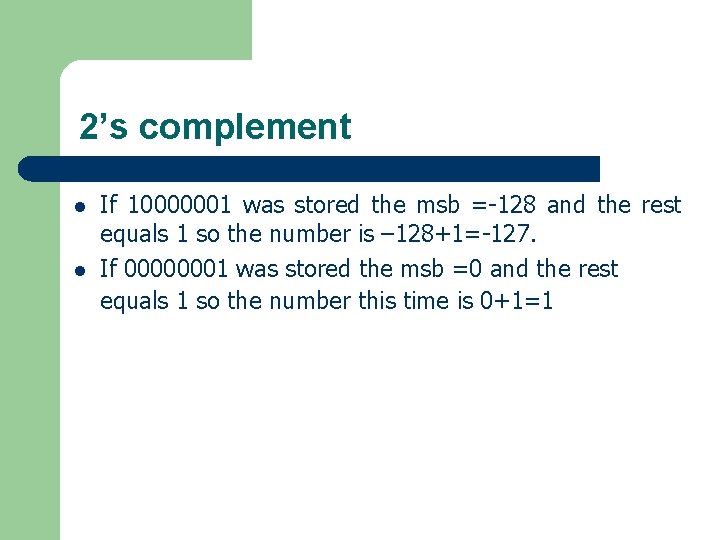

2’s complement l l If 10000001 was stored the msb =-128 and the rest equals 1 so the number is – 128+1=-127. If 00000001 was stored the msb =0 and the rest equals 1 so the number this time is 0+1=1

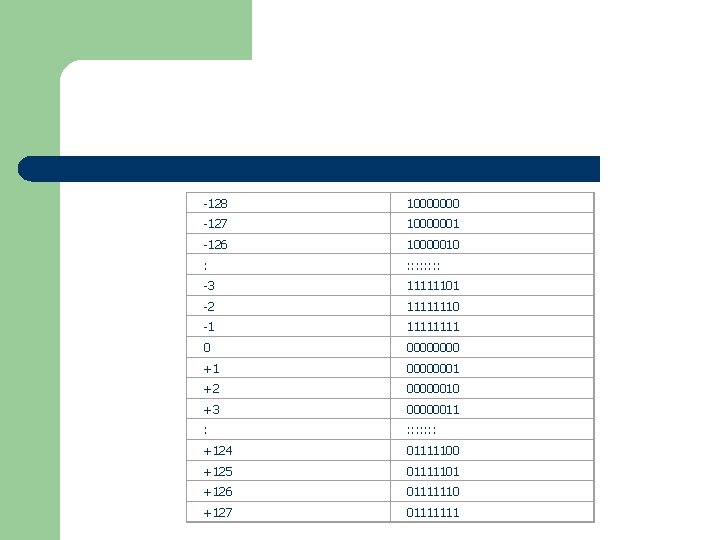

-128 10000000 -127 10000001 -126 10000010 : : : : : -3 11111101 -2 11111110 -1 1111 0 0000 +1 00000001 +2 00000010 +3 00000011 : : : : : +124 01111100 +125 01111101 +126 01111110 +127 01111111

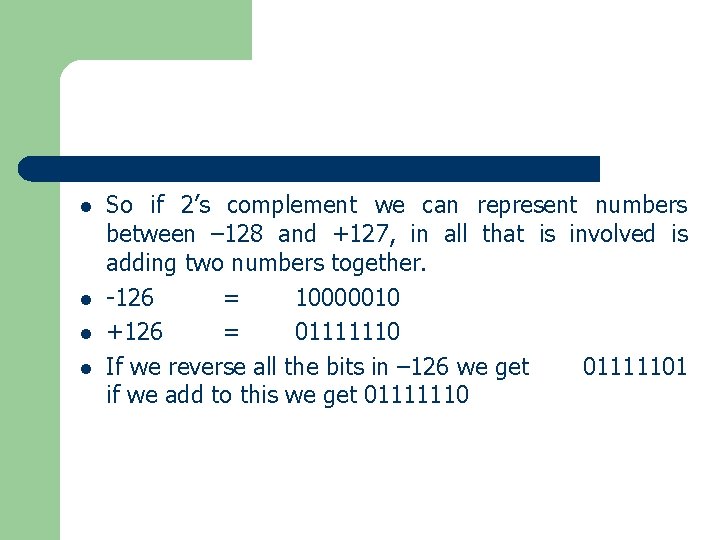

l l So if 2’s complement we can represent numbers between – 128 and +127, in all that is involved is adding two numbers together. -126 = 10000010 +126 = 01111110 If we reverse all the bits in – 126 we get 01111101 if we add to this we get 01111110

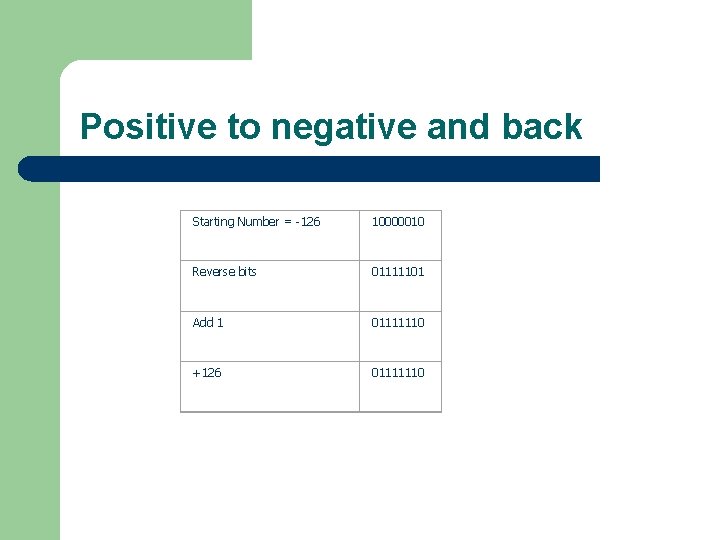

Positive to negative and back Starting Number = -126 10000010 Reverse bits 01111101 Add 1 01111110 +126 01111110

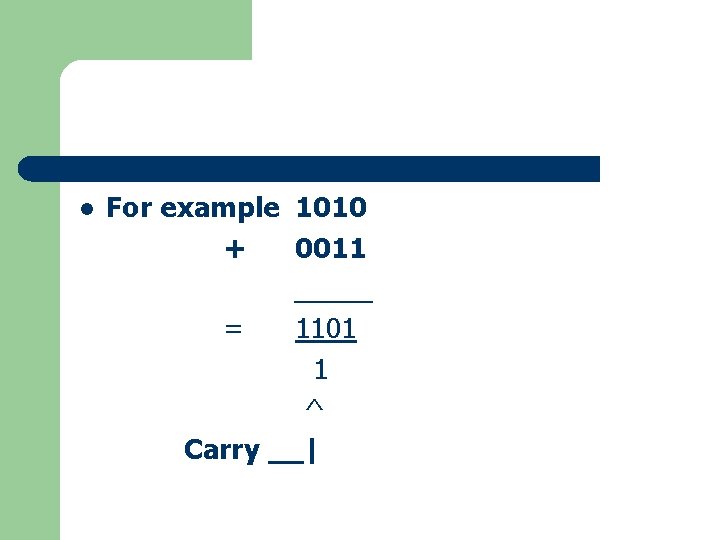

l For example 1010 + 0011 _____ = 1101 1 ^ Carry __|

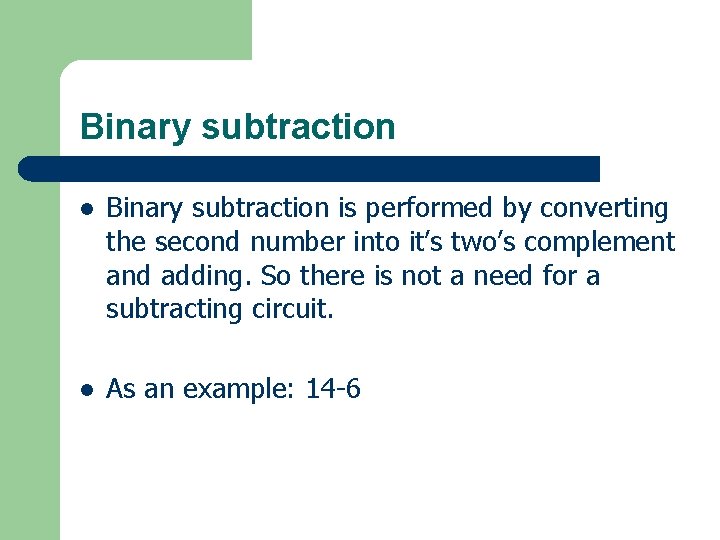

Binary subtraction l Binary subtraction is performed by converting the second number into it’s two’s complement and adding. So there is not a need for a subtracting circuit. l As an example: 14 -6

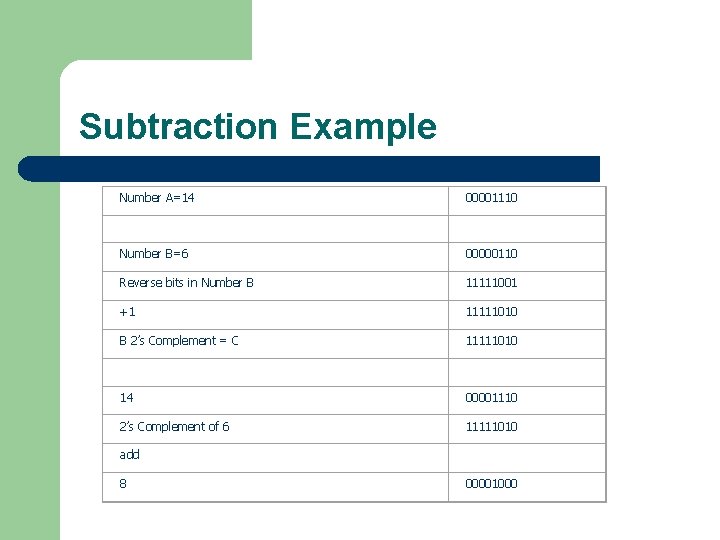

Subtraction Example Number A=14 00001110 Number B=6 00000110 Reverse bits in Number B 11111001 +1 11111010 B 2’s Complement = C 11111010 14 00001110 2’s Complement of 6 11111010 add 8 00001000

4 2 1 ½ ¼ 1/8 1/16 1 0 1 0

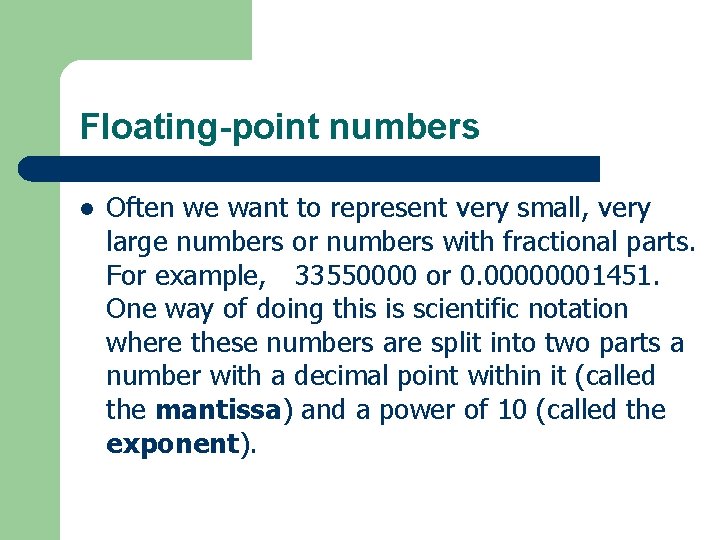

Floating-point numbers l Often we want to represent very small, very large numbers or numbers with fractional parts. For example, 33550000 or 0. 00000001451. One way of doing this is scientific notation where these numbers are split into two parts a number with a decimal point within it (called the mantissa) and a power of 10 (called the exponent).

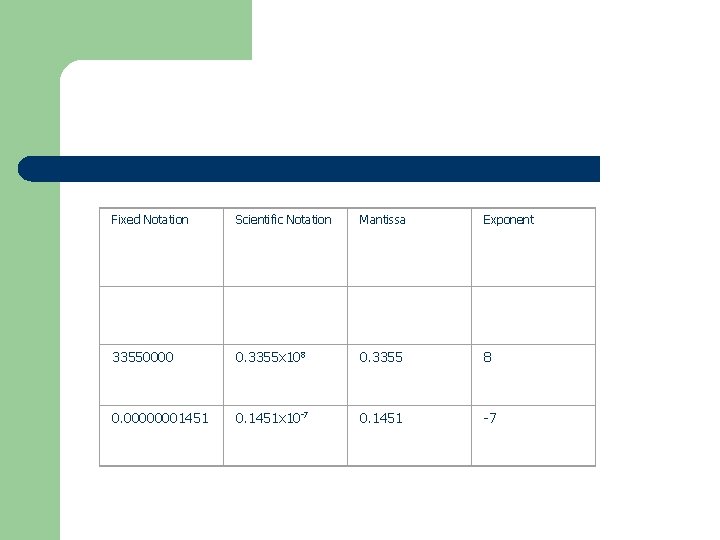

Fixed Notation Scientific Notation Mantissa Exponent 33550000 0. 3355 x 108 0. 3355 8 0. 00000001451 0. 1451 x 10 -7 0. 1451 -7

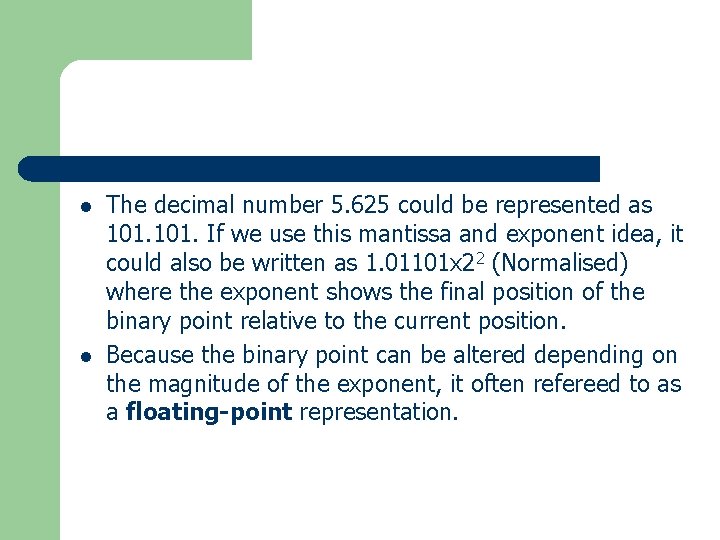

l l The decimal number 5. 625 could be represented as 101. If we use this mantissa and exponent idea, it could also be written as 1. 01101 x 22 (Normalised) where the exponent shows the final position of the binary point relative to the current position. Because the binary point can be altered depending on the magnitude of the exponent, it often refereed to as a floating-point representation.

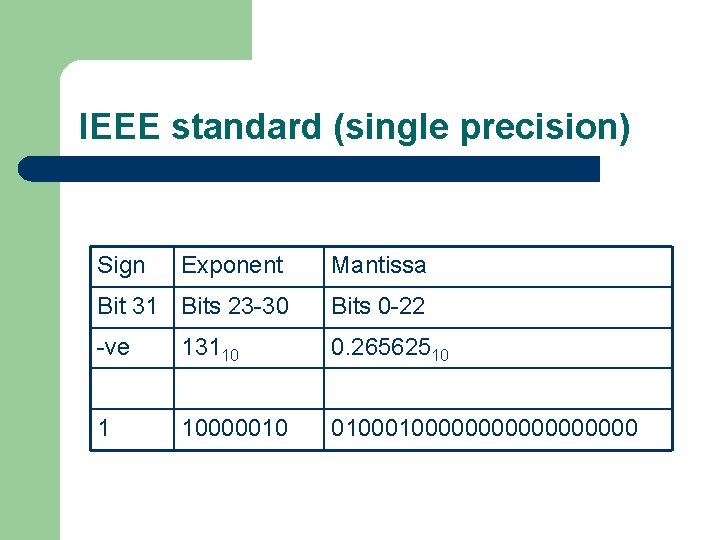

IEEE standard (single precision) Sign Exponent Mantissa Bit 31 Bits 23 -30 Bits 0 -22 -ve 13110 0. 26562510 1 10000010 010000000000

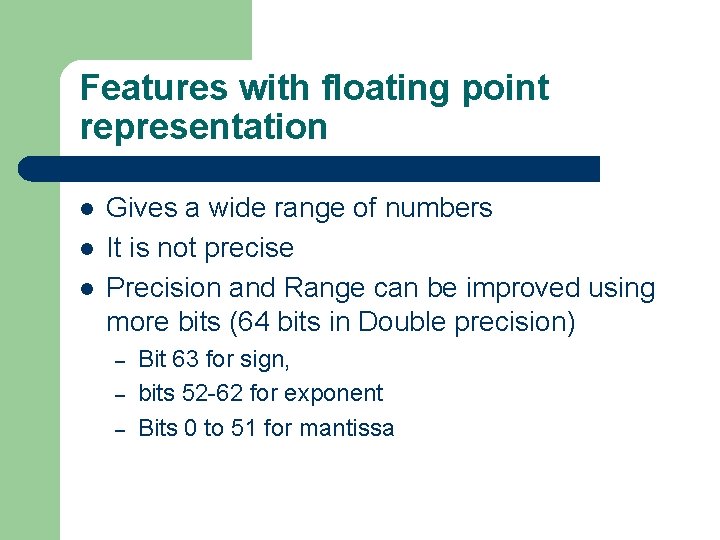

Features with floating point representation l l l Gives a wide range of numbers It is not precise Precision and Range can be improved using more bits (64 bits in Double precision) – – – Bit 63 for sign, bits 52 -62 for exponent Bits 0 to 51 for mantissa

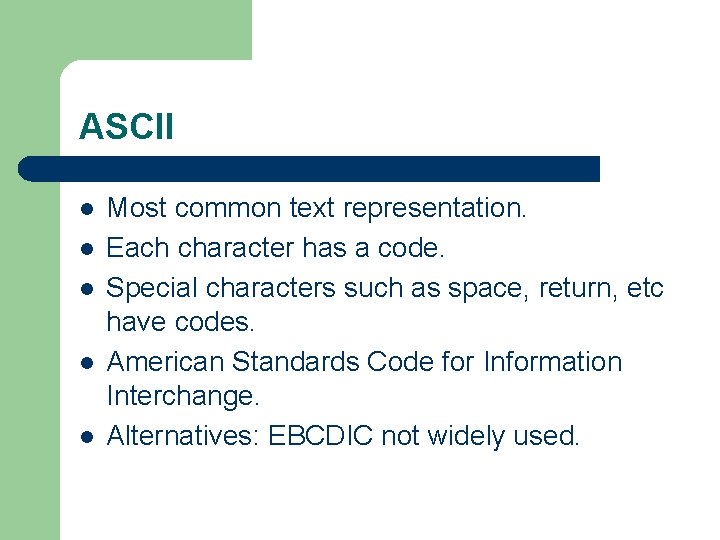

ASCII l l l Most common text representation. Each character has a code. Special characters such as space, return, etc have codes. American Standards Code for Information Interchange. Alternatives: EBCDIC not widely used.

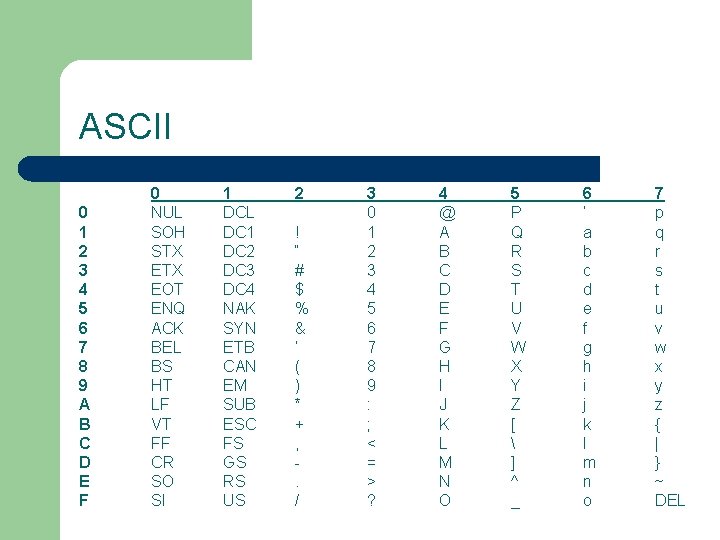

ASCII 0 1 2 3 4 5 6 7 8 9 A B C D E F 0 NUL SOH STX EOT ENQ ACK BEL BS HT LF VT FF CR SO SI 1 DCL DC 1 DC 2 DC 3 DC 4 NAK SYN ETB CAN EM SUB ESC FS GS RS US 2 ! “ # $ % & ‘ ( ) * + , . / 3 0 1 2 3 4 5 6 7 8 9 : ; < = > ? 4 @ A B C D E F G H I J K L M N O 5 P Q R S T U V W X Y Z [ ] ^ _ 6 ‘ a b c d e f g h i j k l m n o 7 p q r s t u v w x y z { | } ~ DEL

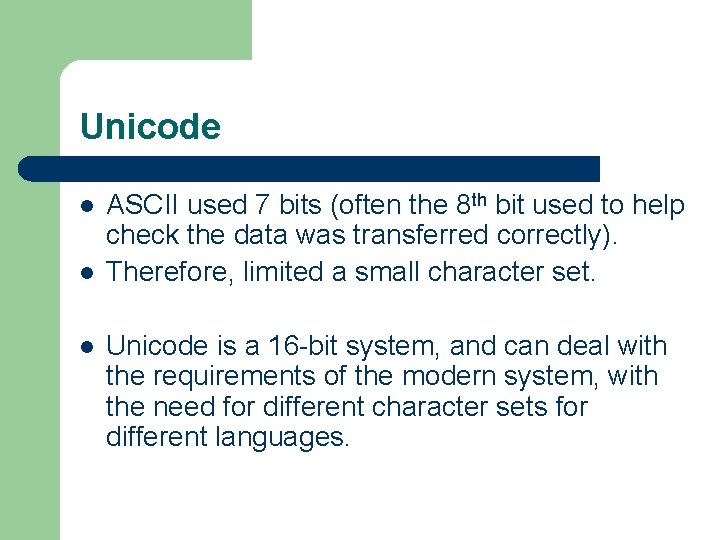

Unicode l l l ASCII used 7 bits (often the 8 th bit used to help check the data was transferred correctly). Therefore, limited a small character set. Unicode is a 16 -bit system, and can deal with the requirements of the modern system, with the need for different character sets for different languages.

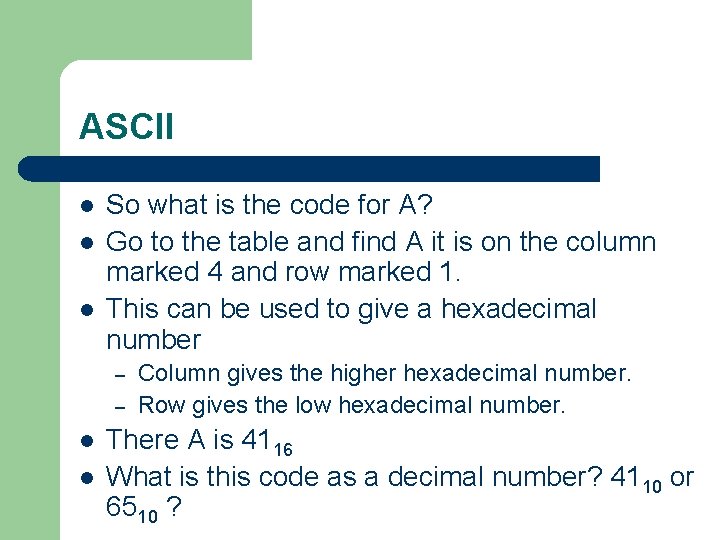

ASCII l l l So what is the code for A? Go to the table and find A it is on the column marked 4 and row marked 1. This can be used to give a hexadecimal number – – l l Column gives the higher hexadecimal number. Row gives the low hexadecimal number. There A is 4116 What is this code as a decimal number? 4110 or 6510 ?

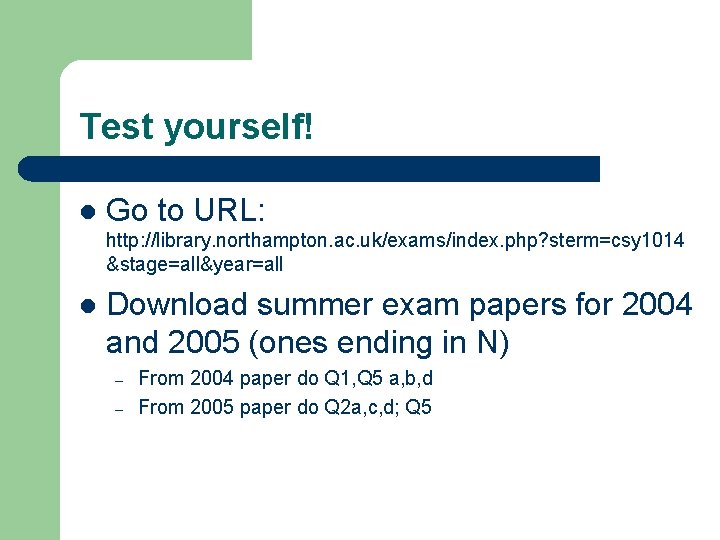

Test yourself! l Go to URL: http: //library. northampton. ac. uk/exams/index. php? sterm=csy 1014 &stage=all&year=all l Download summer exam papers for 2004 and 2005 (ones ending in N) – – From 2004 paper do Q 1, Q 5 a, b, d From 2005 paper do Q 2 a, c, d; Q 5
