Lockheed Martin ATML Experiences AUTOTESTCON 2010 Michelle Harris SW Engineering Mgr. Automated Test Systems

Lockheed Martin ATML Experiences AUTOTESTCON 2010 Michelle Harris SW Engineering Mgr. Automated Test Systems Michelle. L. Harris@LMCO. com ATML Experiences 1/6/2022 1

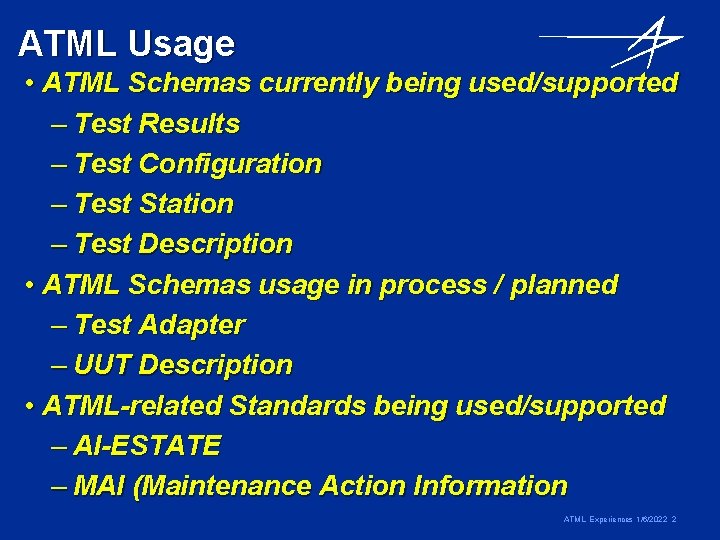

ATML Usage • ATML Schemas currently being used/supported – Test Results – Test Configuration

ATML Usage • ATML Schemas currently being used/supported – Test Results – Test Configuration – Test Station – Test Description • ATML Schemas usage in process / planned – Test Adapter – UUT Description • ATML-related Standards being used/supported – AI-ESTATE – MAI (Maintenance Action Information ATML Experiences 1/6/2022 2

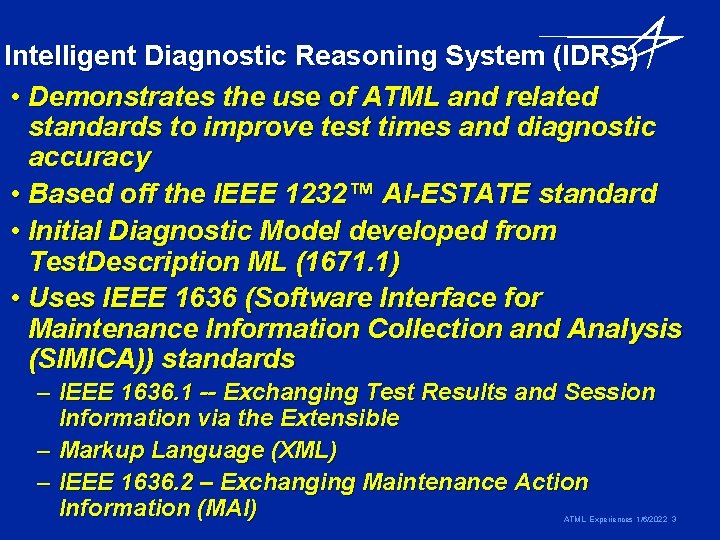

Intelligent Diagnostic Reasoning System (IDRS) • Demonstrates the use of ATML and related standards

Intelligent Diagnostic Reasoning System (IDRS) • Demonstrates the use of ATML and related standards to improve test times and diagnostic accuracy • Based off the IEEE 1232™ AI-ESTATE standard • Initial Diagnostic Model developed from Test. Description ML (1671. 1) • Uses IEEE 1636 (Software Interface for Maintenance Information Collection and Analysis (SIMICA)) standards – IEEE 1636. 1 -- Exchanging Test Results and Session Information via the Extensible – Markup Language (XML) – IEEE 1636. 2 – Exchanging Maintenance Action Information (MAI) ATML Experiences 1/6/2022 3

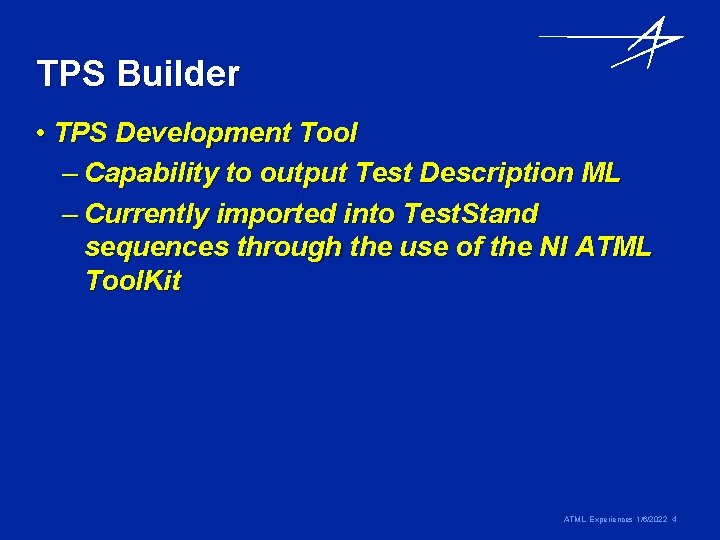

TPS Builder • TPS Development Tool – Capability to output Test Description ML –

TPS Builder • TPS Development Tool – Capability to output Test Description ML – Currently imported into Test. Stand sequences through the use of the NI ATML Tool. Kit ATML Experiences 1/6/2022 4

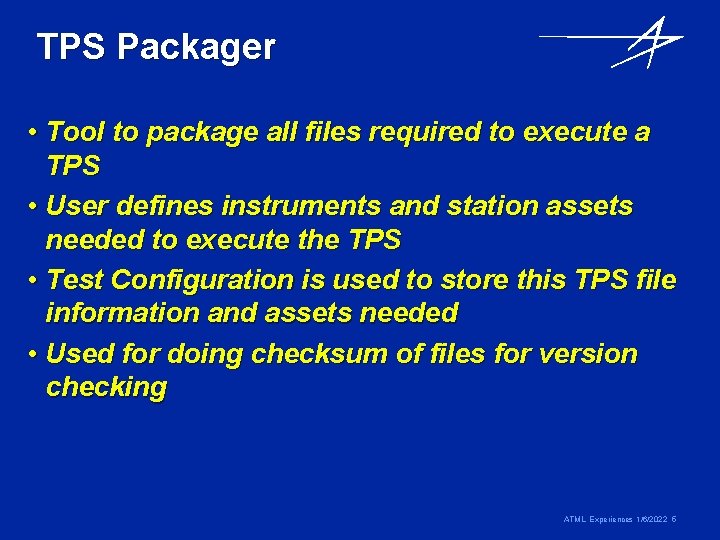

TPS Packager • Tool to package all files required to execute a TPS •

TPS Packager • Tool to package all files required to execute a TPS • User defines instruments and station assets needed to execute the TPS • Test Configuration is used to store this TPS file information and assets needed • Used for doing checksum of files for version checking ATML Experiences 1/6/2022 5

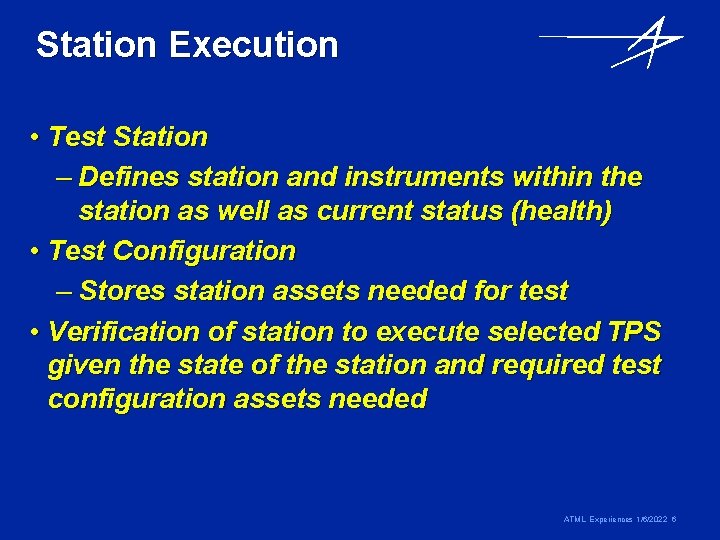

Station Execution • Test Station – Defines station and instruments within the station as

Station Execution • Test Station – Defines station and instruments within the station as well as current status (health) • Test Configuration – Stores station assets needed for test • Verification of station to execute selected TPS given the state of the station and required test configuration assets needed ATML Experiences 1/6/2022 6

Switch Development Tool • Tool currently under development that will provide the TPS developer

Switch Development Tool • Tool currently under development that will provide the TPS developer with a graphical interface for defining switch paths from the station instruments to the ITA and UUT • Utilizes following ATML schemas – Test Adapter – Test Station – Test Configuration – UUT Description ATML Experiences 1/6/2022 7
