Lockheed Martin Additive Manufacturing Introduction to Engineering Design EDGSN 100 Section 002 Joint City/Design Team 1 Mathias Haegele, webpage, mjh 5867@psu. edu James Lauer, webpage, jxl 5866@psu. edu Liam Raehsler, webpage, ldr 5145@psu. edu Meghan Williams, web page, mrw 5479@psu. edu Presented to: Prof. Berezniak Date: 04/29/16

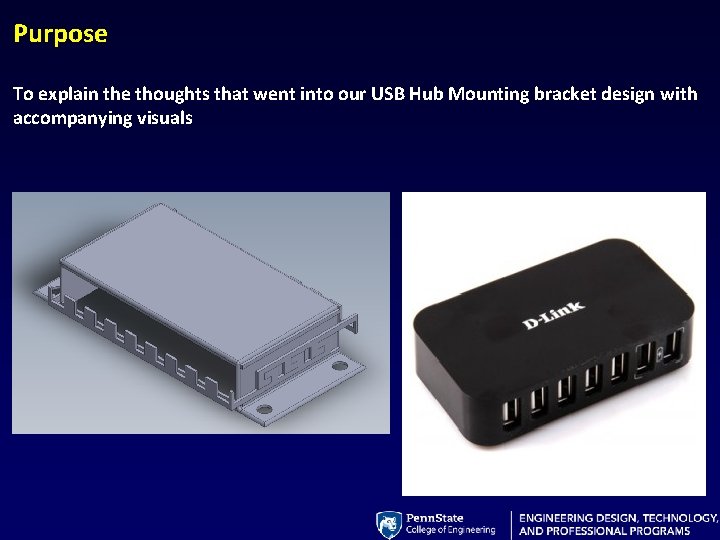

Purpose To explain the thoughts that went into our USB Hub Mounting bracket design with accompanying visuals

Background - to design a new mounting bracket using additive manufacturing that can hold a 7 -port USB hub vertically and hold the necessary cables in place under excessive vibrations

Sponsor – Lockheed Martin

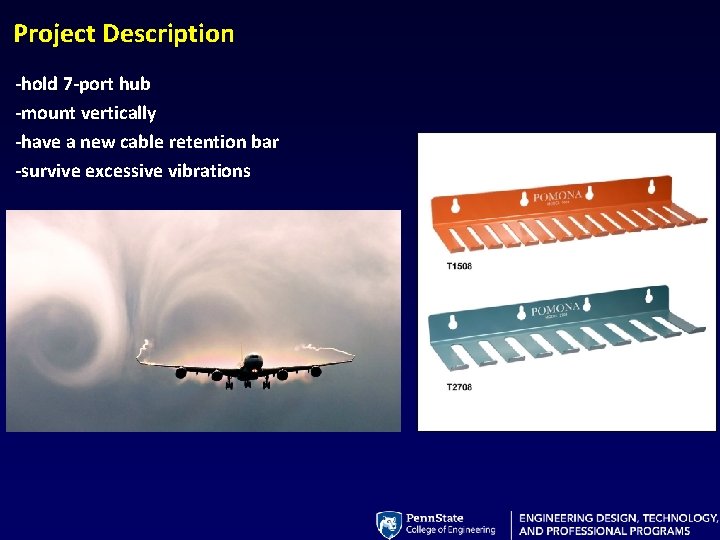

Project Description -hold 7 -port hub -mount vertically -have a new cable retention bar -survive excessive vibrations

Procedures (1 of 2) -Collaborated ideas in order to minimize the part count -Drafted the ideas on paper to help iron out kinks

Procedures (2 of 2) - Used Solidworks to create actual parts - Used Makerbot software to push ideas towards assembly

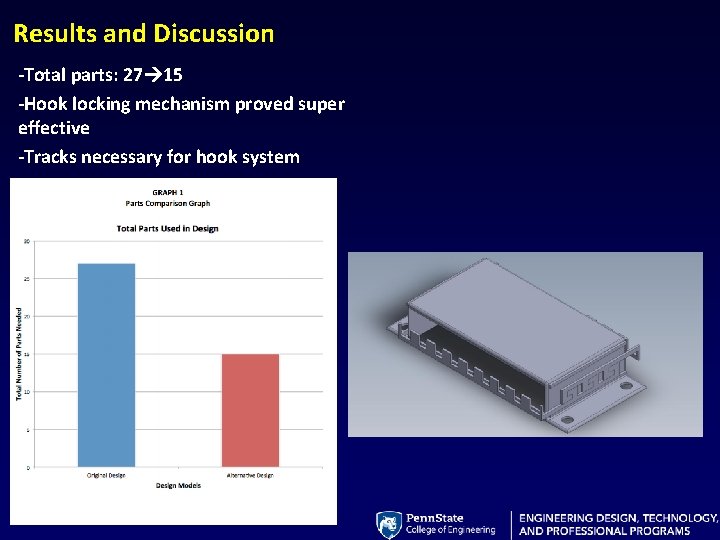

Results and Discussion -Total parts: 27 15 -Hook locking mechanism proved super effective -Tracks necessary for hook system

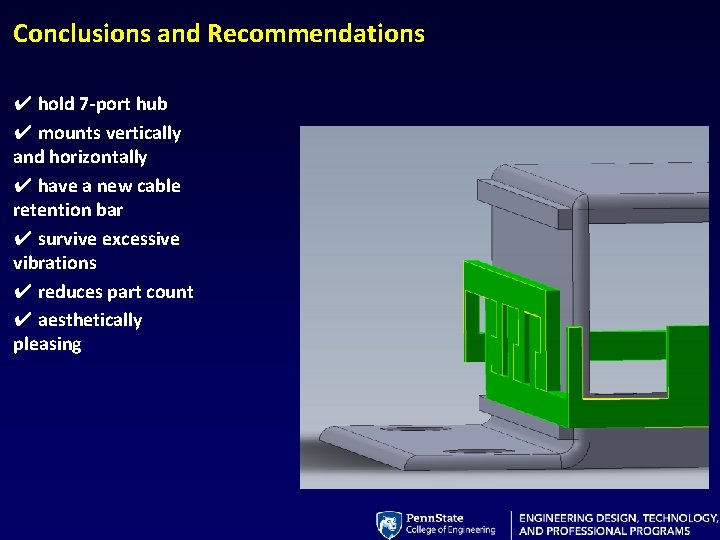

Conclusions and Recommendations ✔ hold 7 -port hub ✔ mounts vertically and horizontally ✔ have a new cable retention bar ✔ survive excessive vibrations ✔ reduces part count ✔ aesthetically pleasing
