Location Reference Systems GTECH 201 Lecture 06 Flattening
- Slides: 61
Location Reference Systems GTECH 201 Lecture 06
Flattening the Earth
Historical Projections n Marinus n Ptolemy n Mercator
Distortions n Shape n Area n Distance n Direction

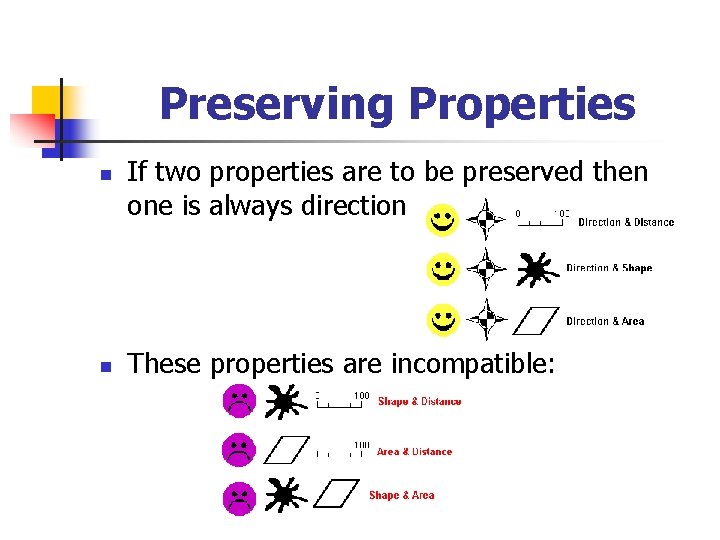

Preserving Properties n n If two properties are to be preserved then one is always direction These properties are incompatible:
Shape Property n n Conformal Non-conformal

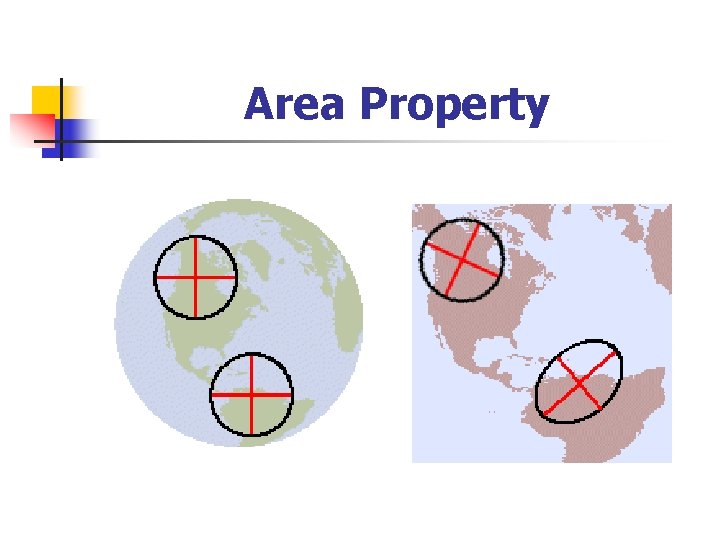

Area Property
Distance Property
Direction Property
Direction Property n Mercator with rhumb line or loxodrome n Azimuthal map with shortest distance

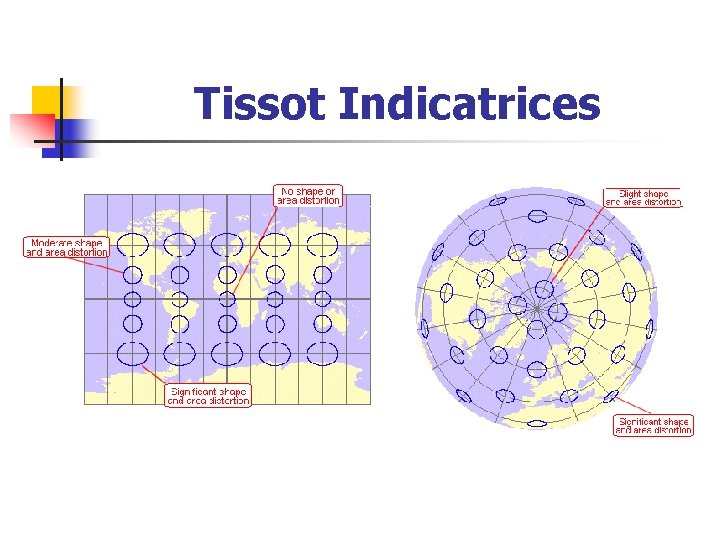

Tissot Indicatrices
Distortions n Mercator n Sinusoidal n Equal-area cylindrical n Robinson
Cylindrical Projections
Conic Projections
Planar Projections

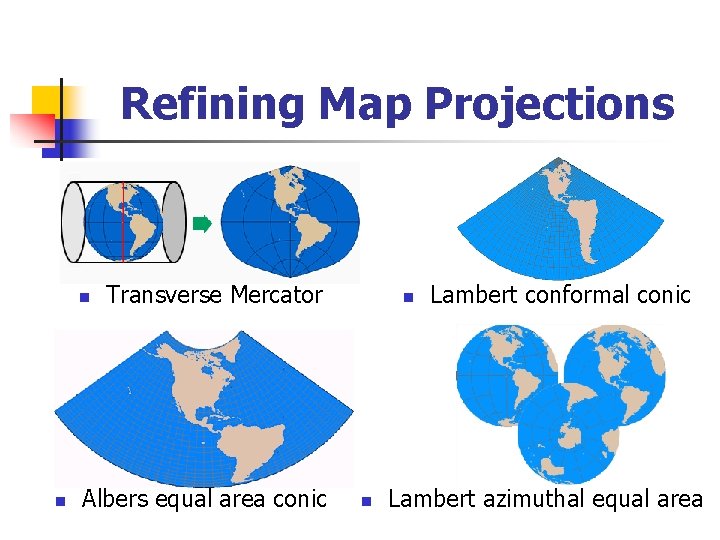

Refining Map Projections n n Transverse Mercator Albers equal area conic n n Lambert conformal conic Lambert azimuthal equal area

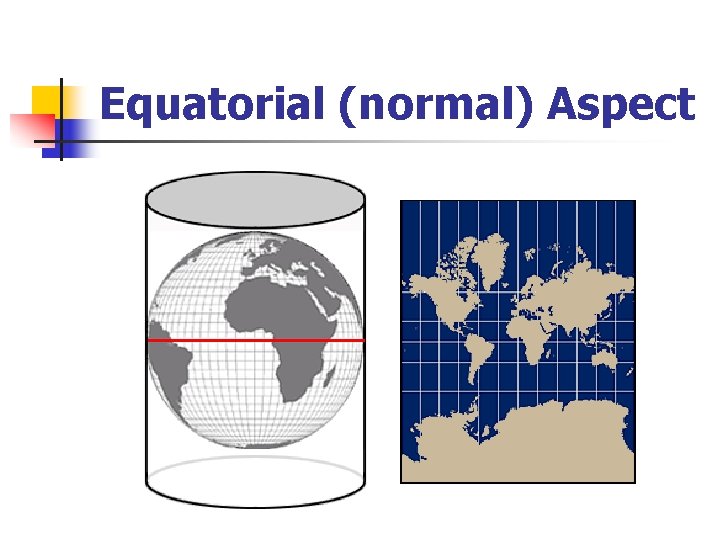

Equatorial (normal) Aspect
Transverse Aspect
Oblique Aspect
Aspects for Planar Projections n Polar Gnomic Stereographic Orthographic
Aspects for Planar Projections n Equatorial Aspect Gnomic Stereographic Orthographic
Aspects for Planar Projections n Oblique Aspect Gnomic Stereographic Orthographic

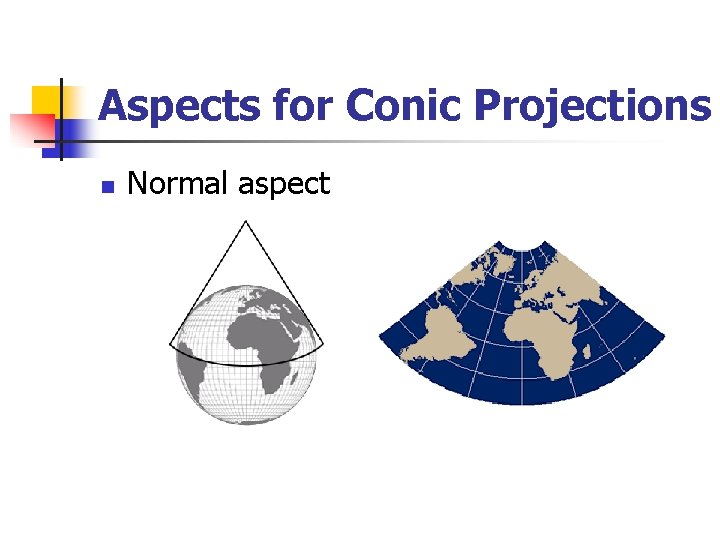

Aspects for Conic Projections n Normal aspect
Polyconic Projection n Hassler, 1820 s US Coastal Survey

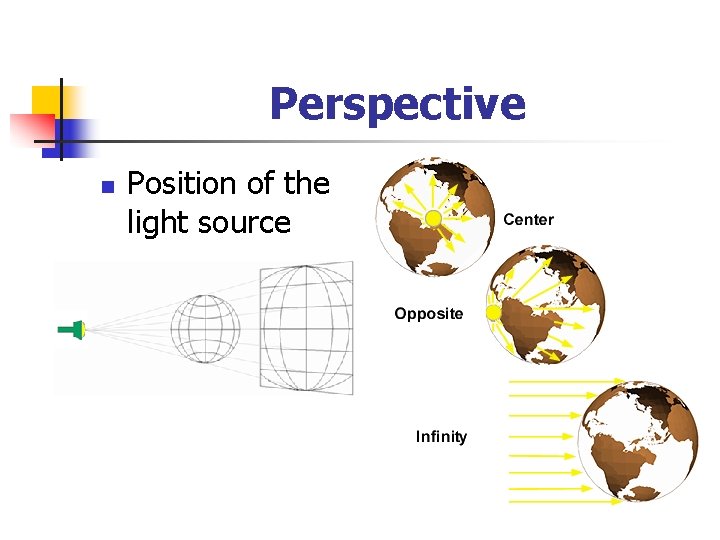

Perspective n Position of the light source
Perspectives
Other Perspective Projections Lambert cylindrical equal area
Classifying Projections n Cylindrical and pseudo-cylindrical

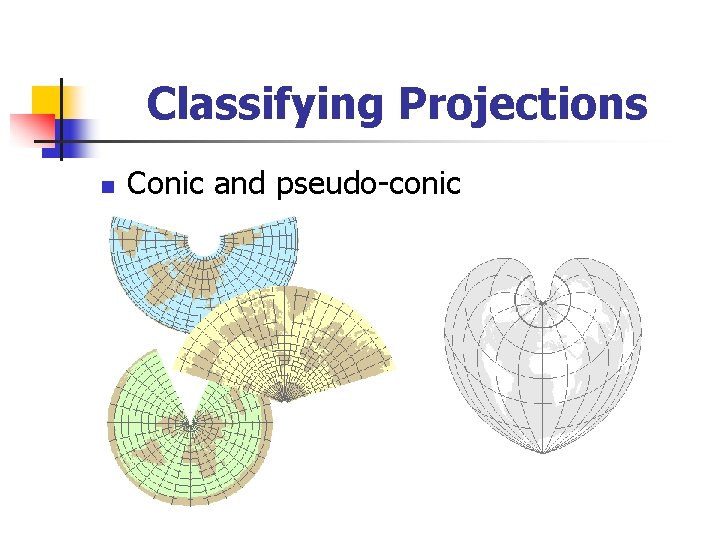

Classifying Projections n Conic and pseudo-conic
Classifying Projections n Planar and modified planar
Classifying Projections
Classifying Projections Cylindrical straight parallels; straight meridians Pseudo-cylindrical straight parallels, curved meridians Conic partial concentric circles for parallels; straight meridians Pseudo-conic Planar Modified planar partial concentric circles for parallels; curved meridians Concentric circles for parallels; straight meridians No common appearance of parallels and meridians
Projections Parameters n Angular parameters n n n Central meridian Latitude of origin Standard parallel Latitude of center Central parallel n Linear parameters n n n False easting False northing Scale factor
Origin of X, Y Coordinates
Central Parallel
False Easting/northing
Scale n Mercator n UTM
Choosing a Map Projection n Conformal (shape-preserving) maps n n Topographic and cadastral Navigation Civil engineering Weather
Choosing a Map Projection n Area-preserving maps n n n Population density Land use Quantitative attributes
Choosing a Map Projection n Scale-preserving maps no map preserves true distance for all measurements n n n Airline distances Distance from epicenter of an earthquake Cost calculations

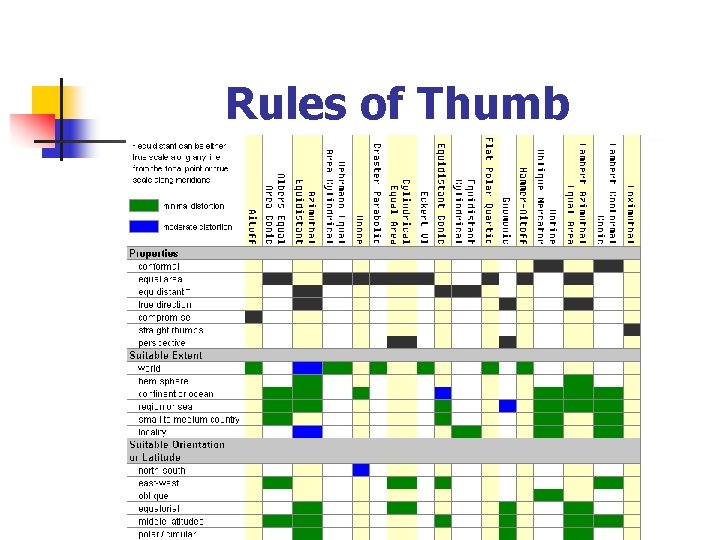

Rules of Thumb
Rules of Thumb
Rules of Thumb
Coordinate Systems n Two ways to identify a position on a plane
Coordinate Systems n . . and on a sphere
Geographic Coordinate Systems Latitude and longitude defined on a sphere
Geographic Coordinate Systems n Latitude defined on a spheroid (longitude is as on a sphere)
Components of a GCS n An angular unit of measure n A prime meridian n A datum, which includes a spheroid
Planar Coordinate Systems
Cartesian Coordinates n Calculate distance A-B
Universal Transverse Mercator n UTM zones

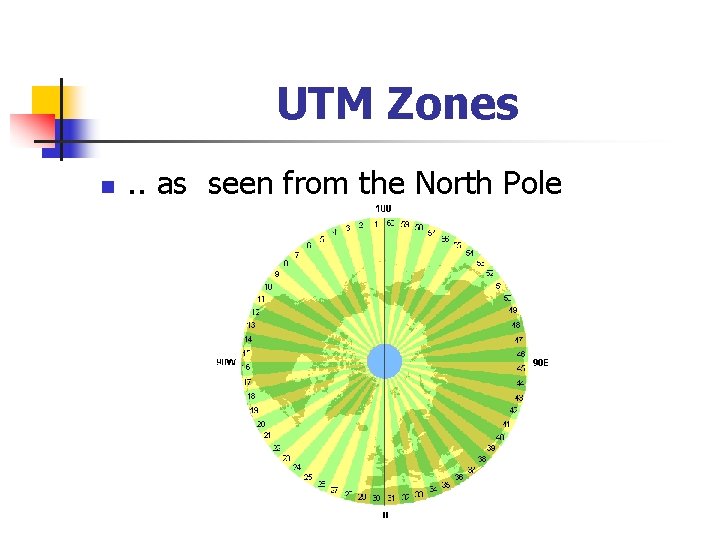

UTM Zones n . . as seen from the North Pole
UTM Projections n Each zone uses a custom Transverse Mercator projection with its own central meridian
Universal Polar Stereographic n Fills the holes of UTM in polar regions
State Plane Coordinate System
SPC n n N-S zones use Transverse Mercator E-W zones use Lambert Conformal Conic Maximal scale error is 1: 10, 000 NAD 27 or NAD 83 datum
Public Land Survey System PLS are shown in purple
PLS n n n It is used to locate areas, not points It is not rigorous enough for spatial analysis like the calculation of distance or direction It is not a grid imposed on a map projection (a system invented in a room), but lines measured on the ground by surveyors
PLS Meridians and Baselines
PLS Area Unit Hierarchy
PLS Township Sections A township is divided into 36 sections, each a square mile (640 acres) A section is divided into 160 -acre quarters, which can be further divided into halves, quarters, and so on
