LO 090 PDM-Overview LO 090 ã SAP AG 1999 Product Data Management
Variant Configuration: Course Overview Diagram Course Overview 1 Classification 8 Navigation 2 Engineering Change Management 9 PDM Overview 3 Variant Configuration 10 Document Management 4 Integrated Distributed PDM Solution 11 Material Master 5 Project System 12 BOM Management 6 ASAP 13 CAD Interface 7 Summary 14
Variant Configuration: Business Scenario l Your company receives a sales order for a pump. l You use variant configuration to manufacture each individual pump.
Configurable Products
Customer Inquiry and Order Confirmation Time Quality 2 (Engineering) Costs Technical clearing Inquiry Sales Customer Work scheduling Time

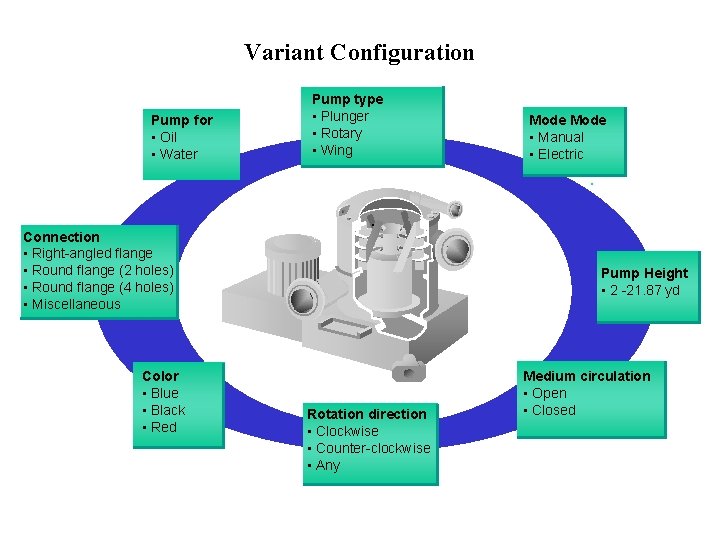

Variant Configuration Pump for • Oil • Water Pump type • Plunger • Rotary • Wing Connection • Right-angled flange • Round flange (2 holes) • Round flange (4 holes) • Miscellaneous Color • Blue • Black • Red Mode • Manual • Electric Pump Height • 2 -21. 87 yd Rotation direction • Clockwise • Counter-clockwise • Any Medium circulation • Open • Closed
Configurable Product, Class, and Characteristics Configurable product: P-500 Class: CL_P 500 Class type: Material Class 300
Configurable Product, Class, and Characteristics Configurable product: P-500 Class: CL_P 500 Class type: Material Class 300 Characteristics: Pump for Mode Pump type Connection Pump Height Values: Oil Water Manual Electric Plunger Rotary Wing Right-angle 2 -21. 87 yd Round Misc. Color Blue Red

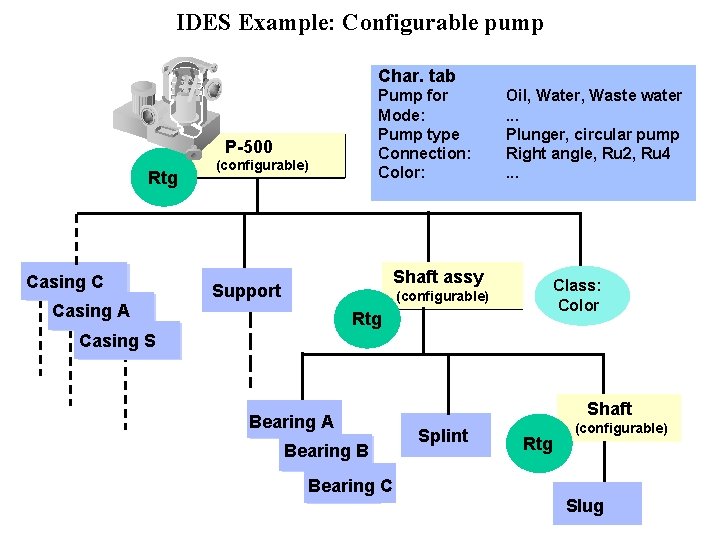

IDES Example: Configurable pump Char. tab Pump for Mode: Pump type Connection: Color: P-500 Rtg Casing C (configurable) Oil, Water, Waste water. . . Plunger, circular pump Right angle, Ru 2, Ru 4. . . Shaft assy Support Class: Color (configurable) Casing A Rtg Casing S Bearing A Bearing B Bearing C Shaft Splint Rtg (configurable) Slug

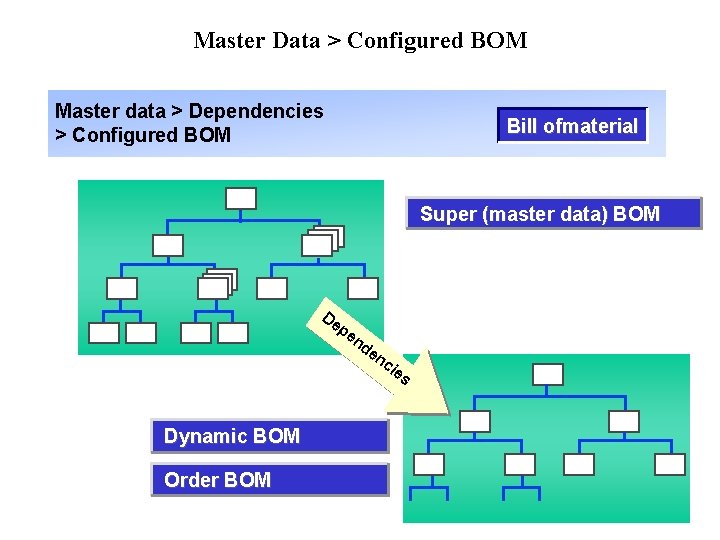

Master Data > Configured BOM Master data > Dependencies > Configured BOM Bill ofmaterial Super (master data) BOM De pe nd Dynamic BOM Order BOM en ci es
Master Data > Configured Task List Master data > Dependencies > Configured task list Task list Super (master data) task list De pe nd en ci Copy task list Dynamic operation sequence es
Dependencies l Dependencies describe the interdependencies between objects in the configuration process. l They are used in configuration to ensure that the configuration is consistent and complete.
Dependency Types Lets you hide and show characteristics and Precondition characteristic values. The object only appears if the precondition is true. Selection criterion Procedure (Action) Constraint Forces the selection of objects such as BOM items, operations in routings, and characteristics in explosion functions. Changes the value assignments or object items in the configuration, if the object is included in the configuration. Describes interdependencies between different objects in a configuration.
Dependencies (Examples) BOM item Characteristic values Support Plunger pump Wet pit Req u i red O p ti o n a l Selection condition Extras (options) EQ "with support" (Characteristic) (Value) Precondition Pump for EQ Action "oil" OR "Waster water"' (Characteristic) (Value) Pump for Pump type Suspension Wet pit
Example: Sales Order SD: Sales and Distribution and Customer Sales order 10 P-500 (Pump) Value Assignment Pump for Oil Mode Manual Pump type Plunger Connection form Right-angle flange Characteristic values for the pump
Example: Sales Order with Processing Afterwards SD: Sales and Distribution and Customer Technical order processing Order BOM - Knowledge based - results oriented P-501 (Pump) 2 steps Shaft assy Sales order Shaft 10 P-500 (Pump) BOM Maintenance Value Assignment Pump for Order BOM item: Oil Mode Manual Pump type Plunger Connection form Right-angle flange 10 P-501 (Pump) Configuration multi-level manual change Order related Task list
