Little and bigendian memory organizations 2000 Addison Wesley

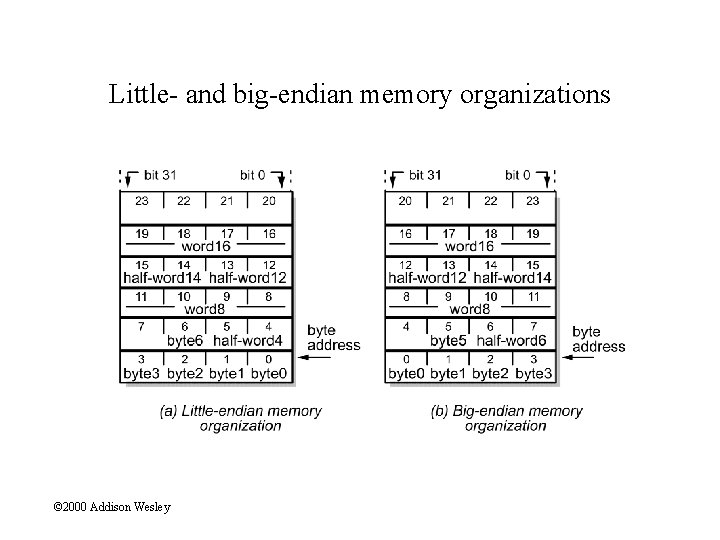

Little- and big-endian memory organizations © 2000 Addison Wesley

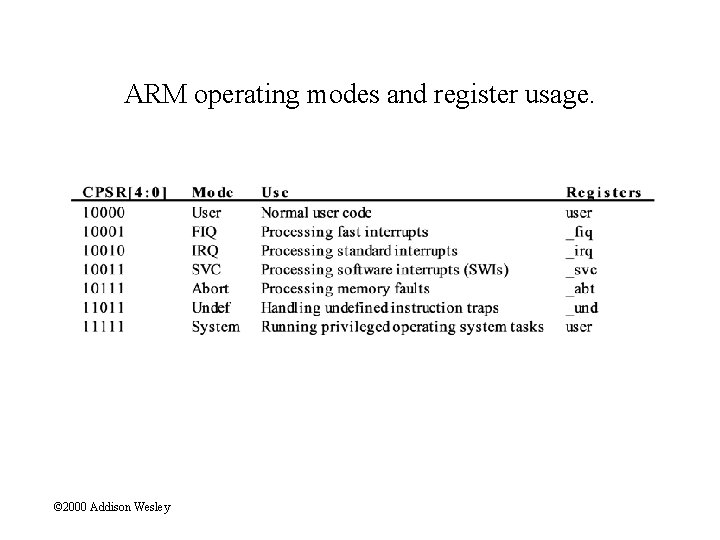

ARM operating modes and register usage. © 2000 Addison Wesley

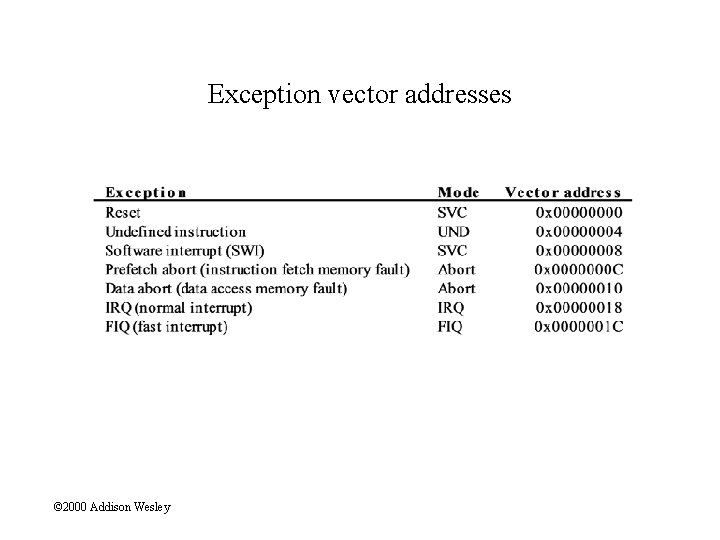

Exception vector addresses © 2000 Addison Wesley

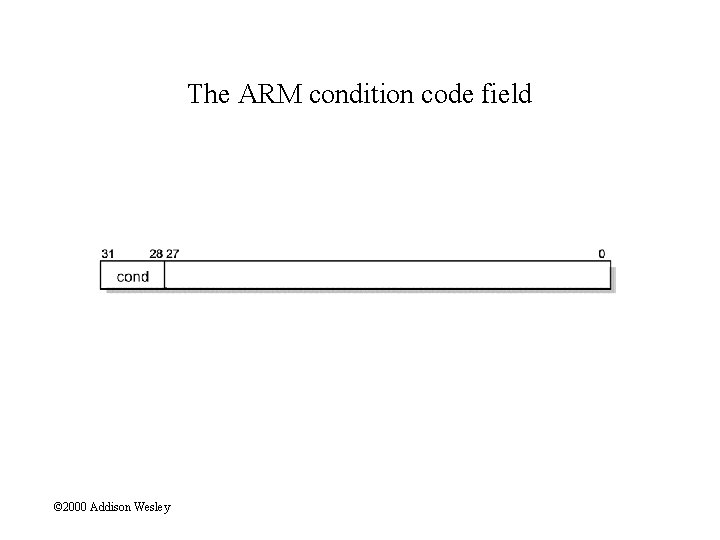

The ARM condition code field © 2000 Addison Wesley

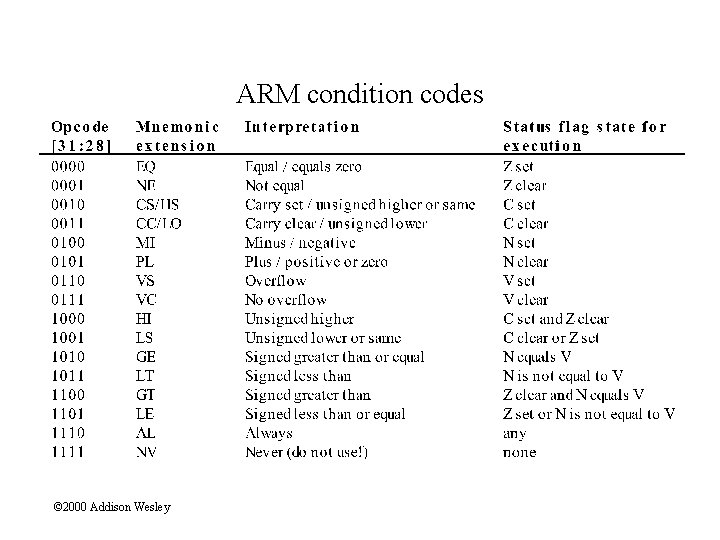

ARM condition codes © 2000 Addison Wesley

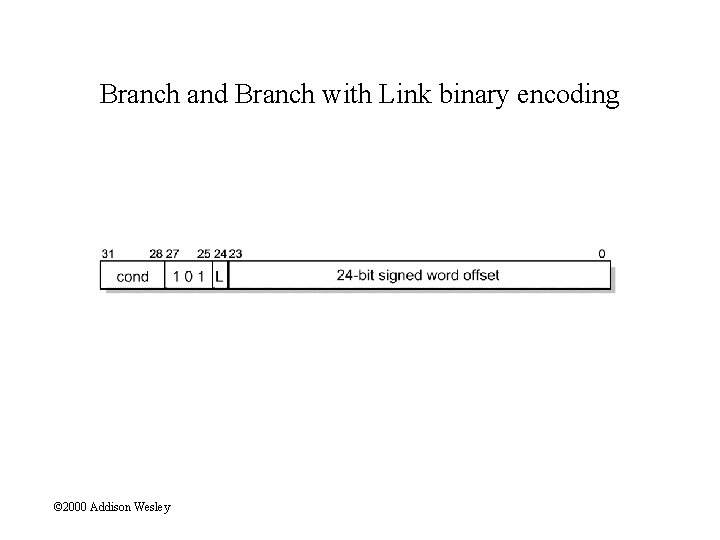

Branch and Branch with Link binary encoding © 2000 Addison Wesley

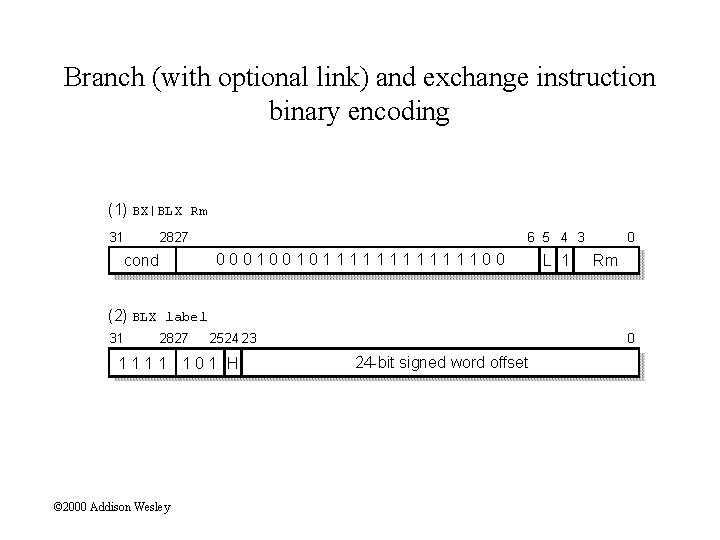

Branch (with optional link) and exchange instruction binary encoding (1) BX|BLX Rm 31 2827 6 5 4 3 0001001011111100 cond L 1 0 Rm (2) BLX label 31 2827 2524 23 1111 101 H © 2000 Addison Wesley 0 24 -bit signed word offset

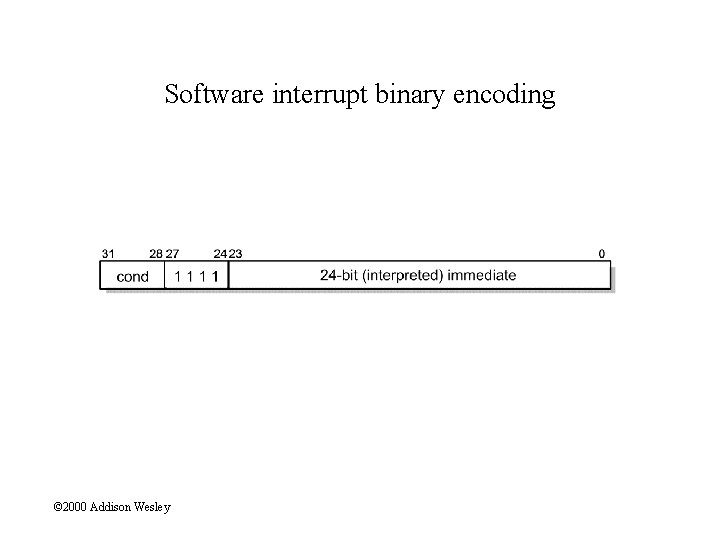

Software interrupt binary encoding © 2000 Addison Wesley

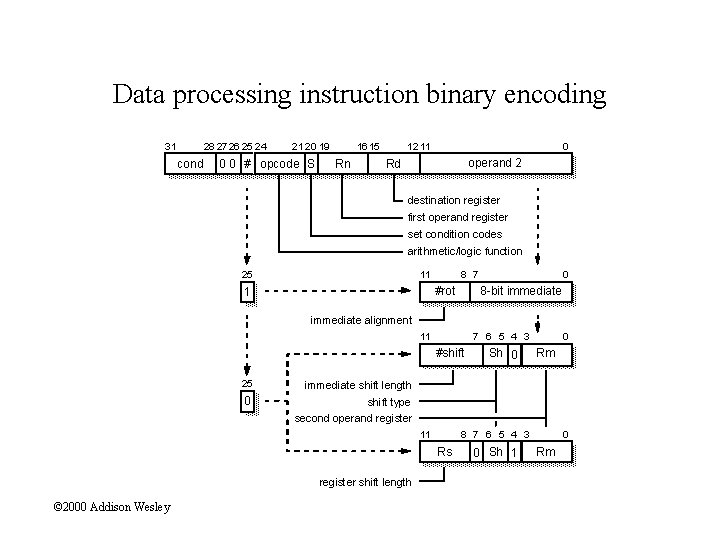

Data processing instruction binary encoding 31 28 2726 25 24 cond 21 20 19 0 0 # opcode S 1615 Rn 12 11 0 operand 2 Rd destination register first operand register set condition codes arithmetic/logic function 25 11 8 7 #rot 1 0 8 -bit immediate alignment 11 7 6 5 4 3 #shift 25 immediate shift length 0 shift type Sh 0 0 Rm second operand register 11 8 7 6 5 4 3 Rs register shift length © 2000 Addison Wesley 0 Sh 1 0 Rm

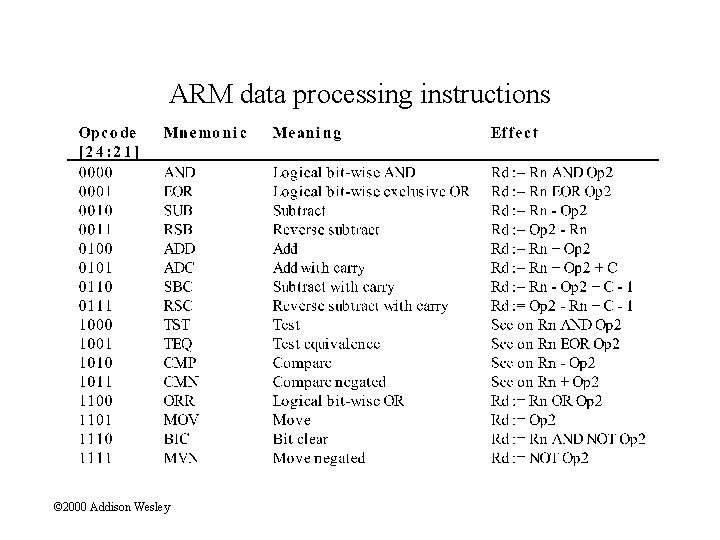

ARM data processing instructions © 2000 Addison Wesley

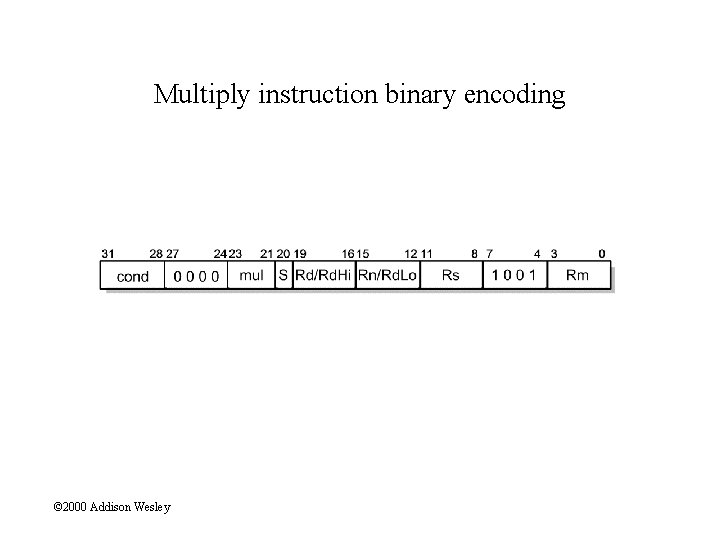

Multiply instruction binary encoding © 2000 Addison Wesley

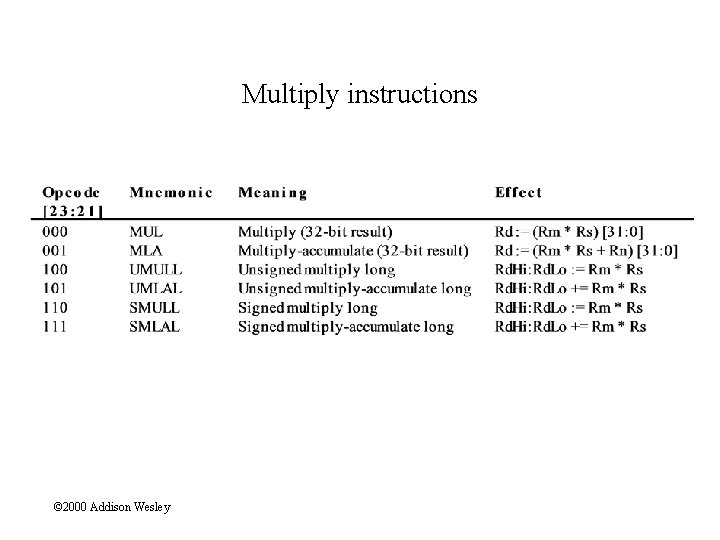

Multiply instructions © 2000 Addison Wesley

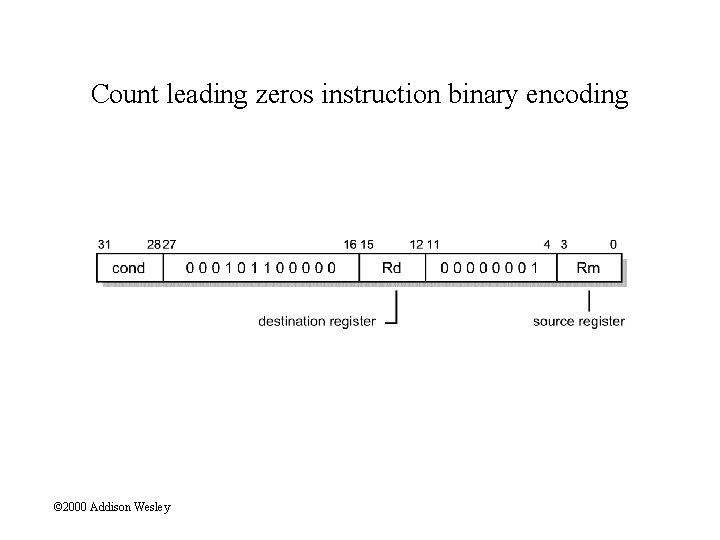

Count leading zeros instruction binary encoding © 2000 Addison Wesley

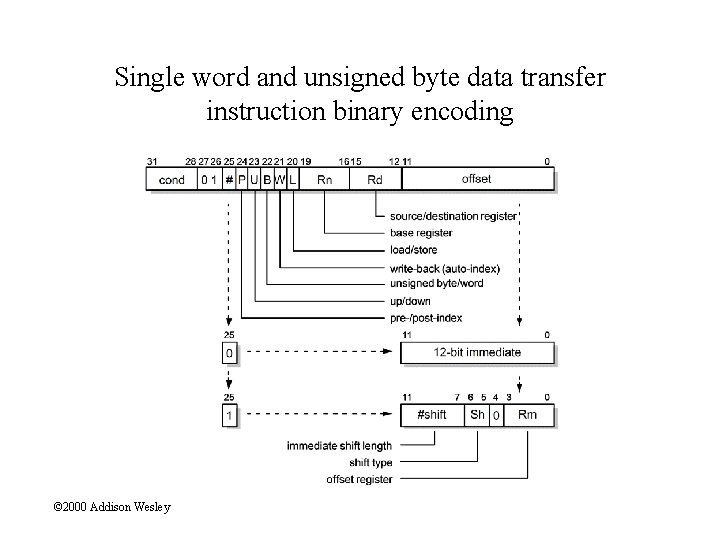

Single word and unsigned byte data transfer instruction binary encoding © 2000 Addison Wesley

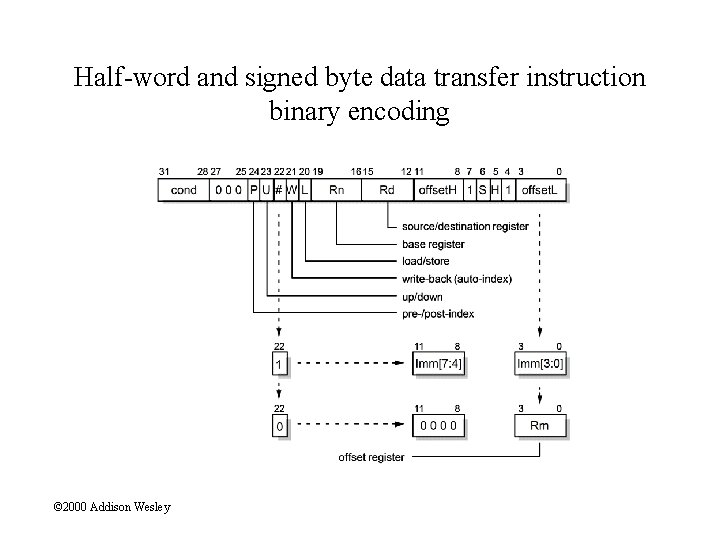

Half-word and signed byte data transfer instruction binary encoding © 2000 Addison Wesley
Data type encoding © 2000 Addison Wesley

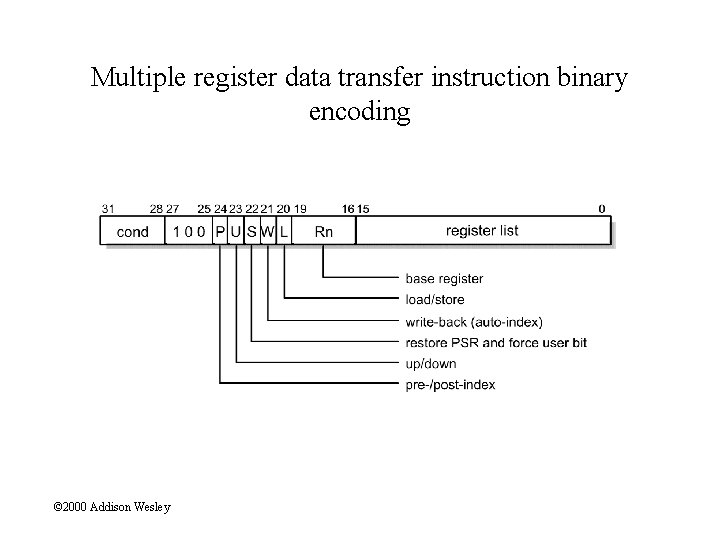

Multiple register data transfer instruction binary encoding © 2000 Addison Wesley

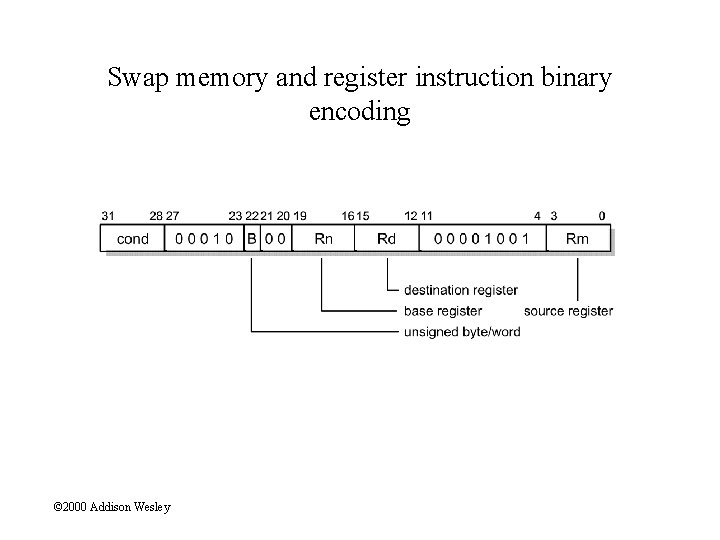

Swap memory and register instruction binary encoding © 2000 Addison Wesley

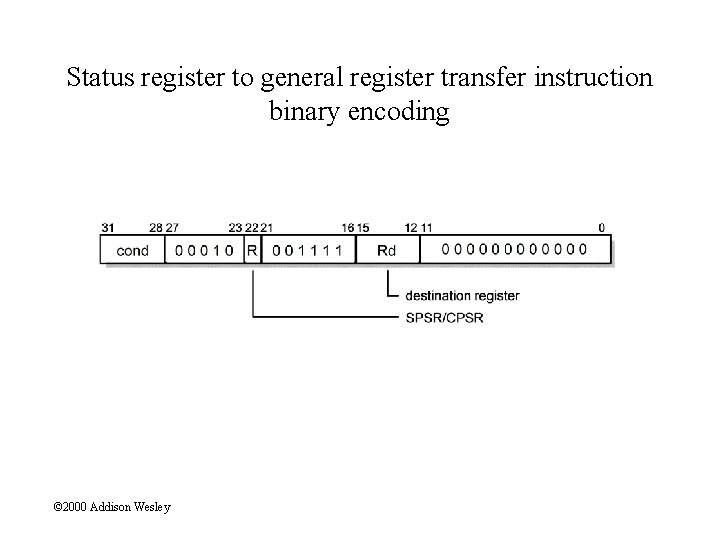

Status register to general register transfer instruction binary encoding © 2000 Addison Wesley

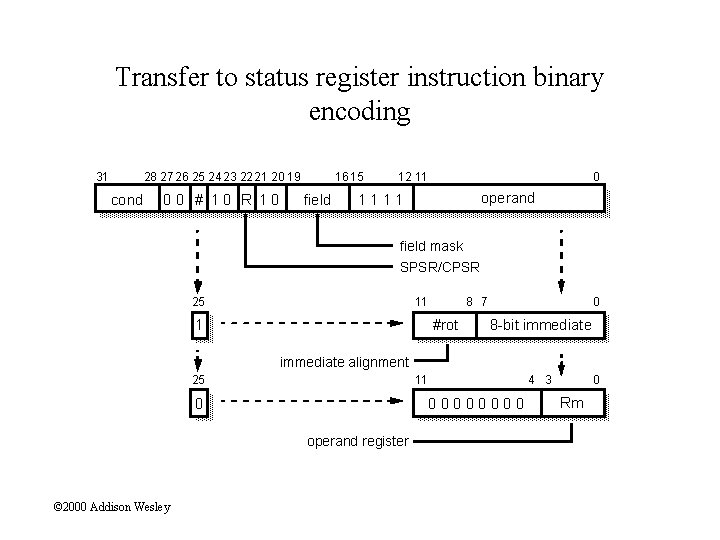

Transfer to status register instruction binary encoding 31 28 27 26 25 24 23 22 21 20 19 cond 00 # 10 R 10 16 15 field 12 11 0 operand 1111 field mask SPSR/CPSR 25 11 1 8 7 #rot 0 8 -bit immediate alignment 25 11 0 0000 operand register © 2000 Addison Wesley 4 3 0 Rm

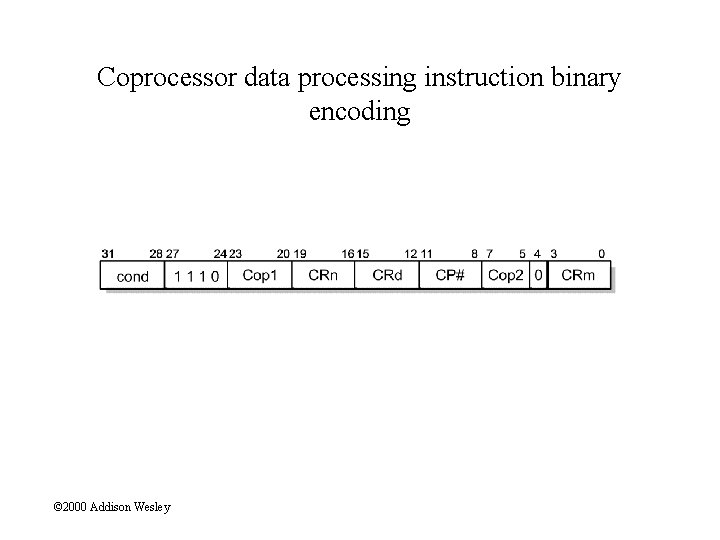

Coprocessor data processing instruction binary encoding © 2000 Addison Wesley

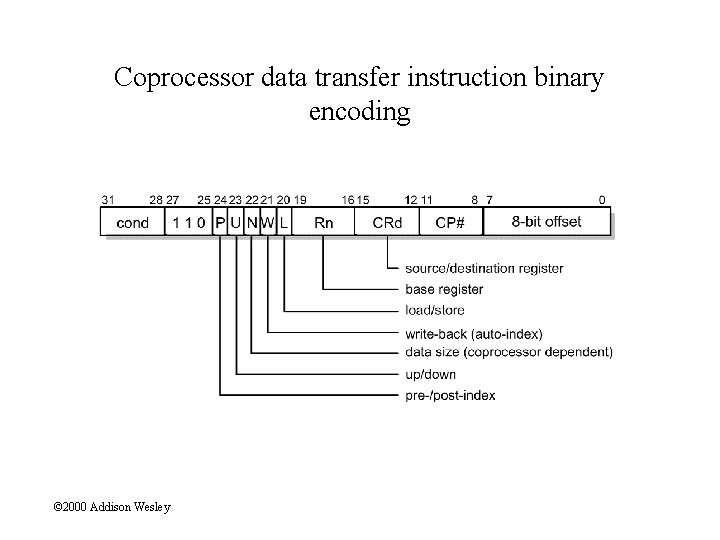

Coprocessor data transfer instruction binary encoding © 2000 Addison Wesley

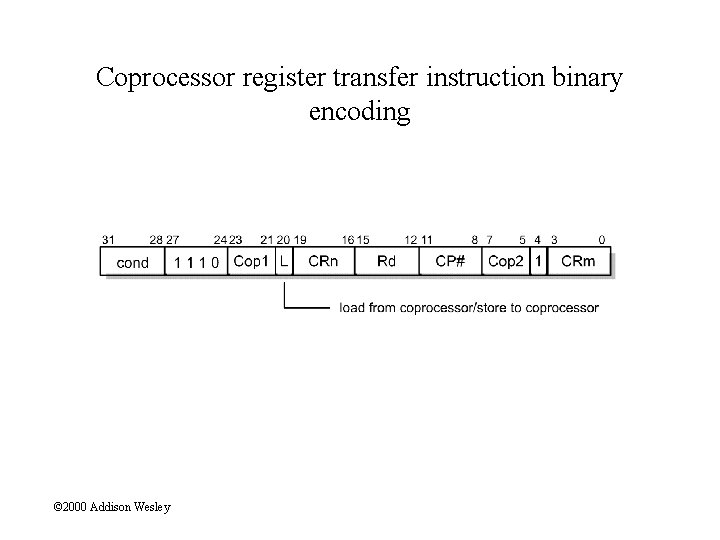

Coprocessor register transfer instruction binary encoding © 2000 Addison Wesley

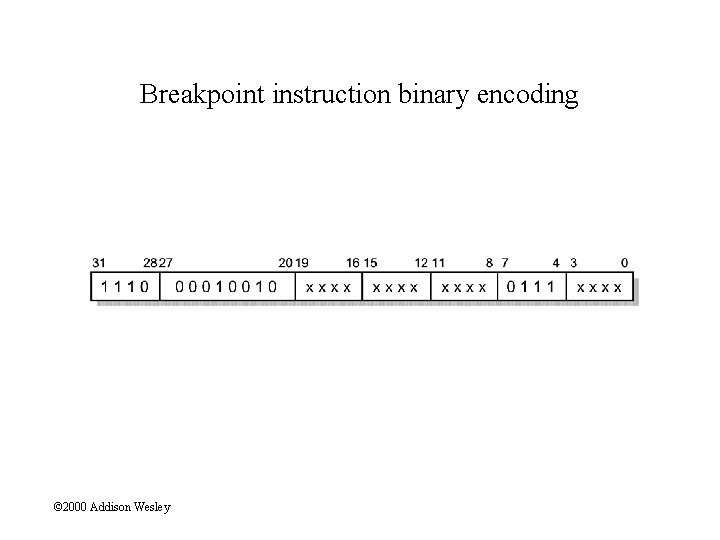

Breakpoint instruction binary encoding © 2000 Addison Wesley

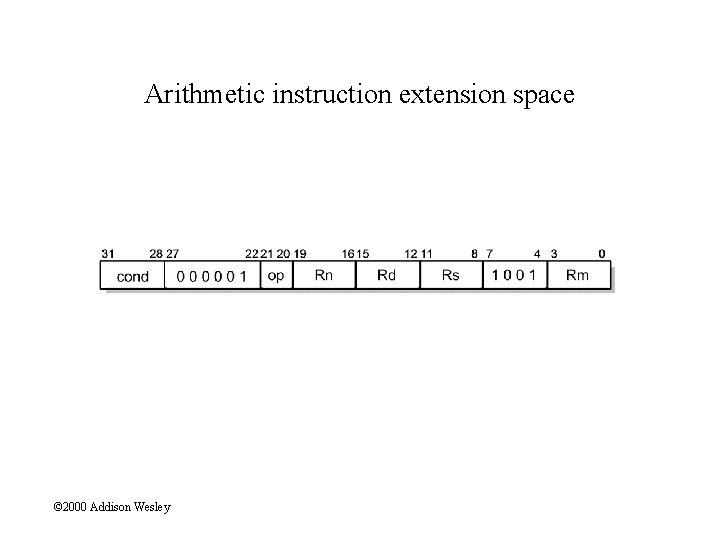

Arithmetic instruction extension space © 2000 Addison Wesley

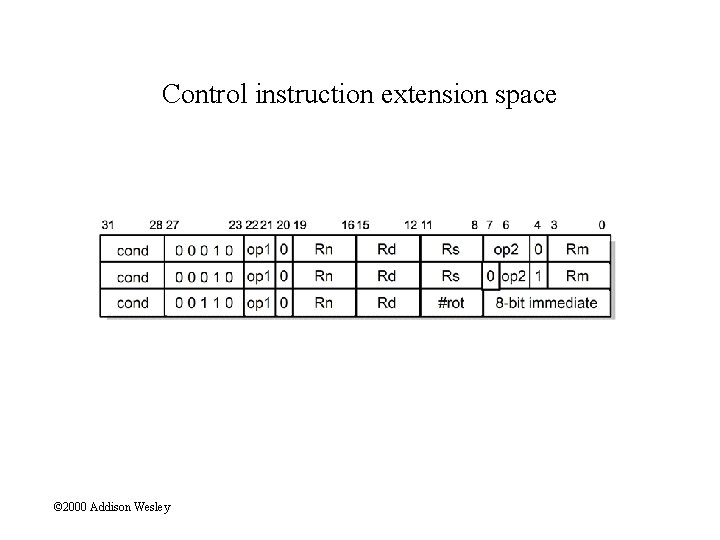

Control instruction extension space © 2000 Addison Wesley

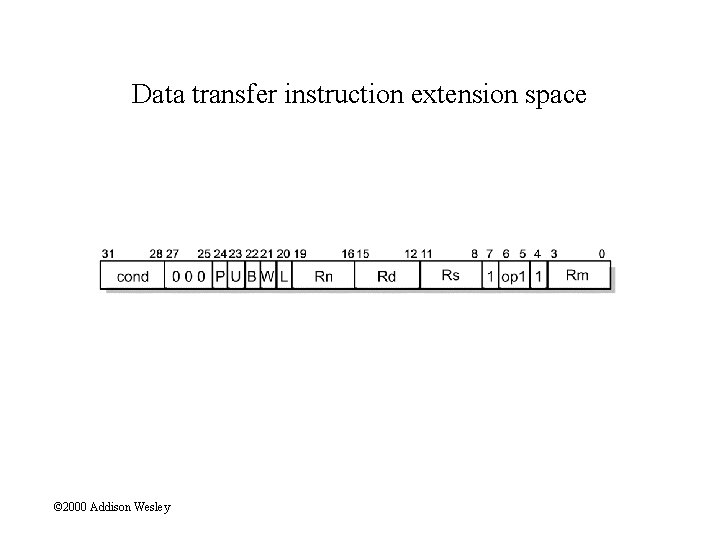

Data transfer instruction extension space © 2000 Addison Wesley

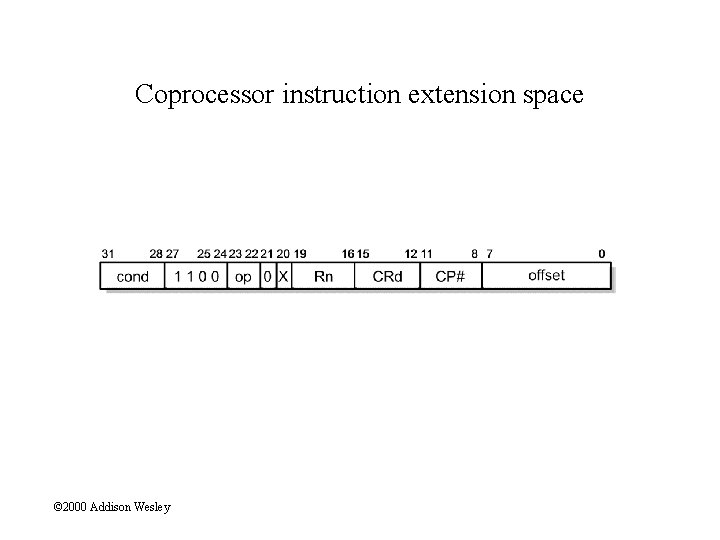

Coprocessor instruction extension space © 2000 Addison Wesley

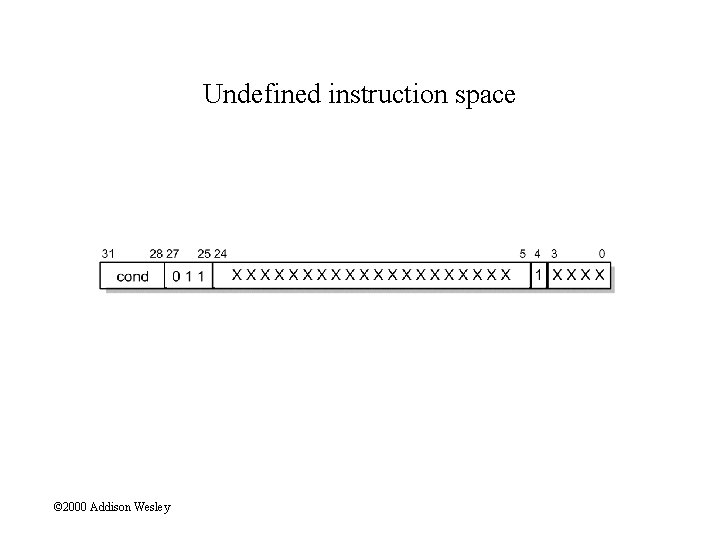

Undefined instruction space © 2000 Addison Wesley

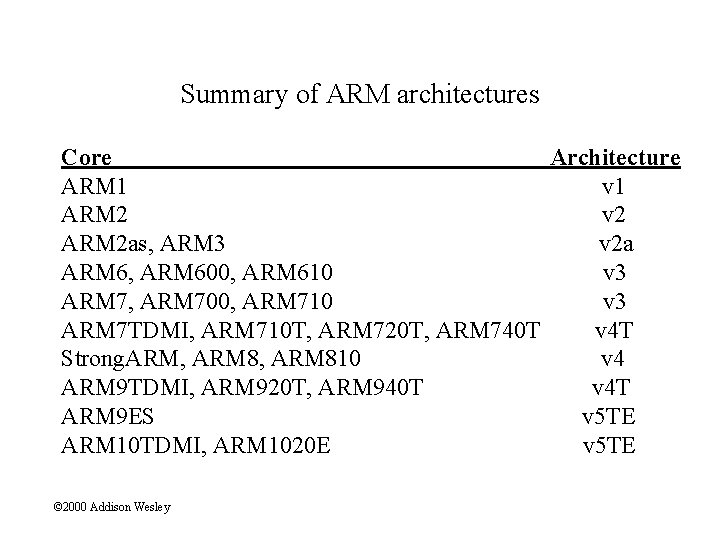

Summary of ARM architectures Core Architecture ARM 1 v 1 ARM 2 v 2 ARM 2 as, ARM 3 v 2 a ARM 6, ARM 600, ARM 610 v 3 ARM 7, ARM 700, ARM 710 v 3 ARM 7 TDMI, ARM 710 T, ARM 720 T, ARM 740 T v 4 T Strong. ARM, ARM 810 v 4 ARM 9 TDMI, ARM 920 T, ARM 940 T v 4 T ARM 9 ES v 5 TE ARM 10 TDMI, ARM 1020 E v 5 TE © 2000 Addison Wesley
