Outline • lithography = photoresist pattern formation • etching = transfer of photoresist pattern into solid material • stripping = removal of photoresist after etching the pattern • isotropic (wet) etching • anisotropic (plasma) etching

Patterning process: lithography and etching Fig. 9. 1

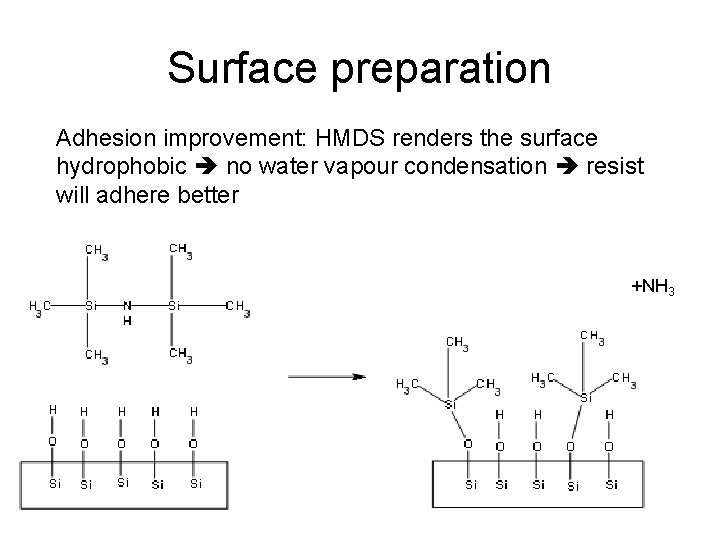

Surface preparation Adhesion improvement: HMDS renders the surface hydrophobic no water vapour condensation resist will adhere better +NH 3

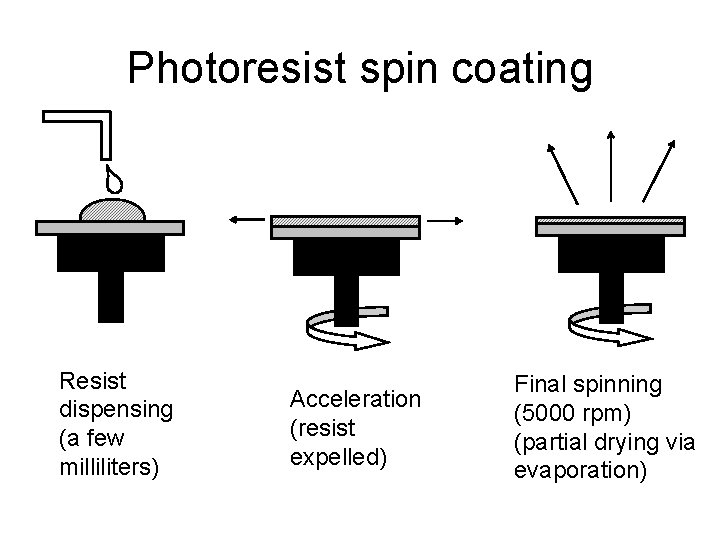

Photoresist spin coating Resist dispensing (a few milliliters) Acceleration (resist expelled) Final spinning (5000 rpm) (partial drying via evaporation)

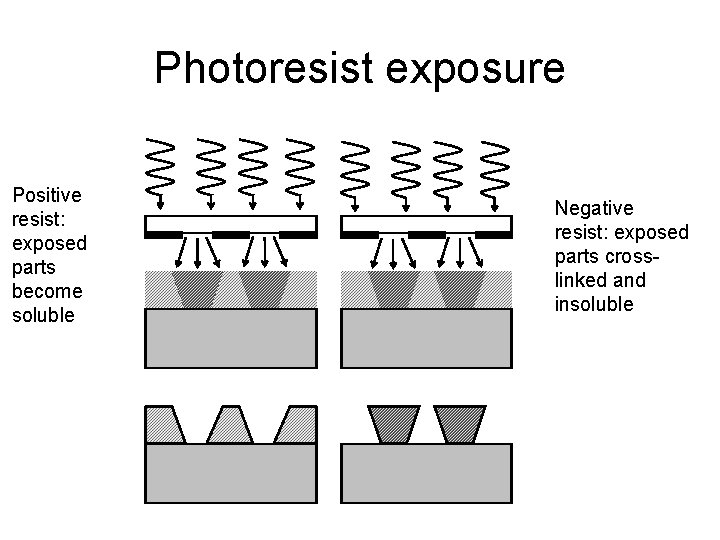

Photoresist exposure Positive resist: exposed parts become soluble Negative resist: exposed parts crosslinked and insoluble

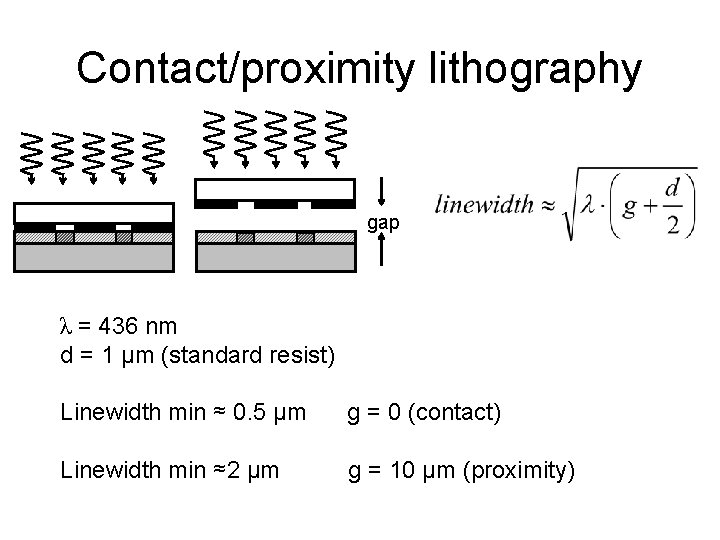

Contact/proximity lithography gap λ = 436 nm d = 1 µm (standard resist) Linewidth min ≈ 0. 5 µm g = 0 (contact) Linewidth min ≈2 µm g = 10 µm (proximity)

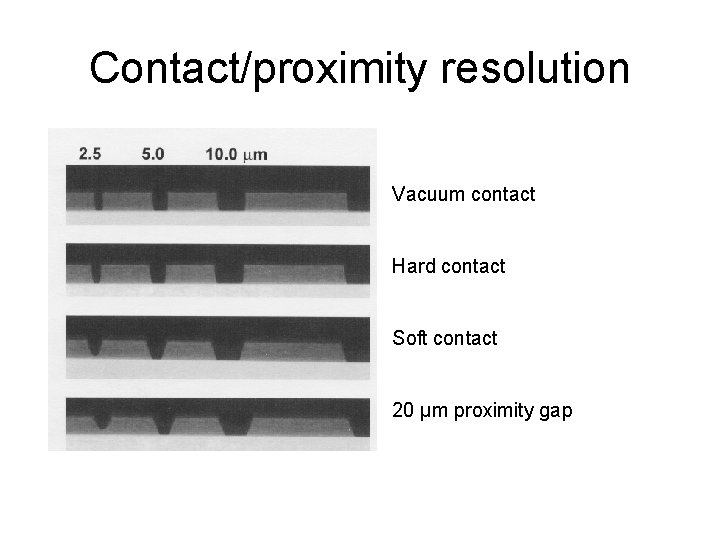

Contact/proximity resolution Vacuum contact Hard contact Soft contact 20 µm proximity gap

Lithography test structures

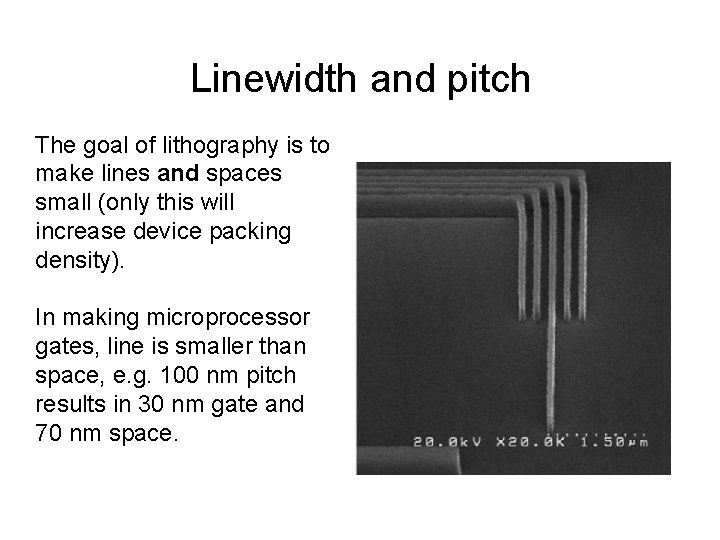

Linewidth and pitch The goal of lithography is to make lines and spaces small (only this will increase device packing density). In making microprocessor gates, line is smaller than space, e. g. 100 nm pitch results in 30 nm gate and 70 nm space.

Processing after lithography wet etching plasma etching electroplating ion implantation lift-off

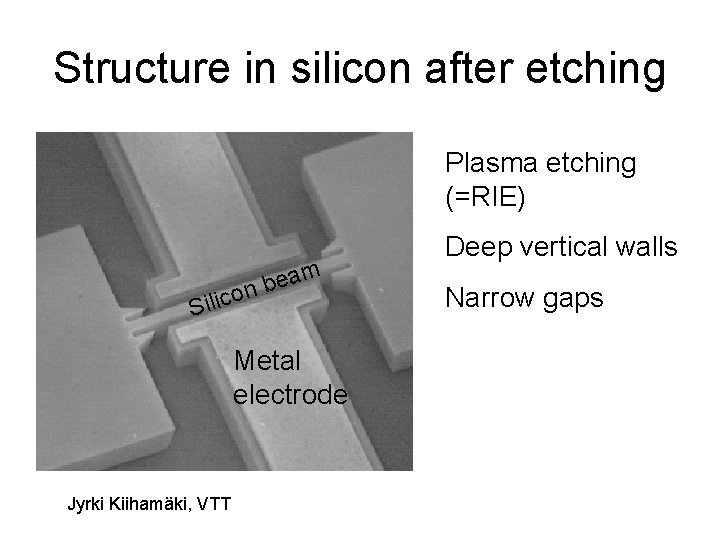

Structure in silicon after etching Plasma etching (=RIE) m ea b n o Silic Metal electrode Jyrki Kiihamäki, VTT Deep vertical walls Narrow gaps

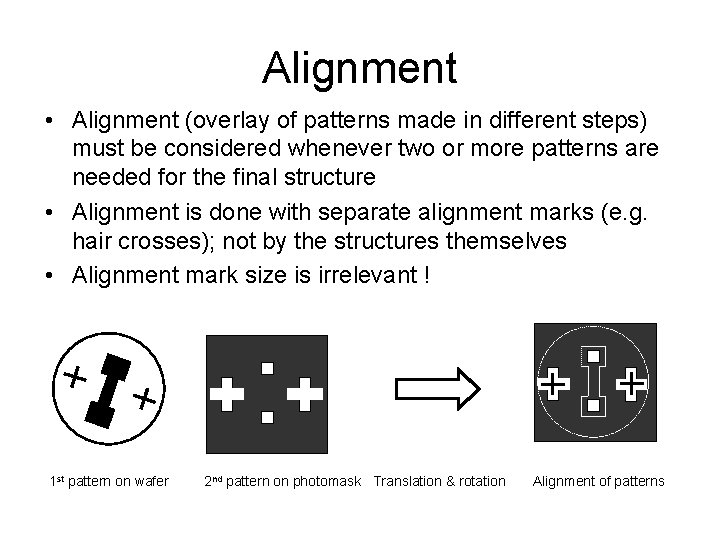

Alignment • Alignment (overlay of patterns made in different steps) must be considered whenever two or more patterns are needed for the final structure • Alignment is done with separate alignment marks (e. g. hair crosses); not by the structures themselves • Alignment mark size is irrelevant ! 1 st pattern on wafer 2 nd pattern on photomask Translation & rotation Alignment of patterns

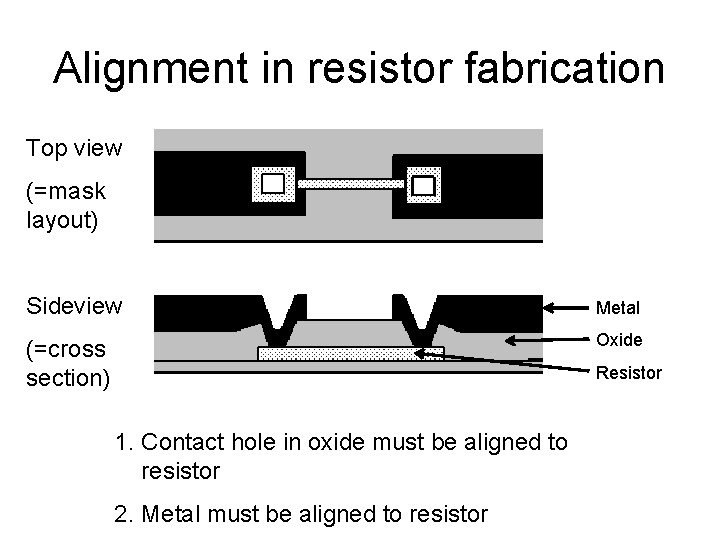

Alignment in resistor fabrication Top view (=mask layout) Sideview Metal (=cross section) Oxide Resistor 1. Contact hole in oxide must be aligned to resistor 2. Metal must be aligned to resistor

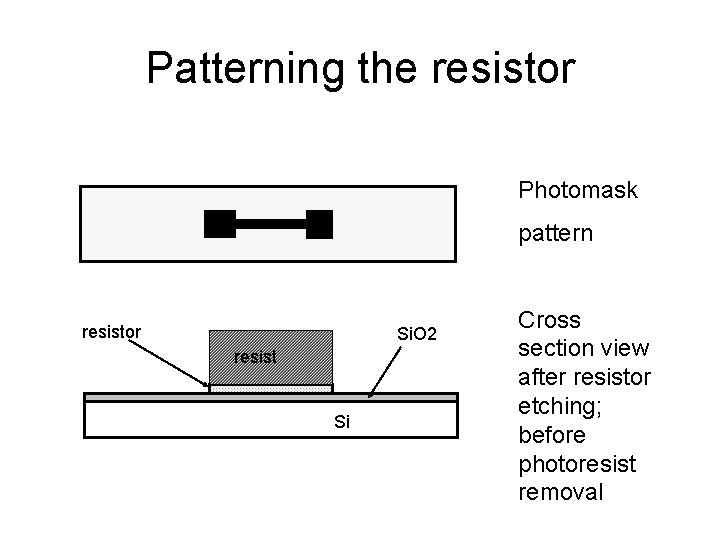

Patterning the resistor Photomask pattern resistor Si. O 2 resist Si Cross section view after resistor etching; before photoresist removal

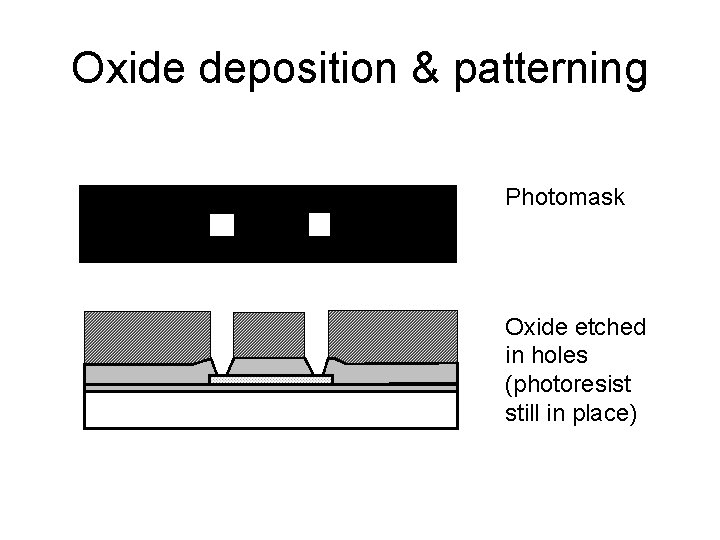

Oxide deposition & patterning Photomask Oxide etched in holes (photoresist still in place)

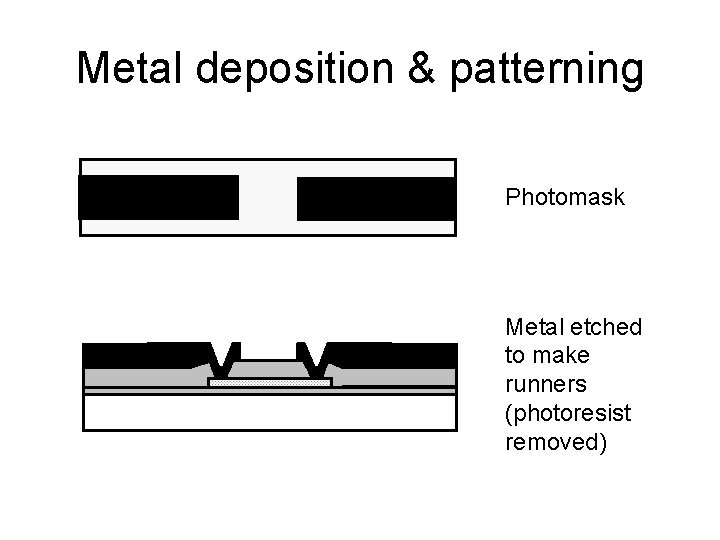

Metal deposition & patterning Photomask Metal etched to make runners (photoresist removed)

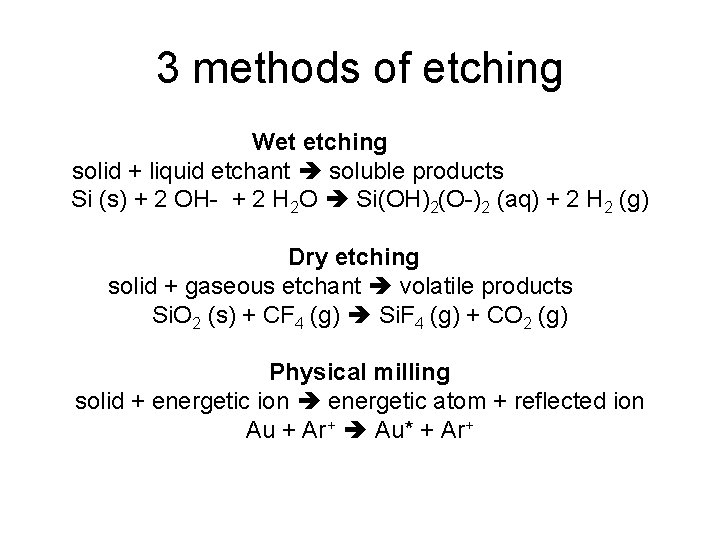

3 methods of etching Wet etching solid + liquid etchant soluble products Si (s) + 2 OH- + 2 H 2 O Si(OH)2(O-)2 (aq) + 2 H 2 (g) Dry etching solid + gaseous etchant volatile products Si. O 2 (s) + CF 4 (g) Si. F 4 (g) + CO 2 (g) Physical milling solid + energetic ion energetic atom + reflected ion Au + Ar+ Au* + Ar+

Lithography and etching 1) Lithographic pattern 2) etching with reactive chemicals (acids, bases, plasmas) <Si> Etching thin film Photolithography can be redone if problems detected, but after etching no repair is available. <Si> Etching bulk silicon Microfabrication: lecture 2

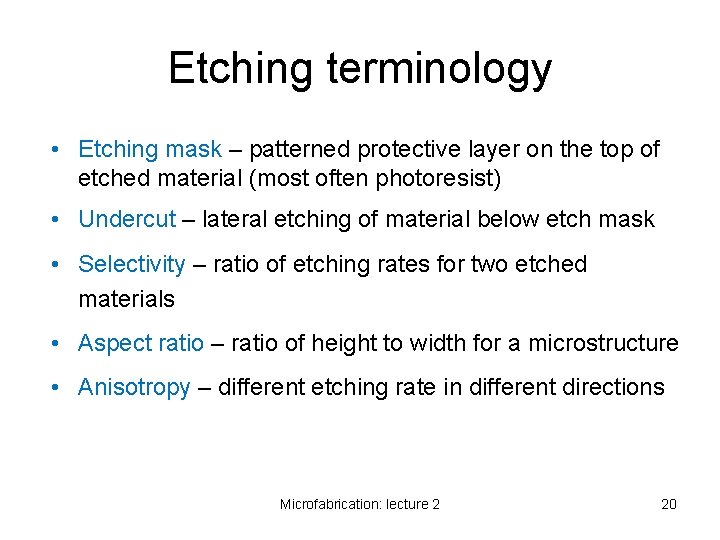

Etching terminology • Etching mask – patterned protective layer on the top of etched material (most often photoresist) • Undercut – lateral etching of material below etch mask • Selectivity – ratio of etching rates for two etched materials • Aspect ratio – ratio of height to width for a microstructure • Anisotropy – different etching rate in different directions Microfabrication: lecture 2 20

Etch mask • Protective layer that is only very slowly attacked by etchant • Resist is the simplest etch mask to use always consider resist mask first • Quiz: what is a photomask ? How does it relate to etch mask ? Microfabrication: lecture 2 21

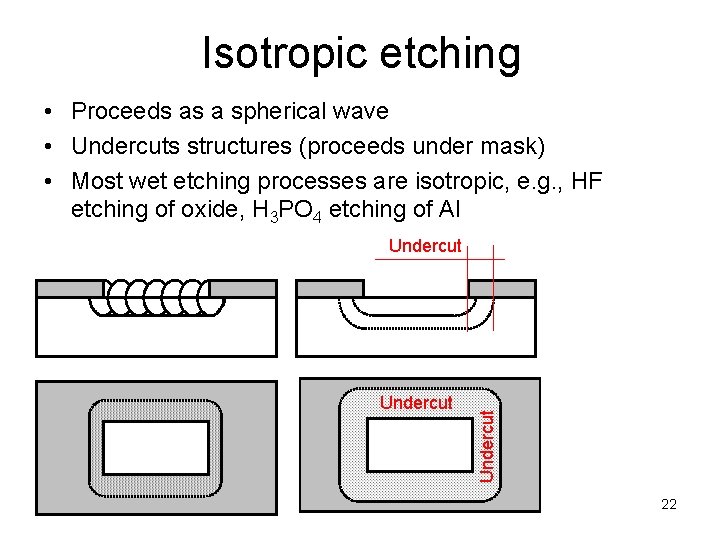

Isotropic etching • Proceeds as a spherical wave • Undercuts structures (proceeds under mask) • Most wet etching processes are isotropic, e. g. , HF etching of oxide, H 3 PO 4 etching of Al Undercut 22

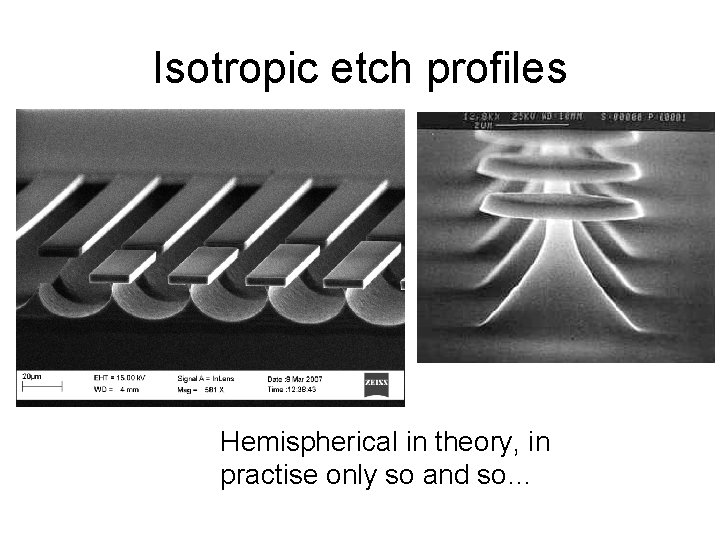

Isotropic etch profiles Hemispherical in theory, in practise only so and so…

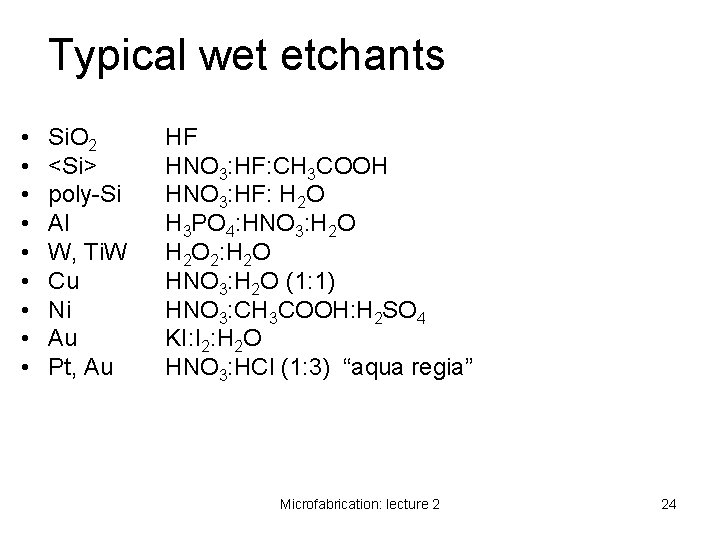

Typical wet etchants • • • Si. O 2 <Si> poly-Si Al W, Ti. W Cu Ni Au Pt, Au HF HNO 3: HF: CH 3 COOH HNO 3: HF: H 2 O H 3 PO 4: HNO 3: H 2 O 2: H 2 O HNO 3: H 2 O (1: 1) HNO 3: CH 3 COOH: H 2 SO 4 KI: I 2: H 2 O HNO 3: HCl (1: 3) “aqua regia” Microfabrication: lecture 2 24

Wet etching • • • Usually isotropic (Near) perfect selectivity Each material needs different chemistry Surface finish smooth High throughput because batch process Cheap equipment • Not suitable for narrow lines and spaces !!! Microfabrication: lecture 2 25

Dry etching = Plasma etching = RIE Ion density 1010 ions/cm-3 Reactive neutrals or active radicals density 1015 cm-3 Sorry about the name RIE: reactive neutrals are more abundant and important Microfabrication: lecture 2 26

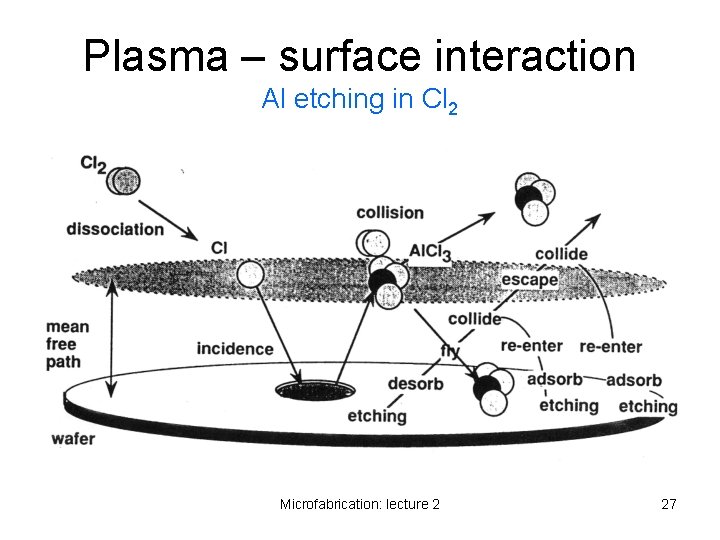

Plasma – surface interaction Al etching in Cl 2 Microfabrication: lecture 2 27

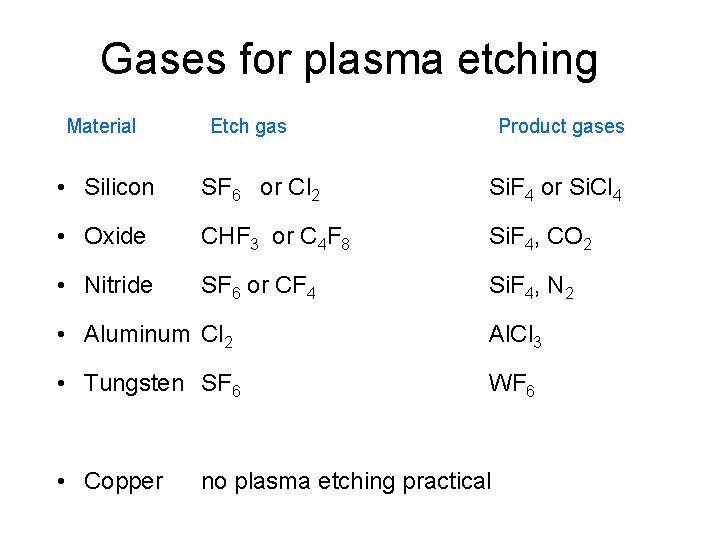

Gases for plasma etching Material Etch gas Product gases • Silicon SF 6 or Cl 2 Si. F 4 or Si. Cl 4 • Oxide CHF 3 or C 4 F 8 Si. F 4, CO 2 • Nitride SF 6 or CF 4 Si. F 4, N 2 • Aluminum Cl 2 Al. Cl 3 • Tungsten SF 6 WF 6 • Copper no plasma etching practical

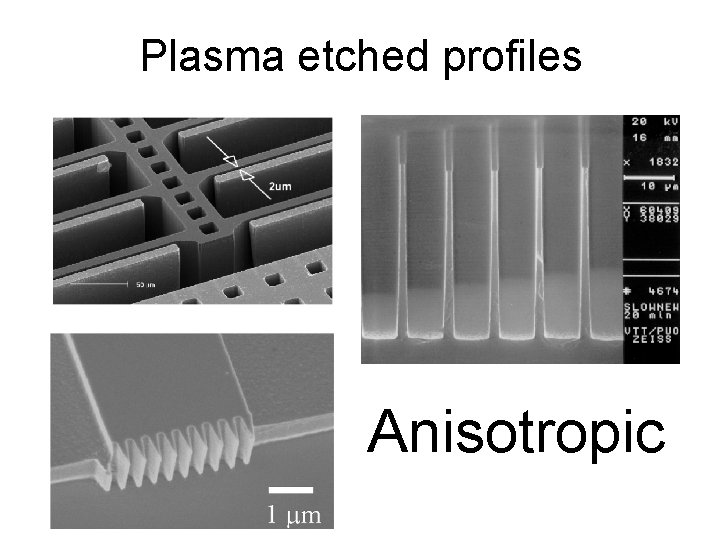

Plasma etched profiles Anisotropic

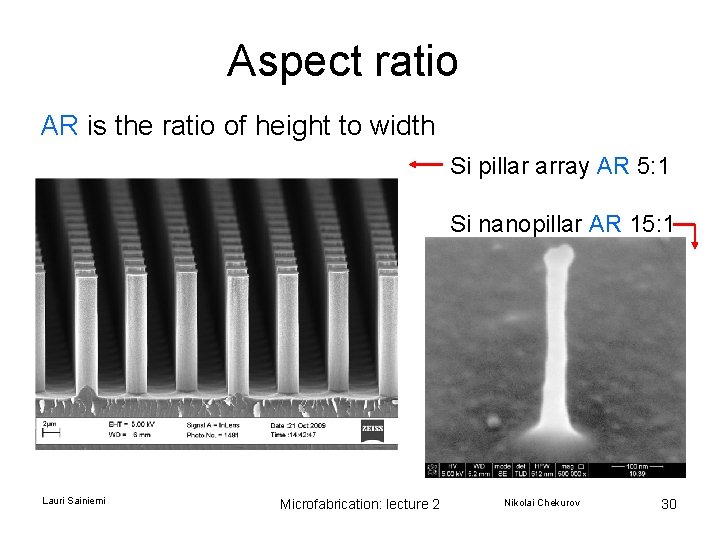

Aspect ratio AR is the ratio of height to width Si pillar array AR 5: 1 Si nanopillar AR 15: 1 Lauri Sainiemi Microfabrication: lecture 2 Nikolai Chekurov 30

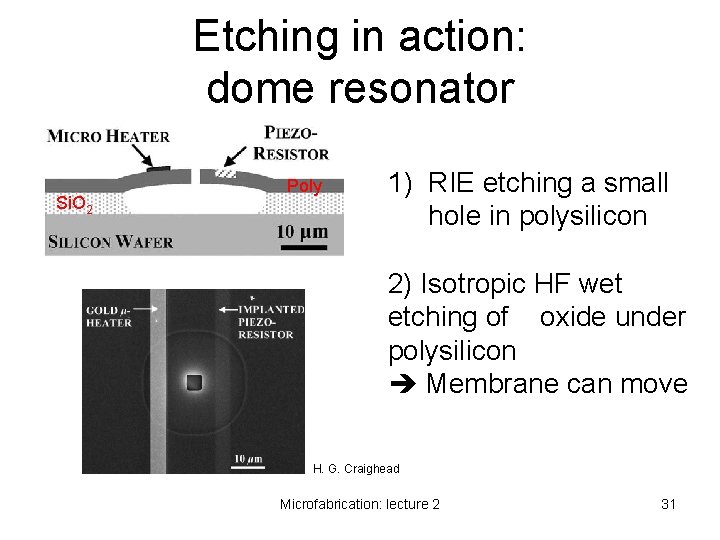

Etching in action: dome resonator Si. O 2 Poly 1) RIE etching a small hole in polysilicon 2) Isotropic HF wet etching of oxide under polysilicon Membrane can move H. G. Craighead Microfabrication: lecture 2 31

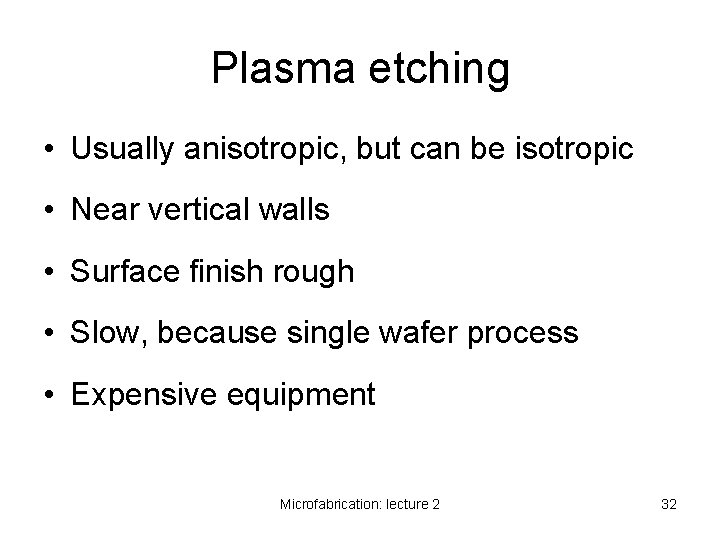

Plasma etching • Usually anisotropic, but can be isotropic • Near vertical walls • Surface finish rough • Slow, because single wafer process • Expensive equipment Microfabrication: lecture 2 32

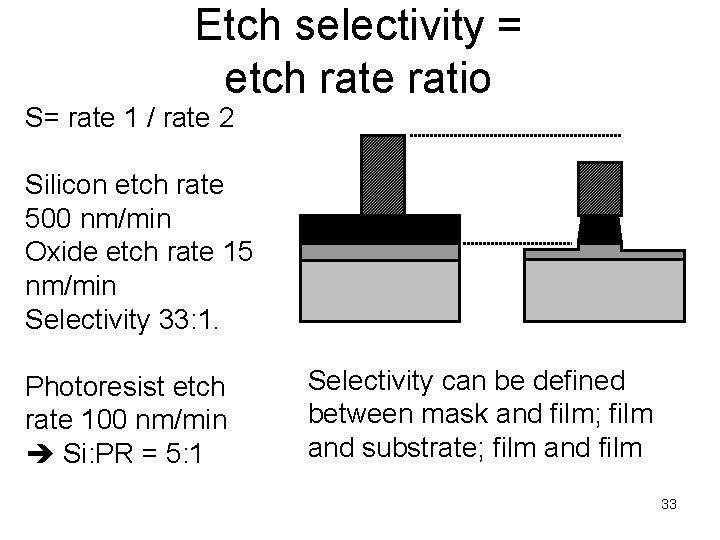

Etch selectivity = etch rate ratio S= rate 1 / rate 2 Silicon etch rate 500 nm/min Oxide etch rate 15 nm/min Selectivity 33: 1. Photoresist etch rate 100 nm/min Si: PR = 5: 1 Selectivity can be defined between mask and film; film and substrate; film and film 33

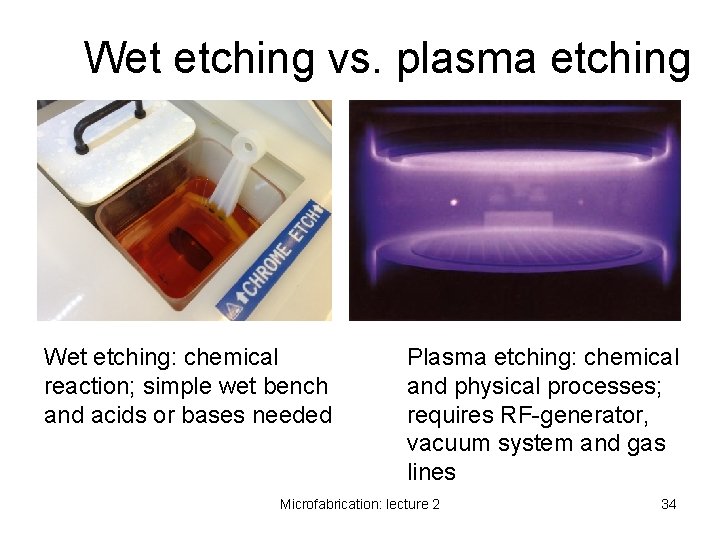

Wet etching vs. plasma etching Wet etching: chemical reaction; simple wet bench and acids or bases needed Plasma etching: chemical and physical processes; requires RF-generator, vacuum system and gas lines Microfabrication: lecture 2 34

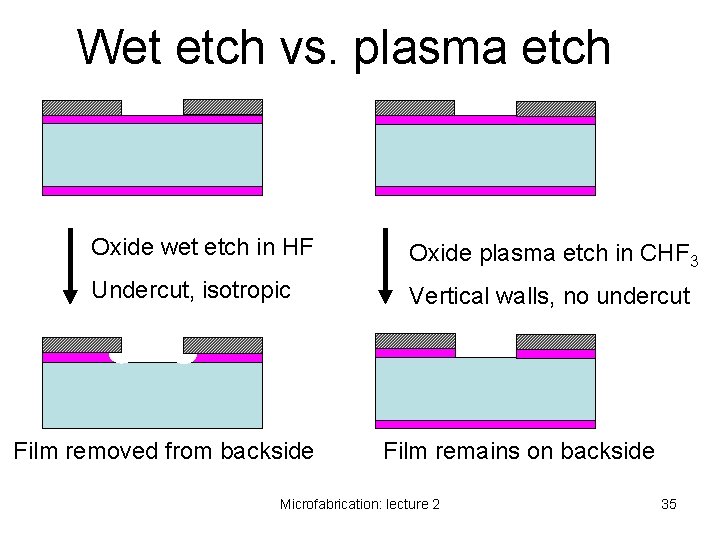

Wet etch vs. plasma etch Oxide wet etch in HF Oxide plasma etch in CHF 3 Undercut, isotropic Vertical walls, no undercut Film removed from backside Film remains on backside Microfabrication: lecture 2 35

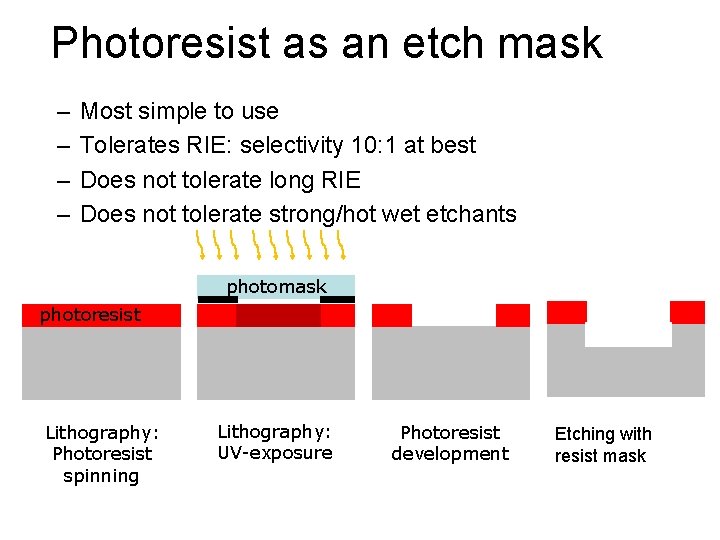

Photoresist as an etch mask – – Most simple to use Tolerates RIE: selectivity 10: 1 at best Does not tolerate long RIE Does not tolerate strong/hot wet etchants photomask photoresist Lithography: Photoresist spinning Lithography: UV-exposure Photoresist development Etching with resist mask

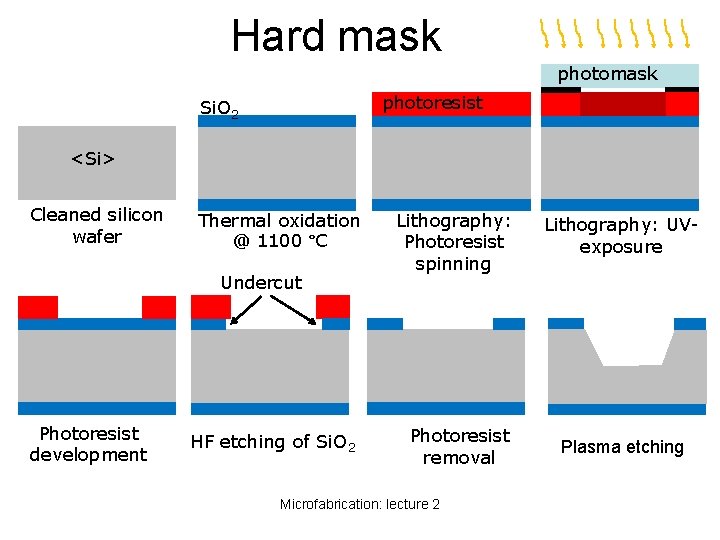

Hard mask photoresist Si. O 2 <Si> Cleaned silicon wafer Thermal oxidation @ 1100 °C Undercut Photoresist development HF etching of Si. O 2 Lithography: Photoresist spinning Photoresist removal Microfabrication: lecture 2 Lithography: UVexposure Plasma etching

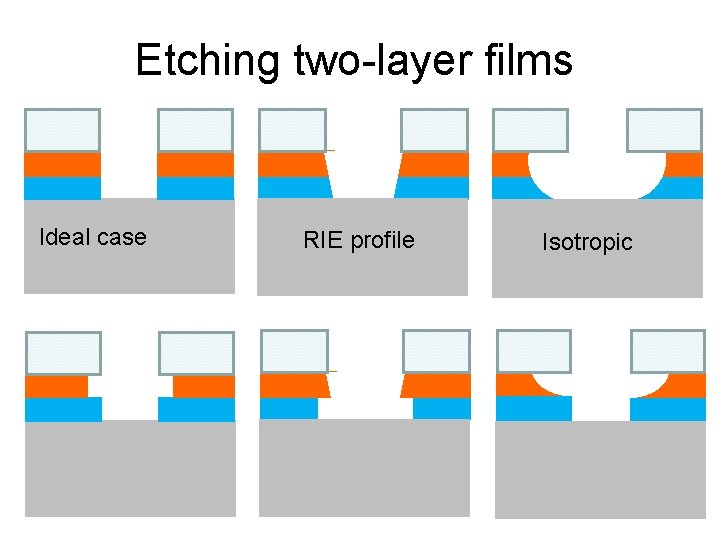

Etching two-layer films Ideal case RIE profile Isotropic

Perfect alignment ? <Si> If two layers are perfectly aligned, they were made in the same etch step. Otherwise alignment error would be visible.

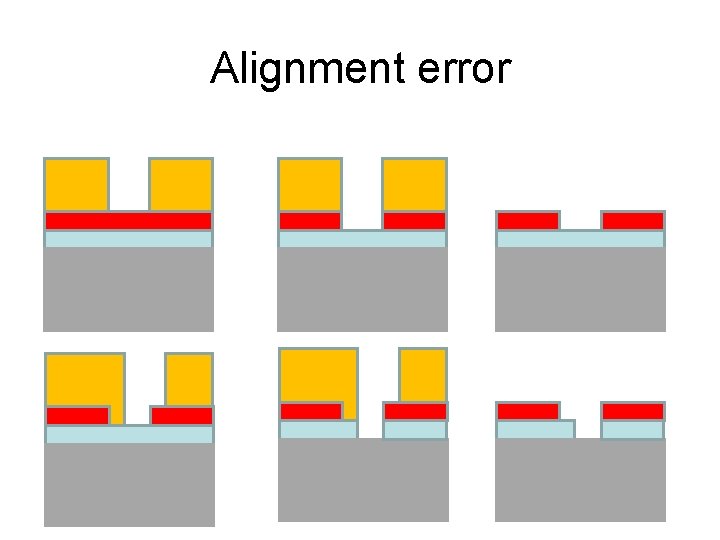

Alignment error
