Lithium ion Battery theoretical capacity calculation

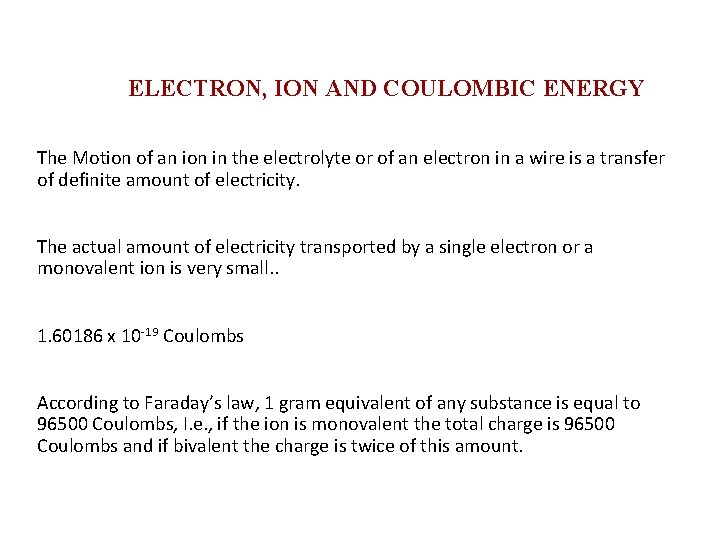

ELECTRON, ION AND COULOMBIC ENERGY The Motion of an ion in the electrolyte or of an electron in a wire is a transfer of definite amount of electricity. The actual amount of electricity transported by a single electron or a monovalent ion is very small. . 1. 60186 x 10 -19 Coulombs According to Faraday’s law, 1 gram equivalent of any substance is equal to 96500 Coulombs, I. e. , if the ion is monovalent the total charge is 96500 Coulombs and if bivalent the charge is twice of this amount.

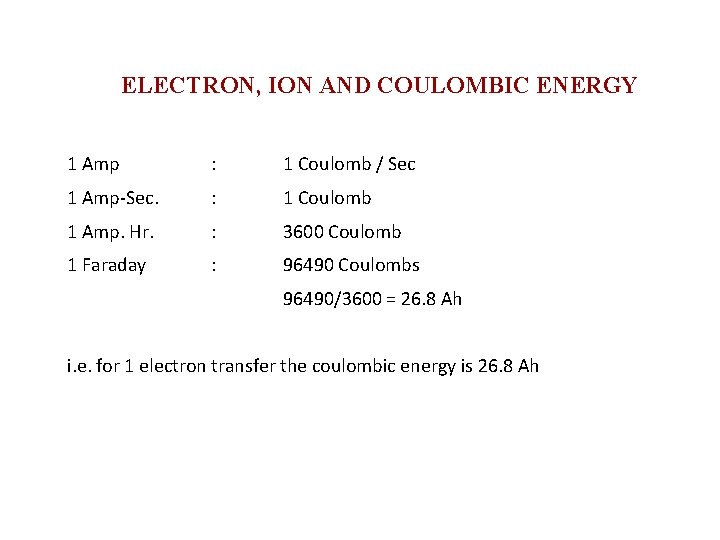

ELECTRON, ION AND COULOMBIC ENERGY 1 Amp : 1 Coulomb / Sec 1 Amp-Sec. : 1 Coulomb 1 Amp. Hr. : 3600 Coulomb 1 Faraday : 96490 Coulombs 96490/3600 = 26. 8 Ah i. e. for 1 electron transfer the coulombic energy is 26. 8 Ah

ELECTRON, ION AND COULOMBIC ENERGY • Lead acid • Li-ion For Lead Acid Battery System For Li-ion Battery System No. of electrons transfer : 2 Pos. Pb. O 2 Molecular Wt : 239 g Neg. Pb Molecular Wt. : 207 g For a 2 e- transfer, Coulombic energy is 2 x 26. 8 : 53. 6 Ah : 1 For a 1 e- transfer, Coulombic energy is 26. 8 Ah

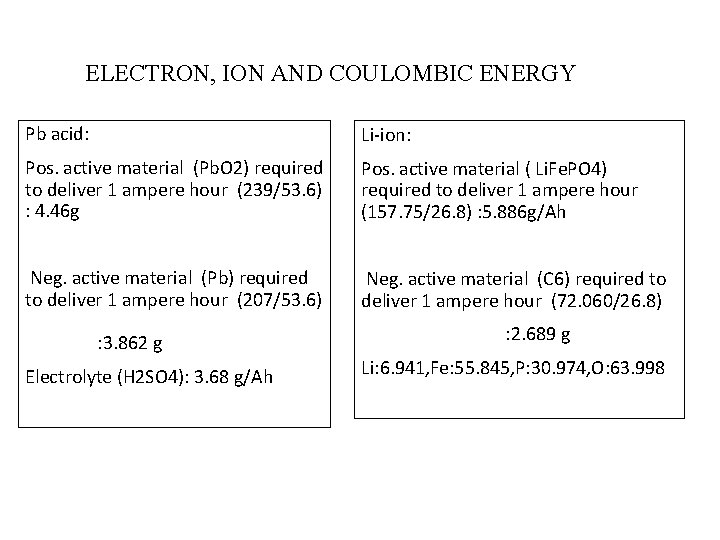

ELECTRON, ION AND COULOMBIC ENERGY Pb acid: Li-ion: Pos. active material (Pb. O 2) required to deliver 1 ampere hour (239/53. 6) : 4. 46 g Pos. active material ( Li. Fe. PO 4) required to deliver 1 ampere hour (157. 75/26. 8) : 5. 886 g/Ah Neg. active material (Pb) required to deliver 1 ampere hour (207/53. 6) Neg. active material (C 6) required to deliver 1 ampere hour (72. 060/26. 8) : 3. 862 g Electrolyte (H 2 SO 4): 3. 68 g/Ah : 2. 689 g Li: 6. 941, Fe: 55. 845, P: 30. 974, O: 63. 998

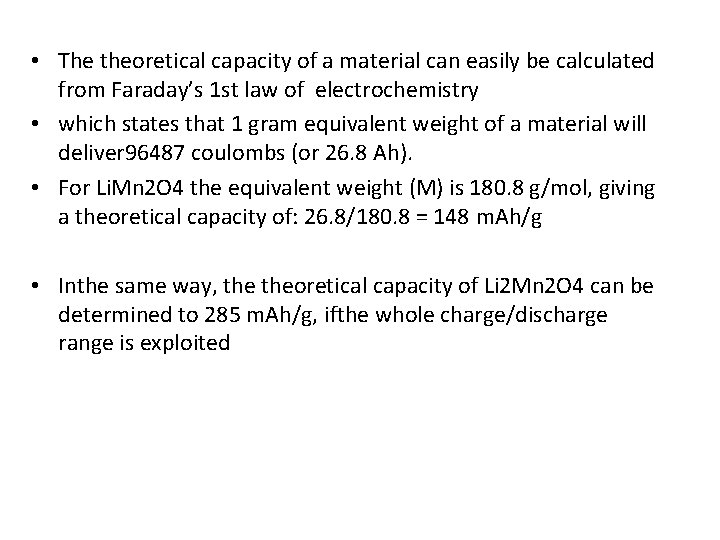

• The theoretical capacity of a material can easily be calculated from Faraday’s 1 st law of electrochemistry • which states that 1 gram equivalent weight of a material will deliver 96487 coulombs (or 26. 8 Ah). • For Li. Mn 2 O 4 the equivalent weight (M) is 180. 8 g/mol, giving a theoretical capacity of: 26. 8/180. 8 = 148 m. Ah/g • Inthe same way, theoretical capacity of Li 2 Mn 2 O 4 can be determined to 285 m. Ah/g, ifthe whole charge/discharge range is exploited

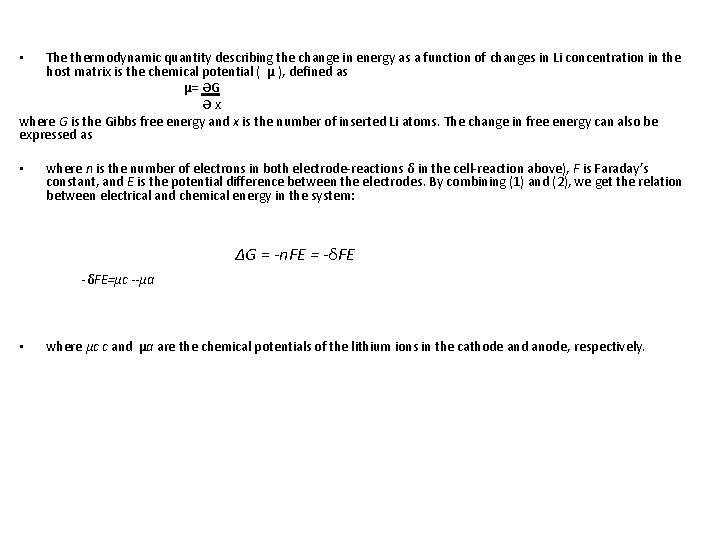

The thermodynamic quantity describing the change in energy as a function of changes in Li concentration in the host matrix is the chemical potential ( µ ), defined as µ= ƏG Əx where G is the Gibbs free energy and x is the number of inserted Li atoms. The change in free energy can also be expressed as • • where n is the number of electrons in both electrode-reactions δ in the cell-reaction above), F is Faraday’s constant, and E is the potential difference between the electrodes. By combining (1) and (2), we get the relation between electrical and chemical energy in the system: ΔG = -n. FE = -δFE=µc --µa • where µc c and µa are the chemical potentials of the lithium ions in the cathode and anode, respectively.

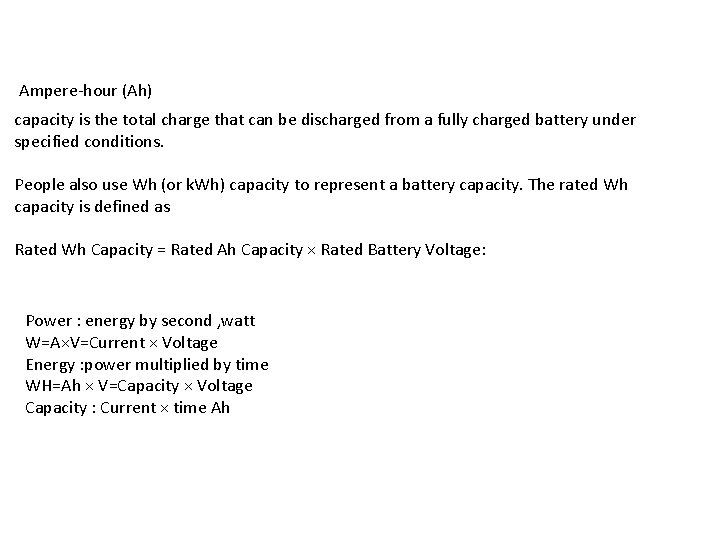

Ampere-hour (Ah) capacity is the total charge that can be discharged from a fully charged battery under specified conditions. People also use Wh (or k. Wh) capacity to represent a battery capacity. The rated Wh capacity is defined as Rated Wh Capacity = Rated Ah Capacity × Rated Battery Voltage: Power : energy by second , watt W=A×V=Current × Voltage Energy : power multiplied by time WH=Ah × V=Capacity × Voltage Capacity : Current × time Ah

Cathode material Discharge Theoretical Voltage V vs. Li 0 capacity (m. Ahg-1) True density (g Diffusivity cm-3) (cm 2 s-1) Li. Mn. PO 4 4. 1 171 3. 43 10 -7 Li. Fe. PO 4 3. 4 170 3. 60 10 -8 Li. Co. PO 4 4. 8 167 3. 70 10 -9 Li. Ni. PO 4 5. 1 167 3. 89 10 -5 Li 1. 07 Mn 1. 93 O 4 3. 9 117 4. 15 ~10 -10 Li. Al 0. 05 Co 0. 15 Ni 0. 8 O 2 3. 6 265 4. 73 ~10 -8 Li. Co. O 2 3. 6 274 5. 05 ~10 -8 Source Theoretical evaluation of high-energy lithium metal phosphate cathode materials in Li-ion batteries –JPS -165(2007)887 -891

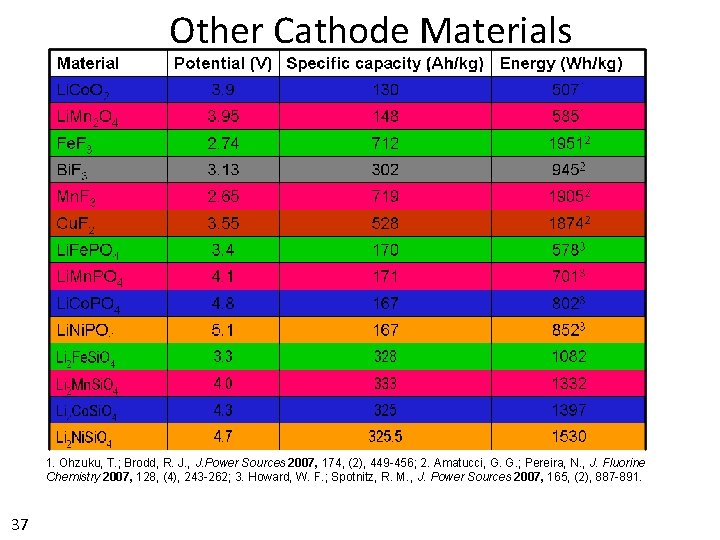

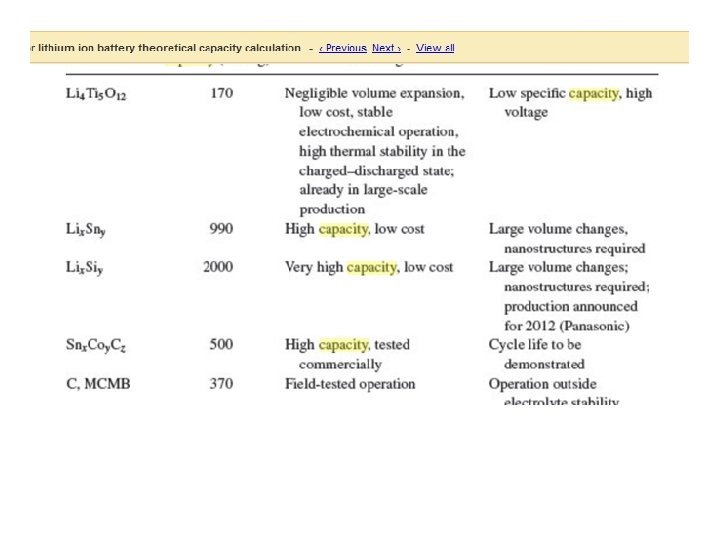

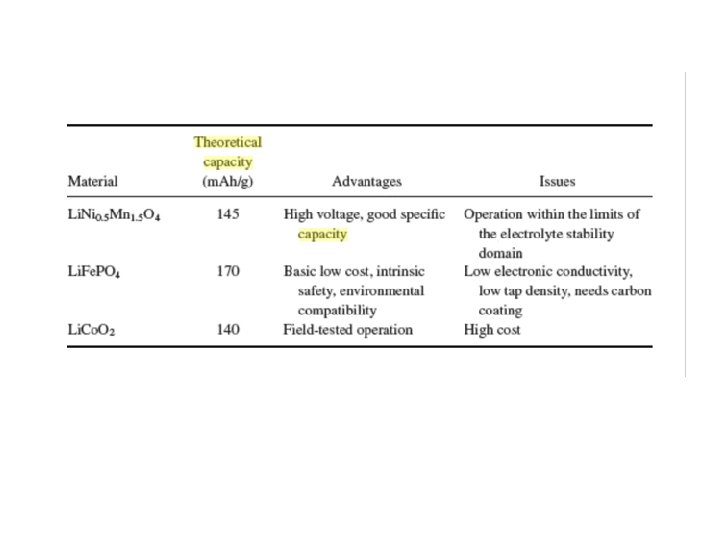

Other Cathode Materials 1. Ohzuku, T. ; Brodd, R. J. , J. Power Sources 2007, 174, (2), 449 -456; 2. Amatucci, G. G. ; Pereira, N. , J. Fluorine Chemistry 2007, 128, (4), 243 -262; 3. Howard, W. F. ; Spotnitz, R. M. , J. Power Sources 2007, 165, (2), 887 -891. 37
