LIST OF BODY DIMENSIONS

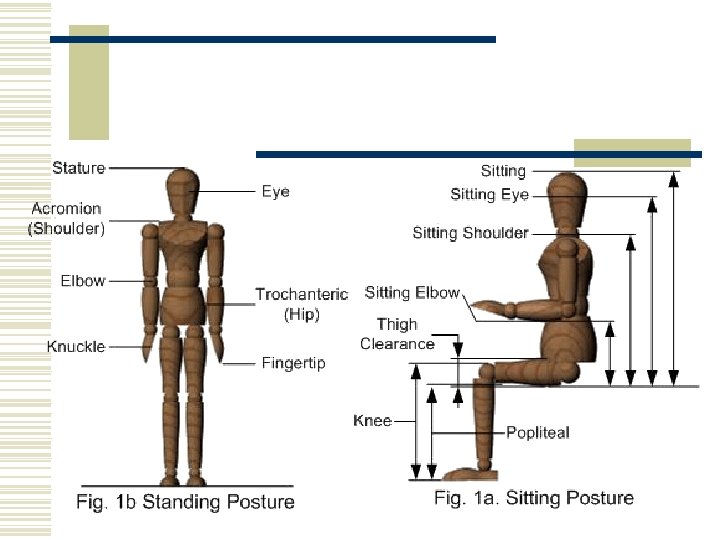

ANTHROPOMETRY w It is the field that involves the measurement of the dimensions and other physical characteristics of people, and the application of this information to the design of things they use. w Literally anthropometry means “measurement of humans”

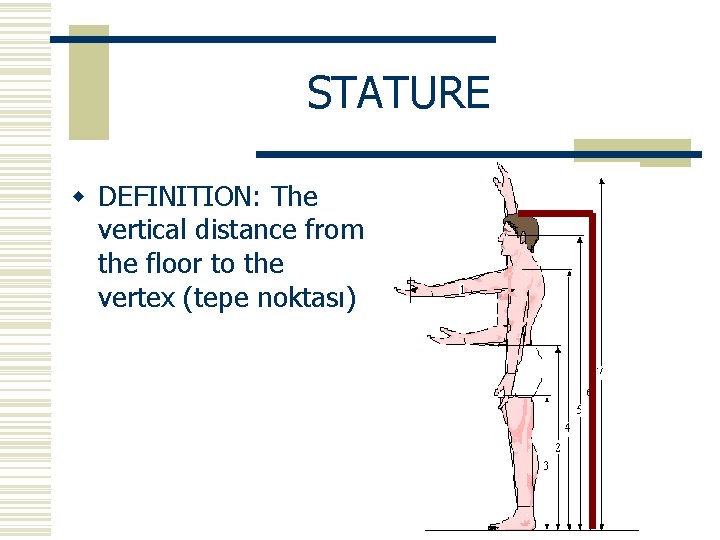

STATURE w DEFINITION: The vertical distance from the floor to the vertex (tepe noktası)

EYE HEIGHT w DEFINITION: Vertical distance from the floor to the inner corner of the eye

SHOULDER HEIGHT w DEFINITION: Vertical distance from floor to the acromion (omuz çıkıntısı)

ELBOW HEIGHT w DEFINITION: Vertical distance from the floor to the radiale (ön kolun iç tarafındaki kemik).

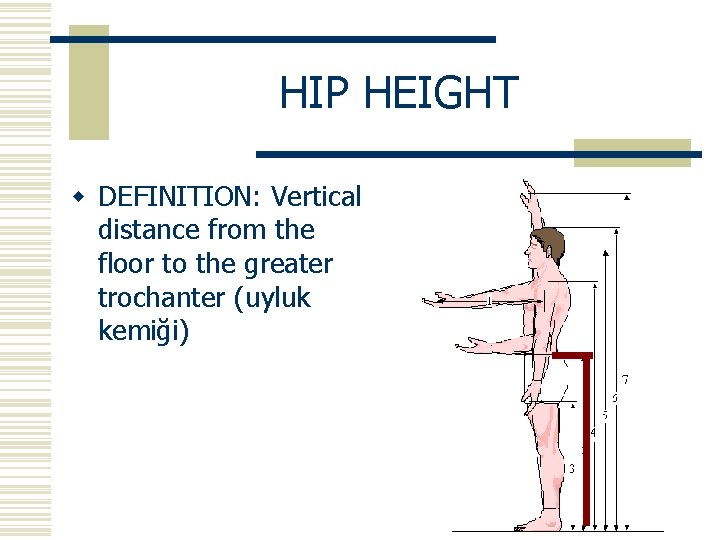

HIP HEIGHT w DEFINITION: Vertical distance from the floor to the greater trochanter (uyluk kemiği)

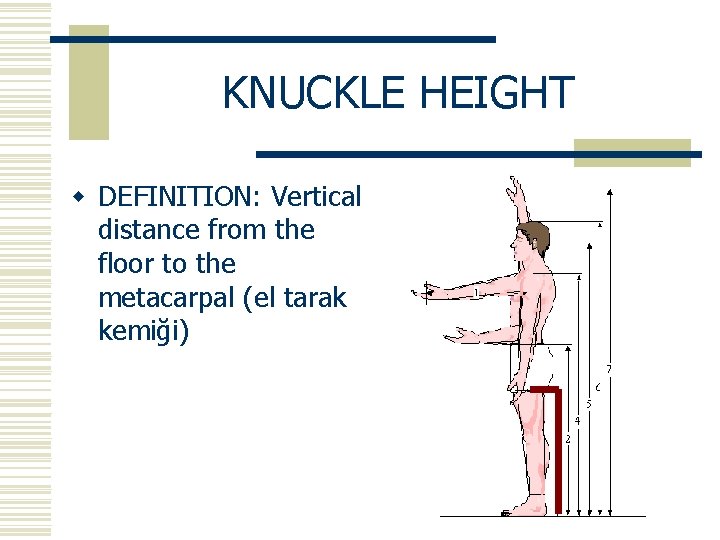

KNUCKLE HEIGHT w DEFINITION: Vertical distance from the floor to the metacarpal (el tarak kemiği)

FINGERTIP HEIGHT w DEFINITION: Vertical distance from the floor to the dactylion (orta parmağın ucu)

SITTING HEIGHT w DEFINITION: Vertical distance from the sitting surface to the vertex (tepe noktası)

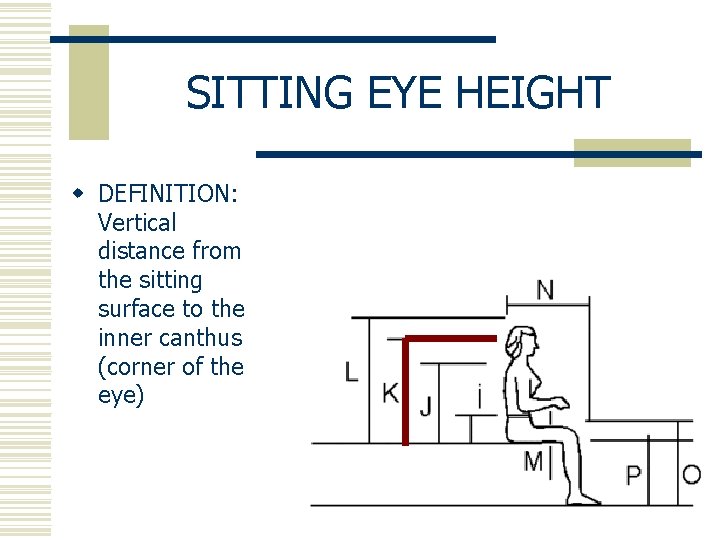

SITTING EYE HEIGHT w DEFINITION: Vertical distance from the sitting surface to the inner canthus (corner of the eye)

SITTING SHOULDER HEIGHT w DEFINITION: Vertical distance from the seat surface to the acromion (bony point of the shoulder)

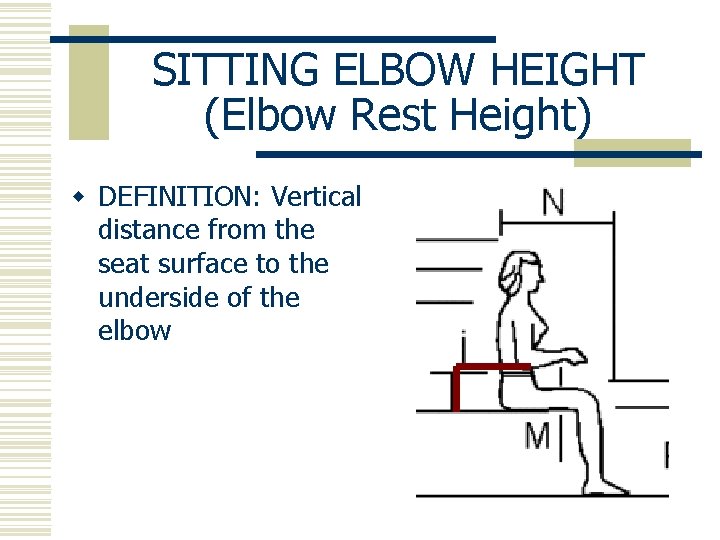

SITTING ELBOW HEIGHT (Elbow Rest Height) w DEFINITION: Vertical distance from the seat surface to the underside of the elbow

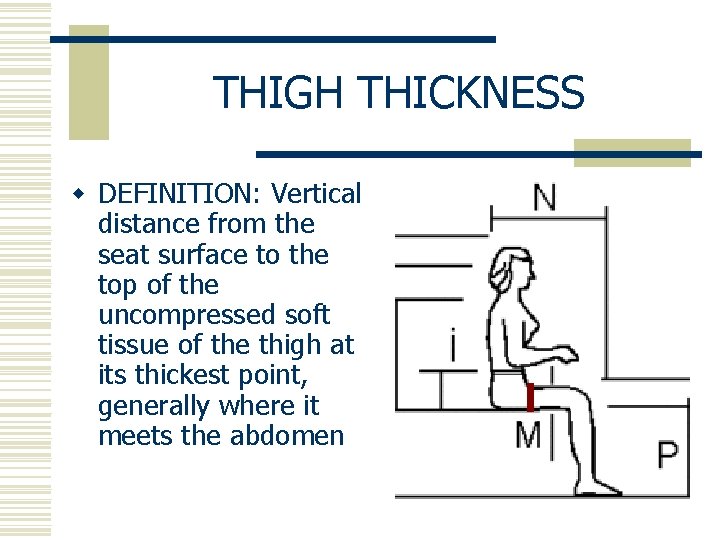

THIGH THICKNESS w DEFINITION: Vertical distance from the seat surface to the top of the uncompressed soft tissue of the thigh at its thickest point, generally where it meets the abdomen

BUTTOCK-KNEE LENGTH w DEFINITION: Horizontal distance from the back of the uncompressed buttock to the front of the knee

BUTTOCK – POPLITEAL LENGTH w DEFINITION: Horizontal distance from the back of the uncompressed buttocks to the popliteal angle, at the back of the knee, where the back of the lower legs meet the underside of the thigh

KNEE HEIGHT w DEFINITION: Vertical distance from the floor to the upper surface of the knee (usually measured to the quadriceps muscle rather than the kneecap)

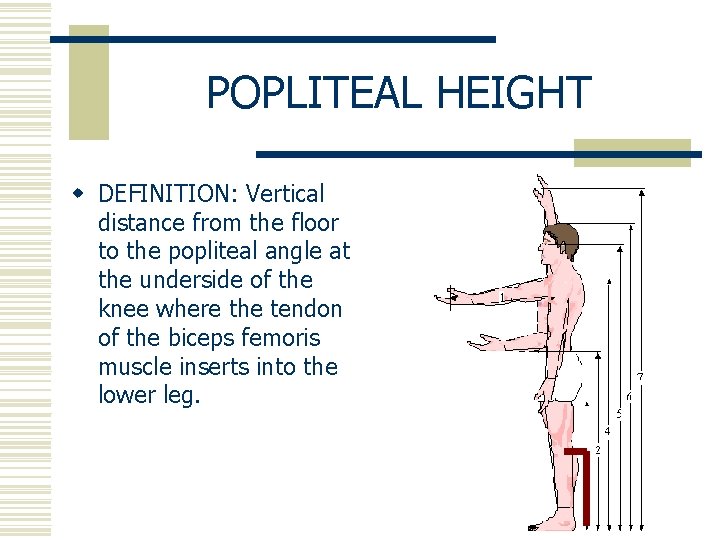

POPLITEAL HEIGHT w DEFINITION: Vertical distance from the floor to the popliteal angle at the underside of the knee where the tendon of the biceps femoris muscle inserts into the lower leg.

SPAN

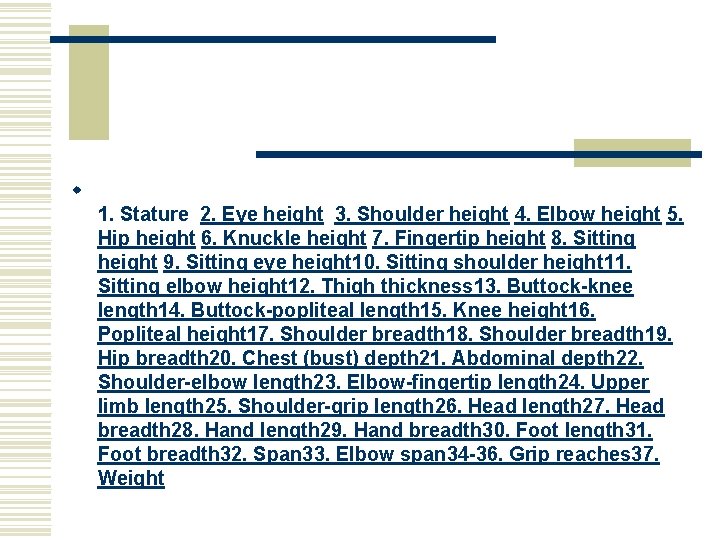

w 1. Stature 2. Eye height 3. Shoulder height 4. Elbow height 5. Hip height 6. Knuckle height 7. Fingertip height 8. Sitting height 9. Sitting eye height 10. Sitting shoulder height 11. Sitting elbow height 12. Thigh thickness 13. Buttock-knee length 14. Buttock-popliteal length 15. Knee height 16. Popliteal height 17. Shoulder breadth 18. Shoulder breadth 19. Hip breadth 20. Chest (bust) depth 21. Abdominal depth 22. Shoulder-elbow length 23. Elbow-fingertip length 24. Upper limb length 25. Shoulder-grip length 26. Head length 27. Head breadth 28. Hand length 29. Hand breadth 30. Foot length 31. Foot breadth 32. Span 33. Elbow span 34 -36. Grip reaches 37. Weight
