LIQUID DRAINERS FOR THE UPSTREAM, MID-STREAM, DOWNSTREAM HPI

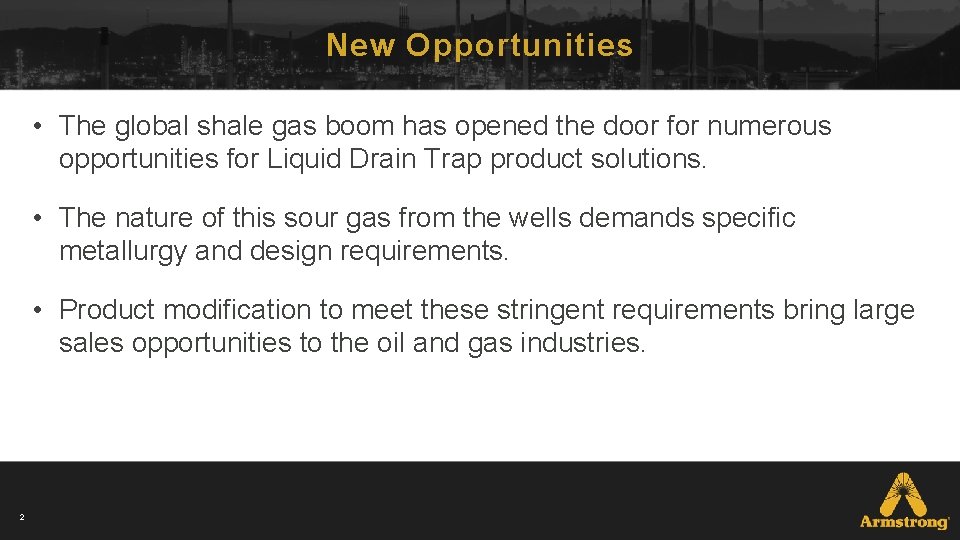

New Opportunities • The global shale gas boom has opened the door for numerous opportunities for Liquid Drain Trap product solutions. • The nature of this sour gas from the wells demands specific metallurgy and design requirements. • Product modification to meet these stringent requirements bring large sales opportunities to the oil and gas industries. 2

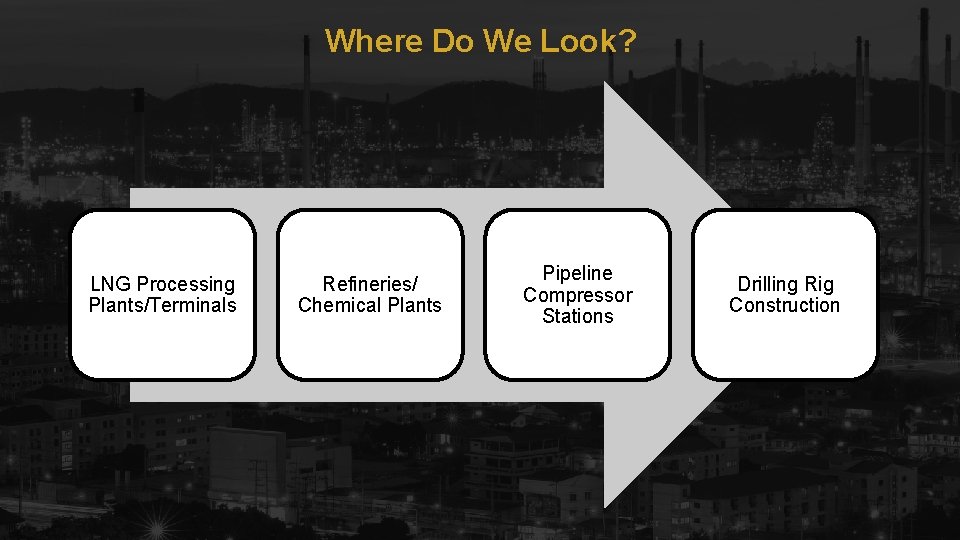

Where Do We Look? LNG Processing Plants/Terminals 3 Refineries/ Chemical Plants Pipeline Compressor Stations Drilling Rig Construction

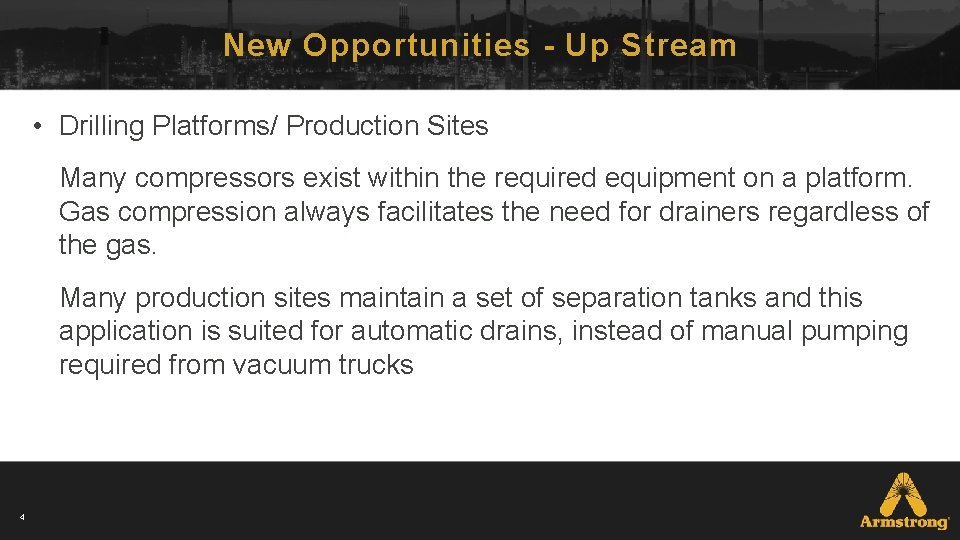

New Opportunities - Up Stream • Drilling Platforms/ Production Sites Many compressors exist within the required equipment on a platform. Gas compression always facilitates the need for drainers regardless of the gas. Many production sites maintain a set of separation tanks and this application is suited for automatic drains, instead of manual pumping required from vacuum trucks 4

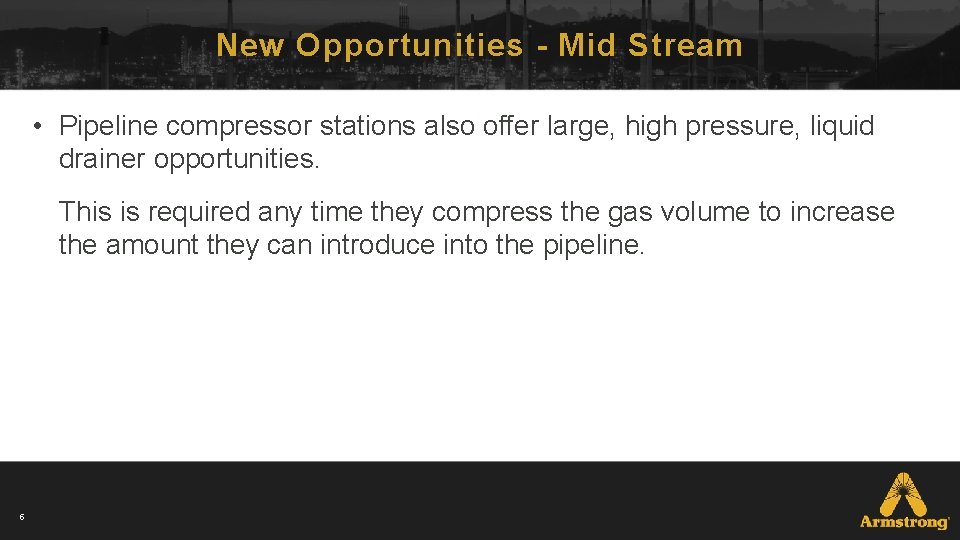

New Opportunities - Mid Stream • Pipeline compressor stations also offer large, high pressure, liquid drainer opportunities. This is required any time they compress the gas volume to increase the amount they can introduce into the pipeline. 5

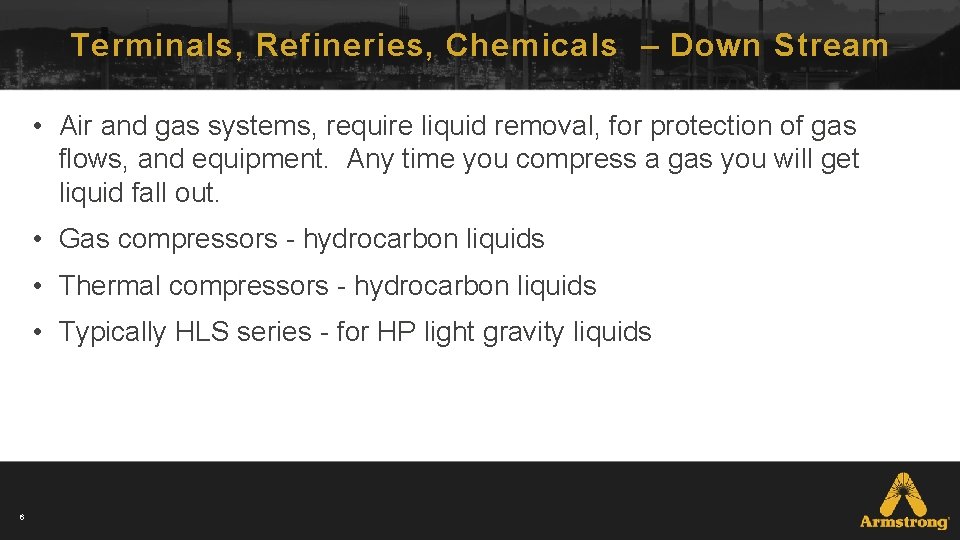

Terminals, Refineries, Chemicals – Down Stream • Air and gas systems, require liquid removal, for protection of gas flows, and equipment. Any time you compress a gas you will get liquid fall out. • Gas compressors - hydrocarbon liquids • Thermal compressors - hydrocarbon liquids • Typically HLS series - for HP light gravity liquids 6

Terminals, Refineries, Chemicals • Liquid Separation Different liquids often need separation from a common process stream, and numerous processes are utilized to achieve this. Dual Gravity Drainers inherently separate a heavier liquid from a lighter one. [like water from oil] commonly needed in tank farm storage, and large oil compressors. 7

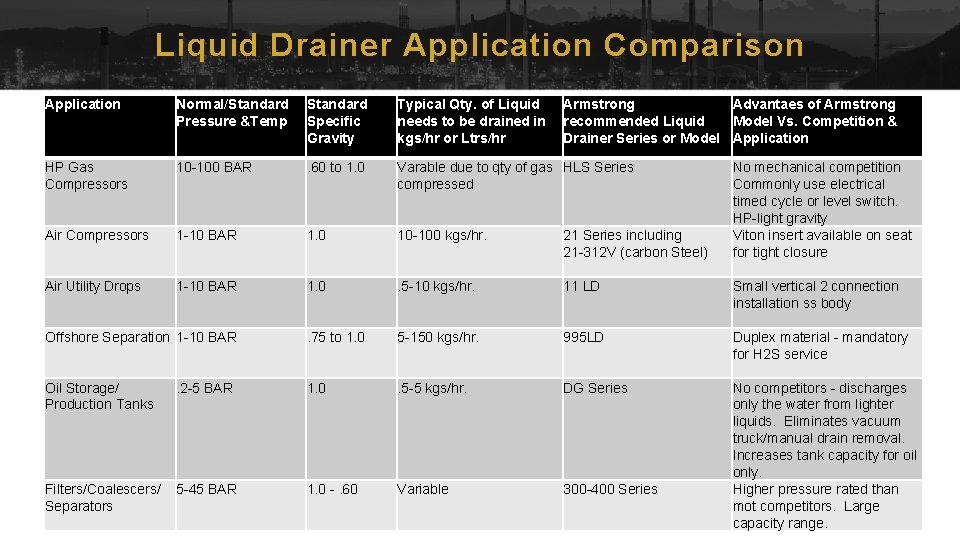

Liquid Drainer Application Comparison 8 Application Normal/Standard Pressure &Temp Standard Specific Gravity Typical Qty. of Liquid needs to be drained in kgs/hr or Ltrs/hr Armstrong Advantaes of Armstrong recommended Liquid Model Vs. Competition & Drainer Series or Model Application HP Gas Compressors 10 -100 BAR . 60 to 1. 0 Varable due to qty of gas HLS Series compressed Air Compressors 1 -10 BAR 1. 0 10 -100 kgs/hr. 21 Series including 21 -312 V (carbon Steel) Air Utility Drops 1 -10 BAR 1. 0 . 5 -10 kgs/hr. 11 LD Small vertical 2 connection installation ss body Offshore Separation 1 -10 BAR . 75 to 1. 0 5 -150 kgs/hr. 995 LD Duplex material - mandatory for H 2 S service Oil Storage/ Production Tanks . 2 -5 BAR 1. 0 . 5 -5 kgs/hr. DG Series Filters/Coalescers/ Separators 5 -45 BAR 1. 0 -. 60 Variable 300 -400 Series No competitors - discharges only the water from lighter liquids. Eliminates vacuum truck/manual drain removal. Increases tank capacity for oil only. Higher pressure rated than mot competitors. Large capacity range. No mechanical competition Commonly use electrical timed cycle or level switch. HP-light gravity Viton insert available on seat for tight closure

What we need to Know! • Maximum operating pressure • Back pressure • Maximum operating temperature • Specific gravity of the liquid to be drained [Commonly there are different liquids, or a mixture. Always use lightest SG to insure operation at worst cases. ] • Volume/Load of the drained liquid 9

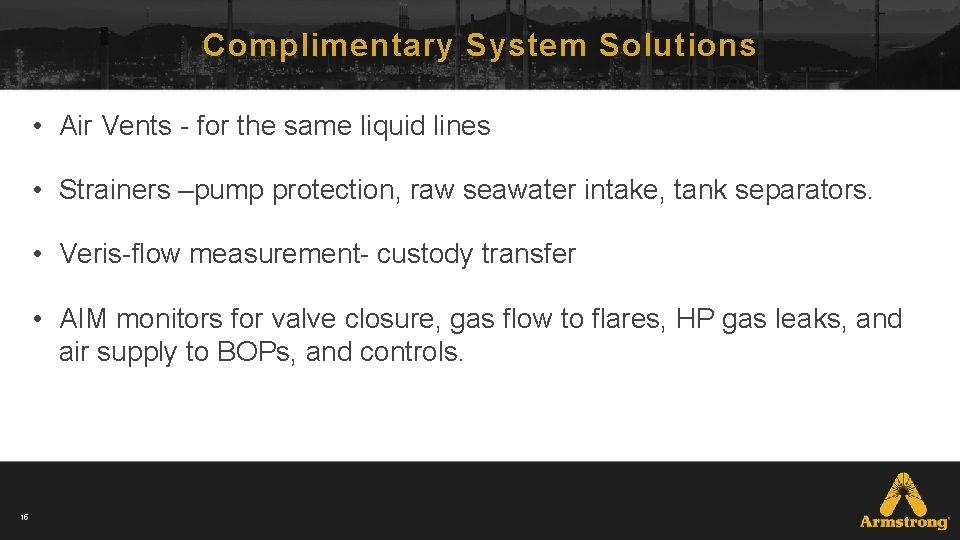

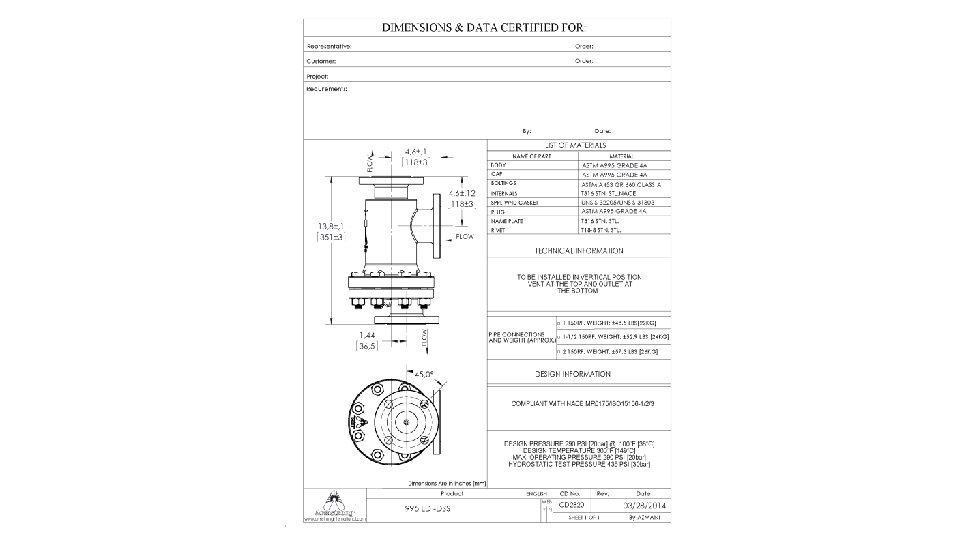

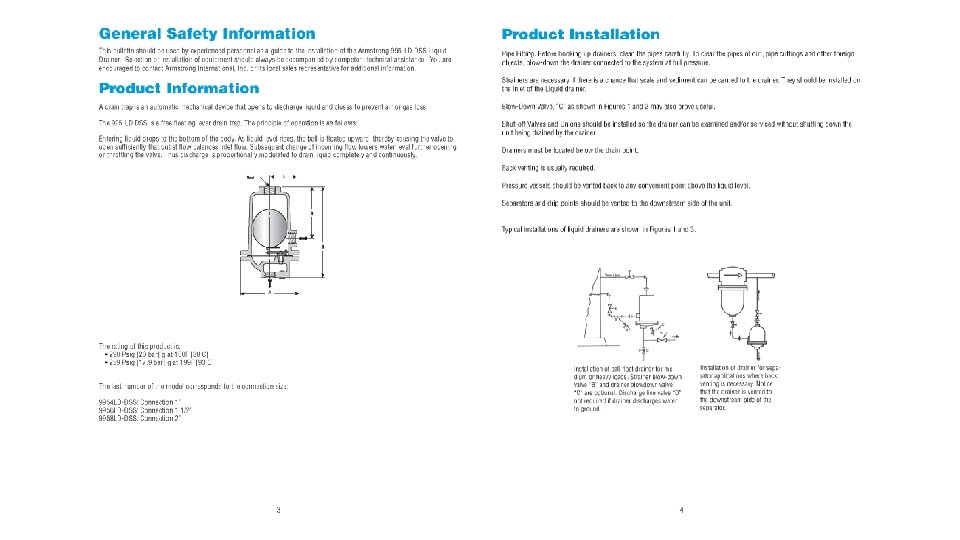

Complimentary System Solutions • Air Vents - for the same liquid lines • Strainers –pump protection, raw seawater intake, tank separators. • Veris-flow measurement- custody transfer • AIM monitors for valve closure, gas flow to flares, HP gas leaks, and air supply to BOPs, and controls. 15
