Linux on Network Switch and Management HyungSoo Kim

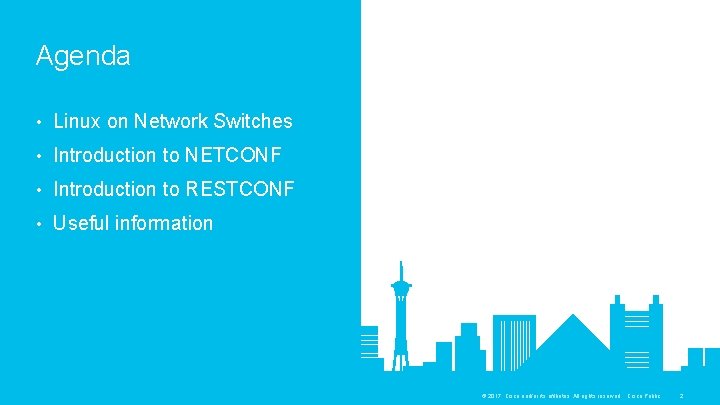

Agenda • Linux on Network Switches • Introduction to NETCONF • Introduction to RESTCONF

Linux on Network Switch © 2017 Cisco and/or its affiliates. All rights reserved. Cisco

Open NX-OS Linux • Kernel 3. 4 • • 64 bit Linux 3. 4

Benefit from Linux Kernel Stack • Linux utilities for interface management • • Linux

Architecture of Open NXOS © 2017 Cisco and/or its affiliates. All rights reserved. Cisco

Native Bash-Shell © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 7

VRF and Linux Namespace (1/2) © 2017 Cisco and/or its affiliates. All rights reserved.

VRF and Linux Namespace (2/2) © 2017 Cisco and/or its affiliates. All rights reserved.

Guest Shell It’s an open Linux environment, decoupled from NX-OS. 3 rd Party Apps

Richly Populated Repositories for 3 rd Party Apps chvrf utility used to select VRF

Install 3 rd party package via YUM © 2017 Cisco and/or its affiliates. All

Linux Networking Is Possible From the Guest Shell Only read access is allowed from

Use dohost utility # dohost “CLI command for configuration “ © 2017 Cisco and/or

The Guest Shell is Secure • Namespaces are separate, resource usage is controlled, access

Linux Apps Can Interact With the External World Nexus 9 K Your Custom Applications

Guest Shell Use Cases • Monitoring • • Extensibility • 3 rd party tools:

Introduction to Standard Device Interfaces © 2017 Cisco and/or its affiliates. All rights reserved.

The Network is No Longer Isolated © 2017 Cisco and/or its affiliates. All rights

What about SNMP? SNMP works “reasonably well for device monitoring” RFC 3535: Overview of

RFC 3535: What is Needed? • A programmatic interface for device configuration • Separation

NETCONF / YANG (RESTCONF & g. RPC) • NETCONF – 2006 – RFC 4741

Introduction to YANG Data Models © 2017 Cisco and/or its affiliates. All rights reserved.

Three Meanings of “YANG” • YANG Modeling Language • YANG Data Models • YANG

Where do Models Come From? Industry Standard • Standard definition (IETF, ITU, Open. Config,

list module: ietf-interfaces Module Name --+ rw interfaces Key --+ | rw interface* [name[

XML Output Review <interfaces xmlns="urn: ietf: params: xml: ns: yang: ietf-interfaces"> <interface> Leaf <name>Gigabit.

Introduction to NETCONF © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

Introducing the NETCONF Protocol Some key details: • Initial standard in 2006 with RFC

NETCONF Protocol Stack © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

Operations - NETCONF Actions Operation Description <get> Retrieve running configuration and device state information

NETCONF Data Stores Data Store Key Points • • • Entire or partial configuration

Code Review – Part 1 #!/usr/bin/env python from ncclient import manager from pprint import

$Code Review – Part 2 m = manager. connect(host=HOST, port=PORT, username=USER, password=PASS, hostkey_verify=False, device_params={'name':$

Code Review – Part 3 hostname_filter = ''' <filter> <native xmlns="http: //cisco. com/ns/yang/Cisco-IOS-XE-native"> <hostname></hostname>

Code Review – Part 3 b (Read in Filter from File) hostname_filter = open("hostname_filter.

Code Review – Part 4 print(xml. dom. minidom. parse. String(netconf_reply. xml). toprettyxml()) netconf_payload =

Code Review – Part 5 m. close_session() Don’t forget to close the session! ©

Output Review XML Output Identify output as XML ? >xml version="1. 0<? " <rpc-reply

How to get NETCONF content (1/3) ? # CLI show-command | xml © 2017

How to get NETCONF content (1/3) # prepare for configuration cli command © 2017

How to get NETCONF content (3/3) ? # command for changing name of this

NETCONF Review © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 43

Introduction to RESTCONF © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

RESTCONF Details “an HTTP-based protocol that provides a programmatic interface for accessing data defined

What about NETCONF? © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

RESTCONF Protocol Stack & Transport © 2017 Cisco and/or its affiliates. All rights reserved.

Operations - HTTP CRUD RESTCONF GET NETCONF <get> , <get-config> POST <edit-config> (operation="create") PUT

Content - XML or JSON HTTP Headers • • Content-Type: Specify the type of

Constructing RESTCONF URIs https: //<ADDRESS>/<ROOT>/<DATA STORE>/<[YANG MODULE: ]CONTAINER>/<LEAF>[? <OPTIONS>] • ADDRESS - Of the

URL Creation Review Key: https: //<ADDRESS>/<ROOT>/<DATA STORE>/<[YANG MODULE: ]CONTAINER>/<LEAF>[? <OPTIONS>] http: //192. 168. 27.

curl command Review $ curl -u admin: C 1 sco 12345 Authentication Header

} " ietf-interfaces: interface} : " Leaf " name": "Gigabit. Ethernet 1, " "

Postman Client Review URL METHODS Set Headers Authentication HTTP Status Code Returned Data ©

Useful Information © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 55

Where to get information • Cisco Dev. Net • • Open NXOS SDK •

Slides: 57

Download presentation
