Linux Modules and Device Drivers (ESP – Fall 2014) Computer Science & Engineering Department Arizona State University Tempe, AZ 85287 Dr. Yann-Hang Lee yhlee@asu. edu (480) 727 -7507 Real-time Systems Lab, Computer Science and Engineering, ASU
Software Development Environment q IDE – Eclipse, KDevelop q Linux and GNU tools v GCC, GDB, and GUI-based tools v applications in user space v operate device interface in user space (read/write of memorymapped I/Os) v interrupt service routines in kernel space v kernel modules and memory copy between user and kernel space Real-time Systems Lab, Computer Science and Engineering, ASU 1
Development Environment of Linux Host PC workstation gcc crosscompiler GDB debugger Eclipse IDE Target board Applications GDB Server Linux or Windows Board support package Real-time Systems Lab, Computer Science and Engineering, ASU 2
What is “kernel” q The basic component of an operating system v to provide the lowest-level abstraction layer for the resources (especially processors and I/O devices). v available to application processes through inter-process communication mechanisms and system calls q Kernel space and user space q What are system calls v Which are systems calls – cc, make, ls, cat, grep, read, open, printf, malloc, etc. v How can we set the baud rate of a serial port? Ø Configuration of a hyperterminal Ø stty -F /dev/tty. S 2 ospeed 38400 Ø Ioctl to get and set terminal attributes (defined in struct termios) v The mechanism of making system calls and passing parameters Real-time Systems Lab, Computer Science and Engineering, ASU 3
Kernel Components q Process Management v Process life cycle, Inter Process Communication, I/O v Scheduling (long-term, short-term) q Memory Management v Virtual memory, management, security q File System v File system tree, management, security q Device Control v Almost every system operation maps to a physical device v The code used to do those operations is called Device Driver q Networking v Collect incoming packets and De-Multiplexing them v Deliver outgoing packets Real-time Systems Lab, Computer Science and Engineering, ASU 4
Memory Spaces (1) q The logical address space of a process is divided into two parts v – 0 x 0000 to PAGE_OFFSET-1 can be addressed in either user or kernel mode v – PAGE_OFFSET to 0 xffff can be addressed only in kernel mode v – PAGE_OFFSET is usually 0 xc 0000 q Peripheral devices are controlled by writing and reading their registers. Where are these registers? q I/O Port: request an IO port region and inb (outb) from <asm/io. h> q I/O Memory: v Request a memory region v Devices at physical addresses which have to be mapped to virtual addresses for software to access. Real-time Systems Lab, Computer Science and Engineering, ASU 5
Memory Spaces (2) q Physical memory q Virtual memory (user and kernel space) v Linux ARM -- Linux/Documentation/arm/memory. txt (X 86 virtual memory layout) Real-time Systems Lab, Computer Science and Engineering, ASU 6
Linux Kernel Modules q Modules can be compiled and dynamically linked into kernel address space. v Useful for device drivers that need not always be resident until needed. (why? ) v Extend the functionality of the kernel without rebuilding and rebooting the system. q Kernel keeps a symbol table v Symbols accessible to kernel-loadable modules appear in /proc/kallsyms. v EXPORT_SYMBOL(), which exports to any loadable module, or v EXPORT_SYMBOL_GPL(), which exports only to GPL-licensed modules. q Can call any functions exported by the kernel v no library is linked to modules Real-time Systems Lab, Computer Science and Engineering, ASU 7
Kernel Modules q Pieces of code that can be loaded and unloaded into the kernel. v a module registers itself in order to serve future requests v Is a part of kernel – printf or printk q An example module #include <linux/module. h> // Needed by all modules #include <linux/kernel. h> // Needed for KERN_ALERT #include <linux/init. h> // Needed for the macros static int hello_2_init(void) { printk(KERN_ALERT "Hello, world 2n"); return 0; } static void hello_2_exit(void) { printk(KERN_ALERT "Goodbye, world 2n"); } module_init(hello_2_init); module_exit(hello_2_exit); Real-time Systems Lab, Computer Science and Engineering, ASU 8
Hello. World Kernel Module Example (1) /* Hello World kernel module program */ #include <linux/init. h> #include <linux/module. h> #include <linux/time. h> #include <linux/delay. h> static int hello_init(void) { int i; struct timeval cur. Time; // keeps the time since the Epoch struct tm bkd_time; // containing a calendar date and time for (i=0; i<10; i++) { do_gettimeofday(&cur. Time); time_to_tm(cur. Time. tv_sec, 0, &bkd_time); printk(KERN_ALERT "Hello, world. The current time is: %d: %d: %ldn", bkd_time. tm_hour, bkd_time. tm_min, bkd_time. tm_sec, cur. Time. tv_usec); msleep(i*1000); } } static void hello_exit(void) { printk(KERN_ALERT "Goodbye, cruel worldn"); } module_init(hello_init); module_exit(hello_exit); Real-time Systems Lab, Computer Science and Engineering, ASU 9
Hello. World Kernel Module Example (2) # Makefile for Hello World kernel module CC = i 586 -poky-linux-gcc ARCH = x 86 CROSS_COMPILE = i 586 -poky-linux. SROOT=/opt/clanton-full/1. 4. 2/sysroots/i 586 -poky-linux/ obj-m = Hello. Module. o all: make ARCH=$(ARCH) CROSS_COMPILE=$(CROSS_COMPILE) -C $(SROOT)/usr/src/kernel M=$(PWD) modules ---- copy to the target scp Hello. Module. ko root@10. 218. 101. 25: /home/. . . . ---- install and remove the module insmod Hello. Module. ko rmmod Hello. Module Real-time Systems Lab, Computer Science and Engineering, ASU 10
Linking and Unlinking Modules Real-time Systems Lab, Computer Science and Engineering, ASU 11
Programs for Linking and Unlinking Modules (1) q insmod v Reads from the name of the module to be linked v Locates the file containing the module's object code v Computes the size of the memory area needed to store the module v v v code, its name, and the module object Invokes the create_module( ) system call Invokes the query_module( ) system call Using the kernel symbol table, the module symbol tables, and the address returned by the create_module( ) system call, relocates the object code included in the module's file. Allocates a memory area in the User Mode address space and loads with a copy of the module object Invokes the init_module( ) system call, passing to it the address of the User Mode memory area Releases the User Mode memory area and terminates Real-time Systems Lab, Computer Science and Engineering, ASU 12
Programs for Linking and Unlinking Modules (2) q lsmod v reads /proc/modules q rmmod v From reads the name of the module to be unlinked. v Invokes the query_module( ) v Invokes the delete_module( ) system call, with the QM_REFS subcommand several times, to retrieve dependency information on the linked modules. q modprobe v loads a module into the kernel. v check any module dependency and load any other modules that are required – stacking of modules Real-time Systems Lab, Computer Science and Engineering, ASU 13
Module Implementation q The kernel considers only modules that have been loaded into RAM by the insmod program and for each of them allocates memory area containing: v a module object v null terminated string that represents module's name v the code that implements the functions of the module q Building v Linux kbuild v make -C ~/kernel-2. 6 M=`pwd` modules to build modules. ko Ø “M=“ is recognized and kbuild is used Ø ~/kernel-2. 6 is the kernel source directory Ø pwd ? ? Real-time Systems Lab, Computer Science and Engineering, ASU 14
Device Driver Basics q Purpose: v a well defined and consistent interface to handle requests for device operations v isolate device-specific code in the drivers q A software interface to hardware devices v resides in kernel or user spaces q Classification Ø character device (terminal) OS specific code I/O class specific code Ø block (disk) -- with buffer cache Ø network device driver Hardware specific code Ø pseudodevice q When to call a device driver Ø configuration, I/O operations, and interrupt I/O adapters Real-time Systems Lab, Computer Science and Engineering, ASU 15
Char and Block Devices q Character Devices v Accessed as a stream of bytes (like a file) v Typically just data channels or data areas, which allow only sequential access v Char devices are accessed by means of filesystem nodes v Example: /dev/tty 1 and /dev/lp 0 v Driver needs to implement at least the open, close, read, and write system calls q Block Devices v provides access to devices that transfer randomly accessible data in fixed- size blocks v Examples? q Design Challenges v Concurrency, performance, and portability Real-time Systems Lab, Computer Science and Engineering, ASU 16
Char Device q cdev -- the kernel internal structure to represents a character device file v Defined in <linux/cdev. h> struct cdev { struct kobject kobj; struct module *owner; struct file_operations *ops; struct list_head list; dev_t dev; unsigned int count; }; struct file_operations ldd_fops = {. owner = THIS_MODULE, . llseek = ldd_llseek, . read = ldd_read, . write = ldd_write, . ioctl = ldd_ioctl, . open = ldd_open, . release = ldd_release }; Real-time Systems Lab, Computer Science and Engineering, ASU 17
Driver Interface for Character Devices struct file_operations { // defined in inlcude/linux/fs. h struct module *owner; loff_t (*llseek) (struct file *, loff_t, int); ssize_t (*read) (struct file *, char __user *, size_t, loff_t *); ssize_t (*write) (struct file *, const char __user *, size_t, loff_t *); ssize_t (*aio_read) (struct kiocb *, const struct iovec *, unsigned long, loff_t); ssize_t (*aio_write) (struct kiocb *, const struct iovec *, unsigned long, loff_t); long (*unlocked_ioctl) (struct file *, unsigned int, unsigned long); long (*compat_ioctl) (struct file *, unsigned int, unsigned long); int (*mmap) (struct file *, struct vm_area_struct *); int (*open) (struct inode *, struct file *); int (*flush) (struct file *, fl_owner_t id); int (*release) (struct inode *, struct file *); int (*fsync) (struct file *, int datasync); int (*fasync) (int, struct file *, int); int (*lock) (struct file *, int, struct file_lock *); ………………… }; Real-time Systems Lab, Computer Science and Engineering, ASU 18
User Program & Kernel Interface Real-time Systems Lab, Computer Science and Engineering, ASU 19
Basic Device Driver Structure 0 1 2 3 File descriptor table Device list (of device descriptors) “/tty 0/” 1 “/pty 0/” 1 “/xx 1/” 3 Devicedependent data Driver table (function pointers) q Major number to identify the driver associated with the device q Minor number provides a way for the driver to differentiate multiple devices. q dev_t type in <linux/types. h>: 8 bis for major and 8 bits for minor in kernel 2. 4, 12 bis for major and 20 bits for minor in kernel 2. 6. Real-time Systems Lab, Computer Science and Engineering, ASU 20

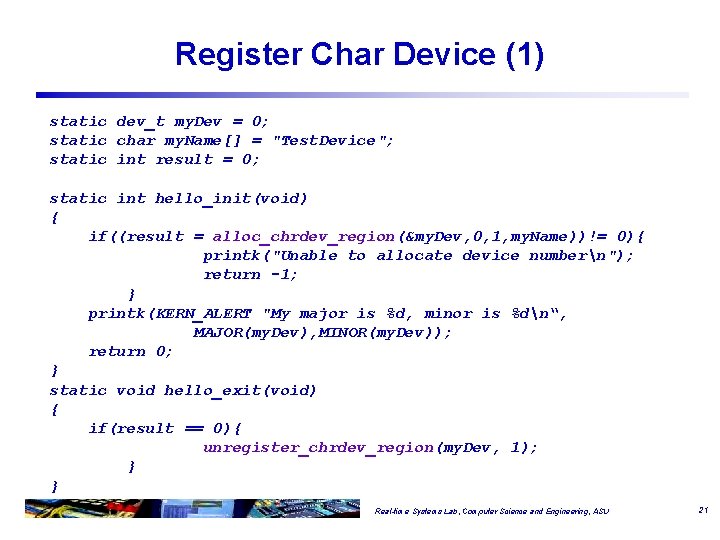

Register Char Device (1) static dev_t my. Dev = 0; static char my. Name[] = "Test. Device"; static int result = 0; static int hello_init(void) { if((result = alloc_chrdev_region(&my. Dev, 0, 1, my. Name))!= 0){ printk("Unable to allocate device numbern"); return -1; } printk(KERN_ALERT "My major is %d, minor is %dn“, MAJOR(my. Dev), MINOR(my. Dev)); return 0; } static void hello_exit(void) { if(result == 0){ unregister_chrdev_region(my. Dev, 1); } } Real-time Systems Lab, Computer Science and Engineering, ASU 21
Register Char Device (2) q Device numbers registration and release v Manually-assigned registration int register_chrdev_region( dev_t first, # The beginning device number unsigned int count, # Number of continuous device number char *name # Device name (shown in /proc/devices) ); v Dynamically-allocated registration int alloc_chrdev_region( dev_t *dev, # output-only that holds the first device unsigned int firstminor, # The beginning of first minor number unsigned int count, char *name ); v Release void unregister_chrdev_region( dev_first, # The first device number going to release unsigned int count ); Real-time Systems Lab, Computer Science and Engineering, ASU 22
Device Registration q Allocate and initialize a cdev struct v cdev_alloc or cdev_init v cdev gets initilized with a file_opreations structure q cdev_add to register operatons of your device driver v int cdev_add(struct cdev *dev, dev_t num, unsigned int count) q cdev_del — remove a cdev from the system Real-time Systems Lab, Computer Science and Engineering, ASU 23
A Memory Buffer Driver Module Example q As a module, v __init gmem_init(void) v __exit gmem_exit(void) q In gmem_init, create and register a character device with file operations v open, release, read, and write v device file is then created in file system q User program can use device name as a file and invoke file operations on the device q inode cdev gmem_dev (a super-class of cdev containging device related data) file q(Add a code example) Real-time Systems Lab, Computer Science and Engineering, ASU 24
Open System Call q The open system maps onto an operation registered by a driver module v The kernel first does some processing (e. g. , finds the inode struct and file struct for the driver v Invokes the open operation v int open(const char *pathname, int flags); v int open(const char *pathname, int flags, mode_t mode); // return the new file descriptor, v int (*open) (struct inode *, struct file *); Real-time Systems Lab, Computer Science and Engineering, ASU 25
File Struct q The file structure represents an open file. v a kernel structure v created by the kernel on open v v v and is passed to any function that operates on the file defined in <linux/fs. h> mode_t f_mode : readable or writable loff_t f_pos: current reading or writing position. struct file_operations *f_op void *private_data struct file { struct list_head f_list; struct dentry *f_dentry; struct vfsmount *f_vfsmnt; struct file_operations *f_op; atomic_t f_count; unsigned int f_flags; mode_t f_mode; loff_t f_pos; unsigned long f_reada, f_ramax, f_raend, f_ralen, f_rawin; struct fown_struct f_owner; unsigned int f_uid, f_gid; int f_error; unsigned long f_version; void *private_data; }; Real-time Systems Lab, Computer Science and Engineering, ASU 26
inode q Each object in the filesystem is represented by an inode v File type (executable, block special etc), permissions (read, write etc), Owner, Group, File Size, v File access, change and modification time, deletion time Number of links (soft/hard), extended attribute such as append only v Access Control List (ACLs) v Includes dev_t i_rdev; struct block_device *i_bdev; struct char_device *i_cdev; Real-time Systems Lab, Computer Science and Engineering, ASU 27
Memory Access – User and Kernel Spaces q You might receive some pointers that point to user space in your driver function v Do not dereference it directly v Access it via kernel functions (<asm/uaccess. h>): copy_to_user() and copy_from_user() Ø They would check whether the user space pointer is valid unsigned long copy_to_user( void __user *to, const void *from, unsigned long count); unsigned long copy_from_user( void *to, const void __user *from, unsigned long count); Real-time Systems Lab, Computer Science and Engineering, ASU 28
The Read/Write Method Real-time Systems Lab, Computer Science and Engineering, ASU 29
Container_of q If strcut x contains y, can we find the pointer to x given the pointer to y q defined in <linux/kernel. h>: container_of(pointer, container_type, container_field); q takes a pointer to a field of type container_field, within a structure of type container_type, q returns a pointer to the containing structure. Real-time Systems Lab, Computer Science and Engineering, ASU 30
