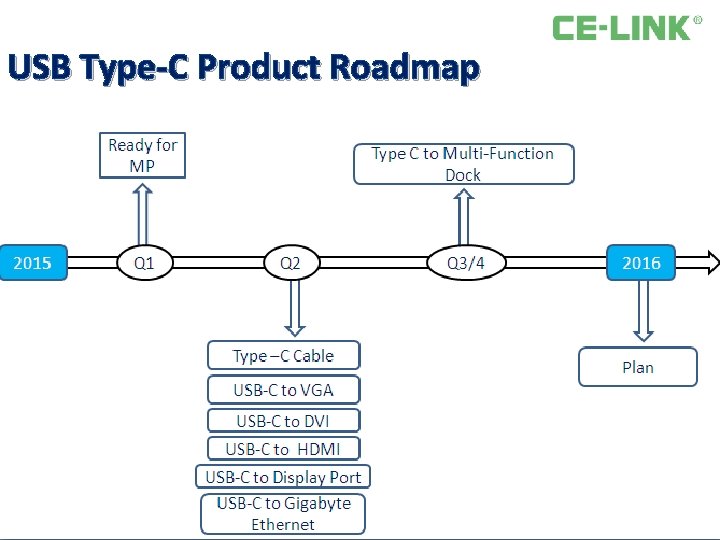

USB Type‐C Product Roadmap Ready for MP 2015 Q 1 Type C to Multi-Function Dock Q 2 Type –C Cable USB-C to VGA USB-C to DVI USB-C to HDMI USB-C to Display Port USB-C to Gigabyte Ethernet Q 3/4 2016 Plan

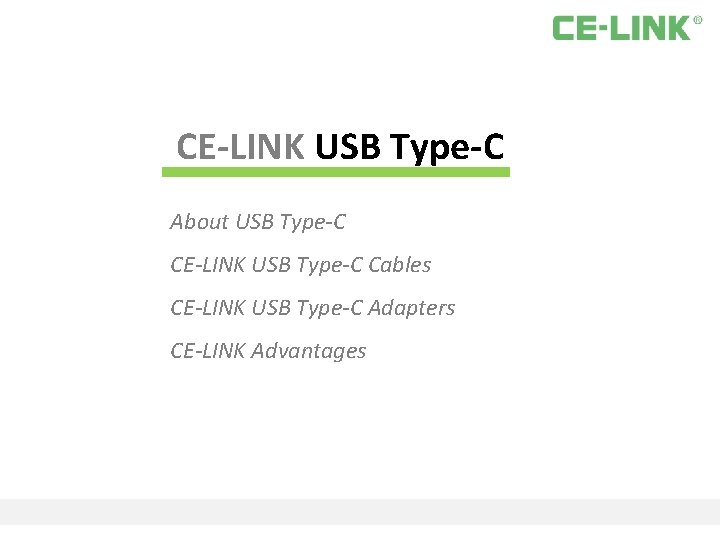

CE‐LINK USB Type‐C About USB Type-C CE-LINK USB Type-C Cables CE-LINK USB Type-C Adapters CE-LINK Advantages

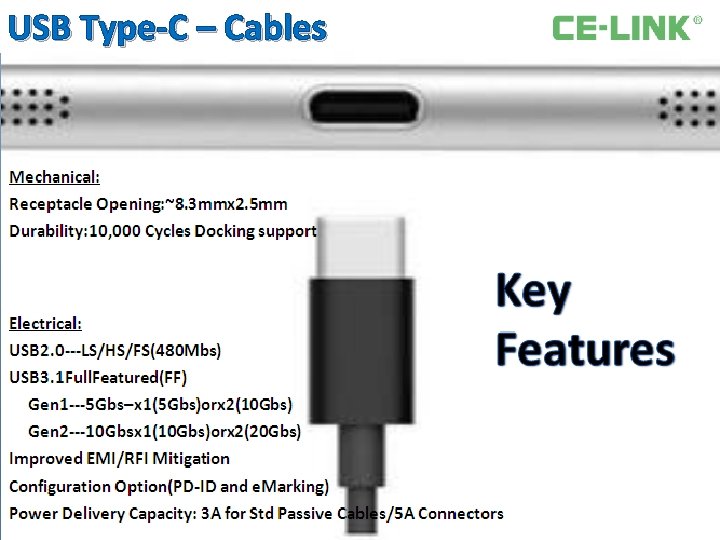

USB Type‐C – Cables Mechanical: Receptacle Opening: ~8. 3 mmx 2. 5 mm Durability: 10, 000 Cycles Docking support Key Features Electrical: USB 2. 0‐‐‐LS/HS/FS(480 Mbs) USB 3. 1 Full. Featured(FF) Gen 1‐‐‐ 5 Gbs–x 1(5 Gbs)orx 2(10 Gbs) Gen 2‐‐‐ 10 Gbsx 1(10 Gbs)orx 2(20 Gbs) Improved EMI/RFI Mitigation Configuration Option(PD‐ID and e. Marking) Power Delivery Capacity: 3 A for Std Passive Cables/5 A Connectors

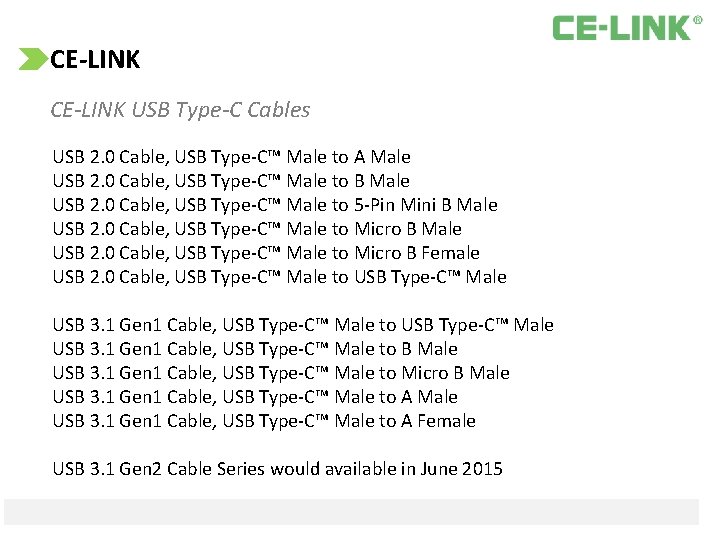

CE‐LINK CE-LINK USB Type-C Cables USB 2. 0 Cable, USB Type-C™ Male to A Male USB 2. 0 Cable, USB Type-C™ Male to B Male USB 2. 0 Cable, USB Type-C™ Male to 5 -Pin Mini B Male USB 2. 0 Cable, USB Type-C™ Male to Micro B Female USB 2. 0 Cable, USB Type-C™ Male to USB Type-C™ Male USB 3. 1 Gen 1 Cable, USB Type-C™ Male to B Male USB 3. 1 Gen 1 Cable, USB Type-C™ Male to Micro B Male USB 3. 1 Gen 1 Cable, USB Type-C™ Male to A Female USB 3. 1 Gen 2 Cable Series would available in June 2015

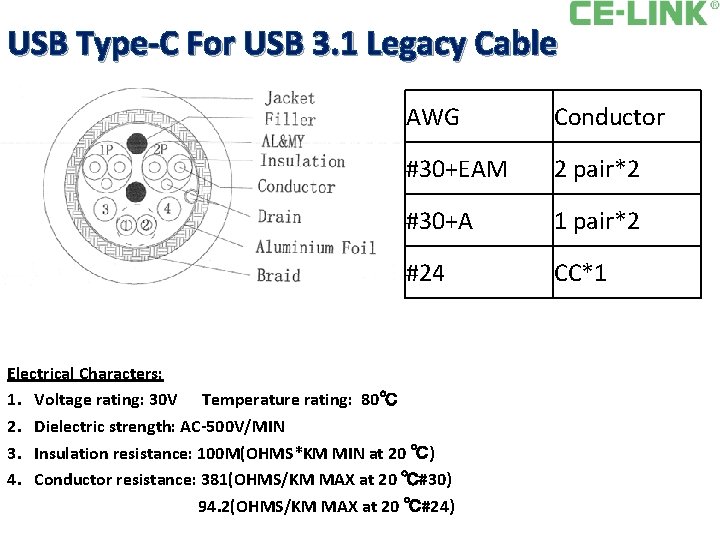

USB Type‐C For USB 3. 1 Legacy Cable AWG Conductor #30+EAM 2 pair*2 #30+A 1 pair*2 #24 CC*1 Electrical Characters: 1. Voltage rating: 30 V Temperature rating: 80℃ 2. Dielectric strength: AC‐ 500 V/MIN 3. Insulation resistance: 100 M(OHMS*KM MIN at 20 ℃) 4. Conductor resistance: 381(OHMS/KM MAX at 20 ℃#30) 94. 2(OHMS/KM MAX at 20 ℃#24)

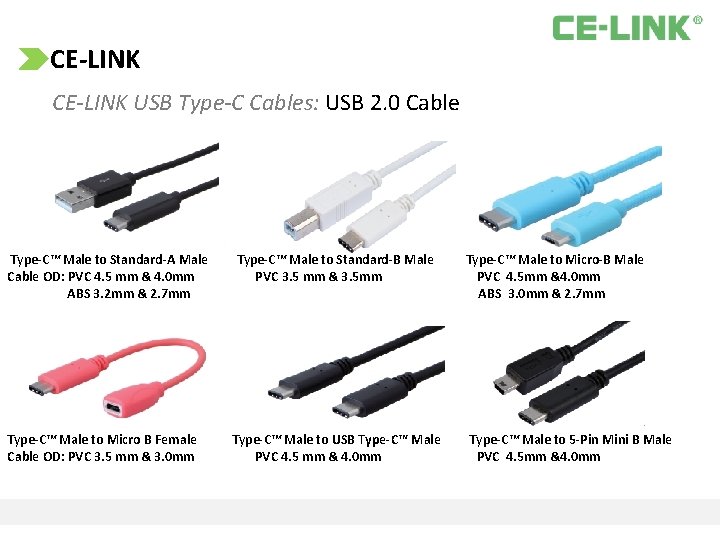

CE‐LINK CE-LINK USB Type-C Cables: USB 2. 0 Cable Type-C™ Male to Standard‐A Male Cable OD: PVC 4. 5 mm & 4. 0 mm ABS 3. 2 mm & 2. 7 mm Type-C™ Male to Standard‐B Male PVC 3. 5 mm & 3. 5 mm Type-C™ Male to Micro‐B Male PVC 4. 5 mm &4. 0 mm ABS 3. 0 mm & 2. 7 mm ABS 3. 2 mm & 2. 7 mm Type-C™ Male to Micro B Female Cable OD: PVC 3. 5 mm & 3. 0 mm Type-C™ Male to USB Type‐C™ Male PVC 4. 5 mm & 4. 0 mm Type-C™ Male to 5‐Pin Mini B Male PVC 4. 5 mm &4. 0 mm

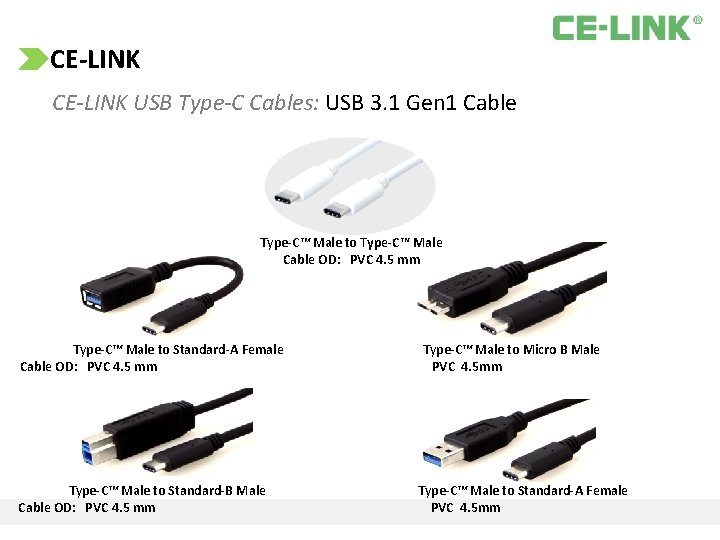

CE‐LINK CE-LINK USB Type-C Cables: USB 3. 1 Gen 1 Cable Type-C™ Male to Type‐C™ Male Cable OD: PVC 4. 5 mm Type-C™ Male to Standard‐A Female Cable OD: PVC 4. 5 mm Type-C™ Male to Standard‐B Male Cable OD: PVC 4. 5 mm Type-C™ Male to Micro B Male PVC 4. 5 mm Type-C™ Male to Standard‐A Female PVC 4. 5 mm

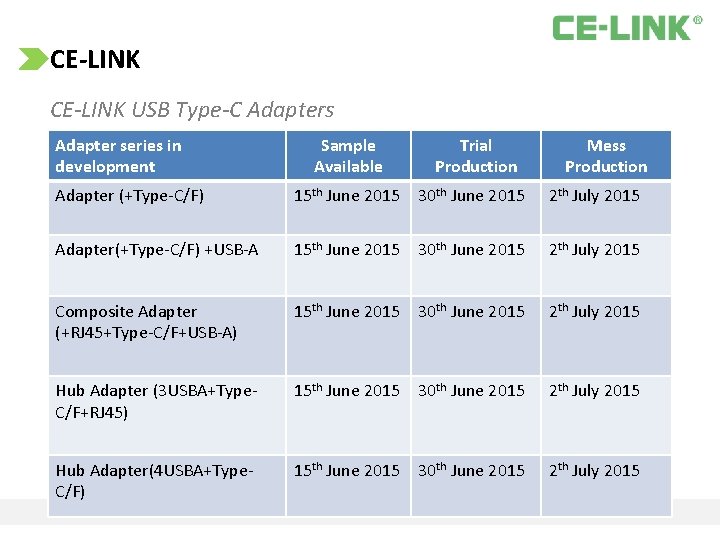

CE‐LINK CE-LINK USB Type-C Adapters Adapter series in development Sample Available Trial Production Mess Production Adapter (+Type-C/F) 15 th June 2015 30 th June 2015 2 th July 2015 Adapter(+Type-C/F) +USB-A 15 th June 2015 30 th June 2015 2 th July 2015 Composite Adapter (+RJ 45+Type-C/F+USB-A) 15 th June 2015 30 th June 2015 2 th July 2015 Hub Adapter (3 USBA+Type. C/F+RJ 45) 15 th June 2015 30 th June 2015 2 th July 2015 Hub Adapter(4 USBA+Type. C/F) 15 th June 2015 30 th June 2015 2 th July 2015

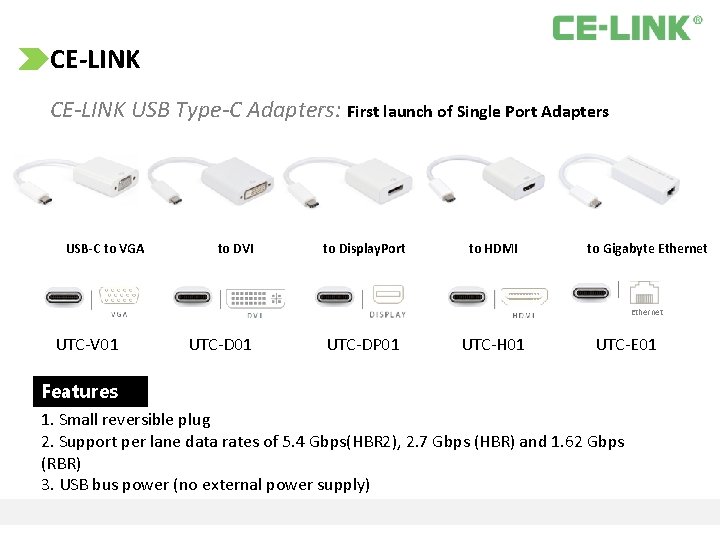

CE‐LINK CE-LINK USB Type-C Adapters: First launch of Single Port Adapters USB-C to VGA to DVI to Display. Port to HDMI to Gigabyte Ethernet UTC-V 01 UTC-DP 01 UTC-H 01 UTC-E 01 Features 1. Small reversible plug 2. Support per lane data rates of 5. 4 Gbps(HBR 2), 2. 7 Gbps (HBR) and 1. 62 Gbps (RBR) 3. USB bus power (no external power supply)

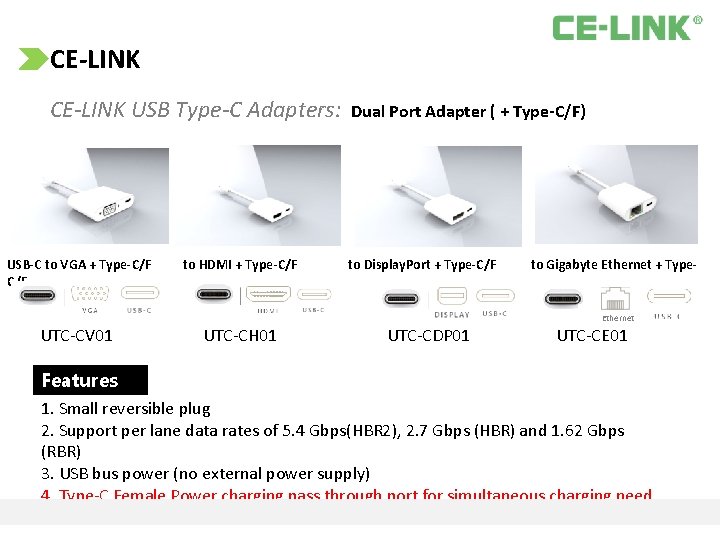

CE‐LINK CE-LINK USB Type-C Adapters: USB-C to VGA + Type‐C/F to HDMI + Type‐C/F Dual Port Adapter ( + Type‐C/F) to Display. Port + Type‐C/F to Gigabyte Ethernet + Type‐ Ethernet UTC-CV 01 UTC-CH 01 UTC-CDP 01 UTC-CE 01 Features 1. Small reversible plug 2. Support per lane data rates of 5. 4 Gbps(HBR 2), 2. 7 Gbps (HBR) and 1. 62 Gbps (RBR) 3. USB bus power (no external power supply) 4. Type-C Female Power charging pass through port for simultaneous charging need

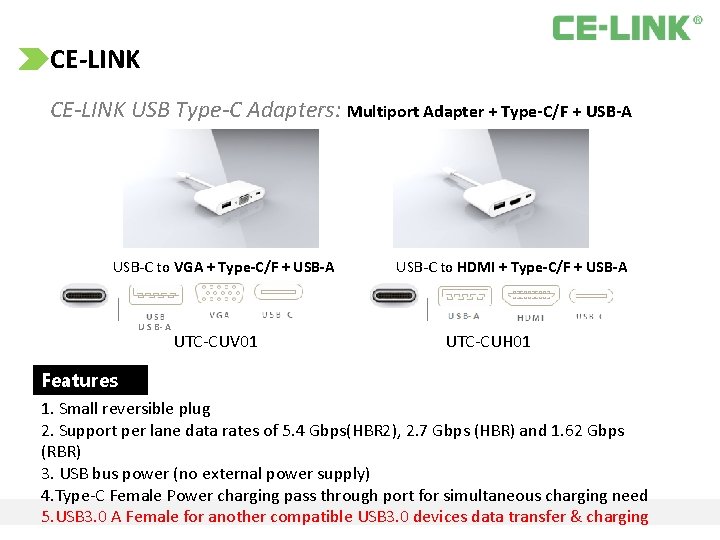

CE‐LINK CE-LINK USB Type-C Adapters: Multiport Adapter + Type‐C/F + USB‐A USB-C to VGA + Type‐C/F + USB‐A U S B‐ A UTC-CUV 01 USB-C to HDMI + Type‐C/F + USB‐A UTC-CUH 01 Features 1. Small reversible plug 2. Support per lane data rates of 5. 4 Gbps(HBR 2), 2. 7 Gbps (HBR) and 1. 62 Gbps (RBR) 3. USB bus power (no external power supply) 4. Type-C Female Power charging pass through port for simultaneous charging need 5. USB 3. 0 A Female for another compatible USB 3. 0 devices data transfer & charging

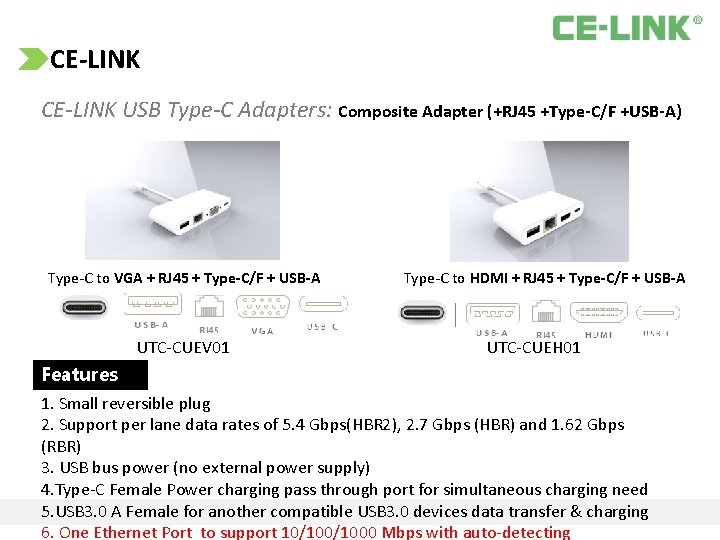

CE‐LINK CE-LINK USB Type-C Adapters: Composite Adapter (+RJ 45 +Type‐C/F +USB‐A) Type-C to VGA + RJ 45 + Type‐C/F + USB‐A UTC-CUEV 01 Type-C to HDMI + RJ 45 + Type‐C/F + USB‐A UTC-CUEH 01 Features 1. Small reversible plug 2. Support per lane data rates of 5. 4 Gbps(HBR 2), 2. 7 Gbps (HBR) and 1. 62 Gbps (RBR) 3. USB bus power (no external power supply) 4. Type-C Female Power charging pass through port for simultaneous charging need 5. USB 3. 0 A Female for another compatible USB 3. 0 devices data transfer & charging 6. One Ethernet Port to support 10/1000 Mbps with auto-detecting

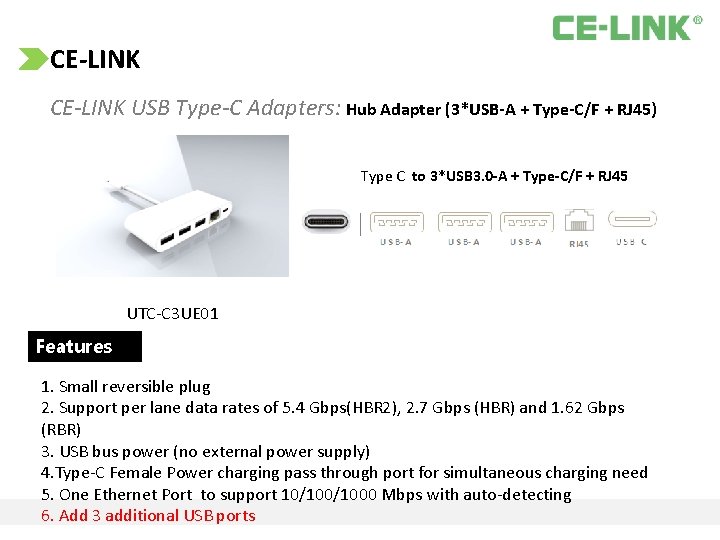

CE‐LINK CE-LINK USB Type-C Adapters: Hub Adapter (3*USB‐A + Type‐C/F + RJ 45) Type C to 3*USB 3. 0‐A + Type‐C/F + RJ 45 UTC-C 3 UE 01 Features 1. Small reversible plug 2. Support per lane data rates of 5. 4 Gbps(HBR 2), 2. 7 Gbps (HBR) and 1. 62 Gbps (RBR) 3. USB bus power (no external power supply) 4. Type-C Female Power charging pass through port for simultaneous charging need 5. One Ethernet Port to support 10/1000 Mbps with auto-detecting 6. Add 3 additional USB ports

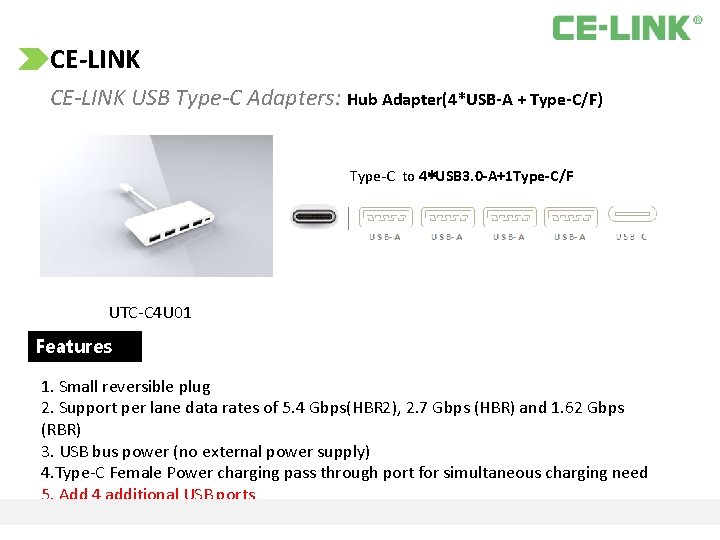

CE‐LINK CE-LINK USB Type-C Adapters: Hub Adapter(4*USB‐A + Type‐C/F) Type-C to 4*USB 3. 0‐A+1 Type‐C/F UTC-C 4 U 01 Features 1. Small reversible plug 2. Support per lane data rates of 5. 4 Gbps(HBR 2), 2. 7 Gbps (HBR) and 1. 62 Gbps (RBR) 3. USB bus power (no external power supply) 4. Type-C Female Power charging pass through port for simultaneous charging need 5. Add 4 additional USB ports

CE‐LINK CE-LINK Advantages: R&D System ü CE-LINK technology is innovated by 2 research institutes: Shenzhen R&D Center (In Bao. An and Nanshan district) Wuhan R&D Institute ü Over 100 engineers in R&D System, continual developing new and updated product

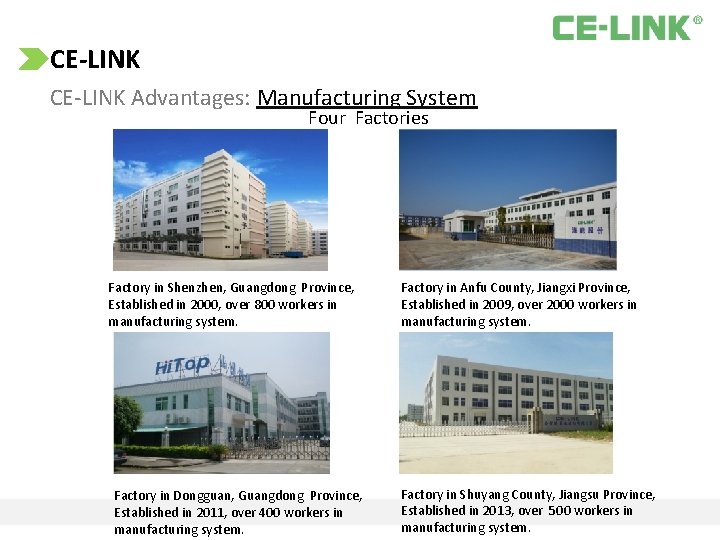

CE‐LINK CE-LINK Advantages: Manufacturing System Four Factories Factory in Shenzhen, Guangdong Province, Established in 2000, over 800 workers in manufacturing system. Factory in Dongguan, Guangdong Province, Established in 2011, over 400 workers in manufacturing system. Factory in Anfu County, Jiangxi Province, Established in 2009, over 2000 workers in manufacturing system. Factory in Shuyang County, Jiangsu Province, Established in 2013, over 500 workers in manufacturing system.

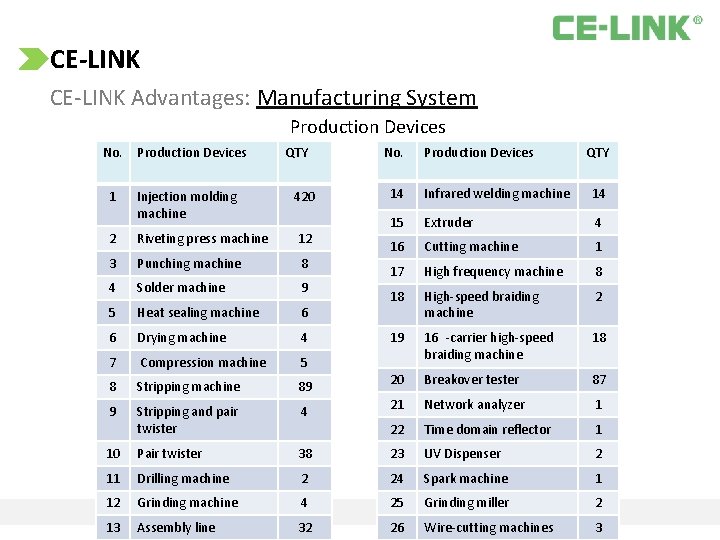

CE‐LINK CE-LINK Advantages: Manufacturing System Production Devices No. . Production Devices QTY No. . Production Devices QTY 14 Infrared welding machine 14 15 Extruder 4 16 Cutting machine 1 17 High frequency machine 8 18 High-speed braiding machine 2 19 16 -carrier high-speed braiding machine 18 20 Breakover tester 87 21 Network analyzer 1 22 Time domain reflector 1 38 23 UV Dispenser 2 Drilling machine 2 24 Spark machine 1 12 Grinding machine 4 25 Grinding miller 2 13 Assembly line 32 26 Wire-cutting machines 3 1 Injection molding machine 420 2 Riveting press machine 12 3 Punching machine 8 4 Solder machine 9 5 Heat sealing machine 6 6 Drying machine 4 7 Compression machine 5 8 Stripping machine 89 9 Stripping and pair twister 4 10 Pair twister 11

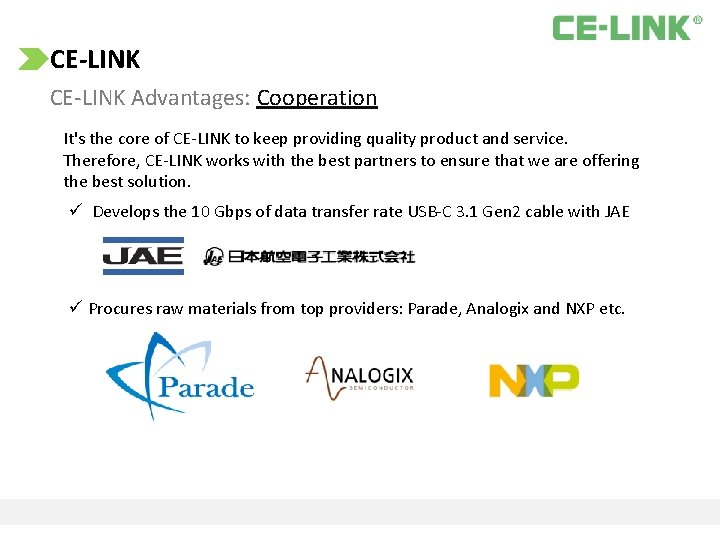

CE‐LINK CE-LINK Advantages: Cooperation It's the core of CE-LINK to keep providing quality product and service. Therefore, CE-LINK works with the best partners to ensure that we are offering the best solution. ü Develops the 10 Gbps of data transfer rate USB-C 3. 1 Gen 2 cable with JAE ü Procures raw materials from top providers: Parade, Analogix and NXP etc.

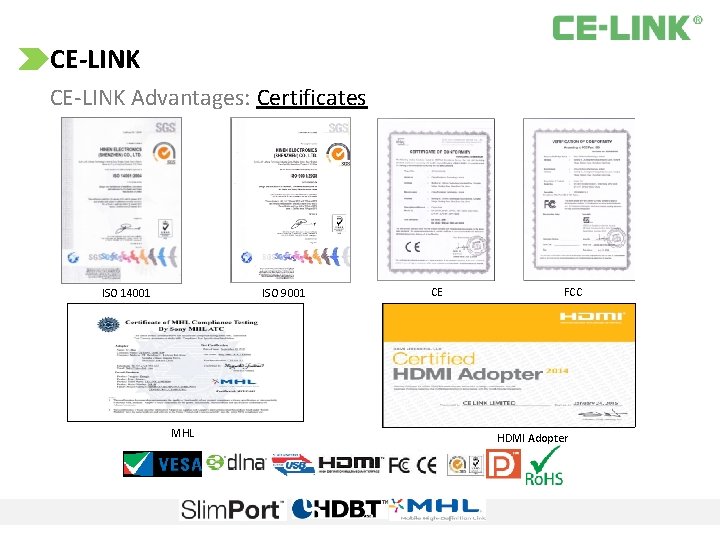

CE‐LINK CE-LINK Advantages: Certificates ISO 14001 ISO 9001 MHL CE FCC HDMI Adopter
