Linked Open Data Web of Data CKAN OGPL
발표 순서 Ⅰ Linked Open Data : Web of Data Ⅱ CKAN & OGPL III LATC & LOD 2 Ⅳ Wrap-up 2/55
Linked Open Data : Web of Data
Linked Data : 차세대 진화 5/55
Linked Data : DB Silo들을 연계 6/55

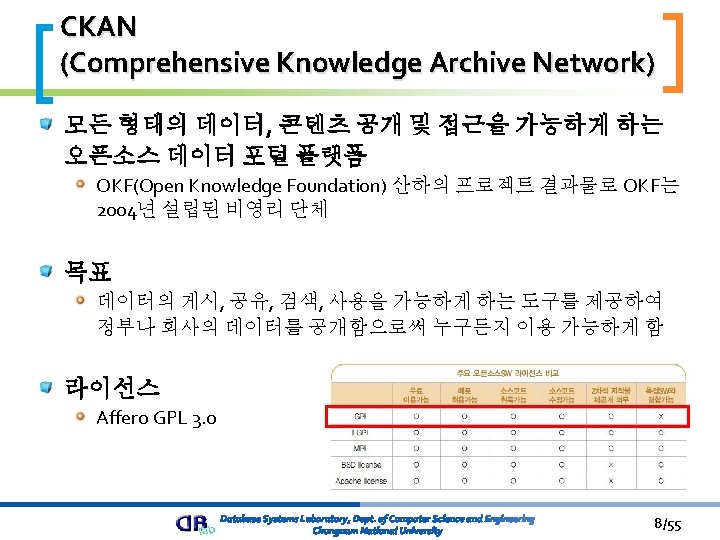

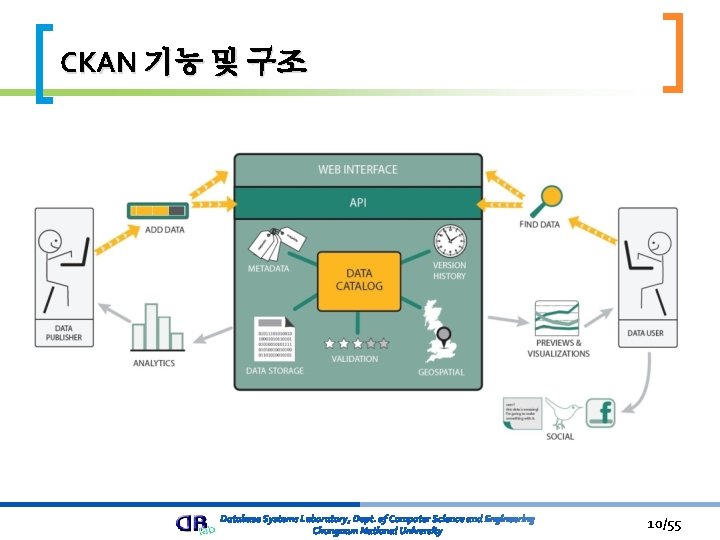

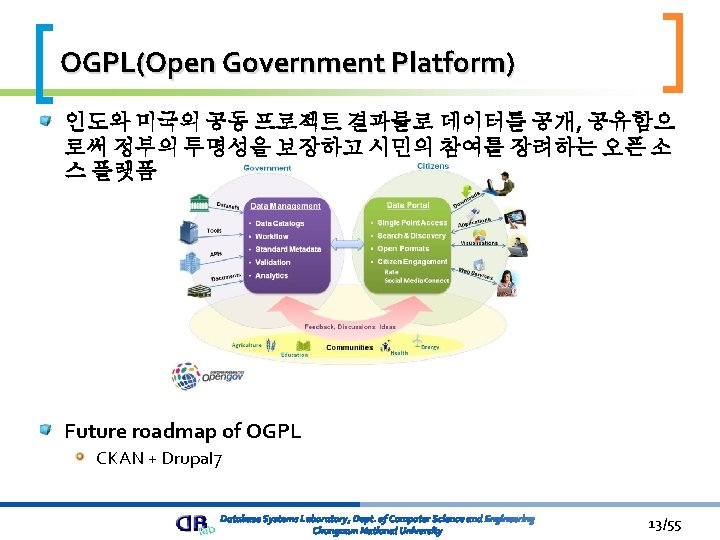

CKAN & OGPL

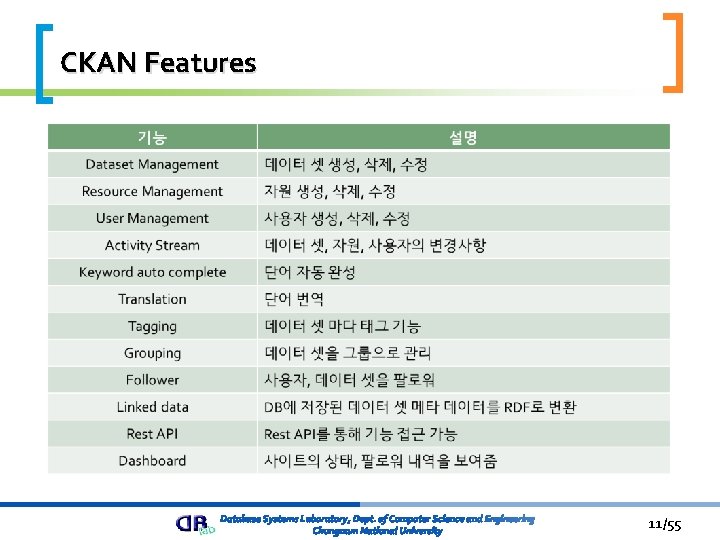

CKAN Features 11/55

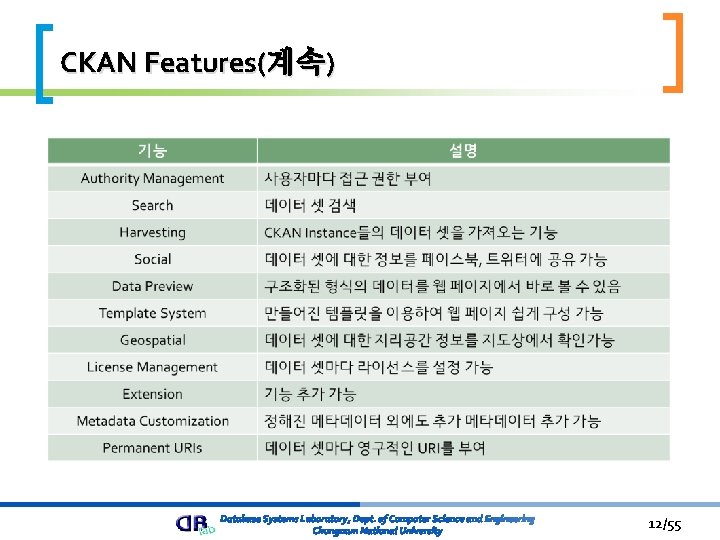

CKAN Features(계속) 12/55

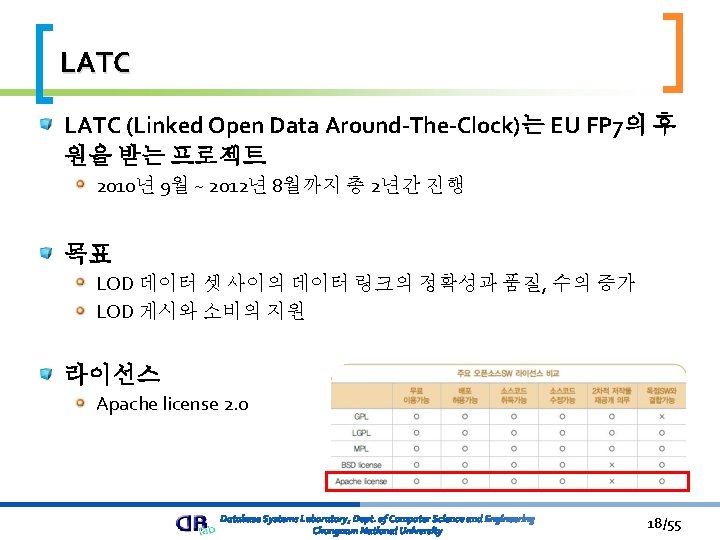

LATC & LOD 2
24/7 Interlinking Platform 구조 20/55

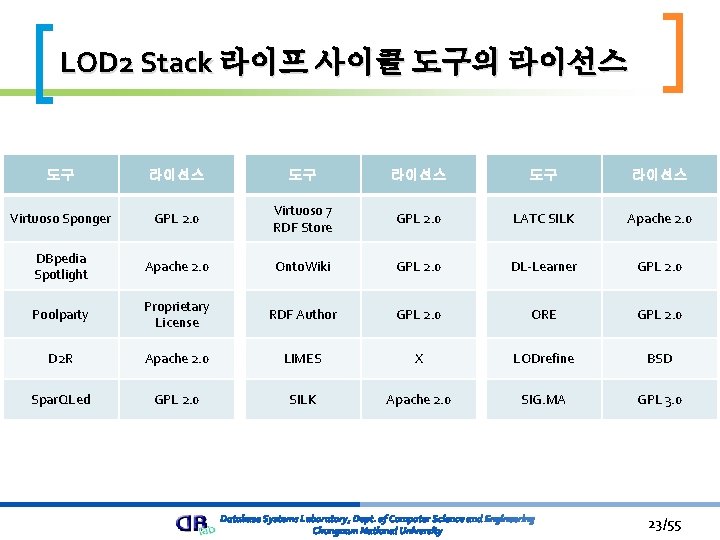

LOD 2 Stack 라이프 사이클 도구의 라이선스 도구 라이선스 Virtuoso Sponger GPL 2. 0 Virtuoso 7 RDF Store GPL 2. 0 LATC SILK Apache 2. 0 DBpedia Spotlight Apache 2. 0 Onto. Wiki GPL 2. 0 DL-Learner GPL 2. 0 Poolparty Proprietary License RDF Author GPL 2. 0 ORE GPL 2. 0 D 2 R Apache 2. 0 LIMES X LODrefine BSD Spar. QLed GPL 2. 0 SILK Apache 2. 0 SIG. MA GPL 3. 0 23/55

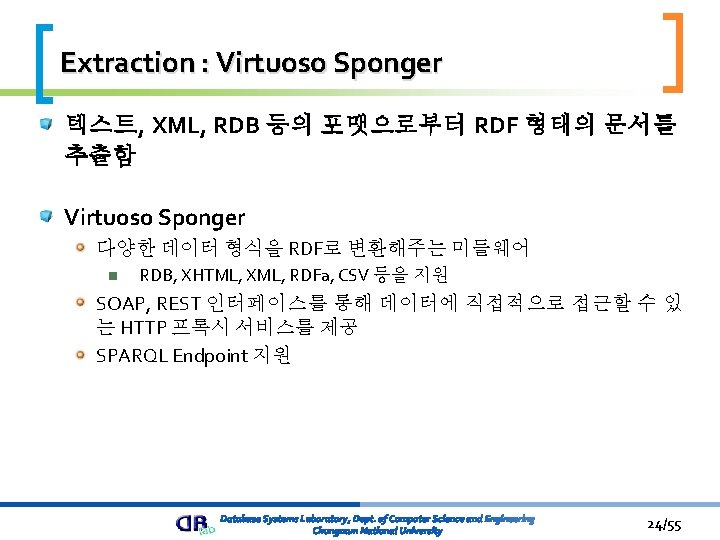

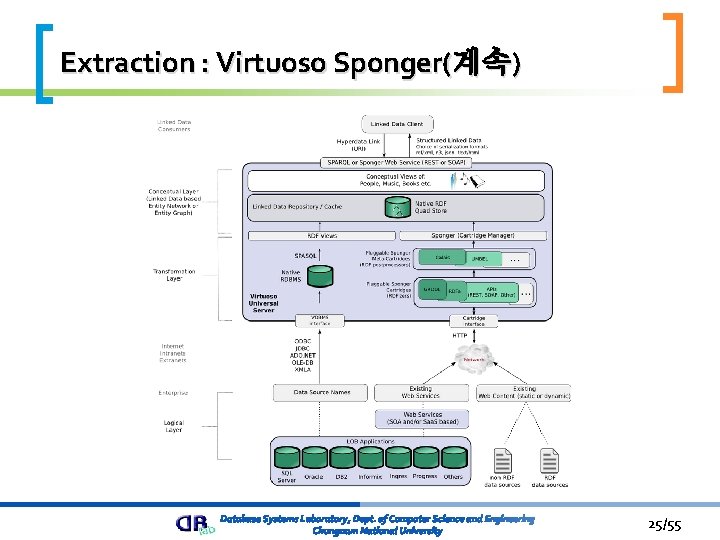

Extraction : Virtuoso Sponger(계속) 25/55

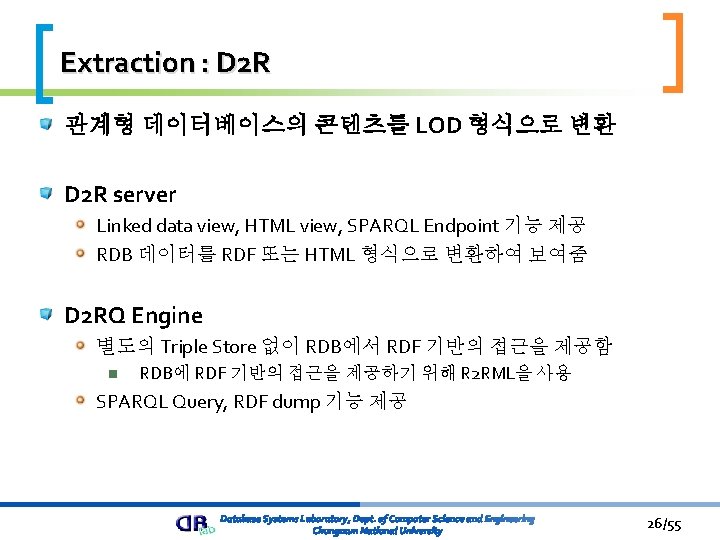

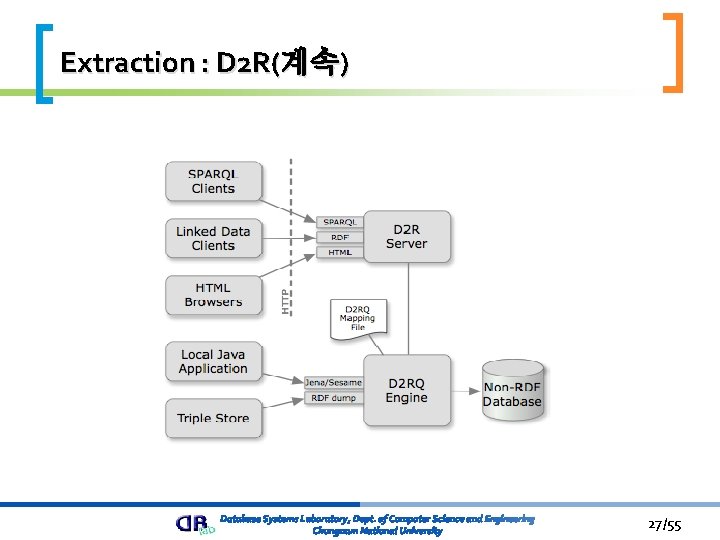

Extraction : D 2 R(계속) 27/55
Storage / Querying : Virtuoso RDF Store(계속) 30/55
Manual revision / authoring : Onto. Wiki(계속) 1. 2. 3. 4. 5. 6. Selection of a knowledge base Selection of a class Selection of additional properties to be shown as columns in the list Further restriction of the resources in the list Selection of a resource redirects the user to a generic resource details view Representation of RDF triples in the user interface as resource attribute value notation 32/55

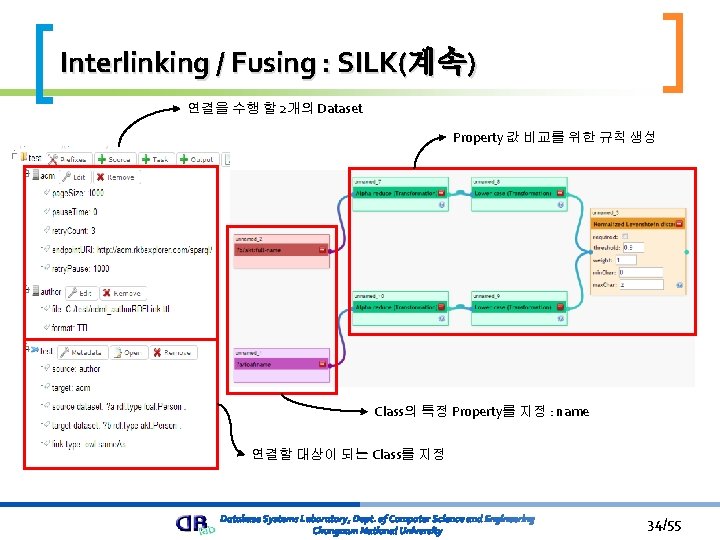

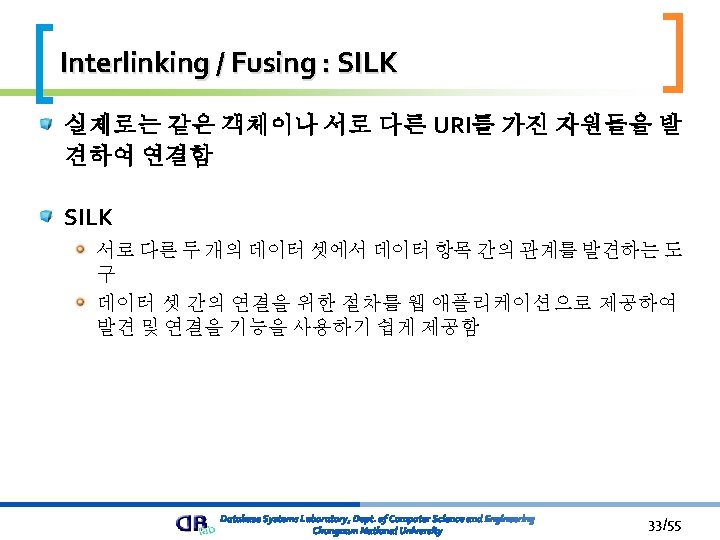

Interlinking / Fusing : SILK(계속) Property(name) 값이 일치하는 경우의 결과 리스트 35/55
LATC SILK와 SILK의 비교 LATC SILK LATC에서 SILK에 부가적인 기능을 추가하여 만든 Interlinking 도구 SILK 기능 Workbench Console API Runtime LATC SILK에 추가된 기능 Data Source Inventory Metadata Store Sindice Crawler & Indexer 36/55

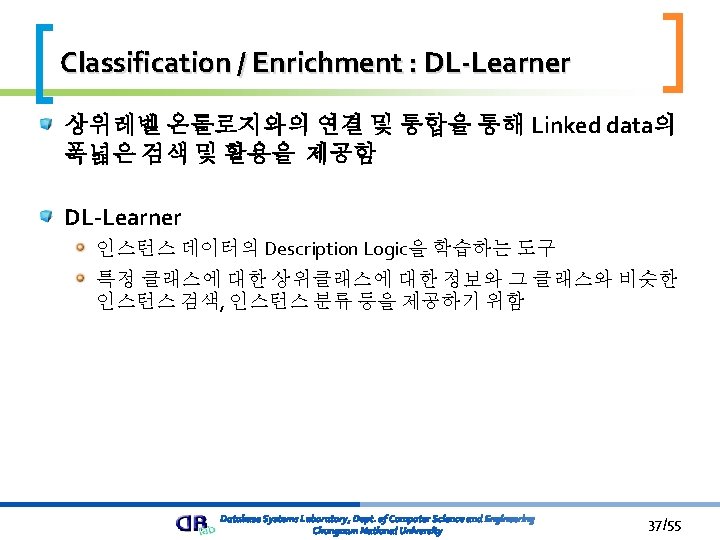

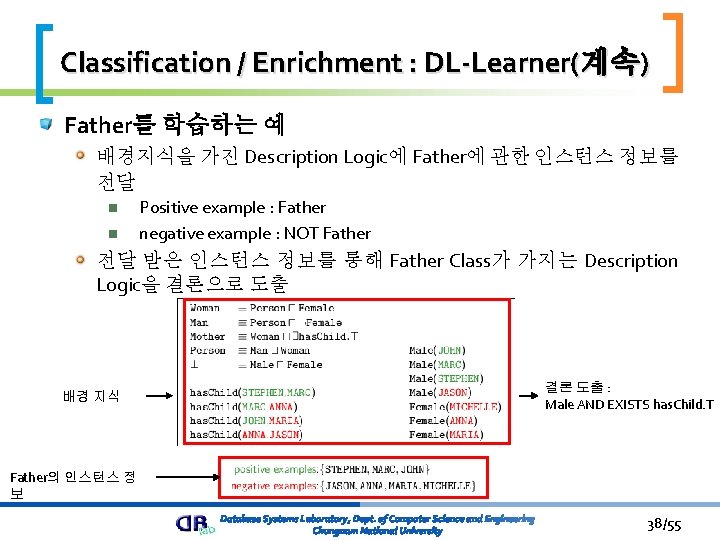

Classification / Enrichment : DL-Learner(계속) Father를 학습하는 예 배경지식을 가진 Description Logic에 Father에 관한 인스턴스 정보를 전달 n n Positive example : Father negative example : NOT Father 전달 받은 인스턴스 정보를 통해 Father Class가 가지는 Description Logic을 결론으로 도출 배경 지식 결론 도출 : Male AND EXISTS has. Child. T Father의 인스턴스 정 보 38/55

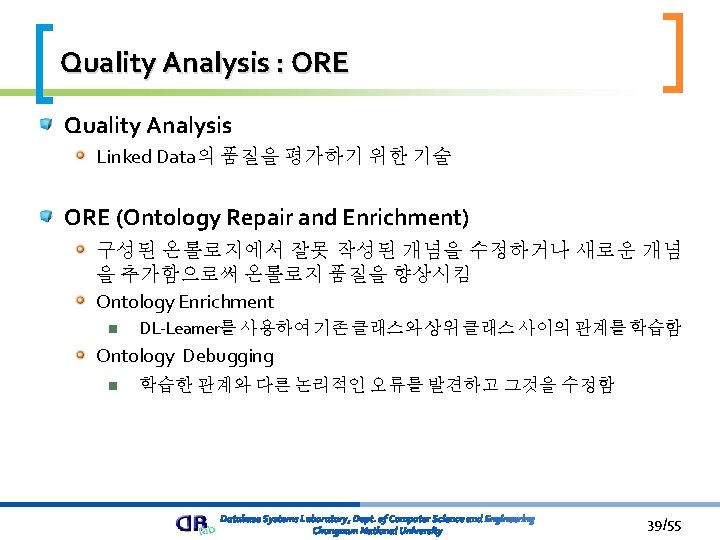

Quality Analysis : ORE(계속) 40/55

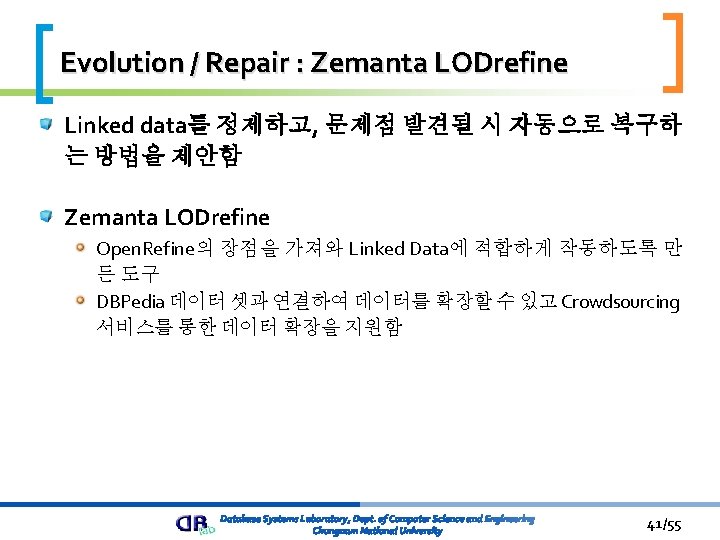

Evolution / Repair : Zemanta LODrefine(계속) 보유하고 있는 기존 정보에 대해 Extension을 수행 기존 정보 DBpedia와 Extension을 통해 추가적으로 얻은 정보 42/55

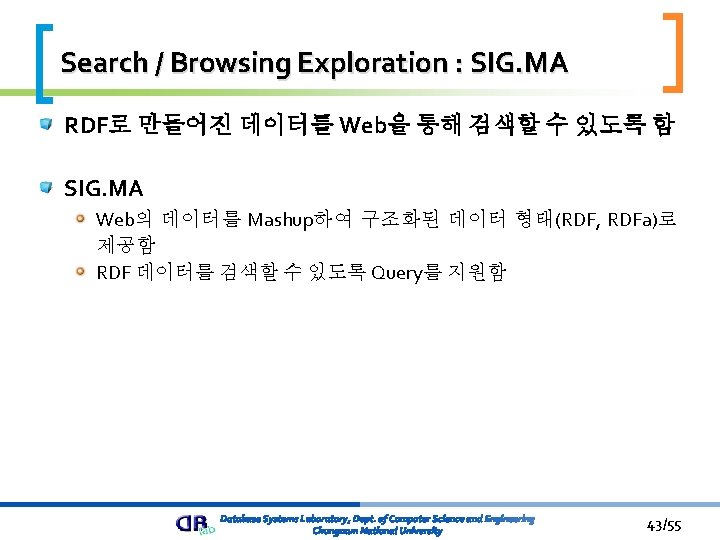

Search / Browsing Exploration : SIG. MA(계속) Web에 존재하는 Tim Berners Lee와 관련된 RDF link를 발견하여 결과로 제공함 특정 Web Site의 결과만 볼 수 있도록approve, reject 기능을 제공함 44/55
Wrap-up

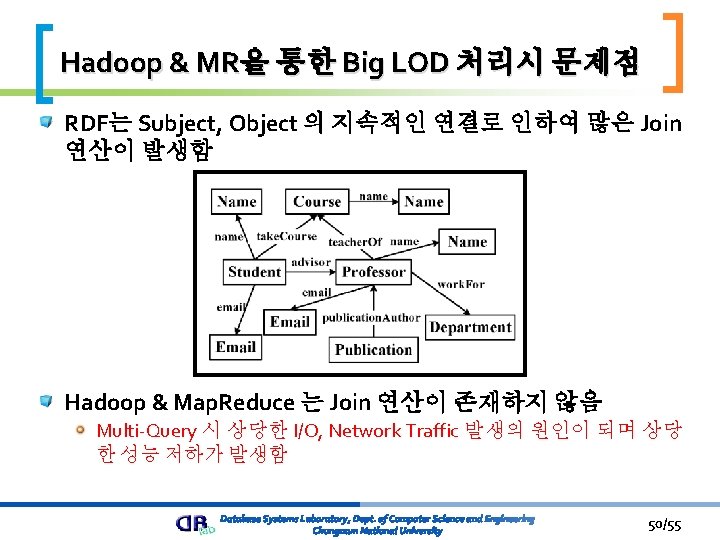

LOD의 증가로 인한 변화 Linked Data Big Linked Data Master Single Machine Cloud Slave 49
CNU DB Lab의 연구 방향 Indexing Table Index for indexing RDF triples Partitioning RDF schema based hybrid partitioning, using vertical partitioning and horizontal partitioning to store related triples into the same machine Query Processing and Optimization Reducing the number of MR cycles in SPARQL query execution 51/55
감사합니다 Questions
