Lines that connect equal points of field value
- Slides: 42
Lines that connect equal points of field value. B. Field: an region of the environment that has some measurable value at a given point. Examples Page 10

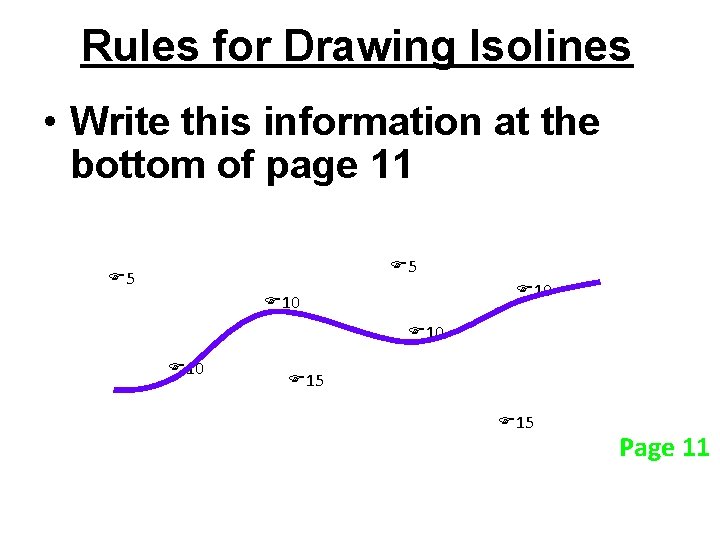

Rules for Drawing Isolines • Write this information at the bottom of page 11 5 5 10 10 10 15 15 Page 11
Rules for Drawing Isolines 1) Isolines connect points of equal value. 5 5 10 10 10 15 15 Page 11

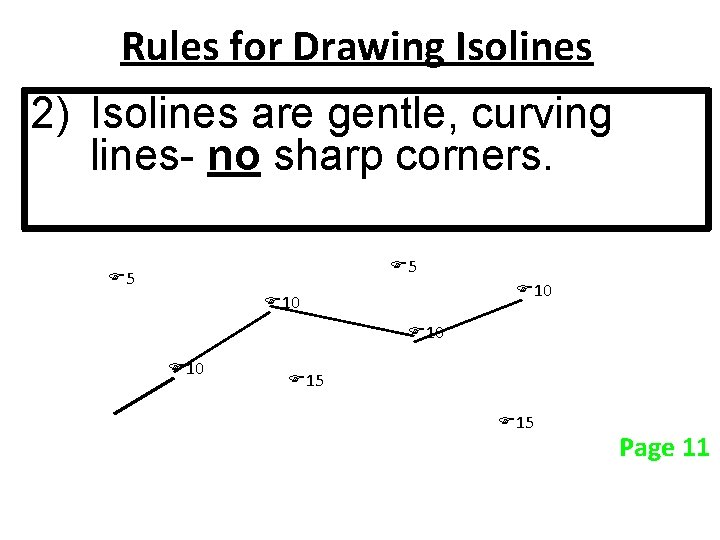

Rules for Drawing Isolines 2) Isolines are gentle, curving lines- no sharp corners. 5 5 10 10 10 15 15 Page 11

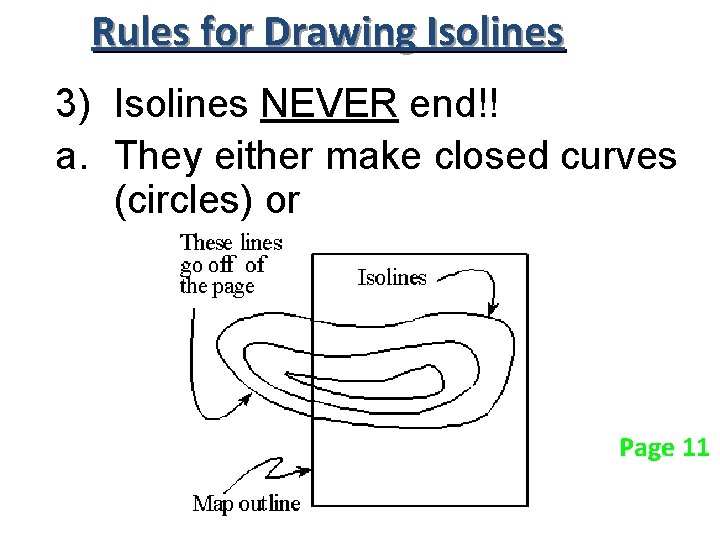

Rules for Drawing Isolines 3) Isolines NEVER end!! a. They either make closed curves (circles) or Page 11

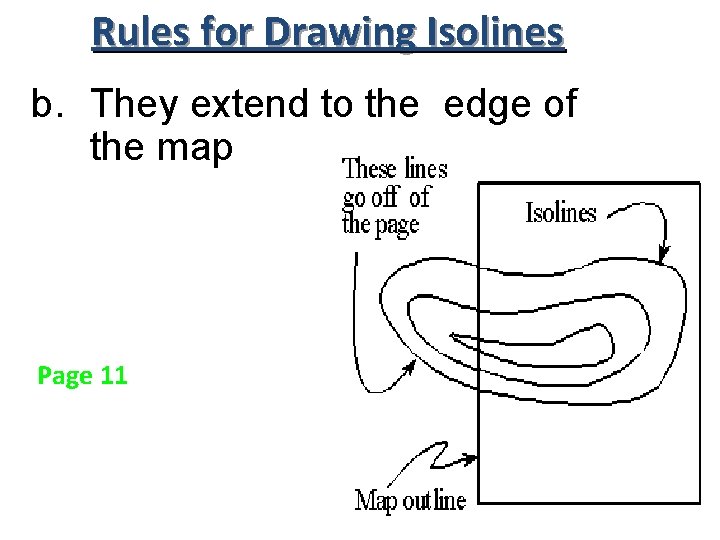

Rules for Drawing Isolines b. They extend to the edge of the map Page 11

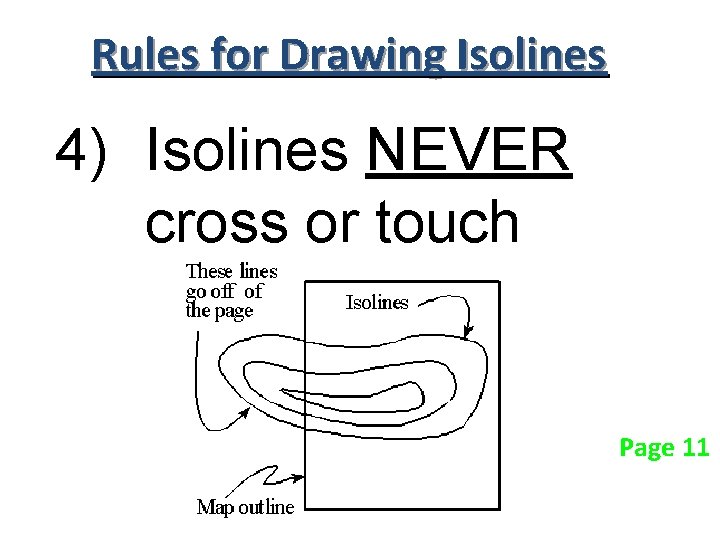

Rules for Drawing Isolines 4) Isolines NEVER cross or touch Page 11

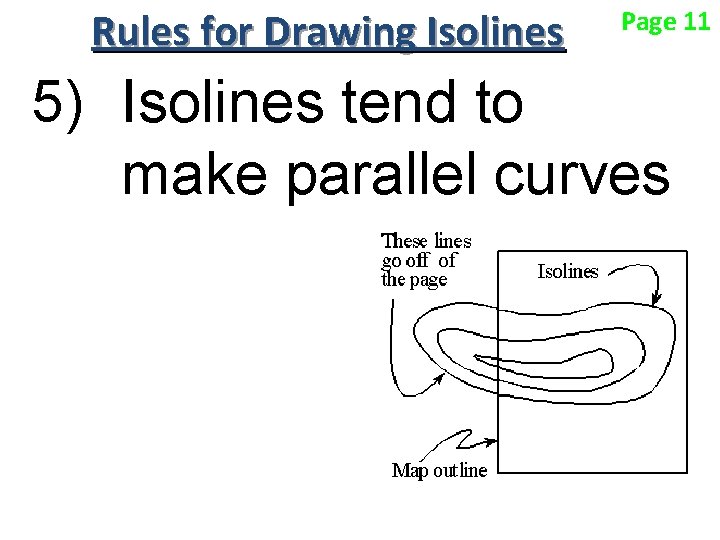

Rules for Drawing Isolines Page 11 5) Isolines tend to make parallel curves
Lines that connect equal points of value B. Page 10

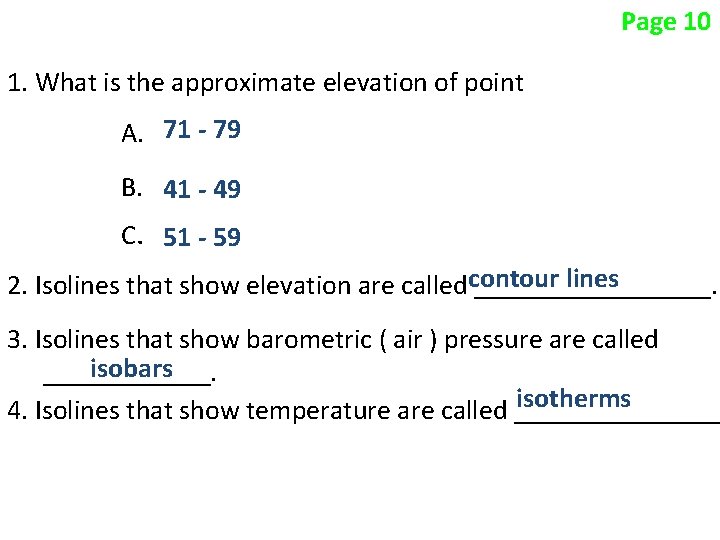

Page 10 1. What is the approximate elevation of point A. 71 - 79 B. 41 - 49 C. 51 - 59 lines 2. Isolines that show elevation are calledcontour _________. 3. Isolines that show barometric ( air ) pressure are called isobars ______. isotherms 4. Isolines that show temperature are called ________

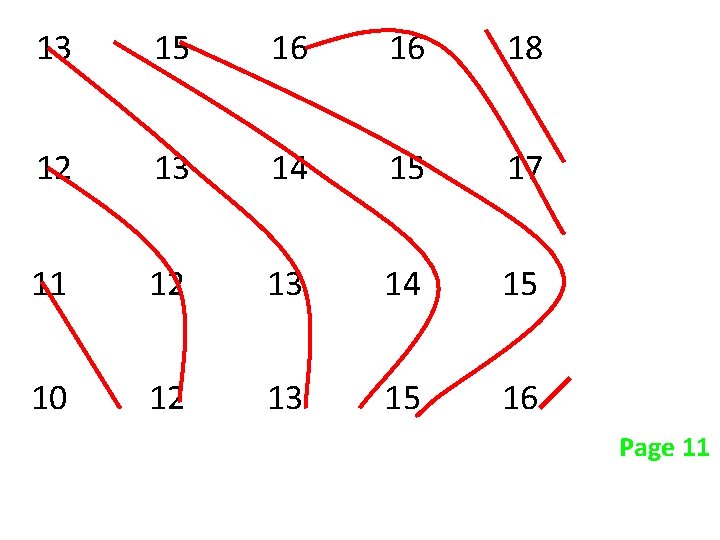

13 15 16 16 18 12 13 14 15 17 11 12 13 14 15 10 12 13 15 16 Page 11

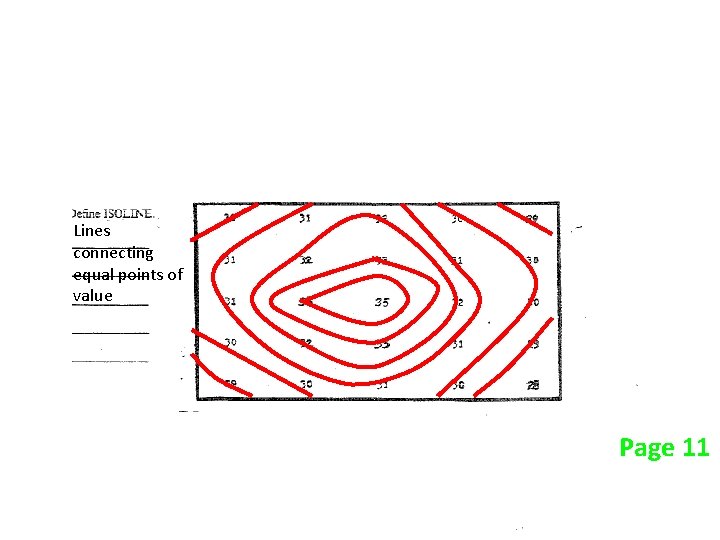

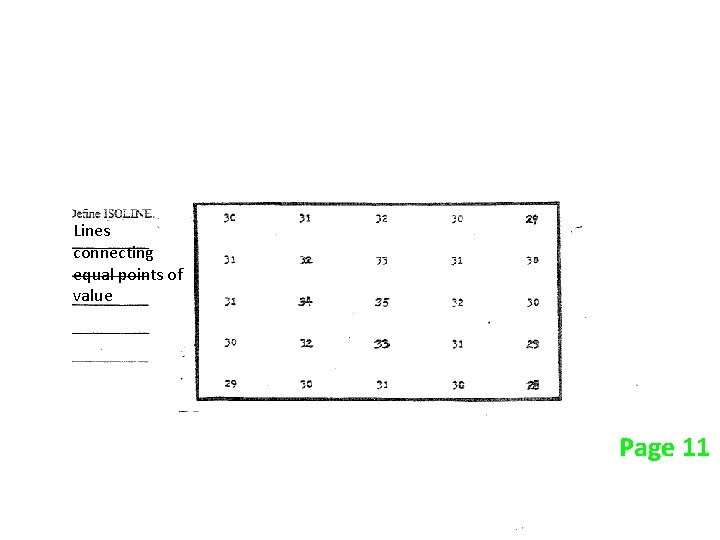

Lines connecting equal points of value Page 11
Lines connecting equal points of value Page 11

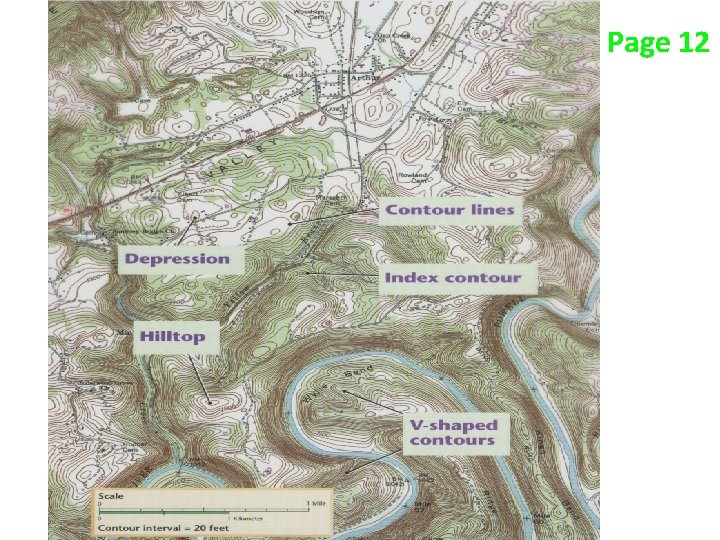

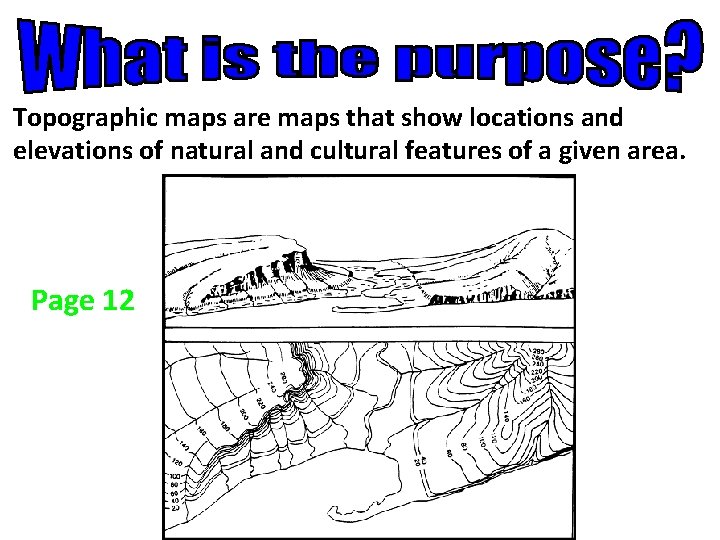

Topographic maps are maps that show locations and elevations of natural and cultural features of a given area. Page 12
Page 12
Page 12

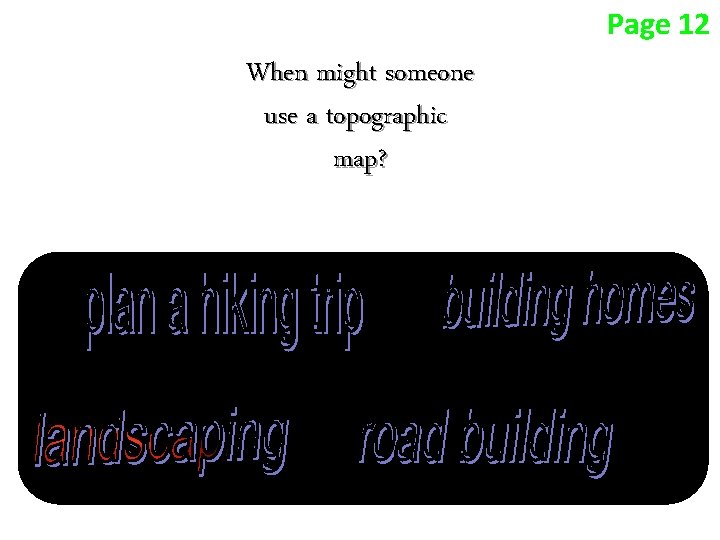

Page 12 When might someone use a topographic map?

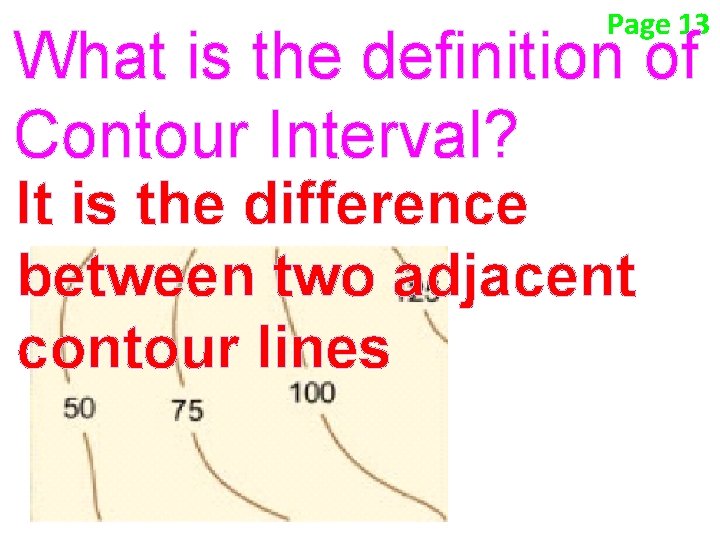

Page 13 What is the definition of Contour Interval? It is the difference between two adjacent contour lines

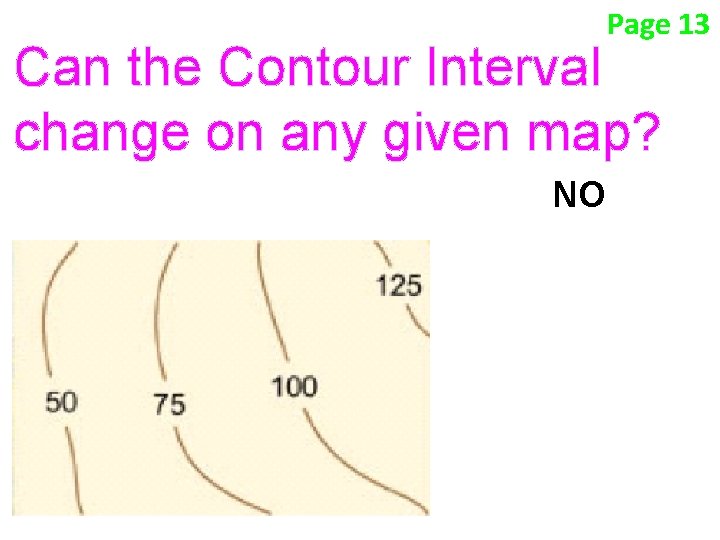

Page 13 Can the Contour Interval change on any given map? NO

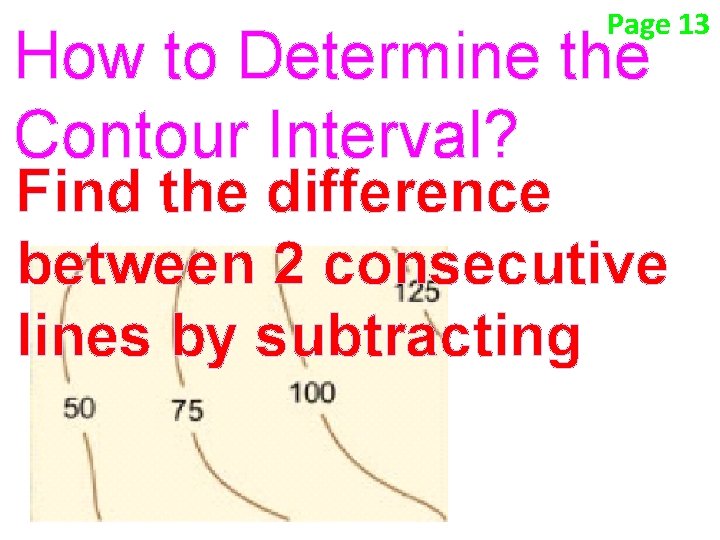

Page 13 How to Determine the Contour Interval? Find the difference between 2 consecutive lines by subtracting

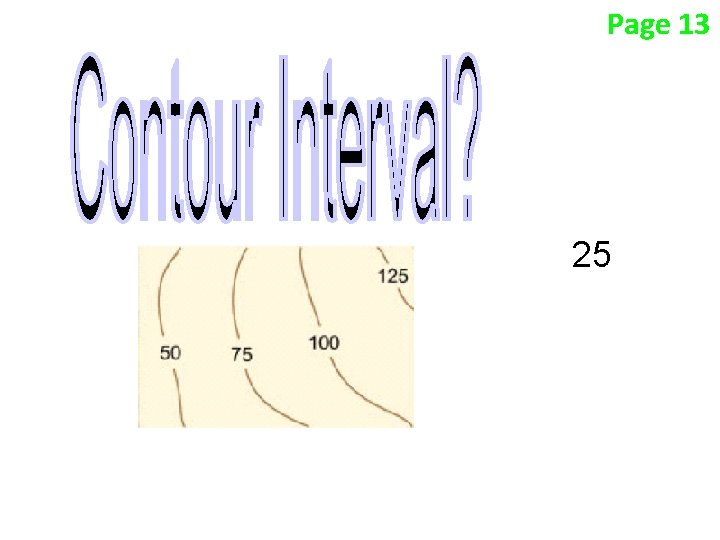

Page 13 25

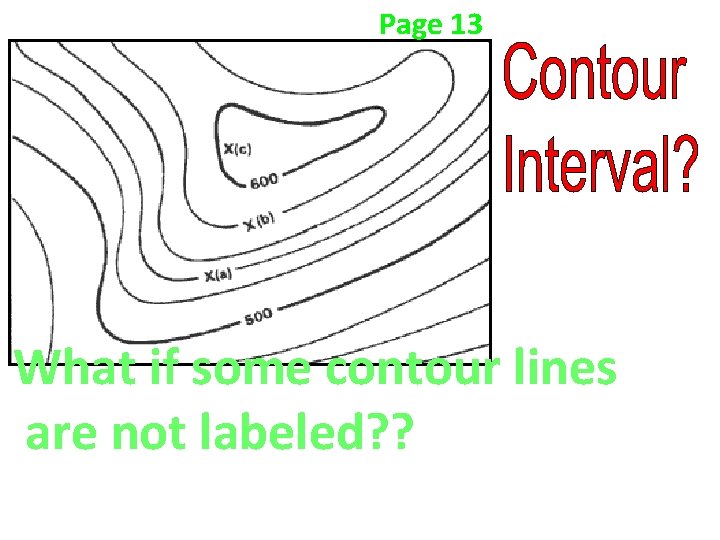

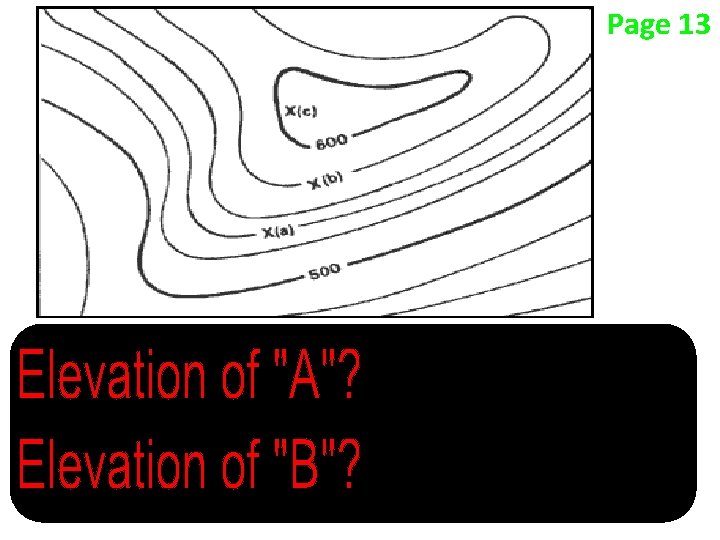

Page 13 What if some contour lines are not labeled? ?

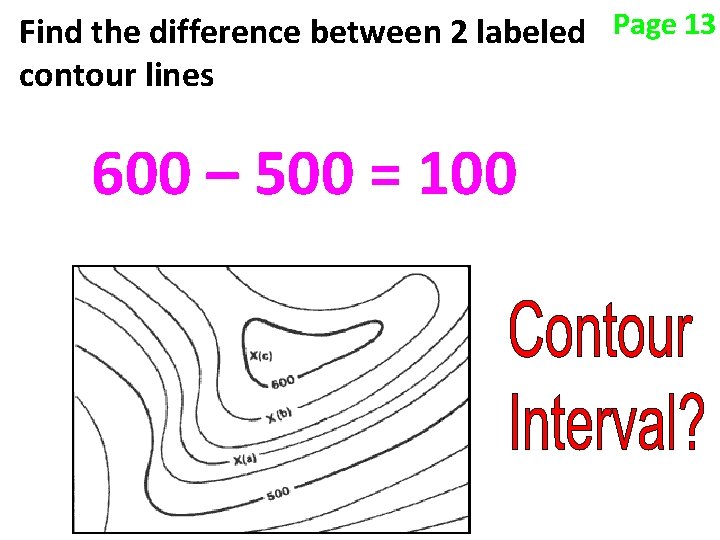

Find the difference between 2 labeled Page 13 contour lines 600 – 500 = 100

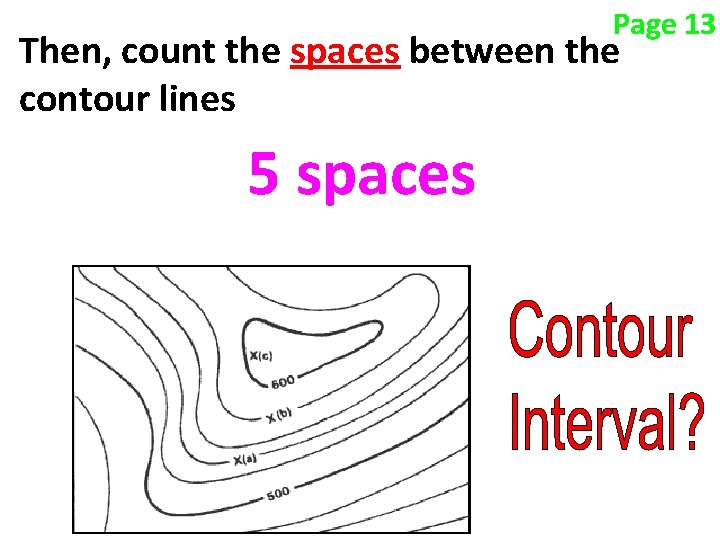

Page 13 Then, count the spaces between the contour lines 5 spaces

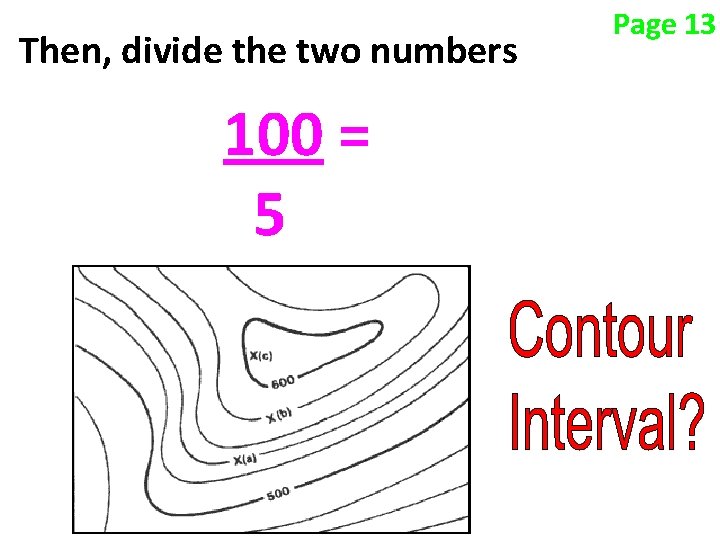

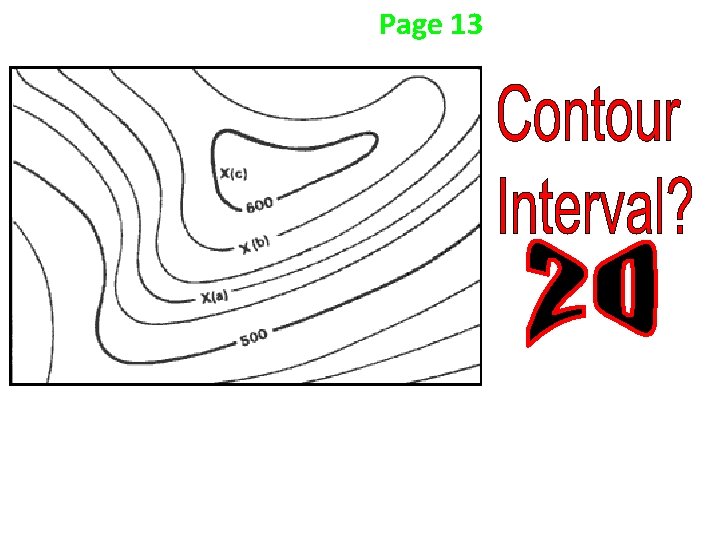

Then, divide the two numbers 100 = 5 Page 13

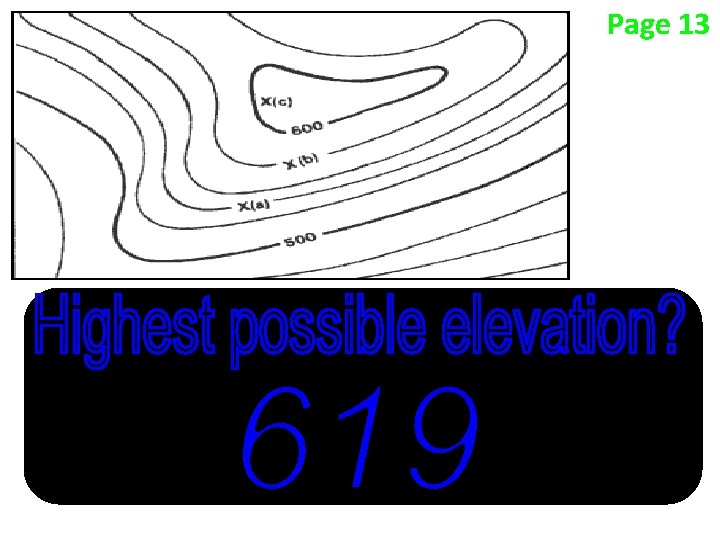

Page 13
Page 13
Page 13

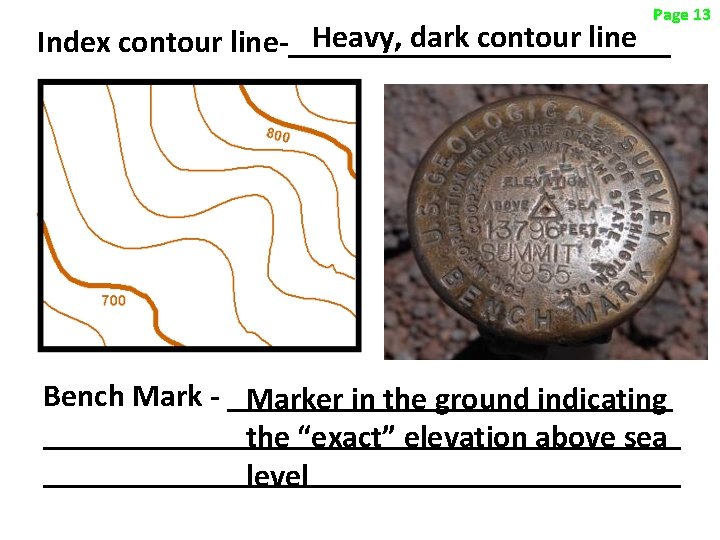

Page 13 Heavy, dark contour line Index contour line-____________ Bench Mark - ______________ Marker in the ground indicating ____________________ the “exact” elevation above sea ____________________ level

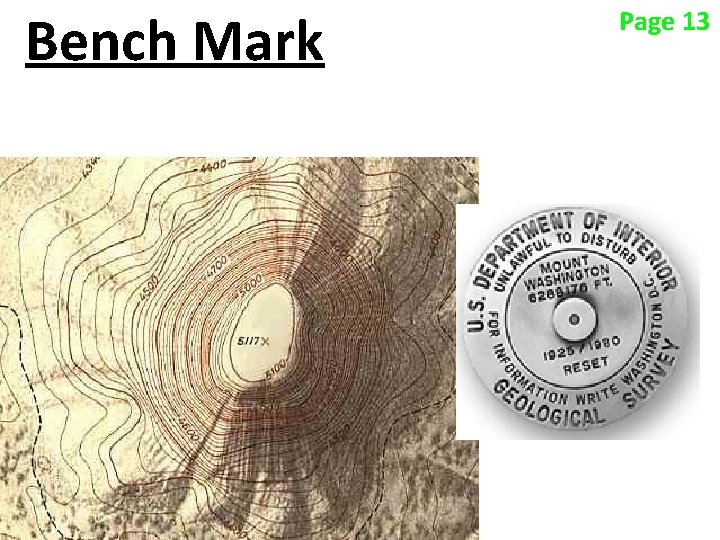

Bench Mark Page 13

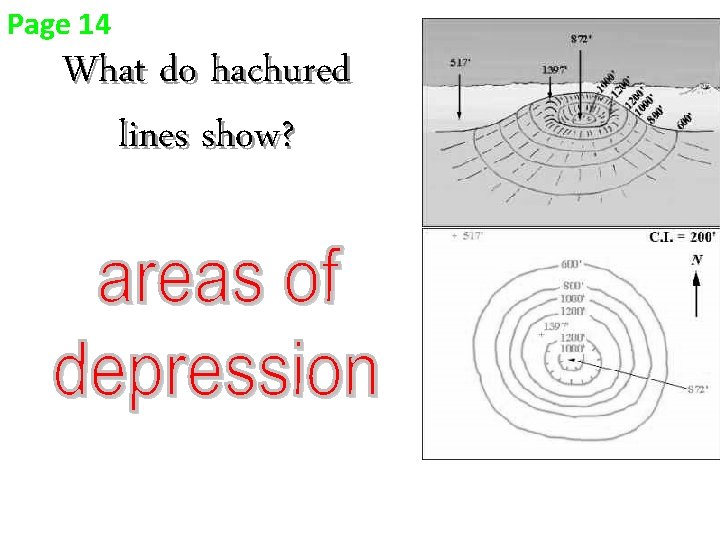

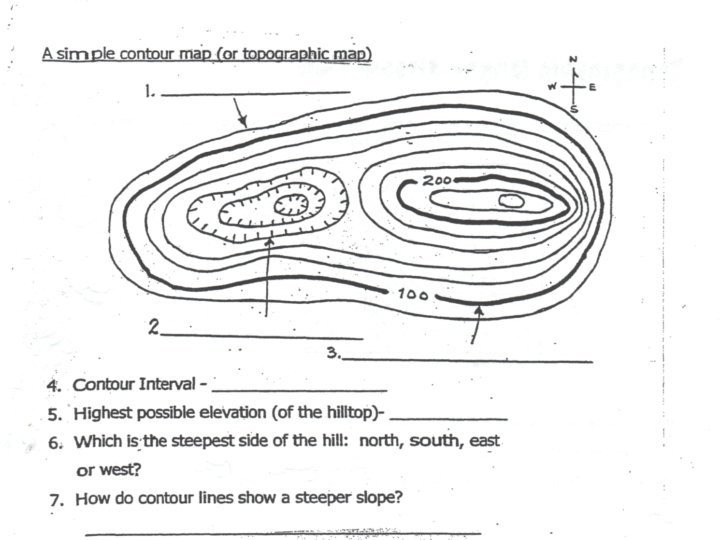

Page 14 What do hachured lines show?

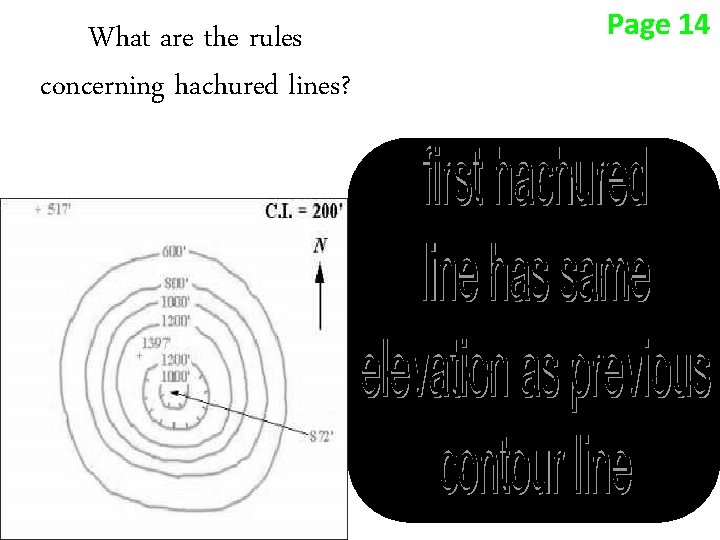

What are the rules concerning hachured lines? Page 14

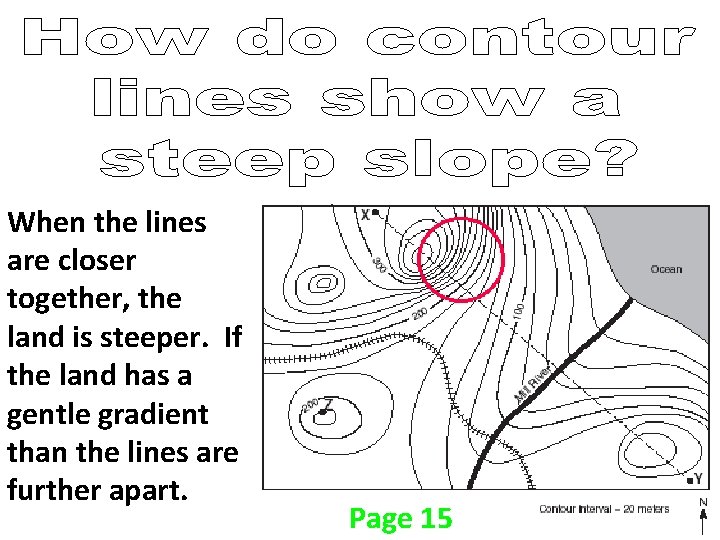

When the lines are closer together, the land is steeper. If the land has a gentle gradient than the lines are further apart. Page 15

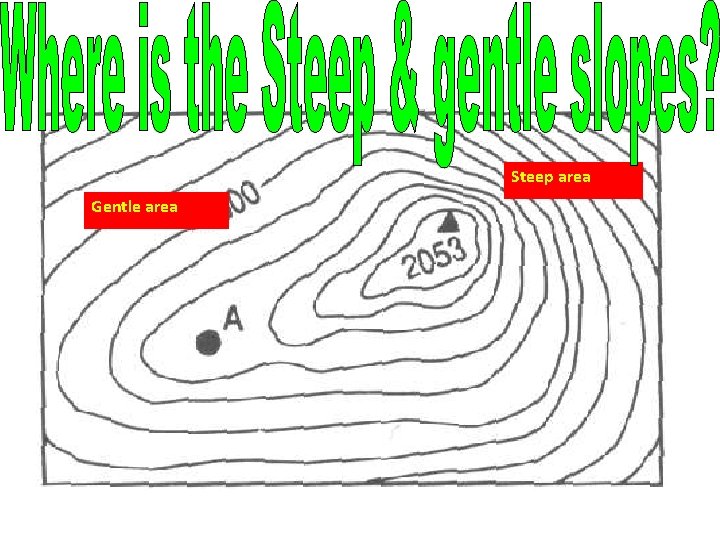

• . Gentle area Steep area

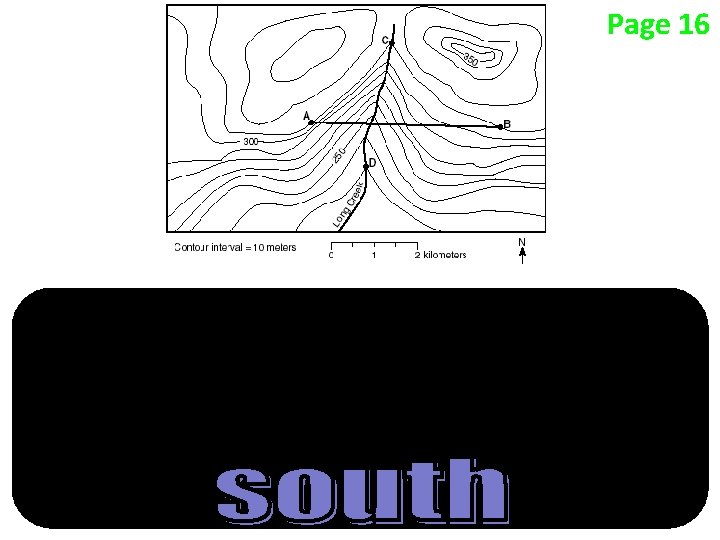

Page 16
Page 16
Page 16
Page 16
Page 16

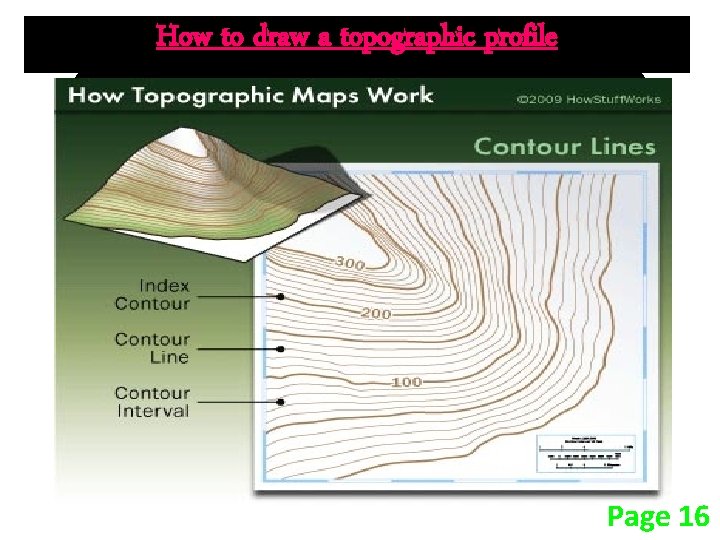

How to draw a topographic profile Page 16

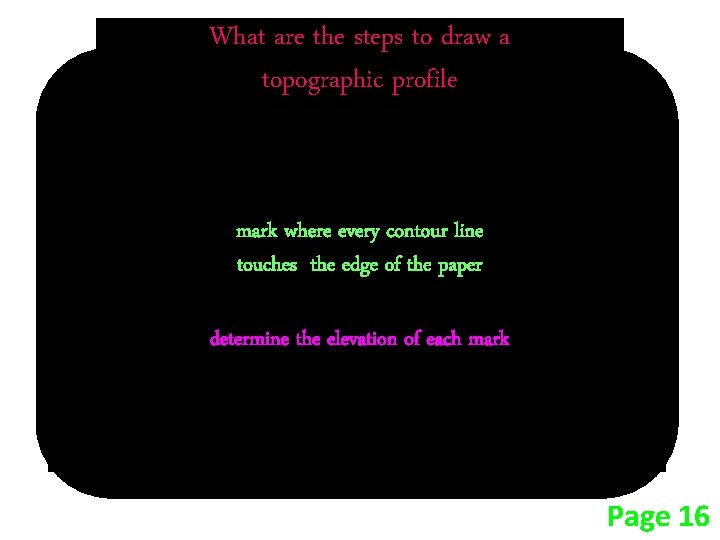

What are the steps to draw a topographic profile place a piece of paper between the points mark where every contour line touches the edge of the paper determine the elevation of each mark place the paper on the graph and mark the elevation of each contour line Page 16
