Linear Regression Exploring relationships between two metric variables
Linear Regression Exploring relationships between two metric variables

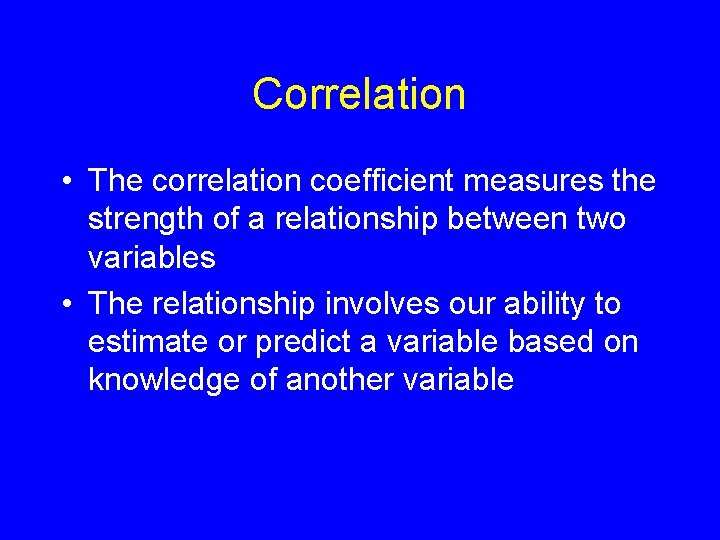

Correlation • The correlation coefficient measures the strength of a relationship between two variables • The relationship involves our ability to estimate or predict a variable based on knowledge of another variable

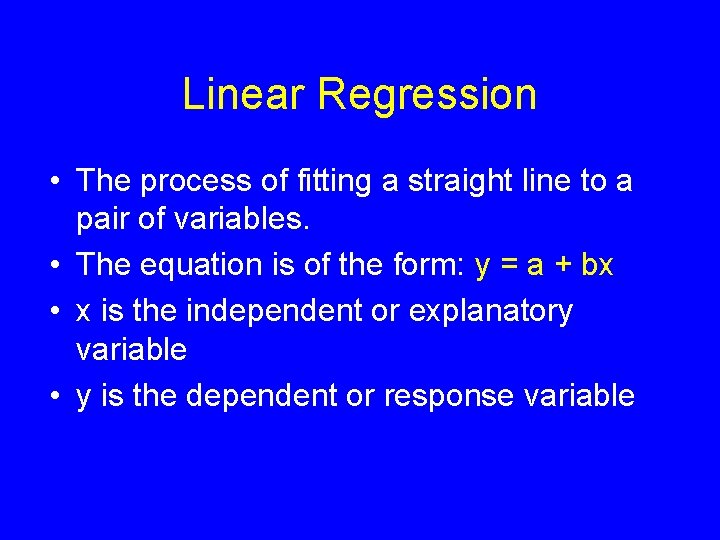

Linear Regression • The process of fitting a straight line to a pair of variables. • The equation is of the form: y = a + bx • x is the independent or explanatory variable • y is the dependent or response variable
Linear Coefficients • Given x and y, linear regression estimates values for a and b • The coefficient a, the intercept, gives the value of y when x=0 • The coefficient b, the slope, gives the amount that y increases (or decreases) for each increase in x

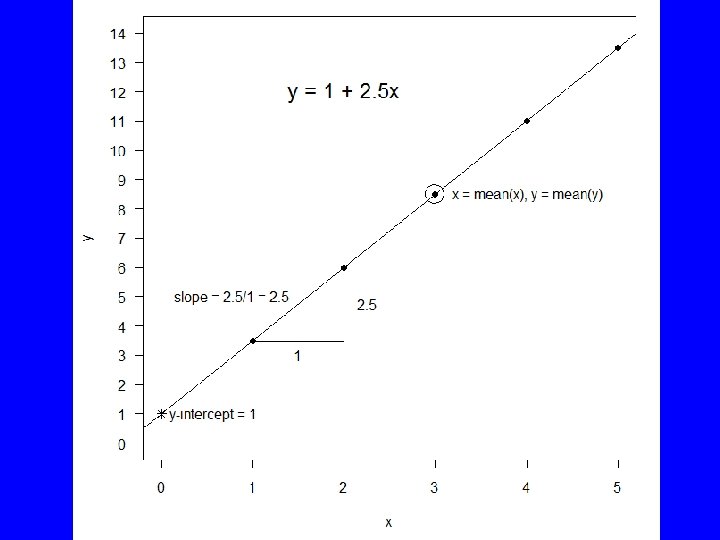

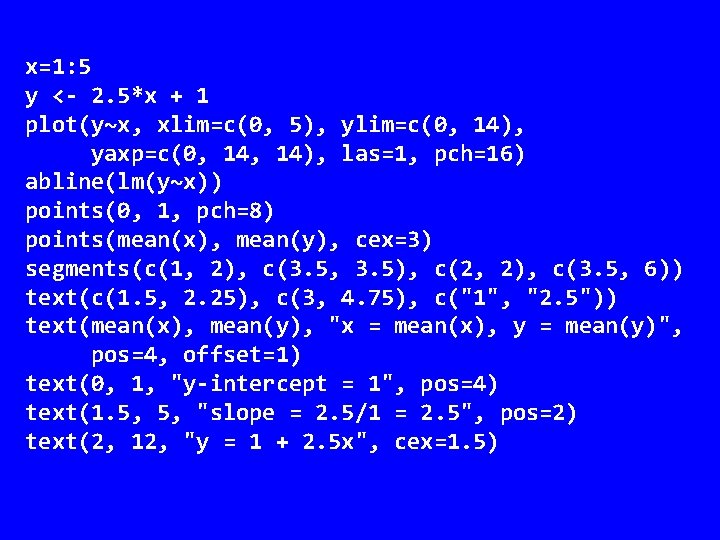

x=1: 5 y <- 2. 5*x + 1 plot(y~x, xlim=c(0, 5), ylim=c(0, 14), yaxp=c(0, 14), las=1, pch=16) abline(lm(y~x)) points(0, 1, pch=8) points(mean(x), mean(y), cex=3) segments(c(1, 2), c(3. 5, 3. 5), c(2, 2), c(3. 5, 6)) text(c(1. 5, 2. 25), c(3, 4. 75), c("1", "2. 5")) text(mean(x), mean(y), "x = mean(x), y = mean(y)", pos=4, offset=1) text(0, 1, "y-intercept = 1", pos=4) text(1. 5, 5, "slope = 2. 5/1 = 2. 5", pos=2) text(2, 12, "y = 1 + 2. 5 x", cex=1. 5)
Least Squares • Many lines could fit the data depending on how we define the “best fit” • Least squares regression minimizes the squared deviations between the yvalues and the line
lm() • Function lm() performs least squares linear regression in R • Formula used to indicate Dependent/Response from Independent/Explanatory • Tilde(~) separates them D~I or R~E • Rcmdr Statistics | Fit model | Linear regression
> Reg. Model. 1 <- lm(LMS~People, data=Kalahari) > summary(Reg. Model. 1) Call: lm(formula = LMS ~ People, data = Kalahari) Residuals: Min 1 Q -86. 400 -24. 657 Median -2. 561 3 Q 24. 902 Max 86. 100 Coefficients: Estimate Std. Error t value (Intercept) -64. 425 44. 924 -1. 434 People 12. 868 2. 591 4. 966 --Signif. codes: 0 '***' 0. 001 '**' 0. 01 Pr(>|t|) 0. 175161 0. 000258 *** '*' 0. 05 '. ' 0. 1 ' ' 1 Residual standard error: 47. 88 on 13 degrees of freedom Multiple R-squared: 0. 6548, Adjusted R-squared: 0. 6282 F-statistic: 24. 66 on 1 and 13 DF, p-value: 0. 0002582

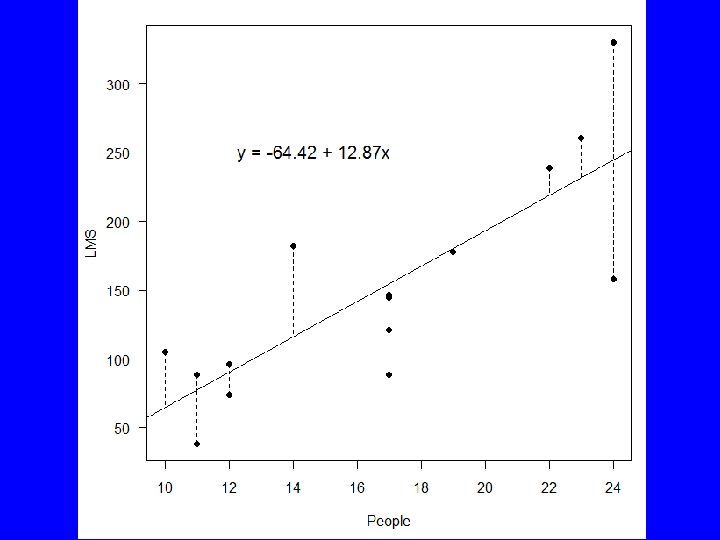

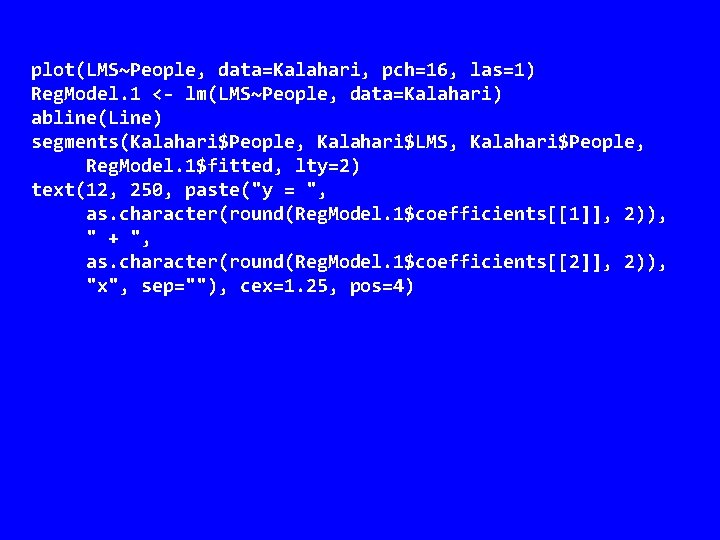

plot(LMS~People, data=Kalahari, pch=16, las=1) Reg. Model. 1 <- lm(LMS~People, data=Kalahari) abline(Line) segments(Kalahari$People, Kalahari$LMS, Kalahari$People, Reg. Model. 1$fitted, lty=2) text(12, 250, paste("y = ", as. character(round(Reg. Model. 1$coefficients[[1]], 2)), " + ", as. character(round(Reg. Model. 1$coefficients[[2]], 2)), "x", sep=""), cex=1. 25, pos=4)
Errors • Linear regression assumes all errors are in the measurement of y • There also errors in the estimation of a (intercept) and b (slope) • Significance for a and b is based on the t distribution
Errors 2 • The errors in the intercept and slope can be combined to develop a confidence interval for the regression line • We can also compute a prediction interval which is the confidence we have in a single prediction

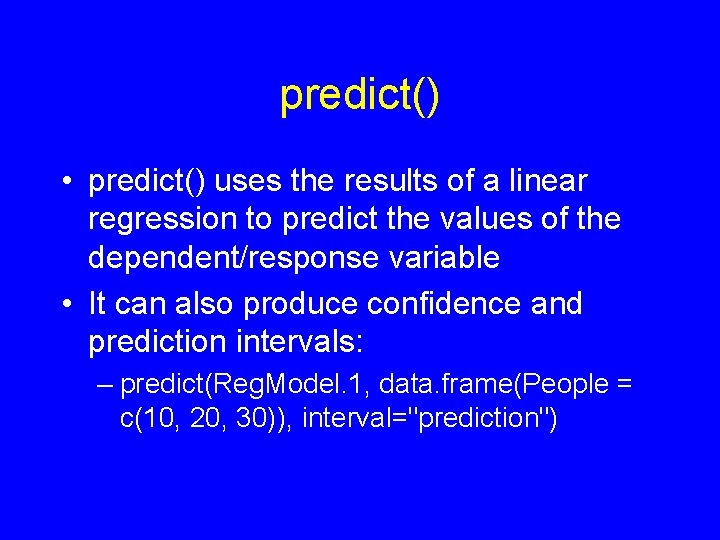

predict() • predict() uses the results of a linear regression to predict the values of the dependent/response variable • It can also produce confidence and prediction intervals: – predict(Reg. Model. 1, data. frame(People = c(10, 20, 30)), interval="prediction")

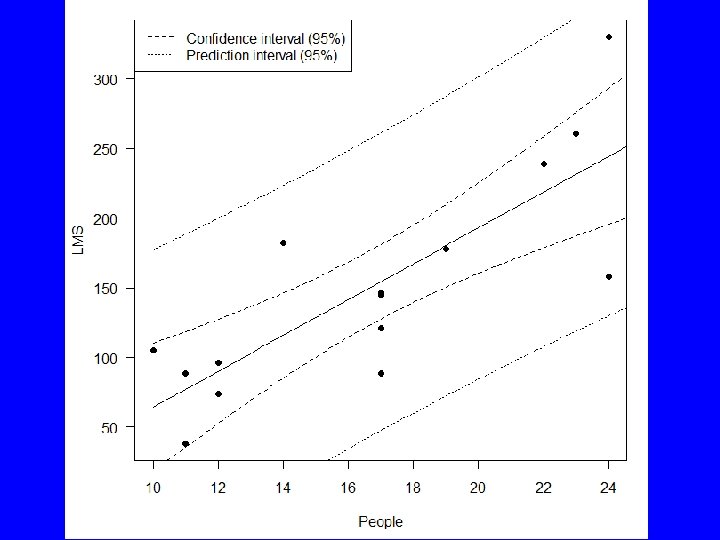

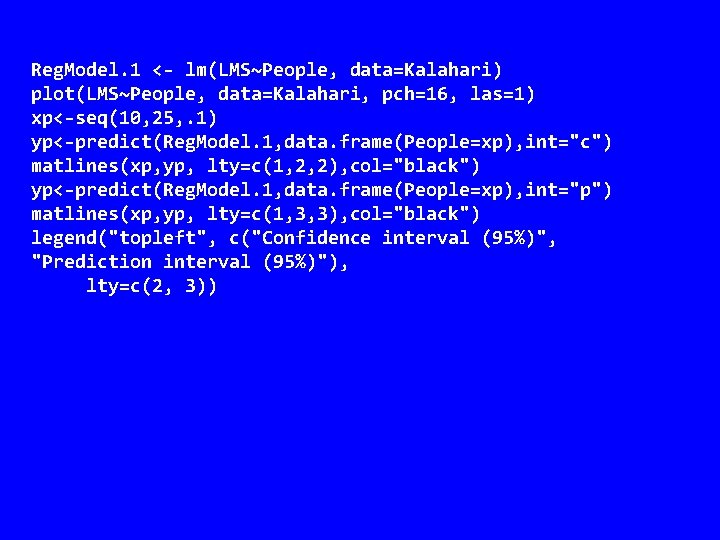

Reg. Model. 1 <- lm(LMS~People, data=Kalahari) plot(LMS~People, data=Kalahari, pch=16, las=1) xp<-seq(10, 25, . 1) yp<-predict(Reg. Model. 1, data. frame(People=xp), int="c") matlines(xp, yp, lty=c(1, 2, 2), col="black") yp<-predict(Reg. Model. 1, data. frame(People=xp), int="p") matlines(xp, yp, lty=c(1, 3, 3), col="black") legend("topleft", c("Confidence interval (95%)", "Prediction interval (95%)"), lty=c(2, 3))

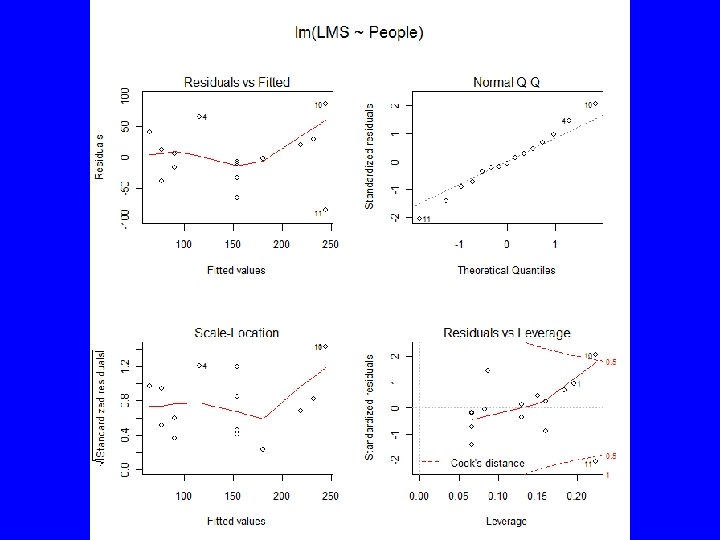

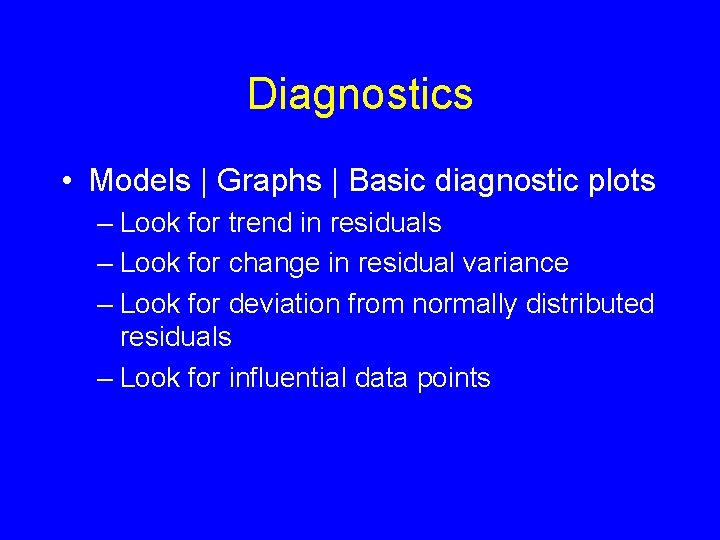

Diagnostics • Models | Graphs | Basic diagnostic plots – Look for trend in residuals – Look for change in residual variance – Look for deviation from normally distributed residuals – Look for influential data points

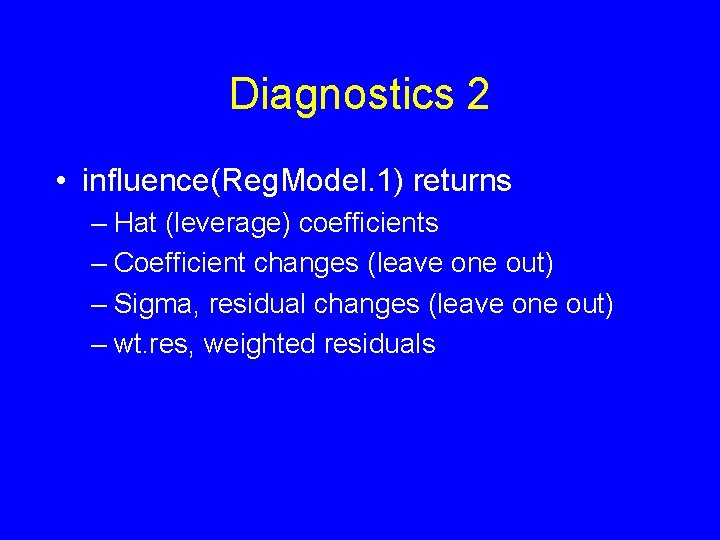

Diagnostics 2 • influence(Reg. Model. 1) returns – Hat (leverage) coefficients – Coefficient changes (leave one out) – Sigma, residual changes (leave one out) – wt. res, weighted residuals

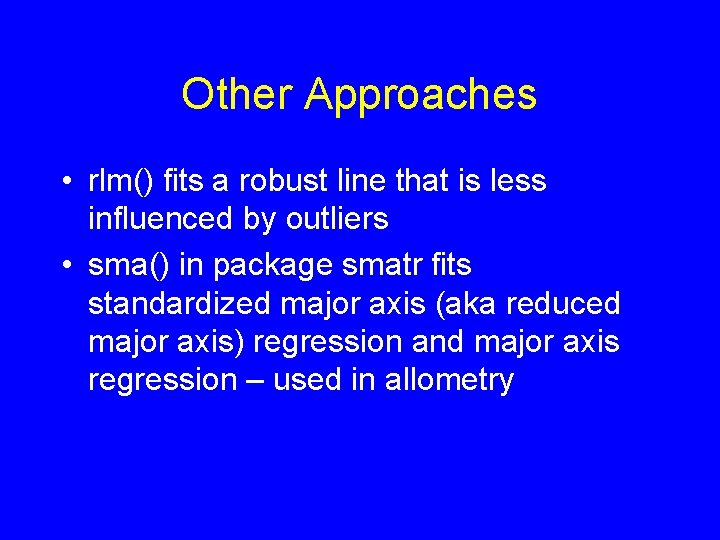

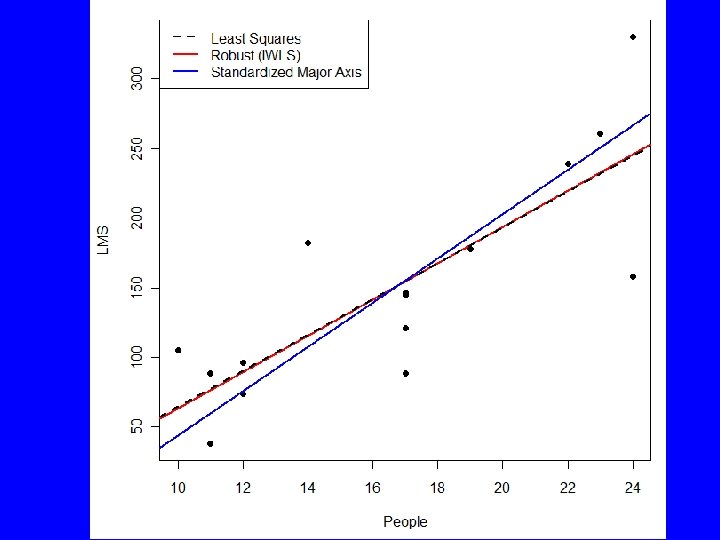

Other Approaches • rlm() fits a robust line that is less influenced by outliers • sma() in package smatr fits standardized major axis (aka reduced major axis) regression and major axis regression – used in allometry
