Linear Recursive Data Structures Using ObjectOriented State Patterns

Linear Recursive Data Structures Using Object-Oriented State Patterns or Just how smart is a a null node anyway? Stephen Wong, Oberlin College Dung “Zung” Nguyen, Pepperdine University

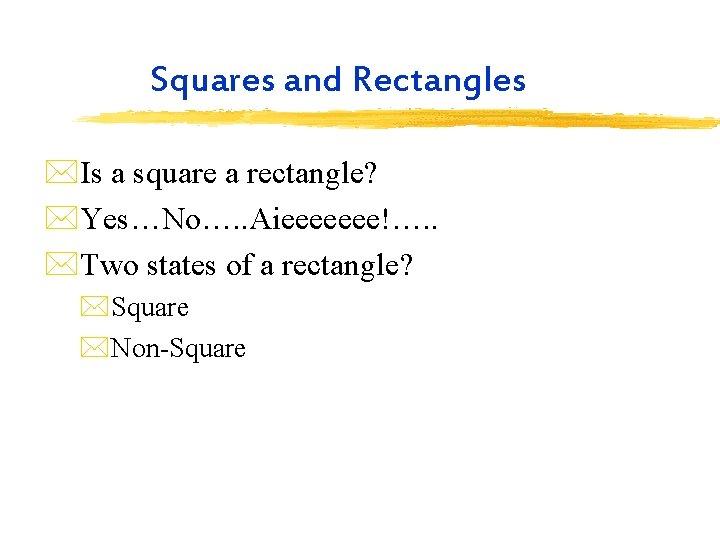

Squares and Rectangles *Is a square a rectangle? *Yes…No…. . Aieeeeeee!…. . *Two states of a rectangle? *Square *Non-Square

Recursive Definition of Linear Structures (Lists) *What is a LRS/list? *Two different types of LRS’s: *Empty *Non-Empty *Are the different types really the same? *Do you care?

Abstraction, a la Matisse A Process through which superfluous details are systematically removed to reveal the intrinsic nature.

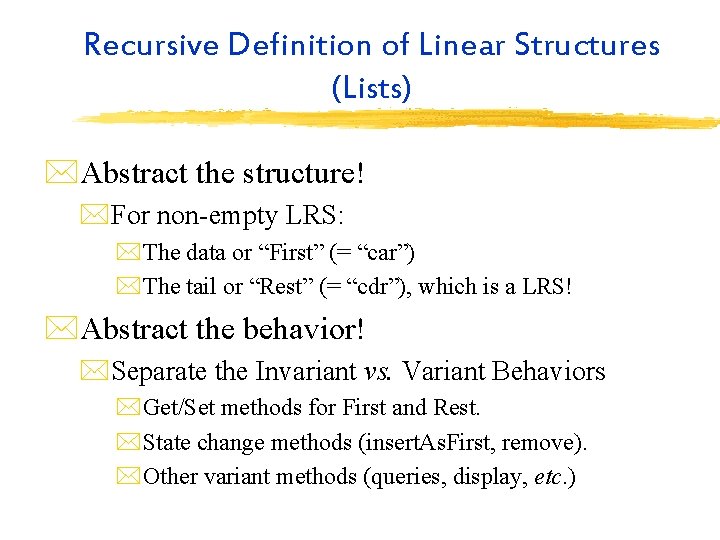

Recursive Definition of Linear Structures (Lists) *Abstract the structure! *For non-empty LRS: *The data or “First” (= “car”) *The tail or “Rest” (= “cdr”), which is a LRS! *Abstract the behavior! *Separate the Invariant vs. Variant Behaviors *Get/Set methods for First and Rest. *State change methods (insert. As. First, remove). *Other variant methods (queries, display, etc. )

The Power of Abstraction *Closest match between the reality of the situation and the software model. *Helps control and understand the complexity of a large system. *Creates robust, flexible and extensible code

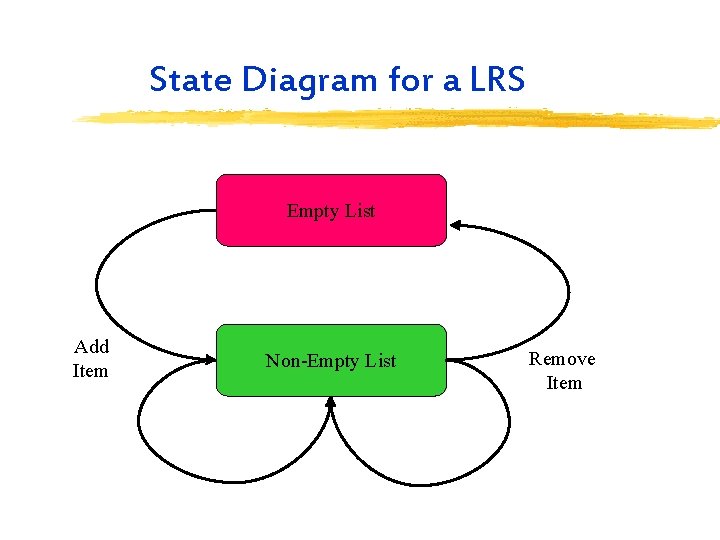

State Diagram for a LRS Empty List Add Item Non-Empty List Remove Item

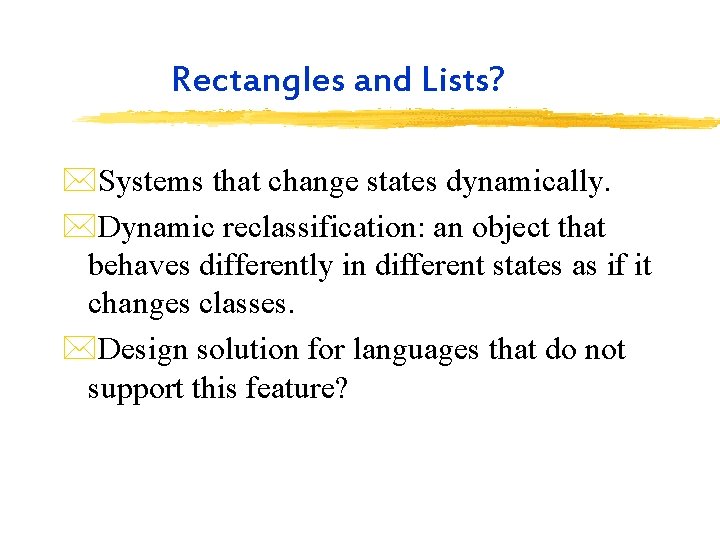

Rectangles and Lists? *Systems that change states dynamically. *Dynamic reclassification: an object that behaves differently in different states as if it changes classes. *Design solution for languages that do not support this feature?

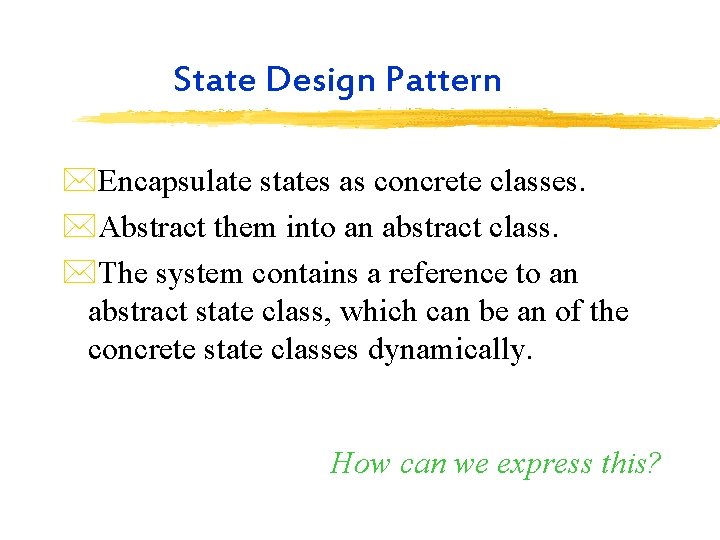

State Design Pattern *Encapsulate states as concrete classes. *Abstract them into an abstract class. *The system contains a reference to an abstract state class, which can be an of the concrete state classes dynamically. How can we express this?

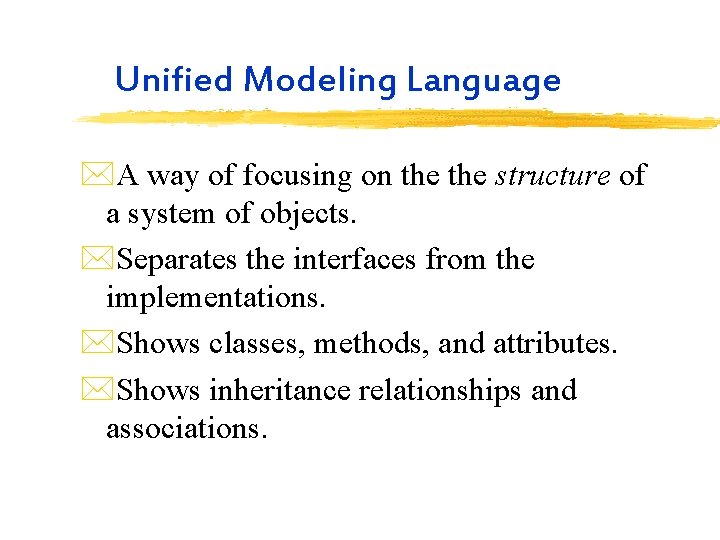

Unified Modeling Language *A way of focusing on the structure of a system of objects. *Separates the interfaces from the implementations. *Shows classes, methods, and attributes. *Shows inheritance relationships and associations.

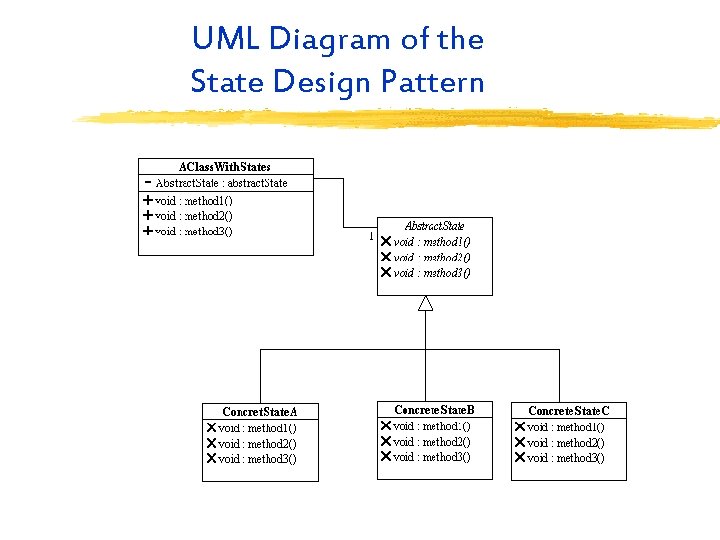

UML Diagram of the State Design Pattern

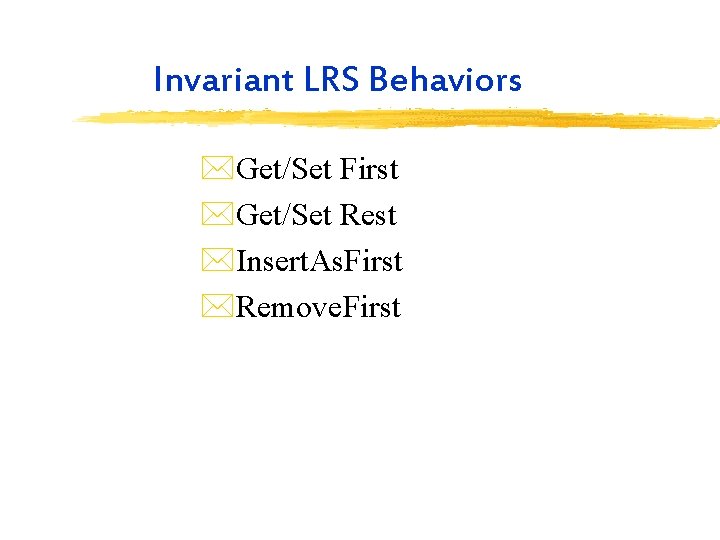

Invariant LRS Behaviors *Get/Set First *Get/Set Rest *Insert. As. First *Remove. First

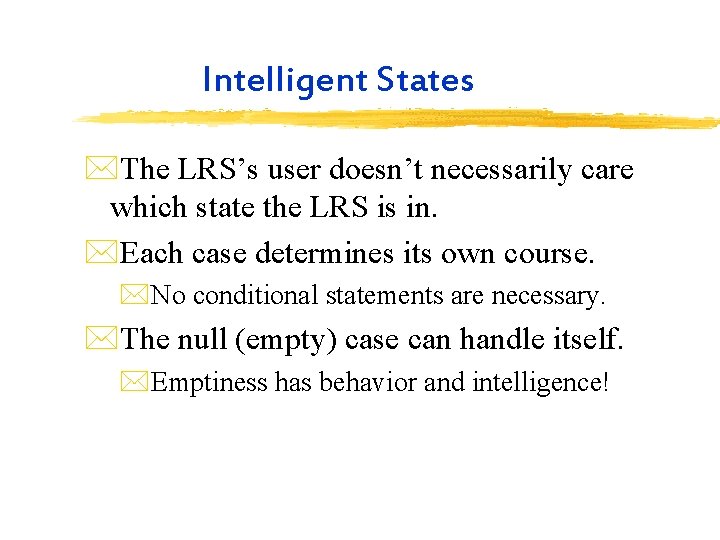

Intelligent States *The LRS’s user doesn’t necessarily care which state the LRS is in. *Each case determines its own course. *No conditional statements are necessary. *The null (empty) case can handle itself. *Emptiness has behavior and intelligence!

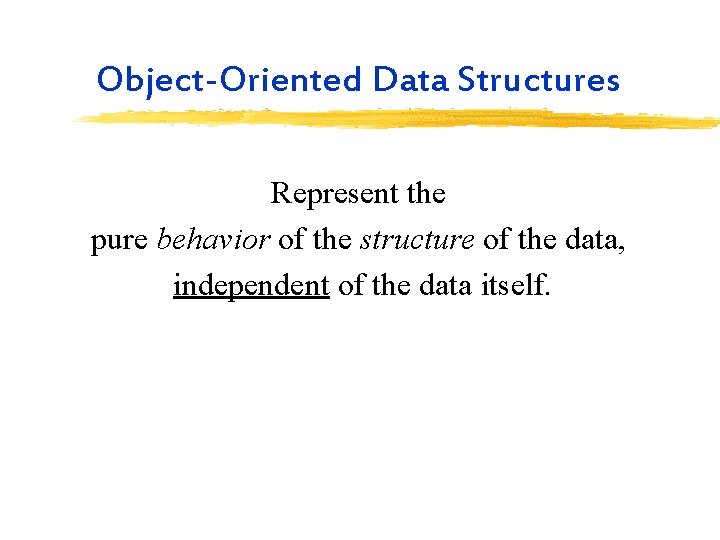

Object-Oriented Data Structures Represent the pure behavior of the structure of the data, independent of the data itself.

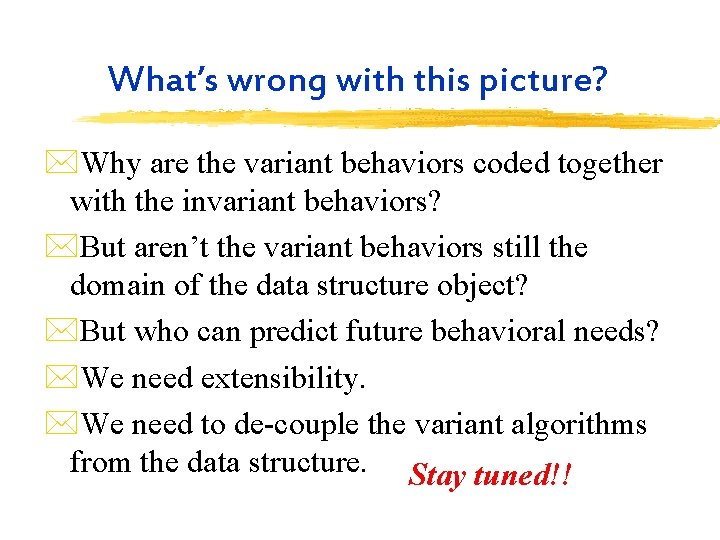

What’s wrong with this picture? *Why are the variant behaviors coded together with the invariant behaviors? *But aren’t the variant behaviors still the domain of the data structure object? *But who can predict future behavioral needs? *We need extensibility. *We need to de-couple the variant algorithms from the data structure. Stay tuned!!

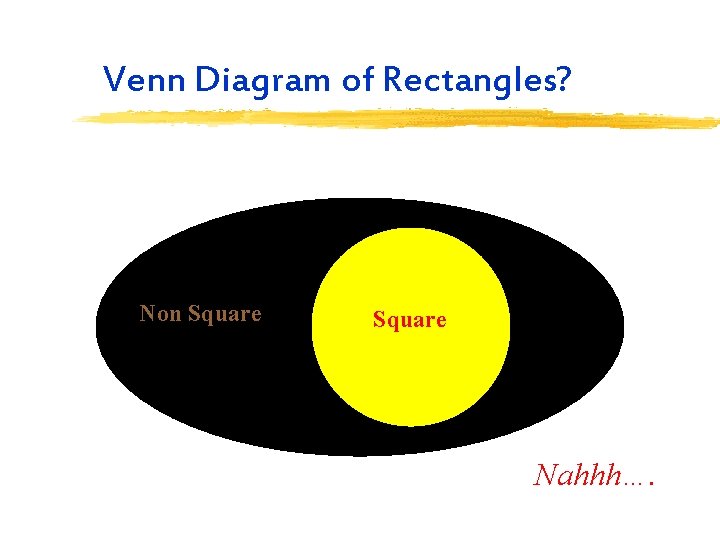

Venn Diagram of Rectangles? Non Square Nahhh….

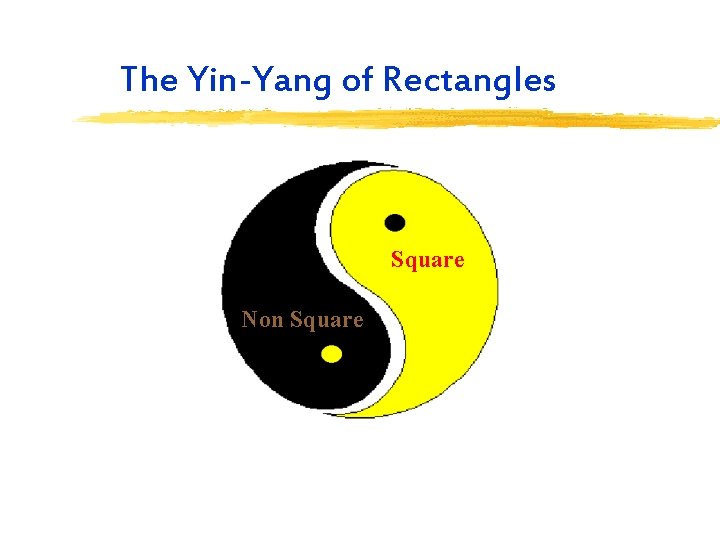

The Yin-Yang of Rectangles Square Non Square

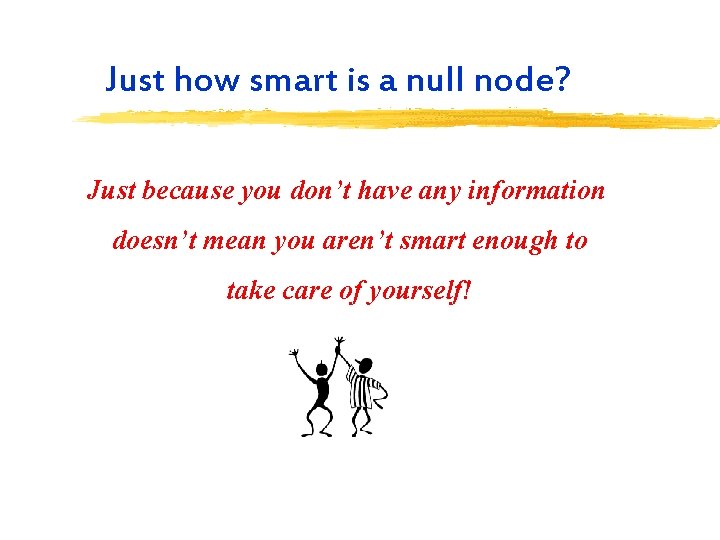

Just how smart is a null node? Just because you don’t have any information doesn’t mean you aren’t smart enough to take care of yourself!
