Linear Momentum Conservation of Momentum Law of Conservation

Linear Momentum Conservation of Momentum Law of Conservation of Linear Momentum The total momentum of a closed system is constant (no external forces)

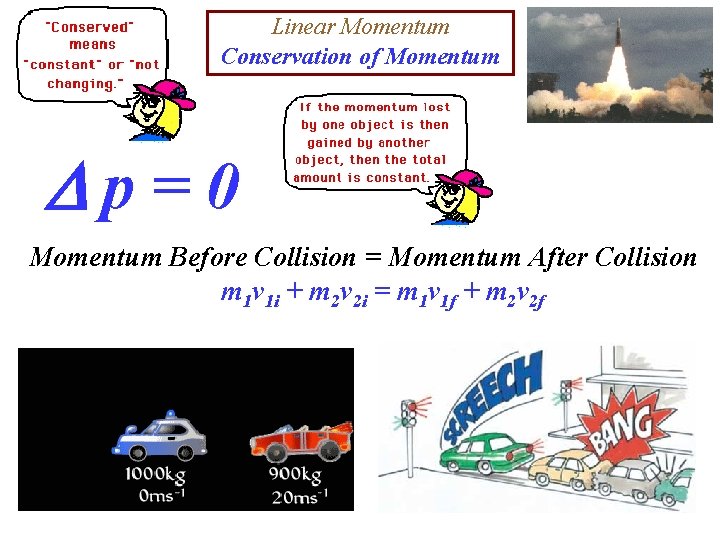

Linear Momentum Conservation of Momentum p=0 Momentum Before Collision = Momentum After Collision m 1 v 1 i + m 2 v 2 i = m 1 v 1 f + m 2 v 2 f

Linear Momentum Conservation of Momentum 3 Types of Collisions 1. Elastic Collision –Momentum and kinetic Energy are conserved. LINK 2. Inelastic Collision – Only momentum is conserved. 3. Perfectly inelastic collision – Only momentum is conserved and the objects stick together after the collision.

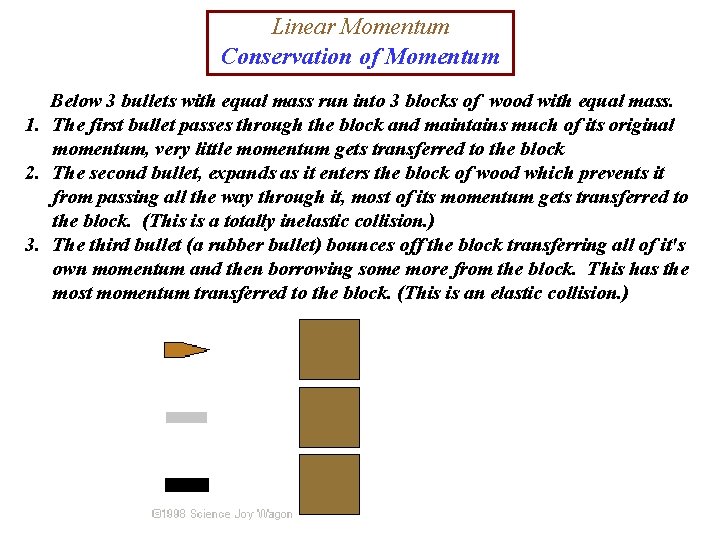

Linear Momentum Conservation of Momentum Below 3 bullets with equal mass run into 3 blocks of wood with equal mass. 1. The first bullet passes through the block and maintains much of its original momentum, very little momentum gets transferred to the block 2. The second bullet, expands as it enters the block of wood which prevents it from passing all the way through it, most of its momentum gets transferred to the block. (This is a totally inelastic collision. ) 3. The third bullet (a rubber bullet) bounces off the block transferring all of it's own momentum and then borrowing some more from the block. This has the most momentum transferred to the block. (This is an elastic collision. )

Linear Momentum Conservation of Momentum Elastic Collision The animation portrays the elastic collision between a 1000 -kg car and a 3000 -kg truck. The before- and after-collision velocities and momentum are shown.

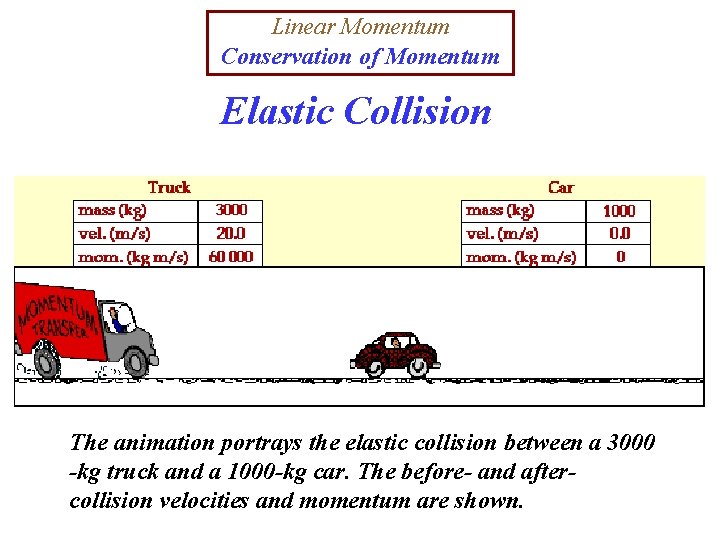

Linear Momentum Conservation of Momentum Elastic Collision The animation portrays the elastic collision between a 3000 -kg truck and a 1000 -kg car. The before- and aftercollision velocities and momentum are shown.

Linear Momentum Conservation of Momentum Elastic Collision The animation portrays the elastic collision between a 1000 kg car and a 3000 -kg truck. The before- and after-collision velocities and momentum are shown.

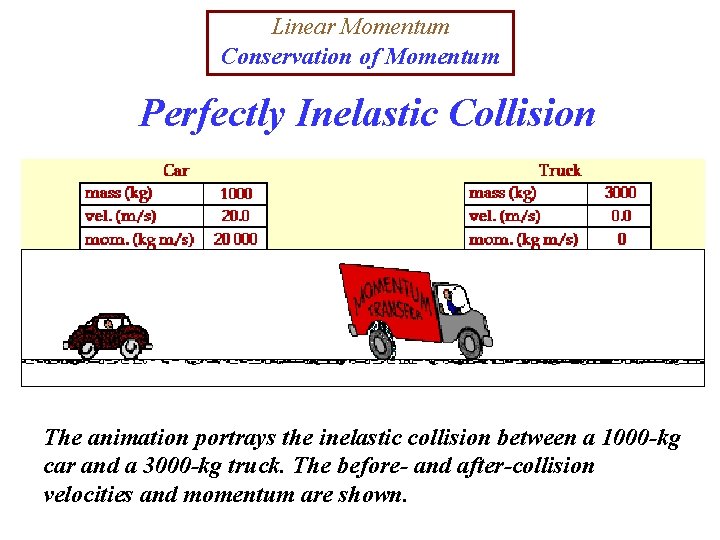

Linear Momentum Conservation of Momentum Perfectly Inelastic Collision The animation portrays the inelastic collision between a 1000 -kg car and a 3000 -kg truck. The before- and after-collision velocities and momentum are shown.

Linear Momentum Conservation of Momentum Perfectly Inelastic Collision The animation portrays the inelastic collision between a 3000 -kg truck and a 1000 -kg car. The before- and after-collision velocities and momentum are shown.

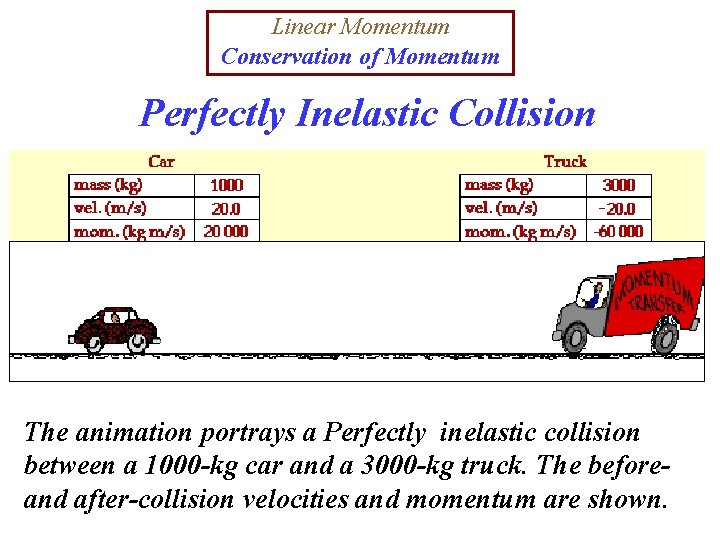

Linear Momentum Conservation of Momentum Perfectly Inelastic Collision The animation portrays a Perfectly inelastic collision between a 1000 -kg car and a 3000 -kg truck. The beforeand after-collision velocities and momentum are shown.

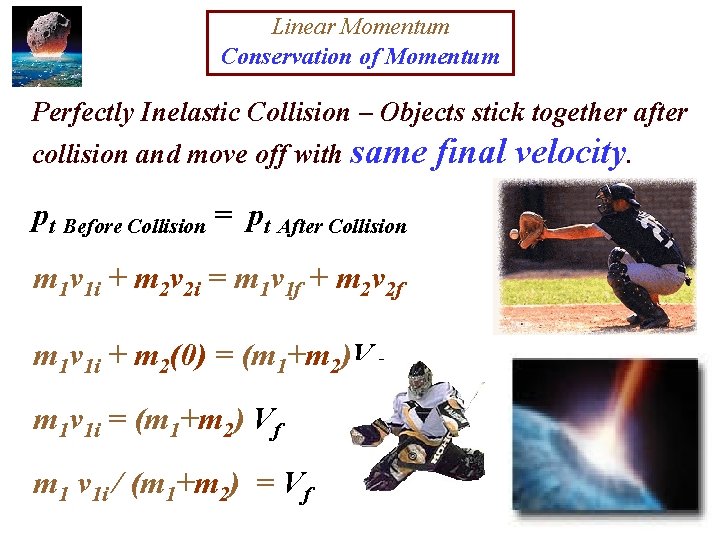

Linear Momentum Conservation of Momentum Perfectly Inelastic Collision – Objects stick together after collision and move off with same final velocity. pt Before Collision = pt After Collision m 1 v 1 i + m 2 v 2 i = m 1 v 1 f + m 2 v 2 f m 1 v 1 i + m 2(0) = (m 1+m 2)Vf m 1 v 1 i = (m 1+m 2) Vf m 1 v 1 i / (m 1+m 2) = Vf

Linear Momentum Conservation of Momentum A 100 kg astronaut, is moving at a speed of 9 m/s and runs into a stationary astronaut (mass = 150 kg). What is the velocity of the astronauts after the collision?

Linear Momentum Conservation of Momentum Solution

Linear Momentum Conservation of Momentum Zacho the clown, who has a mass of 60 kg and stands at rest on the ice, catches a 15 -kg ball that is thrown to him at 20 m/sec. Zacho catches the ball and slides across the ice after the "collision". How fast does Zach and the ball move across the ice after the collision?

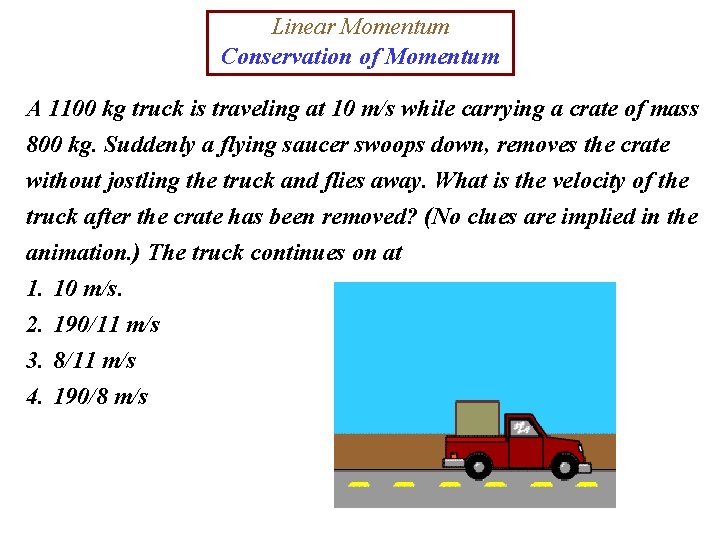

Linear Momentum Conservation of Momentum A 1100 kg truck is traveling at 10 m/s while carrying a crate of mass 800 kg. Suddenly a flying saucer swoops down, removes the crate without jostling the truck and flies away. What is the velocity of the truck after the crate has been removed? (No clues are implied in the animation. ) The truck continues on at 1. 10 m/s. 2. 190/11 m/s 3. 8/11 m/s 4. 190/8 m/s

Linear Momentum Conservation of Momentum A railroad engine has four times the mass of a flatcar. If a diesel coasts at 5 km/hr into a flatcar that is initially at rest, how fast do the two coast if they couple together?

Linear Momentum Conservation of Momentum

Linear Momentum Conservation of Momentum

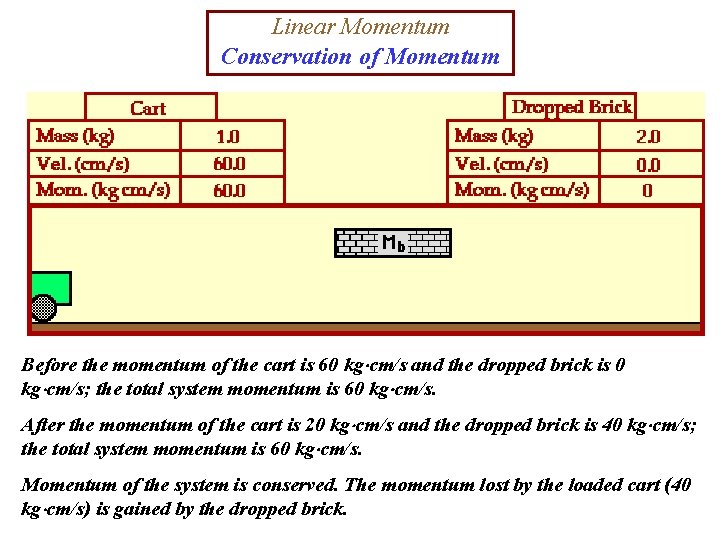

Linear Momentum Conservation of Momentum Before the momentum of the cart is 60 kg cm/s and the dropped brick is 0 kg cm/s; the total system momentum is 60 kg cm/s. After the momentum of the cart is 20 kg cm/s and the dropped brick is 40 kg cm/s; the total system momentum is 60 kg cm/s. Momentum of the system is conserved. The momentum lost by the loaded cart (40 kg cm/s) is gained by the dropped brick.

Linear Momentum Conservation of Momentum Granny (m=80 kg) whizzes around the rink with a velocity of 6 m/s. She suddenly collides with Marissa (m=40 kg) who is at rest. Rather than knock her over, she picks her up and continues in motion without "braking. “ Find the velocity of Granny and Marissa.

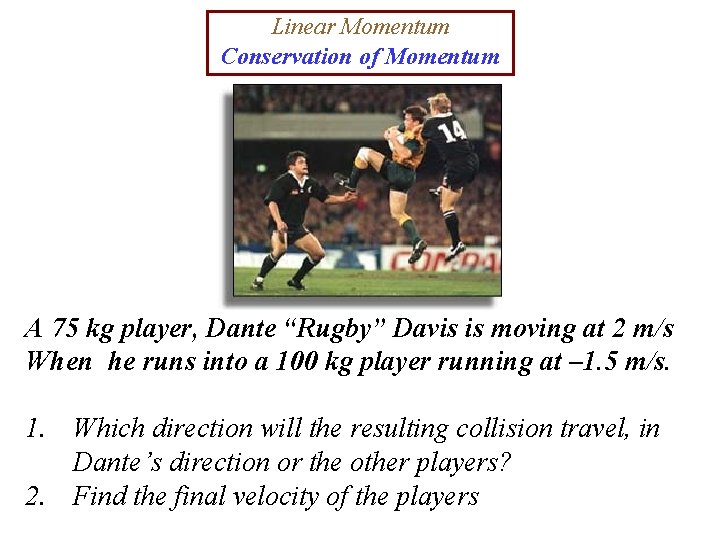

Linear Momentum Conservation of Momentum A 75 kg player, Dante “Rugby” Davis is moving at 2 m/s When he runs into a 100 kg player running at – 1. 5 m/s. 1. Which direction will the resulting collision travel, in Dante’s direction or the other players? 2. Find the final velocity of the players

Linear Momentum Conservation of Momentum Perfectly Inelastic Collision A large fish 4 X the mass of the smaller fish is traveling at 5 km/h. If the small fish was initially at rest calculate the velocity of the big fish after lunch.

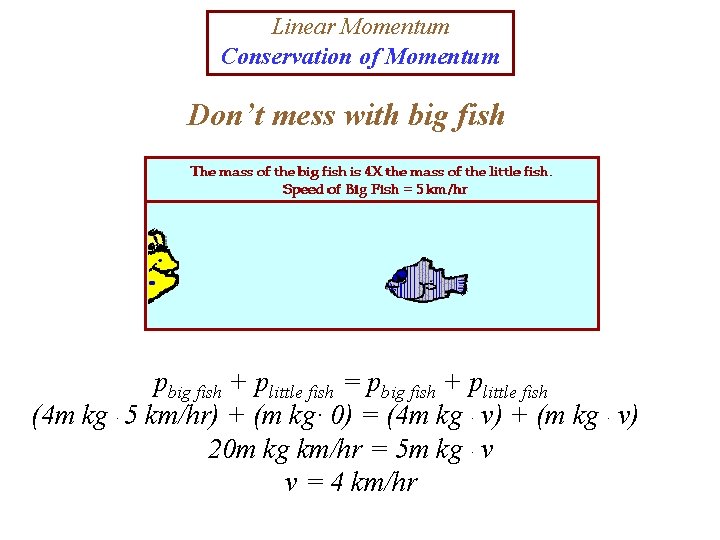

Linear Momentum Conservation of Momentum Don’t mess with big fish pbig fish + plittle fish = pbig fish + plittle fish (4 m kg · 5 km/hr) + (m kg· 0) = (4 m kg · v) + (m kg · v) 20 m kg km/hr = 5 m kg · v v = 4 km/hr

Linear Momentum Conservation of Momentum They don’t stick together A 3000 -kg truck moving with a velocity of 10 m/s hits a 1000 -kg parked car. The impact causes the 1000 -kg car to be set in motion at 15 m/s. Determine the velocity of the truck after the collision.

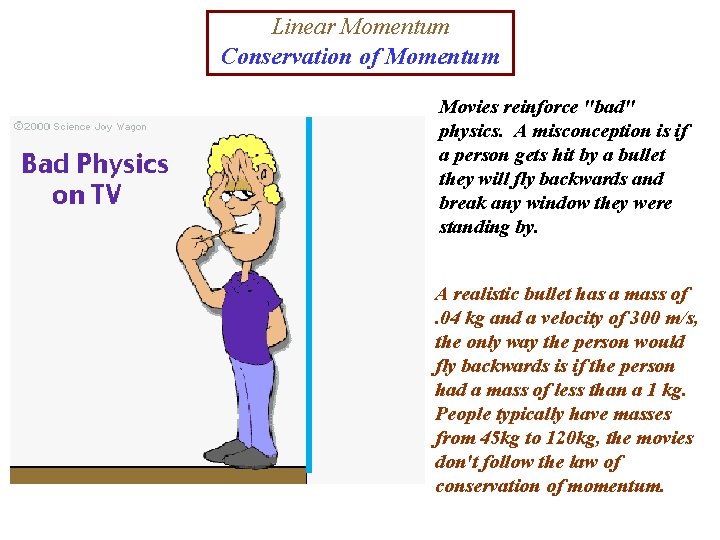

Linear Momentum Conservation of Momentum Movies reinforce "bad" physics. A misconception is if a person gets hit by a bullet they will fly backwards and break any window they were standing by. A realistic bullet has a mass of. 04 kg and a velocity of 300 m/s, the only way the person would fly backwards is if the person had a mass of less than a 1 kg. People typically have masses from 45 kg to 120 kg, the movies don't follow the law of conservation of momentum.

Linear Momentum Conservation of Momentum If the impact were shown realistically a person on ice skates (to reduce friction) would barely move. The simulation uses a realistic bullet (0. 04 Kg at 300 m/s) and a realistic person (65 Kg) and treats the collision as completely inelastic (the bullet sticks). Try the calculation for yourself, you'll find the person only goes 0. 18 m/s.

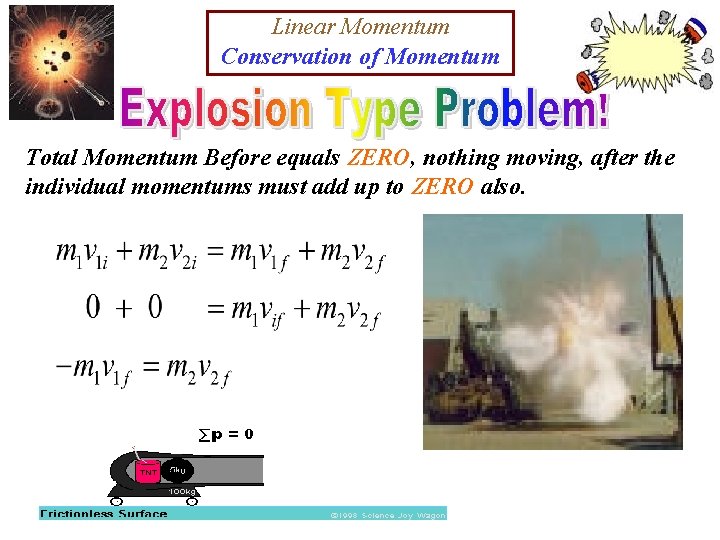

Linear Momentum Conservation of Momentum Total Momentum Before equals ZERO, nothing moving, after the individual momentums must add up to ZERO also.

Linear Momentum Conservation of Momentum EXPLOSION! A 100 kg cannon launches a 5 kg projectile forward at 20 m/s. What is the recoil velocity of the cannon?

Linear Momentum Conservation of Momentum

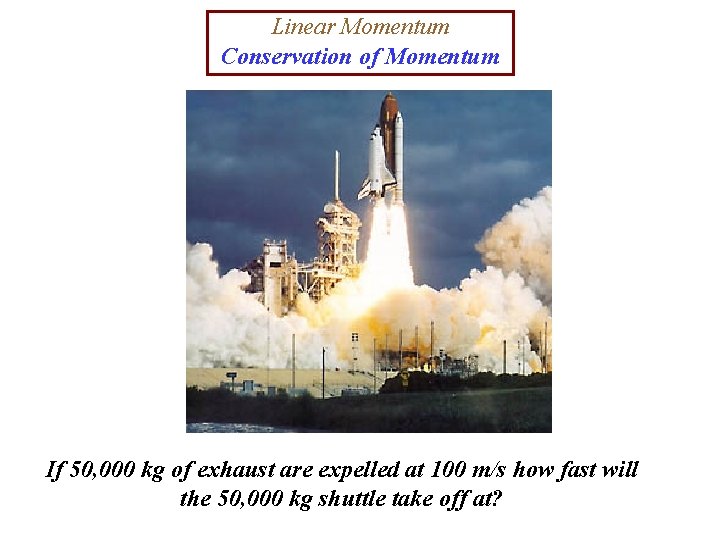

Linear Momentum Conservation of Momentum If 50, 000 kg of exhaust are expelled at 100 m/s how fast will the 50, 000 kg shuttle take off at?

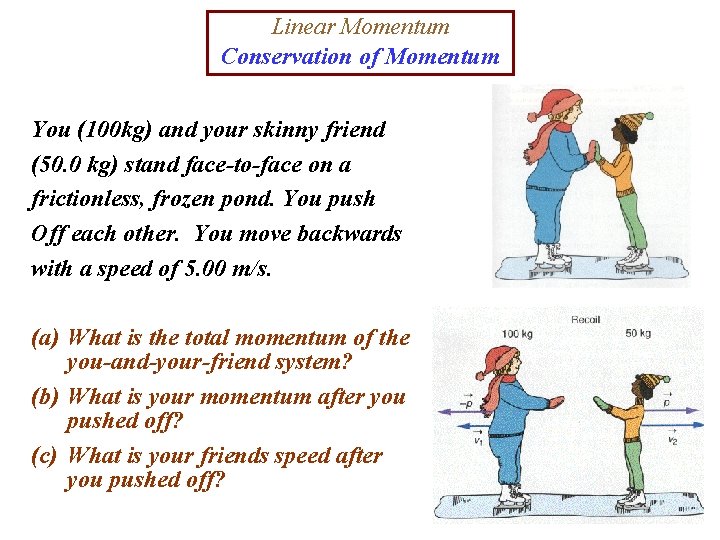

Linear Momentum Conservation of Momentum You (100 kg) and your skinny friend (50. 0 kg) stand face-to-face on a frictionless, frozen pond. You push Off each other. You move backwards with a speed of 5. 00 m/s. (a) What is the total momentum of the you-and-your-friend system? (b) What is your momentum after you pushed off? (c) What is your friends speed after you pushed off?

Linear Momentum Conservation of Momentum A gun recoils when it is fired. The recoil is the result of action-reaction force pairs. As the gases from the gunpowder explosion expand, the gun pushes the bullet forwards and the bullet pushes the gun backwards. The acceleration of the recoiling gun is. . . 1. greater than the acceleration of the bullet. 2. smaller than the acceleration of the bullet. 3. the same size as the acceleration of the bullet.

Linear Momentum Conservation of Momentum Frozen Lake Ø Ø Ø A skater stuck on a frozen (frictionless) lake wants to get off of safely. How can she do this with no outside help? She can take her skate off and throw it. She then slides off in the opposite direction (Conservation of Momentum) This is the principle by which rockets work. pt before = pt after m 1 v 1 i+m 2 v 2 i = m 1 vif+m 2 v 2 f 0 = 60(vs ) + 1(10) vs = -1/6 m/s
