Linear Algebra Chapter 7 Inner Product Spaces 大葉大學 資訊 程系 黃鈴玲 Copyright © 滄海書局

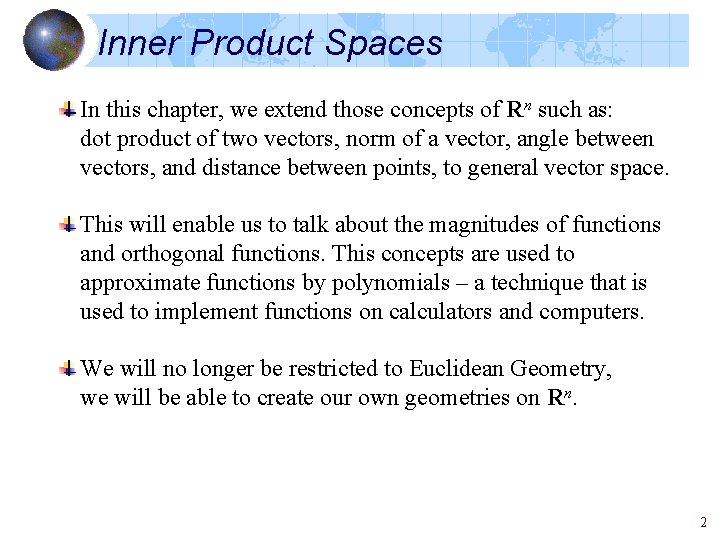

Inner Product Spaces In this chapter, we extend those concepts of Rn such as: dot product of two vectors, norm of a vector, angle between vectors, and distance between points, to general vector space. This will enable us to talk about the magnitudes of functions and orthogonal functions. This concepts are used to approximate functions by polynomials – a technique that is used to implement functions on calculators and computers. We will no longer be restricted to Euclidean Geometry, we will be able to create our own geometries on Rn. 2

7. 1 Inner Product Spaces The dot product was a key concept on Rn that led to definitions of norm, angle, and distance. Our approach will be to generalize the dot product of Rn to a general vector space with a mathematical structure called an inner product. This in turn will be used to define norm, angle, and distance for a general vector space. 3

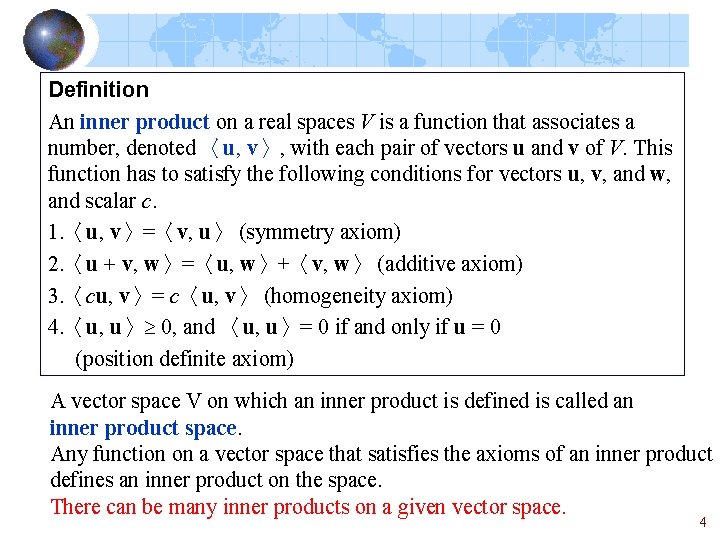

Definition An inner product on a real spaces V is a function that associates a number, denoted 〈u, v〉, with each pair of vectors u and v of V. This function has to satisfy the following conditions for vectors u, v, and w, and scalar c. 1. 〈u, v〉=〈v, u〉 (symmetry axiom) 2. 〈u + v, w〉=〈u, w〉+〈v, w〉 (additive axiom) 3. 〈cu, v〉= c〈u, v〉 (homogeneity axiom) 4. 〈u, u〉 0, and 〈u, u〉= 0 if and only if u = 0 (position definite axiom) A vector space V on which an inner product is defined is called an inner product space. Any function on a vector space that satisfies the axioms of an inner product defines an inner product on the space. There can be many inner products on a given vector space. 4

Example 1 Let u = (x 1, x 2), v = (y 1, y 2), and w = (z 1, z 2) be arbitrary vectors in R 2. Prove that〈u, v〉, defined as follows, is an inner product on R 2. 〈u, v〉= x 1 y 1 + 4 x 2 y 2 Determine the inner product of the vectors (-2, 5), (3, 1) under this inner product. Solution Axiom 1: 〈u, v〉= x 1 y 1 + 4 x 2 y 2 = y 1 x 1 + 4 y 2 x 2 =〈v, u〉 Axiom 2: 〈u + v, w〉=〈 (x 1, x 2) + (y 1, y 2) , (z 1, z 2) 〉 =〈 (x 1 + y 1, x 2 + y 2), (z 1, z 2) 〉 = (x 1 + y 1) z 1 + 4(x 2 + y 2)z 2 = x 1 z 1 + 4 x 2 z 2 + y 1 z 1 + 4 y 2 z 2 =〈(x 1, x 2), (z 1, z 2)〉+〈(y 1, y 2), (z 1, z 2) 〉 =〈u, w〉+〈v, w〉 5

Axiom 3: 〈cu, v〉= 〈c(x 1, x 2), (y 1, y 2)〉 =〈 (cx 1, cx 2), (y 1, y 2) 〉 = cx 1 y 1 + 4 cx 2 y 2 = c(x 1 y 1 + 4 x 2 y 2) = c〈u, v〉 Axiom 4: 〈u, u〉= 〈(x 1, x 2), (x 1, x 2)〉= Further, if and only if x 1 = 0 and x 2 = 0. That is u = 0. Thus〈u, u〉 0, and〈u, u〉= 0 if and only if u = 0. The four inner product axioms are satisfied, 〈u, v〉= x 1 y 1 + 4 x 2 y 2 is an inner product on R 2. The inner product of the vectors (-2, 5), (3, 1) is 〈(-2, 5), (3, 1)〉= (-2 3) + 4(5 1) = 14 6

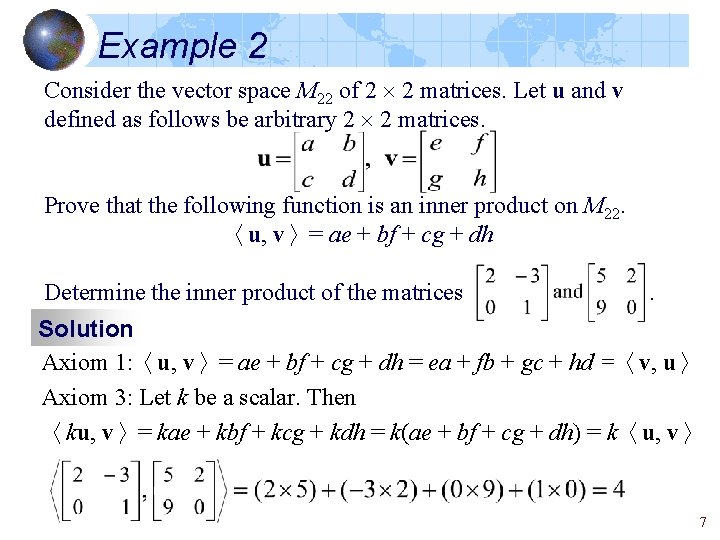

Example 2 Consider the vector space M 22 of 2 2 matrices. Let u and v defined as follows be arbitrary 2 2 matrices. Prove that the following function is an inner product on M 22. 〈u, v〉= ae + bf + cg + dh Determine the inner product of the matrices . Solution Axiom 1: 〈u, v〉= ae + bf + cg + dh = ea + fb + gc + hd =〈v, u〉 Axiom 3: Let k be a scalar. Then 〈ku, v〉= kae + kbf + kcg + kdh = k(ae + bf + cg + dh) = k〈u, v〉 7

Example 3 Consider the vector space Pn of polynomials of degree n. Let f and g be elements of Pn. Prove that the following function defines an inner product of Pn. Determine the inner product of polynomials f(x) = x 2 + 2 x – 1 and g(x) = 4 x + 1 Solution Axiom 1: Axiom 2: 8

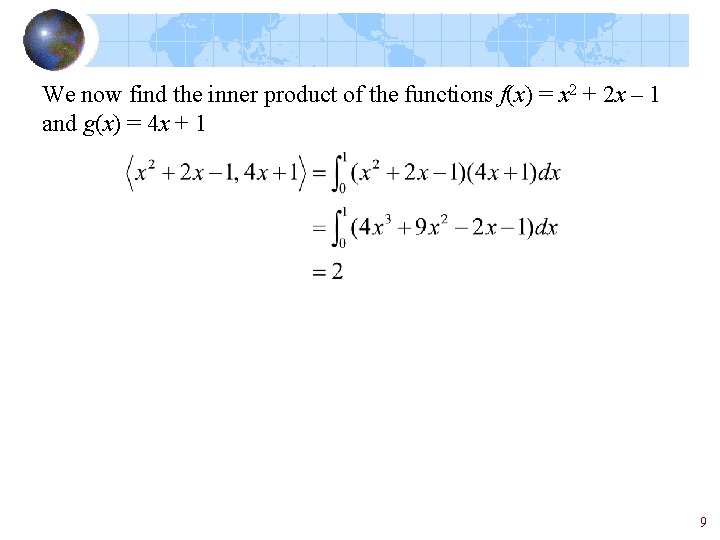

We now find the inner product of the functions f(x) = x 2 + 2 x – 1 and g(x) = 4 x + 1 9

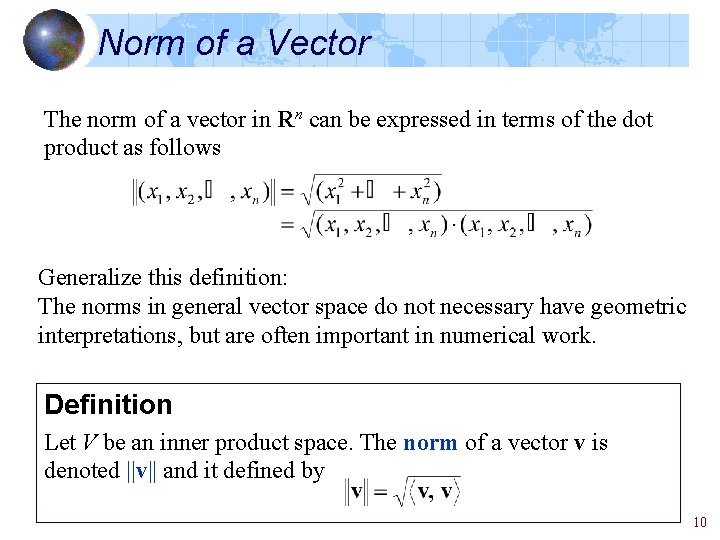

Norm of a Vector The norm of a vector in Rn can be expressed in terms of the dot product as follows Generalize this definition: The norms in general vector space do not necessary have geometric interpretations, but are often important in numerical work. Definition Let V be an inner product space. The norm of a vector v is denoted ||v|| and it defined by 10

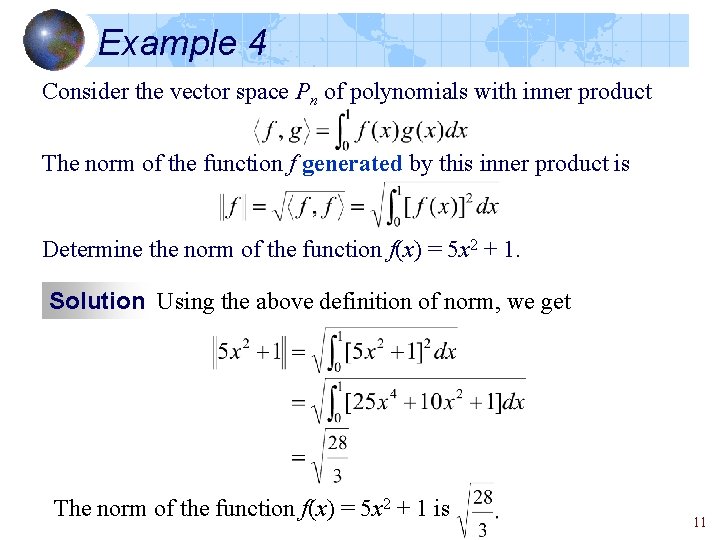

Example 4 Consider the vector space Pn of polynomials with inner product The norm of the function f generated by this inner product is Determine the norm of the function f(x) = 5 x 2 + 1. Solution Using the above definition of norm, we get The norm of the function f(x) = 5 x 2 + 1 is 11

Example 2’ (補充) Consider the vector space M 22 of 2 2 matrices. Let u and v defined as follows be arbitrary 2 2 matrices. It is known that the function 〈u, v〉= ae + bf + cg + dh is an inner product on M 22 by Example 2. The norm of the matrix is 12

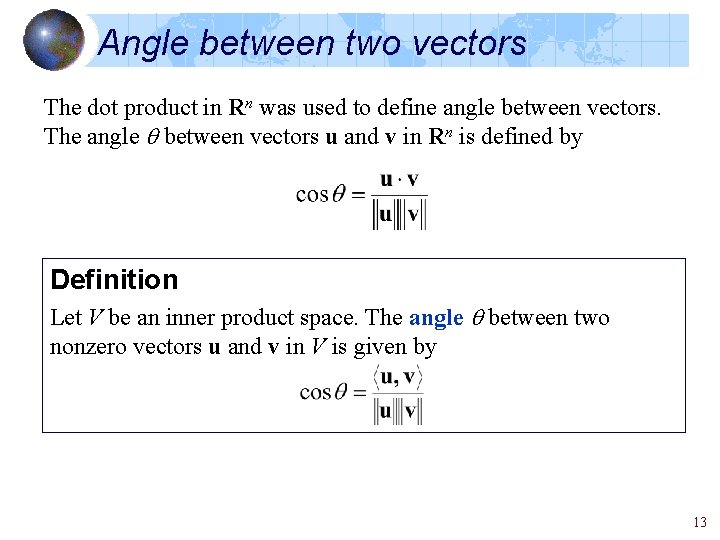

Angle between two vectors The dot product in Rn was used to define angle between vectors. The angle between vectors u and v in Rn is defined by Definition Let V be an inner product space. The angle between two nonzero vectors u and v in V is given by 13

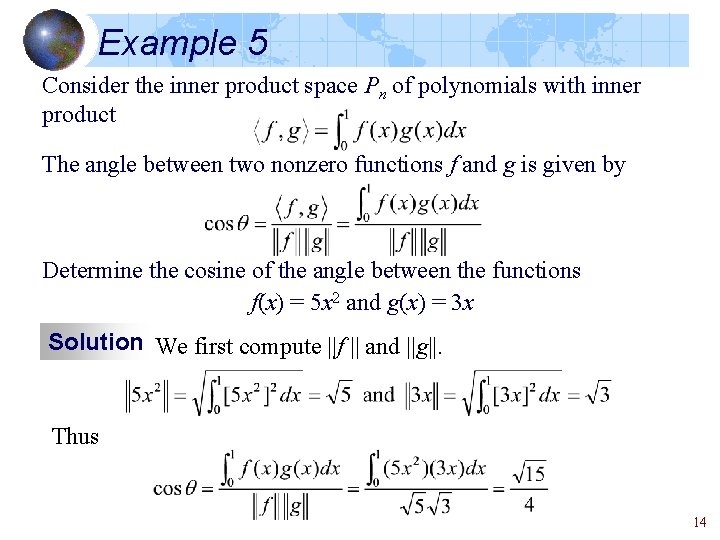

Example 5 Consider the inner product space Pn of polynomials with inner product The angle between two nonzero functions f and g is given by Determine the cosine of the angle between the functions f(x) = 5 x 2 and g(x) = 3 x Solution We first compute ||f || and ||g||. Thus 14

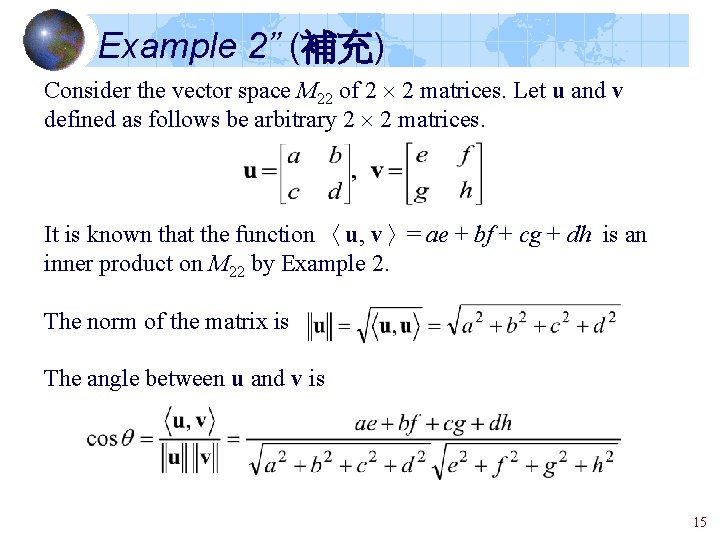

Example 2” (補充) Consider the vector space M 22 of 2 2 matrices. Let u and v defined as follows be arbitrary 2 2 matrices. It is known that the function 〈u, v〉= ae + bf + cg + dh is an inner product on M 22 by Example 2. The norm of the matrix is The angle between u and v is 15

Orthogonal Vectors Def. Let V be an inner product space. Two nonzero vectors u and v in V are said to be orthogonal if Example 6 Show that the functions f(x) = 3 x – 2 and g(x) = x are orthogonal in Pn with inner product Solution Thus the functions f and g are orthogonal in this inner product Space. 16

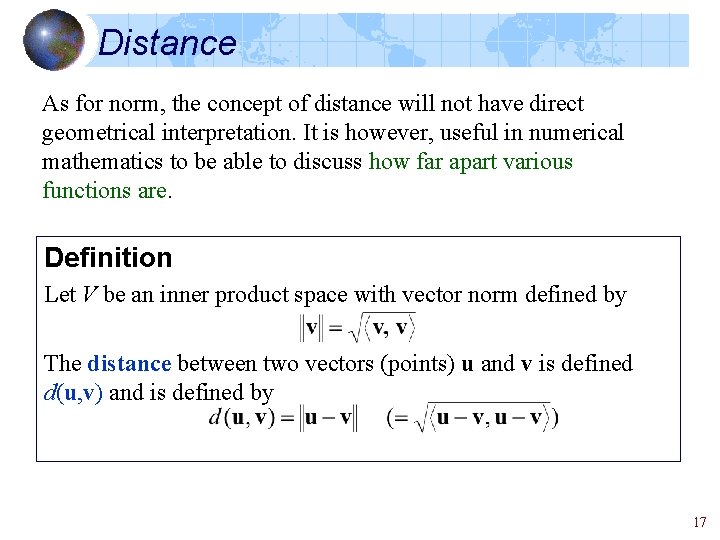

Distance As for norm, the concept of distance will not have direct geometrical interpretation. It is however, useful in numerical mathematics to be able to discuss how far apart various functions are. Definition Let V be an inner product space with vector norm defined by The distance between two vectors (points) u and v is defined d(u, v) and is defined by 17

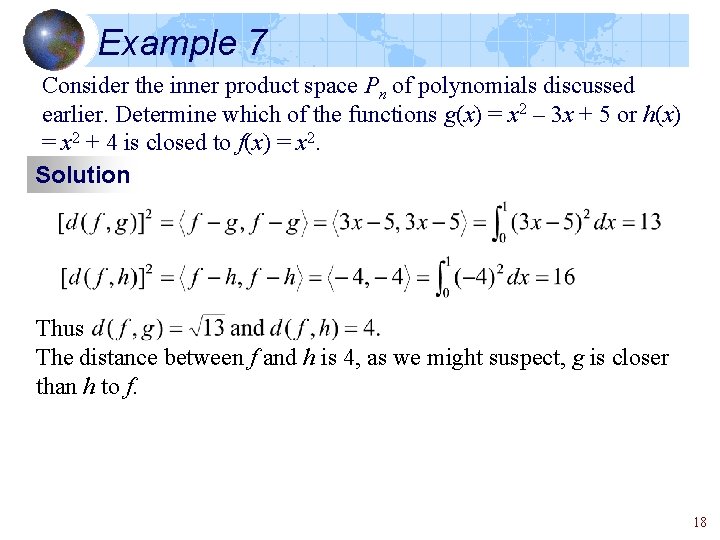

Example 7 Consider the inner product space Pn of polynomials discussed earlier. Determine which of the functions g(x) = x 2 – 3 x + 5 or h(x) = x 2 + 4 is closed to f(x) = x 2. Solution Thus The distance between f and h is 4, as we might suspect, g is closer than h to f. 18

Inner Product on Cn For a complex vector space, the first axiom of inner product is modified to read. An inner product can then be used to define norm, orthogonality, and distance, as far a real vector space. Let u = (x 1, …, xn) and v = (y 1, …, yn) be element of Cn. The most useful inner product for Cn is 19

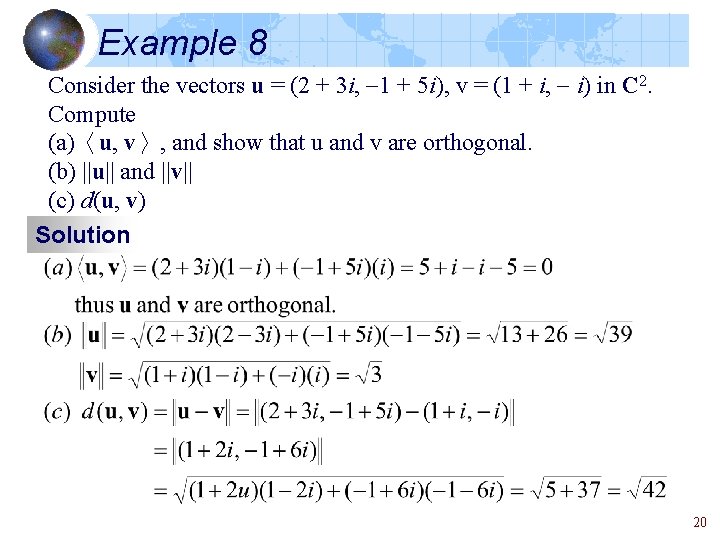

Example 8 Consider the vectors u = (2 + 3 i, -1 + 5 i), v = (1 + i, - i) in C 2. Compute (a)〈u, v〉, and show that u and v are orthogonal. (b) ||u|| and ||v|| (c) d(u, v) Solution 20

Homework Exercise 7. 1: 1, 4, 8(a), 9(a), 10, 12, 13, 15, 17(a), 19, 20(a) 21

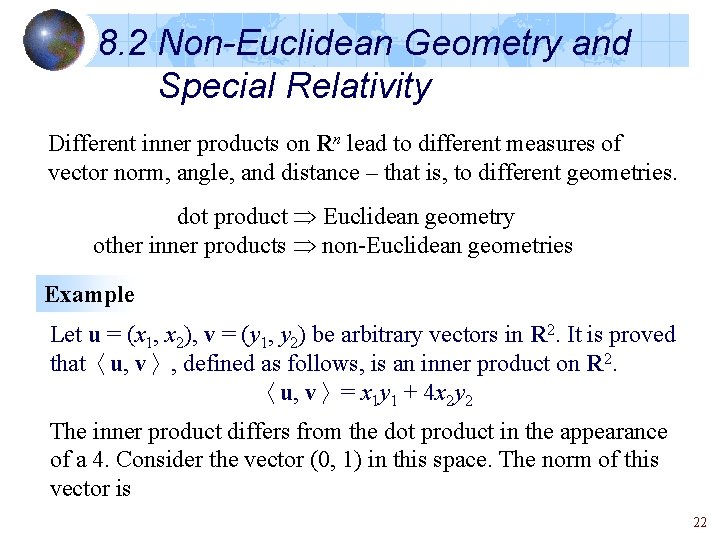

8. 2 Non-Euclidean Geometry and Special Relativity Different inner products on Rn lead to different measures of vector norm, angle, and distance – that is, to different geometries. dot product Euclidean geometry other inner products non-Euclidean geometries Example Let u = (x 1, x 2), v = (y 1, y 2) be arbitrary vectors in R 2. It is proved that〈u, v〉, defined as follows, is an inner product on R 2. 〈u, v〉= x 1 y 1 + 4 x 2 y 2 The inner product differs from the dot product in the appearance of a 4. Consider the vector (0, 1) in this space. The norm of this vector is 22

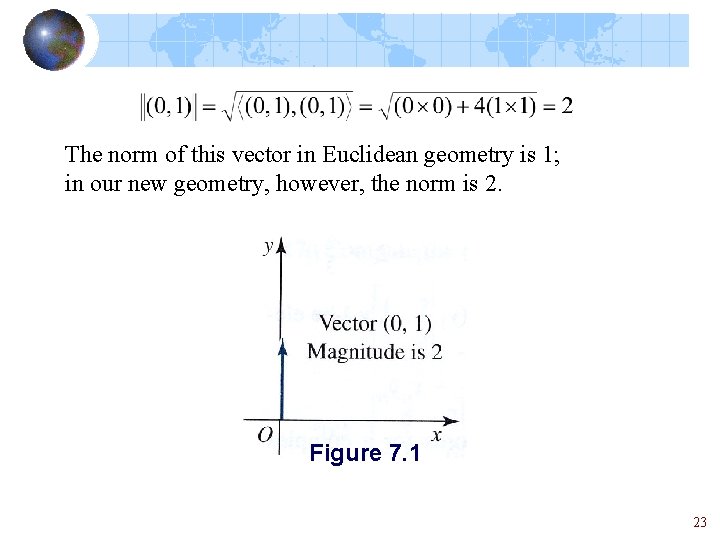

The norm of this vector in Euclidean geometry is 1; in our new geometry, however, the norm is 2. Figure 7. 1 23

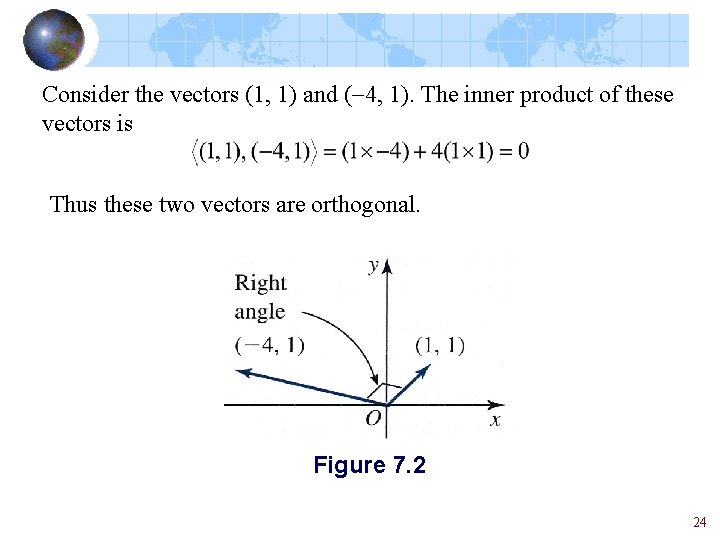

Consider the vectors (1, 1) and (-4, 1). The inner product of these vectors is Thus these two vectors are orthogonal. Figure 7. 2 24

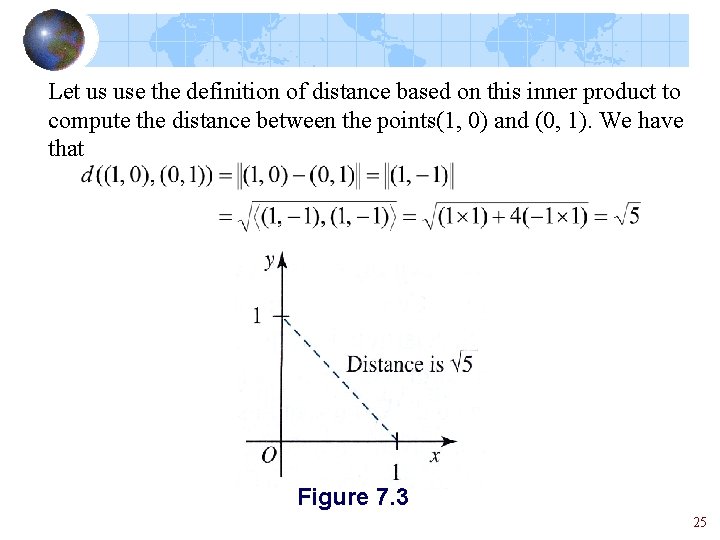

Let us use the definition of distance based on this inner product to compute the distance between the points(1, 0) and (0, 1). We have that Figure 7. 3 25

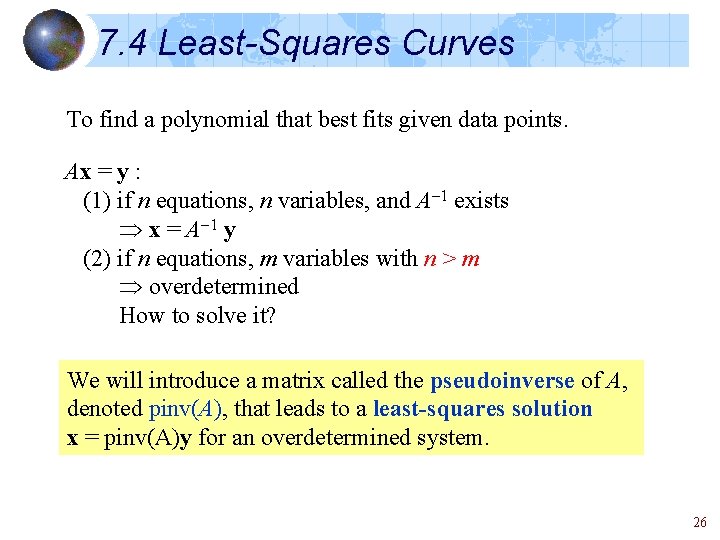

7. 4 Least-Squares Curves To find a polynomial that best fits given data points. Ax = y : (1) if n equations, n variables, and A-1 exists x = A-1 y (2) if n equations, m variables with n > m overdetermined How to solve it? We will introduce a matrix called the pseudoinverse of A, denoted pinv(A), that leads to a least-squares solution x = pinv(A)y for an overdetermined system. 26

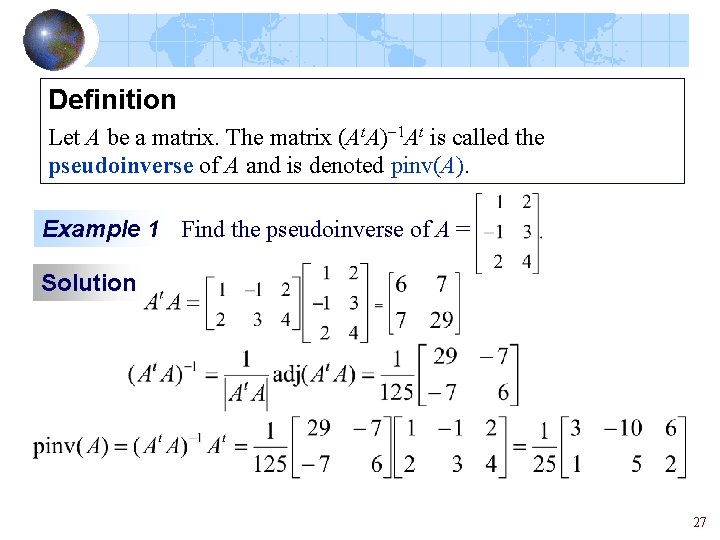

Definition Let A be a matrix. The matrix (At. A)-1 At is called the pseudoinverse of A and is denoted pinv(A). Example 1 Find the pseudoinverse of A = Solution 27

Let Ax = y be a system of n linear equations in m variables with n > m, where A is of rank m. Ax=y At. Ax=Aty x = (At. A)-1 Aty At. A is invertible Ax = y x = pinv(A)y system least-squares solution If the system Ax=y has a unique solution, the least-squares solution is that unique solution. If the system is overdetermined, the least-squares solution is the closest we can get to a true solution. The system cannot have many solutions. 28

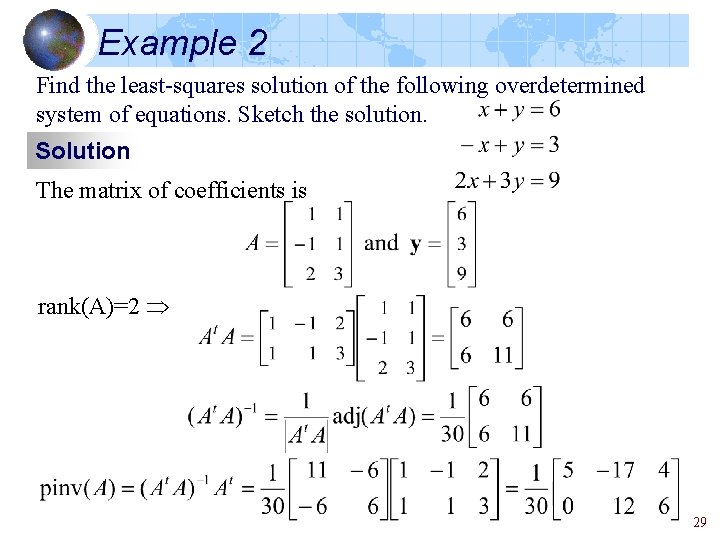

Example 2 Find the least-squares solution of the following overdetermined system of equations. Sketch the solution. Solution The matrix of coefficients is rank(A)=2 29

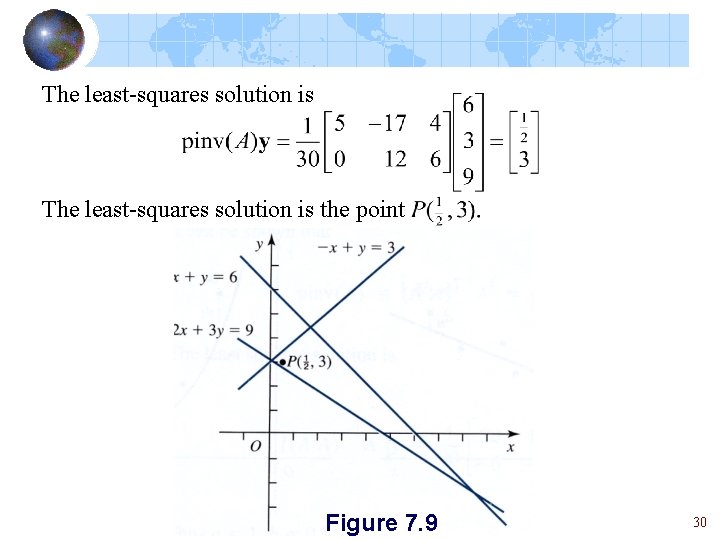

The least-squares solution is the point Figure 7. 9 30

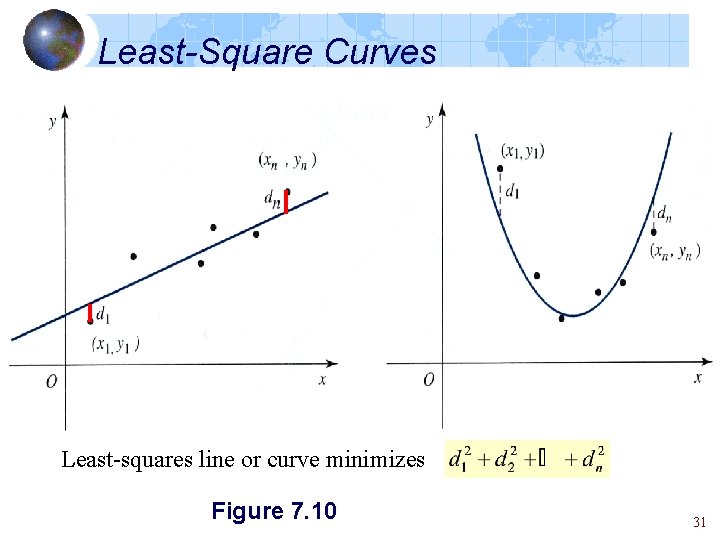

Least-Square Curves Least-squares line or curve minimizes Figure 7. 10 31

Example 3 Find the least-squares line for the following data points. (1, 1), (2, 4), (3, 2), (4, 4) Solution Let the equation of the line by y = a + bx. Substituting for these points into the equation of the line, we get the overdetermined system We find the least squares solution. The matrix of coefficients A and column vector y are as follows. It can be shown that 32

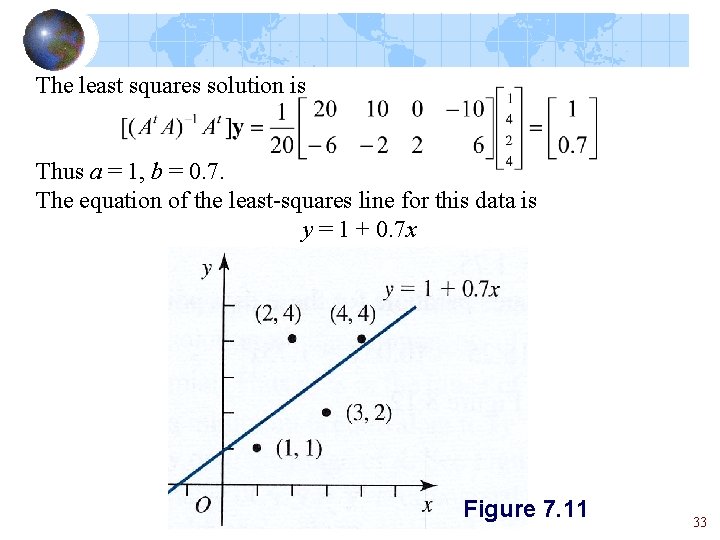

The least squares solution is Thus a = 1, b = 0. 7. The equation of the least-squares line for this data is y = 1 + 0. 7 x Figure 7. 11 33

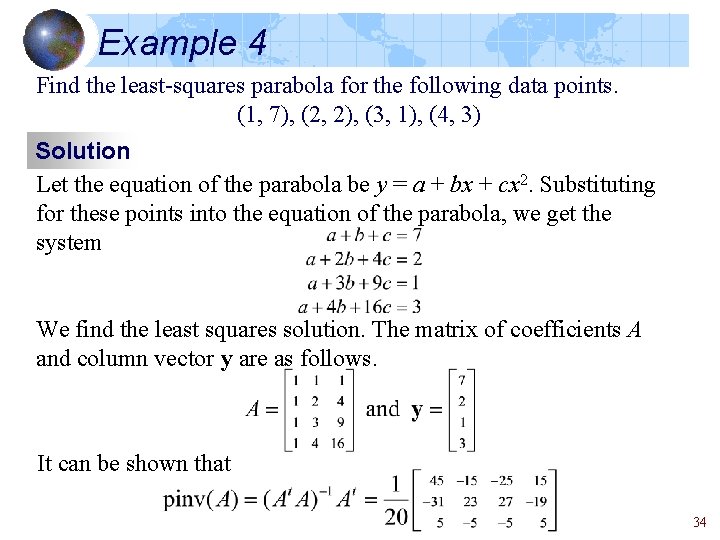

Example 4 Find the least-squares parabola for the following data points. (1, 7), (2, 2), (3, 1), (4, 3) Solution Let the equation of the parabola be y = a + bx + cx 2. Substituting for these points into the equation of the parabola, we get the system We find the least squares solution. The matrix of coefficients A and column vector y are as follows. It can be shown that 34

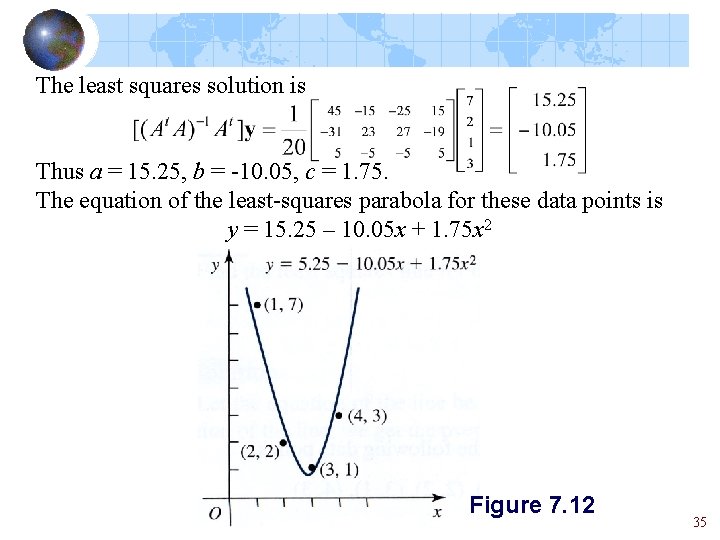

The least squares solution is Thus a = 15. 25, b = -10. 05, c = 1. 75. The equation of the least-squares parabola for these data points is y = 15. 25 – 10. 05 x + 1. 75 x 2 Figure 7. 12 35

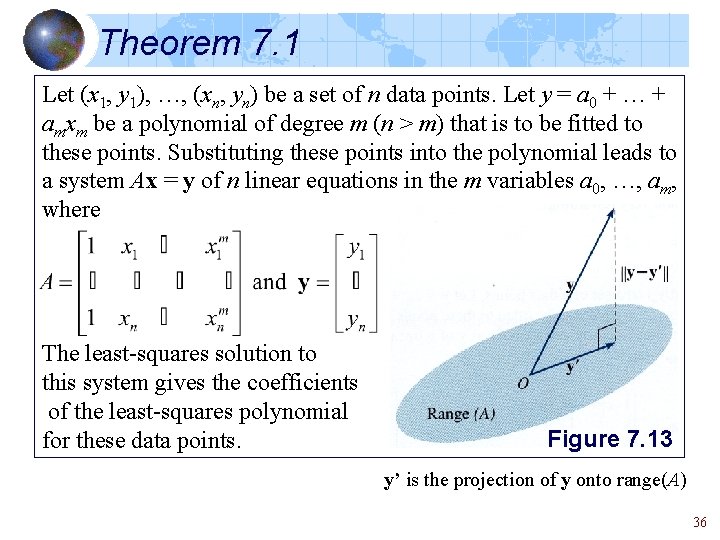

Theorem 7. 1 Let (x 1, y 1), …, (xn, yn) be a set of n data points. Let y = a 0 + … + amxm be a polynomial of degree m (n > m) that is to be fitted to these points. Substituting these points into the polynomial leads to a system Ax = y of n linear equations in the m variables a 0, …, am, where The least-squares solution to this system gives the coefficients of the least-squares polynomial for these data points. Figure 7. 13 y’ is the projection of y onto range(A) 36

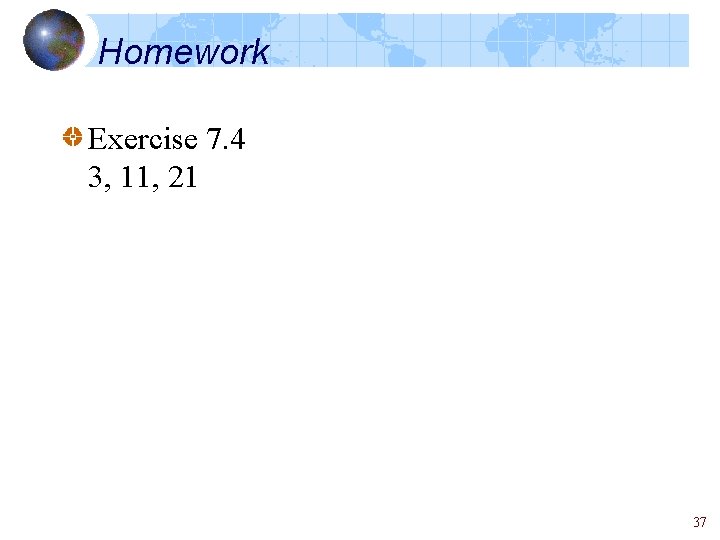

Homework Exercise 7. 4 3, 11, 21 37
