Line Attributes X 1 Y 1 X 2

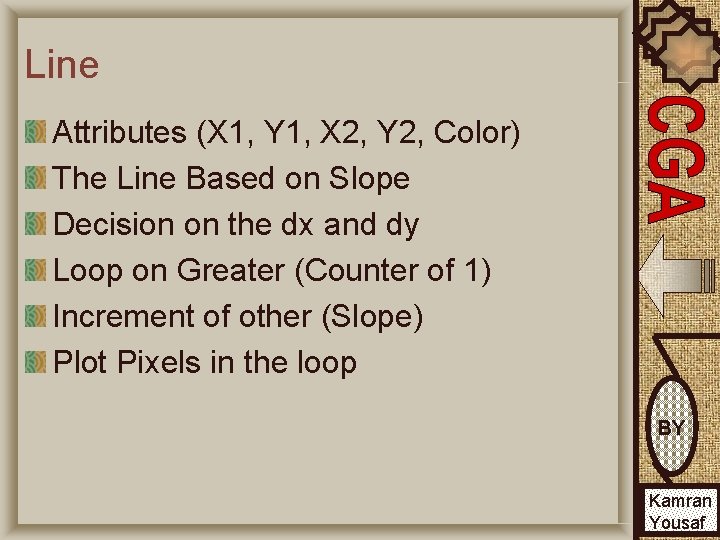

Line Attributes (X 1, Y 1, X 2, Y 2, Color) The Line Based on Slope Decision on the dx and dy Loop on Greater (Counter of 1) Increment of other (Slope) Plot Pixels in the loop BY Kamran Yousaf

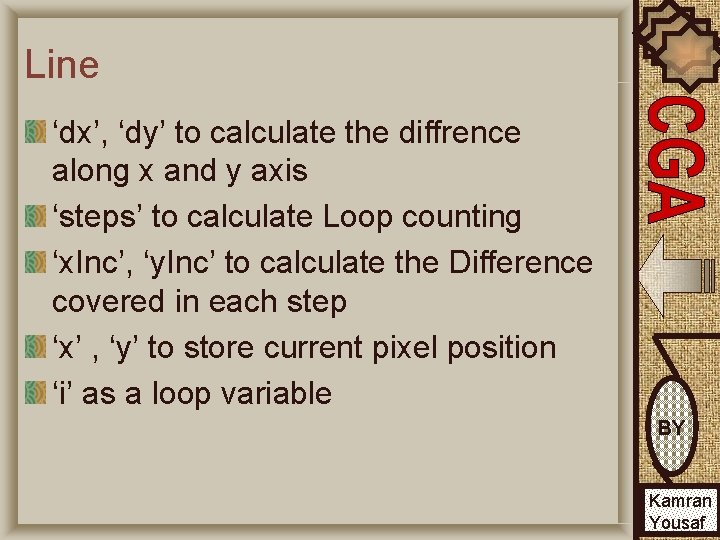

Line ‘dx’, ‘dy’ to calculate the diffrence along x and y axis ‘steps’ to calculate Loop counting ‘x. Inc’, ‘y. Inc’ to calculate the Difference covered in each step ‘x’ , ‘y’ to store current pixel position ‘i’ as a loop variable BY Kamran Yousaf

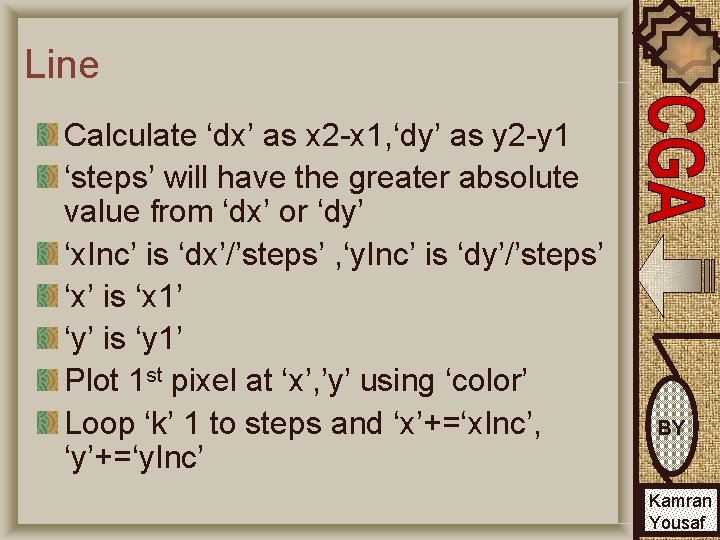

Line Calculate ‘dx’ as x 2 -x 1, ‘dy’ as y 2 -y 1 ‘steps’ will have the greater absolute value from ‘dx’ or ‘dy’ ‘x. Inc’ is ‘dx’/’steps’ , ‘y. Inc’ is ‘dy’/’steps’ ‘x’ is ‘x 1’ ‘y’ is ‘y 1’ Plot 1 st pixel at ‘x’, ’y’ using ‘color’ Loop ‘k’ 1 to steps and ‘x’+=‘x. Inc’, ‘y’+=‘y. Inc’ BY Kamran Yousaf

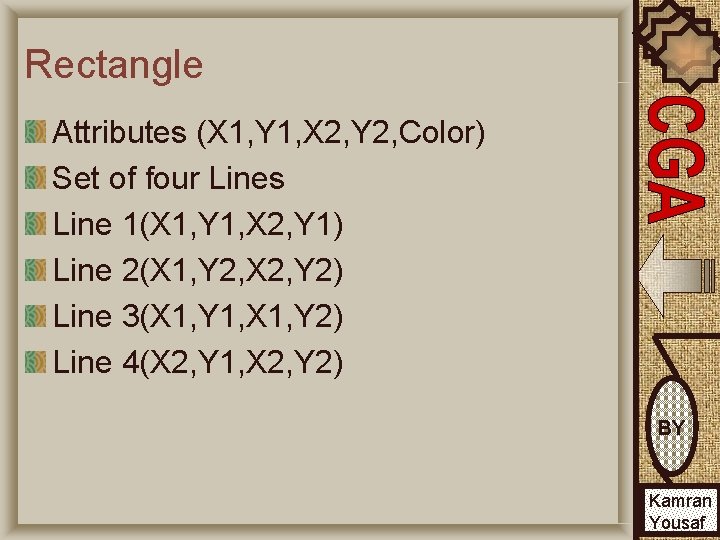

Rectangle Attributes (X 1, Y 1, X 2, Y 2, Color) Set of four Lines Line 1(X 1, Y 1, X 2, Y 1) Line 2(X 1, Y 2, X 2, Y 2) Line 3(X 1, Y 1, X 1, Y 2) Line 4(X 2, Y 1, X 2, Y 2) BY Kamran Yousaf

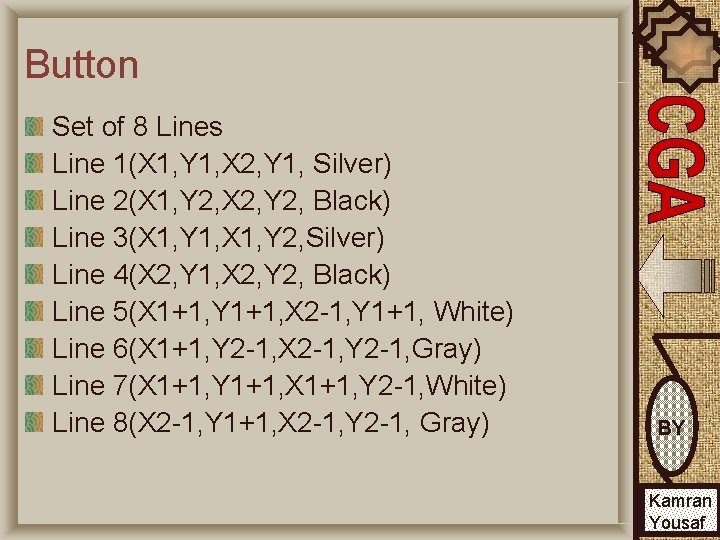

Button Set of 8 Lines Line 1(X 1, Y 1, X 2, Y 1, Silver) Line 2(X 1, Y 2, X 2, Y 2, Black) Line 3(X 1, Y 1, X 1, Y 2, Silver) Line 4(X 2, Y 1, X 2, Y 2, Black) Line 5(X 1+1, Y 1+1, X 2 -1, Y 1+1, White) Line 6(X 1+1, Y 2 -1, X 2 -1, Y 2 -1, Gray) Line 7(X 1+1, Y 1+1, X 1+1, Y 2 -1, White) Line 8(X 2 -1, Y 1+1, X 2 -1, Y 2 -1, Gray) BY Kamran Yousaf

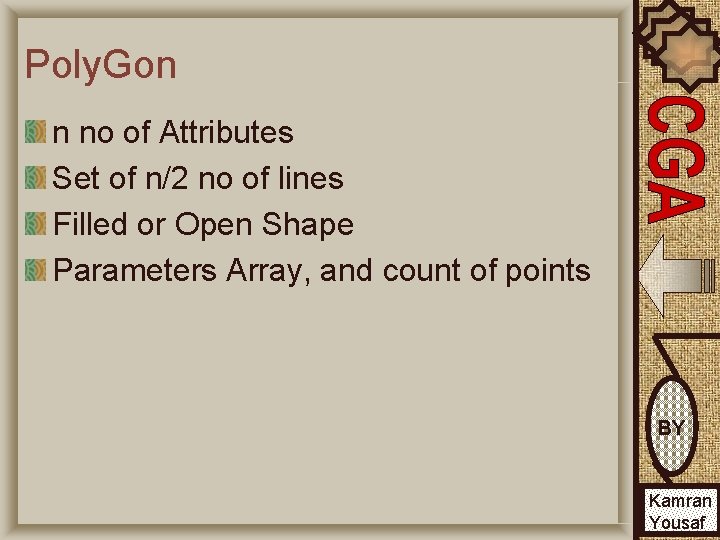

Poly. Gon n no of Attributes Set of n/2 no of lines Filled or Open Shape Parameters Array, and count of points BY Kamran Yousaf

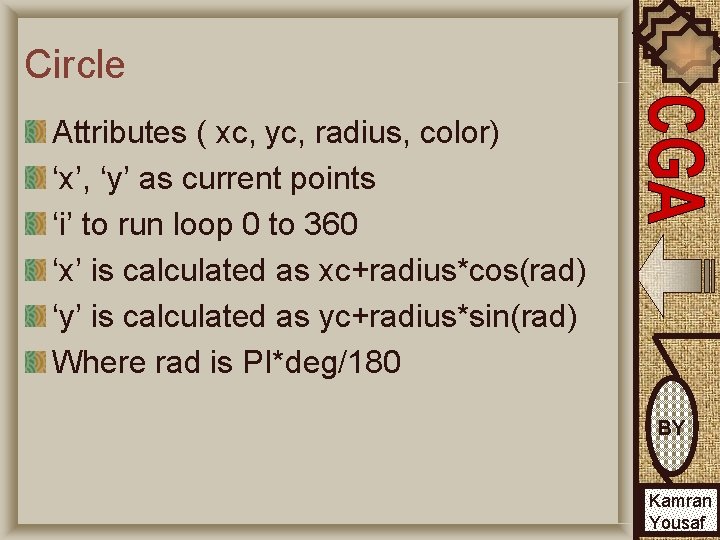

Circle Attributes ( xc, yc, radius, color) ‘x’, ‘y’ as current points ‘i’ to run loop 0 to 360 ‘x’ is calculated as xc+radius*cos(rad) ‘y’ is calculated as yc+radius*sin(rad) Where rad is PI*deg/180 BY Kamran Yousaf

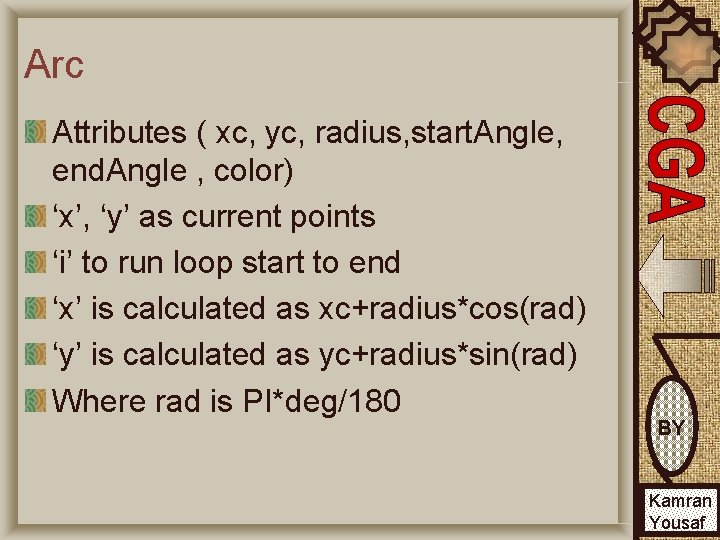

Arc Attributes ( xc, yc, radius, start. Angle, end. Angle , color) ‘x’, ‘y’ as current points ‘i’ to run loop start to end ‘x’ is calculated as xc+radius*cos(rad) ‘y’ is calculated as yc+radius*sin(rad) Where rad is PI*deg/180 BY Kamran Yousaf

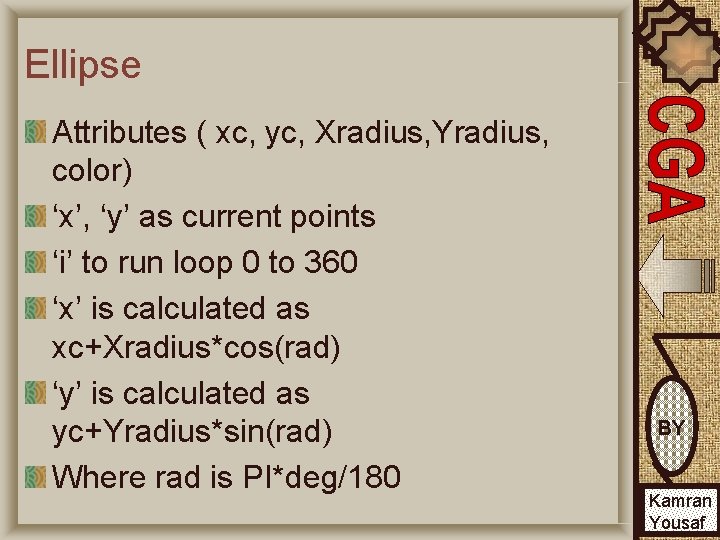

Ellipse Attributes ( xc, yc, Xradius, Yradius, color) ‘x’, ‘y’ as current points ‘i’ to run loop 0 to 360 ‘x’ is calculated as xc+Xradius*cos(rad) ‘y’ is calculated as yc+Yradius*sin(rad) Where rad is PI*deg/180 BY Kamran Yousaf

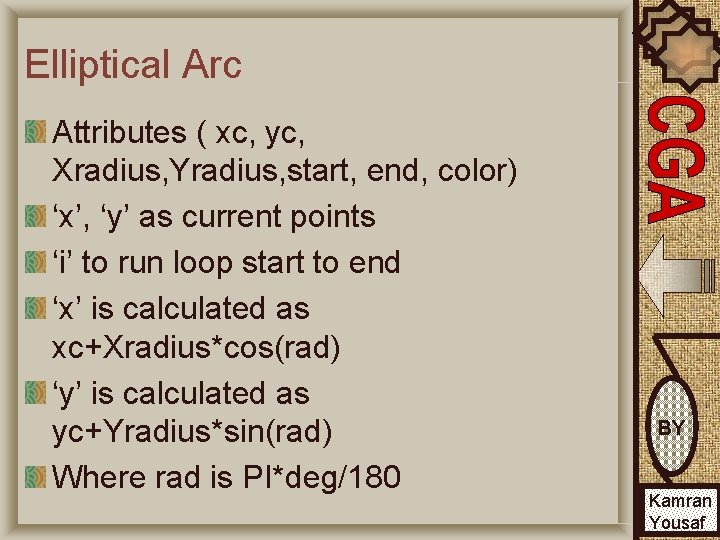

Elliptical Arc Attributes ( xc, yc, Xradius, Yradius, start, end, color) ‘x’, ‘y’ as current points ‘i’ to run loop start to end ‘x’ is calculated as xc+Xradius*cos(rad) ‘y’ is calculated as yc+Yradius*sin(rad) Where rad is PI*deg/180 BY Kamran Yousaf
