lindab comfort MBB box When performance matters Secure

lindab | comfort MBB box When performance matters…. Secure, Flexible and Simple

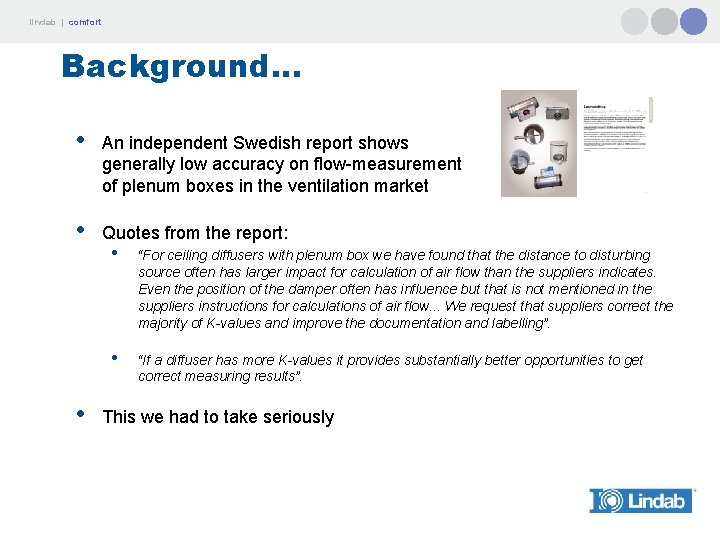

lindab | comfort Background. . . • An independent Swedish report shows generally low accuracy on flow-measurement of plenum boxes in the ventilation market • Quotes from the report: • • “For ceiling diffusers with plenum box we have found that the distance to disturbing source often has larger impact for calculation of air flow than the suppliers indicates. Even the position of the damper often has influence but that is not mentioned in the suppliers instructions for calculations of air flow. . . We request that suppliers correct the majority of K-values and improve the documentation and labelling”. • “If a diffuser has more K-values it provides substantially better opportunities to get correct measuring results”. This we had to take seriously

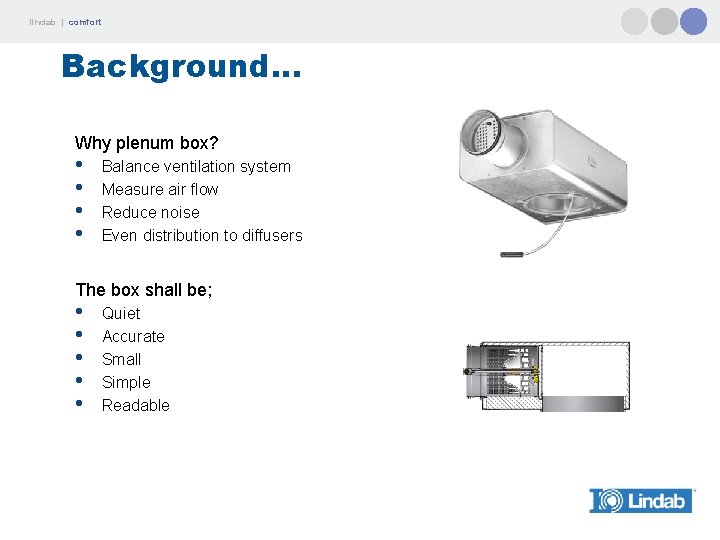

lindab | comfort Background. . . Why plenum box? • • Balance ventilation system Measure air flow Reduce noise Even distribution to diffusers The box shall be; • • • Quiet Accurate Small Simple Readable

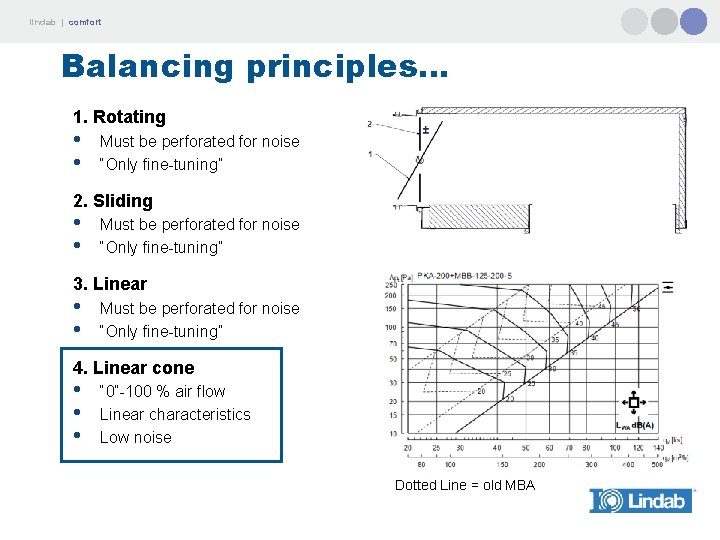

lindab | comfort Balancing principles. . . 1. Rotating • • Must be perforated for noise “Only fine-tuning” 2. Sliding • • Must be perforated for noise “Only fine-tuning” 3. Linear • • Must be perforated for noise “Only fine-tuning” 4. Linear cone • • • “ 0”-100 % air flow Linear characteristics Low noise Dotted Line = old MBA

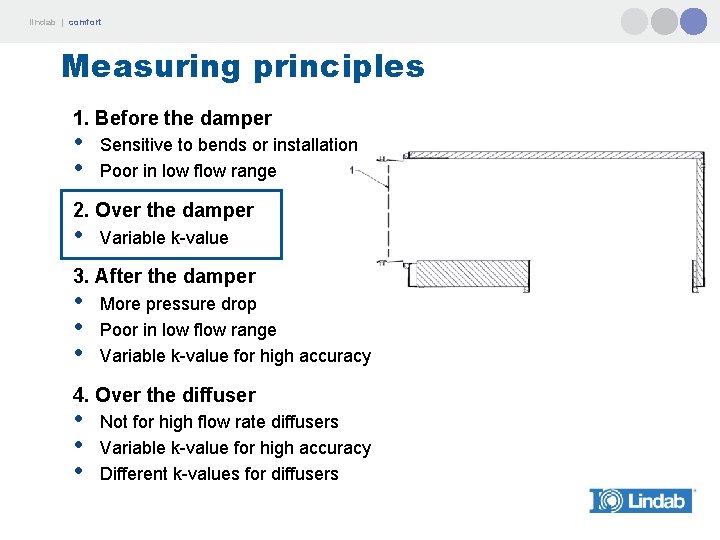

lindab | comfort Measuring principles 1. Before the damper • • Sensitive to bends or installation Poor in low flow range 2. Over the damper • Variable k-value 3. After the damper • • • More pressure drop Poor in low flow range Variable k-value for high accuracy 4. Over the diffuser • • • Not for high flow rate diffusers Variable k-value for high accuracy Different k-values for diffusers

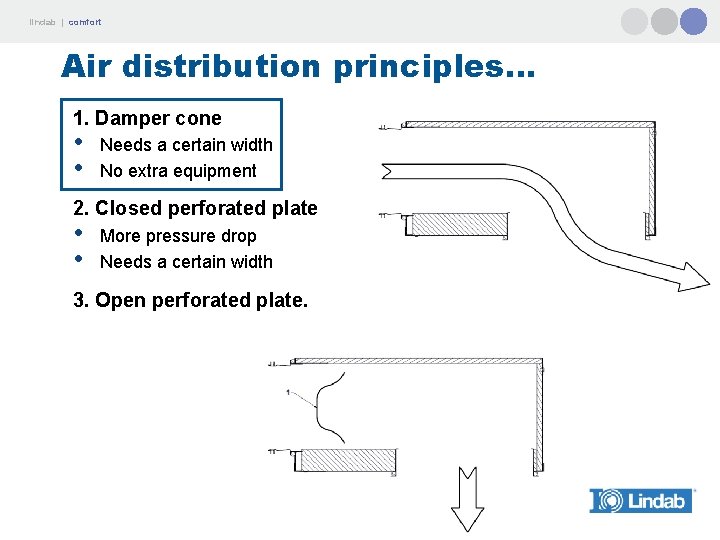

lindab | comfort Air distribution principles. . . 1. Damper cone • • Needs a certain width No extra equipment 2. Closed perforated plate • • More pressure drop Needs a certain width 3. Open perforated plate.

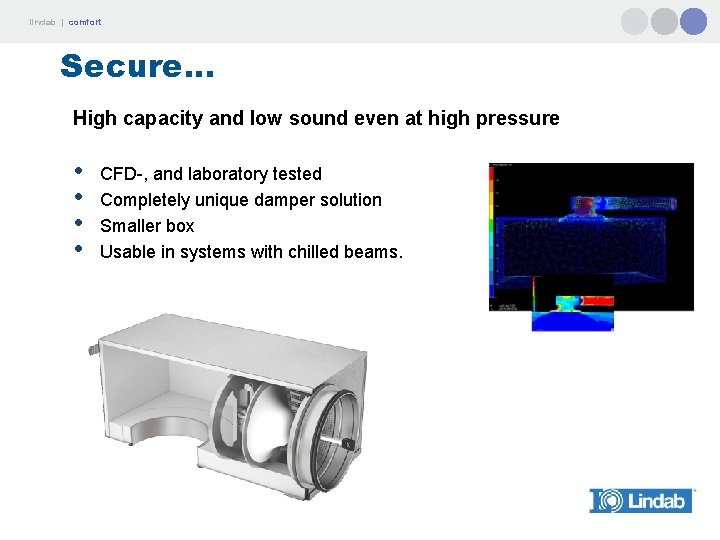

lindab | comfort Secure. . . High capacity and low sound even at high pressure • • CFD-, and laboratory tested Completely unique damper solution Smaller box Usable in systems with chilled beams.

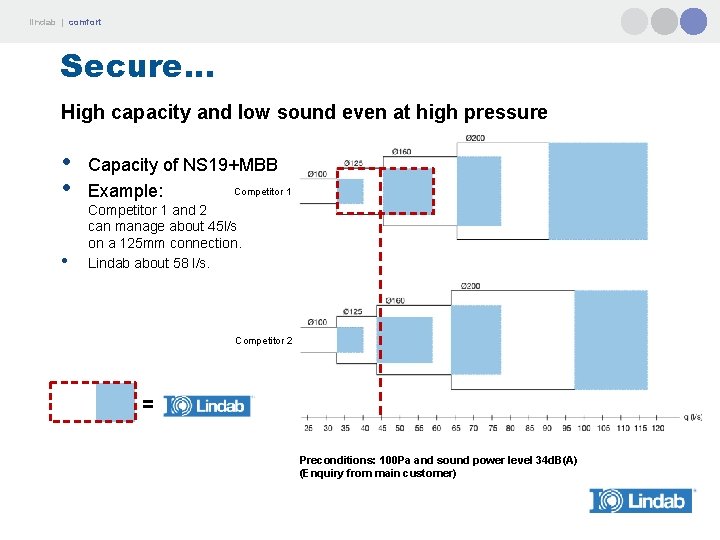

lindab | comfort Secure. . . High capacity and low sound even at high pressure • • • Capacity of NS 19+MBB Competitor 1 Example: Competitor 1 and 2 can manage about 45 l/s on a 125 mm connection. Lindab about 58 l/s. Competitor 2 = Preconditions: 100 Pa and sound power level 34 d. B(A) (Enquiry from main customer)

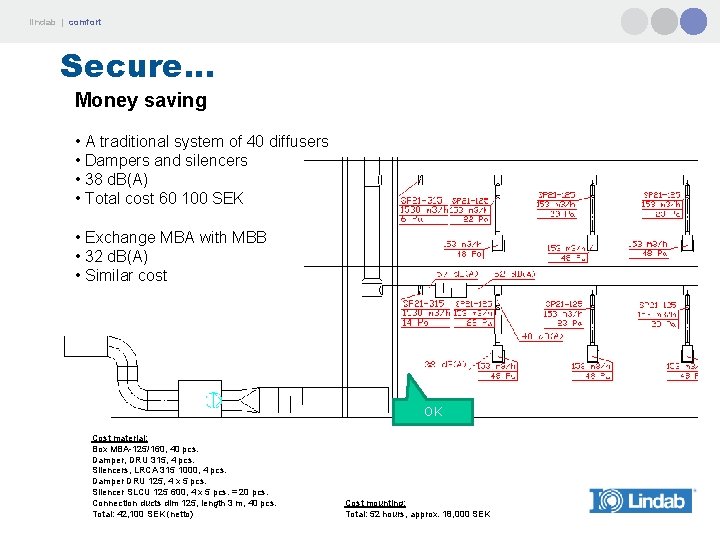

lindab | comfort Secure. . . Money saving • A traditional system of 40 diffusers • Dampers and silencers • 38 d. B(A) • Total cost 60 100 SEK • Exchange MBA with MBB • 32 d. B(A) • Similar cost OK Cost material: Box MBA-125/160, 40 pcs. Damper, DRU 315, 4 pcs. Silencers, LRCA 315 1000, 4 pcs. Damper DRU 125, 4 x 5 pcs. Silencer SLCU 125 600, 4 x 5 pcs. = 20 pcs. Connection ducts dim 125, length 3 m, 40 pcs. Total: 42, 100 SEK (netto) Cost mounting: Total: 52 hours, approx. 18, 000 SEK

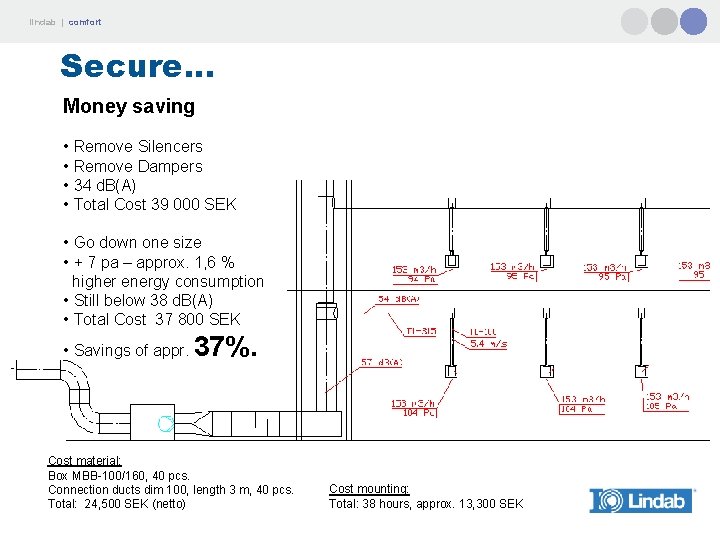

lindab | comfort Secure. . . Money saving • Remove Silencers • Remove Dampers • 34 d. B(A) • Total Cost 39 000 SEK • Go down one size • + 7 pa – approx. 1, 6 % higher energy consumption • Still below 38 d. B(A) • Total Cost 37 800 SEK • Savings of appr. 37%. Cost material: Box MBB-100/160, 40 pcs. Connection ducts dim 100, length 3 m, 40 pcs. Total: 24, 500 SEK (netto) Cost mounting: Total: 38 hours, approx. 13, 300 SEK

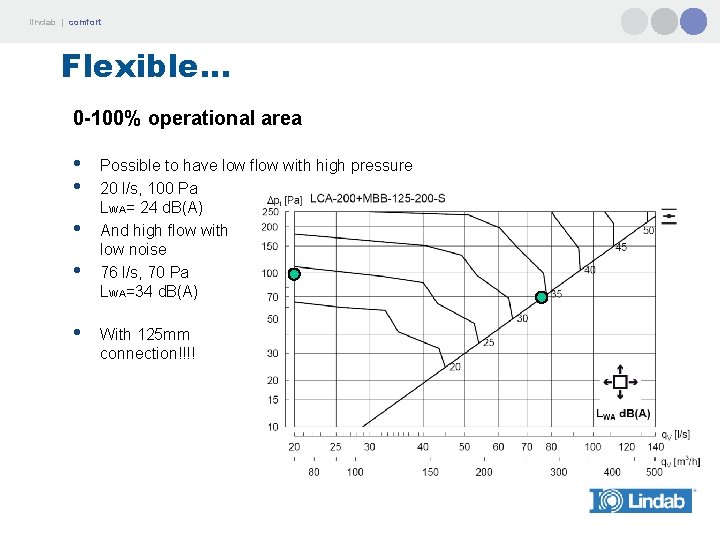

lindab | comfort Flexible. . . 0 -100% operational area • • • Possible to have low flow with high pressure 20 l/s, 100 Pa LWA= 24 d. B(A) And high flow with low noise 76 l/s, 70 Pa LWA=34 d. B(A) With 125 mm connection!!!!

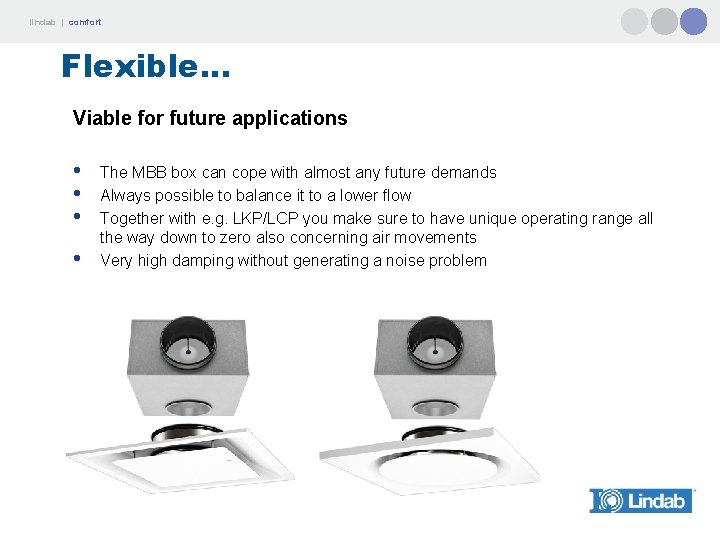

lindab | comfort Flexible. . . Viable for future applications • • The MBB box can cope with almost any future demands Always possible to balance it to a lower flow Together with e. g. LKP/LCP you make sure to have unique operating range all the way down to zero also concerning air movements Very high damping without generating a noise problem

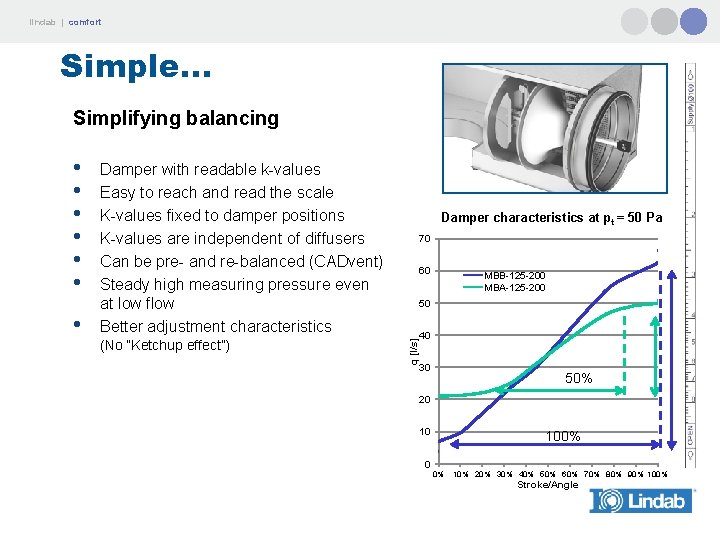

lindab | comfort Simple. . . Simplifying balancing • Damper with readable k-values Easy to reach and read the scale K-values fixed to damper positions K-values are independent of diffusers Can be pre- and re-balanced (CADvent) Steady high measuring pressure even at low flow Better adjustment characteristics (No “Ketchup effect”) Damper characteristics at p t = 50 Pa 70 60 MBB-125 -200 MBA-125 -200 50 q [l/s] • • • 40 30 50% 20 100% 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% Stroke/Angle

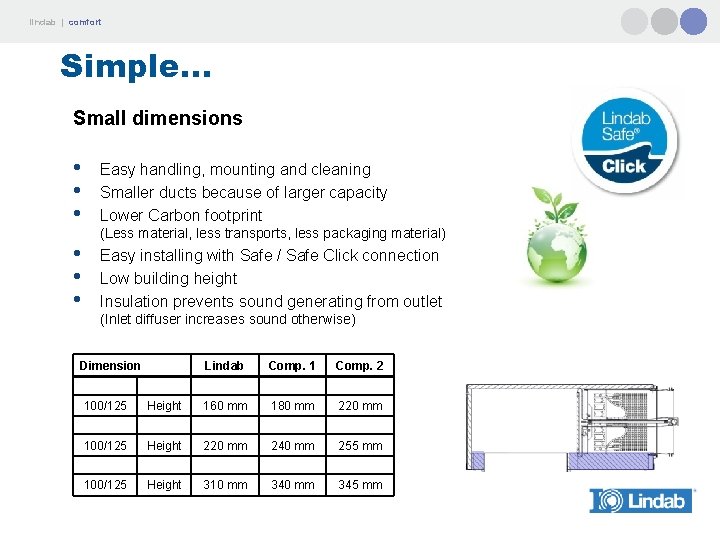

lindab | comfort Simple. . . Small dimensions • • • Easy handling, mounting and cleaning Smaller ducts because of larger capacity Lower Carbon footprint • • • Easy installing with Safe / Safe Click connection Low building height Insulation prevents sound generating from outlet (Less material, less transports, less packaging material) (Inlet diffuser increases sound otherwise) Dimension Lindab Comp. 1 Comp. 2 100/125 Height 160 mm 180 mm 220 mm 100/125 Height 220 mm 240 mm 255 mm 100/125 Height 310 mm 345 mm

lindab | comfort MBB box When performance matters. . . Secure • • Low sound – high pressure Less dampers and silencers – still silent Accurate measurement – no problem with disturbing sources before the box Reliable measurement – variable k-values Flexible • • 0 -100% dynamic operational area Low flow with high pressure High flow with low noise Viable for future system changes Simple • • Linear damper means easy and quick balancing Prebalancing is possible Small dimensions – easy to handle and install Easy to clean

lindab | comfort Simplified construction…
