Layout overview / List of equipment and associated services Julie Coupard EN-ACE Table of Contents: • Layout Overview • Engineering Change Requests • Integration Office EN-ACE • Mechanical Design Office EN-MME • Risks and mitigations 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Layout overview / List of equipment and associated services J. Coupard - EN-ACE 3

Layout overview From Linac 4 to PSB 1 • Linac 4 • 2 • Linac 2 • • 3 • Partial dismantling of Linac 2 Connection of the Linac 4 to BHZ 20 PS Switch Yard • 4 • Complete Linac 4 transfer line (L 4 T) PS Switch Yard New LBE line (including the handling system and shielding) LINAC 2 PSB • • Upgrade of the injection line (BI) Upgrade of the injection period (16 L 1) 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Layout overview / List of equipment and associated services J. Coupard - EN-ACE LINAC 4 4

Layout overview 1 Linac 4 transfer line (L 4 T) e t es o at d up th wi JP r u t ic P 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Layout overview / List of equipment and associated services J. Coupard - EN-ACE 5

Layout overview 2 Interface Linac 4 -Linac 2 Connection of the Linac 4 to new LT. BHZ 20 magnet e o st Pi re u ct at d up th wi o ot + 0 36 ph 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review JP Partial dismantling of Linac 2 Dismantling of LTL and LTE lines Dismantling of the Linac 2 dump Removal of the LT. STP 10 Layout overview / List of equipment and associated services J. Coupard - EN-ACE 6

Layout overview 3 Emittance Measurement Line (LBE) in the PS Switch Yard ) P J h t wi re u t c u str a r f ic in ll a t e e t em pda h t u to line on t s c e tur LBE (impa c i P ew rane n N c o ew educti N ll r a - W 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Layout overview / List of equipment and associated services J. Coupard - EN-ACE 7

Layout overview 4 Injection line (BI) Move BI. BTV 30 New BI. SMV 10 New BI. DIS 10 PSB-MSMIA-EC-0001 PSB-LJ-EC-0006 New BI. DHZ/DVT 50 PSB-LJ-EC-0001 PSB-MSMIB-EC-0001 New BI. BVT 10 PSB-LJ-EC-0001 New BI. DHZ/DVT 70 PSB-LJ-EC-0001 Consolidation TE-MSC: PSB-LJ-EC-0001 Pictures to update with JP 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Layout overview / List of equipment and associated services J. Coupard - EN-ACE BI. QNO 10 BI. QNO 20 BI. QNO 30 BI. QNO 40 BI. QNO 50 BI. QNO 60 BI. DHZ. DVT 10 BI. DHZ. DVT 20 BI. DHZ. DVT 30 BI. DHZ. DVT 40 8

Layout overview 4 Injection period of the PSB Period 15 Period 16 New BHZ INJ BEAM New H- charge-exchange injection system in 1 L 1 PSB-L-EC-0001 BEAM 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Layout overview / List of equipment and associated services J. Coupard - EN-ACE BEAM New KSW magnet in 16 L 1 PSB-L-EC-0001 BEAM 9

Layout of racks overview New power converters and transformers Building 363 Building 361 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Layout overview / List of equipment and associated services J. Coupard - EN-ACE 10

Layout overview List of equipment and associated services BE-BI BECO BEICS BERF ENEL ENHE ENSTI TEABT TEEPC TEMPE TEMSC TEVSC X X X X X X Complete Linac 4 transfer line X Partial dismantling of Linac 2 X X Connection of Linac 4 to BHZ 20 X X New LBE line X X X Upgrade of the PSB Injection period X X ENACE ENCV ENMME HSE X X X BE DSO Complete Linac 4 transfer line BEABP BEOP X Partial dismantling of Linac 2 Connection of Linac 4 to BHZ 20 X New LBE line X X X X Upgrade of the PSB Injection line X X Upgrade of the PSB Injection period X X 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review X X X X Layout overview / List of equipment and associated services J. Coupard - EN-ACE SMBSE 11

Engineering Change Requests Summary table Title Installation of power converters for Linac 2 transfer lines in b. 363 Facility Location Group Integration ECR Linac 2 363 TE-EPC In progress Waiting for ECR New LBE line Linac 4 LBE line (PS Switch Yard) BE-ABP In progress Draft IN WORK Partial Disassembly of Linac 2 EN-ACE Completed CPS-LJ-EC-0003 UNDER APPROVAL Connection of the Linac 4 to LT. BHZ 20 Linac 2 EN-ACE In progress CPS-LJ-EC-0002 UNDER APPROVAL Title Facility Location Group Integration ECR status period 16 L 1 TE-ABT Completed PSB-MKKSW-EC-0001 RELEASED PSB 361 BRF 2 BAT TE-EPC In progress Draft IN WORK PSB BI line BE-BI Completed PSB-LJ-EC-0006 RELEASED PSB 361 BE-RF N/A N/A N/A New KSW magnet in 16 L 1 of the PS Booster PSB Booster Injection Stripping Foil Chicane converters Relocation of BI. BTV 30 in the PS Booster Injection Line Transverse Feedback for connection of the Linac 4 at 160 Me. V HNew RF bypasses PSB ECR status Upgraded PSB Vertical Distribution Septum PSB BI. SMV 10 BI line TE-ABT Completed PSB-MSMIB-EC-0001 RELEASED Upgraded PSB Distributor BI. DIS 10 PSB BI line TE-ABT Completed PSB-MSMIA-EC-0001 RELEASED New Injection Region 1 L 1 PSB period 1 L 1 TE-ABT Completed PSB-L-EC-0001 RELEASED Booster Injection Corrector Powering PSB 361 BCER TE-EPC In progress Draft IN WORK Booster Injection Quadrupole Powering PSB 361 BCER TE-EPC In progress Draft IN WORK Booster Injection BI. BVT Powering PSB 361 BHP TE-EPC In progress Draft IN WORK Booster Injection Transfer Line Magnets PSB BI line (PS Switch Yard) TE-MSC Completed PSB-LJ-EC-0001 RELEASED New BHZ INJ PSB period 16 TE-MSC N/A N/A Midi. Discap PSB 361 BCER TE-EPC In progress Draft IN WORK 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Layout overview / List of equipment and associated services J. Coupard - EN-ACE 12

Integration & Configuration Layout drawings and Database Integration office provides Layout drawings: Layouts drawings are drawings showing how the collider components are installed in the machine on its actual site. • • • Mechanical and magnetic longitudinal dimensions, equipment names, vacuum sector, height beam/ground, slope and tilt of the machine, profile and dimension of vacuum chamber (only for SPS machine). Mapped on machine regions, sub-regions layout drawings are shown in a separate table, no BOM (Bill Of Material). Differential drawings: Before and after layout in local area of the accelerators/lines. Integration studies (only 3 D models) Global post-LS 2 target optics needed, including the LIU Project, Consolidation Program and additional Group requests in order to create • • Post-LS 2 layout database version Post-LS 2 layout drawings 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Layout overview / List of equipment and associated services J. Coupard - EN-ACE 13

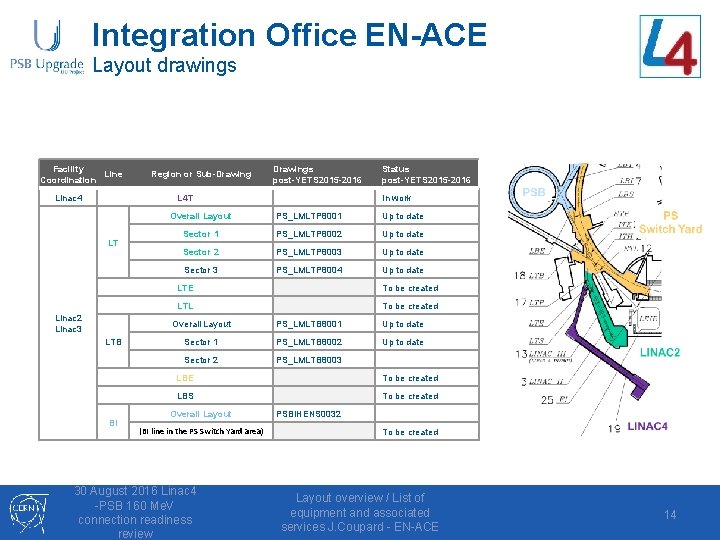

Integration Office EN-ACE Layout drawings Facility Line Coordination Linac 4 Region or Sub-Drawings post-YETS 2015 -2016 L 4 T LT Linac 2 Linac 3 LTB BI Status post-YETS 2015 -2016 In work Overall Layout PS_LMLTP 8001 Up to date Sector 1 PS_LMLTP 8002 Up to date Sector 2 PS_LMLTP 8003 Up to date Sector 3 PS_LMLTP 8004 Up to date LTE To be created LTL To be created Overall Layout PS_LMLTB 8001 Up to date Sector 1 PS_LMLTB 8002 Up to date Sector 2 PS_LMLTB 8003 LBE To be created LBS To be created Overall Layout (BI line in the PS Switch Yard area) 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review PSBIHENS 0032 To be created Layout overview / List of equipment and associated services J. Coupard - EN-ACE 14

Integration Office EN-ACE Layout drawings Facility Line Coordination Drawings post-YETS 2015 -2016 Status post-YETS 2015 -2016 Overall Layout PSBIHENS 0032 Up to date Sector 1 PSBIHENS 0033 Up to date PSBLJ_UI 0005 Sector 2 PSBIHENS 0034 Up to date PSBLJ_UI 0004 Region or Sub-Drawing To be created Sector 3 BI PSB Differential Drawings Sector 4 PSBIHENS 0036 In work Sector 5 PSBIHENS 0037 In work Sector 6 PSBIHENS 0038 Up to date Sector 7 PSBIHENS 0039 Up to date Sector 8 PSBIHENS 0040 Up to date PSBLJ_UI 0003 Sector 9 PSBIHENS 0041 Up to date PSBLJ_UI 0002 Overall Layout PSBIHENS 0001 Up to date Period 1 To be created Period 16 To be created 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Layout overview / List of equipment and associated services J. Coupard - EN-ACE PSBLJ_UI 0001 PSBLJ_UI 0008 15

Design Office EN-MME Jobs in the Design Office Planning Description Design Office Production/Installation Status ION SOURCE DEVELOPMENT LINAC 4 CAVITIES L 4 T/L 4 Z LINAC 4 - LINAC 2 CONNECTION LBE Design in progress Design approved Under production Installation completed Under installation Production completed Under production LBE DUMP BISMV POWER SUPPLY H- INJECTION BSW EPC UPGRADE Design in progress as-built design update in progress Design under approval Production not started Production completed Production not started Under production Production not started Contacts EN-MME Benoit Riffaud Alessandro Dallocchio Courtesy Benoit Riffaud 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Layout overview / List of equipment and associated services J. Coupard - EN-ACE 16

Risks and mitigations Activity / Equipment List of major Risks Mitigation Remarks Post-LS 2 optics and layout database Additional request might not BE-OP, BE-ABP and TE-ABT must The post-LS 2 layout database can only be be included in the global ensure the coherence of the done with a post-LS 2 optics file. view. requests. Post-LS 2 electrical circuits definition in the layout database Studies are based on Excel tables and could not be coherent. Electrical layout of racks on surface • buildings for current and post-LS 2 • situation 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Unable to state on the current situation. Unable to identify the metallic infrastructure TE-EPC, TE-MSC, TE-ABT and EN- The post-LS 2 electrical circuits definition in EL must ensure the coherence the layout database can only be done after of the electrical data. the post-LS 2 layout database insertion. Integration office should remain in the EN-EL must ensure the position loop. of the racks and define with EN-EL 3 D models for current and future SMB the metallic infrastructures. situation should be separated. Layout overview / List of equipment and associated services J. Coupard - EN-ACE 17

Integration Office EN-ACE Layout drawings 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Layout overview / List of equipment and associated services J. Coupard - EN-ACE 19

Detailed layout drawing • Example of new LBE dump drawing done by EN-MME 30 August 2016 Linac 4 -PSB 160 Me. V connection readiness review Layout overview / List of equipment and associated services J. Coupard - EN-ACE 20
