Lighting Management Solutions LEGRAND THE GLOBALSPECIALIST IN ELECTRICAL AND DIGITAL BUILDING INFRASTRUCTURES Malaysia May 2013 05/11/2020 1

Introduction 05/11/2020 LEGRAND THE GLOBALSPECIALIST IN ELECTRICAL AND DIGITAL BUILDING INFRASTRUCTURES 2

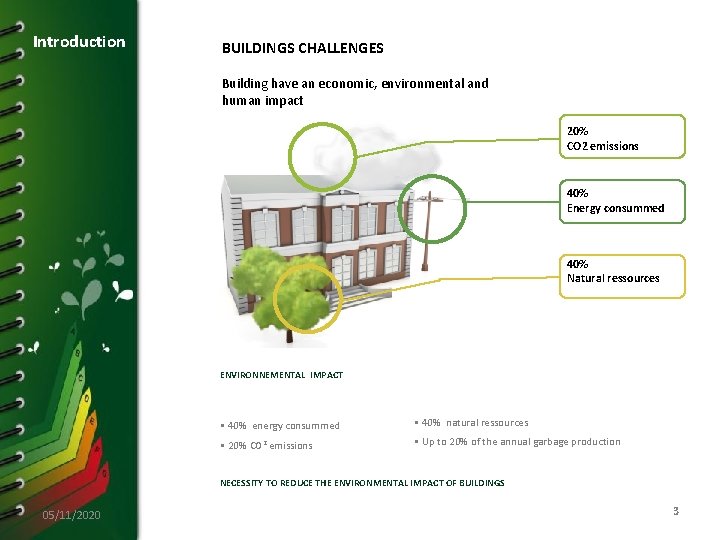

Introduction BUILDINGS CHALLENGES Building have an economic, environmental and human impact 20% CO 2 emissions 40% Energy consummed 40% Natural ressources ENVIRONNEMENTAL IMPACT • 40% energy consummed • 40% natural ressources • 20% CO 2 emissions • Up to 20% of the annual garbage production NECESSITY TO REDUCE THE ENVIRONMENTAL IMPACT OF BUILDINGS 05/11/2020 3 2

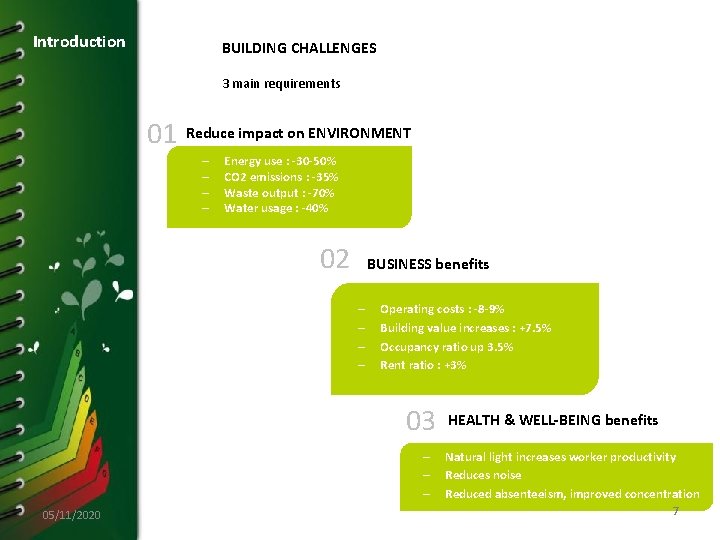

Introduction BUILDING CHALLENGES 3 main requirements 01 Reduce impact on ENVIRONMENT – – Energy use : -30 -50% CO 2 emissions : -35% Waste output : -70% Water usage : -40% 02 BUSINESS benefits – – Operating costs : -8 -9% Building value increases : +7. 5% Occupancy ratio up 3. 5% Rent ratio : +3% 03 – – – 05/11/2020 HEALTH & WELL-BEING benefits Natural light increases worker productivity Reduces noise Reduced absenteeism, improved concentration 7

LIGHTING MANAGEMENT LEGRAND APPROACH 05/11/2020 LEGRAND THE GLOBALSPECIALIST IN ELECTRICAL AND DIGITAL BUILDING INFRASTRUCTURES 9

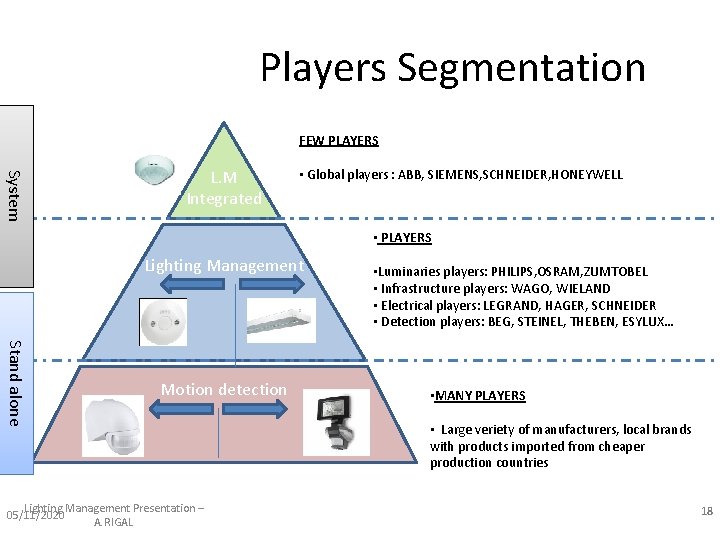

Players Segmentation FEW PLAYERS System L. M Integrated • Global players : ABB, SIEMENS, SCHNEIDER, HONEYWELL • PLAYERS Lighting Management Stand alone Motion detection Lighting Management Presentation – 05/11/2020 A. RIGAL • Luminaries players: PHILIPS, OSRAM, ZUMTOBEL • Infrastructure players: WAGO, WIELAND • Electrical players: LEGRAND, HAGER, SCHNEIDER • Detection players: BEG, STEINEL, THEBEN, ESYLUX… • MANY PLAYERS • Large veriety of manufacturers, local brands with products imported from cheaper production countries 18

LIGHTING MANAGEMENT PRODUCT OFFER 05/11/2020 LEGRAND THE GLOBALSPECIALIST IN ELECTRICAL AND DIGITAL BUILDING INFRASTRUCTURES 20

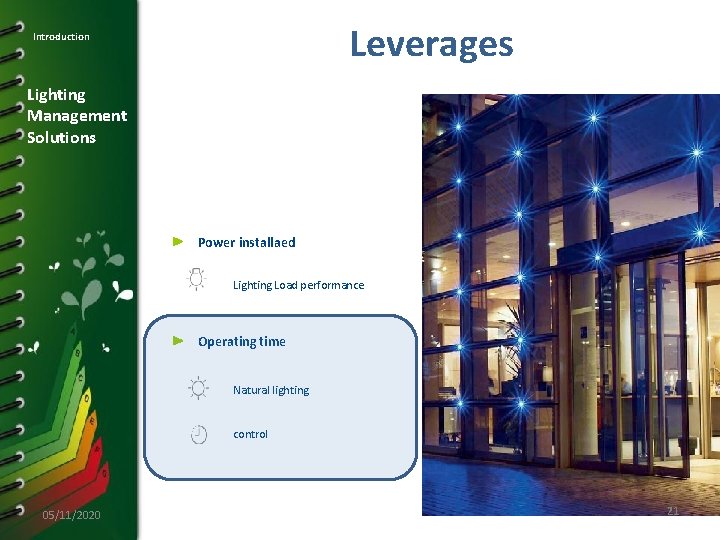

Leverages Introduction Lighting Management Solutions Power installaed Lighting Load performance Operating time Natural lighting control 05/11/2020 21

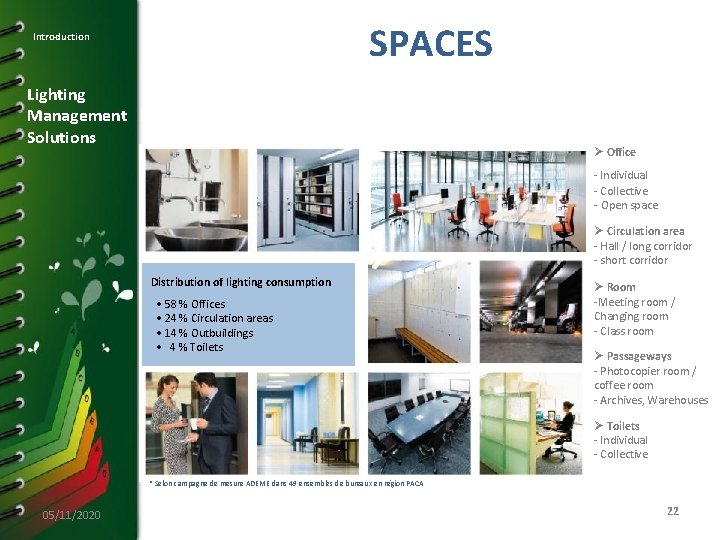

SPACES Introduction Lighting Management Répartitions des consommations Solutions Ø Office - Individual - Collective - Open space Ø Circulation area - Hall / long corridor - short corridor Distribution of lighting consumption • 58 % Offices • 24 % Circulation areas • 14 % Outbuildings • 4 % Toilets Ø Room -Meeting room / Changing room - Class room Ø Passageways - Photocopier room / coffee room - Archives, Warehouses Ø Toilets - Individual - Collective * Selon campagne de mesure ADEME dans 49 ensembles de bureaux en région PACA 05/11/2020 22

Introduction SCALABLE SOLUTIONS Lighting Management Solutions MOTION DETECTION ON-OFF 1 CIRCUIT 05/11/2020 Circuit Zone Building 23

Introduction SCALABLE SOLUTIONS Lighting Management Solutions NATURAL LIGHTING MOTION & OCCUPANCY DETECTION ON-OFF &DIMMING 1 Or several CIRCUITS 05/11/2020 Circuit Zone Building 24

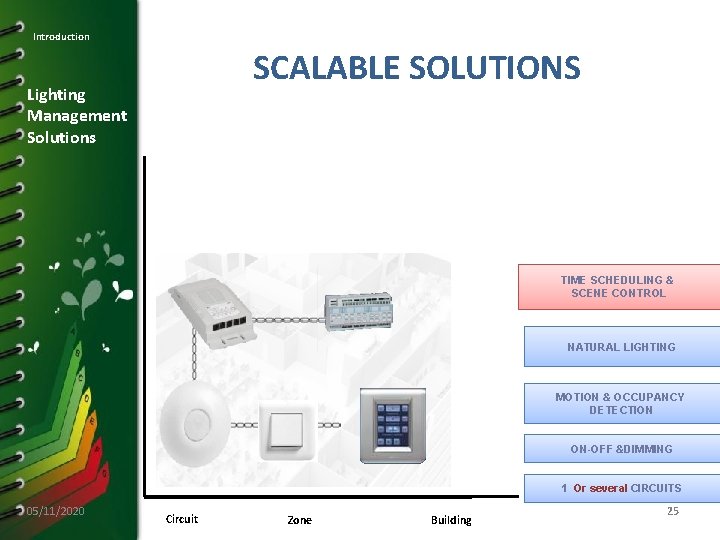

Introduction SCALABLE SOLUTIONS Lighting Management Solutions TIME SCHEDULING & SCENE CONTROL NATURAL LIGHTING MOTION & OCCUPANCY DETECTION ON-OFF &DIMMING 1 Or several CIRCUITS 05/11/2020 Circuit Zone Building 25

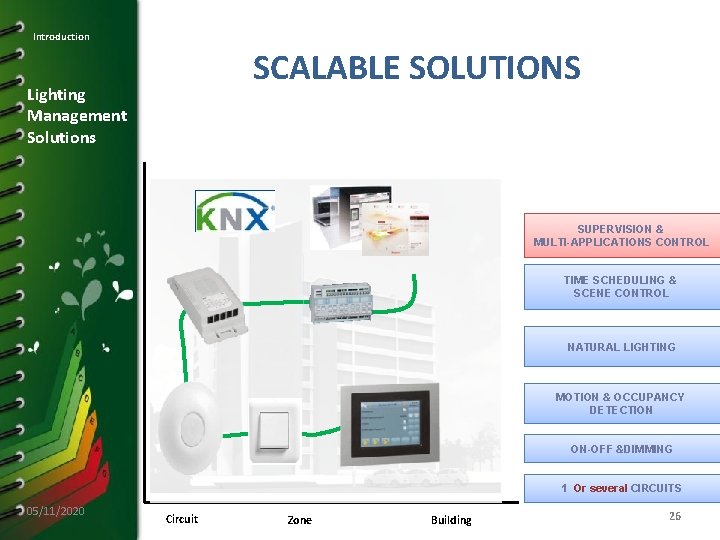

Introduction SCALABLE SOLUTIONS Lighting Management Solutions SUPERVISION & MULTI-APPLICATIONS CONTROL TIME SCHEDULING & SCENE CONTROL NATURAL LIGHTING MOTION & OCCUPANCY DETECTION ON-OFF &DIMMING 1 Or several CIRCUITS 05/11/2020 Circuit Zone Building 26

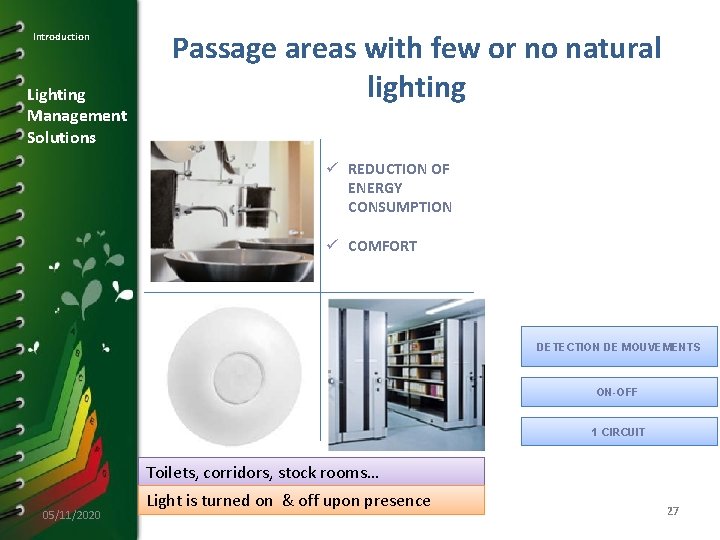

Introduction Lighting Management Solutions Passage areas with few or no natural lighting ü REDUCTION OF ENERGY CONSUMPTION ü COMFORT DETECTION DE MOUVEMENTS ON-OFF 1 CIRCUIT Toilets, corridors, stock rooms… 05/11/2020 Light is turned on & off upon presence 27

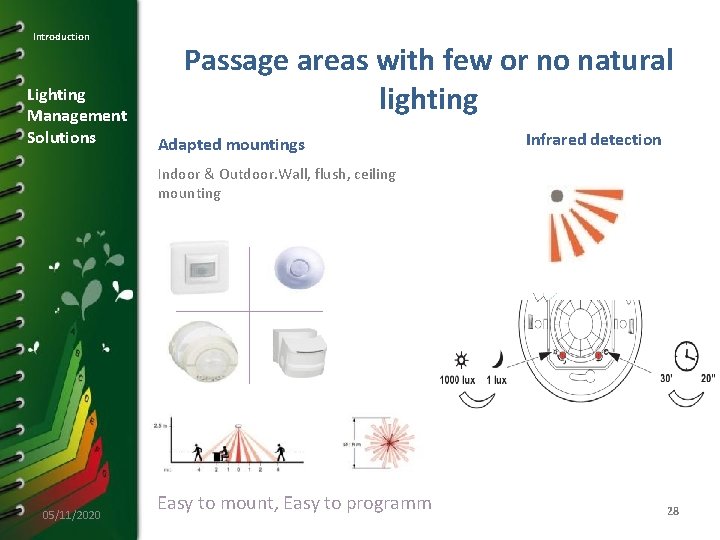

Introduction Lighting Management Solutions Passage areas with few or no natural lighting Adapted mountings Infrared detection Indoor & Outdoor. Wall, flush, ceiling mounting 05/11/2020 Easy to mount, Easy to programm 28

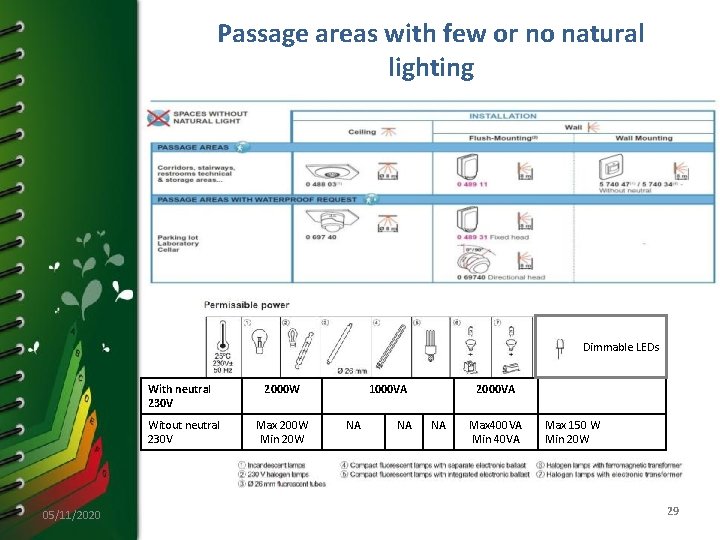

Passage areas with few or no natural lighting Dimmable LEDs With neutral 230 V Witout neutral 230 V 05/11/2020 2000 W Max 200 W Min 20 W 1000 VA NA NA 2000 VA NA Max 400 VA Min 40 VA Max 150 W Min 20 W 29

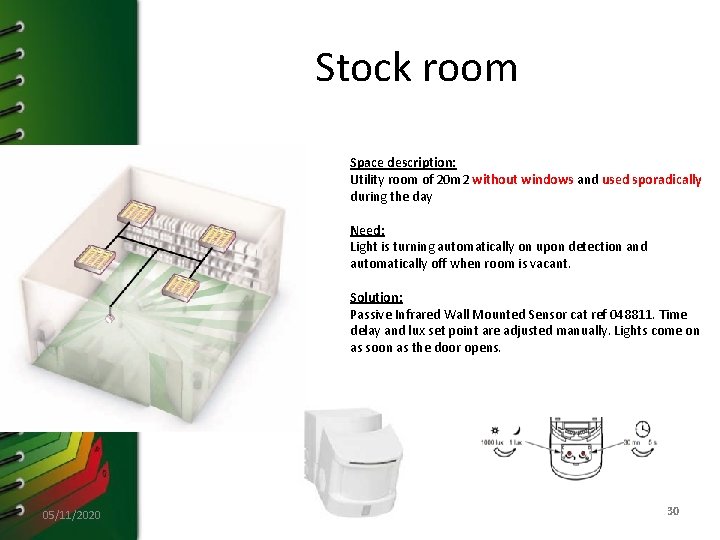

Stock room Space description: Utility room of 20 m 2 without windows and used sporadically during the day Need: Light is turning automatically on upon detection and automatically off when room is vacant. Solution: Passive Infrared Wall Mounted Sensor cat ref 048811. Time delay and lux set point are adjusted manually. Lights come on as soon as the door opens. 05/11/2020 30

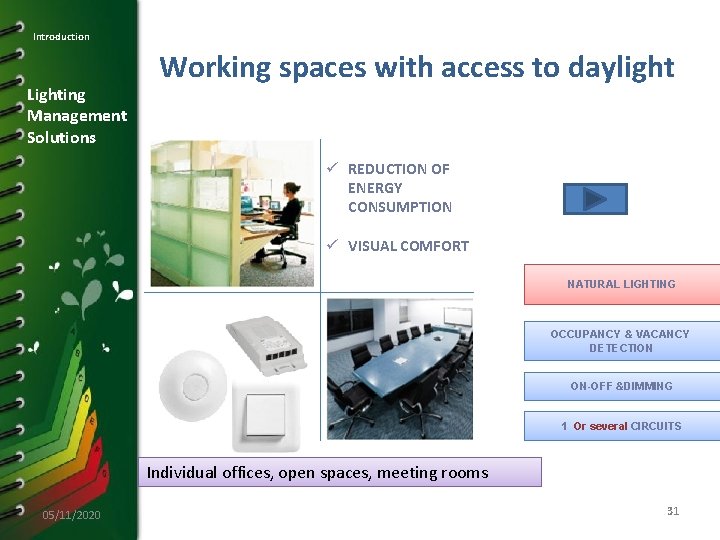

Introduction Lighting Management Solutions Working spaces with access to daylight ü REDUCTION OF ENERGY CONSUMPTION ü VISUAL COMFORT NATURAL LIGHTING OCCUPANCY & VACANCY DETECTION ON-OFF &DIMMING 1 Or several CIRCUITS Individual offices, open spaces, meeting rooms 05/11/2020 31

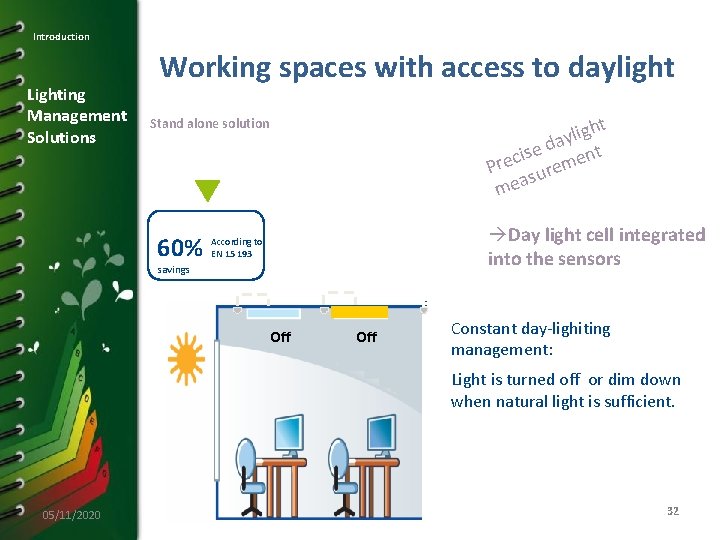

Introduction Lighting Management Solutions à Gestion permanente de la luminosité naturelle Working spaces with access to daylight t h g i l ay d e s i nt c e e r m P re u s a me Stand alone solution 60% àDay light cell integrated into the sensors According to EN 15 193 savings : Off Constant day-lighiting management: Light is turned off or dim down when natural light is sufficient. 05/11/2020 32

Introduction Lighting Management Solutions à Gestion permanente de la luminosité naturelle Working spaces with access to daylight t h g i l ay d e s i nt c e e r m P re u s a me Stand alone solution 60% àDay light cell integrated into the sensors According to EN 15 193 savings : 10% 45% Constant day-lighiting management: Light is turned off or dim down when natural light is sufficient. 05/11/2020 33

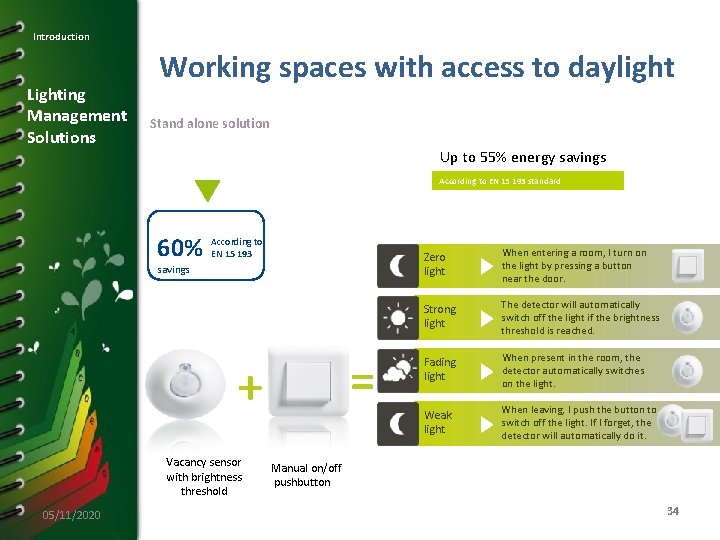

Introduction Lighting Management Solutions à Gestion permanente de la luminosité naturelle Working spaces with access to daylight Stand alone solution Up to 55% energy savings According to EN 15 193 standard 60% According to EN 15 193 savings = + Vacancy sensor with brightness threshold 05/11/2020 Zero light When entering a room, I turn on the light by pressing a button near the door. Strong light The detector will automatically switch off the light if the brightness threshold is reached. Fading light When present in the room, the detector automatically switches on the light. Weak light When leaving, I push the button to switch off the light. If I forget, the detector will automatically do it. Manual on/off pushbutton 34

Introduction Lighting Management Solutions à 3 technologies de détection à 3 formats de pose Working spaces with access to daylight Stand alone solution 60% According to EN 15 193 on e i t c e Det rmanc o perf savings Large movement PIR. Corridors Ultrason Toilets Low movement Dual Offices Small spaces Classriooms Hall Meeting rooms Parking 05/11/2020 Obstacles 35

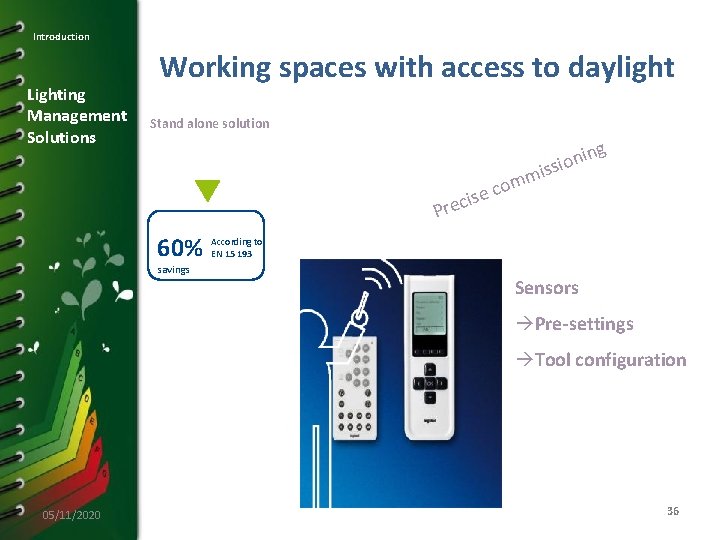

Introduction à Configuration précise, intuitive et rapide Lighting Management Solutions Working spaces with access to daylight Stand alone solution g n issio m m o ec is Prec 60% savings According to EN 15 193 Sensors àPre-settings Configurateur réf. 882 35 avec plage de réglages : • Luminosité • Temporisation • Sensibilité Idéal pour petit chantier àTool configuration 05/11/2020 36

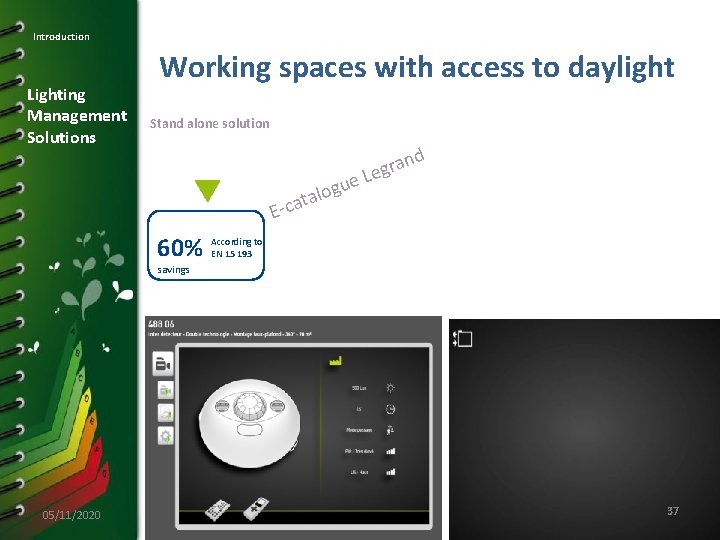

Introduction à Configuration précise, intuitive et rapide Lighting Management Solutions Working spaces with access to daylight Stand alone solution og l a t ca E- 60% d n a r g e Le u According to EN 15 193 savings 05/11/2020 37

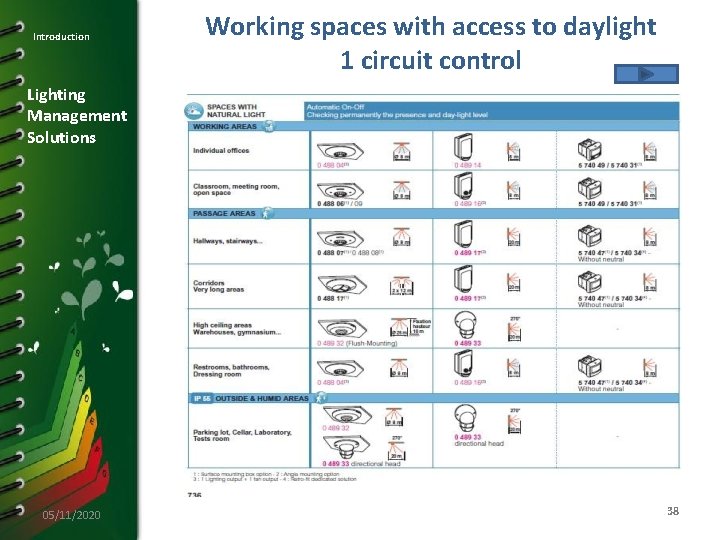

Introduction Working spaces with access to daylight 1 circuit control Lighting Management Solutions 05/11/2020 38

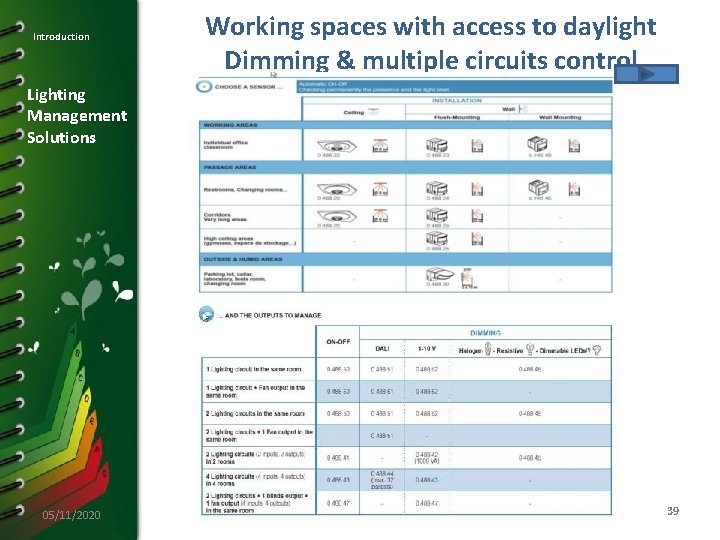

Introduction Working spaces with access to daylight Dimming & multiple circuits control Lighting Management Solutions 05/11/2020 39

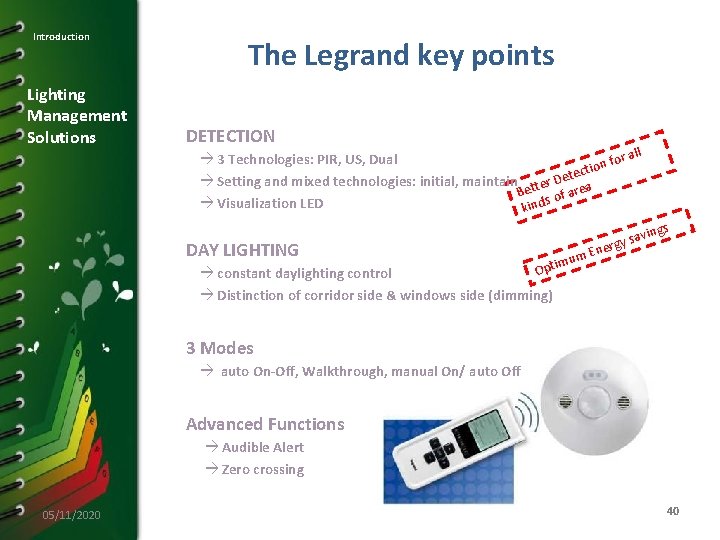

Introduction Lighting Management Solutions The Legrand key points DETECTION l l à 3 Technologies: PIR, US, Dual or a f n o ecti à Setting and mixed technologies: initial, maintain tter Det a e Be of ar s d à Visualization LED kin DAY LIGHTING mum Opti ings En sav ergy à constant daylighting control à Distinction of corridor side & windows side (dimming) 3 Modes à auto On-Off, Walkthrough, manual On/ auto Off Advanced Functions à Audible Alert à Zero crossing 05/11/2020 40

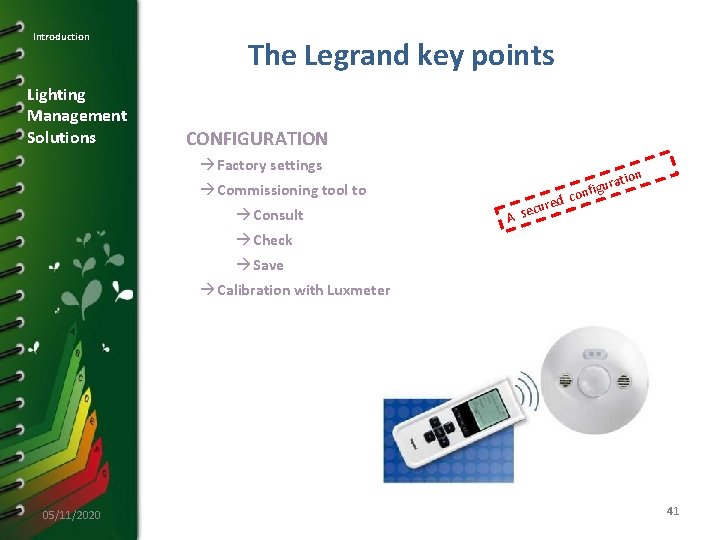

Introduction Lighting Management Solutions The Legrand key points CONFIGURATION à Factory settings à Commissioning tool to à Consult n co d e r cu A se ratio u g i f n à Check à Save à Calibration with Luxmeter 05/11/2020 41

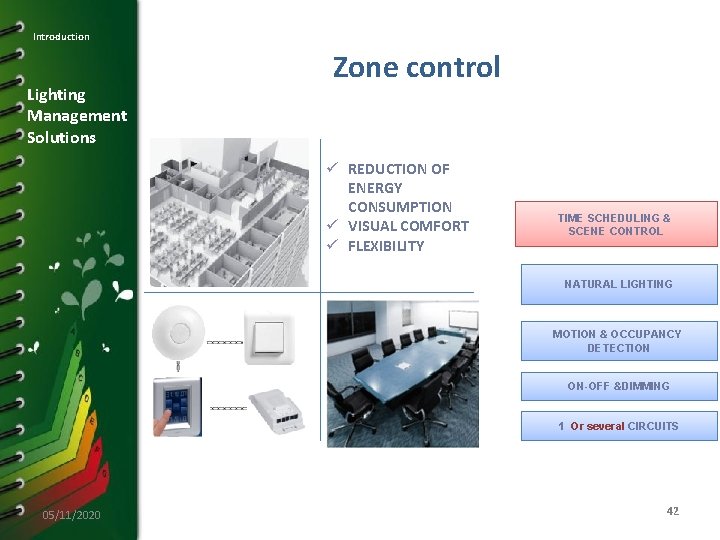

Introduction Lighting Management Solutions Zone control ü REDUCTION OF ENERGY CONSUMPTION ü VISUAL COMFORT ü FLEXIBILITY TIME SCHEDULING & SCENE CONTROL NATURAL LIGHTING MOTION & OCCUPANCY DETECTION ON-OFF &DIMMING 1 Or several CIRCUITS 05/11/2020 42

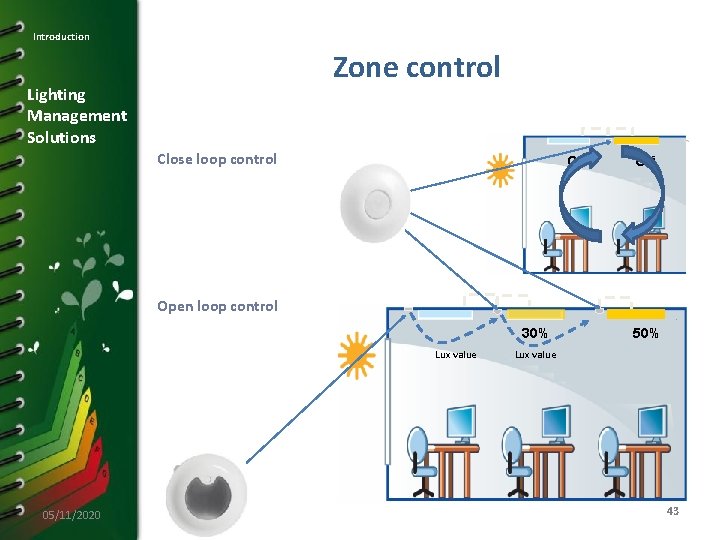

Introduction Zone control Lighting Management Solutions Close loop control Off Open loop control 30% Lux value 05/11/2020 50% On Lux value 43

Introduction Lighting Management Solutions Zone control Manual or scheduled control 20 lighting circuits 20 shutters 20 scenarios Advanced scenarios Presence / absence/ time…. . Control of different circuits 05/11/2020 44

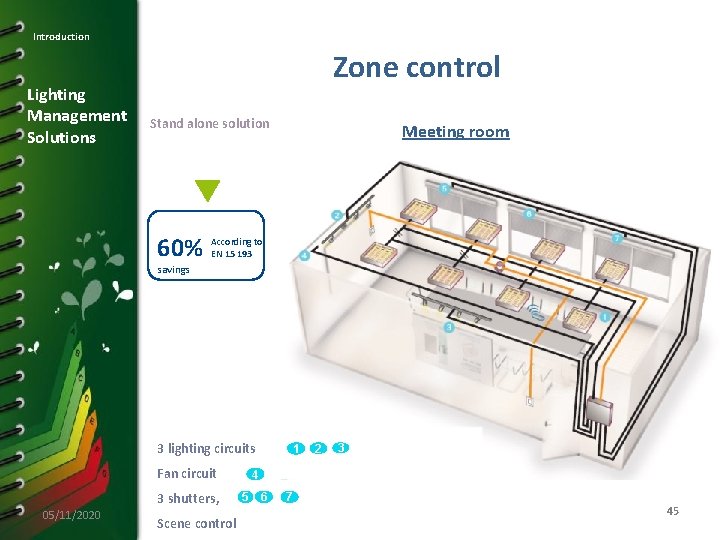

Introduction Lighting Management Solutions à Contrôle de l’éclairage d’une salle de réunion Zone control Stand alone solution 60% Simplicité de l'architecture Meeting room de câblage et de la configuration According to EN 15 193 savings 3 lighting circuits 05/11/2020 Fan circuit 4 3 shutters, 5 6 Scene control 1 7 2 3 45

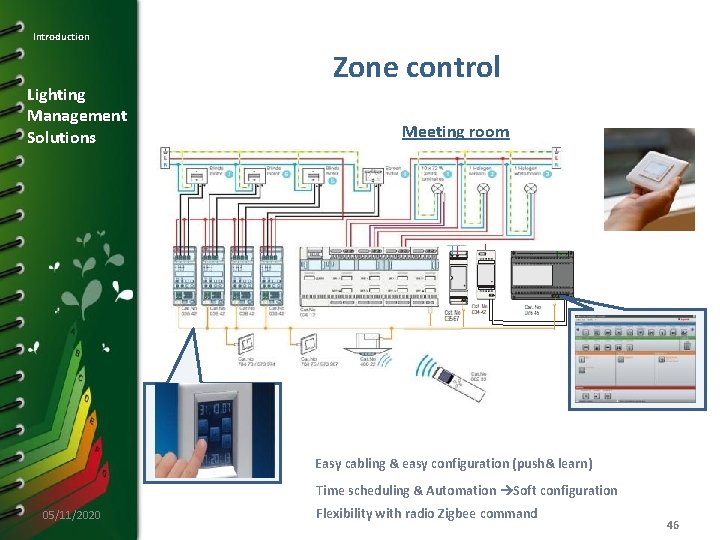

Introduction Lighting Management Solutions Zone control Meeting room Easy cabling & easy configuration (push& learn) Time scheduling & Automation Soft configuration 05/11/2020 Flexibility with radio Zigbee command 46

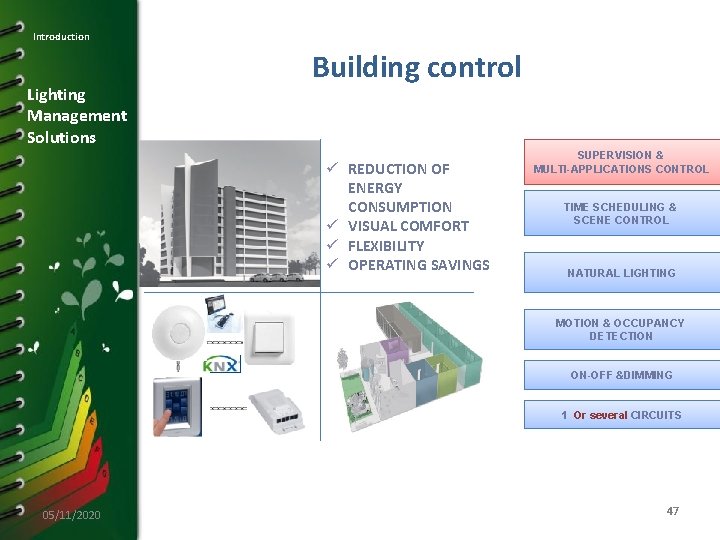

Introduction Lighting Management Solutions Building control ü REDUCTION OF ENERGY CONSUMPTION ü VISUAL COMFORT ü FLEXIBILITY ü OPERATING SAVINGS SUPERVISION & MULTI-APPLICATIONS CONTROL TIME SCHEDULING & SCENE CONTROL NATURAL LIGHTING MOTION & OCCUPANCY DETECTION ON-OFF &DIMMING 1 Or several CIRCUITS 05/11/2020 47

Introduction Lighting Management Solutions Building control Maximum flexibility Open standard, 200 manufacturers Full DALI control Wireless & battery less control 05/11/2020 48

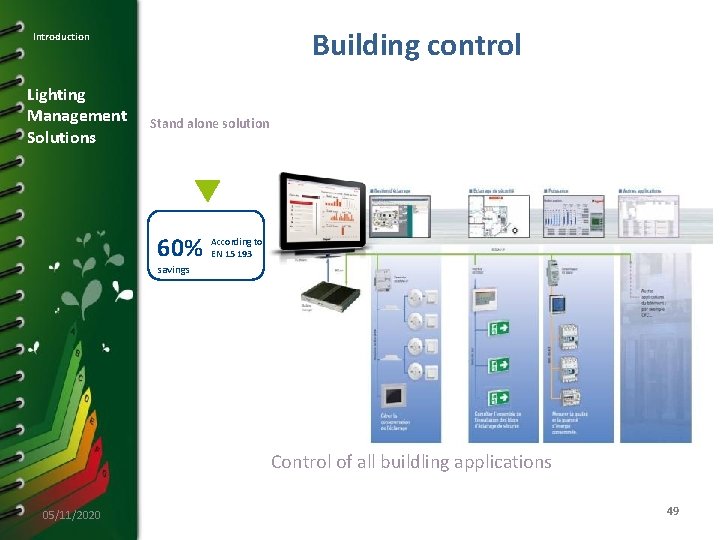

Building control à Contrôle de l’éclairage d’un bâtiment Introduction Lighting Management Solutions Stand alone solution 60% According to EN 15 193 savings Control of all buildling applications 05/11/2020 49

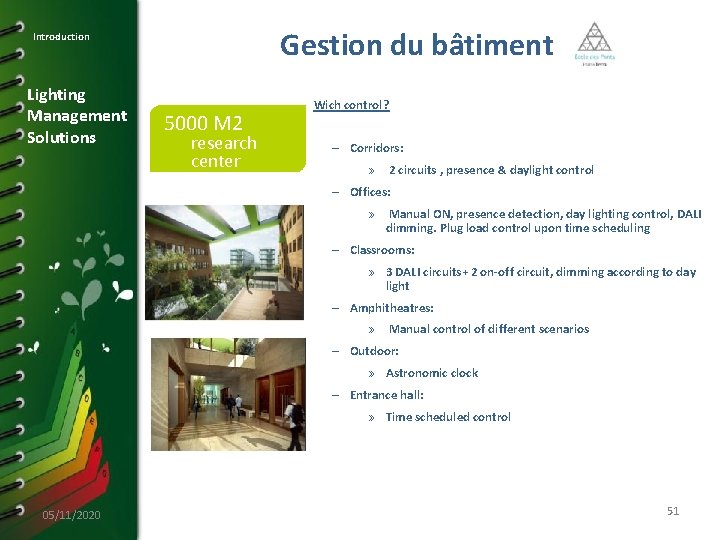

Gestion du bâtiment Introduction Lighting Management Solutions 5000 M 2 research center Wich control? – Corridors: » 2 circuits , presence & daylight control – Offices: » Manual ON, presence detection, day lighting control, DALI dimming. Plug load control upon time scheduling – Classrooms: » 3 DALI circuits+ 2 on-off circuit, dimming according to day light – Amphitheatres: » Manual control of different scenarios – Outdoor: » Astronomic clock – Entrance hall: » Time scheduled control 05/11/2020 51

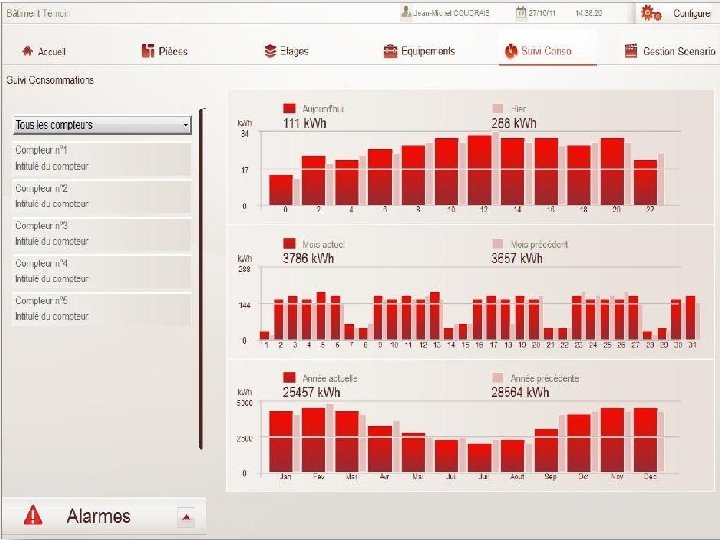

Introduction Lighting Management Solutions 05/11/2020 Building control Supevision of all building applications 52

05/11/2020 53

05/11/2020 54

Introduction Services Lighting Management Solutions Services Best practice Guide Specification Sheets Environmental Profile of products. Animated instructions 05/11/2020 Technical datasheets 55

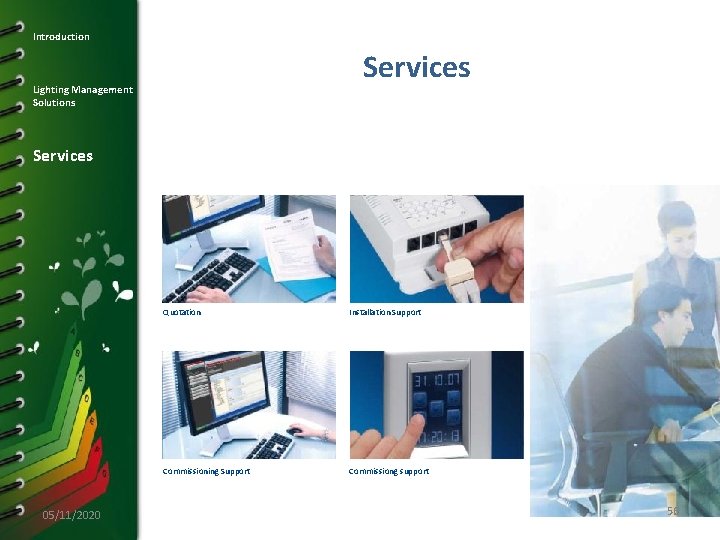

Introduction à Service d’accompagnement projets Services Lighting Management Solutions Services 05/11/2020 Quotation Installation Support Commissioning Support Commissiong support 56

LIGHTRAK COMPLEMENT 05/11/2020 57

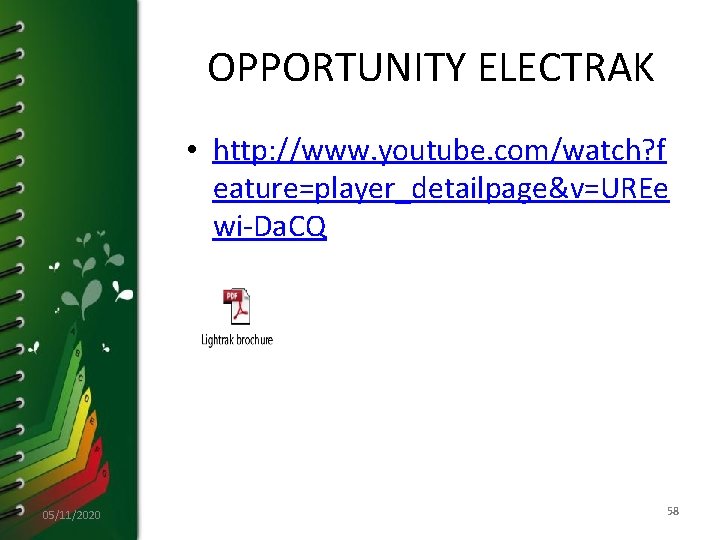

OPPORTUNITY ELECTRAK • http: //www. youtube. com/watch? f eature=player_detailpage&v=UREe wi-Da. CQ 05/11/2020 58
