Light Compaction Equipment Ingersoll Rand Product Range Light

Light Compaction Equipment Ingersoll Rand Product Range

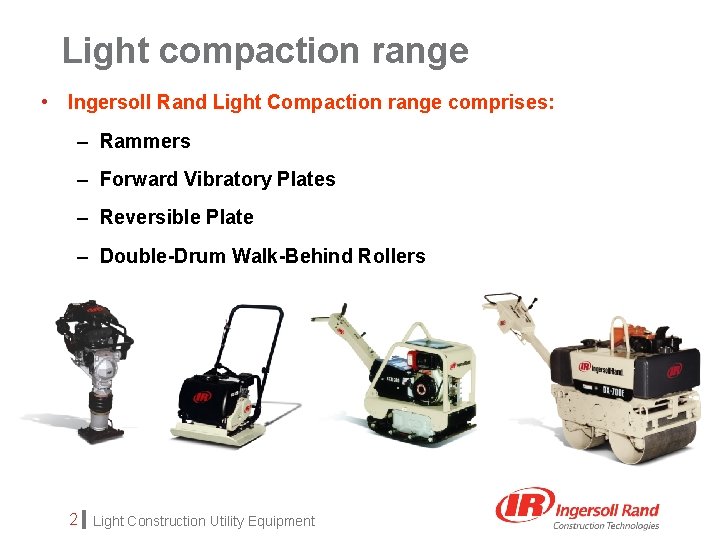

Light compaction range • Ingersoll Rand Light Compaction range comprises: – Rammers – Forward Vibratory Plates – Reversible Plate – Double-Drum Walk-Behind Rollers 2 Light Construction Utility Equipment

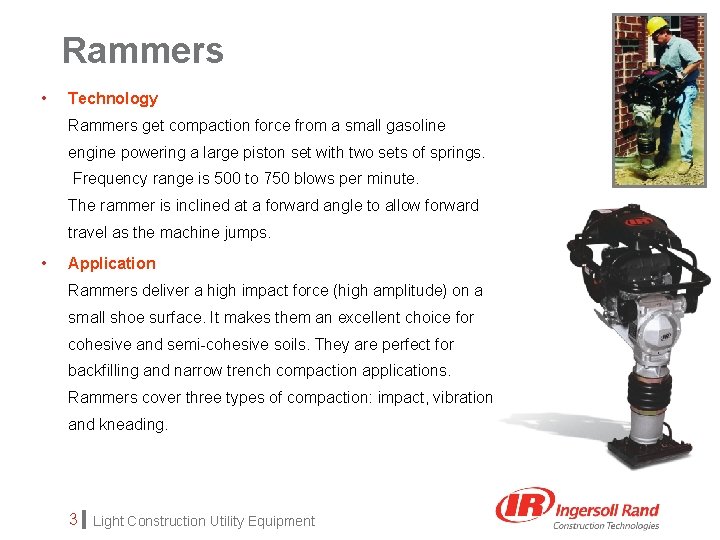

Rammers • Technology Rammers get compaction force from a small gasoline engine powering a large piston set with two sets of springs. Frequency range is 500 to 750 blows per minute. The rammer is inclined at a forward angle to allow forward travel as the machine jumps. • Application Rammers deliver a high impact force (high amplitude) on a small shoe surface. It makes them an excellent choice for cohesive and semi-cohesive soils. They are perfect for backfilling and narrow trench compaction applications. Rammers cover three types of compaction: impact, vibration and kneading. 3 Light Construction Utility Equipment

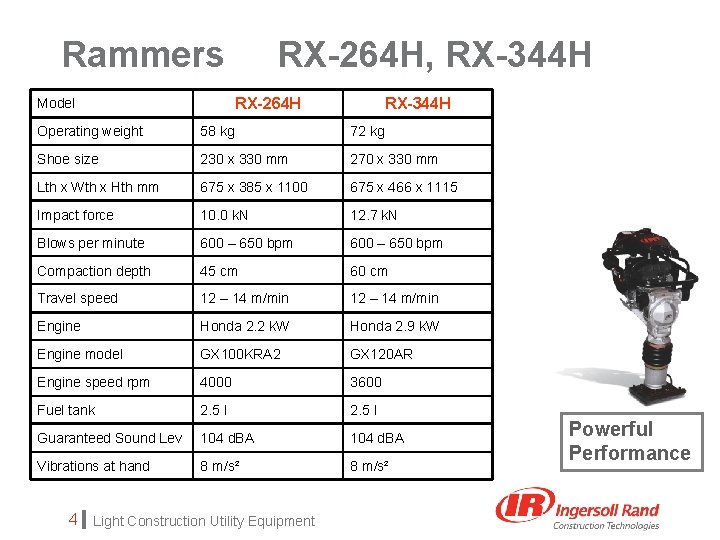

Rammers RX-264 H, RX-344 H RX-264 H Model RX-344 H Operating weight 58 kg 72 kg Shoe size 230 x 330 mm 270 x 330 mm Lth x Wth x Hth mm 675 x 385 x 1100 675 x 466 x 1115 Impact force 10. 0 k. N 12. 7 k. N Blows per minute 600 – 650 bpm Compaction depth 45 cm 60 cm Travel speed 12 – 14 m/min Engine Honda 2. 2 k. W Honda 2. 9 k. W Engine model GX 100 KRA 2 GX 120 AR Engine speed rpm 4000 3600 Fuel tank 2. 5 l Guaranteed Sound Lev 104 d. BA Vibrations at hand 8 m/s² 4 Light Construction Utility Equipment Powerful Performance

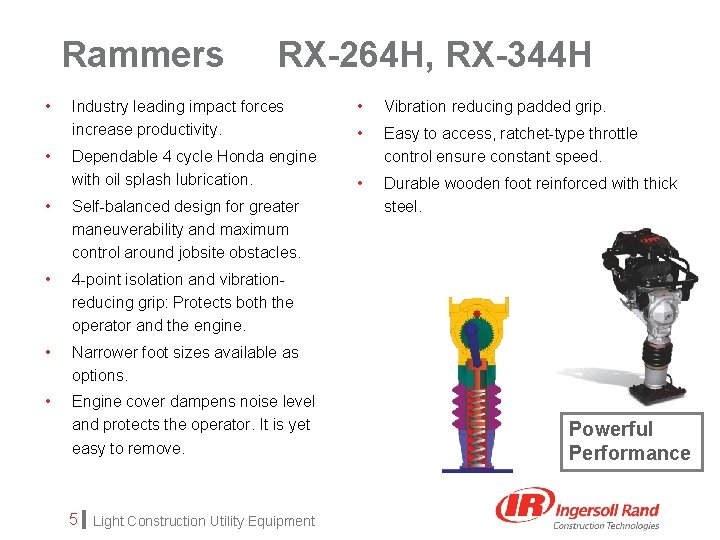

Rammers • • RX-264 H, RX-344 H Industry leading impact forces increase productivity. • • Vibration reducing padded grip. Dependable 4 cycle Honda engine with oil splash lubrication. • Durable wooden foot reinforced with thick steel. • Self-balanced design for greater maneuverability and maximum control around jobsite obstacles. • 4 -point isolation and vibrationreducing grip: Protects both the operator and the engine. • Narrower foot sizes available as options. • Engine cover dampens noise level and protects the operator. It is yet easy to remove. 5 Light Construction Utility Equipment Easy to access, ratchet-type throttle control ensure constant speed. Powerful Performance

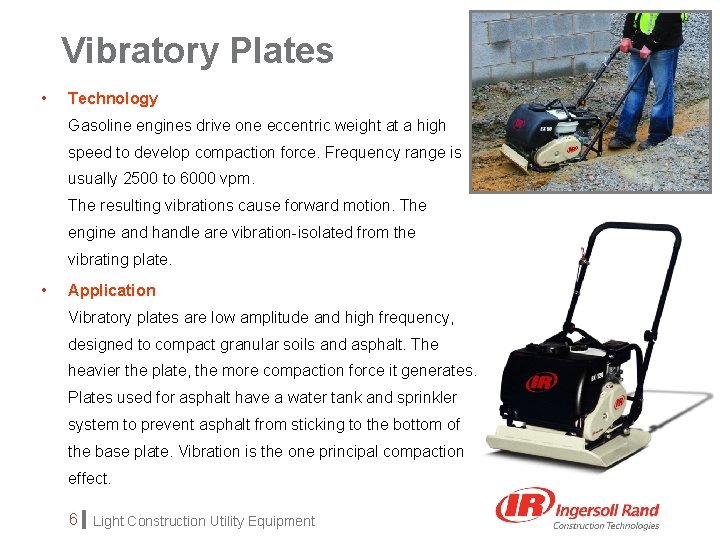

Vibratory Plates • Technology Gasoline engines drive one eccentric weight at a high speed to develop compaction force. Frequency range is usually 2500 to 6000 vpm. The resulting vibrations cause forward motion. The engine and handle are vibration-isolated from the vibrating plate. • Application Vibratory plates are low amplitude and high frequency, designed to compact granular soils and asphalt. The heavier the plate, the more compaction force it generates. Plates used for asphalt have a water tank and sprinkler system to prevent asphalt from sticking to the bottom of the base plate. Vibration is the one principal compaction effect. 6 Light Construction Utility Equipment

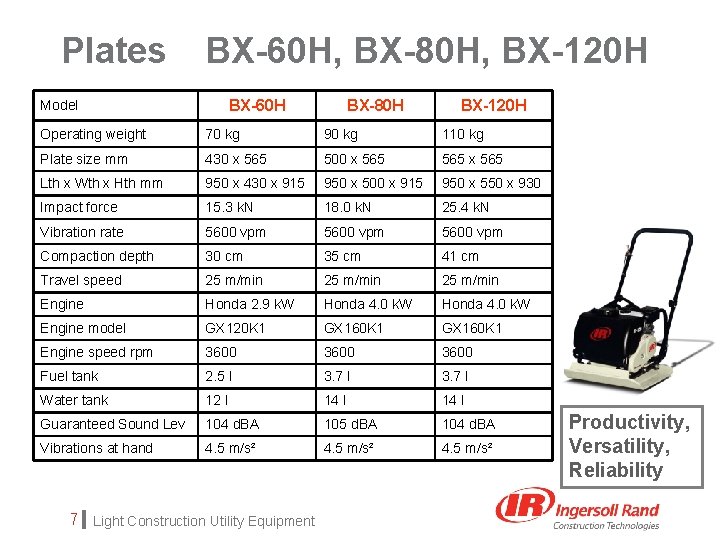

Plates BX-60 H, BX-80 H, BX-120 H BX-60 H Model BX-80 H BX-120 H Operating weight 70 kg 90 kg 110 kg Plate size mm 430 x 565 500 x 565 Lth x Wth x Hth mm 950 x 430 x 915 950 x 500 x 915 950 x 550 x 930 Impact force 15. 3 k. N 18. 0 k. N 25. 4 k. N Vibration rate 5600 vpm Compaction depth 30 cm 35 cm 41 cm Travel speed 25 m/min Engine Honda 2. 9 k. W Honda 4. 0 k. W Engine model GX 120 K 1 GX 160 K 1 Engine speed rpm 3600 Fuel tank 2. 5 l 3. 7 l Water tank 12 l 14 l Guaranteed Sound Lev 104 d. BA 105 d. BA 104 d. BA Vibrations at hand 4. 5 m/s² 7 Light Construction Utility Equipment Productivity, Versatility, Reliability

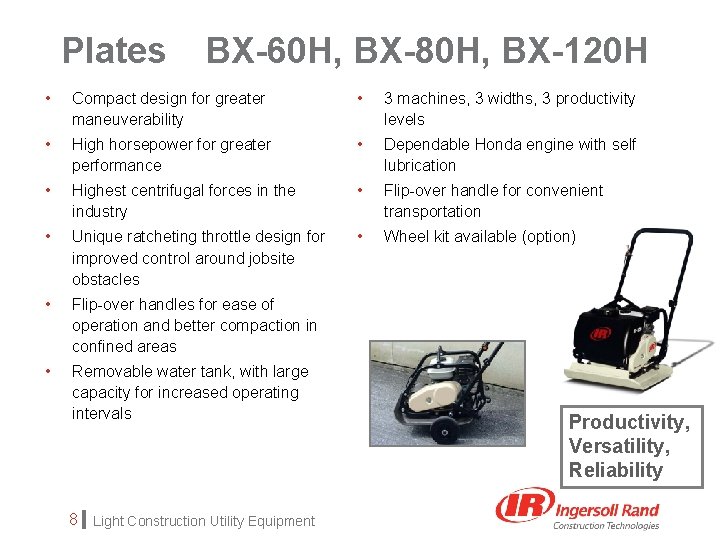

Plates BX-60 H, BX-80 H, BX-120 H • Compact design for greater maneuverability • 3 machines, 3 widths, 3 productivity levels • High horsepower for greater performance • Dependable Honda engine with self lubrication • Highest centrifugal forces in the industry • Flip-over handle for convenient transportation • Unique ratcheting throttle design for improved control around jobsite obstacles • Wheel kit available (option) • Flip-over handles for ease of operation and better compaction in confined areas • Removable water tank, with large capacity for increased operating intervals 8 Light Construction Utility Equipment Productivity, Versatility, Reliability

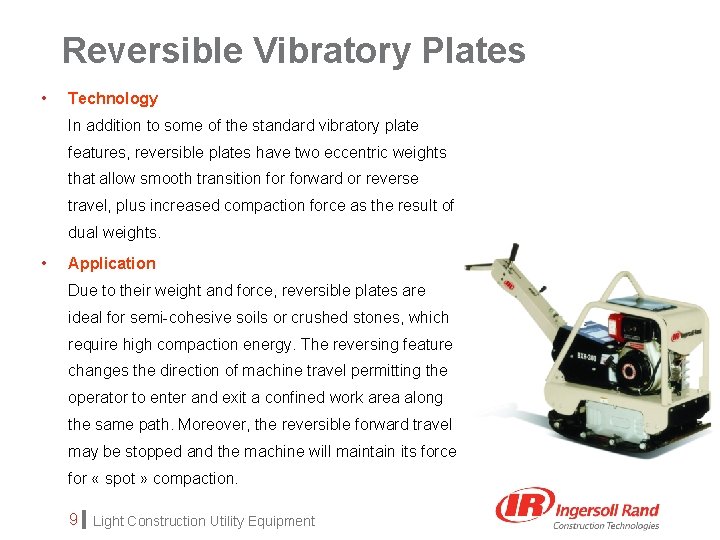

Reversible Vibratory Plates • Technology In addition to some of the standard vibratory plate features, reversible plates have two eccentric weights that allow smooth transition forward or reverse travel, plus increased compaction force as the result of dual weights. • Application Due to their weight and force, reversible plates are ideal for semi-cohesive soils or crushed stones, which require high compaction energy. The reversing feature changes the direction of machine travel permitting the operator to enter and exit a confined work area along the same path. Moreover, the reversible forward travel may be stopped and the machine will maintain its force for « spot » compaction. 9 Light Construction Utility Equipment

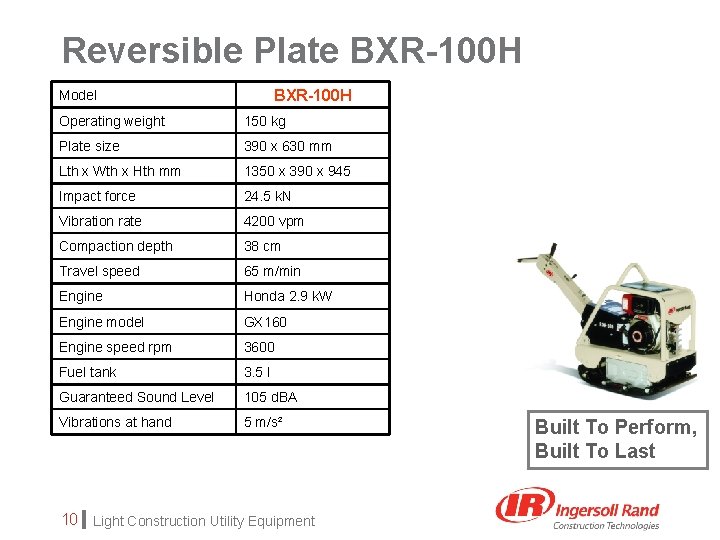

Reversible Plate BXR-100 H Model Operating weight 150 kg Plate size 390 x 630 mm Lth x Wth x Hth mm 1350 x 390 x 945 Impact force 24. 5 k. N Vibration rate 4200 vpm Compaction depth 38 cm Travel speed 65 m/min Engine Honda 2. 9 k. W Engine model GX 160 Engine speed rpm 3600 Fuel tank 3. 5 l Guaranteed Sound Level 105 d. BA Vibrations at hand 5 m/s² 10 Light Construction Utility Equipment Built To Perform, Built To Last

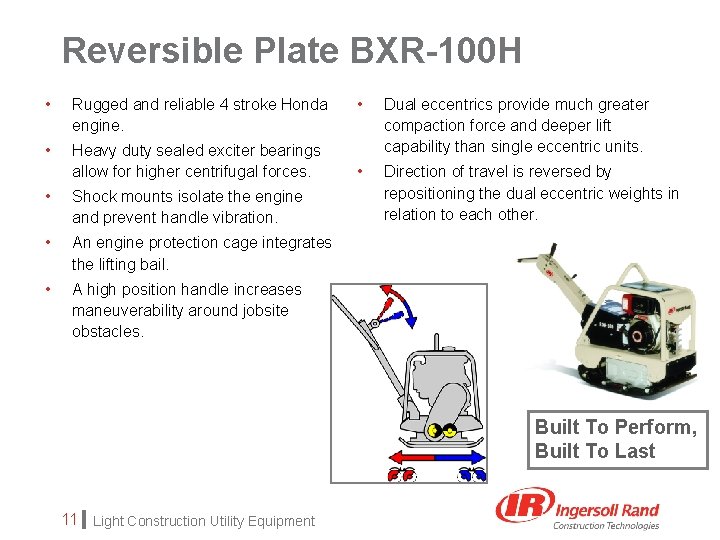

Reversible Plate BXR-100 H • Rugged and reliable 4 stroke Honda engine. • Heavy duty sealed exciter bearings allow for higher centrifugal forces. • Shock mounts isolate the engine and prevent handle vibration. • An engine protection cage integrates the lifting bail. • A high position handle increases maneuverability around jobsite obstacles. • Dual eccentrics provide much greater compaction force and deeper lift capability than single eccentric units. • Direction of travel is reversed by repositioning the dual eccentric weights in relation to each other. Built To Perform, Built To Last 11 Light Construction Utility Equipment

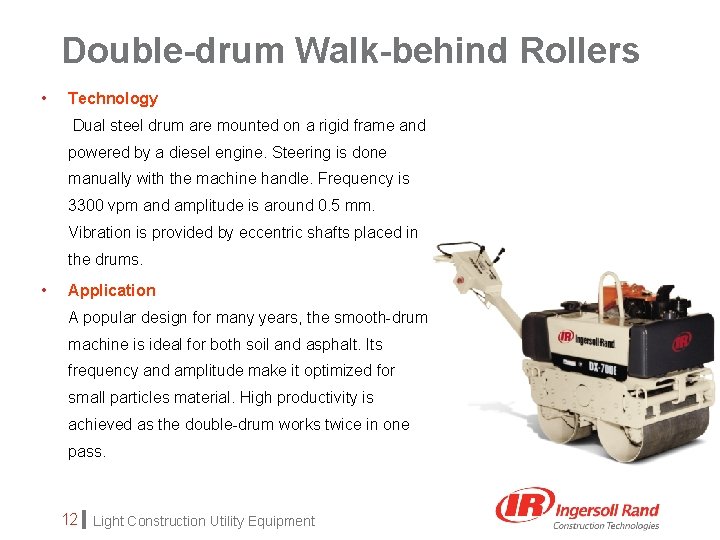

Double-drum Walk-behind Rollers • Technology Dual steel drum are mounted on a rigid frame and powered by a diesel engine. Steering is done manually with the machine handle. Frequency is 3300 vpm and amplitude is around 0. 5 mm. Vibration is provided by eccentric shafts placed in the drums. • Application A popular design for many years, the smooth-drum machine is ideal for both soil and asphalt. Its frequency and amplitude make it optimized for small particles material. High productivity is achieved as the double-drum works twice in one pass. 12 Light Construction Utility Equipment

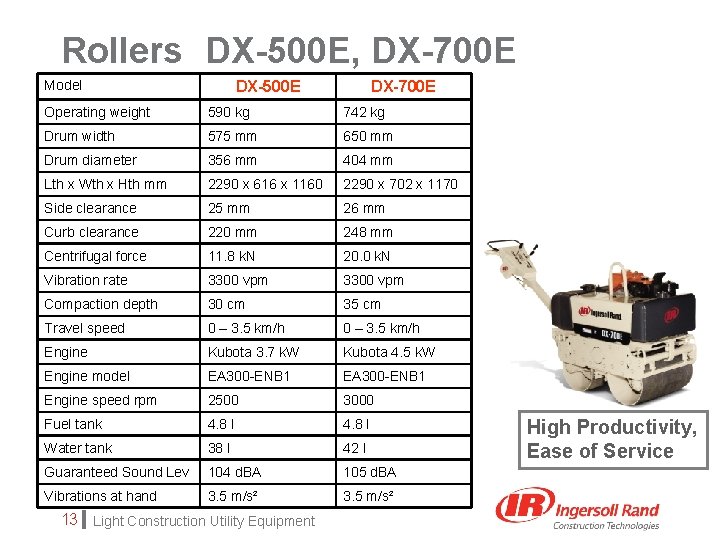

Rollers DX-500 E, DX-700 E Model DX-500 E DX-700 E Operating weight 590 kg 742 kg Drum width 575 mm 650 mm Drum diameter 356 mm 404 mm Lth x Wth x Hth mm 2290 x 616 x 1160 2290 x 702 x 1170 Side clearance 25 mm 26 mm Curb clearance 220 mm 248 mm Centrifugal force 11. 8 k. N 20. 0 k. N Vibration rate 3300 vpm Compaction depth 30 cm 35 cm Travel speed 0 – 3. 5 km/h Engine Kubota 3. 7 k. W Kubota 4. 5 k. W Engine model EA 300 -ENB 1 Engine speed rpm 2500 3000 Fuel tank 4. 8 l Water tank 38 l 42 l Guaranteed Sound Lev 104 d. BA 105 d. BA Vibrations at hand 3. 5 m/s² 13 Light Construction Utility Equipment High Productivity, Ease of Service

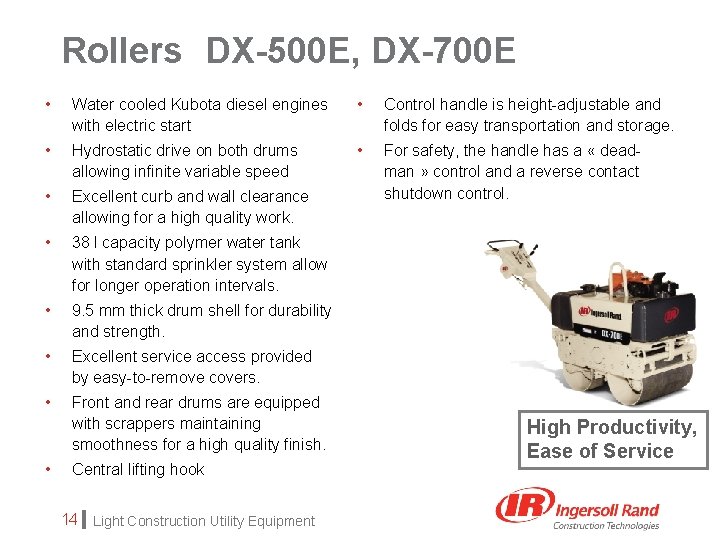

Rollers DX-500 E, DX-700 E • Water cooled Kubota diesel engines with electric start • Control handle is height-adjustable and folds for easy transportation and storage. • Hydrostatic drive on both drums allowing infinite variable speed • • Excellent curb and wall clearance allowing for a high quality work. For safety, the handle has a « deadman » control and a reverse contact shutdown control. • 38 l capacity polymer water tank with standard sprinkler system allow for longer operation intervals. • 9. 5 mm thick drum shell for durability and strength. • Excellent service access provided by easy-to-remove covers. • Front and rear drums are equipped with scrappers maintaining smoothness for a high quality finish. • Central lifting hook 14 Light Construction Utility Equipment High Productivity, Ease of Service

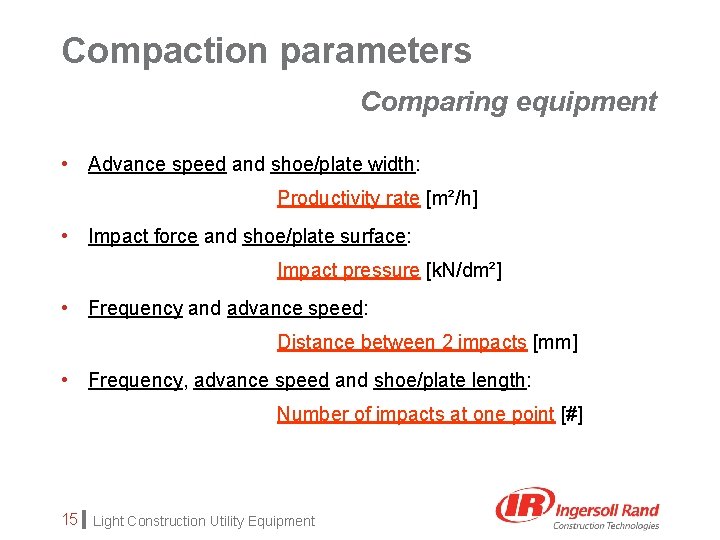

Compaction parameters Comparing equipment • Advance speed and shoe/plate width: Productivity rate [m²/h] • Impact force and shoe/plate surface: Impact pressure [k. N/dm²] • Frequency and advance speed: Distance between 2 impacts [mm] • Frequency, advance speed and shoe/plate length: Number of impacts at one point [#] 15 Light Construction Utility Equipment

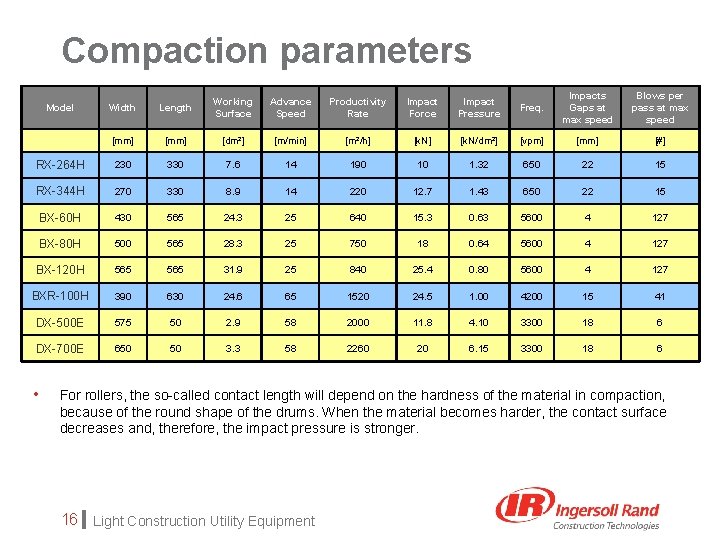

Compaction parameters Model Width Length Working Surface Advance Speed Productivity Rate Impact Force Impact Pressure Freq. Impacts Gaps at max speed Blows per pass at max speed [mm] [dm²] [m/min] [m²/h] [k. N/dm²] [vpm] [mm] [#] RX-264 H 230 330 7. 6 14 190 10 1. 32 650 22 15 RX-344 H 270 330 8. 9 14 220 12. 7 1. 43 650 22 15 BX-60 H 430 565 24. 3 25 640 15. 3 0. 63 5600 4 127 BX-80 H 500 565 28. 3 25 750 18 0. 64 5600 4 127 BX-120 H 565 31. 9 25 840 25. 4 0. 80 5600 4 127 BXR-100 H 390 630 24. 6 65 1520 24. 5 1. 00 4200 15 41 DX-500 E 575 50 2. 9 58 2000 11. 8 4. 10 3300 18 6 DX-700 E 650 50 3. 3 58 2260 20 6. 15 3300 18 6 • For rollers, the so-called contact length will depend on the hardness of the material in compaction, because of the round shape of the drums. When the material becomes harder, the contact surface decreases and, therefore, the impact pressure is stronger. 16 Light Construction Utility Equipment
