Ligation Gene cloning 1 DNA extraction as blood
Ligation Gene cloning Ⅱ 유전체정보연구실
일정 생명과학실험 (1학기) DNA extraction (as blood), genomic PCR, Gene cloning i 생명과학실험(2학기) Gene cloning ii 고급생명과학실험(1학기) BSP, RNA extraction (as tissue), RT-PCR
u. Gene cloning DNA Extraction ↓ PCR ↓ Gel electrophoresis ↓ Gel purification ↓ 2학기 Ligation ↓ Transformation ↓ Inoculation ↓ Plasmid isolation
u. Gene cloning ◆Ligation -vector와 target DNA를 연결하는 과정
Ligation
Ligation MCS

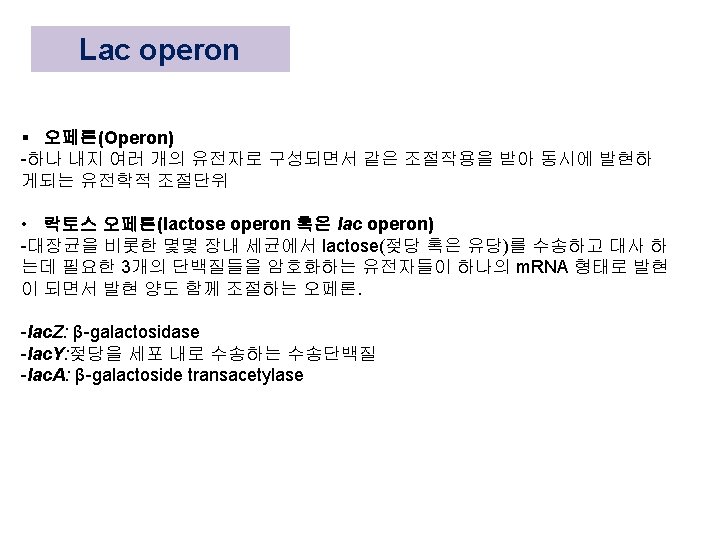

Lac operon
Lac operon
Ligation MCS
Transformation Ⅰ Plasmid bound to cell exterior Ca. Cl 2 처리 in ice (4도) Competent cell Normal bacterium Plasmid transported into the cell Heat Shock 42도 45초 Transformed cell
Transformation Ⅱ
Inoculation / mass culture White colony LB broth+ amp(ampicillin) 원하는 형질 가진 대장균을 뽑아 대량으로 번식시키는 과정
Ligation materials vortexing 기계 Heatblock 기계 PCR tube Spin down 기계 Ice, PCR 튜브, Pipette & Tip, rack, p. GEM vector, T 4 ligase, 2 X T 4 ligase buffer 추출한 DNA sample, vortexing기계, spin down 기계
Ligation 실험 과정 1. Mix 만들기 재료 한 샘플당 넣는 양 넣을 양 p. GEM vector 1 2. 5 ul T 4 ligase 1 2. 5 ul 2 X T 4 ligase 5 12. 5 ul buffer 2. Mix 7 ul 씩 PCR tube에 분 주 3. Purification한 DNA 3 ul 분 주 4. 살짝 voltexing 후에 spin down하여 튜브 벽면에 묻은 것 제거 5. 16도 heat block에 overnight
