Lifetime s Method Ref Year 878 5 0
- Slides: 42

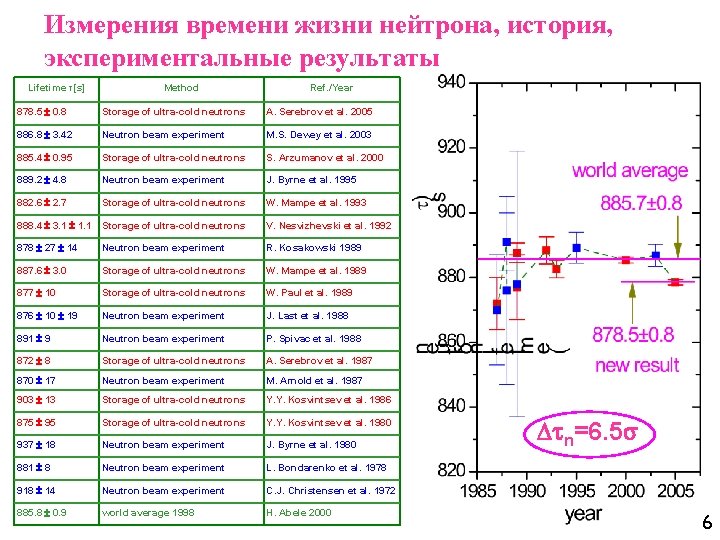

Измерения времени жизни нейтрона, история, экспериментальные результаты Lifetime τ[s] Method Ref. /Year 878. 5 0. 8 Storage of ultra-cold neutrons A. Serebrov et al. 2005 886. 8 3. 42 Neutron beam experiment M. S. Dewey et al. 2003 885. 4 0. 95 Storage of ultra-cold neutrons S. Arzumanov et al. 2000 889. 2 4. 8 Neutron beam experiment J. Byrne et al. 1995 882. 6 2. 7 Storage of ultra-cold neutrons W. Mampe et al. 1993 888. 4 3. 1 1. 1 Storage of ultra-cold neutrons V. Nesvizhevski et al. 1992 878 27 14 Neutron beam experiment R. Kosakowski 1989 887. 6 3. 0 Storage of ultra-cold neutrons W. Mampe et al. 1989 877 10 Storage of ultra-cold neutrons W. Paul et al. 1989 876 10 19 Neutron beam experiment J. Last et al. 1988 891 9 Neutron beam experiment P. Spivac et al. 1988 872 8 Storage of ultra-cold neutrons A. Serebrov et al. 1987 870 17 Neutron beam experiment M. Arnold et al. 1987 903 13 Storage of ultra-cold neutrons Y. Y. Kosvintsev et al. 1986 875 95 Storage of ultra-cold neutrons Y. Y. Kosvintsev et al. 1980 937 18 Neutron beam experiment J. Byrne et al. 1980 881 8 Neutron beam experiment L. Bondarenko et al. 1978 918 14 Neutron beam experiment C. J. Christensen et al. 1972 885. 8 0. 9 world average 1998 H. Abele 2000 n=6. 5 6
Исследование проблемы аномальных потерь УХН, обнаружение явления деполяризации УХН, квазиупругое рассеяние УХН UCN depolarization Material Quasielastic scattering on the surface of fomblin-oil Energy dependence of anomalous losses Trap coating (Be) I (measurement in (0, 72 0, 07) 10 -5 1998) Trap coating (Be) II (2, 07 0, 05) 10 -5 Be foil (measurements of 1998) Be foil (measurements of 2000) Be coating on copper rings Be coating on Al foil (1, 58 0, 20) 10 -5 (2, 17 0, 21) 10 -5 (1, 15 0, 09) 10 -5 (1, 23 0, 21) 10 -5 11
Схема экспериментальной установки с гравитационной ловушкой УХН 1 – neutron guide from UCN Turbine; 2 – UCN inlet valve; 3 – beam distribution flap valve; 4 – aluminium foil (now removed); 5 – “dirty” vacuum volume; 6 – “clean” (UHV) vacuum volume; 7 – cooling coils; 8 – UCN storage trap; 9 – cryostat; 10 – mechanics for trap rotation; 11 – stepping motor; 12 – UCN detector; 13 – detector shielding; 14 – evaporator 13
Измерение времени жизни нейтрона методом хранения УХН Total probability of UCN losses: Probability of losses in trap walls: 15
Схема распыления низкотемпературного масла на поверхность ловушки LTF evaporator is heated to +1400 C The chemical formula of LTF contains only C, O and F. Molecular weight Density at r. t. 2354 1. 825 g/ml Vapour pressure at r. t. 1. 5*10 -3 mbar Fermi potential 102. 8 ne. V Vacuum Calculation based on cold neutron transmission data predicts for LTF at 190 K h=2*10 -6 ( Yu. N. Pokotilovski, Trap surface is cooled to about -1500 C JETP 96, 2003) 17
Экстраполяция времени хранения к времени жизни нейтрона The result of joint size and energy extrapolation: The result of size extrapolation: 19
Экстраполяция к времени жизни нейтрона (энергетическая экстраполяция) The result of energy extrapolation has rather strong dependence on m(E) function. Statistical accuracy is poor due to small base of extrapolation. 20
Экстраполяция к времени жизни нейтрона (размерная экстраполяция) Size extrapolation has rather weak dependence on (E) and we take it as the most reliable 21

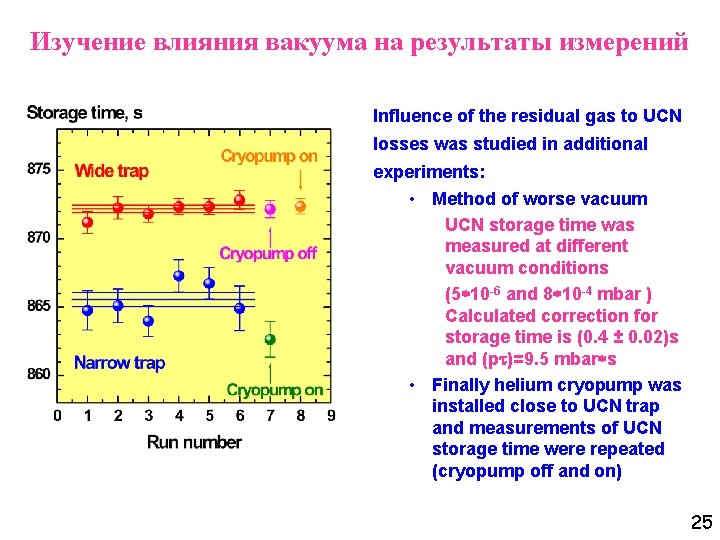

Изучение влияния вакуума на результаты измерений Influence of the residual gas to UCN losses was studied in additional experiments: • Method of worse vacuum UCN storage time was measured at different vacuum conditions (5*10 -6 and 8*10 -4 mbar ) Calculated correction for storage time is (0. 4 ± 0. 02)s and (p )=9. 5 mbar*s • Finally helium cryopump was installed close to UCN trap and measurements of UCN storage time were repeated (cryopump off and on) 25
29
30
31
32
33
Last result (Old result 882. 6 2. 7 s) 34
The last most precise result n = 878. 5 0. 8 s (2004) PNPI, ILL, JINR 35
Схема эксперимента, магнитный коллиматор [T] Hm H 0 sin 2θc = H 0/Hm θc = 39 H 0 = 0. 35 T H 0/H 0 = 2 10 -3 210 mm, L=2690 mm Hm = 0. 87 T Hm/Hm = 2 10 -3 150 mm, L=50 mm 39
Основные соотношения, задачи для достижения точности А/А ~ 10 -3 4 tasks: 1. determination of average cosθ (1 2 10 -4) 2. determination of electron energy (<10 -3) 3. determination of neutron beam polarization (1 2 10 -3) 4. determination of experimental asymmetry X (ΔX/X <10 -3) 40
