DISEASES OF THE MUSCULOSKELETAL SYTEM

FUNCTIONS OF THE MUSCULOSKELETAL SYSTEM • Support (skeletal system) – structural support/framework for the entire body • Storage – Minerals (calcium) and lipids. • Blood cell production. – site of formation for all types of blood cells. • Protection – vital organs of the body • • ribs surround the visceral organs central nervous system is encased within the skull and spinal cord. • Leverage – Many of the joints of the body act as levers therefore assisting with movement. –Provides a place for muscles, tendons, ligaments to attache

REVIEW - Bone anatomy Epiphysis is the enlarged area at either end of the bone Diaphysis is the long shaft in the middle portion of the bone Metaphysis is the joining point between the epiphysis and diaphysis The periosteum is the fibrous covering around the outside of the bone not covered with articular cartilage. The endosteum is the fibrous and cellular tissue lining the medullary cavity of the bone

REVIEW – Shapes of Bones vertebrae and certain facial bones carpal and tarsal bones sternum, ribs, scapula, and certain skull bones humerus, radius, femur, tibia, metacarpals, and metatarsals patella, and proximal and distal sesamoid bones of the digits.

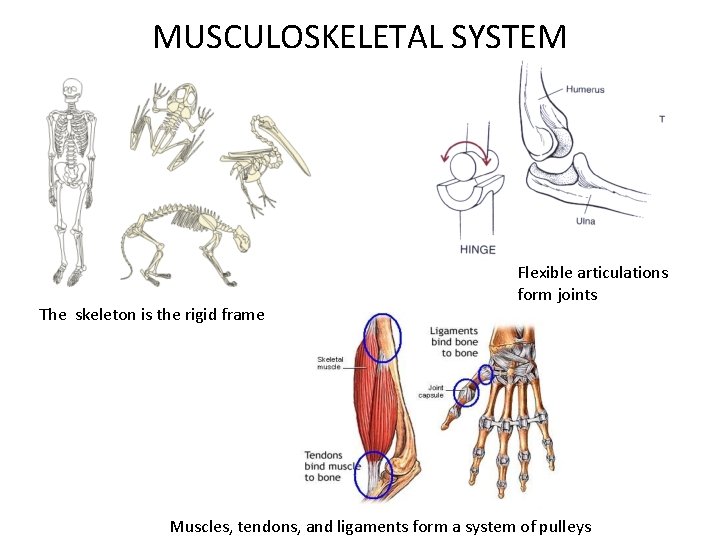

MUSCULOSKELETAL SYSTEM The skeleton is the rigid frame Flexible articulations form joints Muscles, tendons, and ligaments form a system of pulleys

MUSCULOSKELETAL SYSTEM FUNCTIONS

MUSCULOSKELETAL SYSTEM DISRUPTION:

TRAUMA: CLINICAL SIGNS OF LONG BONE FRACTURES Lameness, swelling, hx of abuse lameness Deformity of bone, swelling

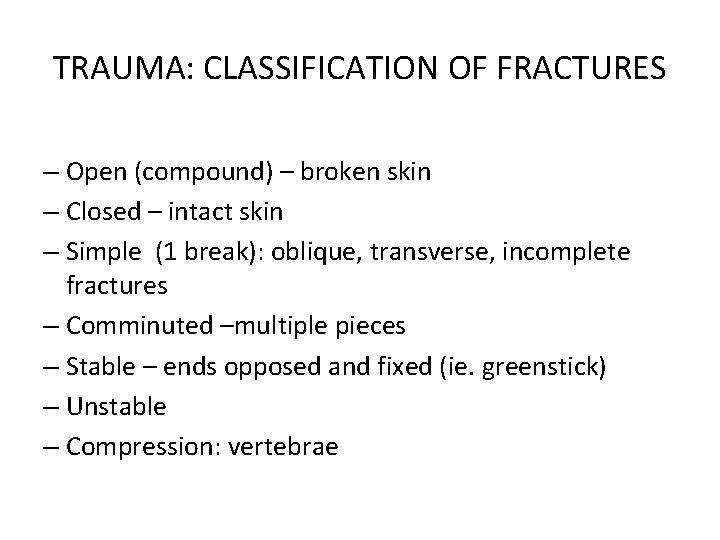

TRAUMA: CLASSIFICATION OF FRACTURES – Open (compound) – broken skin – Closed – intact skin – Simple (1 break): oblique, transverse, incomplete fractures – Comminuted –multiple pieces – Stable – ends opposed and fixed (ie. greenstick) – Unstable – Compression: vertebrae

$TRAUMA: DIAGNOSIS OF LONG BONE FRACTURES Oblique fracture Transverse fracture$

TRAUMA: DIAGNOSIS OF LONG BONE FRACTURES Oblique fracture Transverse fracture

$TRAUMA: DIAGNOSIS OF LONG BONE FRACTURES Greenstick fracture Comminuted fracture$

TRAUMA: DIAGNOSIS OF LONG BONE FRACTURES Greenstick fracture Comminuted fracture

$TRAUMA: DIAGNOSIS OF LONG BONE FRACTURES Fissure fractures$

TRAUMA: DIAGNOSIS OF LONG BONE FRACTURES Fissure fractures

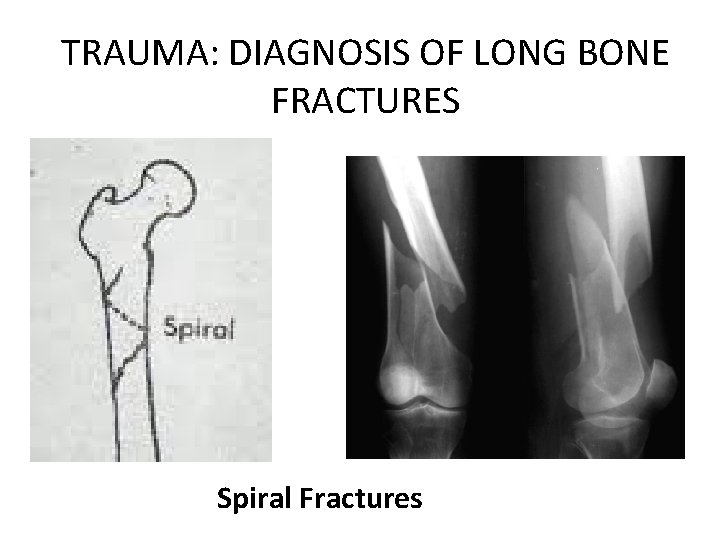

TRAUMA: DIAGNOSIS OF LONG BONE FRACTURES Spiral Fractures

TRAUMA: DIAGNOSIS OF FRACTURES COMPRESSION FRACTURE SALTER-HARRIS FRACTURES OF THE EPIPHYSIS

$TRAUMA: OPEN VS. CLOSED FRACTURES In open fractures bone is exposed through the skin$

TRAUMA: OPEN VS. CLOSED FRACTURES In open fractures bone is exposed through the skin

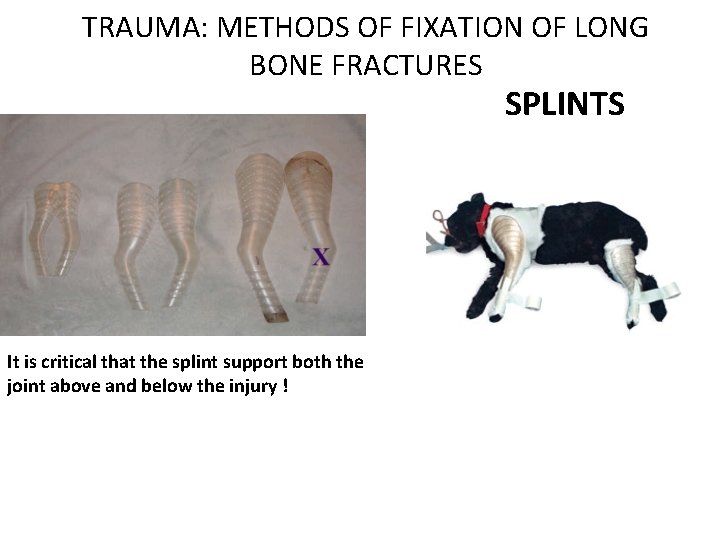

TRAUMA: METHODS OF FIXATION OF LONG BONE FRACTURES SPLINTS It is critical that the splint support both the joint above and below the injury !

TRAUMA: METHODS OF FIXATION OF LONG BONE FRACTURES Splints ROBERT JONES BANDAGE METASPLINT

$TRAUMA: METHODS OF FIXATION ON FRACTURES SCHROEDER-THOMAS SPLINT Immobilize any fracture Distal to midhumerus$

TRAUMA: METHODS OF FIXATION ON FRACTURES SCHROEDER-THOMAS SPLINT Immobilize any fracture Distal to midhumerus or midfemur

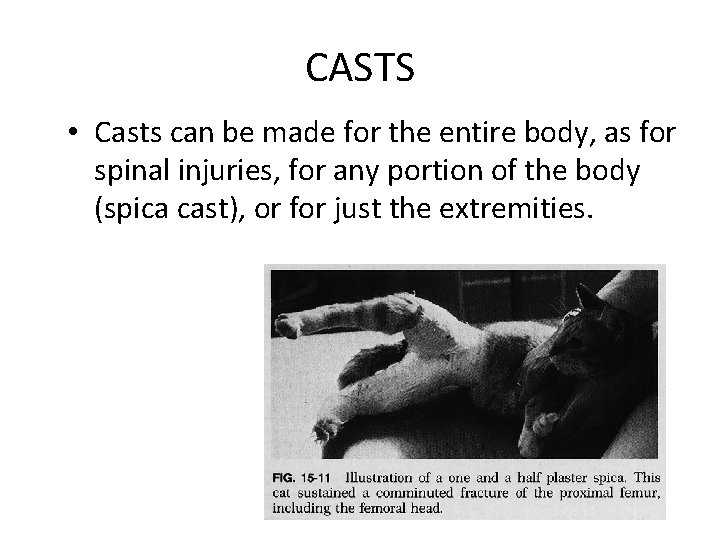

CASTS • Casts can be made for the entire body, as for spinal injuries, for any portion of the body (spica cast), or for just the extremities.

TRAUMA: METHODS OF FIXATION OF FRACTURES IM (Steinmann) pins with cerclage wires

TRAUMA: METHODS OF FIXATION • Advantages of IM pins – Prevent bending forces • Disadvantages – Do not prevent rotation or compressive (axial) forces • Should be combined with other methods such as cerclage wire to prevent other forces

TRAUMA: METHODS OF FIXATION OF LONG BONE FRACTURES Bone plates and screws http: //www. youtube. com/watch? v=Wls_Pyop. D 0

TRAUMA: METHODS OF FIXATION External fixators are pins that penetrate the skin and bones that are attached to fixed bars or acrylic using special clamps: Kirschner-Ehmer apparatus

TRAUMA: CLIENT INFO • Restrict activity • Watch for drainage, swelling, heat • Metal (plate, pin) stronger than bone – refracture may occur • Follow up x-rays necessary • Metal should be removed after healing • Metal may cause cold sensitivity

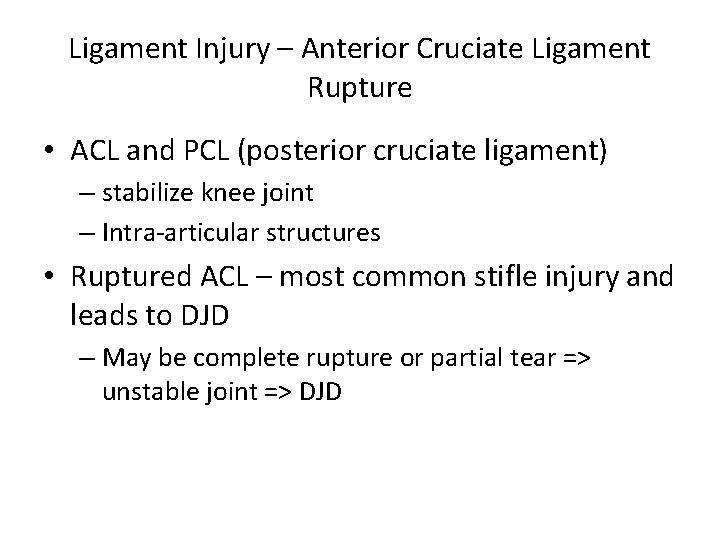

Ligament Injury – Anterior Cruciate Ligament Rupture • ACL and PCL (posterior cruciate ligament) – stabilize knee joint – Intra-articular structures • Ruptured ACL – most common stifle injury and leads to DJD – May be complete rupture or partial tear => unstable joint => DJD

TRAUMA: CRUCIATE LIGAMENT INJURY/RUPTURE

TRAUMA: CLINICAL SIGNS OF CRANIAL CRUCIATE LIGAMENT INJURY/RUPTURE Middle-aged obese dog Highly active, athletic animals

TRAUMA: CLINICAL SIGNS OF CRANIAL CRUCIATE LIGAMENT INJURY/RUPTURE Animal is acutely non wt. bearing on the rear leg after hyperextending the stifle joint Joint effusion

TRAUMA: CRANIAL CRUCIATE LIGAMENT RUPTURE Cranial drawer test Tibial compression test

TRAUMA: CRANIAL CRUCIATE LIGAMENT RUPTURE http: //www. youtube. com/watch? v=9 jg 9 E 2 n. Bt_E&feature=related

TRAUMA: CRANIAL CRUCIATE LIGAMENT RUPTURE REPAIR Extra-articular Stabilization *Most successful in patients less than 15 kg

TRAUMA: CRANIAL CRUCIATE LIGAMENT RUPTURE REPAIR Intra-articular stabilization – Over-the-top patellar tendon graft

TRAUMA: CRANIAL CRUCIATE LIGAMENT RUPTURE http: //www. youtube. com/watch? v=4 n. U 2 QZjj. Byg

TRAUMA: CRANIAL CRUCIATE LIGAMENT RUPTURE REPAIR Intra-articular stabilization technique TPLO – Tibial Plateau Leveling Osteotomy

TRAUMA: CRANIAL CRUCIATE LIGAMENT RUPTURE http: //www. youtube. com/watch? v=-1 pxx. X 4 TXko&feature=fvw

TRAUMA: CRANIAL CRUCIATE LIGAMENT RUPTURE – CLIENT INFO • Restrict activity 3 -4 weeks post surgery – Cage rest – Leash walk only to urinate and defecate • • • Gradually increase exercise 4 -8 wks post sx Full activity 8 -12 weeks Opposite cruciate often tears within 1 yr Weight loss helps DJD of stifle joint likely If no surgery, joint thickens - fibrosis
