Life on Mars Abhi Tripathi Andy Czaja ESS

Life on Mars? Abhi Tripathi Andy Czaja ESS 250 Winter 2004

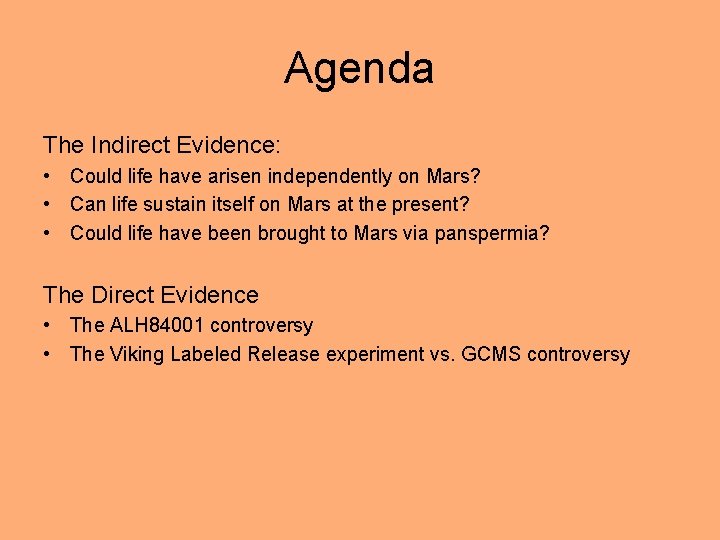

Agenda The Indirect Evidence: • Could life have arisen independently on Mars? • Can life sustain itself on Mars at the present? • Could life have been brought to Mars via panspermia? The Direct Evidence • The ALH 84001 controversy • The Viking Labeled Release experiment vs. GCMS controversy

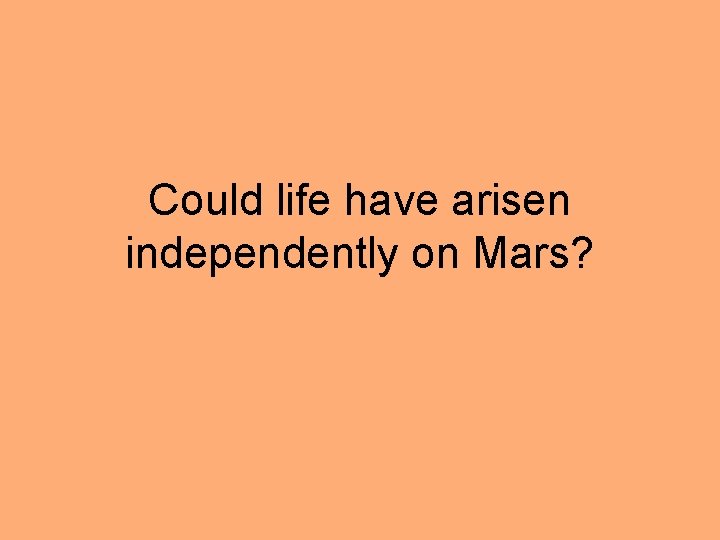

Could life have arisen independently on Mars?

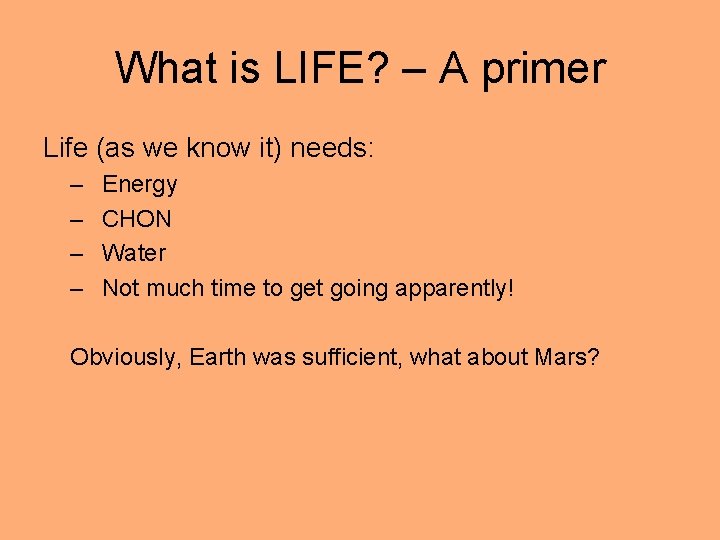

What is LIFE? – A primer Life (as we know it) needs: – – Energy CHON Water Not much time to get going apparently! Obviously, Earth was sufficient, what about Mars?

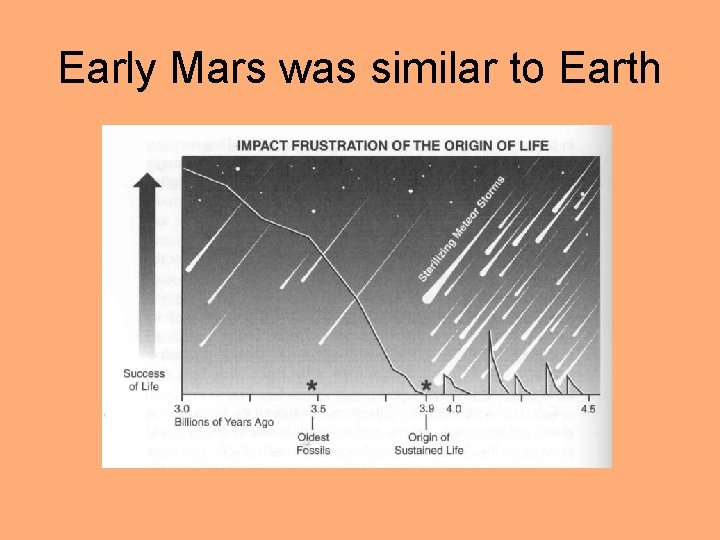

Early Mars was similar to Earth

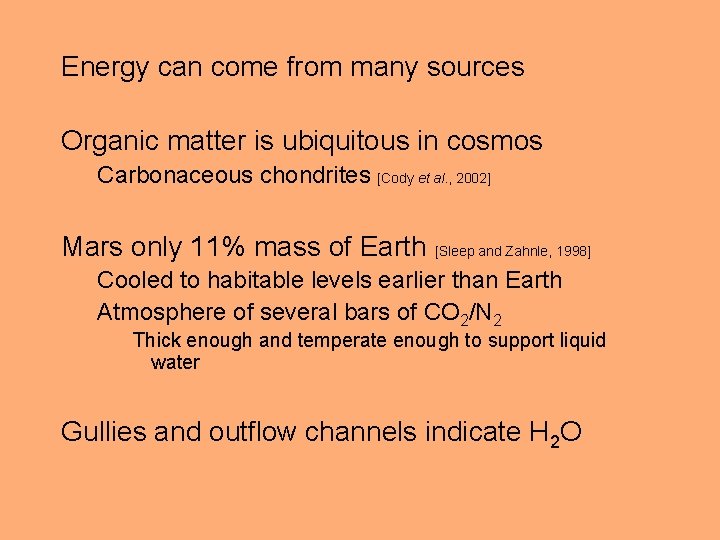

Energy can come from many sources Organic matter is ubiquitous in cosmos Carbonaceous chondrites [Cody et al. , 2002] Mars only 11% mass of Earth [Sleep and Zahnle, 1998] Cooled to habitable levels earlier than Earth Atmosphere of several bars of CO 2/N 2 Thick enough and temperate enough to support liquid water Gullies and outflow channels indicate H 2 O

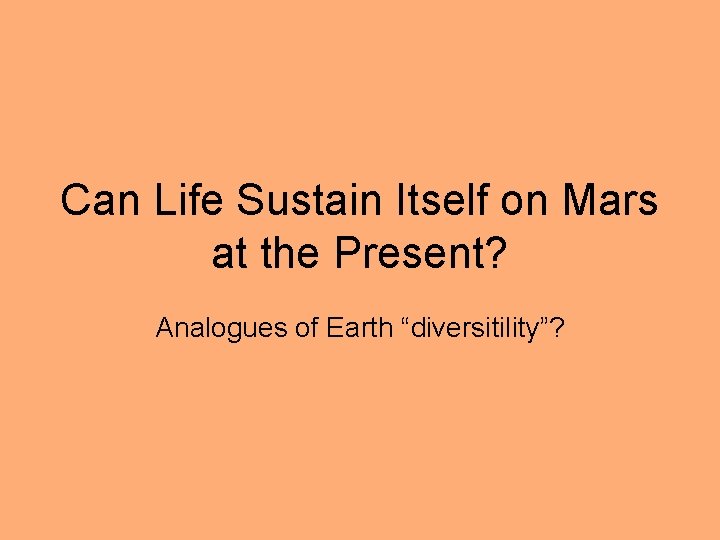

Can Life Sustain Itself on Mars at the Present? Analogues of Earth “diversitility”?

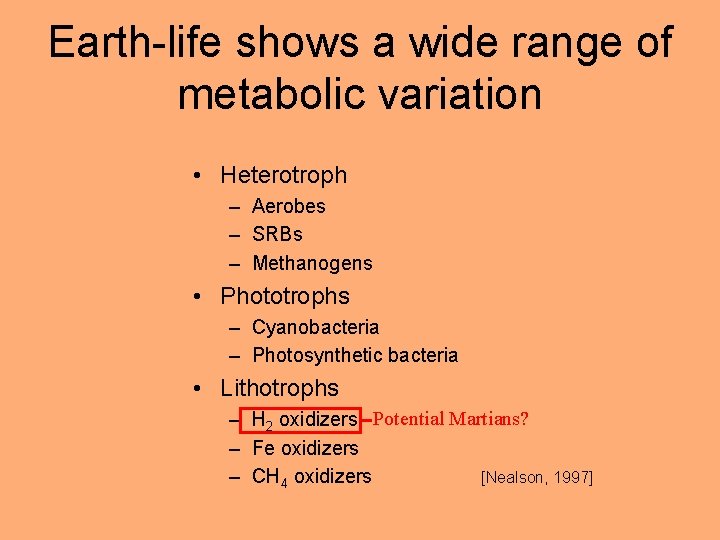

Earth-life shows a wide range of metabolic variation • Heterotroph – Aerobes – SRBs – Methanogens • Phototrophs – Cyanobacteria – Photosynthetic bacteria • Lithotrophs – H 2 oxidizers Potential Martians? – Fe oxidizers – CH 4 oxidizers [Nealson, 1997]

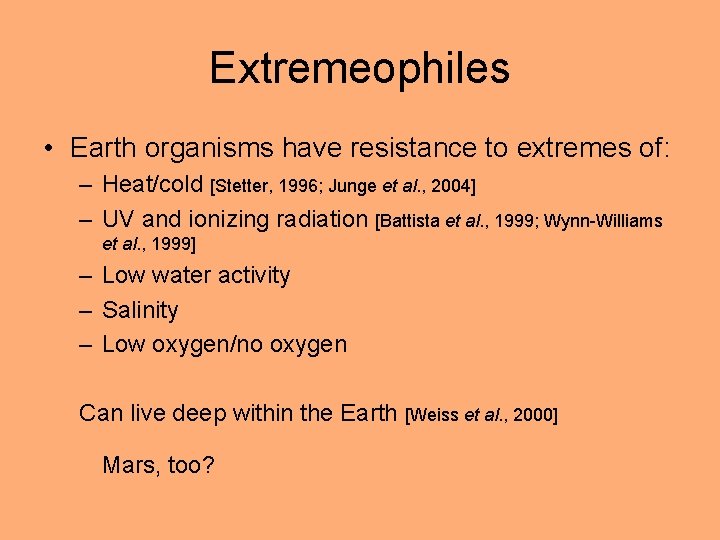

Extremeophiles • Earth organisms have resistance to extremes of: – Heat/cold [Stetter, 1996; Junge et al. , 2004] – UV and ionizing radiation [Battista et al. , 1999; Wynn-Williams et al. , 1999] – Low water activity – Salinity – Low oxygen/no oxygen Can live deep within the Earth [Weiss et al. , 2000] Mars, too?

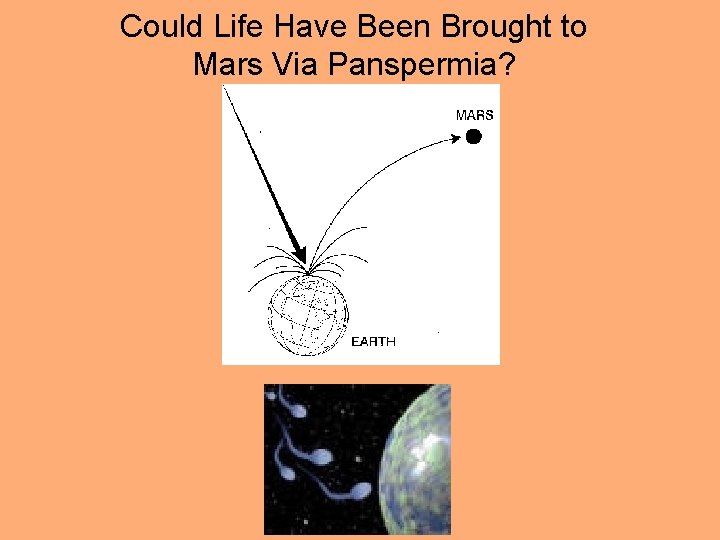

Could Life Have Been Brought to Mars Via Panspermia?

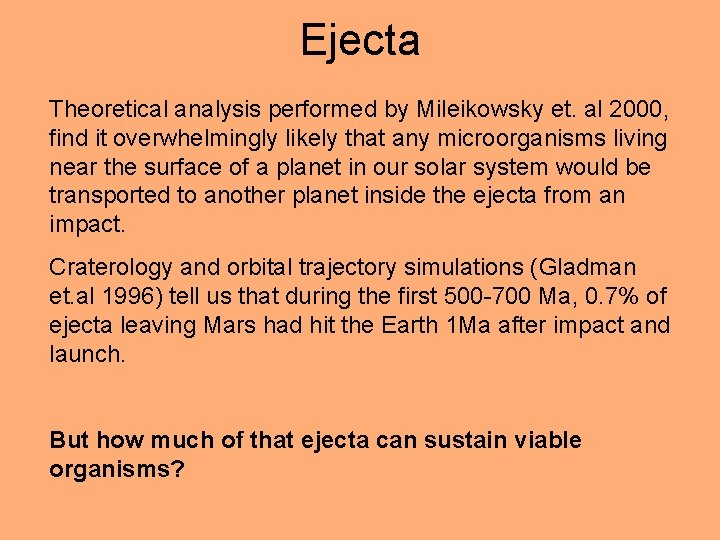

Ejecta Theoretical analysis performed by Mileikowsky et. al 2000, find it overwhelmingly likely that any microorganisms living near the surface of a planet in our solar system would be transported to another planet inside the ejecta from an impact. Craterology and orbital trajectory simulations (Gladman et. al 1996) tell us that during the first 500 -700 Ma, 0. 7% of ejecta leaving Mars had hit the Earth 1 Ma after impact and launch. But how much of that ejecta can sustain viable organisms?

Meet the Viable Organisms • Deinococcus Radiodurans Deinococcus radiodurans's can withstand radiation 3, 000 times what it would take to kill a human. That's 1. 5 million rads of gamma radiation. • Bacillus Subtilis’ which has been studied before with regards to its ability to survive in space (Webster & Greenberg 1985) *Note that there is no reason to believe that these bacteria were common on a primitive Earth or Mars, but they are common in nature today

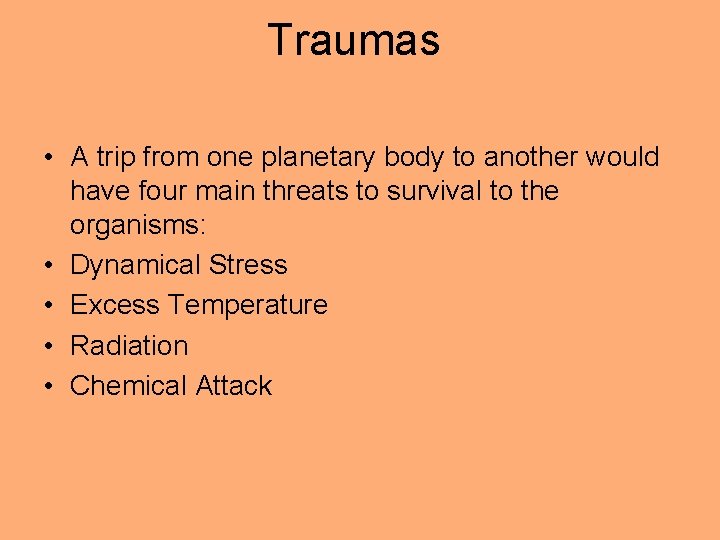

Traumas • A trip from one planetary body to another would have four main threats to survival to the organisms: • Dynamical Stress • Excess Temperature • Radiation • Chemical Attack

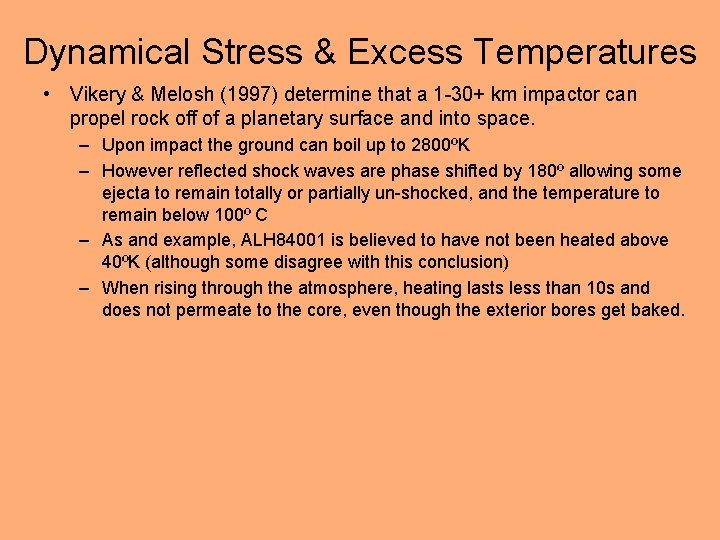

Dynamical Stress & Excess Temperatures • Vikery & Melosh (1997) determine that a 1 -30+ km impactor can propel rock off of a planetary surface and into space. – Upon impact the ground can boil up to 2800ºK – However reflected shock waves are phase shifted by 180º allowing some ejecta to remain totally or partially un-shocked, and the temperature to remain below 100º C – As and example, ALH 84001 is believed to have not been heated above 40ºK (although some disagree with this conclusion) – When rising through the atmosphere, heating lasts less than 10 s and does not permeate to the core, even though the exterior bores get baked.

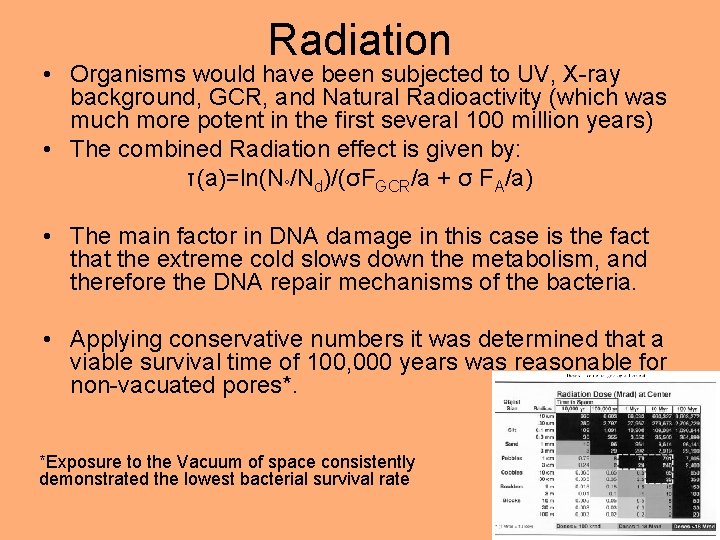

Radiation • Organisms would have been subjected to UV, X-ray background, GCR, and Natural Radioactivity (which was much more potent in the first several 100 million years) • The combined Radiation effect is given by: τ(a)=ln(N°/Nd)/(σFGCR/a + σ FA/a) • The main factor in DNA damage in this case is the fact that the extreme cold slows down the metabolism, and therefore the DNA repair mechanisms of the bacteria. • Applying conservative numbers it was determined that a viable survival time of 100, 000 years was reasonable for non-vacuated pores*. *Exposure to the Vacuum of space consistently demonstrated the lowest bacterial survival rate

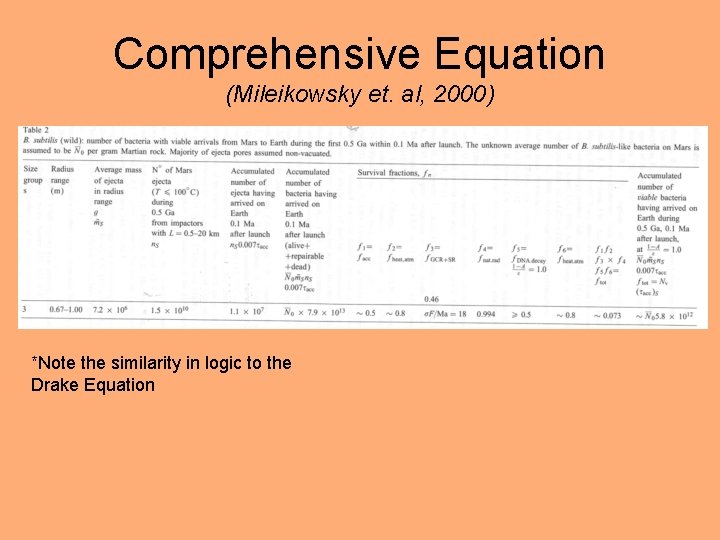

Comprehensive Equation (Mileikowsky et. al, 2000) *Note the similarity in logic to the Drake Equation

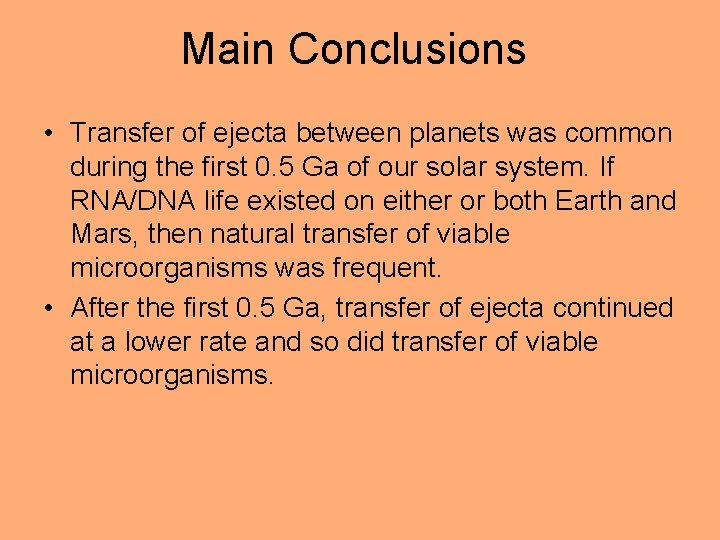

Main Conclusions • Transfer of ejecta between planets was common during the first 0. 5 Ga of our solar system. If RNA/DNA life existed on either or both Earth and Mars, then natural transfer of viable microorganisms was frequent. • After the first 0. 5 Ga, transfer of ejecta continued at a lower rate and so did transfer of viable microorganisms.

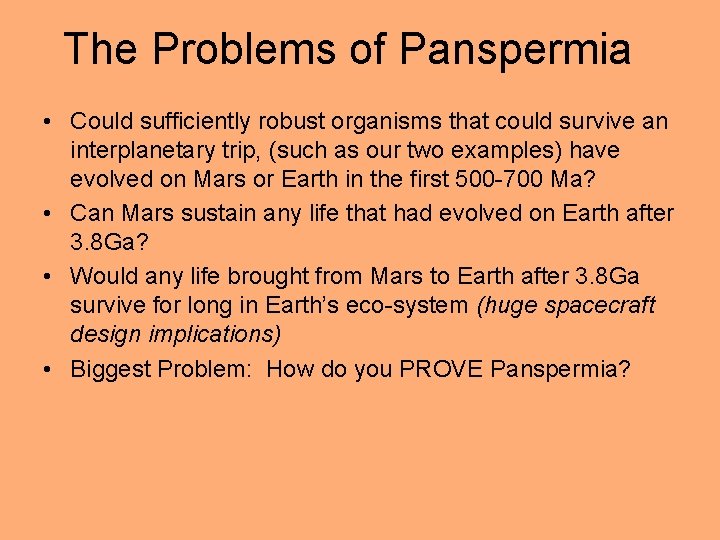

The Problems of Panspermia • Could sufficiently robust organisms that could survive an interplanetary trip, (such as our two examples) have evolved on Mars or Earth in the first 500 -700 Ma? • Can Mars sustain any life that had evolved on Earth after 3. 8 Ga? • Would any life brought from Mars to Earth after 3. 8 Ga survive for long in Earth’s eco-system (huge spacecraft design implications) • Biggest Problem: How do you PROVE Panspermia?

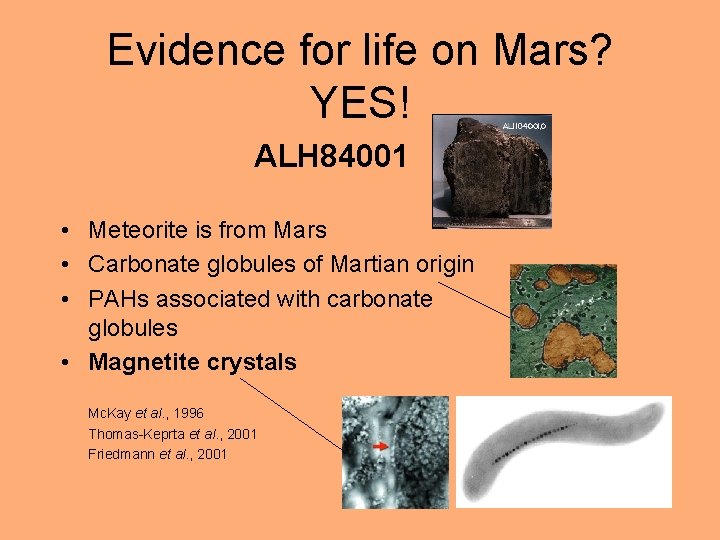

Evidence for life on Mars? YES! ALH 84001 • Meteorite is from Mars • Carbonate globules of Martian origin • PAHs associated with carbonate globules • Magnetite crystals Mc. Kay et al. , 1996 Thomas-Keprta et al. , 2001 Friedmann et al. , 2001

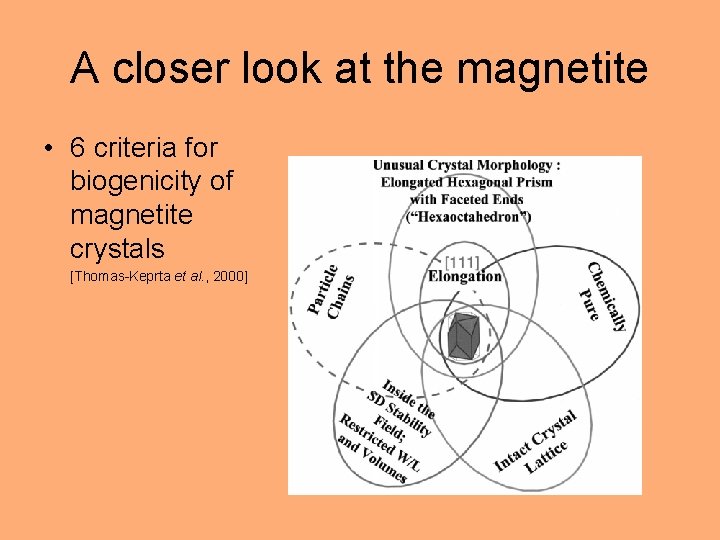

A closer look at the magnetite • 6 criteria for biogenicity of magnetite crystals [Thomas-Keprta et al. , 2000]

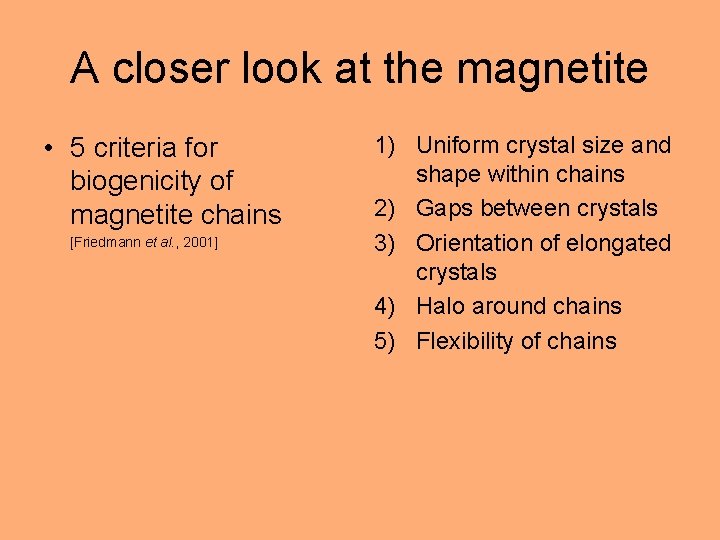

A closer look at the magnetite • 5 criteria for biogenicity of magnetite chains [Friedmann et al. , 2001] 1) Uniform crystal size and shape within chains 2) Gaps between crystals 3) Orientation of elongated crystals 4) Halo around chains 5) Flexibility of chains

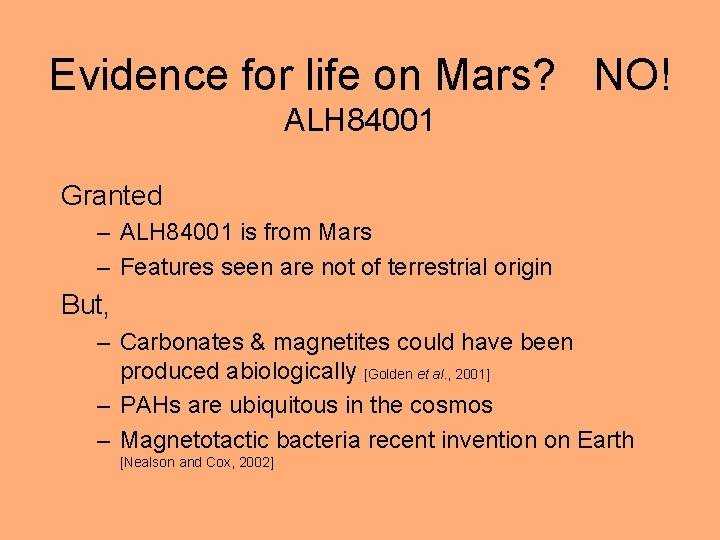

Evidence for life on Mars? NO! ALH 84001 Granted – ALH 84001 is from Mars – Features seen are not of terrestrial origin But, – Carbonates & magnetites could have been produced abiologically [Golden et al. , 2001] – PAHs are ubiquitous in the cosmos – Magnetotactic bacteria recent invention on Earth [Nealson and Cox, 2002]

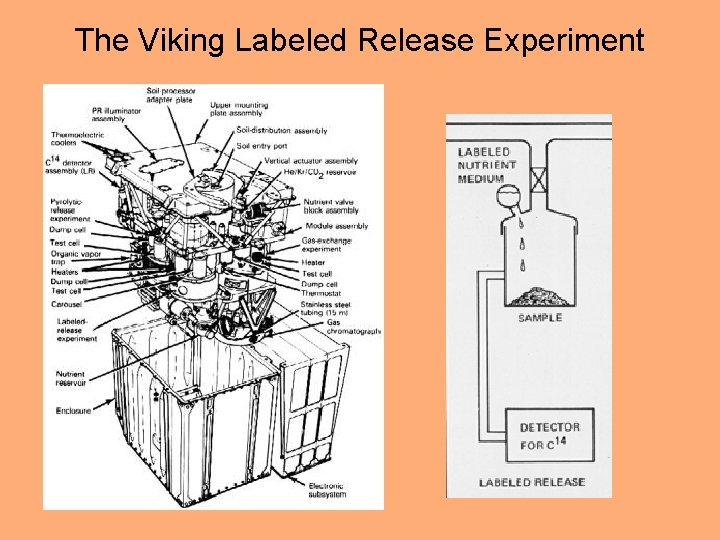

The Viking Labeled Release Experiment

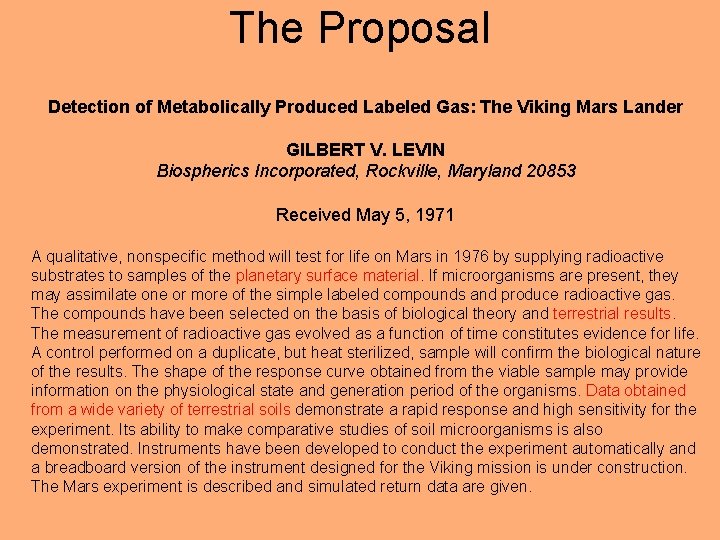

The Proposal Detection of Metabolically Produced Labeled Gas: The Viking Mars Lander GILBERT V. LEVIN Biospherics Incorporated, Rockville, Maryland 20853 Received May 5, 1971 A qualitative, nonspecific method will test for life on Mars in 1976 by supplying radioactive substrates to samples of the planetary surface material. If microorganisms are present, they may assimilate one or more of the simple labeled compounds and produce radioactive gas. The compounds have been selected on the basis of biological theory and terrestrial results. The measurement of radioactive gas evolved as a function of time constitutes evidence for life. A control performed on a duplicate, but heat sterilized, sample will confirm the biological nature of the results. The shape of the response curve obtained from the viable sample may provide information on the physiological state and generation period of the organisms. Data obtained from a wide variety of terrestrial soils demonstrate a rapid response and high sensitivity for the experiment. Its ability to make comparative studies of soil microorganisms is also demonstrated. Instruments have been developed to conduct the experiment automatically and a breadboard version of the instrument designed for the Viking mission is under construction. The Mars experiment is described and simulated return data are given.

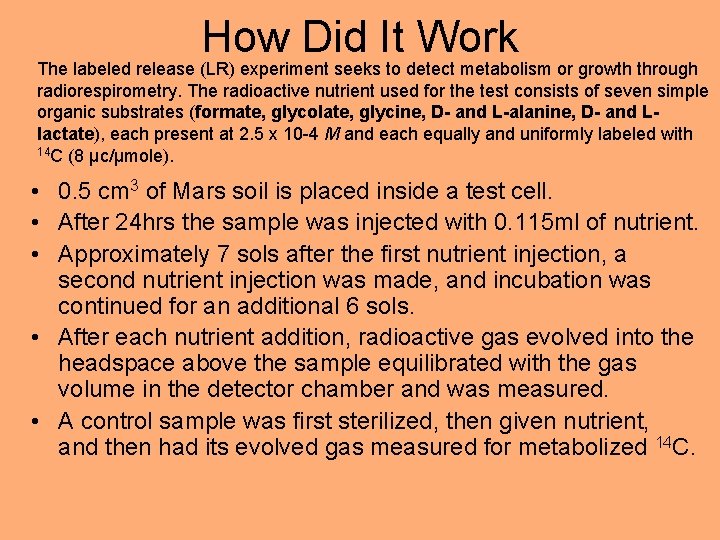

How Did It Work The labeled release (LR) experiment seeks to detect metabolism or growth through radiorespirometry. The radioactive nutrient used for the test consists of seven simple organic substrates (formate, glycolate, glycine, D- and L-alanine, D- and Llactate), each present at 2. 5 x 10 -4 M and each equally and uniformly labeled with 14 C (8 µc/µmole). • 0. 5 cm 3 of Mars soil is placed inside a test cell. • After 24 hrs the sample was injected with 0. 115 ml of nutrient. • Approximately 7 sols after the first nutrient injection, a second nutrient injection was made, and incubation was continued for an additional 6 sols. • After each nutrient addition, radioactive gas evolved into the headspace above the sample equilibrated with the gas volume in the detector chamber and was measured. • A control sample was first sterilized, then given nutrient, and then had its evolved gas measured for metabolized 14 C.

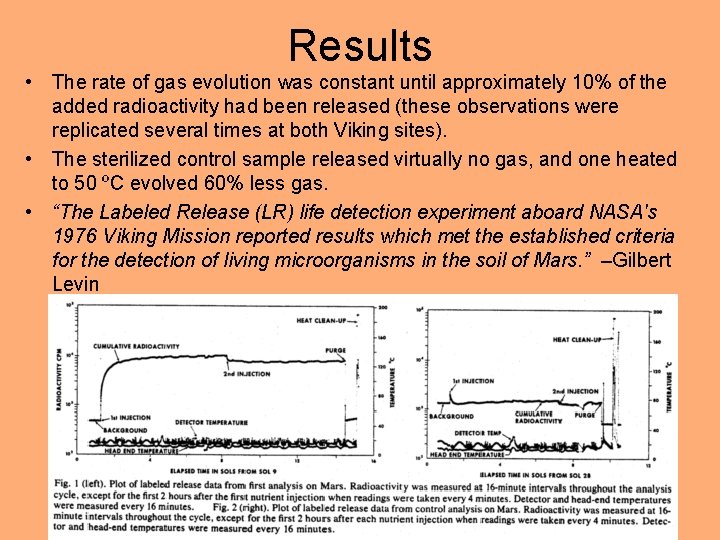

Results • The rate of gas evolution was constant until approximately 10% of the added radioactivity had been released (these observations were replicated several times at both Viking sites). • The sterilized control sample released virtually no gas, and one heated to 50 ºC evolved 60% less gas. • “The Labeled Release (LR) life detection experiment aboard NASA's 1976 Viking Mission reported results which met the established criteria for the detection of living microorganisms in the soil of Mars. ” –Gilbert Levin

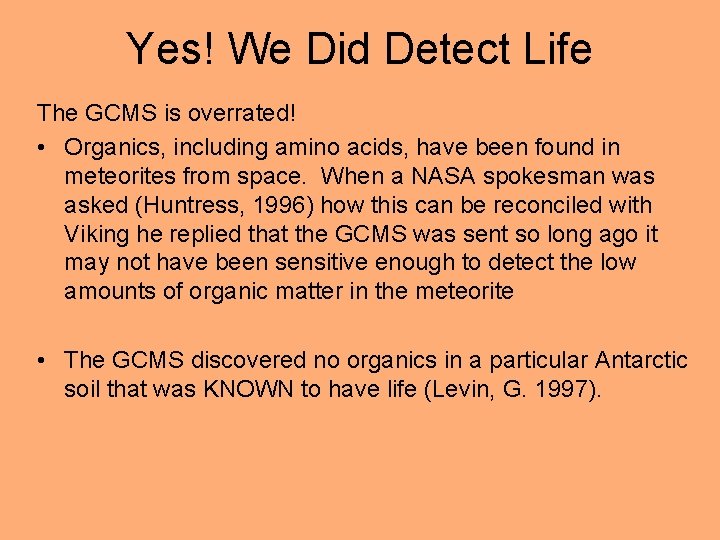

Yes! We Did Detect Life The GCMS is overrated! • Organics, including amino acids, have been found in meteorites from space. When a NASA spokesman was asked (Huntress, 1996) how this can be reconciled with Viking he replied that the GCMS was sent so long ago it may not have been sensitive enough to detect the low amounts of organic matter in the meteorite • The GCMS discovered no organics in a particular Antarctic soil that was KNOWN to have life (Levin, G. 1997).

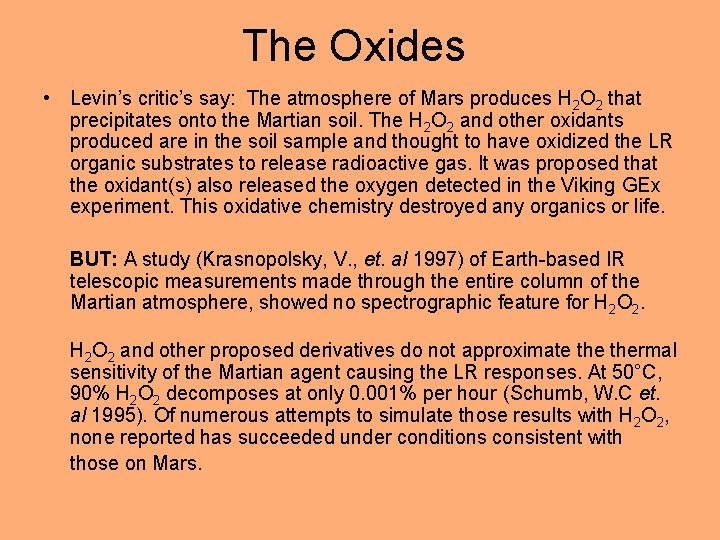

The Oxides • Levin’s critic’s say: The atmosphere of Mars produces H 2 O 2 that precipitates onto the Martian soil. The H 2 O 2 and other oxidants produced are in the soil sample and thought to have oxidized the LR organic substrates to release radioactive gas. It was proposed that the oxidant(s) also released the oxygen detected in the Viking GEx experiment. This oxidative chemistry destroyed any organics or life. BUT: A study (Krasnopolsky, V. , et. al 1997) of Earth-based IR telescopic measurements made through the entire column of the Martian atmosphere, showed no spectrographic feature for H 2 O 2 and other proposed derivatives do not approximate thermal sensitivity of the Martian agent causing the LR responses. At 50°C, 90% H 2 O 2 decomposes at only 0. 001% per hour (Schumb, W. C et. al 1995). Of numerous attempts to simulate those results with H 2 O 2, none reported has succeeded under conditions consistent with those on Mars.

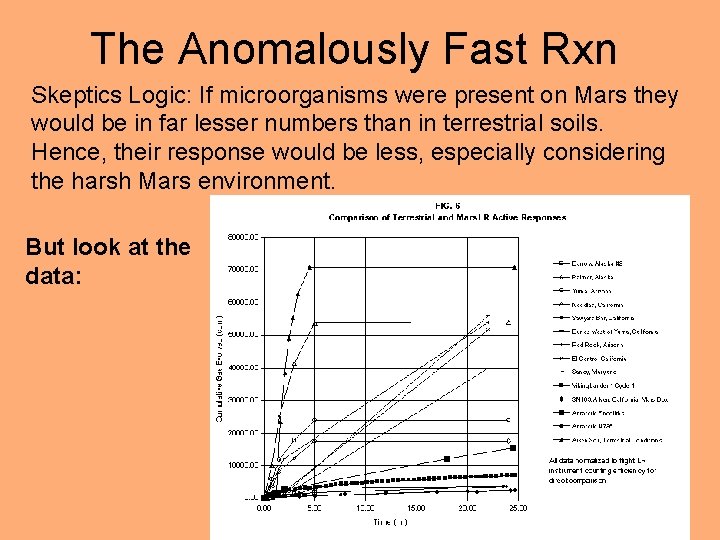

The Anomalously Fast Rxn Skeptics Logic: If microorganisms were present on Mars they would be in far lesser numbers than in terrestrial soils. Hence, their response would be less, especially considering the harsh Mars environment. But look at the data:

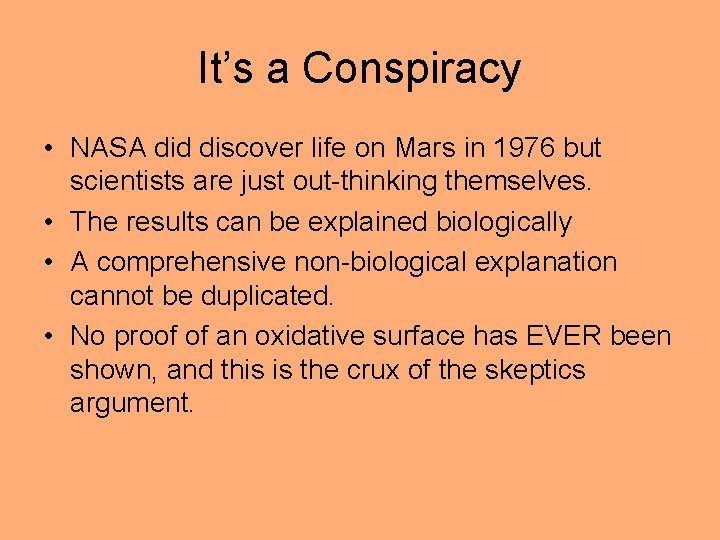

It’s a Conspiracy • NASA did discover life on Mars in 1976 but scientists are just out-thinking themselves. • The results can be explained biologically • A comprehensive non-biological explanation cannot be duplicated. • No proof of an oxidative surface has EVER been shown, and this is the crux of the skeptics argument.

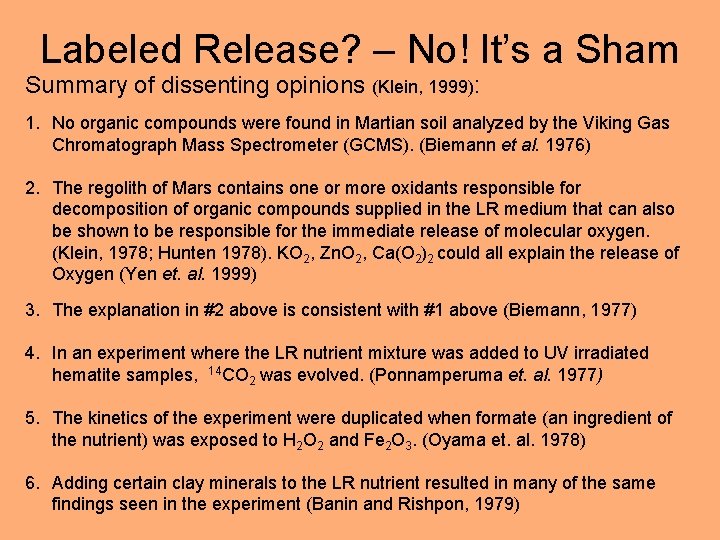

Labeled Release? – No! It’s a Sham Summary of dissenting opinions (Klein, 1999): 1. No organic compounds were found in Martian soil analyzed by the Viking Gas Chromatograph Mass Spectrometer (GCMS). (Biemann et al. 1976) 2. The regolith of Mars contains one or more oxidants responsible for decomposition of organic compounds supplied in the LR medium that can also be shown to be responsible for the immediate release of molecular oxygen. (Klein, 1978; Hunten 1978). KO 2, Zn. O 2, Ca(O 2)2 could all explain the release of Oxygen (Yen et. al. 1999) 3. The explanation in #2 above is consistent with #1 above (Biemann, 1977) 4. In an experiment where the LR nutrient mixture was added to UV irradiated hematite samples, 14 CO 2 was evolved. (Ponnamperuma et. al. 1977) 5. The kinetics of the experiment were duplicated when formate (an ingredient of the nutrient) was exposed to H 2 O 2 and Fe 2 O 3. (Oyama et. al. 1978) 6. Adding certain clay minerals to the LR nutrient resulted in many of the same findings seen in the experiment (Banin and Rishpon, 1979)

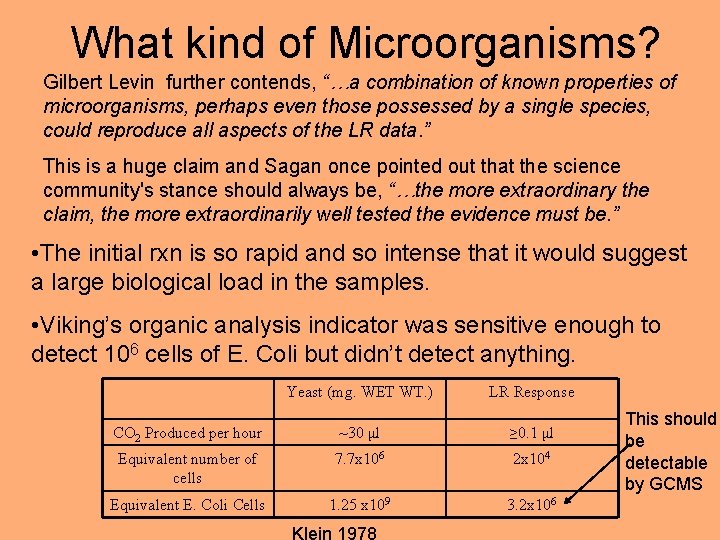

What kind of Microorganisms? Gilbert Levin further contends, “…a combination of known properties of microorganisms, perhaps even those possessed by a single species, could reproduce all aspects of the LR data. ” This is a huge claim and Sagan once pointed out that the science community's stance should always be, “…the more extraordinary the claim, the more extraordinarily well tested the evidence must be. ” • The initial rxn is so rapid and so intense that it would suggest a large biological load in the samples. • Viking’s organic analysis indicator was sensitive enough to detect 106 cells of E. Coli but didn’t detect anything. Yeast (mg. WET WT. ) LR Response CO 2 Produced per hour ~30 μl ≥ 0. 1 μl Equivalent number of cells 7. 7 x 106 2 x 104 Equivalent E. Coli Cells 1. 25 x 109 3. 2 x 106 Klein 1978 This should be detectable by GCMS

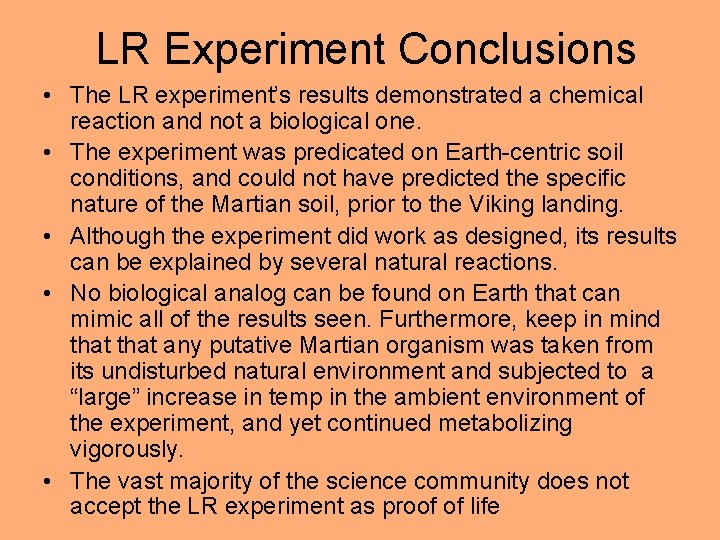

LR Experiment Conclusions • The LR experiment’s results demonstrated a chemical reaction and not a biological one. • The experiment was predicated on Earth-centric soil conditions, and could not have predicted the specific nature of the Martian soil, prior to the Viking landing. • Although the experiment did work as designed, its results can be explained by several natural reactions. • No biological analog can be found on Earth that can mimic all of the results seen. Furthermore, keep in mind that any putative Martian organism was taken from its undisturbed natural environment and subjected to a “large” increase in temp in the ambient environment of the experiment, and yet continued metabolizing vigorously. • The vast majority of the science community does not accept the LR experiment as proof of life

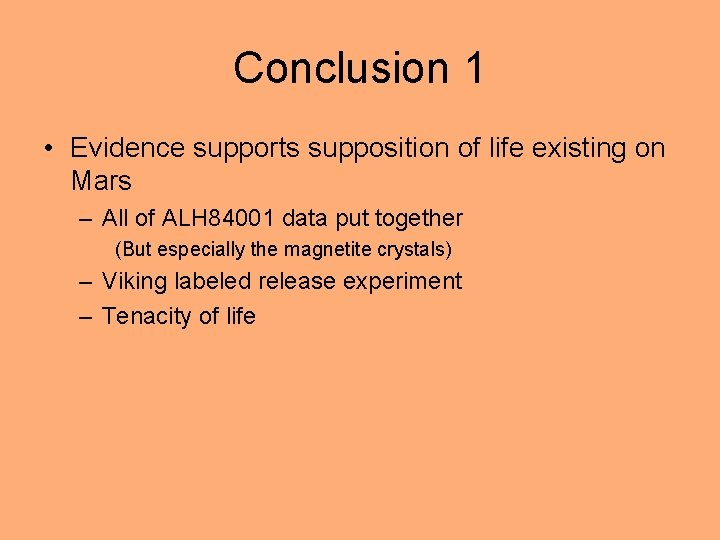

Conclusion 1 • Evidence supports supposition of life existing on Mars – All of ALH 84001 data put together (But especially the magnetite crystals) – Viking labeled release experiment – Tenacity of life

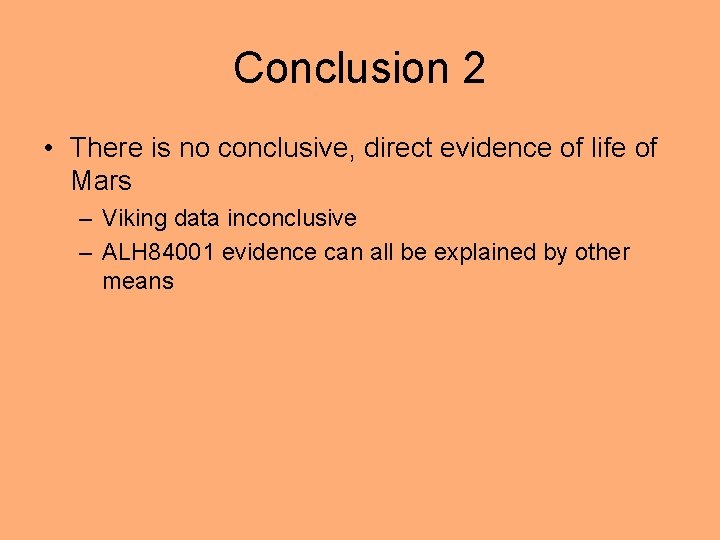

Conclusion 2 • There is no conclusive, direct evidence of life of Mars – Viking data inconclusive – ALH 84001 evidence can all be explained by other means

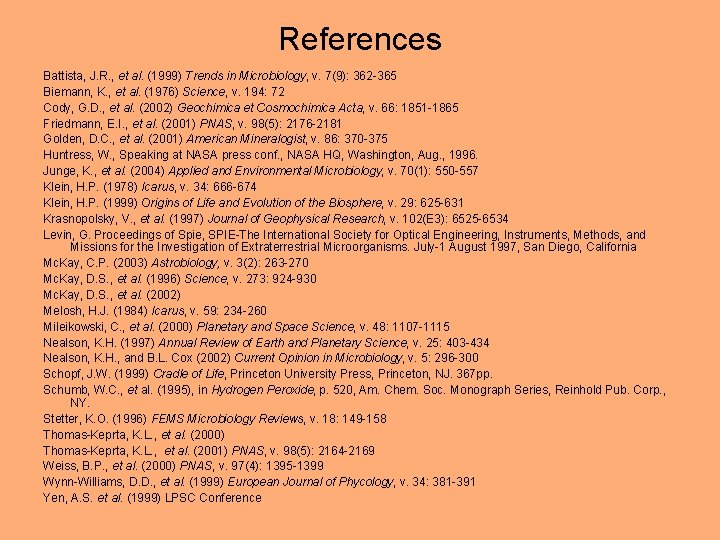

References Battista, J. R. , et al. (1999) Trends in Microbiology, v. 7(9): 362 -365 Biemann, K. , et al. (1976) Science, v. 194: 72 Cody, G. D. , et al. (2002) Geochimica et Cosmochimica Acta, v. 66: 1851 -1865 Friedmann, E. I. , et al. (2001) PNAS, v. 98(5): 2176 -2181 Golden, D. C. , et al. (2001) American Mineralogist, v. 86: 370 -375 Huntress, W. , Speaking at NASA press conf. , NASA HQ, Washington, Aug. , 1996. Junge, K. , et al. (2004) Applied and Environmental Microbiology, v. 70(1): 550 -557 Klein, H. P. (1978) Icarus, v. 34: 666 -674 Klein, H. P. (1999) Origins of Life and Evolution of the Biosphere, v. 29: 625 -631 Krasnopolsky, V. , et al. (1997) Journal of Geophysical Research, v. 102(E 3): 6525 -6534 Levin, G. Proceedings of Spie, SPIE-The International Society for Optical Engineering, Instruments, Methods, and Missions for the Investigation of Extraterrestrial Microorganisms. July-1 August 1997, San Diego, California Mc. Kay, C. P. (2003) Astrobiology, v. 3(2): 263 -270 Mc. Kay, D. S. , et al. (1996) Science, v. 273: 924 -930 Mc. Kay, D. S. , et al. (2002) Melosh, H. J. (1984) Icarus, v. 59: 234 -260 Mileikowski, C. , et al. (2000) Planetary and Space Science, v. 48: 1107 -1115 Nealson, K. H. (1997) Annual Review of Earth and Planetary Science, v. 25: 403 -434 Nealson, K. H. , and B. L. Cox (2002) Current Opinion in Microbiology, v. 5: 296 -300 Schopf, J. W. (1999) Cradle of Life, Princeton University Press, Princeton, NJ. 367 pp. Schumb, W. C. , et al. (1995), in Hydrogen Peroxide, p. 520, Am. Chem. Soc. Monograph Series, Reinhold Pub. Corp. , NY. Stetter, K. O. (1996) FEMS Microbiology Reviews, v. 18: 149 -158 Thomas-Keprta, K. L. , et al. (2000) Thomas-Keprta, K. L. , et al. (2001) PNAS, v. 98(5): 2164 -2169 Weiss, B. P. , et al. (2000) PNAS, v. 97(4): 1395 -1399 Wynn-Williams, D. D. , et al. (1999) European Journal of Phycology, v. 34: 381 -391 Yen, A. S. et al. (1999) LPSC Conference
