Life after HTML an introduction to the future

Life after HTML an introduction to the future of electronic publication Lou Burnard Humanities Computing Unit Oxford University http: //users. ox. ac. uk/~lou

What went wrong?

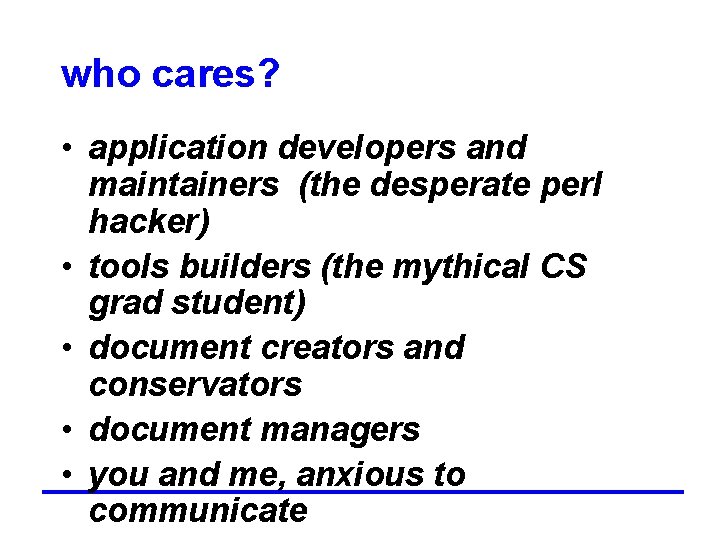

who cares? • application developers and maintainers (the desperate perl hacker) • tools builders (the mythical CS grad student) • document creators and conservators • document managers • you and me, anxious to communicate

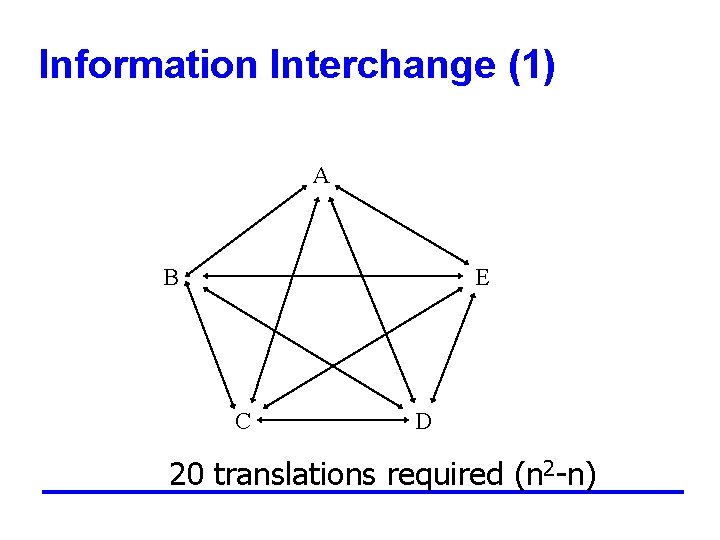

Information Interchange (1) A B E C D 20 translations required (n 2 -n)

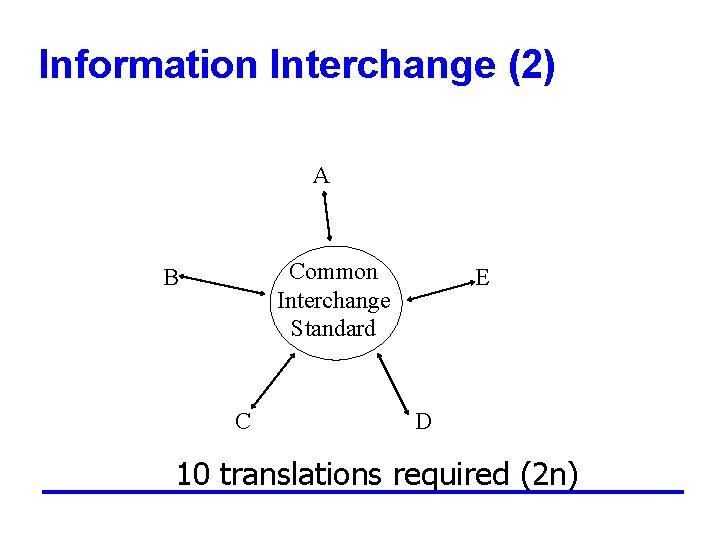

Information Interchange (2) A Common Interchange Standard B C E D 10 translations required (2 n)

What is XML? • e. Xtensible Markup Language • An activity of the World Wide Web Consortium (W 3 C) Adding intelligence to data SGML on the – original goal: delivering web Database exchange Client-side – new goals: processing refocus web development Access to the richerrules data of the game? • Rewriting Better data management http: //www. w 3. org/pub/WWW/Markup/Activity

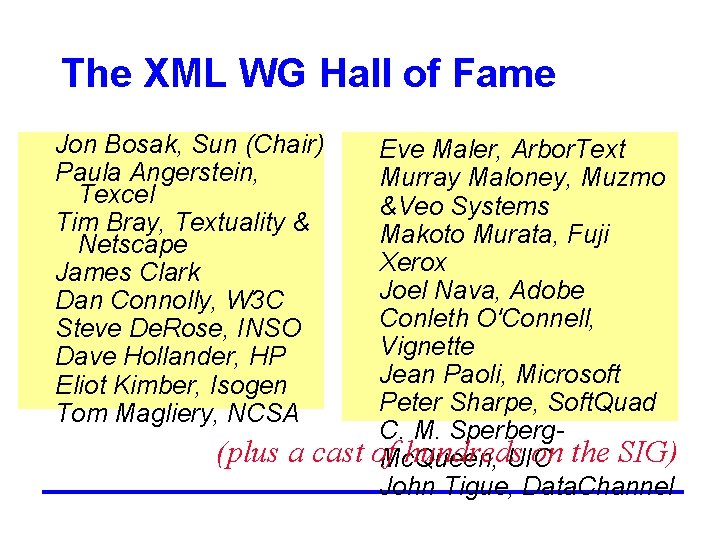

The XML WG Hall of Fame Jon Bosak, Sun (Chair) Paula Angerstein, Texcel Tim Bray, Textuality & Netscape James Clark Dan Connolly, W 3 C Steve De. Rose, INSO Dave Hollander, HP Eliot Kimber, Isogen Tom Magliery, NCSA (plus a cast Eve Maler, Arbor. Text Murray Maloney, Muzmo &Veo Systems Makoto Murata, Fuji Xerox Joel Nava, Adobe Conleth O'Connell, Vignette Jean Paoli, Microsoft Peter Sharpe, Soft. Quad C. M. Sperbergof hundreds on the SIG) Mc. Queen, UIC John Tigue, Data. Channel

making data into information

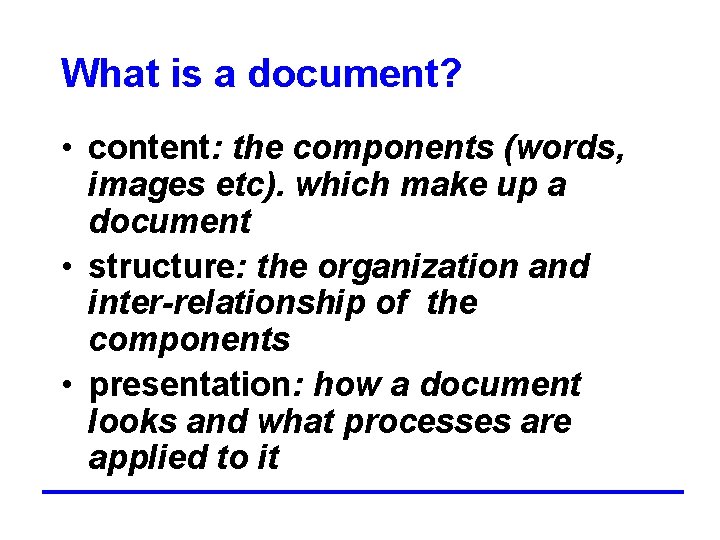

What is a document? • content: the components (words, images etc). which make up a document • structure: the organization and inter-relationship of the components • presentation: how a document looks and what processes are applied to it

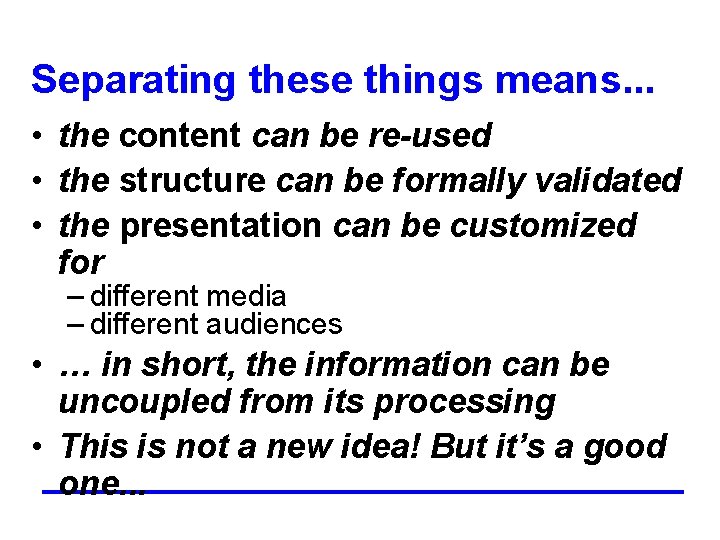

Separating these things means. . . • the content can be re-used • the structure can be formally validated • the presentation can be customized for – different media – different audiences • … in short, the information can be uncoupled from its processing • This is not a new idea! But it’s a good one. . .

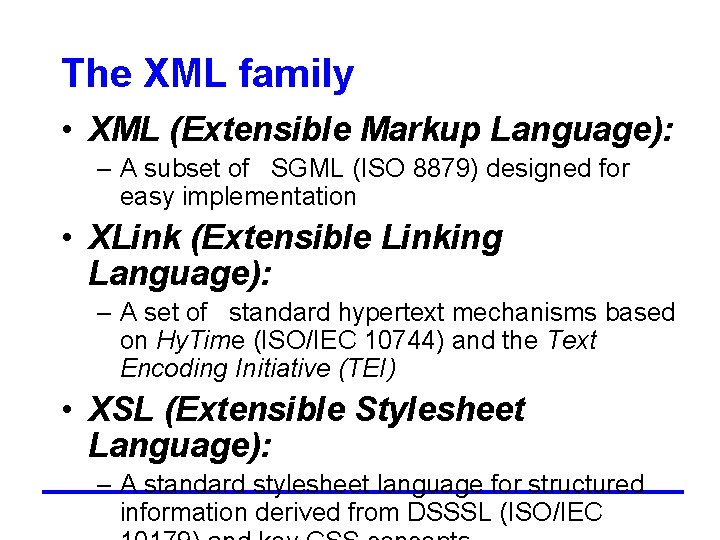

The XML family • XML (Extensible Markup Language): – A subset of SGML (ISO 8879) designed for easy implementation • XLink (Extensible Linking Language): – A set of standard hypertext mechanisms based on Hy. Time (ISO/IEC 10744) and the Text Encoding Initiative (TEI) • XSL (Extensible Stylesheet Language): – A standard stylesheet language for structured information derived from DSSSL (ISO/IEC

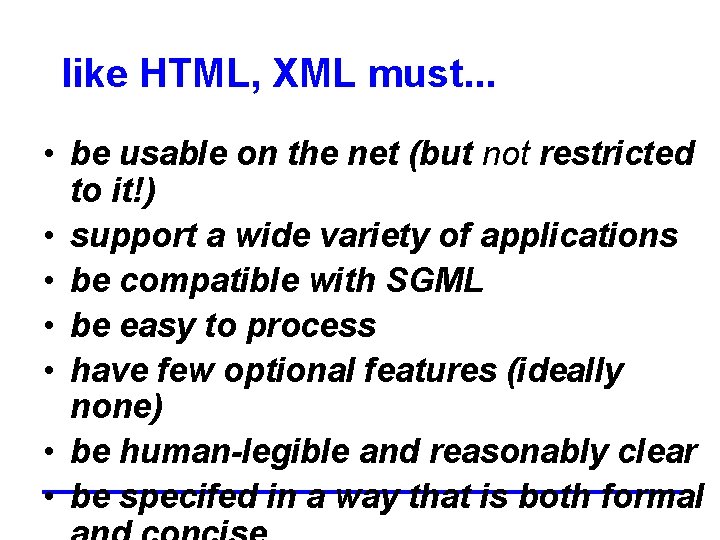

like HTML, XML must. . . • be usable on the net (but not restricted to it!) • support a wide variety of applications • be compatible with SGML • be easy to process • have few optional features (ideally none) • be human-legible and reasonably clear • be specifed in a way that is both formal

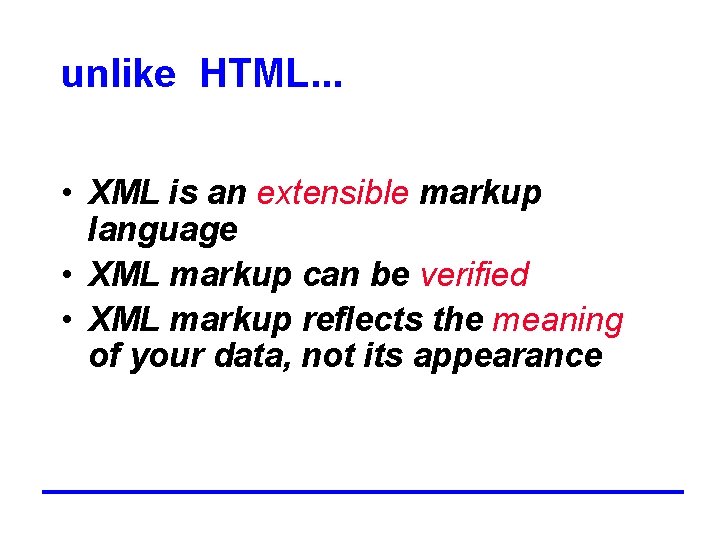

unlike HTML. . . • XML is an extensible markup language • XML markup can be verified • XML markup reflects the meaning of your data, not its appearance

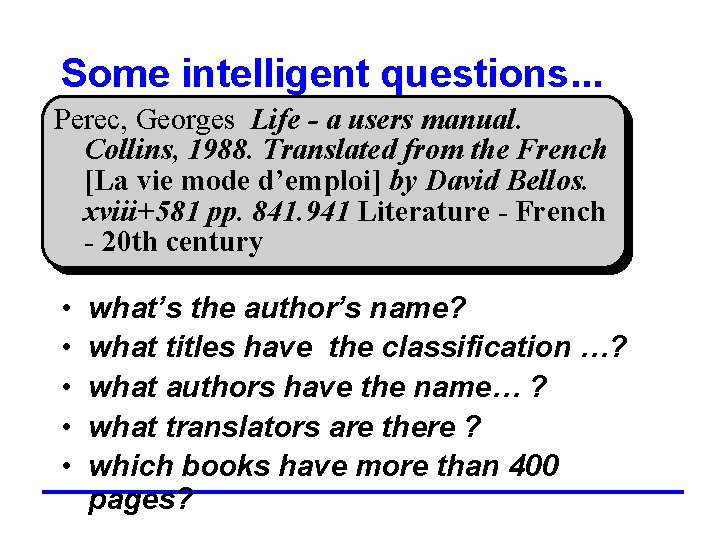

Some intelligent questions. . . Perec, Georges Life - a users manual. Collins, 1988. Translated from the French [La vie mode d’emploi] by David Bellos. xviii+581 pp. 841. 941 Literature - French - 20 th century • • • what’s the author’s name? what titles have the classification …? what authors have the name… ? what translators are there ? which books have more than 400 pages?

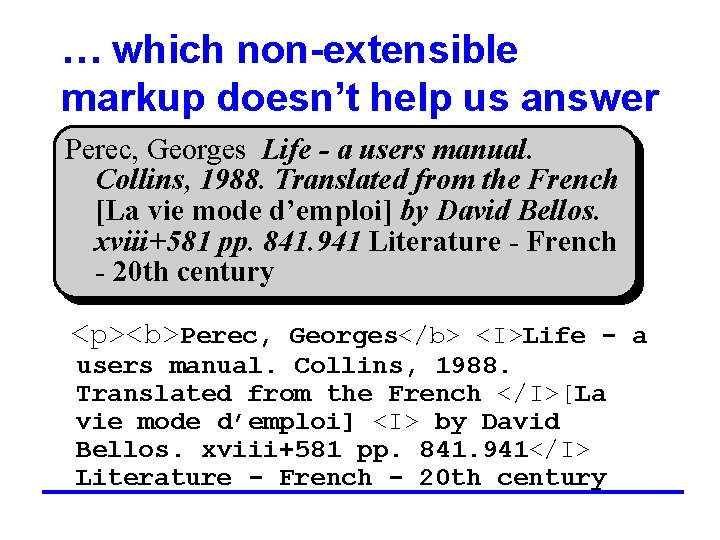

… which non-extensible markup doesn’t help us answer Perec, Georges Life - a users manual. Collins, 1988. Translated from the French [La vie mode d’emploi] by David Bellos. xviii+581 pp. 841. 941 Literature - French - 20 th century <p><b>Perec, Georges</b> <I>Life - a users manual. Collins, 1988. Translated from the French </I>[La vie mode d’emploi] <I> by David Bellos. xviii+581 pp. 841. 941</I> Literature - French - 20 th century

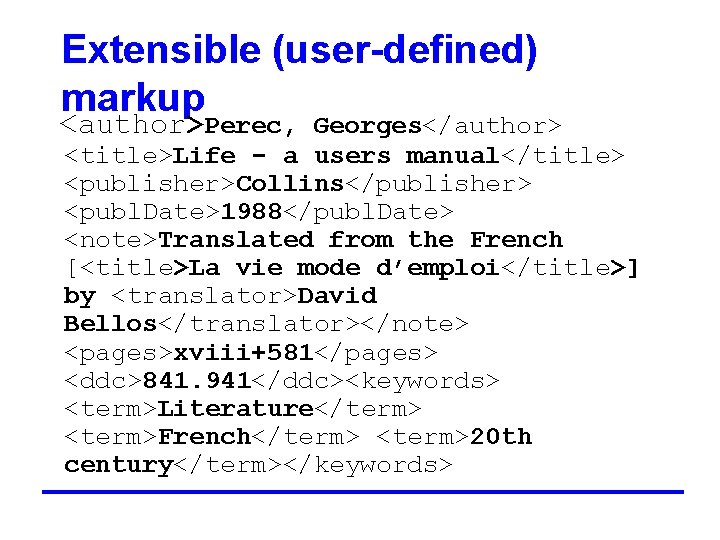

Extensible (user-defined) markup <author>Perec, Georges</author> <title>Life - a users manual</title> <publisher>Collins</publisher> <publ. Date>1988</publ. Date> <note>Translated from the French [<title>La vie mode d’emploi</title>] by <translator>David Bellos</translator></note> <pages>xviii+581</pages> <ddc>841. 941</ddc><keywords> <term>Literature</term> <term>French</term> <term>20 th century</term></keywords>

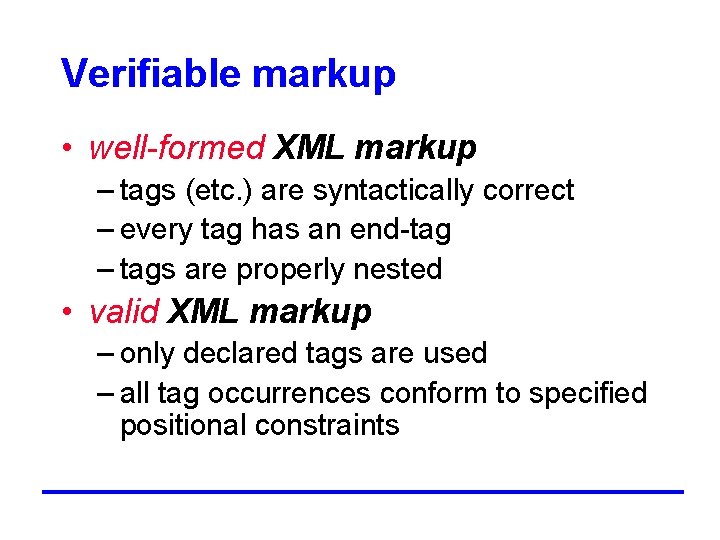

Verifiable markup • well-formed XML markup – tags (etc. ) are syntactically correct – every tag has an end-tag – tags are properly nested • valid XML markup – only declared tags are used – all tag occurrences conform to specified positional constraints

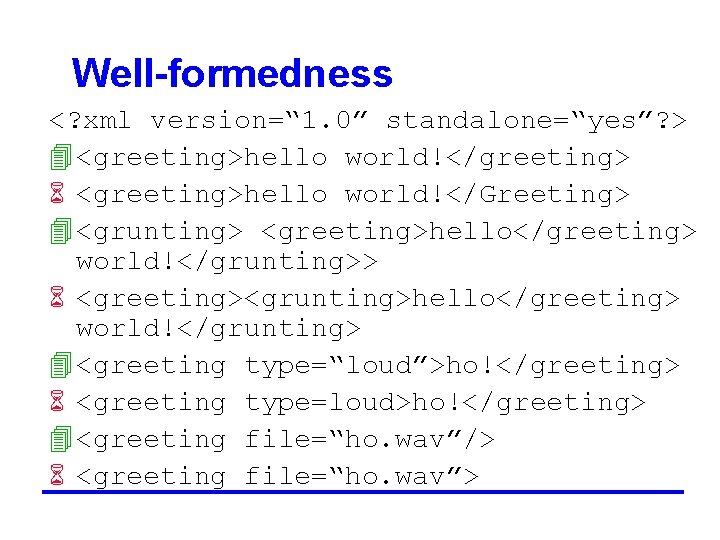

Well-formedness <? xml version=“ 1. 0” standalone=“yes”? > 4 <greeting>hello world!</greeting> 6 <greeting>hello world!</Greeting> 4 <grunting> <greeting>hello</greeting> world!</grunting>> 6 <greeting><grunting>hello</greeting> world!</grunting> 4 <greeting type=“loud”>ho!</greeting> 6 <greeting type=loud>ho!</greeting> 4 <greeting file=“ho. wav”/> 6 <greeting file=“ho. wav”>

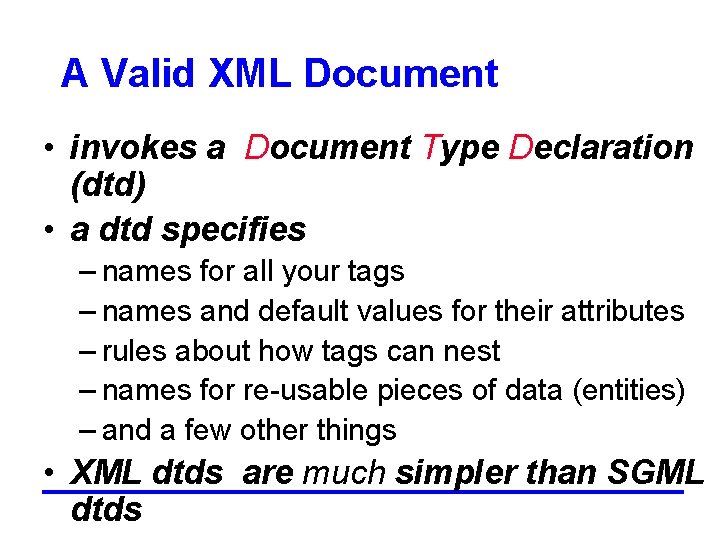

A Valid XML Document • invokes a Document Type Declaration (dtd) • a dtd specifies – names for all your tags – names and default values for their attributes – rules about how tags can nest – names for re-usable pieces of data (entities) – and a few other things • XML dtds are much simpler than SGML dtds

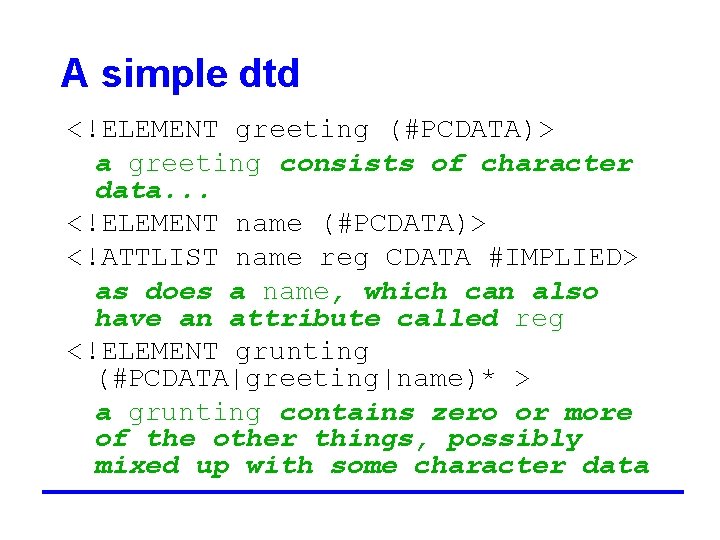

A simple dtd <!ELEMENT greeting (#PCDATA)> a greeting consists of character data. . . <!ELEMENT name (#PCDATA)> <!ATTLIST name reg CDATA #IMPLIED> as does a name, which can also have an attribute called reg <!ELEMENT grunting (#PCDATA|greeting|name)* > a grunting contains zero or more of the other things, possibly mixed up with some character data

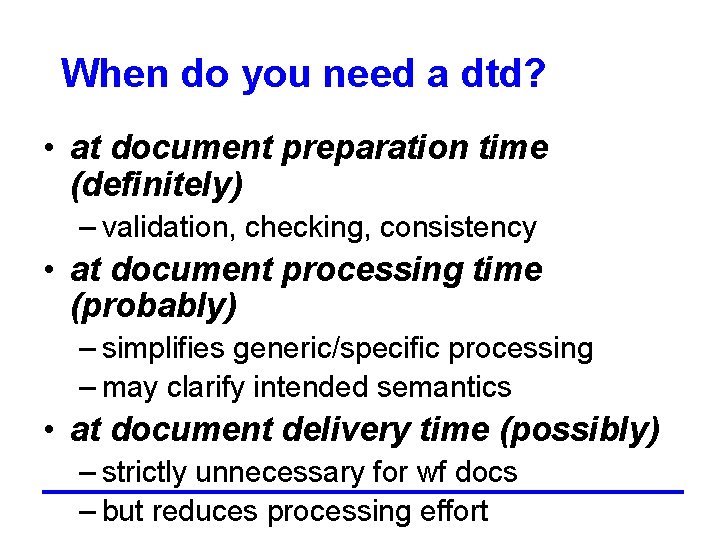

When do you need a dtd? • at document preparation time (definitely) – validation, checking, consistency • at document processing time (probably) – simplifies generic/specific processing – may clarify intended semantics • at document delivery time (possibly) – strictly unnecessary for wf docs – but reduces processing effort

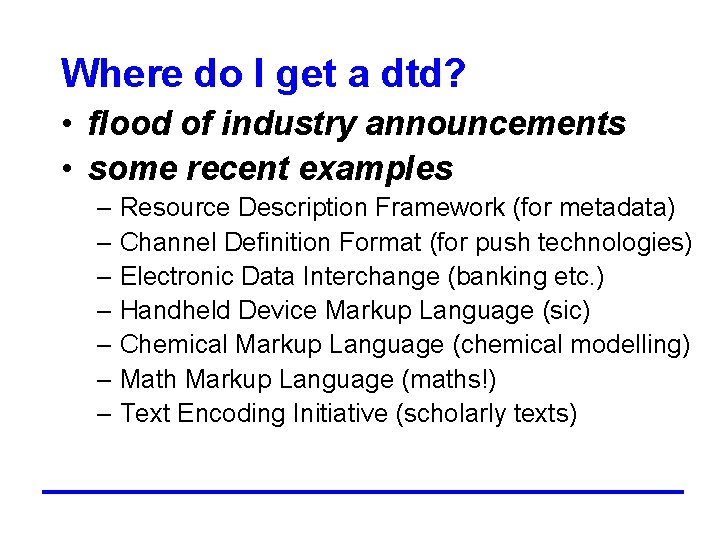

Where do I get a dtd? • flood of industry announcements • some recent examples – Resource Description Framework (for metadata) – Channel Definition Format (for push technologies) – Electronic Data Interchange (banking etc. ) – Handheld Device Markup Language (sic) – Chemical Markup Language (chemical modelling) – Math Markup Language (maths!) – Text Encoding Initiative (scholarly texts)

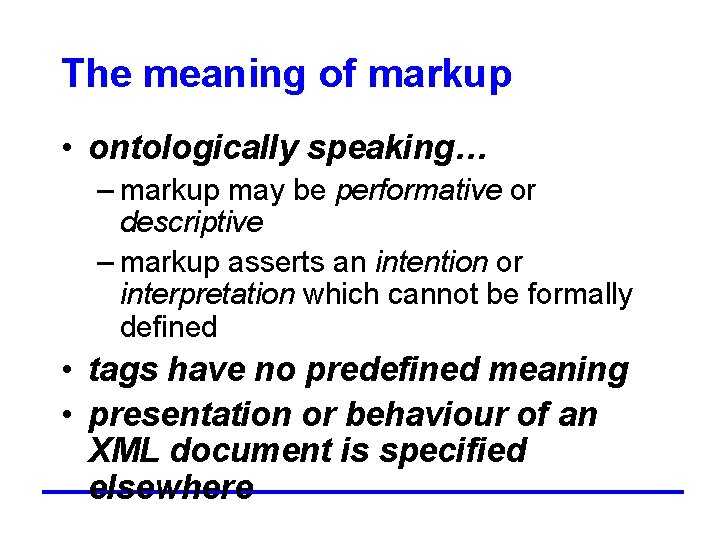

The meaning of markup • ontologically speaking… – markup may be performative or descriptive – markup asserts an intention or interpretation which cannot be formally defined • tags have no predefined meaning • presentation or behaviour of an XML document is specified elsewhere

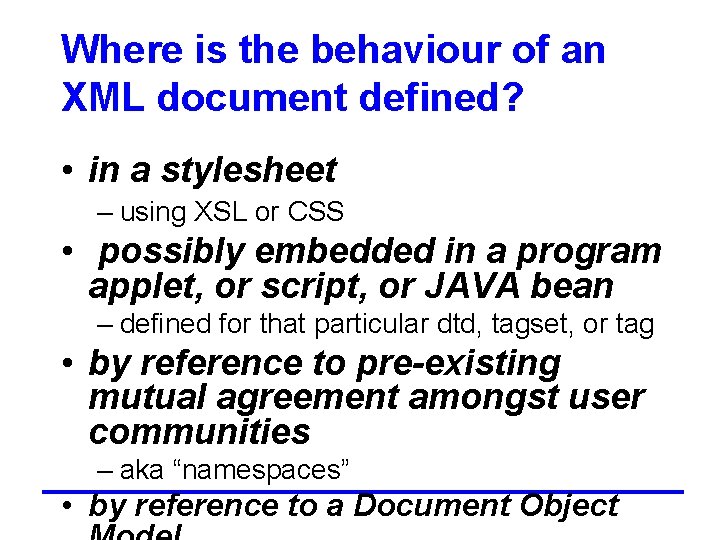

Where is the behaviour of an XML document defined? • in a stylesheet – using XSL or CSS • possibly embedded in a program applet, or script, or JAVA bean – defined for that particular dtd, tagset, or tag • by reference to pre-existing mutual agreement amongst user communities – aka “namespaces” • by reference to a Document Object

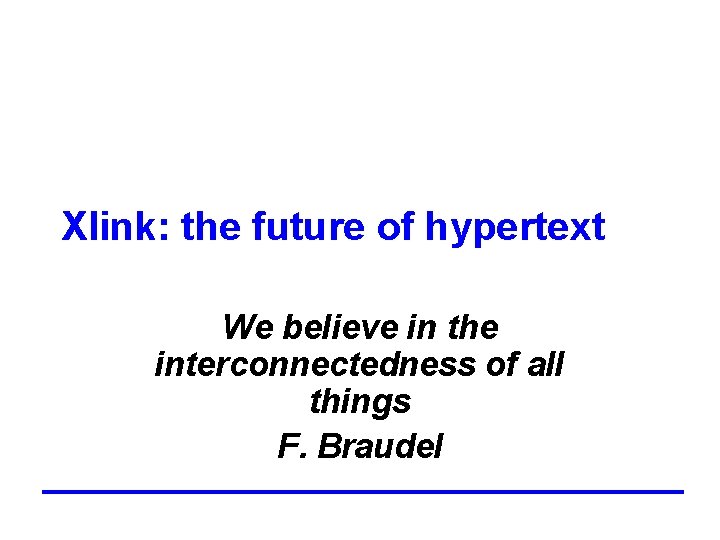

Xlink: the future of hypertext We believe in the interconnectedness of all things F. Braudel

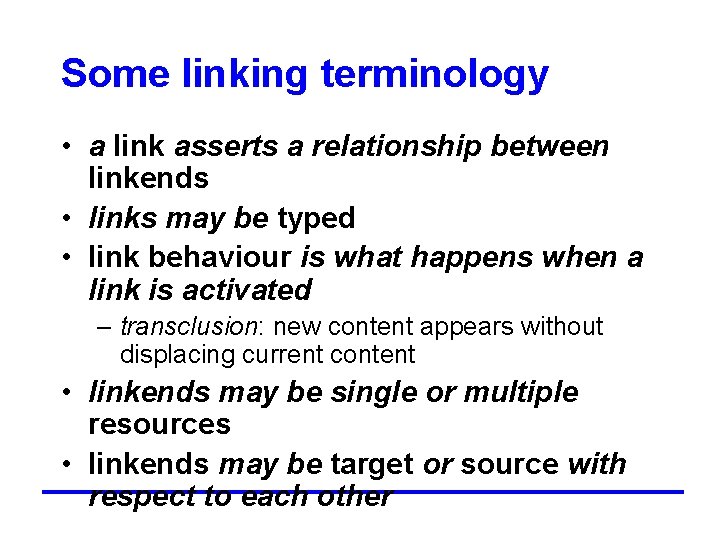

Some linking terminology • a link asserts a relationship between linkends • links may be typed • link behaviour is what happens when a link is activated – transclusion: new content appears without displacing current content • linkends may be single or multiple resources • linkends may be target or source with respect to each other

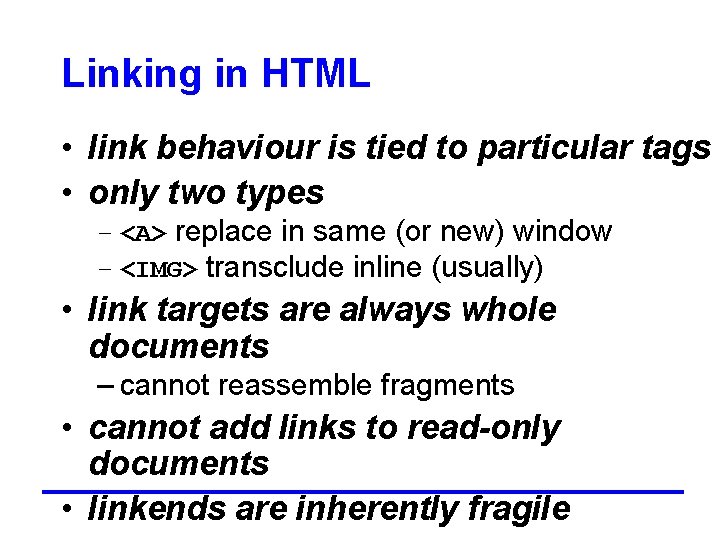

Linking in HTML • link behaviour is tied to particular tags • only two types – <A> replace in same (or new) window – <IMG> transclude inline (usually) • link targets are always whole documents – cannot reassemble fragments • cannot add links to read-only documents • linkends are inherently fragile

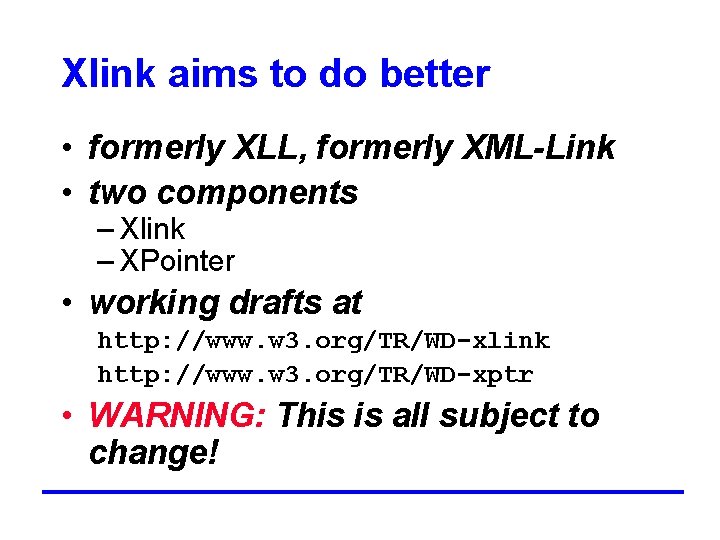

Xlink aims to do better • formerly XLL, formerly XML-Link • two components – Xlink – XPointer • working drafts at http: //www. w 3. org/TR/WD-xlink http: //www. w 3. org/TR/WD-xptr • WARNING: This is all subject to change!

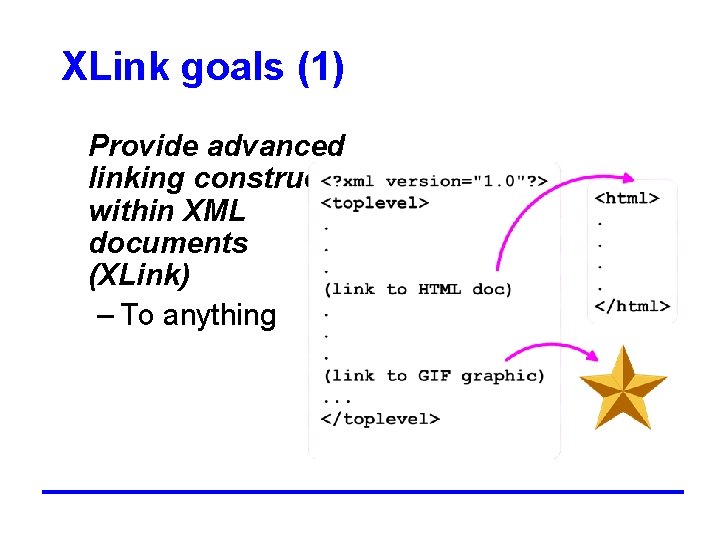

XLink goals (1) Provide advanced linking constructs within XML documents (XLink) – To anything

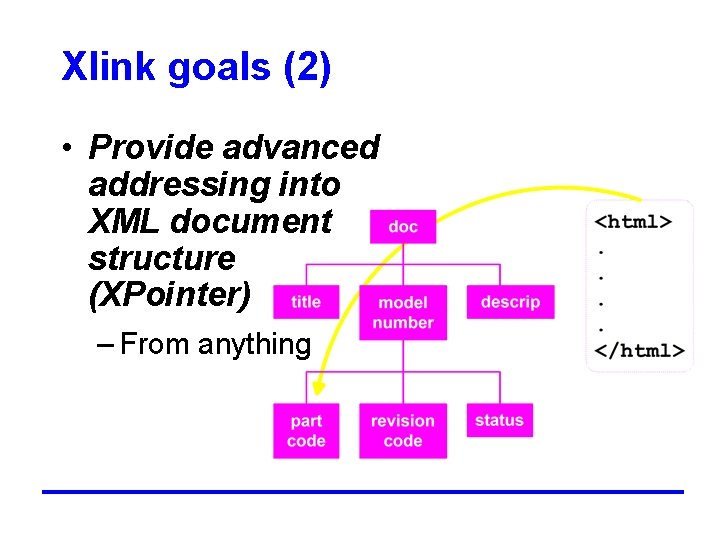

Xlink goals (2) • Provide advanced addressing into XML document structure (XPointer) – From anything

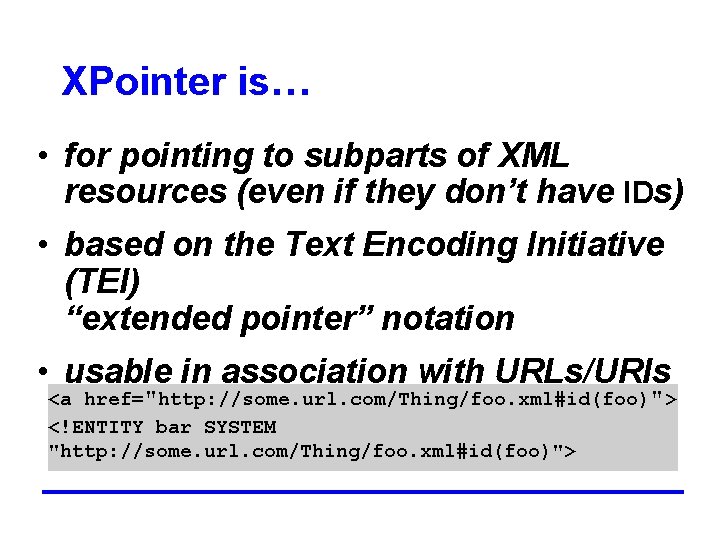

XPointer is… • for pointing to subparts of XML resources (even if they don’t have IDs) • based on the Text Encoding Initiative (TEI) “extended pointer” notation • usable in association with URLs/URIs <a href="http: //some. url. com/Thing/foo. xml#id(foo)"> <!ENTITY bar SYSTEM "http: //some. url. com/Thing/foo. xml#id(foo)">

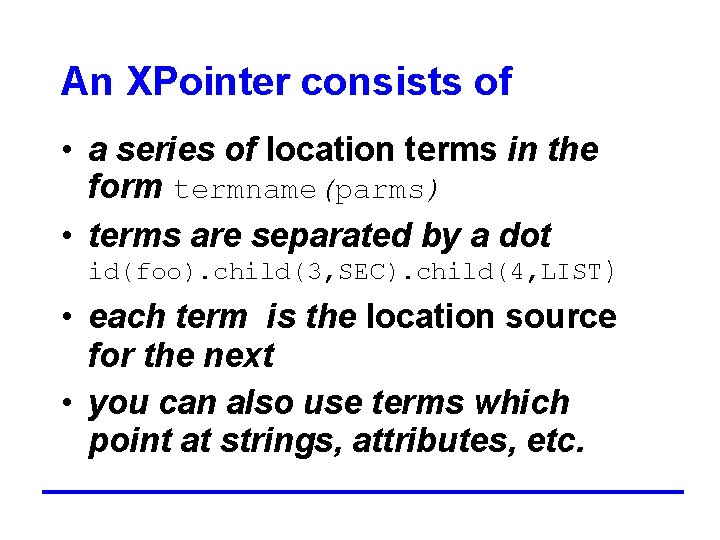

An XPointer consists of • a series of location terms in the form termname(parms) • terms are separated by a dot id(foo). child(3, SEC). child(4, LIST) • each term is the location source for the next • you can also use terms which point at strings, attributes, etc.

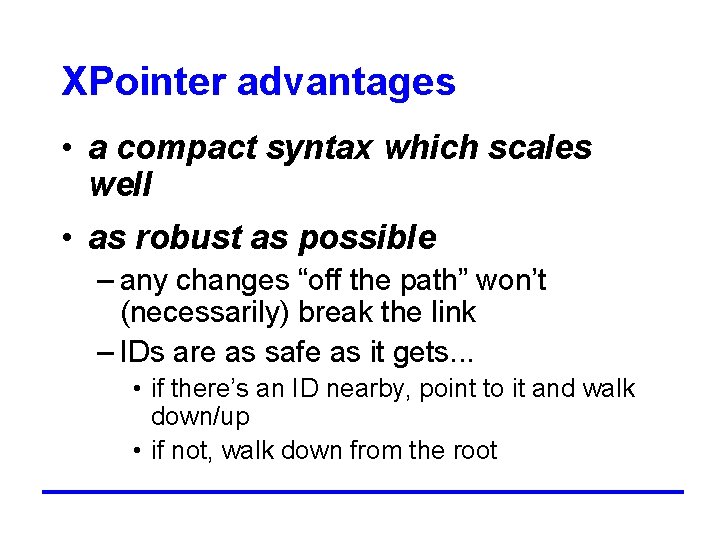

XPointer advantages • a compact syntax which scales well • as robust as possible – any changes “off the path” won’t (necessarily) break the link – IDs are as safe as it gets. . . • if there’s an ID nearby, point to it and walk down/up • if not, walk down from the root

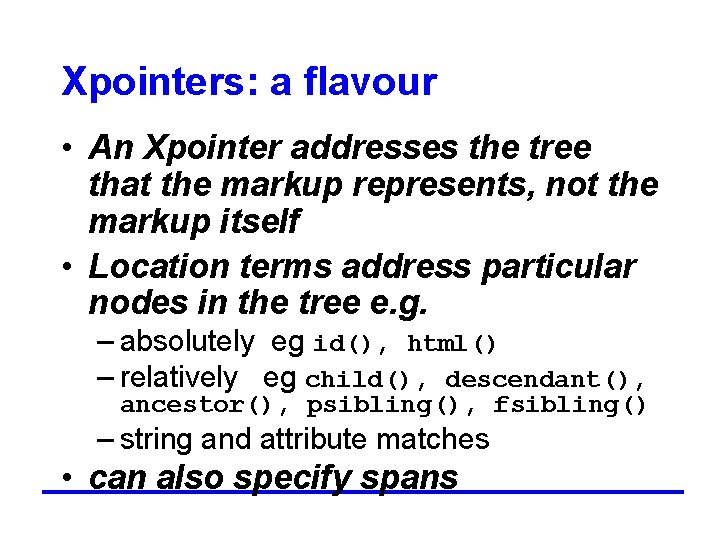

Xpointers: a flavour • An Xpointer addresses the tree that the markup represents, not the markup itself • Location terms address particular nodes in the tree e. g. – absolutely eg id(), html() – relatively eg child(), descendant(), ancestor(), psibling(), fsibling() – string and attribute matches • can also specify spans

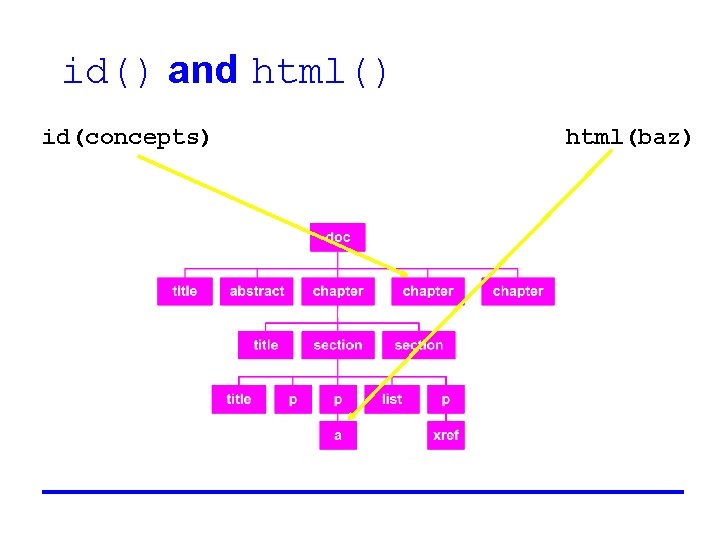

id() and html() id(concepts) html(baz)

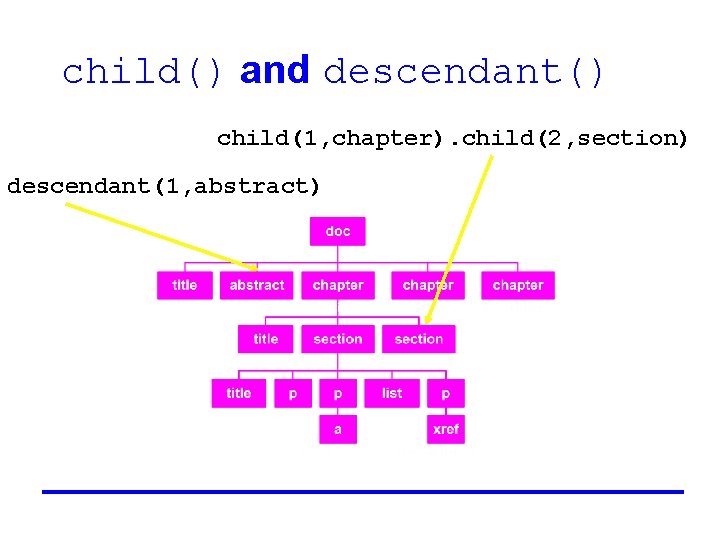

child() and descendant() child(1, chapter). child(2, section) descendant(1, abstract)

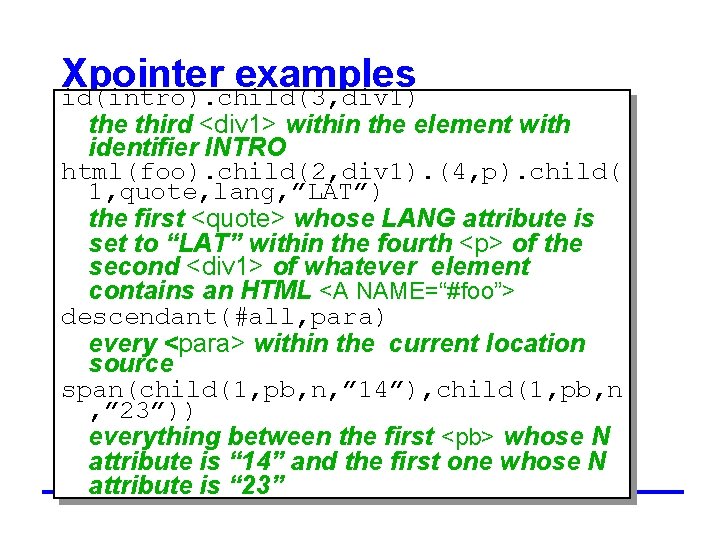

Xpointer examples id(intro). child(3, div 1) the third <div 1> within the element with identifier INTRO html(foo). child(2, div 1). (4, p). child( 1, quote, lang, ”LAT”) the first <quote> whose LANG attribute is set to “LAT” within the fourth <p> of the second <div 1> of whatever element contains an HTML <A NAME=“#foo”> descendant(#all, para) every <para> within the current location source span(child(1, pb, n, ” 14”), child(1, pb, n , ” 23”)) everything between the first <pb> whose N attribute is “ 14” and the first one whose N attribute is “ 23”

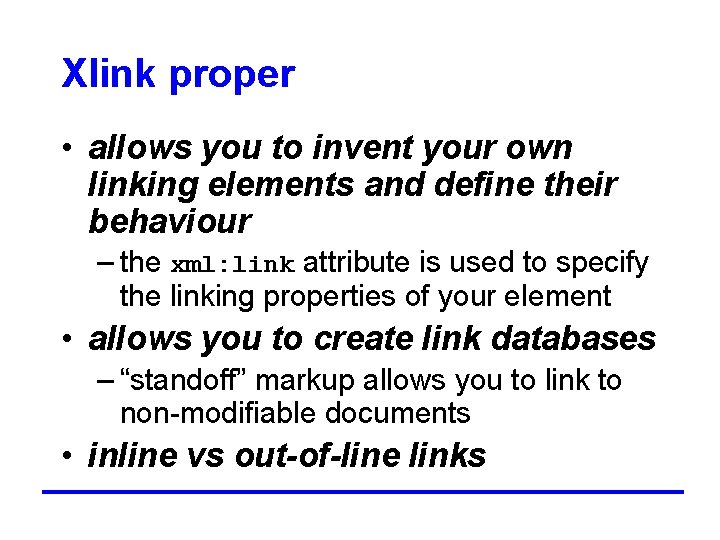

Xlink proper • allows you to invent your own linking elements and define their behaviour – the xml: link attribute is used to specify the linking properties of your element • allows you to create link databases – “standoff” markup allows you to link to non-modifiable documents • inline vs out-of-line links

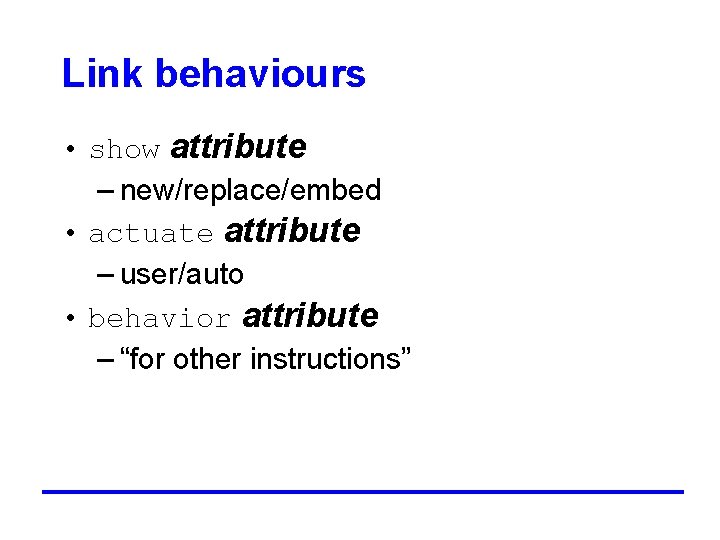

Link behaviours • show attribute – new/replace/embed • actuate attribute – user/auto • behavior attribute – “for other instructions”

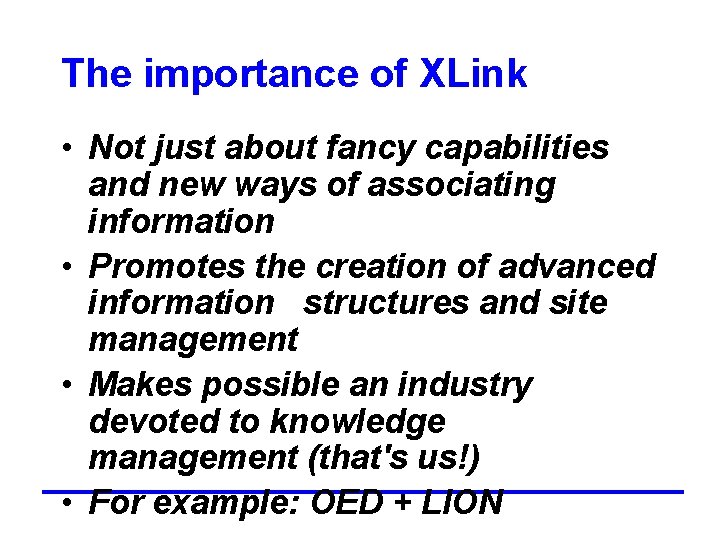

The importance of XLink • Not just about fancy capabilities and new ways of associating information • Promotes the creation of advanced information structures and site management • Makes possible an industry devoted to knowledge management (that's us!) • For example: OED + LION

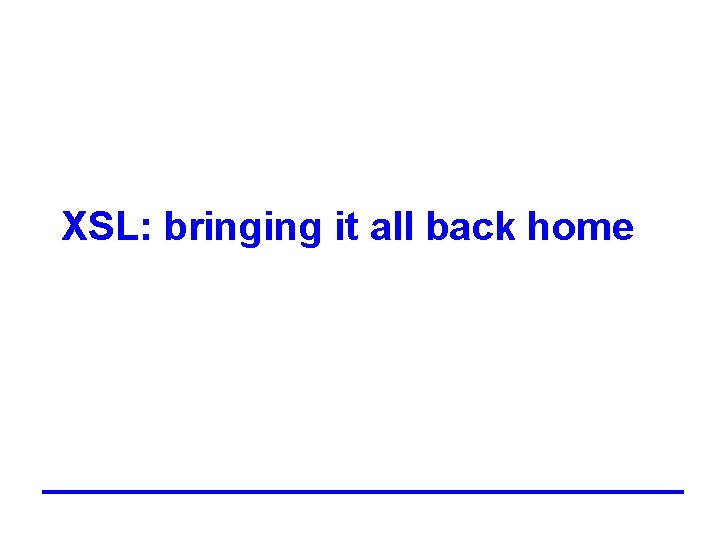

XSL: bringing it all back home

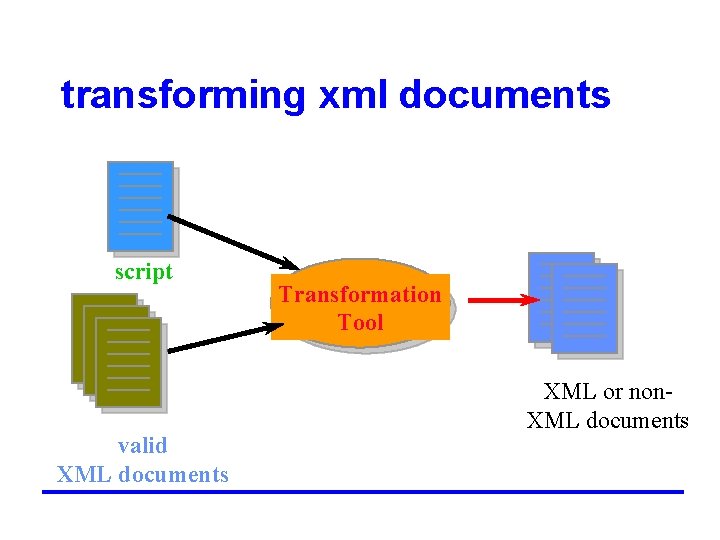

transforming xml documents script valid XML documents Transformation Tool XML or non. XML documents

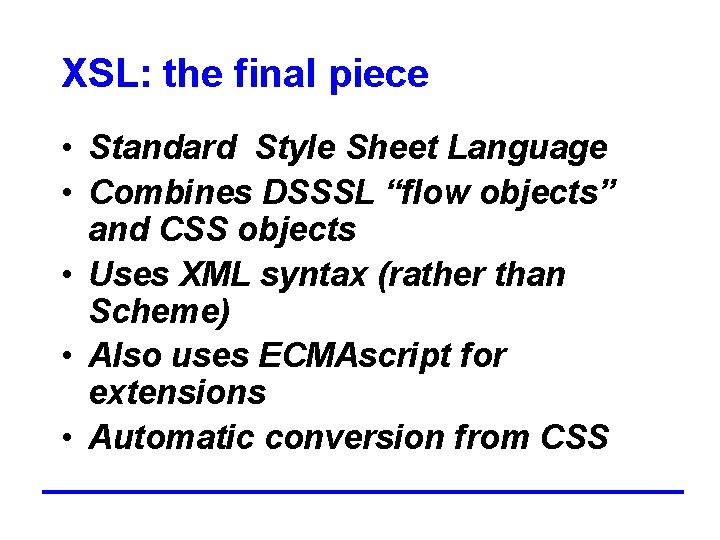

XSL: the final piece • Standard Style Sheet Language • Combines DSSSL “flow objects” and CSS objects • Uses XML syntax (rather than Scheme) • Also uses ECMAscript for extensions • Automatic conversion from CSS

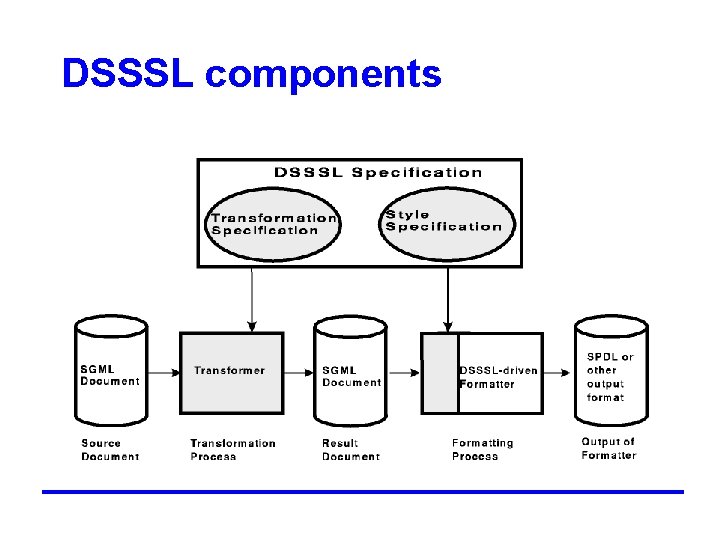

DSSSL components

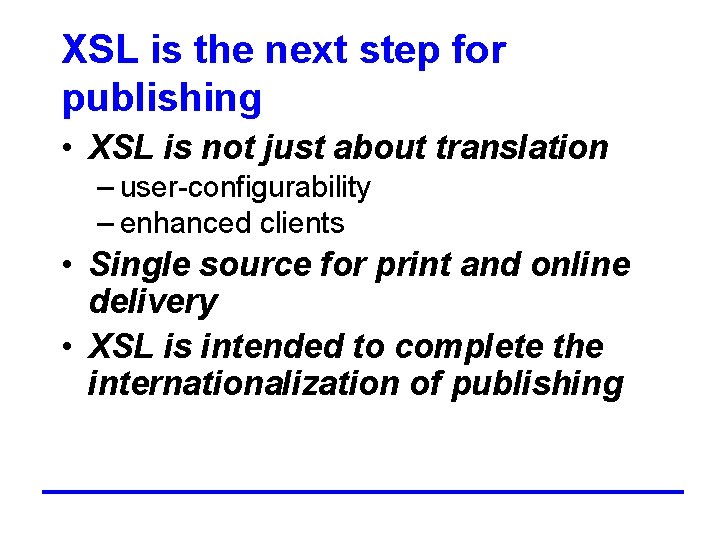

XSL is the next step for publishing • XSL is not just about translation – user-configurability – enhanced clients • Single source for print and online delivery • XSL is intended to complete the internationalization of publishing

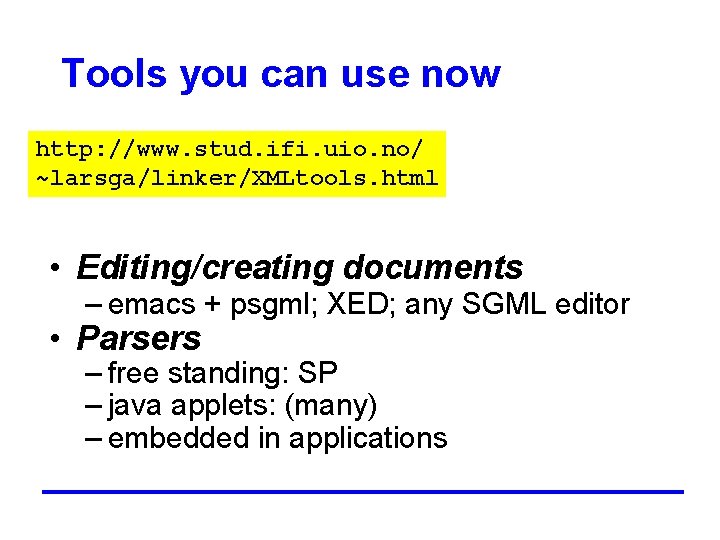

Tools you can use now http: //www. stud. ifi. uio. no/ ~larsga/linker/XMLtools. html • Editing/creating documents – emacs + psgml; XED; any SGML editor • Parsers – free standing: SP – java applets: (many) – embedded in applications

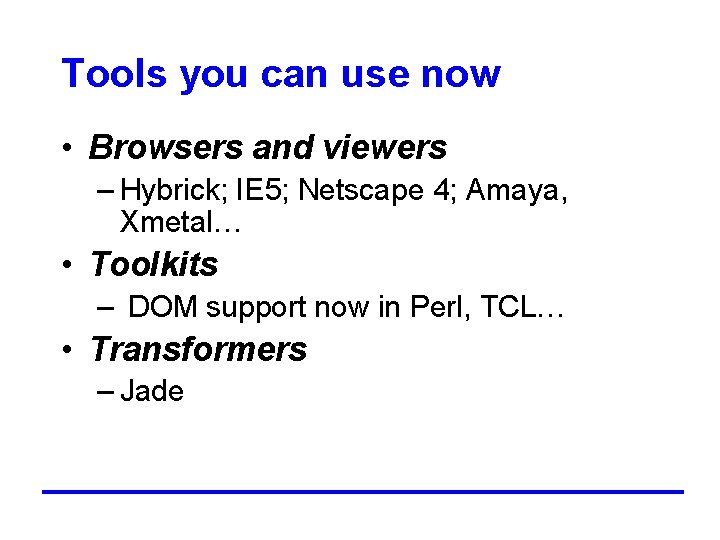

Tools you can use now • Browsers and viewers – Hybrick; IE 5; Netscape 4; Amaya, Xmetal… • Toolkits – DOM support now in Perl, TCL… • Transformers – Jade

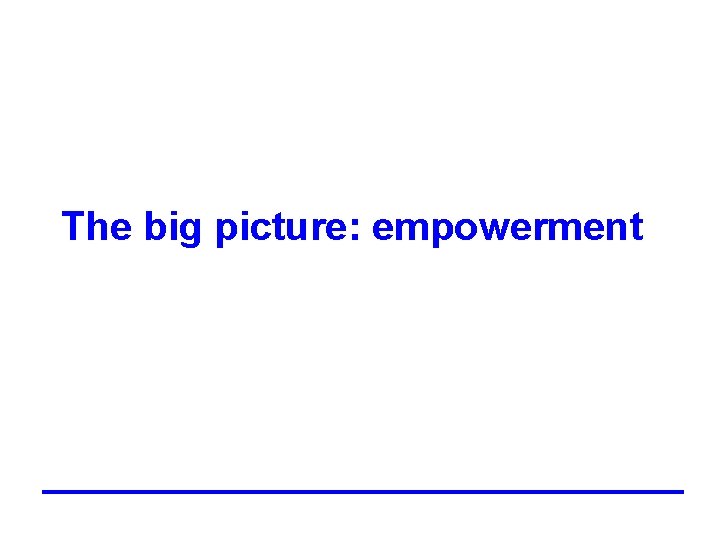

The big picture: empowerment

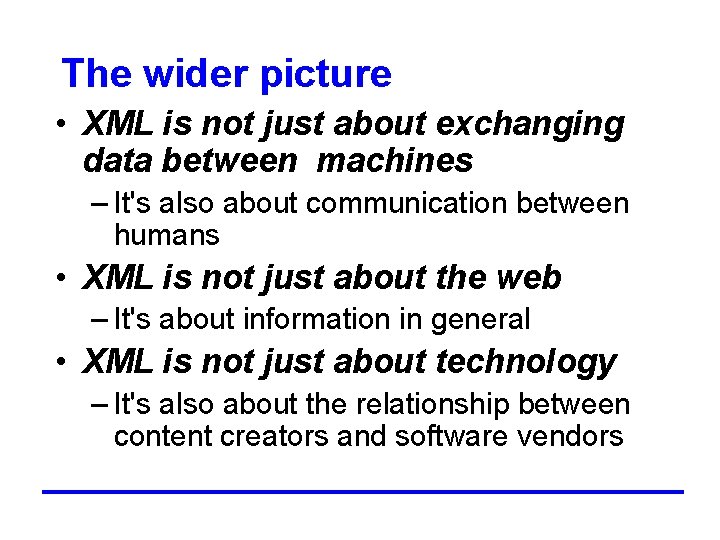

The wider picture • XML is not just about exchanging data between machines – It's also about communication between humans • XML is not just about the web – It's about information in general • XML is not just about technology – It's also about the relationship between content creators and software vendors

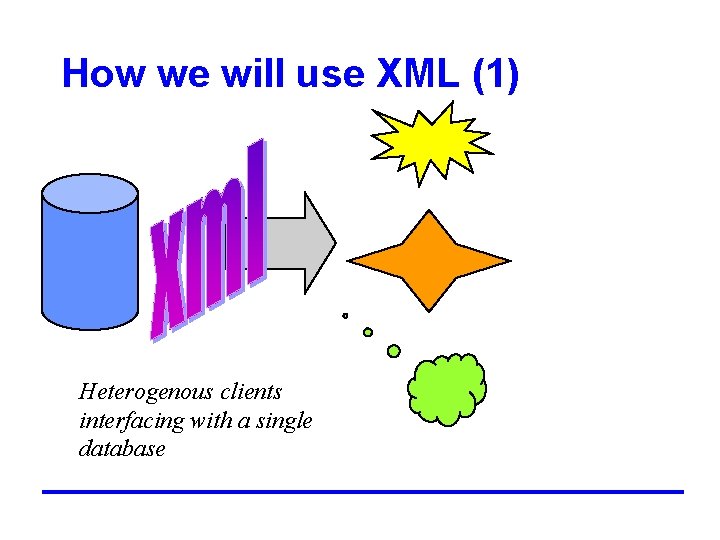

How we will use XML (1) Heterogenous clients interfacing with a single database

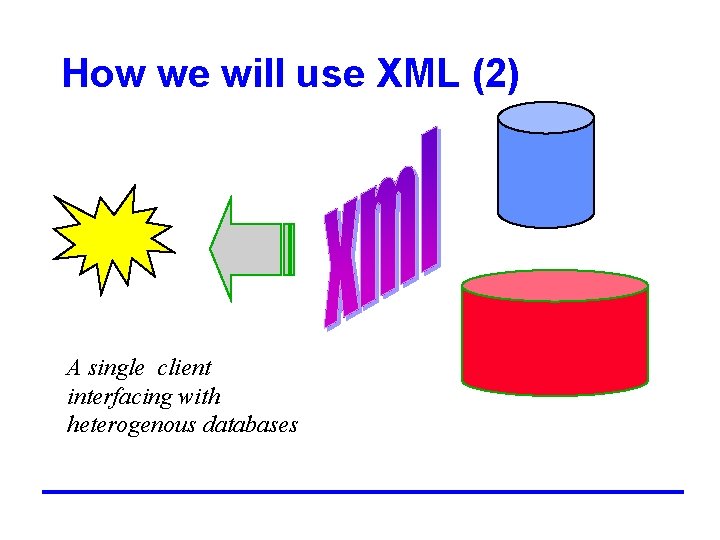

How we will use XML (2) A single client interfacing with heterogenous databases

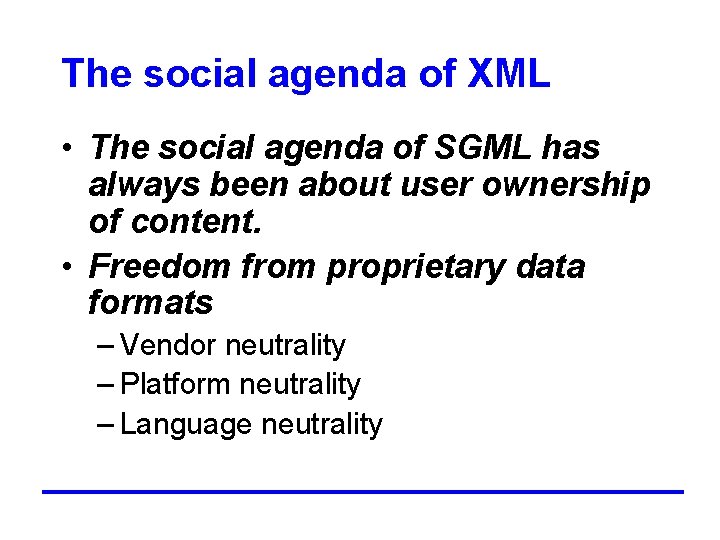

The social agenda of XML • The social agenda of SGML has always been about user ownership of content. • Freedom from proprietary data formats – Vendor neutrality – Platform neutrality – Language neutrality

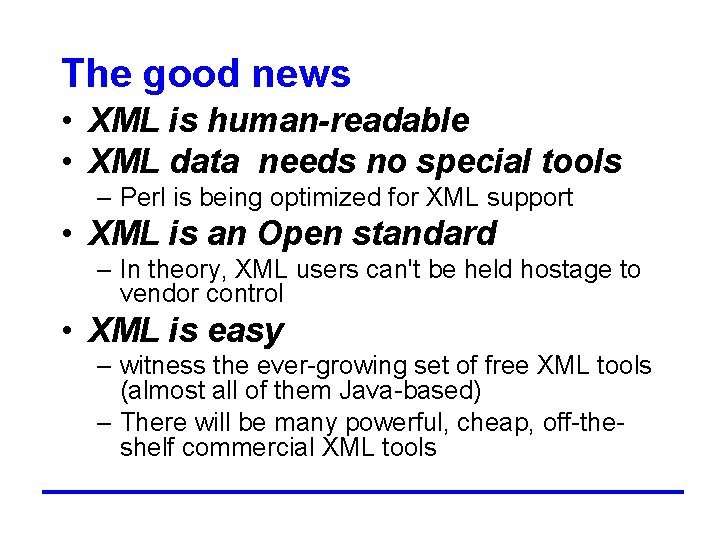

The good news • XML is human-readable • XML data needs no special tools – Perl is being optimized for XML support • XML is an Open standard – In theory, XML users can't be held hostage to vendor control • XML is easy – witness the ever-growing set of free XML tools (almost all of them Java-based) – There will be many powerful, cheap, off-theshelf commercial XML tools

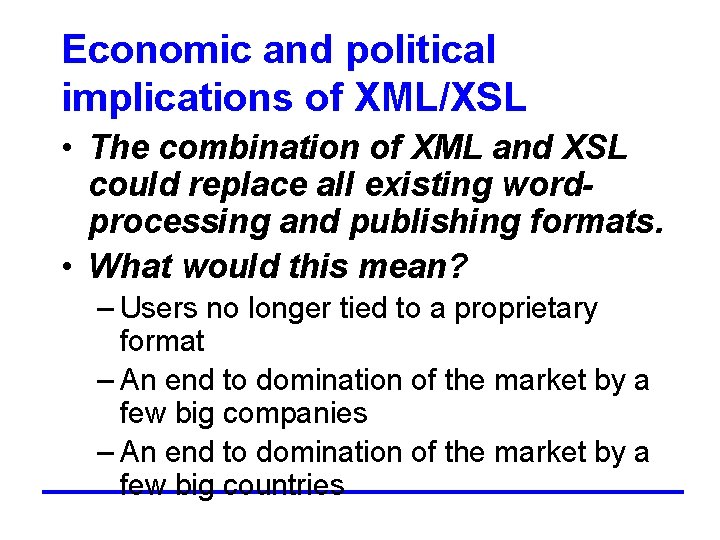

Economic and political implications of XML/XSL • The combination of XML and XSL could replace all existing wordprocessing and publishing formats. • What would this mean? – Users no longer tied to a proprietary format – An end to domination of the market by a few big companies – An end to domination of the market by a few big countries

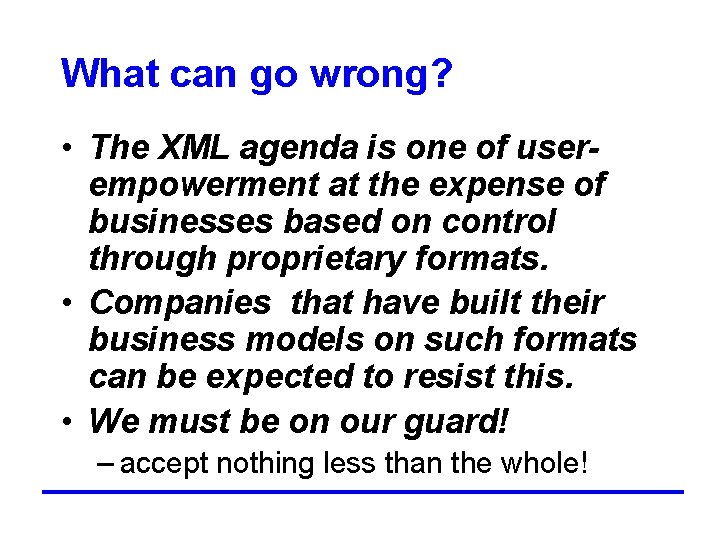

What can go wrong? • The XML agenda is one of userempowerment at the expense of businesses based on control through proprietary formats. • Companies that have built their business models on such formats can be expected to resist this. • We must be on our guard! – accept nothing less than the whole!

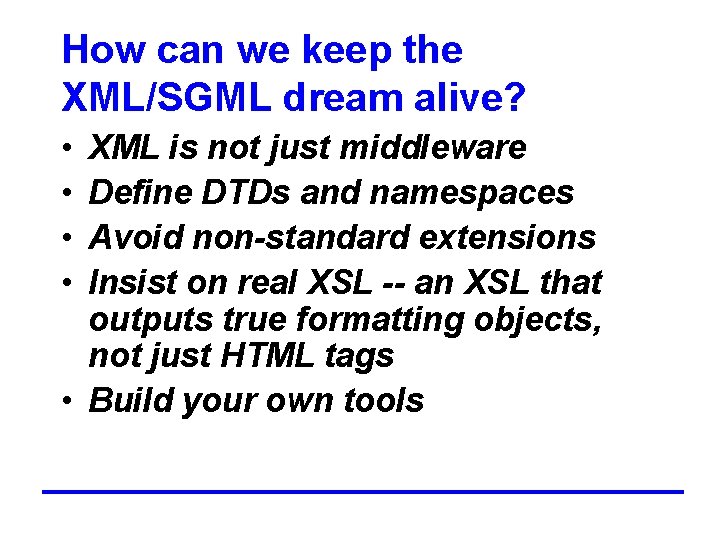

How can we keep the XML/SGML dream alive? • • XML is not just middleware Define DTDs and namespaces Avoid non-standard extensions Insist on real XSL -- an XSL that outputs true formatting objects, not just HTML tags • Build your own tools

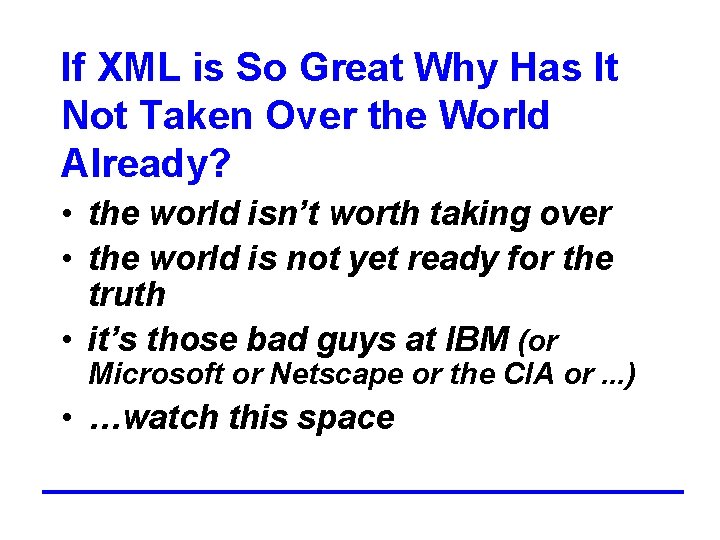

If XML is So Great Why Has It Not Taken Over the World Already? • the world isn’t worth taking over • the world is not yet ready for the truth • it’s those bad guys at IBM (or Microsoft or Netscape or the CIA or. . . ) • …watch this space

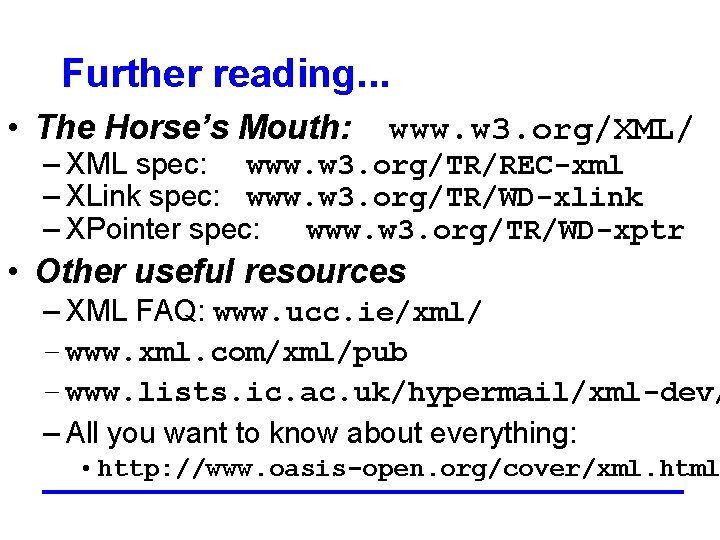

Further reading. . . • The Horse’s Mouth: www. w 3. org/XML/ – XML spec: www. w 3. org/TR/REC-xml – XLink spec: www. w 3. org/TR/WD-xlink – XPointer spec: www. w 3. org/TR/WD-xptr • Other useful resources – XML FAQ: www. ucc. ie/xml/ – www. xml. com/xml/pub – www. lists. ic. ac. uk/hypermail/xml-dev/ – All you want to know about everything: • http: //www. oasis-open. org/cover/xml. html

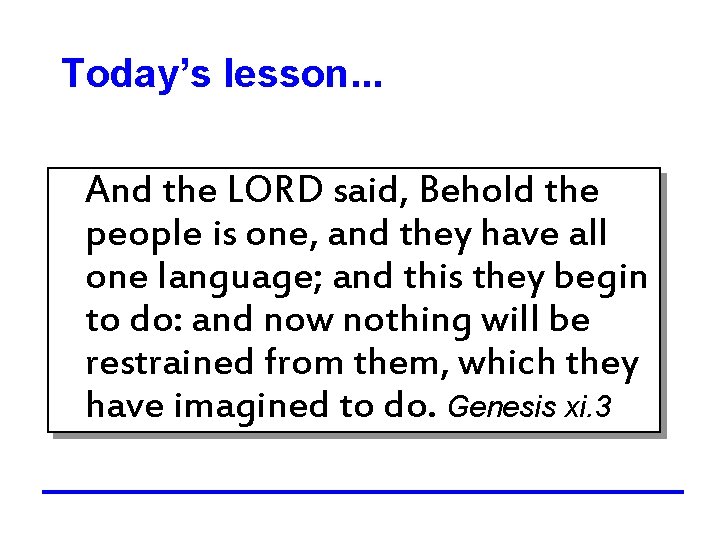

Today’s lesson. . . And the LORD said, Behold the people is one, and they have all one language; and this they begin to do: and now nothing will be restrained from them, which they have imagined to do. Genesis xi. 3
