LIBRARY AUTOMATION USING RFID Presented by Joju Mohan
LIBRARY AUTOMATION USING RFID Presented by; Joju Mohan -67 Ninitha Xavier -68 Priyanka C. P -69 Rahul K. Raj -70

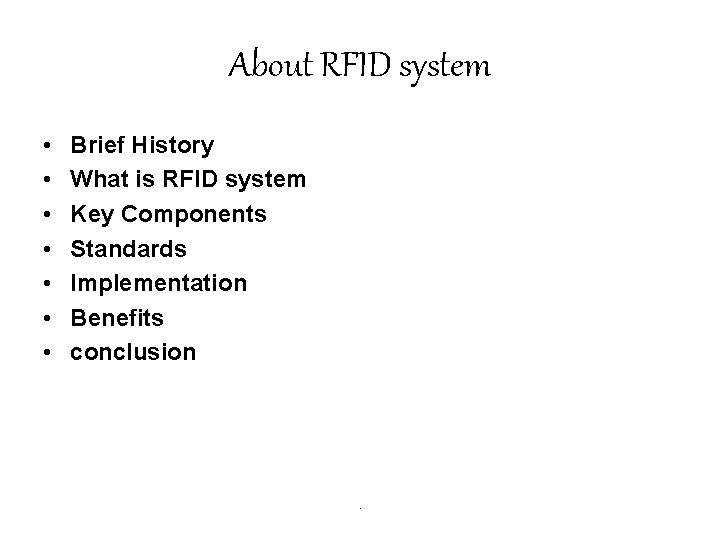

About RFID system • • Brief History What is RFID system Key Components Standards Implementation Benefits conclusion .
Brief History. . Basic concept behind RFID is same as “Mirror-Sunlight-Reflection theory ” Invented and used from (Early 1940’s) Commercial Operation begun from 1960’s … In 1970 s developers, inventors, companies, academic institution and government sectors were actively worked on RFID

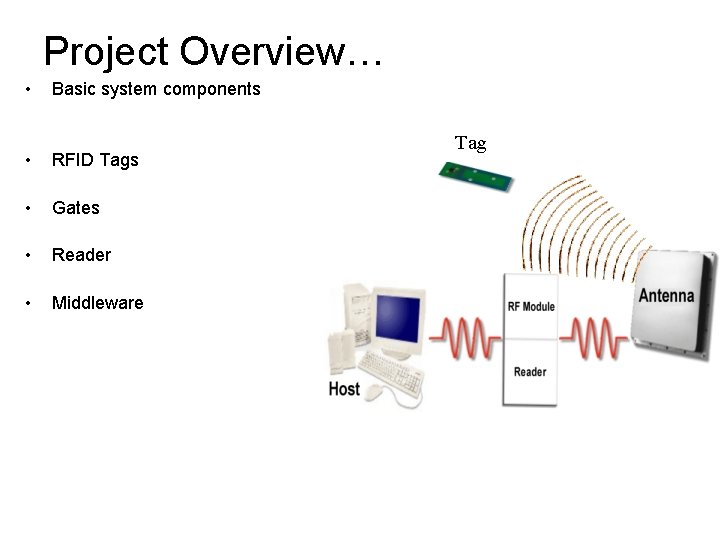

Project Overview… • Basic system components • RFID Tags • Gates • Reader • Middleware Tag
Main parts • Gate Detection System ISO-15693 gate detection system capable of detecting unauthorized tagged items passing through it.
• HF Reader reads data using antenna • RFID Tags passive HF Tags working on 13. 56 MHz frequency. Available in various types and form factors these are used for tagging library materials to uniquely identify particular tagged items using the RFID based automated library management system.
tags
TAG-TYPES FOR LIBRARY ITEMS 6/13/2021 Rapid. Radio Solutions Pvt. Ltd. 8

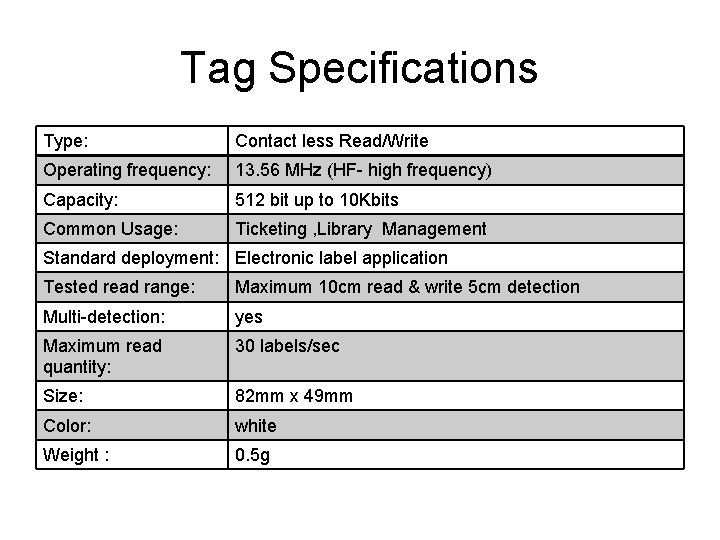

Tag Specifications Type: Contact less Read/Write Operating frequency: 13. 56 MHz (HF- high frequency) Capacity: 512 bit up to 10 Kbits Common Usage: Ticketing , Library Management Standard deployment: Electronic label application Tested read range: Maximum 10 cm read & write 5 cm detection Multi-detection: yes Maximum read quantity: 30 labels/sec Size: 82 mm x 49 mm Color: white Weight : 0. 5 g
READER üA device that is used to read a Tag. ü Basic components are § A scanning Antenna § A transceiver with a decoder 6/13/2021
INVENTORY READER Ø A compact and light weight hand held device Ø Comfortable to use Ø High storage capacity Ø Multi Functional (such as sorting, searching and reading) Ø Enhanced Security.
SECURITY GATE v. Verify that all books leaving the library have been checked out. v Detect Theft v Prevent unauthorized removal of material
WHY RFID FOR LIBRARY? • • • Fastest, easiest, most efficient way to track, locate & manage library materials Efficient Book circulation management Library inventory tracking in minutes instead of hours Multiple books can be read simultaneously Unique ID of the RFID tag prevents counterfeiting
Frequency: 13. 56 MHZ • Key feature of 13. 56 Mhz is • Tags are less expensive due to their limited coil required. • Read range about 1 -2 feet. • Some tags are anti collision • collects, uses, stores and broadcast data

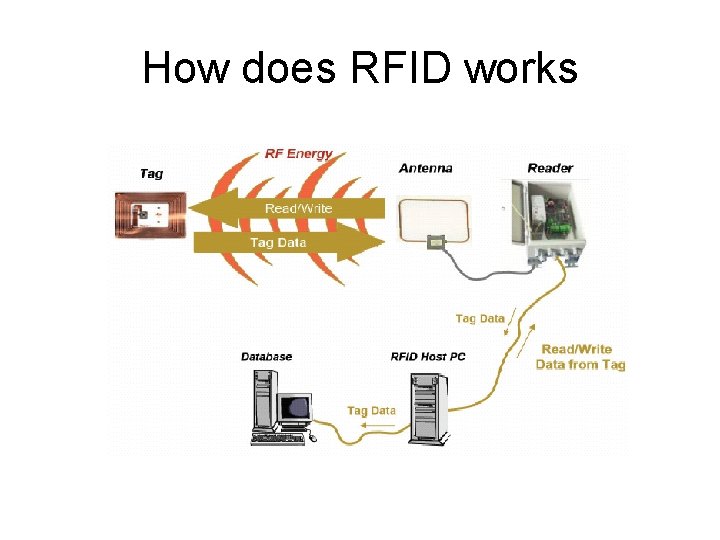

How does RFID works
RFID Benefits Libraries… • • • Stock management Improved services Flexibility Security Less time needed

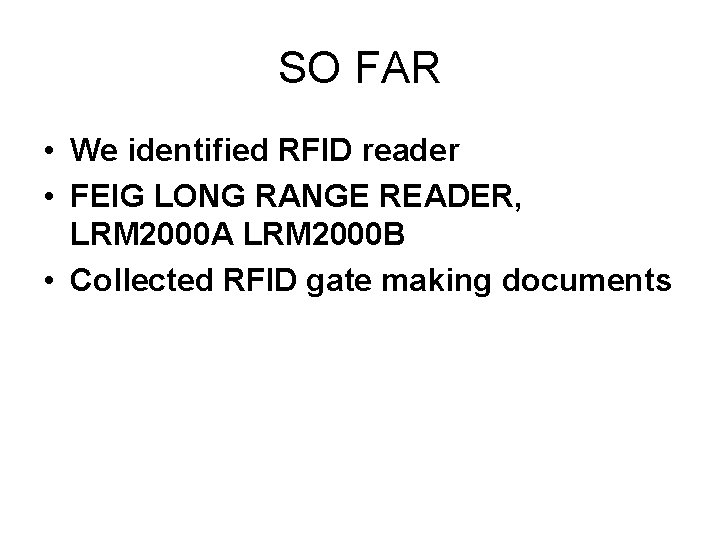

SO FAR • We identified RFID reader • FEIG LONG RANGE READER, LRM 2000 A LRM 2000 B • Collected RFID gate making documents
Thank You
