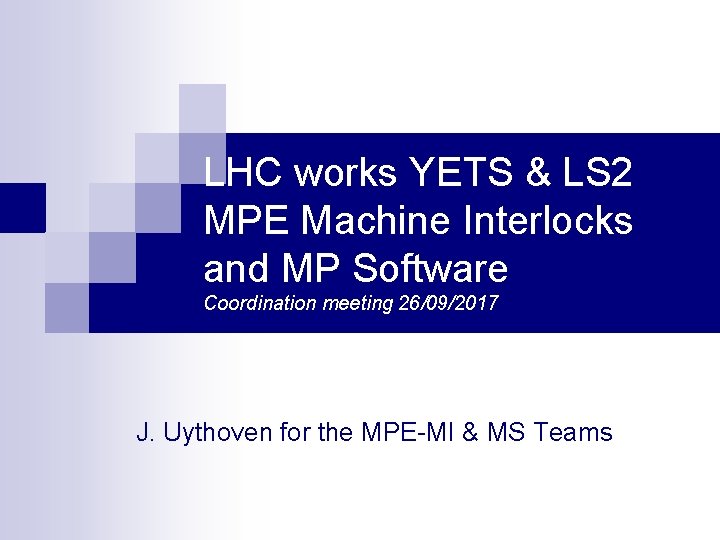

LHC works YETS LS 2 MPE Machine Interlocks

LHC works YETS & LS 2 MPE Machine Interlocks and MP Software Coordination meeting 26/09/2017 J. Uythoven for the MPE-MI & MS Teams

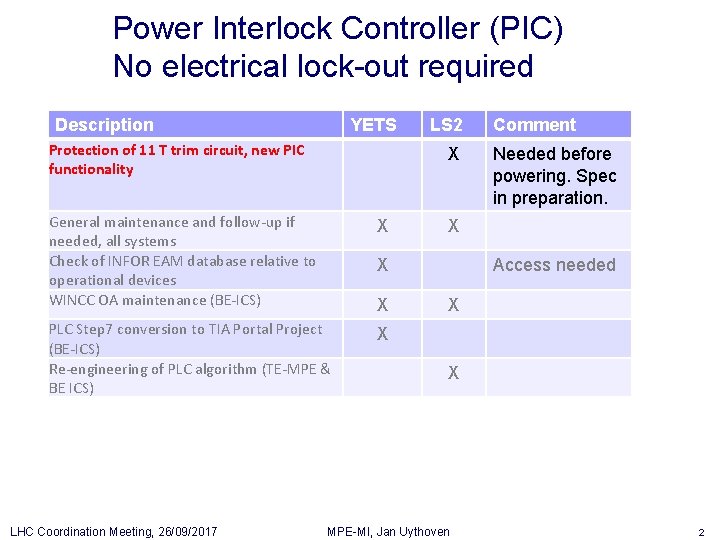

Power Interlock Controller (PIC) No electrical lock-out required Description YETS Protection of 11 T trim circuit, new PIC functionality X General maintenance and follow-up if needed, all systems Check of INFOR EAM database relative to operational devices WINCC OA maintenance (BE-ICS) X PLC Step 7 conversion to TIA Portal Project (BE-ICS) Re-engineering of PLC algorithm (TE-MPE & BE ICS) X LHC Coordination Meeting, 26/09/2017 LS 2 Needed before powering. Spec in preparation. X X X Comment Access needed X X MPE-MI, Jan Uythoven 2

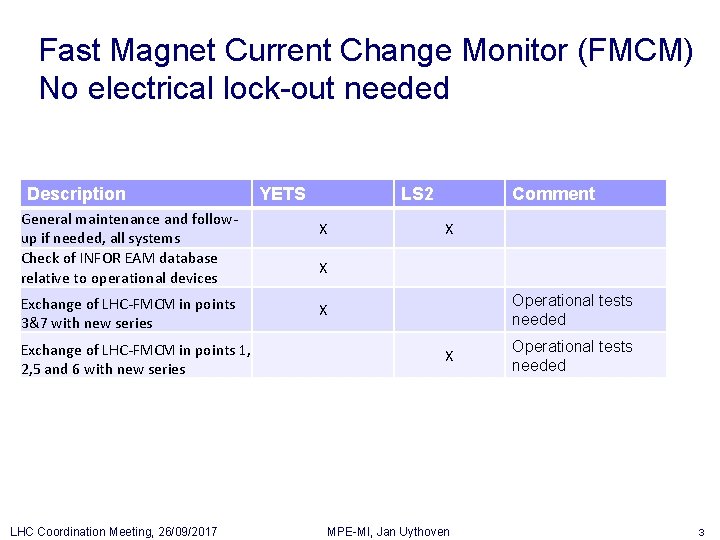

Fast Magnet Current Change Monitor (FMCM) No electrical lock-out needed Description General maintenance and followup if needed, all systems Check of INFOR EAM database relative to operational devices Exchange of LHC-FMCM in points 3&7 with new series Exchange of LHC-FMCM in points 1, 2, 5 and 6 with new series LHC Coordination Meeting, 26/09/2017 YETS LS 2 X Comment X X Operational tests needed X X MPE-MI, Jan Uythoven Operational tests needed 3

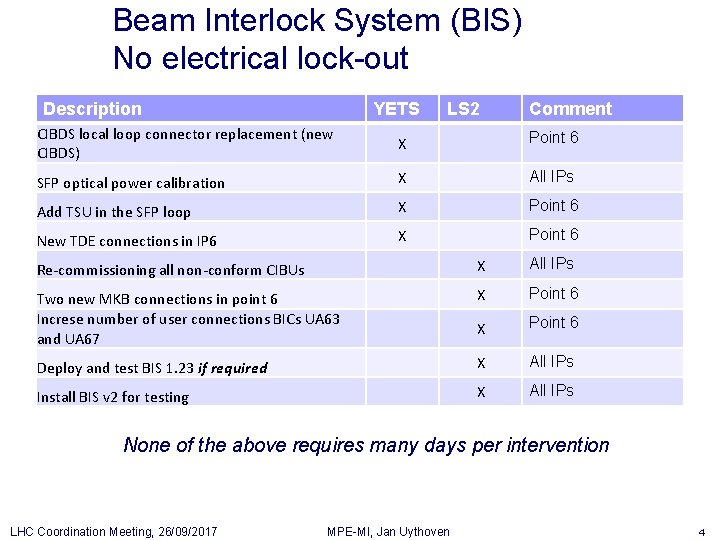

Beam Interlock System (BIS) No electrical lock-out Description YETS LS 2 Comment CIBDS local loop connector replacement (new CIBDS) X Point 6 SFP optical power calibration X All IPs Add TSU in the SFP loop X Point 6 New TDE connections in IP 6 X Point 6 Re-commissioning all non-conform CIBUs X All IPs Two new MKB connections in point 6 Increse number of user connections BICs UA 63 and UA 67 X Point 6 Deploy and test BIS 1. 23 if required X All IPs Install BIS v 2 for testing X All IPs None of the above requires many days per intervention LHC Coordination Meeting, 26/09/2017 MPE-MI, Jan Uythoven 4

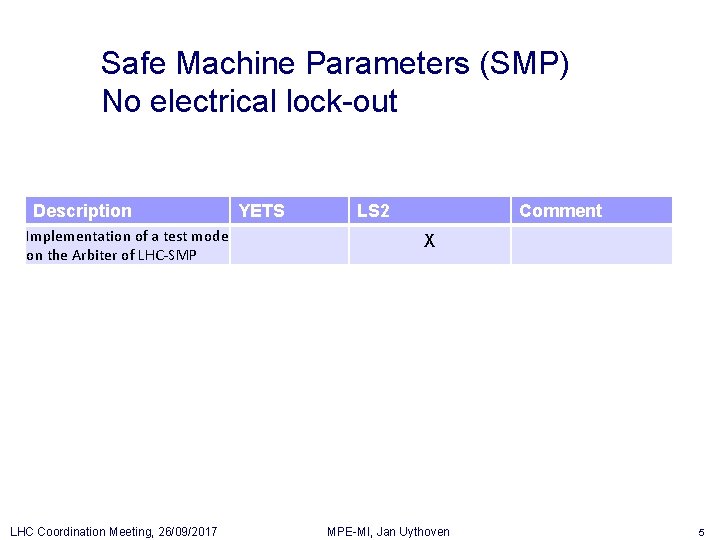

Safe Machine Parameters (SMP) No electrical lock-out Description Implementation of a test mode on the Arbiter of LHC-SMP LHC Coordination Meeting, 26/09/2017 YETS LS 2 Comment X MPE-MI, Jan Uythoven 5

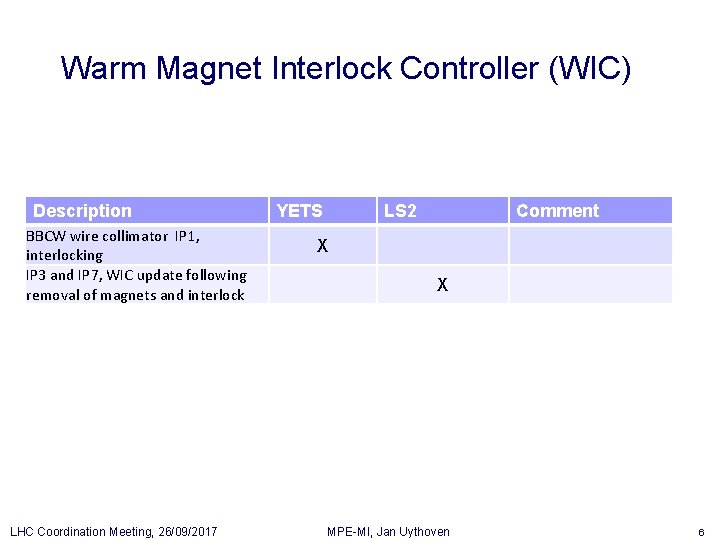

Warm Magnet Interlock Controller (WIC) Description BBCW wire collimator IP 1, interlocking IP 3 and IP 7, WIC update following removal of magnets and interlock LHC Coordination Meeting, 26/09/2017 YETS LS 2 Comment X X MPE-MI, Jan Uythoven 6

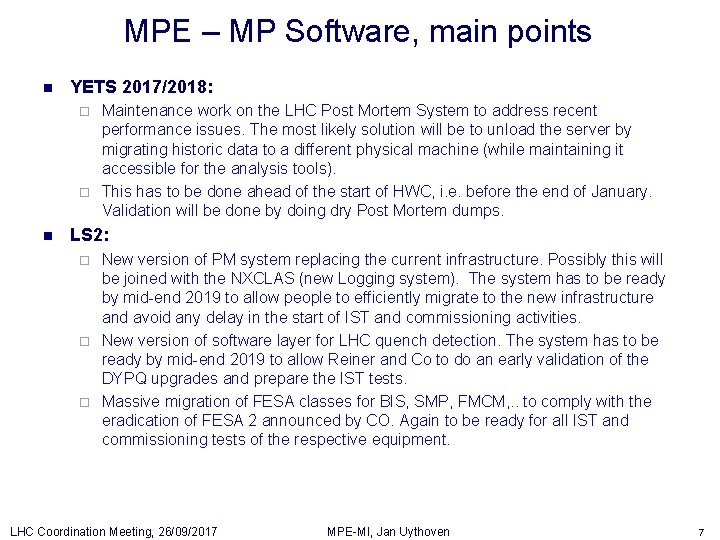

MPE – MP Software, main points n YETS 2017/2018: Maintenance work on the LHC Post Mortem System to address recent performance issues. The most likely solution will be to unload the server by migrating historic data to a different physical machine (while maintaining it accessible for the analysis tools). ¨ This has to be done ahead of the start of HWC, i. e. before the end of January. Validation will be done by doing dry Post Mortem dumps. ¨ n LS 2: New version of PM system replacing the current infrastructure. Possibly this will be joined with the NXCLAS (new Logging system). The system has to be ready by mid-end 2019 to allow people to efficiently migrate to the new infrastructure and avoid any delay in the start of IST and commissioning activities. ¨ New version of software layer for LHC quench detection. The system has to be ready by mid-end 2019 to allow Reiner and Co to do an early validation of the DYPQ upgrades and prepare the IST tests. ¨ Massive migration of FESA classes for BIS, SMP, FMCM, . . to comply with the eradication of FESA 2 announced by CO. Again to be ready for all IST and commissioning tests of the respective equipment. ¨ LHC Coordination Meeting, 26/09/2017 MPE-MI, Jan Uythoven 7
