LHC BLM SYSTEM FOR THE SPS COLLIMATOR LOCATION
LHC BLM SYSTEM FOR THE SPS COLLIMATOR LOCATION: STATUS AND PLAN OF UPDATES DURING LS 1 Christos Zamantzas for the BLM team. 08/07/2013
Aim of the upgrade The aim of the upgrade is to harmonize the SPS installation of this prototype LHC BLM system with the rest of the BLM systems. At the moment we are basically blind since § non of the expert tools can connect to this very old server § an old firmware is running on the FPGA § a custom and unsupported timing configuration is deployed christos. zamantzas@cern. ch 08/07/2013 2
STATUS OF THE INSTALLATION 08/07/2013
Monitor deployment Ewald Effinger 25/05/2011 christos. zamantzas@cern. ch 08/07/2013 4
Channel Configuration Chamber CFC 1 BLETC 1 Chamber CFC 2 BLETC 2 IC 1 IC 2 IC 3 IC 4 IC 5 IC 6 IC 7 IC 8 Ch 1 Ch 2 Ch 3 Ch 4 Ch 5 Ch 6 Ch 7 Ch 8 BLMEI. BA 5. CR 01_CD 01_CH 01 BLMEI. BA 5. CR 01_CD 01_CH 02 BLMEI. BA 5. CR 01_CD 01_CH 03 BLMEI. BA 5. CR 01_CD 01_CH 04 BLMEI. BA 5. CR 01_CD 01_CH 05 BLMEI. BA 5. CR 01_CD 01_CH 06 BLMEI. BA 5. CR 01_CD 01_CH 07 BLMEI. BA 5. CR 01_CD 01_CH 08 SEM 1 SEM 2 n/c n/c n/c Ch 1 Ch 2 Ch 3 Ch 4 Ch 5 Ch 6 Ch 7 Ch 8 BLMES. BA 5. CR 01_CD 02_CH 01 BLMES. BA 5. CR 01_CD 02_CH 02 n/a n/a n/a Two pairs of acquisition-processing electronics 8 x LHC-type Ionisation Chambers (IC) 2 x Secondary Emission Monitors (SEM) christos. zamantzas@cern. ch 08/07/2013 5

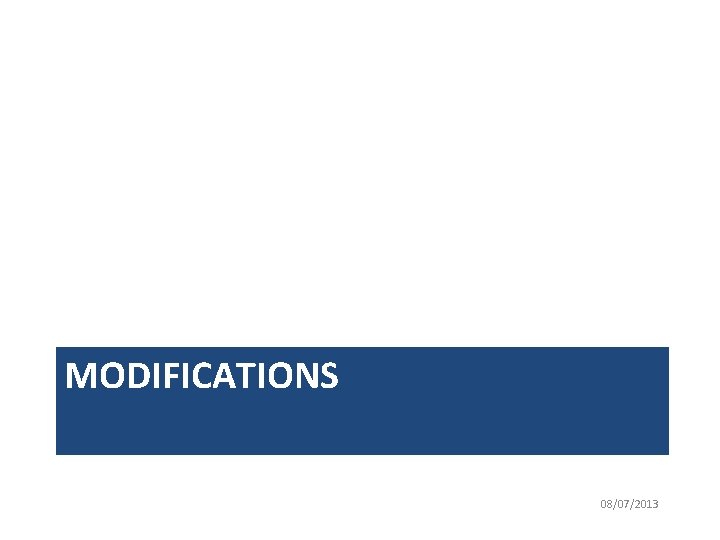

MODIFICATIONS 08/07/2013
Hardware Update hardware to the LHC versions: New processing cards (BLETC) § Minor modification in the receiver part New front-end CPU § MAN 20 (Intel based) with LINUX All changes foreseen only for the Processing crate. The acquisition electronics will not be modified. christos. zamantzas@cern. ch 08/07/2013 7
Software and Firmware Upgrade software & firmware to the LHC versions: BLETC firmware § Deprecate Capture buffer § Add Collimation buffer, i. e. 82 ms (or faster) data BLMLHC server § Upgrade to FESA 3. 0 § Add UDP server for collimation data Need new client -> action: collimation team christos. zamantzas@cern. ch 08/07/2013 8
Conclusions Complete renovation (HW & SW) of the processing parts of the system. Standard and Expert tools will be available to validate the system and resolve issues. New type of data available at 12 Hz (or more). christos. zamantzas@cern. ch 08/07/2013 Thank you
THANK YOU
Automatic/fast Collimator BBA New dedicated buffer for automatic and faster Collimator Beam Based Alignment § continuous transmission to collimation client § UDP packets at 12. 5 Hz § deliver from each BLM detector a 82 ms integral Excellent diagnostic tool. Has been also used successfully to study : § the time evolution of the losses in IR 7 and IR 3 during the loss maps § halo diffusion and population Dedicated 12. 5 Hz data Standard 1 Hz data Plots courtesy of Belen Maria Salvachua Ferrando, Gianluca Valentino and Stefano Redaelli christos. zamantzas@cern. ch 08/07/2013 11
LHC BLM System Overview christos. zamantzas@cern. ch 08/07/2013 12
LHC Beam Loss Monitoring System Highly critical system for the protection of LHC Deployed all around the 27 km of the tunnel Speed, Reliability, Fail-safety is required Large amount of measurement data are published continuously Settings and Thresholds Front-end CPU Databases, fixed displays… Processing, Analysis & Decision cards x 25 Beam Loss Monitors Acquisition Cards Combiner and Survey Beam Interlock Interfaces x 4000 around the LHC ring x 400 x 700 x 25 Tunnel christos. zamantzas@cern. ch x 16 Surface 08/07/2013 13
