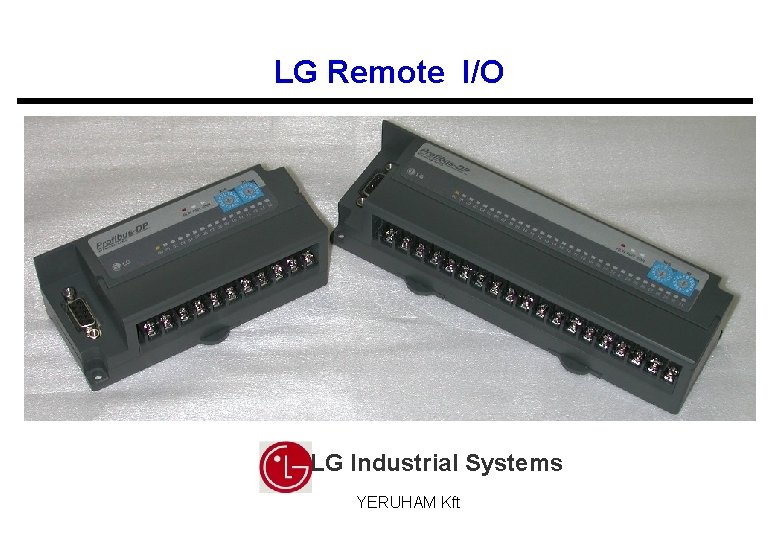

LG Remote IO LG Industrial Systems YERUHAM Kft

LG Remote I/O LG Industrial Systems YERUHAM Kft

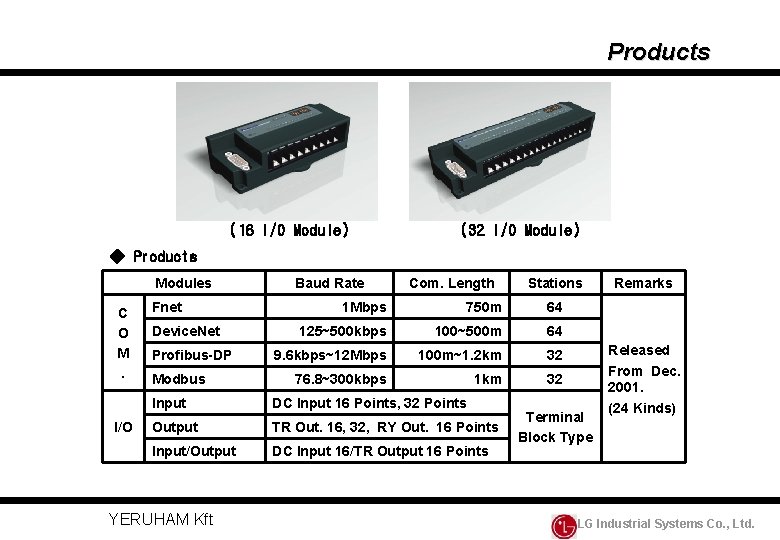

Products (16 I/O Module) (32 I/O Module) ◈ Products Modules C O M. I/O Fnet Device. Net Profibus-DP Modbus Baud Rate Com. Length 1 Mbps 750 m 64 125~500 kbps 100~500 m 64 9. 6 kbps~12 Mbps 100 m~1. 2 km 32 76. 8~300 kbps 1 km 32 Input DC Input 16 Points, 32 Points Output TR Out. 16, 32, RY Out. 16 Points Input/Output DC Input 16/TR Output 16 Points YERUHAM Kft Stations Terminal Block Type Remarks Released From Dec. 2001. (24 Kinds) LG Industrial Systems Co. , Ltd.

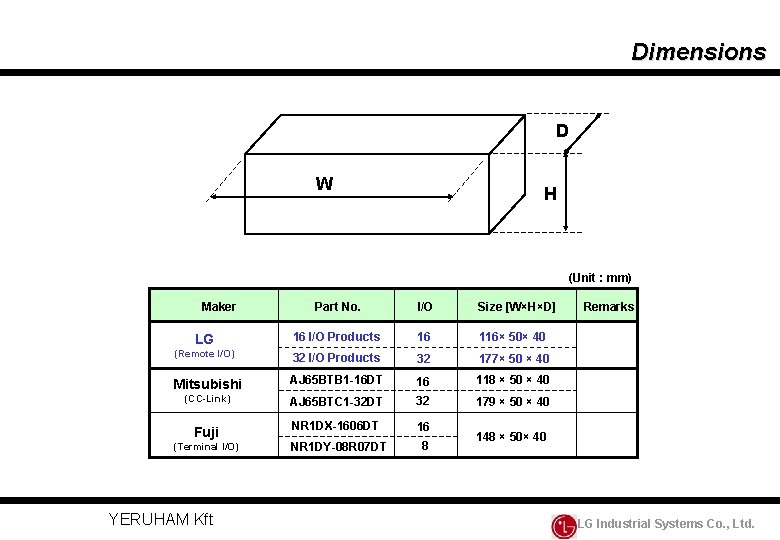

Dimensions D W H (Unit : mm) Part No. I/O Size [W×H×D] LG 16 I/O Products 16 116× 50× 40 (Remote I/O) 32 I/O Products 32 177× 50 × 40 Mitsubishi AJ 65 BTB 1 -16 DT 16 118 × 50 × 40 (CC-Link) AJ 65 BTC 1 -32 DT 32 179 × 50 × 40 Fuji NR 1 DX-1606 DT 16 NR 1 DY-08 R 07 DT 8 Maker (Terminal I/O) YERUHAM Kft Remarks 148 × 50× 40 LG Industrial Systems Co. , Ltd.

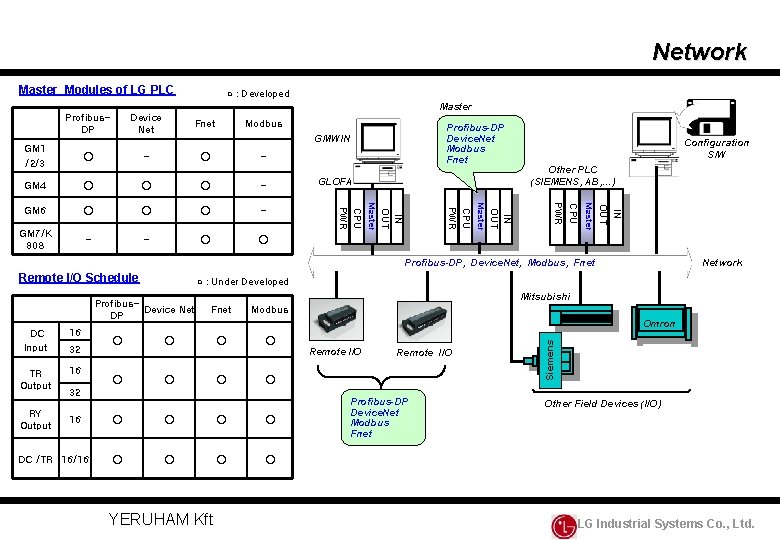

Network Master Modules of LG PLC ○ : Developed Master Profibus. DP Device Net Fnet ○ - ○ GM 1 /2/3 Modbus Profibus-DP Device. Net Modbus Fnet GMWIN - - GM 7/K 80 S - - ○ ○ IN OUT ○ Master ○ Other PLC (SIEMENS, AB, …) CPU PWR ○ IN OUT GM 6 Master - CPU PWR ○ IN OUT ○ Master ○ CPU PWR GM 4 GLOFA Configuration S/W Network Profibus-DP, Device. Net, Modbus, Fnet Remote I/O Schedule ○ : Under Developed DC Input 16 TR Output 16 RY Output 32 ○ Mitsubishi Fnet ○ Modbus Omron ○ ○ Remote I/O ○ ○ 32 16 DC /TR 16/16 ○ ○ ○ ○ YERUHAM Kft Remote I/O Profibus-DP Device. Net Modbus Fnet Siemens Profibus. Device Net DP Other Field Devices (I/O) LG Industrial Systems Co. , Ltd.

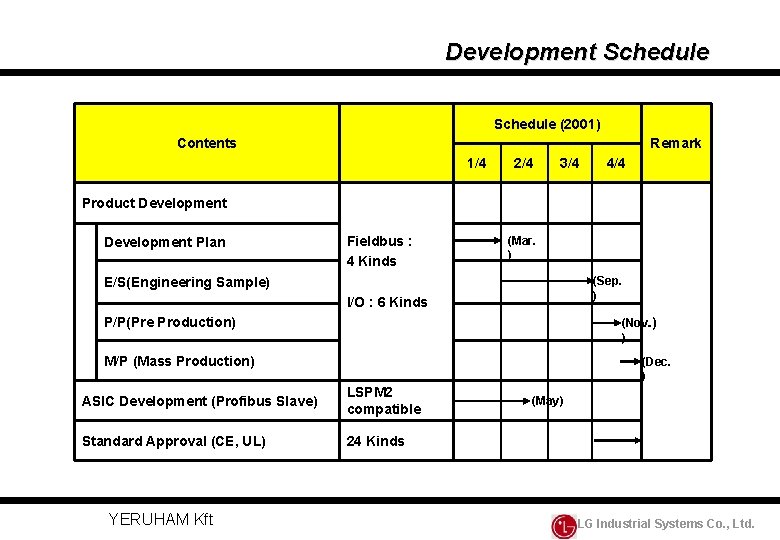

Development Schedule (2001) Contents Remark 1/4 2/4 3/4 4/4 Product Development Plan Fieldbus : 4 Kinds (Mar. ) (Sep. ) E/S(Engineering Sample) I/O : 6 Kinds (Nov. . ) ) P/P(Pre Production) M/P (Mass Production) (Dec. ) ASIC Development (Profibus Slave) LSPM 2 compatible Standard Approval (CE, UL) 24 Kinds YERUHAM Kft (May) LG Industrial Systems Co. , Ltd.
