LG PLC PMU (Programmable Monitoring Unit) LG Industrial Systems 1 LG PLC

PMU Lineup PMU-830 12. 1” PMU x 30 Series PMU-730 10. 4” PMU-530 7. 5” PMU-830 TT PMU-730 TT PMU-330 5. 7” PMU-730 ST PMU-530 ST PMU 330 TT PMU 330 ST PMU-330 BT 2 LG PLC

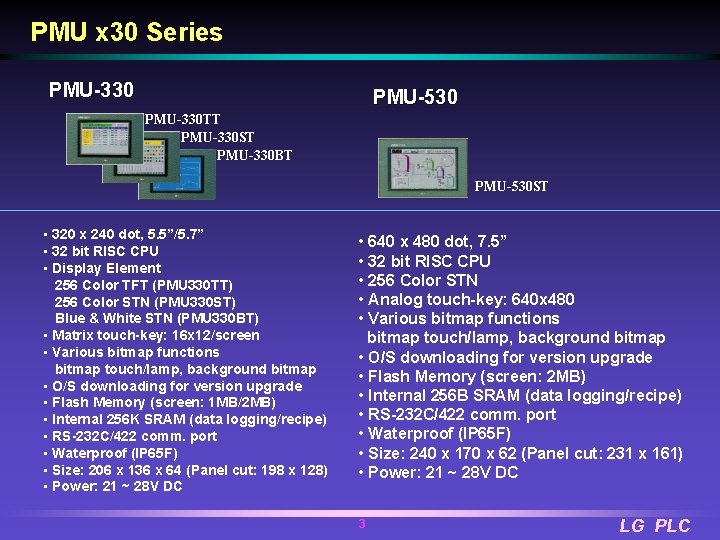

PMU x 30 Series PMU-330 PMU-530 PMU-330 TT PMU-330 ST PMU-330 BT PMU-530 ST • 320 x 240 dot, 5. 5”/5. 7” • 32 bit RISC CPU • Display Element 256 Color TFT (PMU 330 TT) 256 Color STN (PMU 330 ST) Blue & White STN (PMU 330 BT) • Matrix touch-key: 16 x 12/screen • Various bitmap functions bitmap touch/lamp, background bitmap • O/S downloading for version upgrade • Flash Memory (screen: 1 MB/2 MB) • Internal 256 K SRAM (data logging/recipe) • RS-232 C/422 comm. port • Waterproof (IP 65 F) • Size: 206 x 136 x 64 (Panel cut: 198 x 128) • Power: 21 ~ 28 V DC • 640 x 480 dot, 7. 5” • 32 bit RISC CPU • 256 Color STN • Analog touch-key: 640 x 480 • Various bitmap functions bitmap touch/lamp, background bitmap • O/S downloading for version upgrade • Flash Memory (screen: 2 MB) • Internal 256 B SRAM (data logging/recipe) • RS-232 C/422 comm. port • Waterproof (IP 65 F) • Size: 240 x 170 x 62 (Panel cut: 231 x 161) • Power: 21 ~ 28 V DC 3 LG PLC

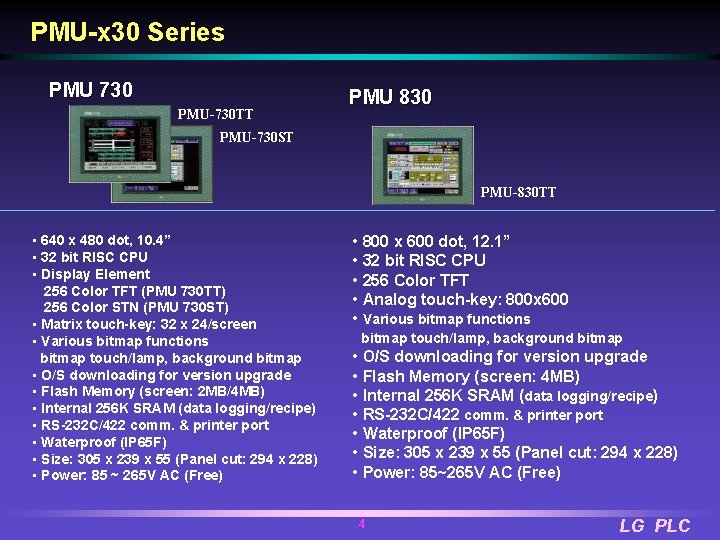

PMU-x 30 Series PMU 730 PMU-730 TT PMU 830 PMU-730 ST PMU-830 TT • 640 x 480 dot, 10. 4” • 32 bit RISC CPU • Display Element 256 Color TFT (PMU 730 TT) 256 Color STN (PMU 730 ST) • Matrix touch-key: 32 x 24/screen • Various bitmap functions bitmap touch/lamp, background bitmap • O/S downloading for version upgrade • Flash Memory (screen: 2 MB/4 MB) • Internal 256 K SRAM (data logging/recipe) • RS-232 C/422 comm. & printer port • Waterproof (IP 65 F) • Size: 305 x 239 x 55 (Panel cut: 294 x 228) • Power: 85 ~ 265 V AC (Free) • 800 x 600 dot, 12. 1” • 32 bit RISC CPU • 256 Color TFT • Analog touch-key: 800 x 600 • Various bitmap functions bitmap touch/lamp, background bitmap • O/S downloading for version upgrade • Flash Memory (screen: 4 MB) • Internal 256 K SRAM (data logging/recipe) • RS-232 C/422 comm. & printer port • Waterproof (IP 65 F) • Size: 305 x 239 x 55 (Panel cut: 294 x 228) • Power: 85~265 V AC (Free) 4 LG PLC

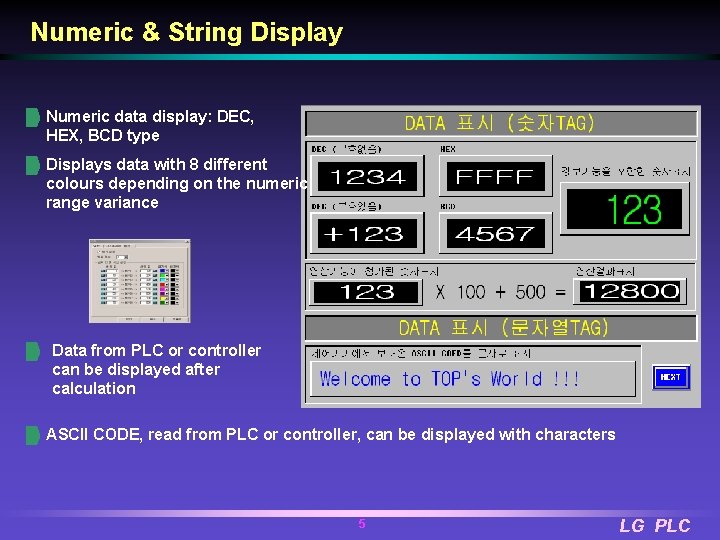

Numeric & String Display Numeric data display: DEC, HEX, BCD type Displays data with 8 different colours depending on the numeric range variance Data from PLC or controller can be displayed after calculation ASCII CODE, read from PLC or controller, can be displayed with characters 5 LG PLC

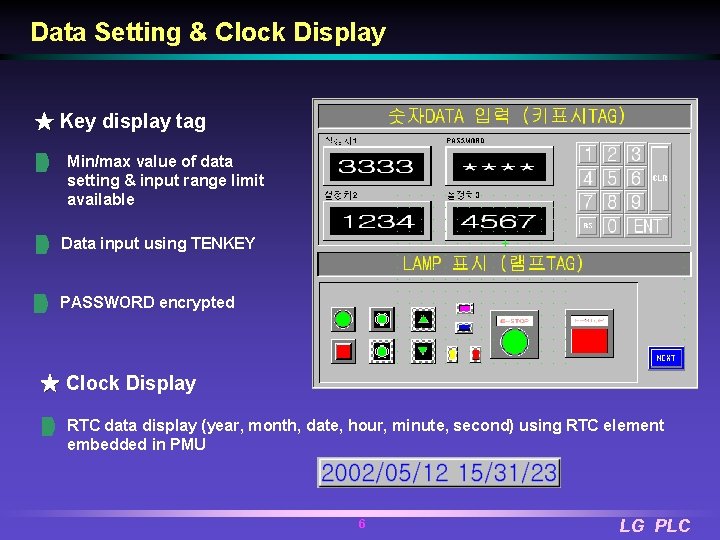

Data Setting & Clock Display ★ Key display tag Min/max value of data setting & input range limit available Data input using TENKEY PASSWORD encrypted ★ Clock Display RTC data display (year, month, date, hour, minute, second) using RTC element embedded in PMU 6 LG PLC

Touch Function ★ TOUCH Input function: commands PLC touching a specific region on screen Bitmap touch: Displays different bitmaps according to the device status (ON/OFF) after Touch button operation Caption: Displays 2 letters according to the device status (ON/OFF) after Touch button operation Touch colour: Lamp function embedded in Touch button displays the devices status (ON/OFF) after Touch button operation Maximum 10 functions can be set up with one Touch tag 7 LG PLC

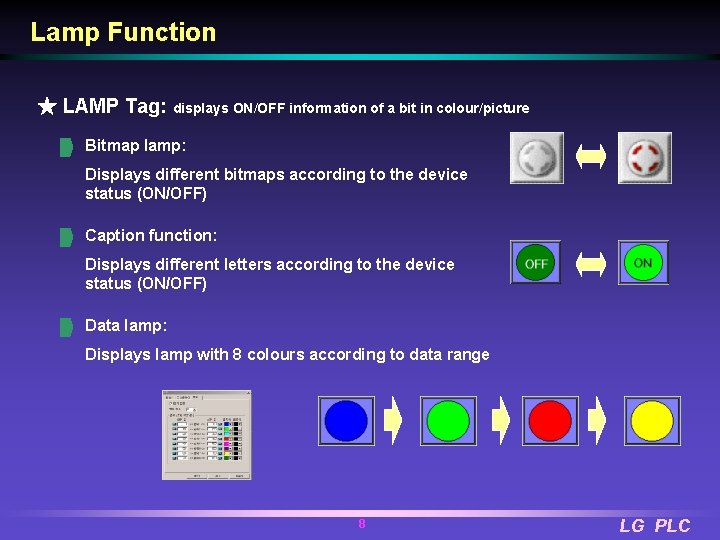

Lamp Function ★ LAMP Tag: displays ON/OFF information of a bit in colour/picture Bitmap lamp: Displays different bitmaps according to the device status (ON/OFF) Caption function: Displays different letters according to the device status (ON/OFF) Data lamp: Displays lamp with 8 colours according to data range 8 LG PLC

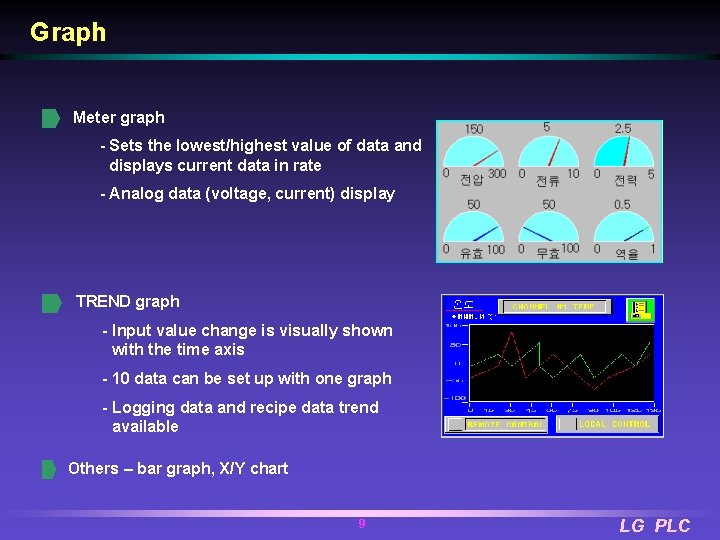

Graph Meter graph - Sets the lowest/highest value of data and displays current data in rate - Analog data (voltage, current) display TREND graph - Input value change is visually shown with the time axis - 10 data can be set up with one graph - Logging data and recipe data trend available Others – bar graph, X/Y chart 9 LG PLC

Recipe (parameter moving) Running data of each work are stored in PMU and when work changes, they are batch -transferred to the controller Easy to operate: converts the setup data into EXCEL format 10 LG PLC

Data Logging Data generated during operation are stored in PMU through periodic or conditional data logging Condition setting Operation setting Convenient to report: converts logging data into an EXCEL report DATA LOGGING screen 11 LG PLC

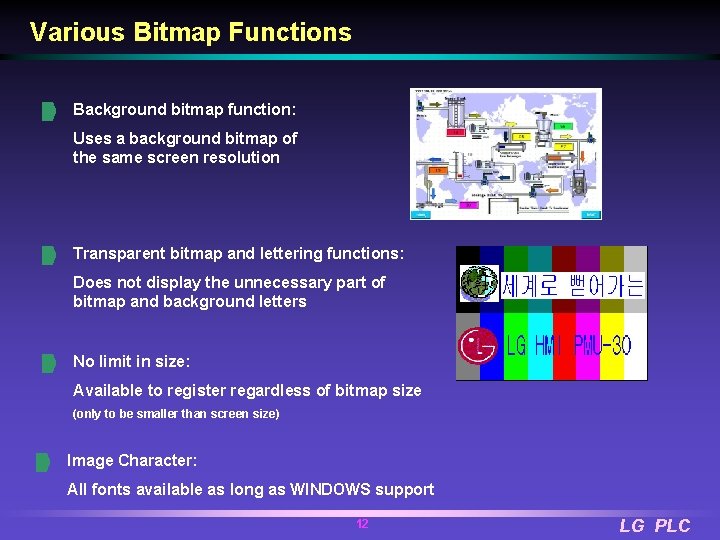

Various Bitmap Functions Background bitmap function: Uses a background bitmap of the same screen resolution Transparent bitmap and lettering functions: Does not display the unnecessary part of bitmap and background letters No limit in size: Available to register regardless of bitmap size (only to be smaller than screen size) Image Character: All fonts available as long as WINDOWS support 12 LG PLC

Simulation Functions Simulates the status of each device's address operation and communication while disconnected with PLC. Monitors data when you turn on each address or input data. RS-232 C Simulation on drawing: If the status of a bit tag (ON/OFF) changes while drawing the screen, the screen changes can be displayed on PC monitor 13 LG PLC

Convenient Memory Management Overall display of PLC address registered in the screen Overall change available in PLC address change Display of PLC address of tags registered in the screen Overall display of the contents of screen User-defined library registration 14 LG PLC

PMU Communication 1: N Communication 1: 1 Serial Communication Connecting more than one PLCs to one PMU through RS-422/485 communication One PLC connection to one PMU RS-232 C 15 m MAX. RS-422/485 500 m MAX • 1: N communication by using RS-422/485 should be organised as choosing identical PLC types 15 LG PLC

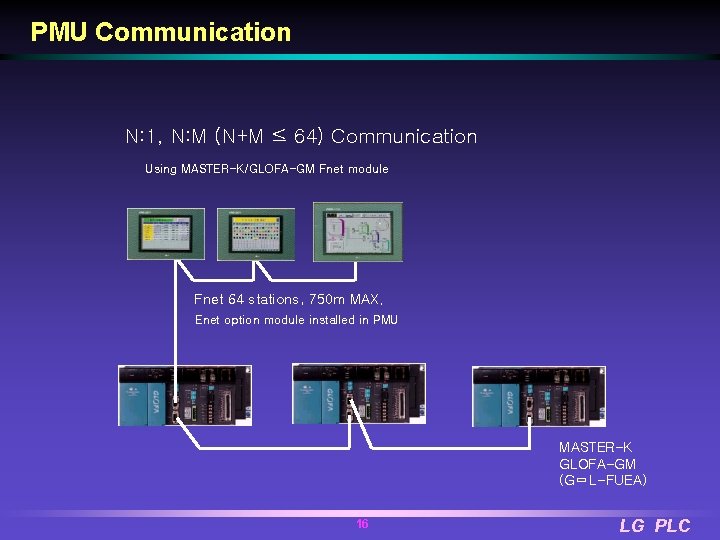

PMU Communication N: 1, N: M (N+M ≤ 64) Communication Using MASTER-K/GLOFA-GM Fnet module Fnet 64 stations, 750 m MAX. Enet option module installed in PMU MASTER-K GLOFA-GM (GㅁL-FUEA) 16 LG PLC

PMU Communication PLC Communication with other devices Controls two different PLCs using one PMU 2 nd comm. Ch. RS-232 C Main comm. Ch. RS-232 C/422/485 17 LG PLC

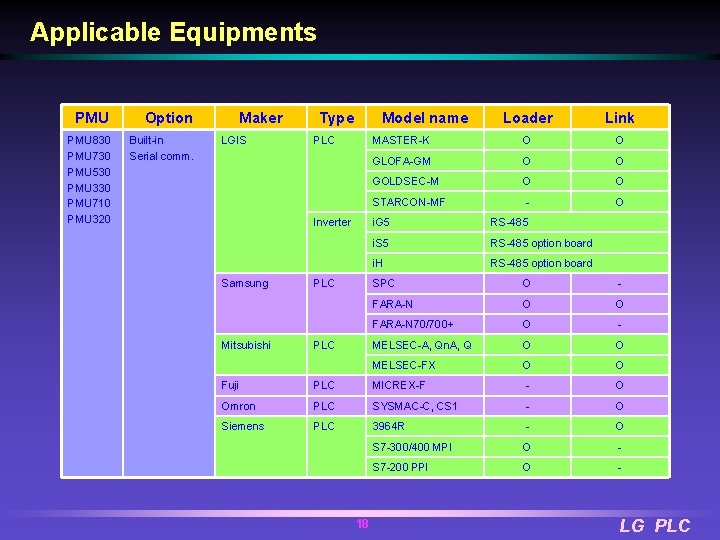

Applicable Equipments PMU Option PMU 830 PMU 730 PMU 530 PMU 330 PMU 710 PMU 320 Built-in Serial comm. Maker LGIS Type Model name PLC Inverter Samsung Mitsubishi PLC Loader Link MASTER-K O O GLOFA-GM O O GOLDSEC-M O O STARCON-MF - O i. G 5 RS-485 i. S 5 RS-485 option board i. H RS-485 option board SPC O - FARA-N O O FARA-N 70/700+ O - MELSEC-A, Qn. A, Q O O MELSEC-FX O O Fuji PLC MICREX-F - O Omron PLC SYSMAC-C, CS 1 - O Siemens PLC 3964 R - O S 7 -300/400 MPI O - S 7 -200 PPI O - 18 LG PLC

Applicable Equipments PMU 830 PMU 730 PMU 530 PMU 330 PMU 710 PMU 320 Option Built-in serial comm. Maker AB Yaskawa PMUㅁㅁㅁ-F Type PLC Model name Loader Link SLC 500[5/03, 04] O - PLC-5 O - Progic-8 O - MP-920 O - CP-9200 SH O - Modicon PLC KDT PLC Cymon O O Koyo PLC DL-205/305/405 - O GE Fanuc PLC 90 -30[SNP-X] O - POSCON PLC POSFA phld-1 a/2 a - O Yokokawa PLC FA-M 3 - O Delta PLC DVP-ES - O LGIS PLC MASTER-K GㅁL-FUEA GLOFA-GM GㅁL-FUEA PMUㅁㅁㅁ-E Ethernet PMUㅁㅁㅁ-C CC Link Modbus Under development 19 LG PLC
