Introduction • Activities on different design aspects are in progress with analysis of the last parameters data set • LFB: Longitudinal beam / RF / b-b-b fb preliminary simulations • Low Level RF spec’s discussion • Transverse feedback upgrades • Conclusions

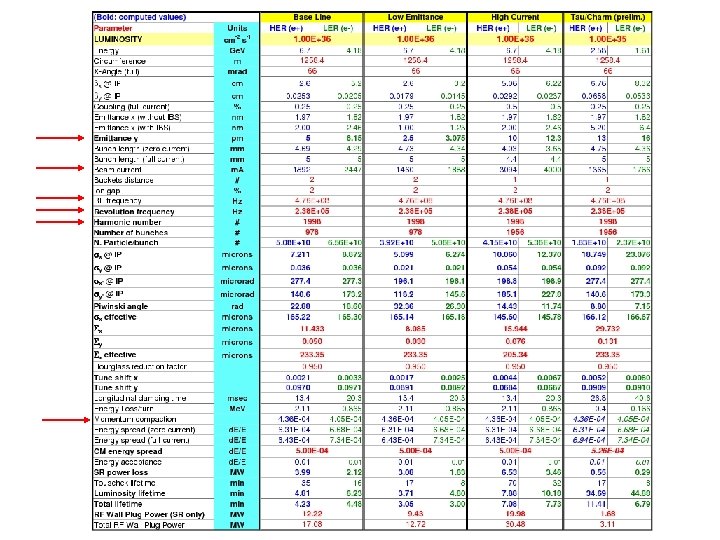

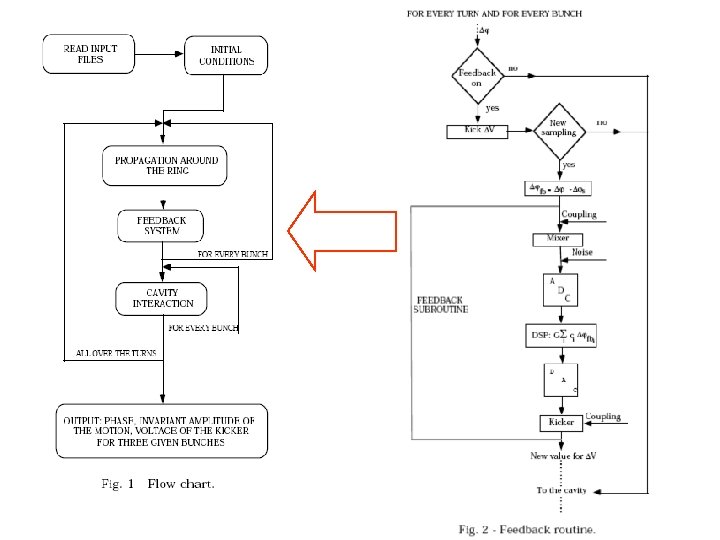

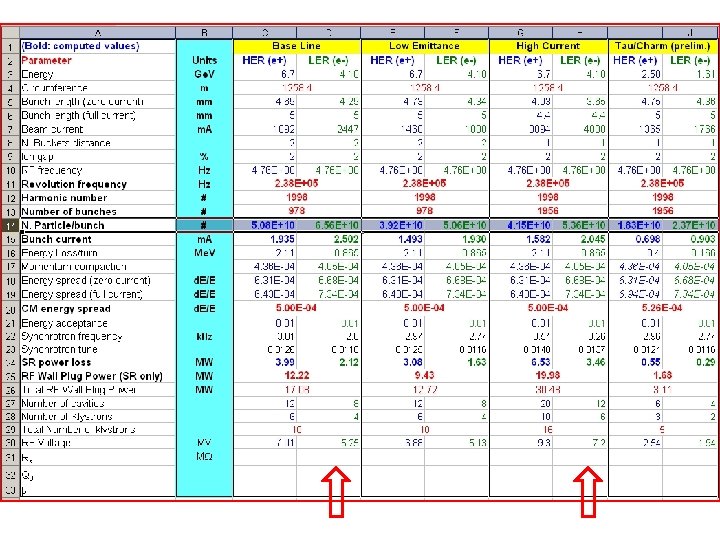

Simul 2 longitudinal simulator • • Developed by Mauro Migliorati in 1992 Written in FORTRAN Longitudinal beam + RF + LFB behavior code Modern data I/O interface re-written in Matlab including (“embedded”) the previous FORTRAN program • Data base input by editor: this, for some data, is not the fast way to insert new inputs • With large amount of beam current and bunches the every simulation run can take more than 40 minutes - so to test many different data set can be very time consuming

11 RF modes in data base

LER – baseline parameters - full current (2. 447 A) – b. space 2 – rad. loss 2 Me. V/turn – no injection kick – no feedbacks the beam is lost ph*. dat contains the phase of a bunch as a function of the number of turns, phsp*. dat contains the longitudinal invariant of the motion. In order to see the exponential growth of the instability it is easier to work with the invariant since the phase is subject to the synchrotron oscillations. 30 k turns

LER – 70% current – b. space 2 – rad. loss 2 Me. V/turn – no inj. kick – no LFB

LER – 70% current – b. space 2–rad. loss 0. 8 Me. V/turn – no inj. kick – no LFB Decreasing the radiation loss/turn LFB is clearly needed

FIR filter (LER) with phase response at exactly -90 degrees • • Synchrotron frequency 2. 8 k. Hz Down sampling factor =14 Taps = 6 coefficient = 0 0. 85927 0. 040054 -0. 83809 -0. 89746 • delta. T = 5. 8765 e-5 sec 0. 87907

Changing synchrotron phase response to +45 degree FIR filter coefficient: 0. 7071 0. 9693 0. 2845 -0. 6782 -0. 9784 -0. 3227

-90+45 degree: good damping ! ~10 E-3

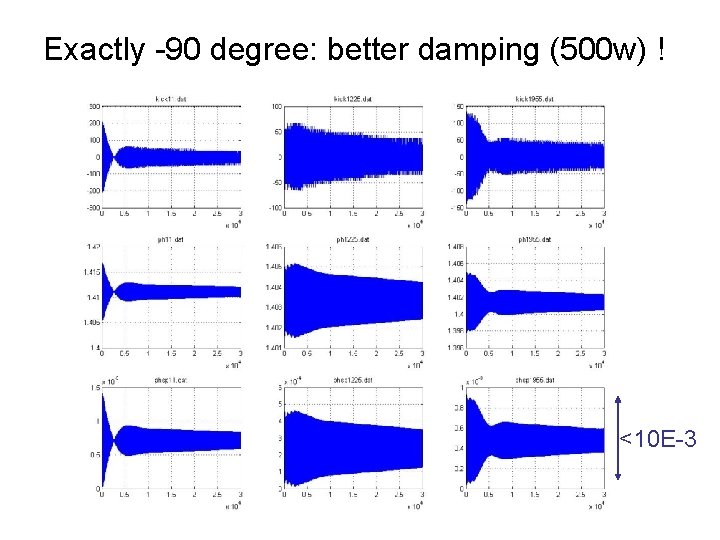

Exactly -90 degree: better damping (500 w) ! <10 E-3

Full current, fb on: 500 W

Simulation data: full current (2. 447 A), 978 bunches, lfb on, power amplifiers=1 k. W multibunch longitudinal motion damped FIR filter implemented

Full current, fb on , 5 k. W, much better damping time

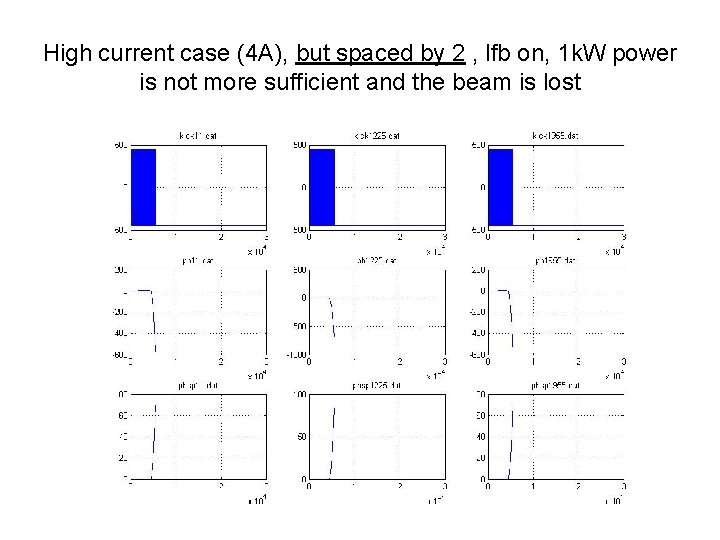

High current case (4 A), but spaced by 2 , lfb on, 1 k. W power is not more sufficient and the beam is lost

High current case (4 A), sp. by 2, lfb on, also 2 k. W power is not sufficient and the beam is lost again

High current case (4 A), sp. by 2, lfb on, increasing the power, 2. 5 k. W is now sufficient to control the beam longitudinal dynamics

High current case (4 A), sp. by 2, lfb on, with 5 k. W the power controls more efficiently the beam longitudinal dynamics

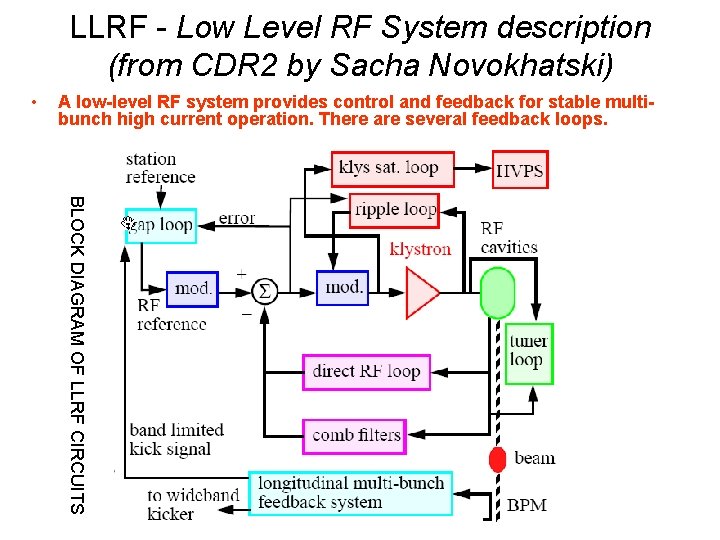

LLRF - Low Level RF System description (from CDR 2 by Sacha Novokhatski) • A low-level RF system provides control and feedback for stable multibunch high current operation. There are several feedback loops. BLOCK DIAGRAM OF LLRF CIRCUITS

LLRF System description (from CDR 2 by S. N. ) • • • The direct loop is required for lowering the cavity impedance to reduce multi-bunch oscillations of the beam. Functionally the direct loop keeps the gap voltage constant as set by a DAC reference over an 800 k. Hz bandwidth. The loop compares the combined baseband field signals of a station's cavities to the reference generated by the gap module. The resultant error signal is up-converted to RF and drives the klystron. The direct loop contains a PID controller with an integral compensation for smoothing out the ripple caused by the klystron high voltage power supply and lead compensation that increases the bandwidth and gain of the loop. The direct feedback loop options control the optional functions of the direct loop: frequency offset tracking, integral compensation and lead compensation. The frequency offset tracking loop takes out the phase shift caused by detuning of the cavities during heavy beam loading. It is used as a diagnostic for adjusting the waveguide network. The comb loop provides additional impedance reduction for the cavities at specific synchrotron frequency sidebands around the revolution harmonics of the beam. It operates over a bandwidth of 2 MHz and includes a 1 turn delay. The tuner loop tunes and maintains each cavity at resonance. It corrects for thermal frequency variations and compensates cavity beam loading by keeping the phase relationship between forward power and cavity field, as seen by the cavity probe, constant. The relevant phases are measured by digital IQ detectors and the loop is completed in software controlling the tuner position via a stepping motor. The HVPS loop adjusts the voltage to the klystron to provide sufficient output power to operate the station under whatever gap voltage or beam loading is requested. Functionally the loop keeps the klystron operating at about 10% below saturated output power. The loop measures the drive power at the input to the klystron and compares it to the ON CW drive power set-point. Based on the error the set-point for the high voltage power supply is adjusted up for excessive drive and down for insufficient drive. This is a slow loop with about a 1 Hz bandwidth. The DAC loop is a slow (0. 1 Hz bandwidth) loop in software which functionally keeps the measured gap voltage of the station equal to it's requested "Station Gap Voltage" by adjusting the DAC in the gap voltage feed-forward module. The ripple loop is intended to remove amplitude and phase ripple in the klystron output power but at the time it is only utilized to keep the low bandwidth phase across the klystron and drive amplifier constant as the klystron voltage is varied. The gap feed forward loop is required to tell the direct loop to ignore the effects of the ion-clearing gap in the beam bunch train. Functionally the loop learns about the variation in the klystron drive caused by the beam gap and adds an equal variation in the reference signal so that the error signal driving the klystron stays unchanged. This loop adapts fully in about 1000 beam revolutions. The longitudinal feedback woofer is the third cavity impedance reduction loop along with the direct loop and the comb loop. It derives it's information from the lowest beam oscillation modes detected by the longitudinal bunch-bybunch feedback system and uses one RF station in each ring as a powerful longitudinal kicker.

Super. B LLRF design project Olivier (olivier. bourrion@lpsc. in 2 p 3. fr) and Christophe (vescovi@lpsc. in 2 p 3. fr) are going to study a preliminary LLRF design proposal. A discussion of the specifications is started.

Super. B bunch-by-bunch feedbacks 2. 1 ns bunch 2. 1 ns 31. 5 cm D S 250 W Comb gen. longitudinal DPU LP 16 bit DAC x 12 bit ADC Phase detector 250 W/500 W FPGA x a*RF 6*RF RF (476 MHz) AM Inj. Trigger LAN DPU LP FPGA transverse 16 bit DAC 3*RF x 12 bit ADC Amplitude detector 180 0 User trigger Operator interface realtime and offline analysis programs

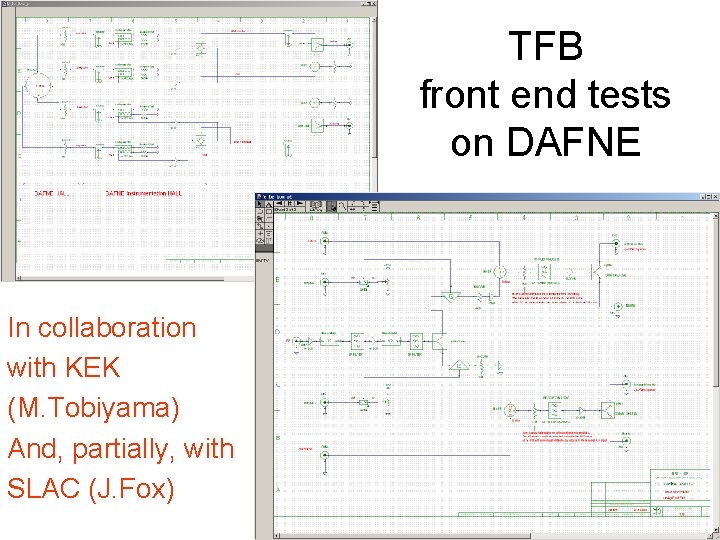

TFB front end tests on DAFNE In collaboration with KEK (M. Tobiyama) And, partially, with SLAC (J. Fox)

TFB front end components Qpsk generator circuit designed for Super. KEKB In collaboration with KEK (M. Tobiyama)

Two i. Gp feedback systems (but without source code!) with 12 -bit ADC and 16 bit DAC have been ordered to Dimtel inc. , and will be tested in the next DAFNE run Two new LFB front end Are also been bought to be tested in the next DAFNE run

Conclusions • the new beam parameters have been inserted in the Simul 2 longitudinal simulator data base • The simulator can accept the new data set without changes to the code – Preliminary runs have be done in the last week • Having radiation loss as in the table, a bunch-by-bunch longitudinal feedback is necessary to run at full beam current (2. 447 A) or more • The LFB FIR filter has been designed and damps well • The longitudinal power shall be at least 1 k. W (=4 x 250 W amplifiers) • The option high current (4 A) asks for more power, of the order of 2. 5 k. W – this corresponds to ten 250 W amplifiers • A discussion on the LLRF spec’s is started in collaboration with the Grenoble team • For the vertical FB, a first upgrade of the i. Gp system with 12 -bit ADC and full compatibility with the old software will be tested in the next DAFNE run • Other design and test activities are in progress for the LFB and the TFB with the goal to be tested in the next DAFNE runs starting from May of this year.
