Leveraging W 3 C Linked Data OSLC and

Leveraging W 3 C Linked Data, OSLC, and Open Source for Loosely Coupled Application Integrations Steve Speicher OSLC Core Lead W 3 C Linked Data Platform Workgroup IBM Rational @sspeiche Michael Fiedler OSLC Automation Lead Eclipse Lyo Project Lead and Committer IBM Rational @mffielder © 2013 IBM Corporation

Software Development Tools : Year 2000 - point products Software Configuration Management Test automation & management Build automation & management Work item & bug tracking Requirements management User complaints – Need tools to work better – Need tools to work together © 2013 IBM Corporation

Year 2005 – ALM V 1 Software Configuration Management Test automation & management Build automation & management Requirements management Work item & bug tracking ALM Solution • Developer complaints – Clumsy integrations – Want best-of-breed choice • Management complaints • Mixed Tool Environments – Open-source offerings with DIY integration – 3 rd party ALM suites – Need governance, metrics, reports, … © 2013 IBM Corporation

Year 2010 – Linked Data and OSLC – A major breakthrough Software Configuration Management Build automation & management Test automation & management Requirements management Work item & bug tracking Learned to integrate with open REST-based protocols instead of glue @ http: //open-services. net © 2013 IBM Corporation

Linked Data – Defined by Tim Berners-Lee 1. Use URIs as names for things 2. Use HTTP URIs so that people can look up those names. 3. When someone looks up a URI, provide useful information, using the standards (RDF*, SPARQL) 4. Include links to other URIs. so that they can discover more things. He concludes this with: “Simple. ” Reference: “Linked Data”, Tim Berners-Lee, 2006 -07 -27 © 2013 IBM Corporation

Linked Data – What is it? Test. Case 14 is blocked by Issue 973 http: //srv/qm/tc/14 qm: blocked. By http: //apache. org/jira/HTTPCLIENT-973 Joe is a committer ET for Apache http: //joecoder. me G P doap: committer T T H http: //apache. org Issue 973 depends on Bug 318 http: //apache. org/jira/HTTPCLIENT-973 cm: depends. On http: //bugs. sun. com/? id=7172318 Issue 973 is owned by Joe http: //apache. org/jira/HTTPCLIENT-973 dc: contributor http: //joecoder. me © 2013 IBM Corporation

OSLC – Based on Linked Data <http: //cm/bugs/2314> Lifecycle Tool. Common Resource Definitions a oslc_cm: Change. Request ; Change dcterms: relation <http: //cm/bugs/1235>; Management oslc_cm: implements. Requirement <http: //rm/req/56>. Service Management Help Desk <http: //rm/req/56> a oslc_rm: Requirement ; Lifecycle Tool dcterms: title “Online shopping cart”; Requirements oslc_rm: validated. By <http: //qm/tc/17>. Management Lifecycle Tool Quality Management Delegated Dialogs Service Management Deployment Link Preview http: //open-services. net © 2013 IBM Corporation

OSLC Specifications: Layered Cake and Independently Adoptable Common Domains New domains as needed Performance Monitoring Change Management Automation Quality Management Keep scope simple, learn and iterate OSLC Core REST W 3 C Linked Data Provides common and core needs © 2013 IBM Corporation

Evolution of W 3 C Linked Data 2006: Tim Berners-Lee introduced Linked Data as four design principles in an article May 2011: IBM and W 3 C agreed that standardization is necessary to accelerate industry adoption and enhance interoperability Dec 2011: IBM Sponsored W 3 C Workshop on Linked Enterprise Data Patterns – Participating organizations included EMC, Elsevier, IBM, Nokia, Oracle – Workshop recommended W 3 C produce a standard “which defines a Linked Data Platform”, leveraging RDF March 2012: IBM Submitted Linked Data Basic Profile 1. 0 proposal to W 3 C – Base the Linked Data Platform foundation on OSLC Core technology and experience – Co-submitters: – Supporters: June 2012: W 3 C launched the Linked Data Platform (LDP) Working Group – Membership spans over 50 participants from 30 organizations – Arnaud J Le Hors (IBM) and Erik Wilde (EMC) as co-chairs © 2013 IBM Corporation

W 3 C Linked Data Platform (LDP) WG is chartered to produce a W 3 C Recommendation: – For HTTP-based (RESTful) application integration patterns using read/write Linked Data – It will complement SPARQL and will be compatible with standards for publishing Linked Data, bringing the data integration features of RDF to RESTful, data-oriented software development. LDP defines a set of rules that clarify and extends Tim Berners-Lee's four basic rules focusing on the following concepts: – LDP Resources (LDPR) – HTTP and RDF techniques to read and write linked data – LDP Containers (LDPC) – A LDPR to which you POST to create new things, GET to find existing things – Similar to what Atom. Pub does for XML – Paging – A mechanism to get the content of a LDPC in chunks – Ordering – A mechanism to specify the order in which the content of a LDPC is sorted ■ WG currently on target to deliver a W 3 C Candidate Recommendation by the end of 2013. Details @ http: //www. w 3. org/2012/ldp © 2013 IBM Corporation

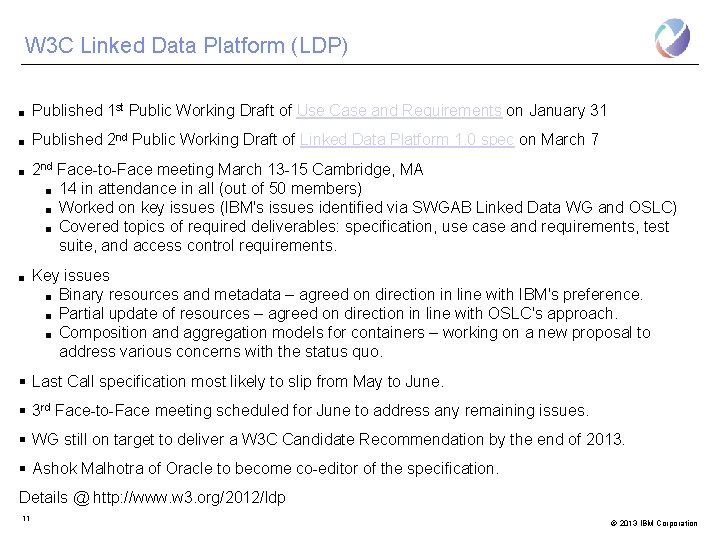

W 3 C Linked Data Platform (LDP) ■ Published 1 st Public Working Draft of Use Case and Requirements on January 31 ■ Published 2 nd Public Working Draft of Linked Data Platform 1. 0 spec on March 7 ■ ■ 2 nd Face-to-Face meeting March 13 -15 Cambridge, MA ■ 14 in attendance in all (out of 50 members) ■ Worked on key issues (IBM's issues identified via SWGAB Linked Data WG and OSLC) ■ Covered topics of required deliverables: specification, use case and requirements, test suite, and access control requirements. Key issues ■ Binary resources and metadata – agreed on direction in line with IBM's preference. ■ Partial update of resources – agreed on direction in line with OSLC's approach. ■ Composition and aggregation models for containers – working on a new proposal to address various concerns with the status quo. Last Call specification most likely to slip from May to June. 3 rd Face-to-Face meeting scheduled for June to address any remaining issues. WG still on target to deliver a W 3 C Candidate Recommendation by the end of 2013. Ashok Malhotra of Oracle to become co-editor of the specification. Details @ http: //www. w 3. org/2012/ldp 11 © 2013 IBM Corporation

Linked Data Platform - Resource • What resource formats should be used? • What literal value types should be used? • Are there some typical vocabularies that should be reused? • How is optimistic collision detection handled for updates? • What should client expectations be for changes to linked-to resources, such as type changes? • What can servers do to ease the burden of constraints for resource creation? © 2013 IBM Corporation

Request LDP Resource – GET a simple example GET /container 1/member 1 HTTP/1. 1 Host: example. org Accept: text/turtle container 1 member 1 Removed HTTP headers to save some space Response @prefix dcterms: <http: //purl. org/dc/terms/>. @prefix rdfs: <http: //www. w 3. org/2000/01/rdf-schema#>. @prefix ldp: <http: //w 3. org/ns/ldp#>. <http: //example. org/container 1/member 1> a o: Cash; dcterms: title “ACME Bank savings account”; o: value 45. 00. member 2 member 3 http: //example. org © 2013 IBM Corporation

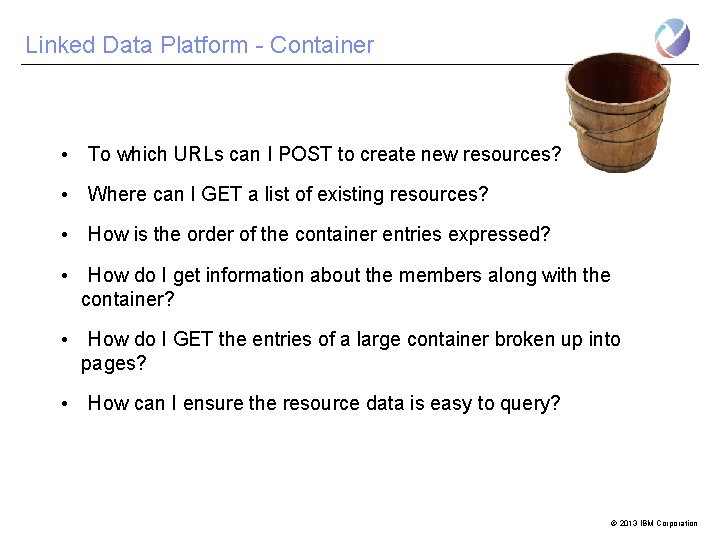

Linked Data Platform - Container • To which URLs can I POST to create new resources? • Where can I GET a list of existing resources? • How is the order of the container entries expressed? • How do I get information about the members along with the container? • How do I GET the entries of a large container broken up into pages? • How can I ensure the resource data is easy to query? © 2013 IBM Corporation

Request ldp: Container – GET a simple example GET /container 1 HTTP/1. 1 Host: example. org Accept: text/turtle container 1 member 1 Removed HTTP headers to save some space Response @prefix dcterms: <http: //purl. org/dc/terms/>. @prefix rdfs: <http: //www. w 3. org/2000/01/rdf-schema#>. @prefix ldp: <http: //w 3 c. org/ns/ldp#>. <http: //example. org/container 1> a ldp: Container; dcterms: title "A very simple container"; rdfs: member <http: //example. org/container 1/member 1>, <http: //example. org/container 1/member 2>, <http: //example. org/container 1/member 3>. member 2 member 3 http: //example. org © 2013 IBM Corporation

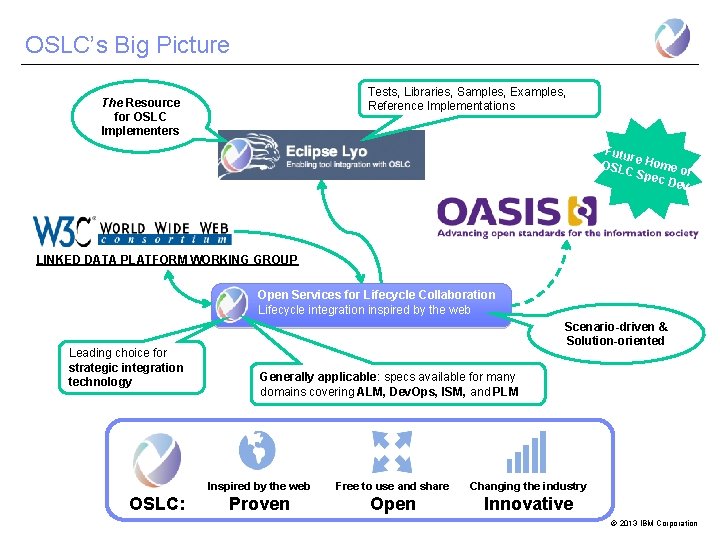

OSLC’s Big Picture Tests, Libraries, Samples, Examples, Reference Implementations The Resource for OSLC Implementers Futu re OSLC Home o f Spec Dev LINKED DATA PLATFORM WORKING GROUP Open Services for Lifecycle Collaboration Lifecycle integration inspired by the web Leading choice for strategic integration technology OSLC: Scenario-driven & Solution-oriented Generally applicable: specs available for many domains covering ALM, Dev. Ops, ISM, and PLM Inspired by the web Free to use and share Changing the industry Proven Open Innovative © 2013 IBM Corporation

Open Source Linked Data projects Simple yet solid framework for building RESTful Web services based on JAX-RS RDF Java API and Fuseki provides REST-style SPARQL HTTP interface Easily develop semantic web apps by providing tools to manipulate RDF data, create RESTful Web Services Impl of LDP that can be extended and deployed easily by orgs who want to publish data or build custom apps SDK and supporting tools to help the community to adopt OSLC specifications and build compliant tools OSLC 4 Net OSLC SDKs and tools for the. NET development community © 2013 IBM Corporation

Eclipse Lyo • Provide tools to enable adoption of OSLC and Linked Data specifications • SDKs – OSLC 4 J, OAuth, Lyo: : OSLC for Perl – OSLC provider and consumer development • Test Suites – Assessment reports OSLC implementations – Coverage for Core + Change, Requirements, Quality, Asset and Automation. Performance Management tests under development. • Sample implementations, workshops, tutorials – Provider and consumer samples. – Updated tutorial: http: //open-services. net/resources/tutorials/integrating-products-with-oslc/ • Project update – 1. 1 available in February (Client SDK, OAuth libraries, other enhancements) – 2. 0 planned for June (new spec support, new samples, non-Java libs) © 2013 IBM Corporation

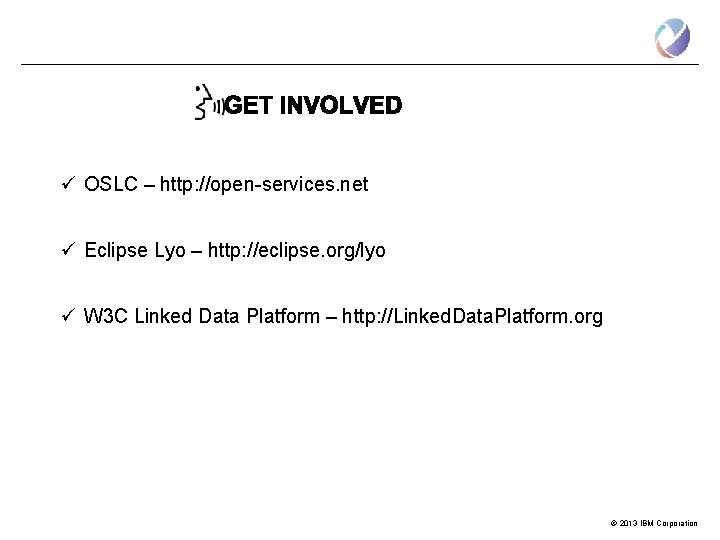

ü OSLC – http: //open-services. net ü Eclipse Lyo – http: //eclipse. org/lyo ü W 3 C Linked Data Platform – http: //Linked. Data. Platform. org © 2013 IBM Corporation
