LEVEL DESIGN CHAPTER 12 THE FUNDAMENTALS OF GAME

LEVEL DESIGN CHAPTER 12 – THE FUNDAMENTALS OF GAME DESIGN

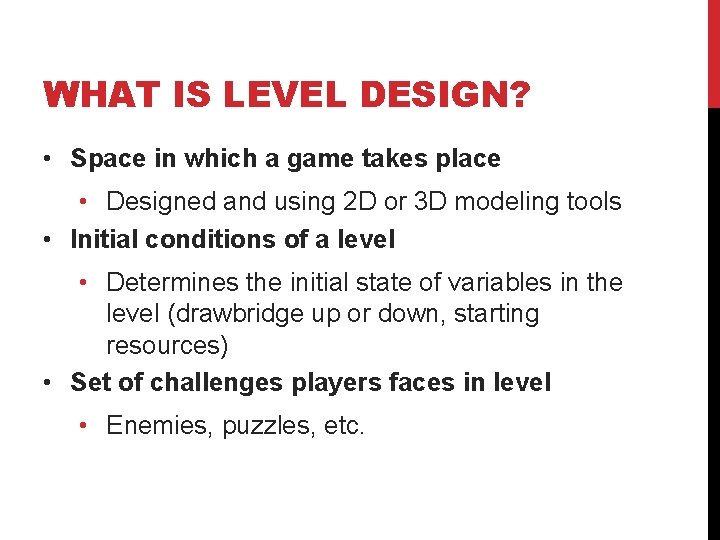

WHAT IS LEVEL DESIGN? • Space in which a game takes place • Designed and using 2 D or 3 D modeling tools • Initial conditions of a level • Determines the initial state of variables in the level (drawbridge up or down, starting resources) • Set of challenges players faces in level • Enemies, puzzles, etc.

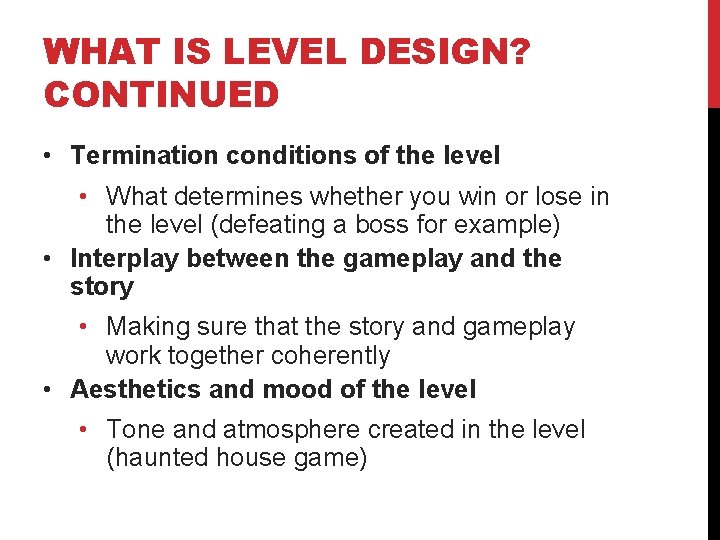

WHAT IS LEVEL DESIGN? CONTINUED • Termination conditions of the level • What determines whether you win or lose in the level (defeating a boss for example) • Interplay between the gameplay and the story • Making sure that the story and gameplay work together coherently • Aesthetics and mood of the level • Tone and atmosphere created in the level (haunted house game)

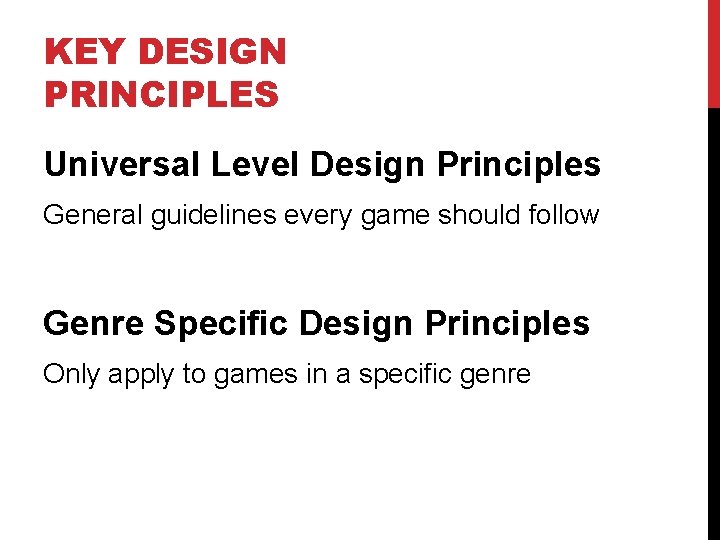

KEY DESIGN PRINCIPLES Universal Level Design Principles General guidelines every game should follow Genre Specific Design Principles Only apply to games in a specific genre

UNIVERSAL LEVEL DESIGN PRINCIPLES • Include tutorial levels in the beginning • Vary pacing of the level • Provide resources upon completing challenges • Avoid conceptual non sequitirs • Everything should work and make sense together • Inform players of current goals in the level • Players should know what the next goal is not necessarily long term goals however

UNIVERSAL LEVEL DESIGN PRINCIPLES • Reward players for skill, imagination, intelligence and dedication • Powerups, resources, shortcuts, etc. • Large rewards, small punishments • This will help not discourage players • Foreground takes precedence over background • Graphically focus on stuff right in front of the player first

UNIVERSAL LEVEL DESIGN PRINCIPLES • AI in a game should put up fight but lose • Not extremely difficult to frustrate player • Multiple difficulty settings • This opens it up to a wider array of audiences

GENRE-SPECIFIC LEVEL DESIGN PRINCIPLES • Design of levels is extremely dependent on which specific genre the game is catering to • Action • Pacing is crucial • Lots of high intensity areas followed by periods of recovery and rest (cutscenes) • Strategy games • Reward planning • Anticipating your opponents move and planning attacks or defense

GENRE-SPECIFIC LEVEL DESIGN PRINCIPLES • Role Playing Games • Opportunities for character growth and selfexpression • Every level should have opportunities that reflect player’s persona in the game • Sports Games • Verisimilitude is vital • Each match can be considered a level • Design stadiums, players, jerseys

GENRE-SPECIFIC LEVEL DESIGN PRINCIPLES • Vehicle Simulations • Reward skillful maneuvering • Steering is primary challenge, after that shooting and exploring etc. is secondary • Construction and Management Simulations • Offer an interesting variety of initial conditions and goals • Empty space where player has free reign • Scenarios where there is a goal to achieve in a specific time limit

GENRE-SPECIFIC LEVEL DESIGN PRINCIPLES • Adventure Games • Construct challenges that harmonize with their locations and the story • Exploration and puzzle-solving • Each chapter is a new level, challenges should incorporate current environment • Artificial Life Games • Create many interaction opportunities for the creatures in their environment • Game designer typically specifies interaction opportunities

GENRE-SPECIFIC LEVEL DESIGN PRINCIPLES • Puzzle Games • Give players time to think • Either create puzzles that give player complete freedom to think things through or allow pausing

LEVEL LAYOUTS

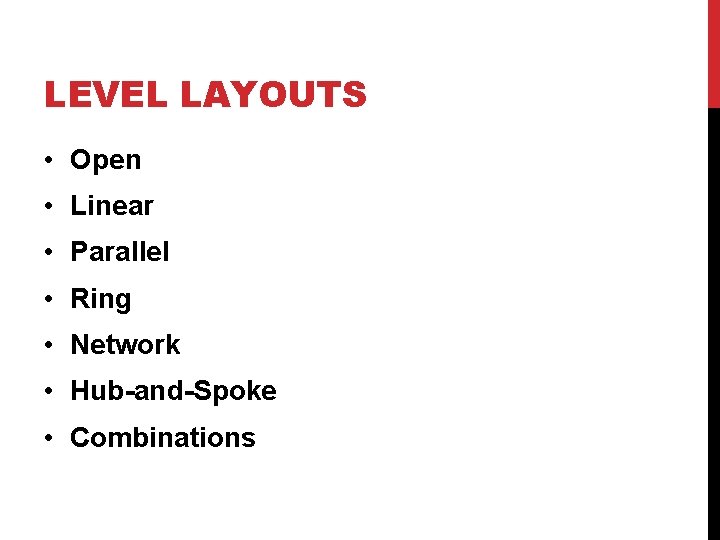

LEVEL LAYOUTS • Open • Linear • Parallel • Ring • Network • Hub-and-Spoke • Combinations

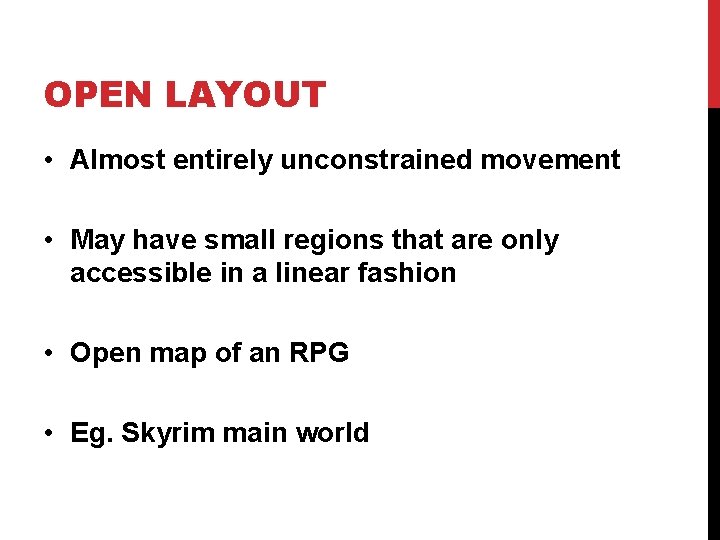

OPEN LAYOUT • Almost entirely unconstrained movement • May have small regions that are only accessible in a linear fashion • Open map of an RPG • Eg. Skyrim main world

LINEAR LAYOUT • Most common • Play may only go backwards or forwards • On rails • One-way doors sometimes that players can’t go back out of • Make sure to not lock out players if they haven’t obtained necessary item from region!!

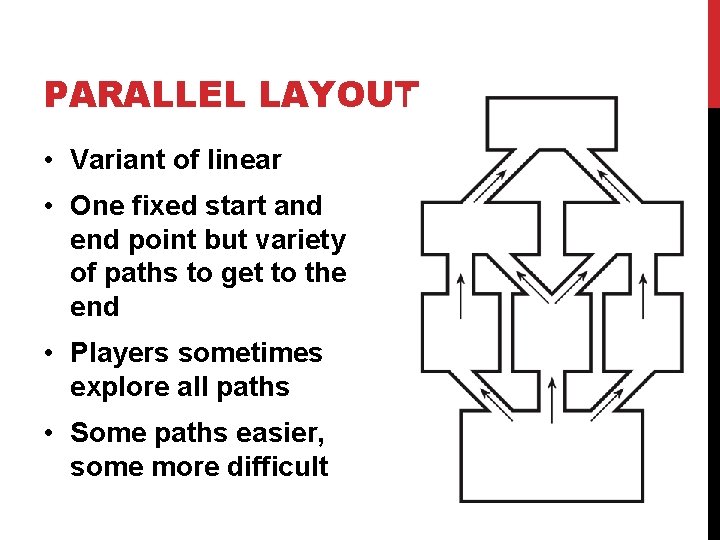

PARALLEL LAYOUT • Variant of linear • One fixed start and end point but variety of paths to get to the end • Players sometimes explore all paths • Some paths easier, some more difficult

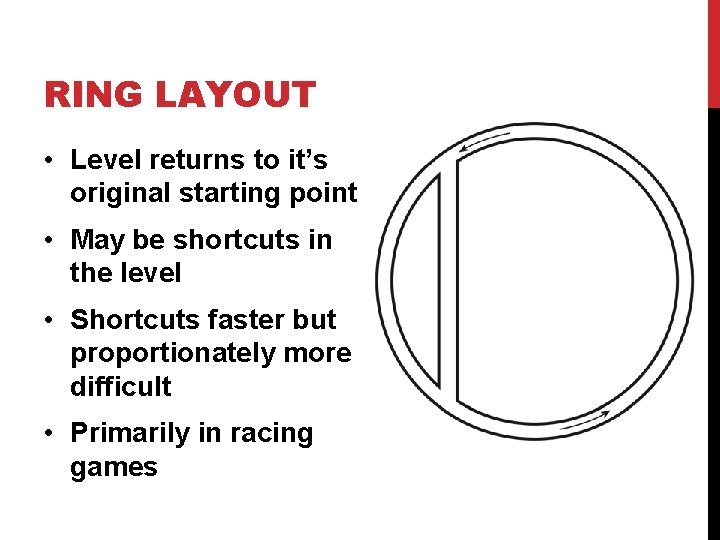

RING LAYOUT • Level returns to it’s original starting point • May be shortcuts in the level • Shortcuts faster but proportionately more difficult • Primarily in racing games

NETWORK LAYOUTS • Spaces connect to each other • Learning way around is a challenge • Gives player freedom on what path to take • Difficult for story telling

HUB-AND-SPOKE LAYOUTS • Central hub that implies safety • Linear path out of hub and then back • Return journey quick • Major challenge/reward at end of spoke • You can make certain spokes accessible at different times

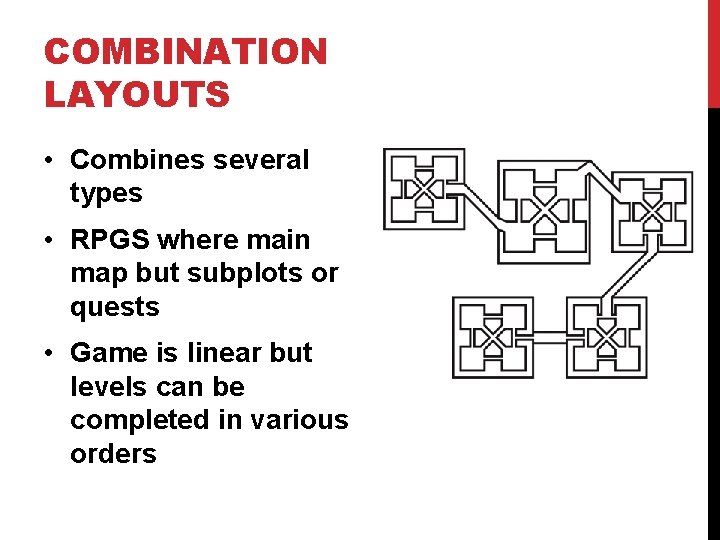

COMBINATION LAYOUTS • Combines several types • RPGS where main map but subplots or quests • Game is linear but levels can be completed in various orders

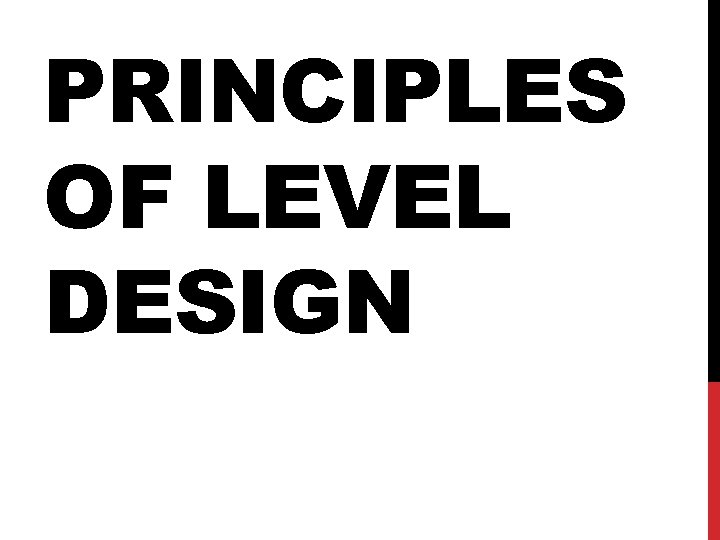

PRINCIPLES OF LEVEL DESIGN

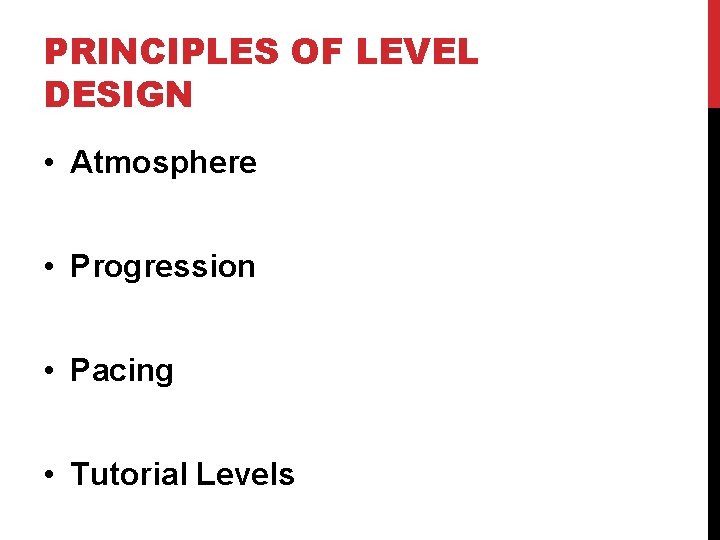

PRINCIPLES OF LEVEL DESIGN • Atmosphere • Progression • Pacing • Tutorial Levels

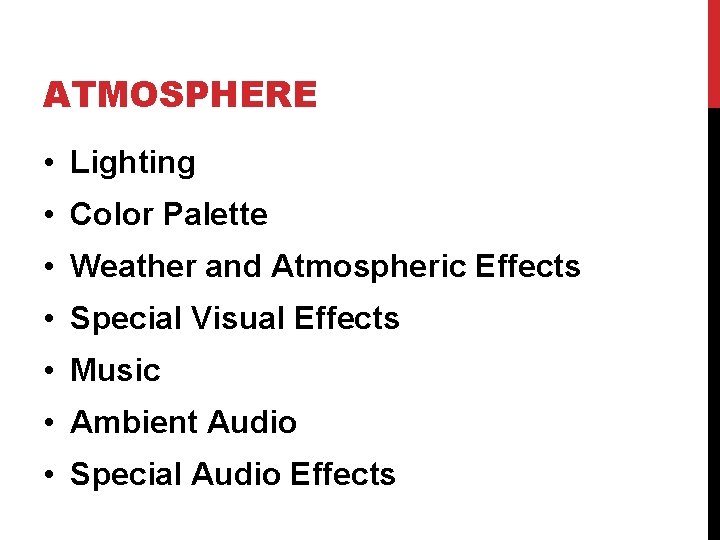

ATMOSPHERE • Lighting • Color Palette • Weather and Atmospheric Effects • Special Visual Effects • Music • Ambient Audio • Special Audio Effects

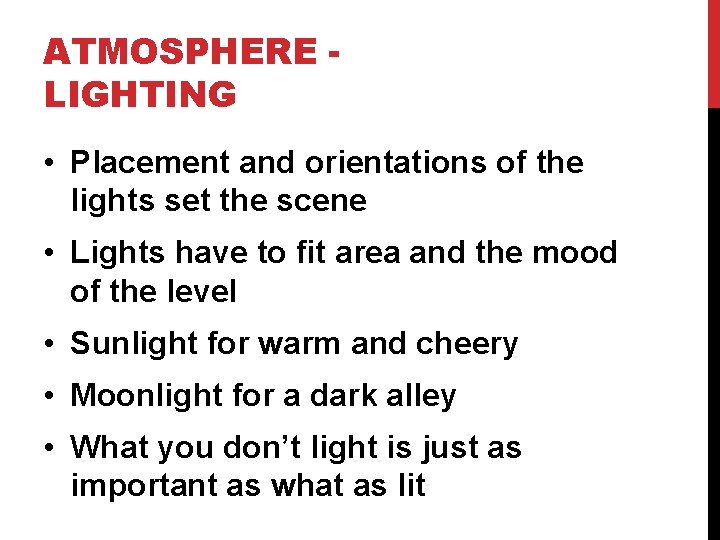

ATMOSPHERE LIGHTING • Placement and orientations of the lights set the scene • Lights have to fit area and the mood of the level • Sunlight for warm and cheery • Moonlight for a dark alley • What you don’t light is just as important as what as lit

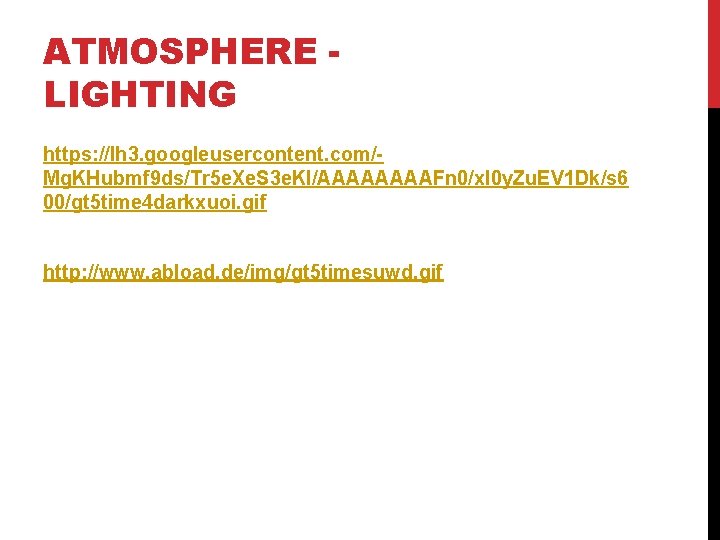

ATMOSPHERE LIGHTING https: //lh 3. googleusercontent. com/Mg. KHubmf 9 ds/Tr 5 e. Xe. S 3 e. KI/AAAAFn 0/x. I 0 y. Zu. EV 1 Dk/s 6 00/gt 5 time 4 darkxuoi. gif http: //www. abload. de/img/gt 5 timesuwd. gif

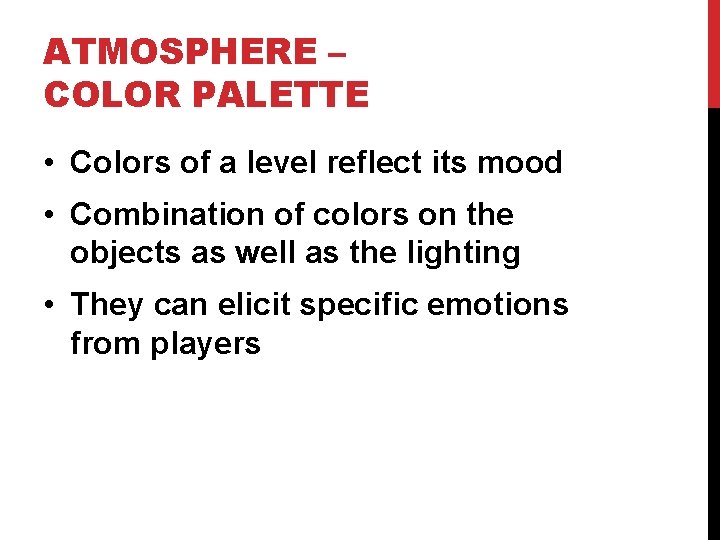

ATMOSPHERE – COLOR PALETTE • Colors of a level reflect its mood • Combination of colors on the objects as well as the lighting • They can elicit specific emotions from players

ATMOSPHERE – WEATHER • Fog, rain, snow and wind all create distinct impressions • Dark skies show storm • Fog creates mystery • Wind suggests instability

ATMOSPHERE – SPECIAL VISUAL EFFECTS • Weapon recoil, tires screeching creating smoke, magic spells • Startle players • Discomfort them • Amuse them • Reward them

ATMOSPHERE – MUSIC • Rhythm of the music can set the pace of the game or the current level • Keep with the tone of the game • Generally remains consistent throughout the level

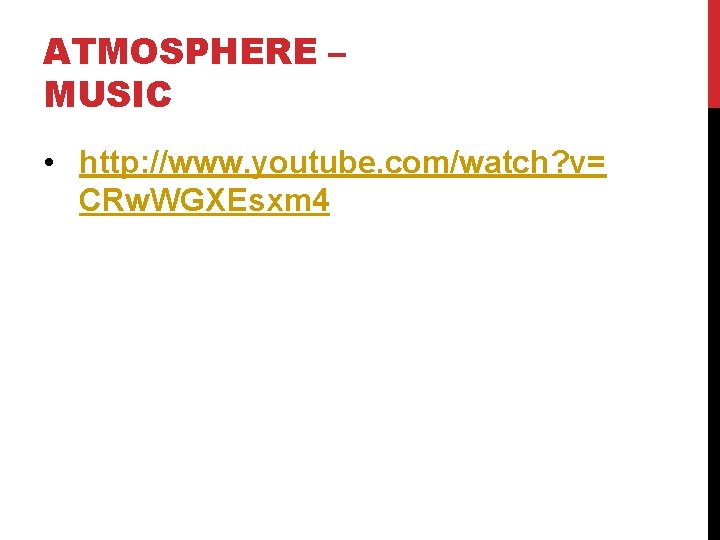

ATMOSPHERE – MUSIC • http: //www. youtube. com/watch? v= CRw. WGXEsxm 4

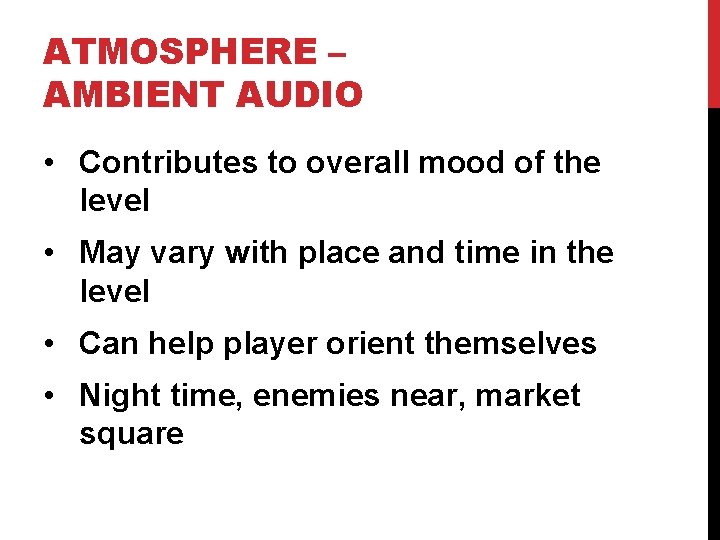

ATMOSPHERE – AMBIENT AUDIO • Contributes to overall mood of the level • May vary with place and time in the level • Can help player orient themselves • Night time, enemies near, market square

ATMOSPHERE – AMBIENT AUDIO • http: //www. youtube. com/watch? v=u 1 n. Y_5 -Ur. Y 4

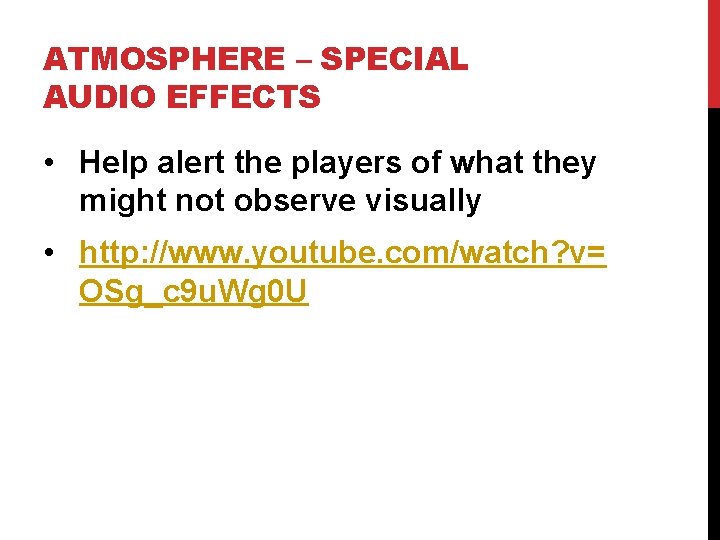

ATMOSPHERE – SPECIAL AUDIO EFFECTS • Help alert the players of what they might not observe visually • http: //www. youtube. com/watch? v= OSg_c 9 u. Wg 0 U

PROGRESSION AND PACING • Games that are over an hour in length should have some form of progression system • Having challenges that too close together can create stress for the player

PROGRESSION • Mechanics • Experience duration • Ancillary awards and environmental progression • Practical gameplay rewards • Difficulty • Actions available to the player • Story progression • Character growth

PACING • Designing the pacing • First you must decide the genre that is being designed for • Varying the pacing • Should vary, fast sections followed by slow sections • Overall pacing • Pacing should increase throughout the game and climax with the final boss battle

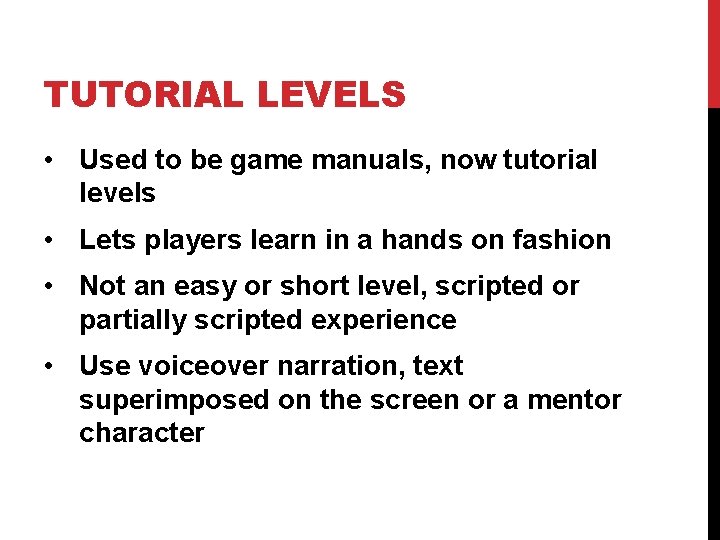

TUTORIAL LEVELS • Used to be game manuals, now tutorial levels • Lets players learn in a hands on fashion • Not an easy or short level, scripted or partially scripted experience • Use voiceover narration, text superimposed on the screen or a mentor character

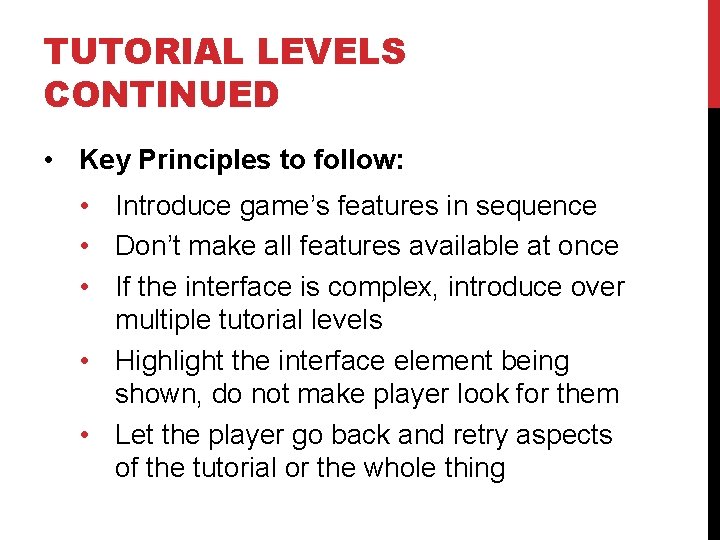

TUTORIAL LEVELS CONTINUED • Key Principles to follow: • Introduce game’s features in sequence • Don’t make all features available at once • If the interface is complex, introduce over multiple tutorial levels • Highlight the interface element being shown, do not make player look for them • Let the player go back and retry aspects of the tutorial or the whole thing
