Lethality, Survivability, Mobility and Sustainment for America’s Army Leadership Teaming Communication Employee Support Strategic Thinking Organizational Climate RESET and Restructuring Support National Defense Industrial Association Fall Conference Jack Dugan Director, Integrated Logistics Support Center 9 Sep 04 Committed to Excellence – Supporting America’s Warfighters 1

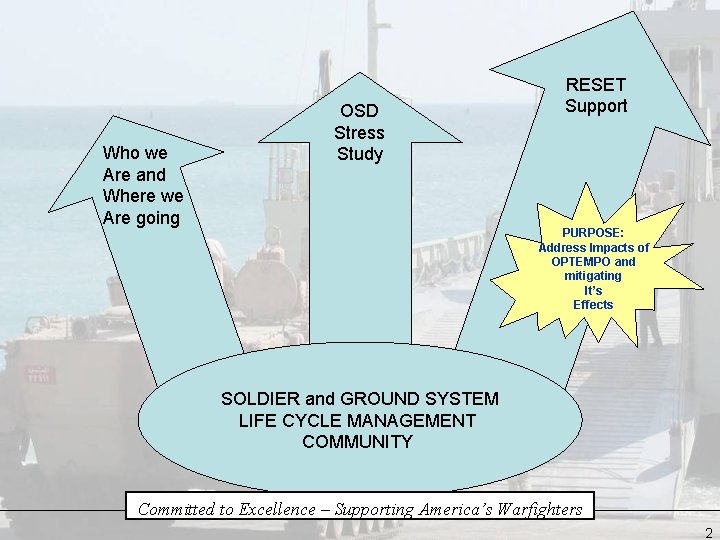

Who we Are and Where we Are going OSD Stress Study RESET Support PURPOSE: Address Impacts of OPTEMPO and mitigating It’s Effects SOLDIER and GROUND SYSTEM LIFE CYCLE MANAGEMENT COMMUNITY Committed to Excellence – Supporting America’s Warfighters 2

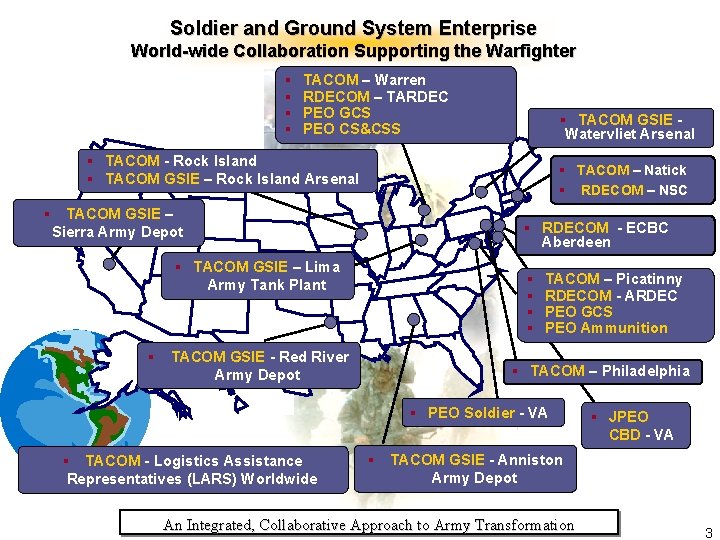

Soldier and Ground System Enterprise World-wide Collaboration Supporting the Warfighter § § TACOM – Warren RDECOM – TARDEC PEO GCS PEO CS&CSS § TACOM GSIE Watervliet Arsenal § TACOM - Rock Island § TACOM GSIE – Rock Island Arsenal § TACOM GSIE – Sierra Army Depot § TACOM GSIE – Lima Army Tank Plant § TACOM GSIE - Red River Army Depot § TACOM – Natick § RDECOM – NSC § RDECOM - ECBC Aberdeen § § TACOM – Picatinny RDECOM - ARDEC PEO GCS PEO Ammunition § TACOM – Philadelphia § PEO Soldier - VA § TACOM - Logistics Assistance Representatives (LARS) Worldwide § JPEO CBD - VA § TACOM GSIE - Anniston Army Depot An Integrated, Collaborative Approach to Army Transformation 3

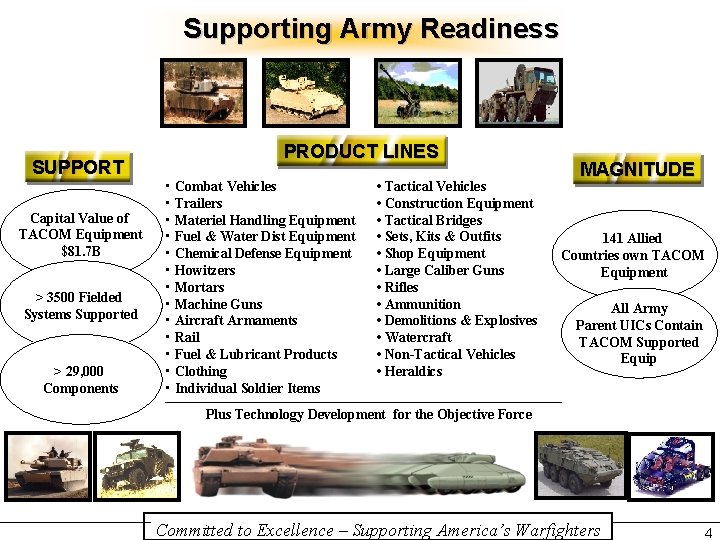

Supporting Army Readiness SUPPORT Capital Value of TACOM Equipment $81. 7 B > 3500 Fielded Systems Supported > 29, 000 Components PRODUCT LINES • Combat Vehicles • Trailers • Materiel Handling Equipment • Fuel & Water Dist Equipment • Chemical Defense Equipment • Howitzers • Mortars • Machine Guns • Aircraft Armaments • Rail • Fuel & Lubricant Products • Clothing • Individual Soldier Items • Tactical Vehicles • Construction Equipment • Tactical Bridges • Sets, Kits & Outfits • Shop Equipment • Large Caliber Guns • Rifles • Ammunition • Demolitions & Explosives • Watercraft • Non-Tactical Vehicles • Heraldics MAGNITUDE 141 Allied Countries own TACOM Equipment All Army Parent UICs Contain TACOM Supported Equip Plus Technology Development for the Objective Force Committed to Excellence – Supporting America’s Warfighters 4

OSD Stress Study Committed to Excellence – Supporting America’s Warfighters 5

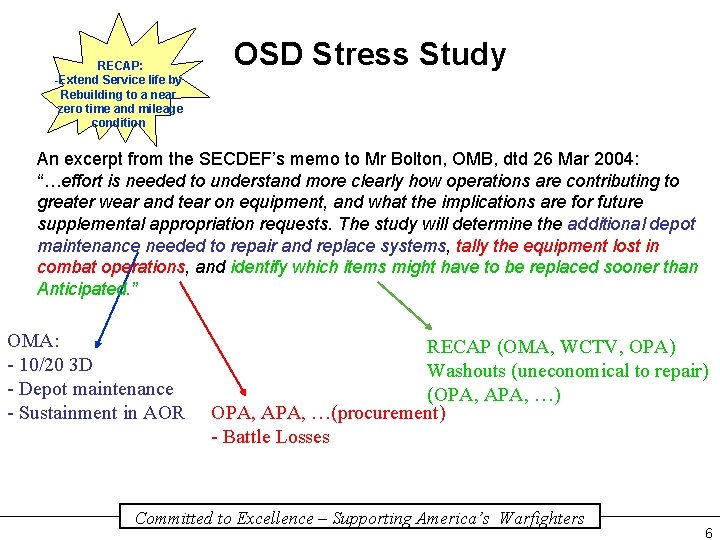

RECAP: -Extend Service life by Rebuilding to a near zero time and mileage condition OSD Stress Study An excerpt from the SECDEF’s memo to Mr Bolton, OMB, dtd 26 Mar 2004: “…effort is needed to understand more clearly how operations are contributing to greater wear and tear on equipment, and what the implications are for future supplemental appropriation requests. The study will determine the additional depot maintenance needed to repair and replace systems, tally the equipment lost in combat operations, and identify which items might have to be replaced sooner than Anticipated. ” OMA: RECAP (OMA, WCTV, OPA) - 10/20 3 D Washouts (uneconomical to repair) - Depot maintenance (OPA, APA, …) - Sustainment in AOR OPA, APA, …(procurement) - Battle Losses Committed to Excellence – Supporting America’s Warfighters 6

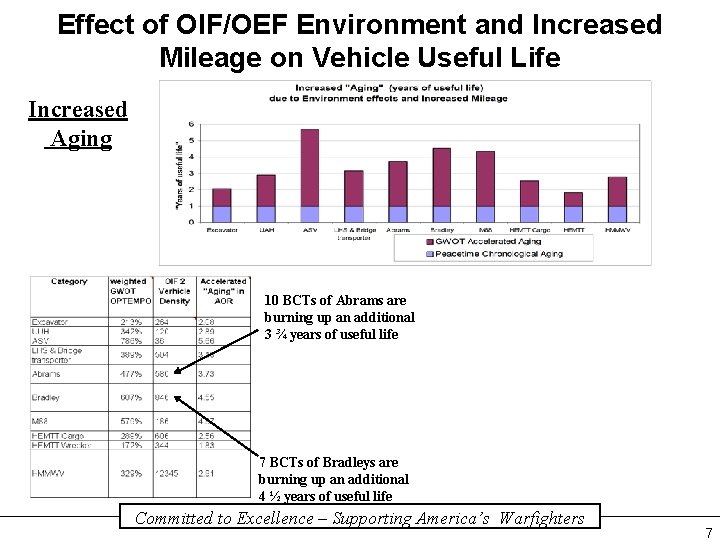

Effect of OIF/OEF Environment and Increased Mileage on Vehicle Useful Life Increased Aging 10 BCTs of Abrams are burning up an additional 3 ¾ years of useful life 7 BCTs of Bradleys are burning up an additional 4 ½ years of useful life Committed to Excellence – Supporting America’s Warfighters 7

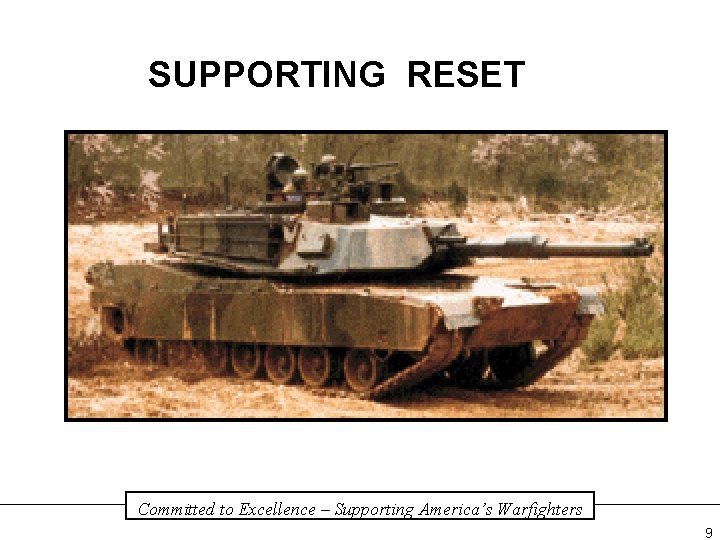

SUPPORTING RESET Committed to Excellence – Supporting America’s Warfighters 9

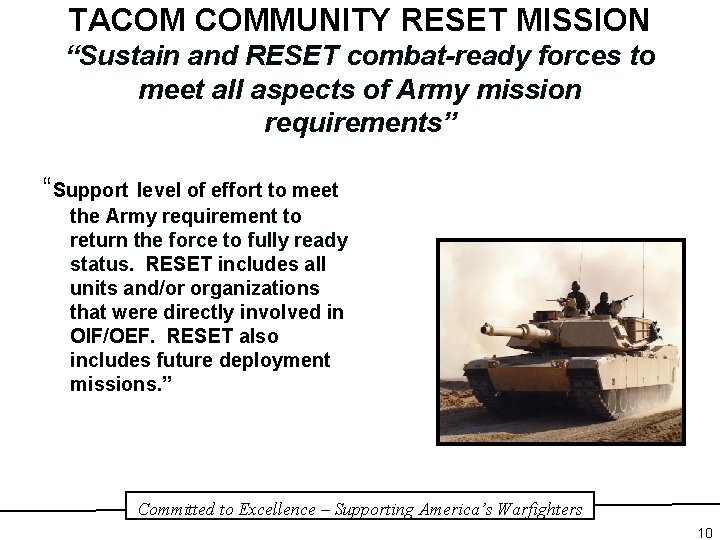

TACOM COMMUNITY RESET MISSION “Sustain and RESET combat-ready forces to meet all aspects of Army mission requirements” “Support level of effort to meet the Army requirement to return the force to fully ready status. RESET includes all units and/or organizations that were directly involved in OIF/OEF. RESET also includes future deployment missions. ” Committed to Excellence – Supporting America’s Warfighters 10

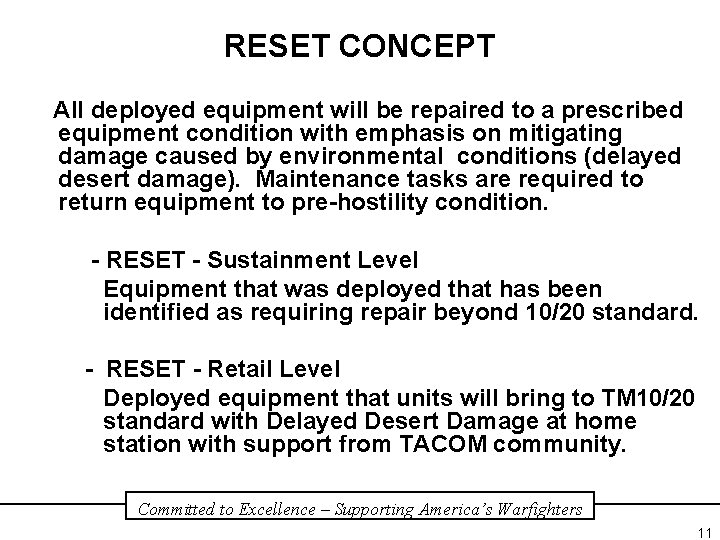

RESET CONCEPT All deployed equipment will be repaired to a prescribed equipment condition with emphasis on mitigating damage caused by environmental conditions (delayed desert damage). Maintenance tasks are required to return equipment to pre-hostility condition. - RESET - Sustainment Level Equipment that was deployed that has been identified as requiring repair beyond 10/20 standard. - RESET - Retail Level Deployed equipment that units will bring to TM 10/20 standard with Delayed Desert Damage at home station with support from TACOM community. Committed to Excellence – Supporting America’s Warfighters 11

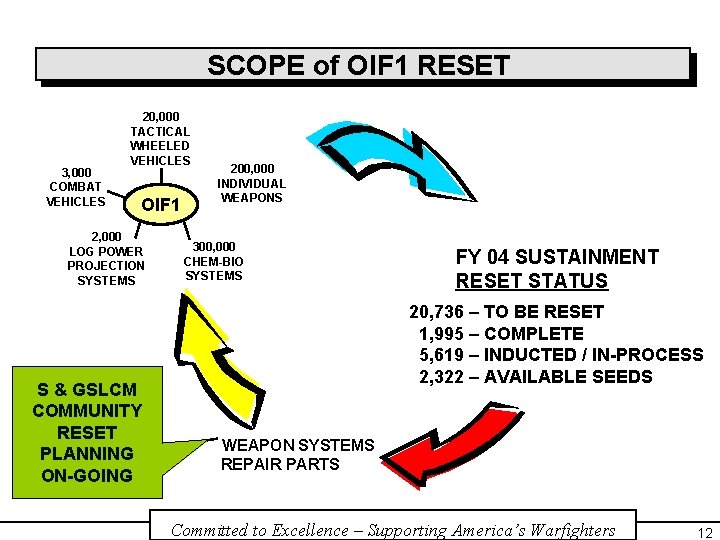

SCOPE of OIF 1 RESET 3, 000 COMBAT VEHICLES 20, 000 TACTICAL WHEELED VEHICLES OIF 1 2, 000 LOG POWER PROJECTION SYSTEMS S & GSLCM COMMUNITY RESET PLANNING ON-GOING 200, 000 INDIVIDUAL WEAPONS 300, 000 CHEM-BIO SYSTEMS FY 04 SUSTAINMENT RESET STATUS 20, 736 – TO BE RESET 1, 995 – COMPLETE 5, 619 – INDUCTED / IN-PROCESS 2, 322 – AVAILABLE SEEDS • WEAPON SYSTEMS REPAIR PARTS Committed to Excellence – Supporting America’s Warfighters 12

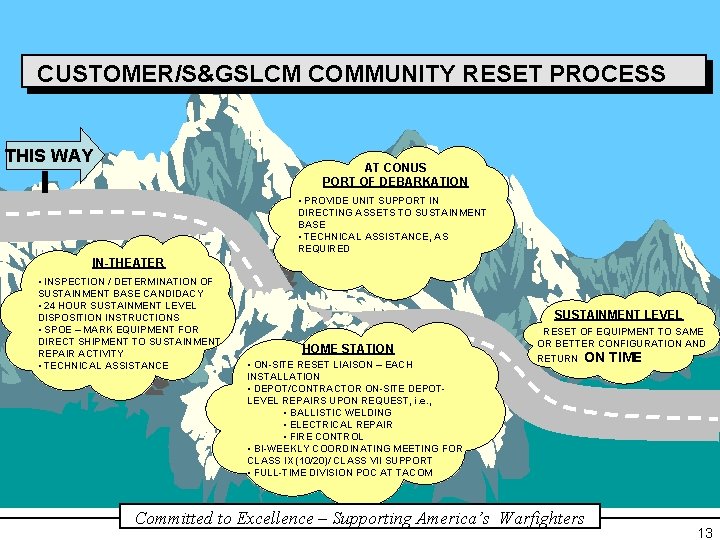

CUSTOMER/S&GSLCM COMMUNITY RESET PROCESS THIS WAY AT CONUS PORT OF DEBARKATION • PROVIDE UNIT SUPPORT IN DIRECTING ASSETS TO SUSTAINMENT BASE • TECHNICAL ASSISTANCE, AS REQUIRED IN-THEATER • INSPECTION / DETERMINATION OF SUSTAINMENT BASE CANDIDACY • 24 HOUR SUSTAINMENT LEVEL DISPOSITION INSTRUCTIONS • SPOE – MARK EQUIPMENT FOR DIRECT SHIPMENT TO SUSTAINMENT REPAIR ACTIVITY • TECHNICAL ASSISTANCE SUSTAINMENT LEVEL HOME STATION • ON-SITE RESET LIAISON – EACH INSTALLATION • DEPOT/CONTRACTOR ON-SITE DEPOTLEVEL REPAIRS UPON REQUEST, i. e. , • BALLISTIC WELDING • ELECTRICAL REPAIR • FIRE CONTROL • BI-WEEKLY COORDINATING MEETING FOR CLASS IX (10/20)/ CLASS VII SUPPORT • FULL-TIME DIVISION POC AT TACOM • RESET OF EQUIPMENT TO SAME OR BETTER CONFIGURATION AND RETURN ON TIME Committed to Excellence – Supporting America’s Warfighters 13

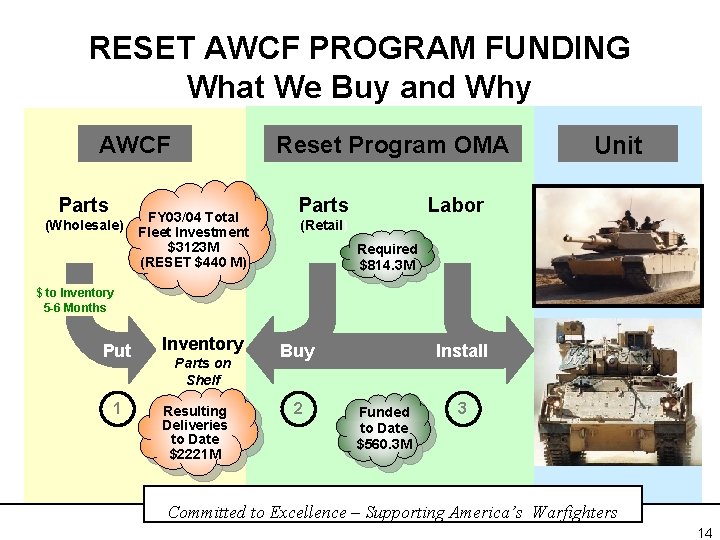

RESET AWCF PROGRAM FUNDING What We Buy and Why AWCF Parts (Wholesale) Reset Program OMA FY 03/04 Total Fleet Investment $3123 M (RESET $440 M) Parts Unit Labor (Retail) Required $814. 3 M $ to Inventory 5 -6 Months Put 1 Inventory Parts on Shelf Resulting Deliveries to Date $2221 M Buy 2 Install Funded to Date $560. 3 M 3 Committed to Excellence – Supporting America’s Warfighters 14

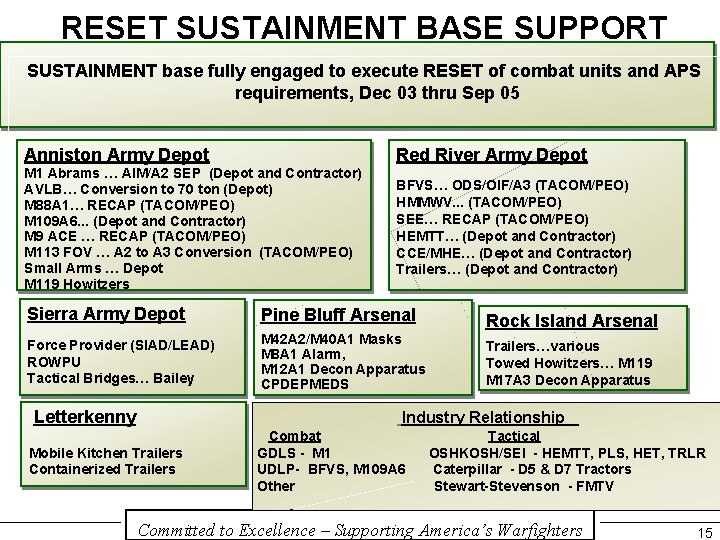

RESET SUSTAINMENT BASE SUPPORT SUSTAINMENT base fully engaged to execute RESET of combat units and APS requirements, Dec 03 thru Sep 05 Anniston Army Depot Red River Army Depot M 1 Abrams … AIM/A 2 SEP (Depot and Contractor) AVLB… Conversion to 70 ton (Depot) M 88 A 1… RECAP (TACOM/PEO) M 109 A 6. . . (Depot and Contractor) M 9 ACE … RECAP (TACOM/PEO) M 113 FOV … A 2 to A 3 Conversion (TACOM/PEO) Small Arms … Depot M 119 Howitzers BFVS… ODS/OIF/A 3 (TACOM/PEO) HMMWV. . . (TACOM/PEO) SEE… RECAP (TACOM/PEO) HEMTT… (Depot and Contractor) CCE/MHE… (Depot and Contractor) Trailers… (Depot and Contractor) Sierra Army Depot Pine Bluff Arsenal Rock Island Arsenal Force Provider (SIAD/LEAD) ROWPU Tactical Bridges… Bailey M 42 A 2/M 40 A 1 Masks M 8 A 1 Alarm, M 12 A 1 Decon Apparatus CPDEPMEDS Trailers…various Towed Howitzers… M 119 M 17 A 3 Decon Apparatus Letterkenny Industry Relationship Mobile Kitchen Trailers Containerized Trailers Combat GDLS - M 1 UDLP- BFVS, M 109 A 6 Other Tactical OSHKOSH/SEI - HEMTT, PLS, HET, TRLR Caterpillar - D 5 & D 7 Tractors Stewart-Stevenson - FMTV Committed to Excellence – Supporting America’s Warfighters 15

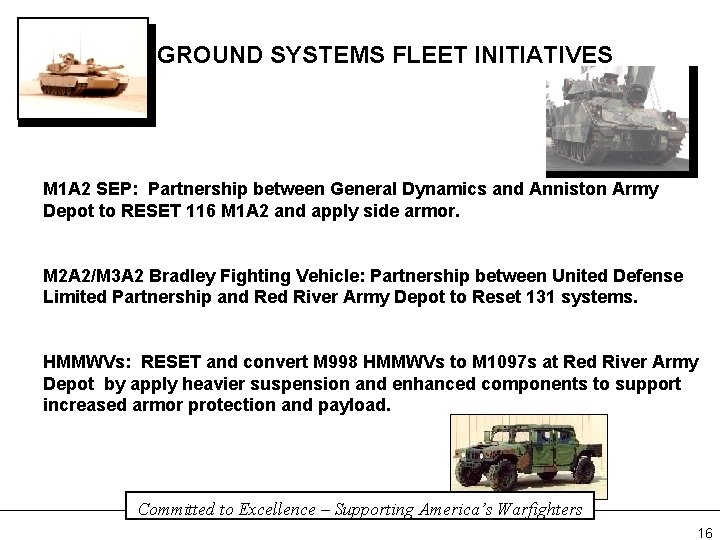

GROUND SYSTEMS FLEET INITIATIVES M 1 A 2 SEP: Partnership between General Dynamics and Anniston Army Depot to RESET 116 M 1 A 2 and apply side armor. M 2 A 2/M 3 A 2 Bradley Fighting Vehicle: Partnership between United Defense Limited Partnership and Red River Army Depot to Reset 131 systems. HMMWVs: RESET and convert M 998 HMMWVs to M 1097 s at Red River Army Depot by apply heavier suspension and enhanced components to support increased armor protection and payload. Committed to Excellence – Supporting America’s Warfighters 16

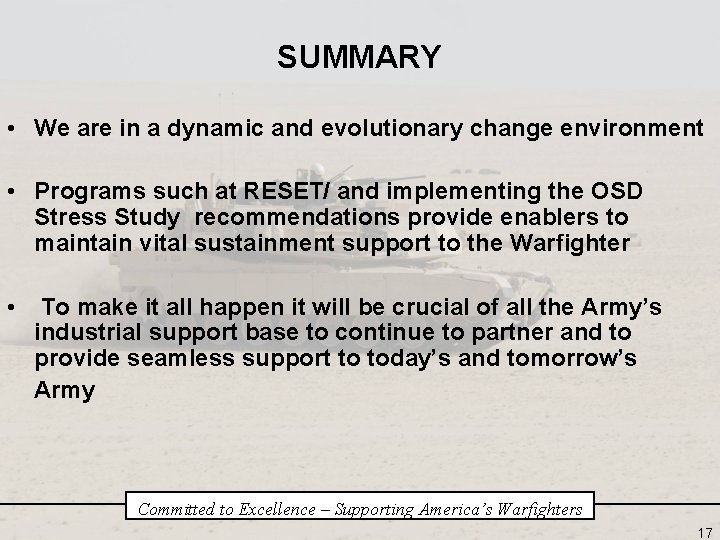

SUMMARY • We are in a dynamic and evolutionary change environment • Programs such at RESET/ and implementing the OSD Stress Study recommendations provide enablers to maintain vital sustainment support to the Warfighter • To make it all happen it will be crucial of all the Army’s industrial support base to continue to partner and to provide seamless support to today’s and tomorrow’s Army Committed to Excellence – Supporting America’s Warfighters 17

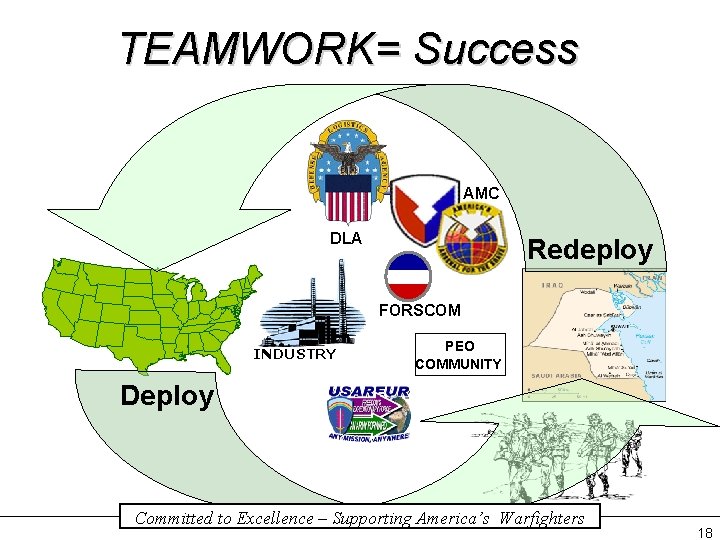

TEAMWORK= Success AMC DLA Redeploy FORSCOM INDUSTRY PEO COMMUNITY Deploy Committed to Excellence – Supporting America’s Warfighters 18
