Lesson Objectives At the end of this lesson

Lesson Objectives At the end of this lesson you should be able to 1. Outline the four stages involved in DNA profiling 2. Define the process of DNA profiling 3. Give two applications of DNA profiling 4. Define genetic screening

DNA PROFILING 1980 - American researchers discovered non-coding regions of DNA 1984 - Professor Alec Jeffries developed the process of DNA profiling 1987 - First conviction based on DNA evidence

Principle of DNA Profiling All human chromosomes have sections of DNA with no known functions These sections have short base sequences These sequences repeat over and over They are inherited from parents Their length and position are unique to each person

DNA PROFILING A process or technique of analysis revealing unique patterns of an individual’s DNA involving non-coding regions

NON-CODING REGIONS (VNTR)

STAGES INVOLVED Cells broken down to release DNA 2. DNA strands cut into fragments 3. Fragments separated 4. Pattern of fragments analysed 1.

1. DNA EXTRACTION

2. DNA CUTTING The DNA is cut up into fragments using restriction enzymes This gives lots of fragments The fragments are different sizes

3. FRAGMENT SEPARATION Samples containing the fragments are placed into individual wells in a gel using a pipette This is known as electrophoresis

ELECTROPHORESIS Fragments separated by length DNA (negatively charged) Moves towards +ve terminal Shorter fragments move faster

4. DNA TRANSFER DNA is split into single strands using an alkaline solution DNA fragments transferred from gel to filter paper or nylon membrane The Gel, with filter paper attached, is removed & separated

5. ANALYSIS Radioactive probe in solution binds to DNA X-ray film Revealing a pattern of bands

Applications of Genetic Screening Paternity Forensic disputes Science Genetic Screening Genetic Archaeology

FORENSIC SCIENCE

FAMILY RELATIONSHIPS

COMMON CONCERNS Quality of sample Mistakes and inaccuracy Interpretation Privacy Evidence from criminal investigations Who should use DNA fingerprinting Cost effective Ethnic problems

Genetic Screening is used to : Test individuals who are at high risk of having or passing on a specific genetic disorder

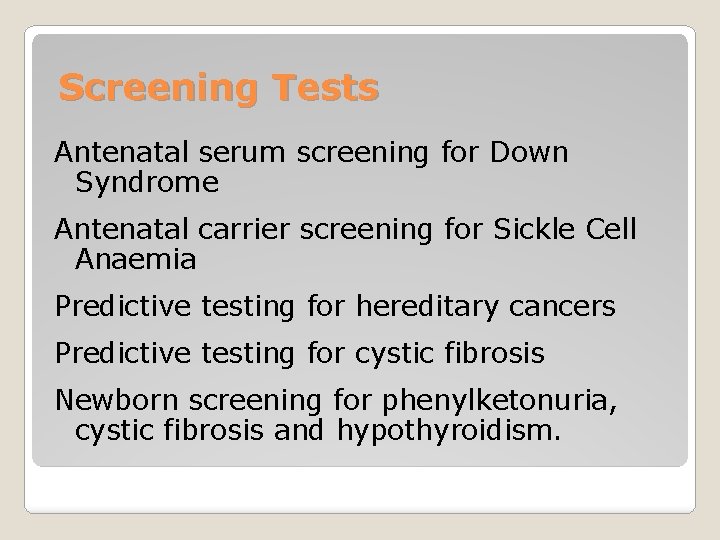

Screening Tests Antenatal serum screening for Down Syndrome Antenatal carrier screening for Sickle Cell Anaemia Predictive testing for hereditary cancers Predictive testing for cystic fibrosis Newborn screening for phenylketonuria, cystic fibrosis and hypothyroidism.

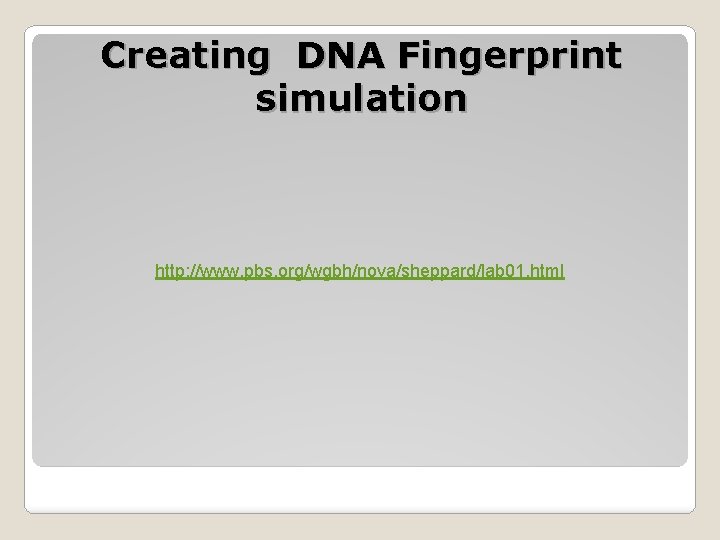

Creating DNA Fingerprint simulation http: //www. pbs. org/wgbh/nova/sheppard/lab 01. html

What have you learned? Can you ……………… 1. Discuss the stages involved in DNA profiling 2. Define the process of DNA profiling 3. Give two applications of DNA profiling 4. Define genetic screening

End
