Lesson 7 4 Right Triangle Trigonometry 1 Right

Lesson 7 -4 Right Triangle Trigonometry 1

Right triangle Trigonometry trigonometry: from the Greek words "trigonon, " for triangle, and "metron, " meaning to measure. Trigonometry is the branch of mathematics that studies the relationships between the sides and angles of a triangle. Lesson 7 -4 Right Triangle Trigonometry 2

There are many trig functions! Luckily, in this course we only focus on three: sine, cosine, and tangent. Lesson 7 -4 Right Triangle Trigonometry 3

Trig Functions Cont. Right angle never uses the angle perspective because there is no side adjacent side to the angle perspective. Lesson 7 -4 Right Triangle Trigonometry 4

In right triangles : l The segment across from the right angle ( “Hyp. ”. ) is labeled the hypotenuse Hyp. Opp. Angle of Perspective Adj. l l l The “angle of perspective” determines how to label the sides. Segment opposite from the Angle of Perspective( ) is labeled “Opp. ” Segment adjacent to (next to) the Angle of Perspective ( ) is labeled “Adj. ”. * The angle of Perspective is never the right angle. Lesson 7 -4 Right Triangle Trigonometry 5

Labeling sides depends on the Angle of Perspective If is the Angle of Perspective then …… Angle of Perspective Hyp. Adj. Opp. *”Opp. ” means segment opposite from Angle of Perspective “Adj. ” means segment adjacent from Angle of Perspective Lesson 7 -4 Right Triangle Trigonometry 6

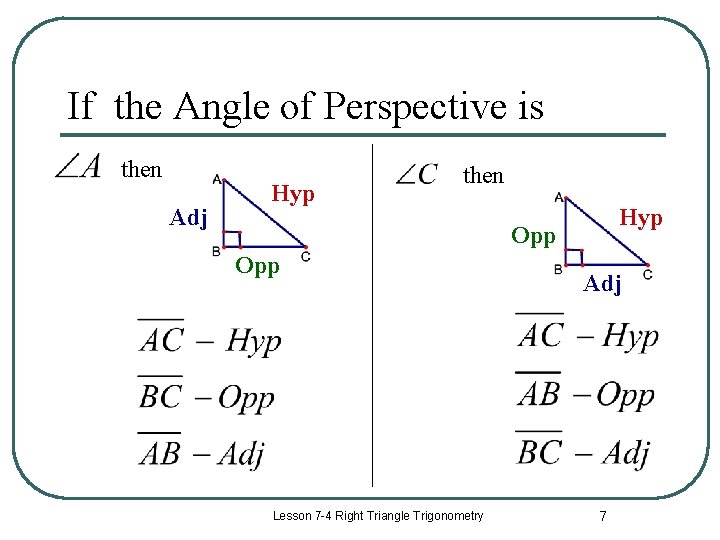

If the Angle of Perspective is then Adj Hyp then Hyp Opp Lesson 7 -4 Right Triangle Trigonometry Adj 7

Trigonometry Ratios If sin is the Angle of Perspective then …. . . = Hyp Opp cos = tan = Adj Angle of Perspective Lesson 7 -4 Right Triangle Trigonometry 8

Example: Find the value of x. Step 1: Mark the “Angle of Perspective”. Step 2: Label the sides (Hyp / Opp / Adj). Step 3: Select a trigonometry ratio (sin/ cos / tan). Sin = Step 4: Substitute the values into the equation. Sin 25 = opp Hyp Angle of Perspective Adj Step 5: Solve the equation : Change Sin 25 into a decimal. Cross multiply and solve. = x = (0. 4226) (12) x = 5. 07 cm Lesson 7 -4 Right Triangle Trigonometry 9

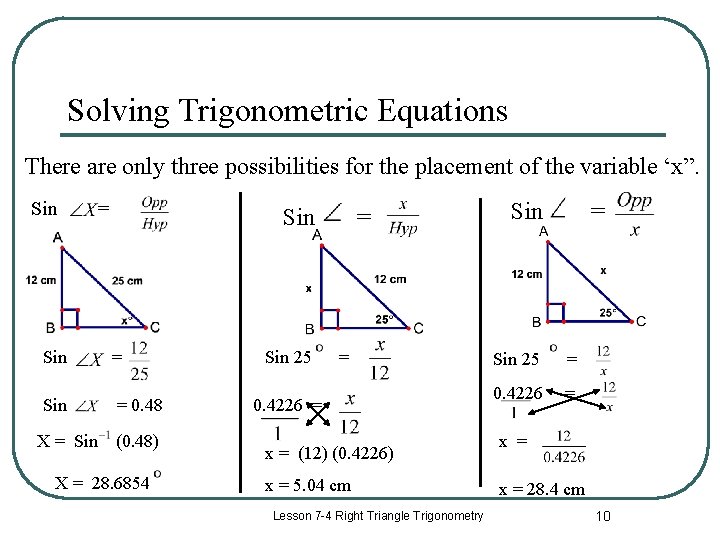

Solving Trigonometric Equations There are only three possibilities for the placement of the variable ‘x”. Sin = 0. 48 X = Sin (0. 48) X = 28. 6854 Sin 25 = = 0. 4226 = x = (12) (0. 4226) x = 5. 04 cm Lesson 7 -4 Right Triangle Trigonometry Sin = Sin 25 = 0. 4226 = x = 28. 4 cm 10

(SOH-CAH-TOA) l Always Remember!!!! (SOH-CAH-TOA) l SOH: Sine=Opposite/ Hypotenuse l CAH: Cosine=Adjacent/Hypotenuse l TOA: Tan=Opposite/Hypotenuse Lesson 7 -4 Right Triangle Trigonometry 11
