Lesson 6 Basics of Incident Response Overview Hacker

Lesson 6 Basics of Incident Response

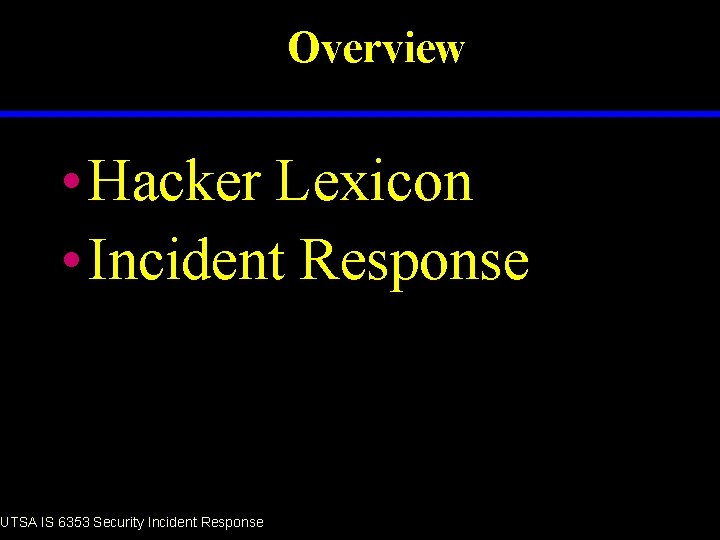

Overview • Hacker Lexicon • Incident Response UTSA IS 6353 Security Incident Response

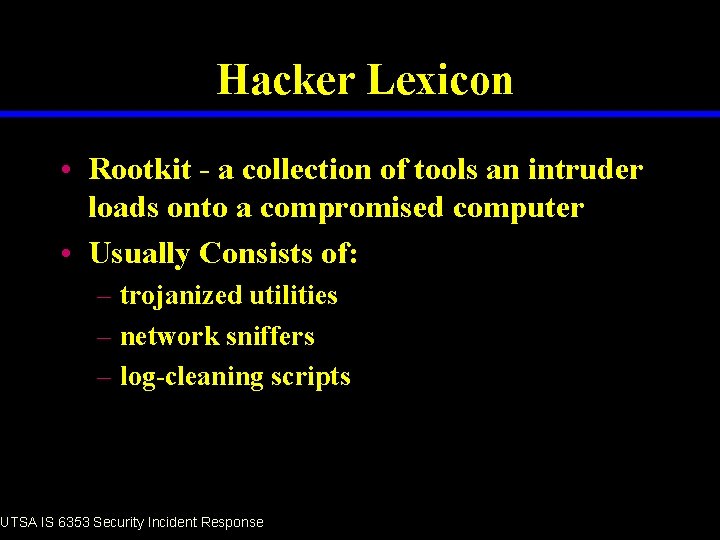

Hacker Lexicon • Rootkit - a collection of tools an intruder loads onto a compromised computer • Usually Consists of: – trojanized utilities – network sniffers – log-cleaning scripts UTSA IS 6353 Security Incident Response

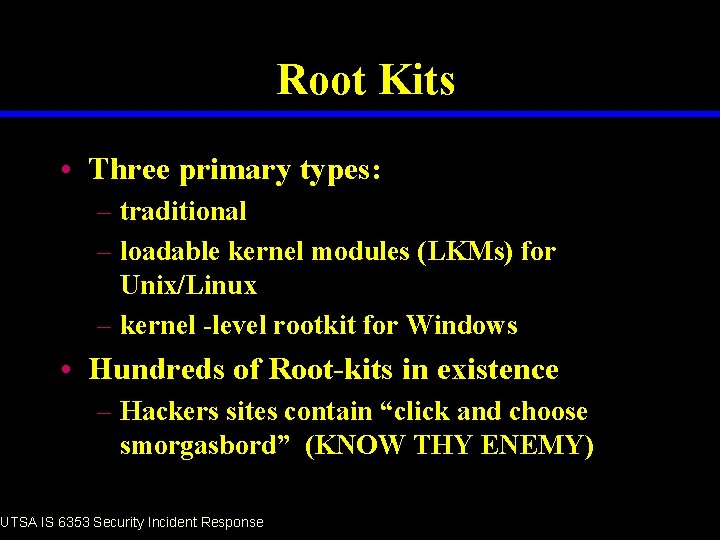

Root Kits • Three primary types: – traditional – loadable kernel modules (LKMs) for Unix/Linux – kernel -level rootkit for Windows • Hundreds of Root-kits in existence – Hackers sites contain “click and choose smorgasbord” (KNOW THY ENEMY) UTSA IS 6353 Security Incident Response

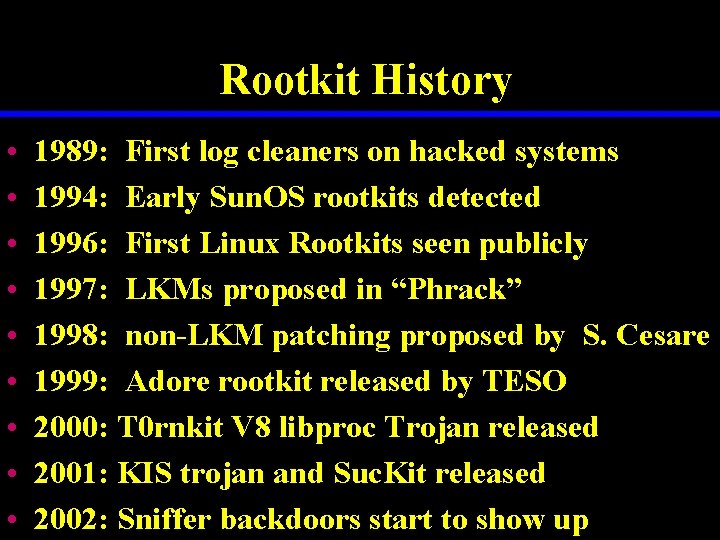

Rootkit History • • • 1989: First log cleaners on hacked systems 1994: Early Sun. OS rootkits detected 1996: First Linux Rootkits seen publicly 1997: LKMs proposed in “Phrack” 1998: non-LKM patching proposed by S. Cesare 1999: Adore rootkit released by TESO 2000: T 0 rnkit V 8 libproc Trojan released 2001: KIS trojan and Suc. Kit released 2002: Sniffer backdoors start to show up

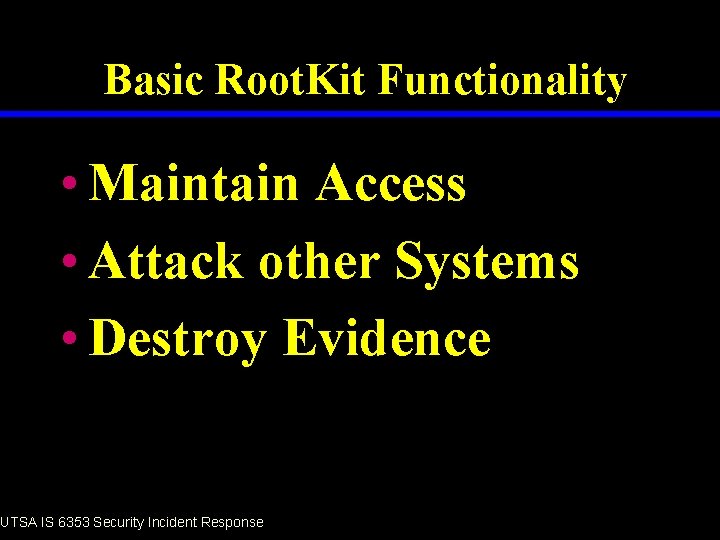

Basic Root. Kit Functionality • Maintain Access • Attack other Systems • Destroy Evidence UTSA IS 6353 Security Incident Response

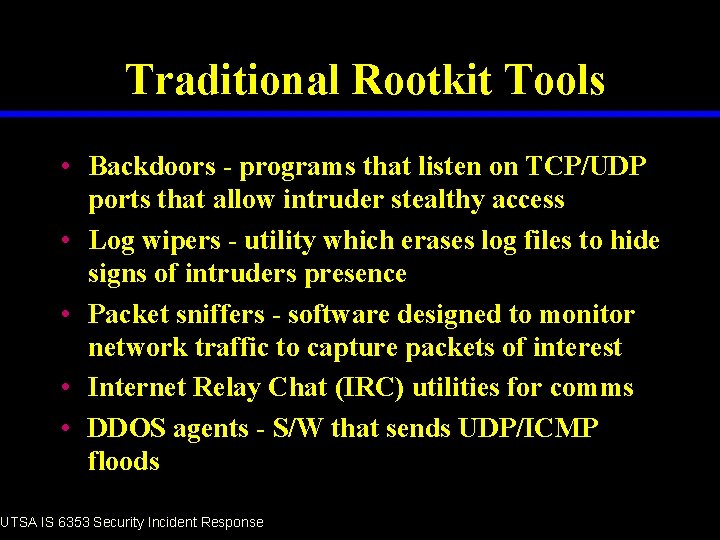

Traditional Rootkit Tools • Backdoors - programs that listen on TCP/UDP ports that allow intruder stealthy access • Log wipers - utility which erases log files to hide signs of intruders presence • Packet sniffers - software designed to monitor network traffic to capture packets of interest • Internet Relay Chat (IRC) utilities for comms • DDOS agents - S/W that sends UDP/ICMP floods UTSA IS 6353 Security Incident Response

LKM Rootkits • Most rootkits used against Unix/Linux systems are Loadable Kernel Modules (LKMs) • Kernel is transparently modified: – – Execute Redirection: remaps system utility calls Remote execution: commands transmitted via the net Promiscuous mode hiding: hides sniffers Task hacking: changing the user id (UID), effective user id (EUID), and file system user id (FSUID) of any process UTSA IS 6353 Security Incident Response

LKM Rootkits • Kernel is transparently modified (contd): – Real-time process hiding -sending the following: “kill -31 process id” allows kernel to suppress all info about the given process – Kernel Module Hiding: LKMs can actually mask their own presence (stealthy LKMs) UTSA IS 6353 Security Incident Response

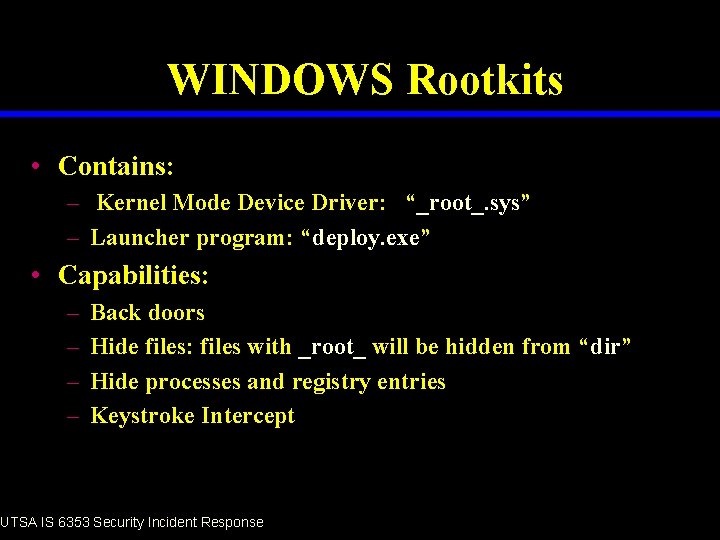

WINDOWS Rootkits • Contains: – Kernel Mode Device Driver: “_root_. sys” – Launcher program: “deploy. exe” • Capabilities: – – Back doors Hide files: files with _root_ will be hidden from “dir” Hide processes and registry entries Keystroke Intercept UTSA IS 6353 Security Incident Response

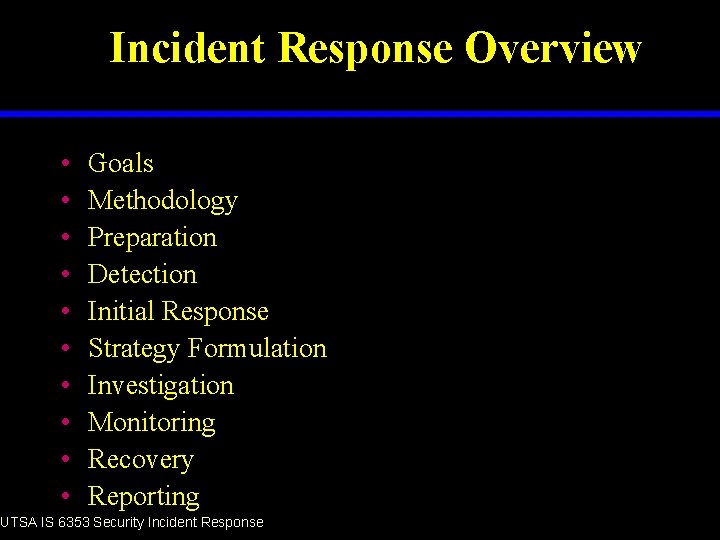

Incident Response Overview • • • Goals Methodology Preparation Detection Initial Response Strategy Formulation Investigation Monitoring Recovery Reporting UTSA IS 6353 Security Incident Response

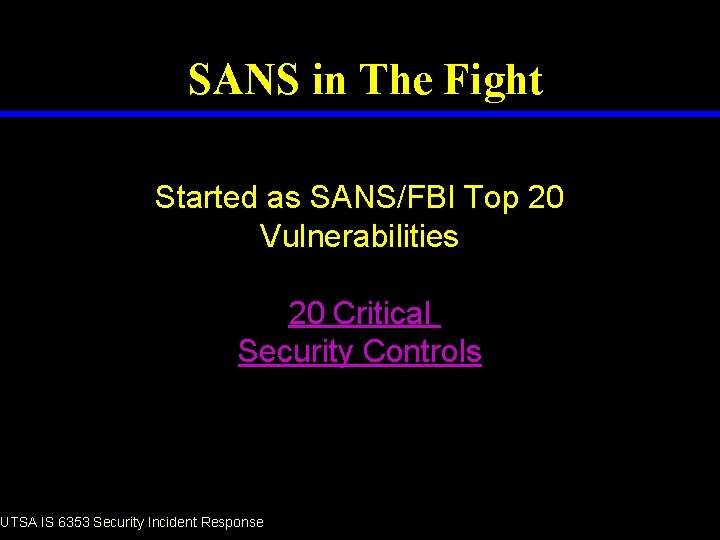

SANS in The Fight Started as SANS/FBI Top 20 Vulnerabilities 20 Critical Security Controls UTSA IS 6353 Security Incident Response

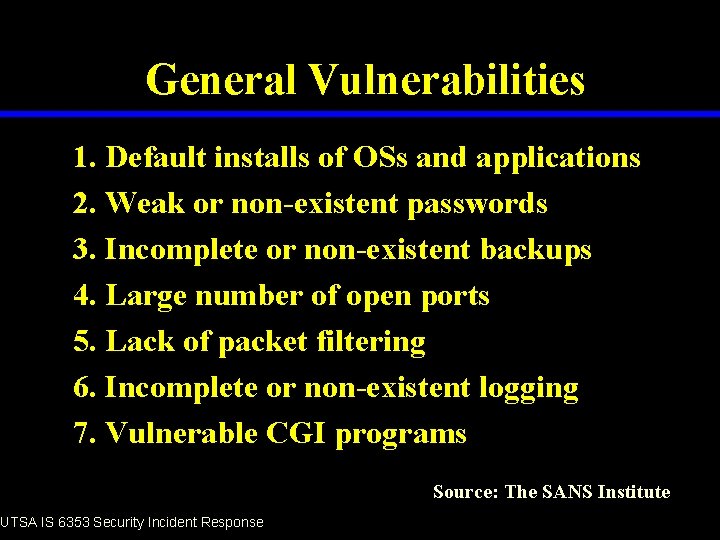

General Vulnerabilities 1. Default installs of OSs and applications 2. Weak or non-existent passwords 3. Incomplete or non-existent backups 4. Large number of open ports 5. Lack of packet filtering 6. Incomplete or non-existent logging 7. Vulnerable CGI programs Source: The SANS Institute UTSA IS 6353 Security Incident Response

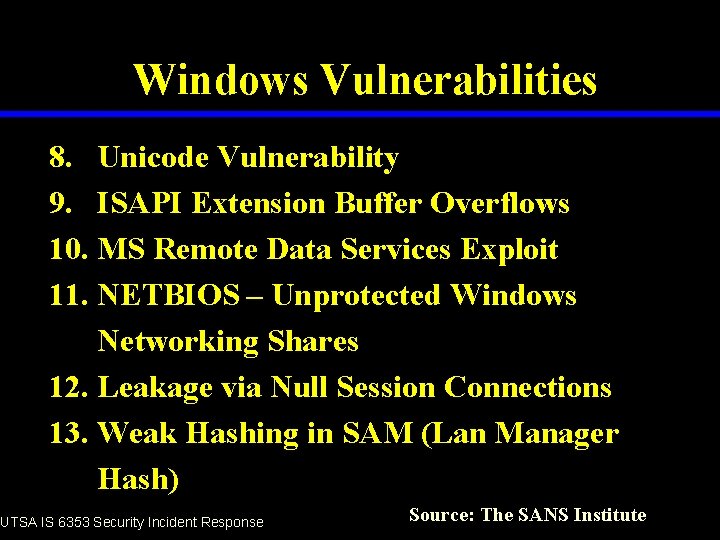

Windows Vulnerabilities 8. Unicode Vulnerability 9. ISAPI Extension Buffer Overflows 10. MS Remote Data Services Exploit 11. NETBIOS – Unprotected Windows Networking Shares 12. Leakage via Null Session Connections 13. Weak Hashing in SAM (Lan Manager Hash) UTSA IS 6353 Security Incident Response Source: The SANS Institute

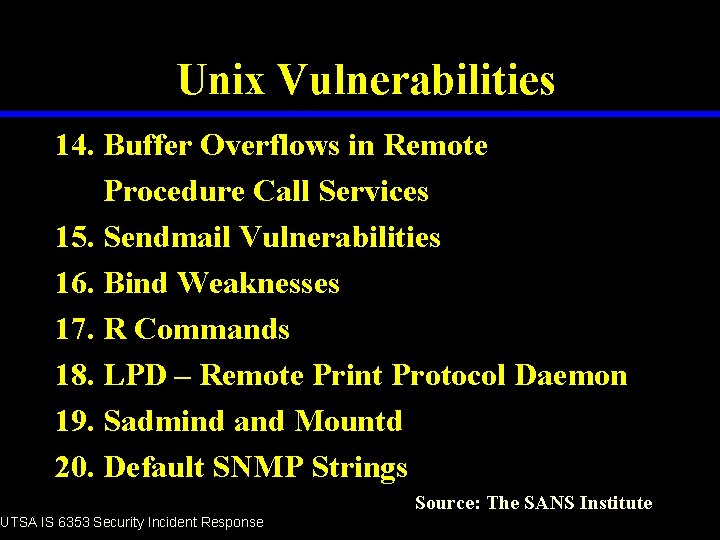

Unix Vulnerabilities 14. Buffer Overflows in Remote Procedure Call Services 15. Sendmail Vulnerabilities 16. Bind Weaknesses 17. R Commands 18. LPD – Remote Print Protocol Daemon 19. Sadmind and Mountd 20. Default SNMP Strings Source: The SANS Institute UTSA IS 6353 Security Incident Response

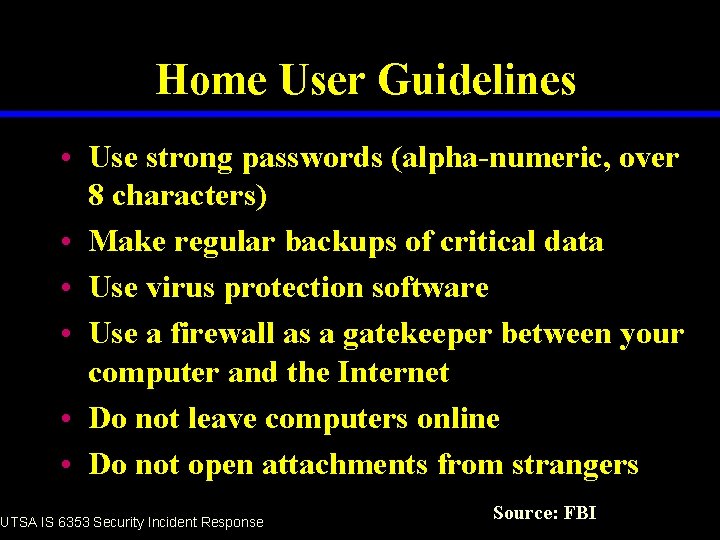

Home User Guidelines • Use strong passwords (alpha-numeric, over 8 characters) • Make regular backups of critical data • Use virus protection software • Use a firewall as a gatekeeper between your computer and the Internet • Do not leave computers online • Do not open attachments from strangers UTSA IS 6353 Security Incident Response Source: FBI

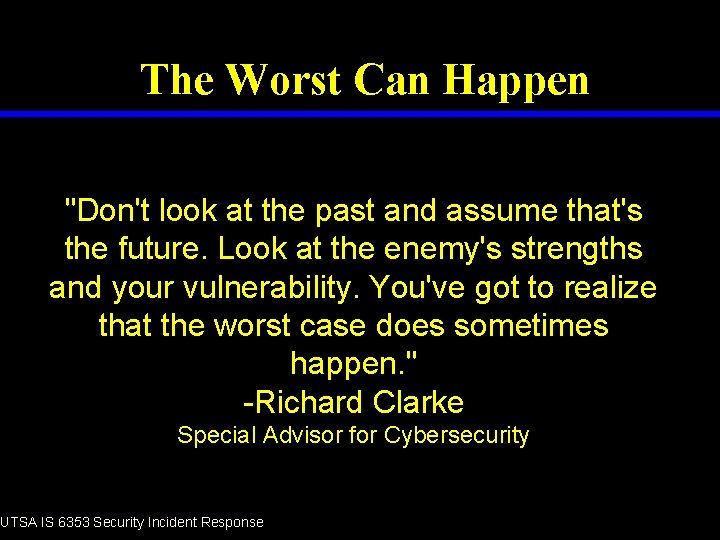

The Worst Can Happen "Don't look at the past and assume that's the future. Look at the enemy's strengths and your vulnerability. You've got to realize that the worst case does sometimes happen. " -Richard Clarke Special Advisor for Cybersecurity UTSA IS 6353 Security Incident Response

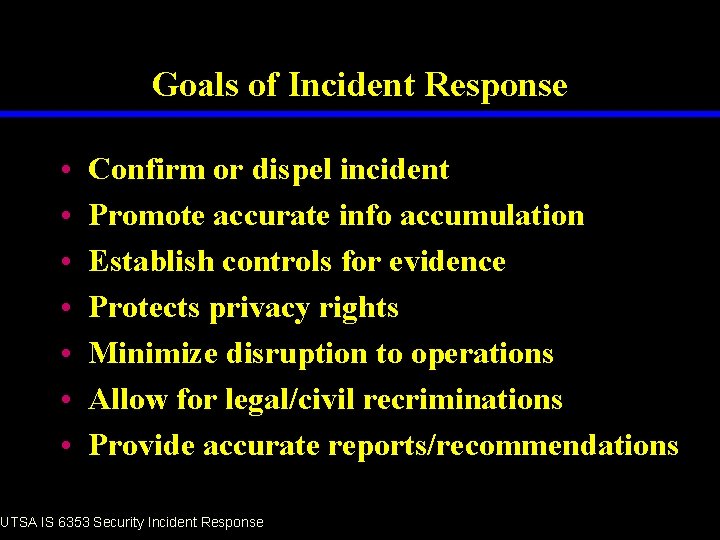

Goals of Incident Response • • Confirm or dispel incident Promote accurate info accumulation Establish controls for evidence Protects privacy rights Minimize disruption to operations Allow for legal/civil recriminations Provide accurate reports/recommendations UTSA IS 6353 Security Incident Response

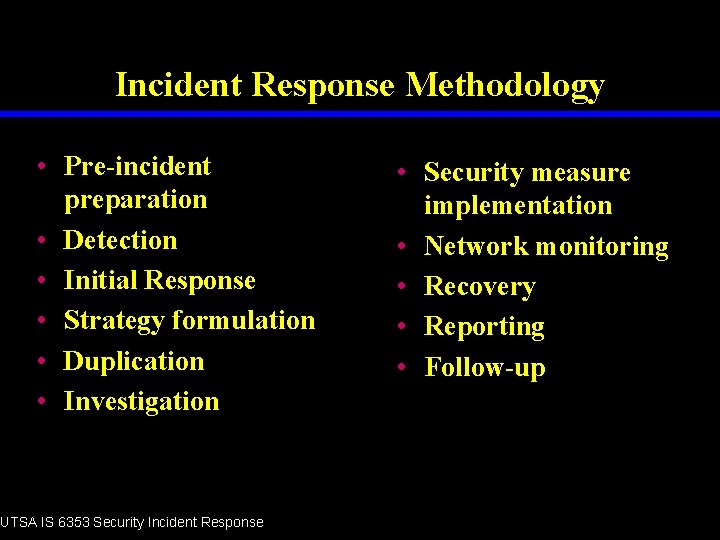

Incident Response Methodology • Pre-incident preparation • Detection • Initial Response • Strategy formulation • Duplication • Investigation UTSA IS 6353 Security Incident Response • Security measure implementation • Network monitoring • Recovery • Reporting • Follow-up

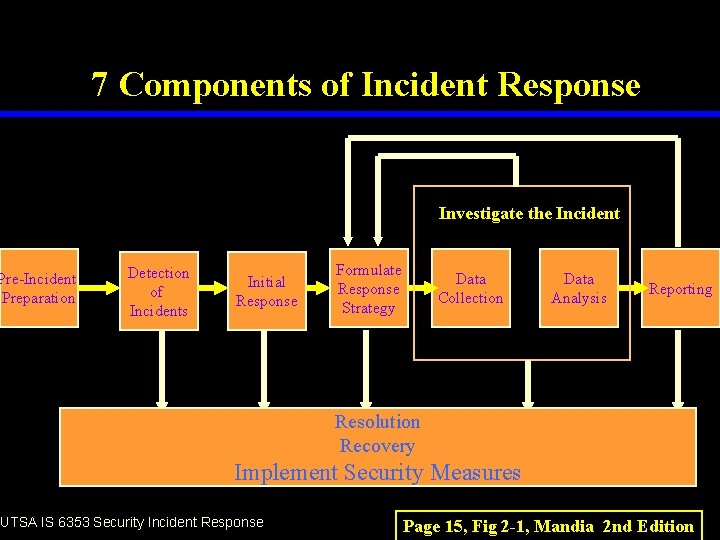

7 Components of Incident Response Investigate the Incident Pre-Incident Preparation Detection of Incidents Initial Response Formulate Response Strategy Data Collection Data Analysis Reporting Resolution Recovery Implement Security Measures UTSA IS 6353 Security Incident Response Page 15, Fig 2 -1, Mandia 2 nd Edition

Detection Firewall Logs IDS Logs Suspicious User Sys Admin D E T E C T UTSA IS 6353 Security Incident Response Notification Checklist Completed Response Team Activated

Initial Critical Details • • • Current time and date Who/what is reporting the incident Nature of the incident When the incident occurred Hardware/software involved Point of contact for involved personnel UTSA IS 6353 Security Incident Response

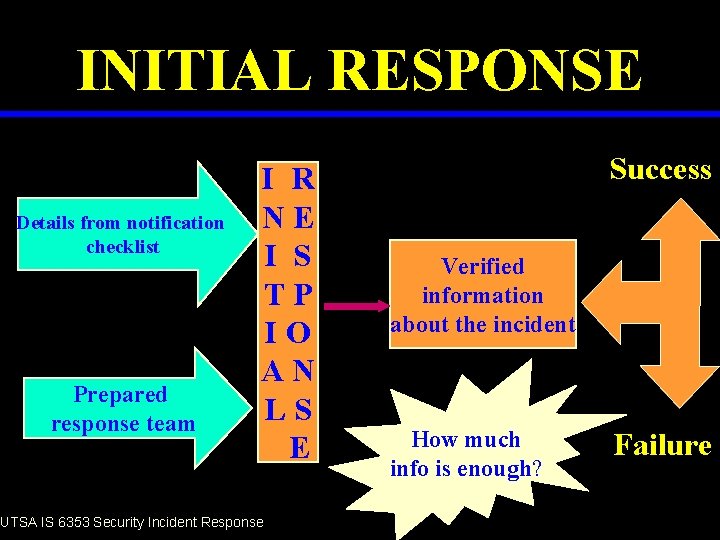

INITIAL RESPONSE Details from notification checklist Prepared response team I R NE I S TP IO AN LS E UTSA IS 6353 Security Incident Response Success Verified information about the incident How much info is enough? Failure

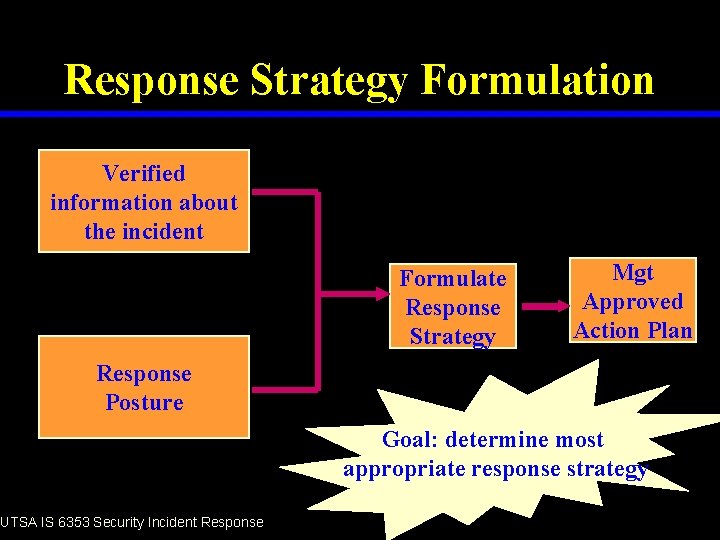

Response Strategy Formulation Verified information about the incident Formulate Response Strategy Mgt Approved Action Plan Response Posture Goal: determine most appropriate response strategy UTSA IS 6353 Security Incident Response

Factors for Strategy • • How critical are the impacted systems? Data sensitivity Who are the perpetrators? Does the incident have publicity Level of access to the hacker Apparent skill of the attacker How much downtime can be tolerated Overall dollar loss involved UTSA IS 6353 Security Incident Response

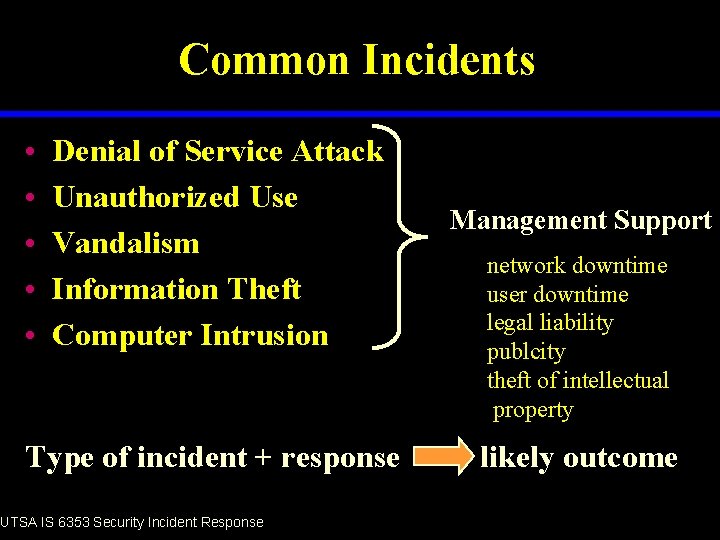

Common Incidents • • • Denial of Service Attack Unauthorized Use Vandalism Information Theft Computer Intrusion Type of incident + response UTSA IS 6353 Security Incident Response Management Support network downtime user downtime legal liability publcity theft of intellectual property likely outcome

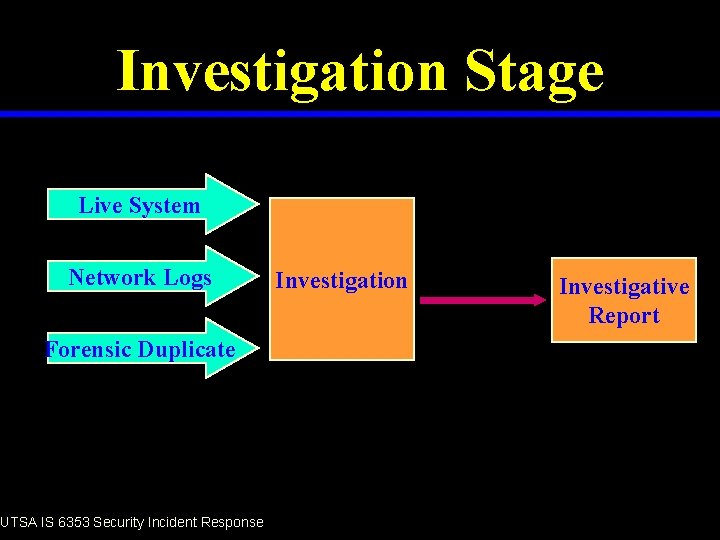

Investigation Stage Live System Network Logs Forensic Duplicate UTSA IS 6353 Security Incident Response Investigation Investigative Report

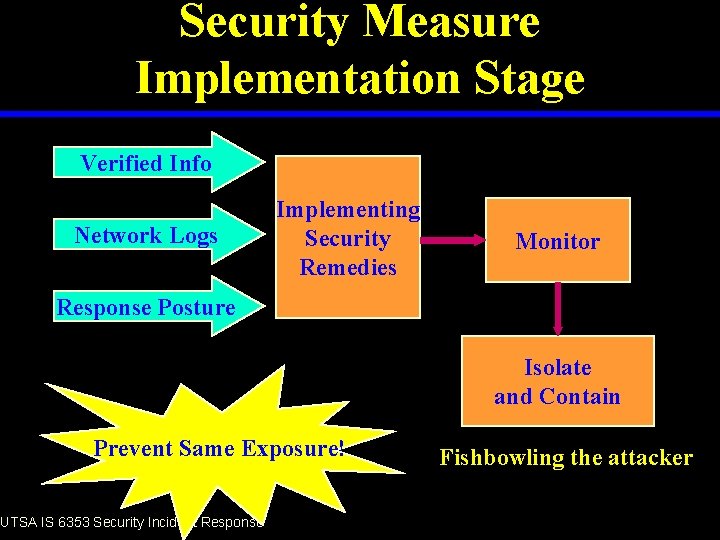

Security Measure Implementation Stage Verified Info Network Logs Implementing Security Remedies Monitor Response Posture Isolate and Contain Prevent Same Exposure! UTSA IS 6353 Security Incident Response Fishbowling the attacker

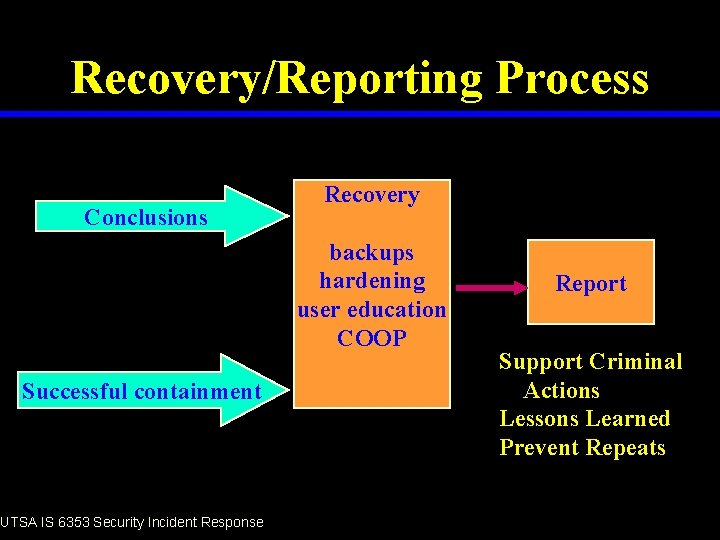

Recovery/Reporting Process Conclusions Recovery backups hardening user education COOP Successful containment UTSA IS 6353 Security Incident Response Report Support Criminal Actions Lessons Learned Prevent Repeats

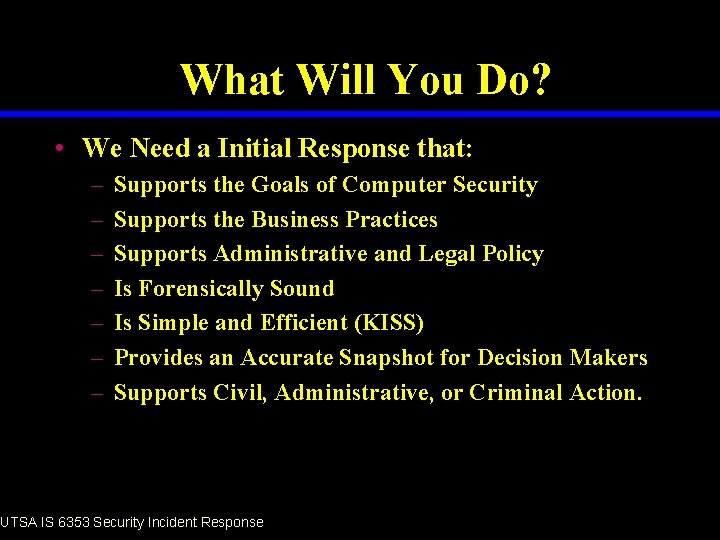

What Will You Do? • We Need a Initial Response that: – – – – Supports the Goals of Computer Security Supports the Business Practices Supports Administrative and Legal Policy Is Forensically Sound Is Simple and Efficient (KISS) Provides an Accurate Snapshot for Decision Makers Supports Civil, Administrative, or Criminal Action. UTSA IS 6353 Security Incident Response

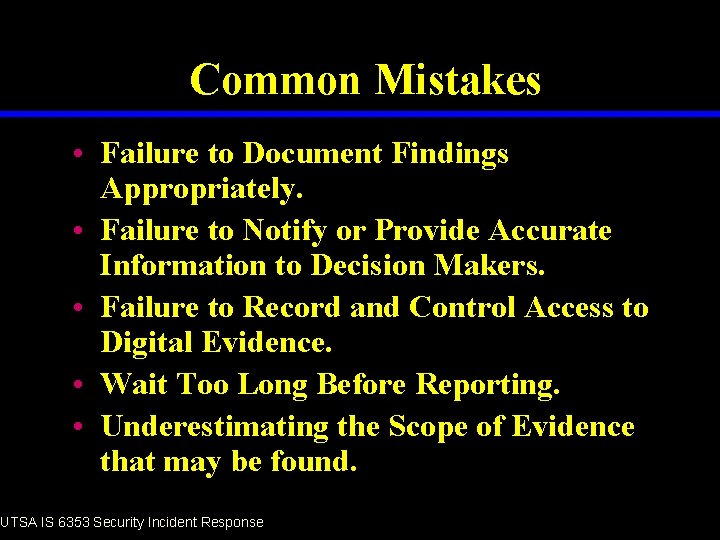

Common Mistakes • Failure to Document Findings Appropriately. • Failure to Notify or Provide Accurate Information to Decision Makers. • Failure to Record and Control Access to Digital Evidence. • Wait Too Long Before Reporting. • Underestimating the Scope of Evidence that may be found. UTSA IS 6353 Security Incident Response

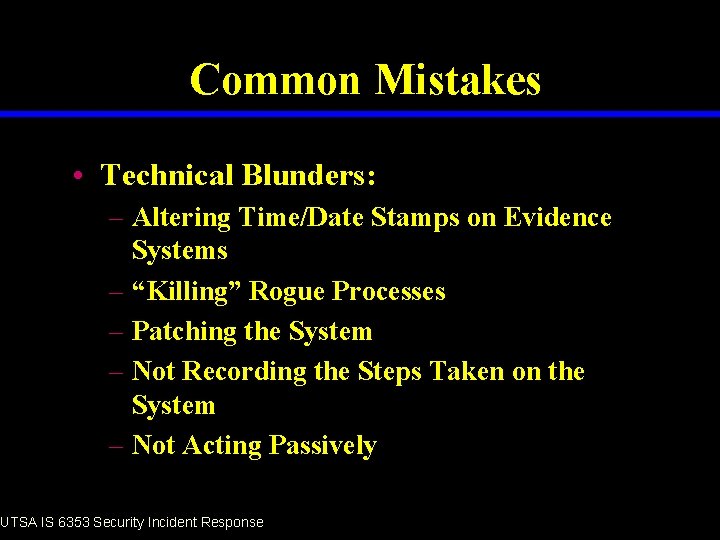

Common Mistakes • Technical Blunders: – Altering Time/Date Stamps on Evidence Systems – “Killing” Rogue Processes – Patching the System – Not Recording the Steps Taken on the System – Not Acting Passively UTSA IS 6353 Security Incident Response
