Lesson 5 Volcanoes: The Basics
1. What is magma? ü A mixture of molten rock, suspended mineral grains, and dissolved gases deep beneath Earth’s surface http: //www. pbs. org/wgbh/nova/volcanocity/anat-08. html Nyiragongo Volcano East African Rift Valley
http: //www. ncgeology. com/Eno_interactive_webs/Geologic_Principles_igneous%20 rocks. html 2. Types of Magma: Basaltic… Gas Content 1. ü 1– 2% Silica Content 2. ü 50% Viscosity 3. ü low Explosiveness 4. ü least Origin/Location of Magma/Lava 5. ü oceanic/continental crust Example 6. ü Mt. Kilauea in Hawaii Mt. Kilauea A Hot Spot Volcano
Types of Magma: Andesitic… Gas Content 1. ü 3 -4% Silica Content 2. ü 60% Viscosity 3. ü intermediate Explosiveness 4. ü intermediate Origin/Location of Magma/Lava 5. ü continental margins Examples… 6. ü Mt. St. Helens and Mt. Rainier (Washington) http: //vulcan. wr. usgs. gov/Volcanoes/MSH/Images/july_22_images. html
Types of Magma: Rhyolitic (Granitic) Gas Content 1. ü 4 -6% Yellowstone Volcano Silica Content 2. ü 70% Viscosity 3. ü high Explosiveness 4. ü greatest Origin or Location of Magma/Lava 5. ü continental crust Example 6. ü Yellowstone Supervolcano in Wyoming

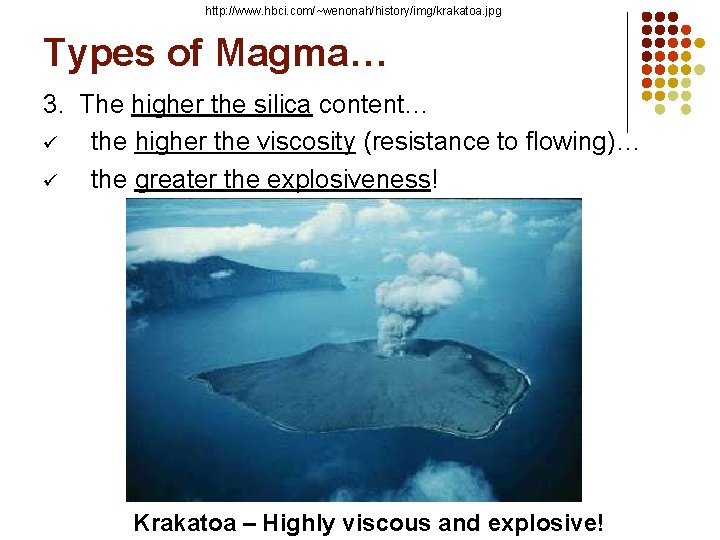

http: //www. hbci. com/~wenonah/history/img/krakatoa. jpg Types of Magma… 3. The higher the silica content… ü the higher the viscosity (resistance to flowing)… ü the greater the explosiveness! Krakatoa – Highly viscous and explosive!
http: //romanmythology. wikia. com/wiki/Pluto Intrusive Activity… What is a pluton? 1. ü An intrusive igneous rock body Pluto – god of the underworld http: //earthsci. org/mineral/rockmin/chart/iroccur. gif
http: //www. yosemiteriversideinn. com/ Batholiths 2. A batholith is the largest of plutons common in the interiors of major mountain chains. Yosemite – Part of the Sierra Nevada Batholith
Intrusive Activity… Where did all the magma come from? l Scientists hypothesize that… l l l At subduction zones, a plate subducts, melts, cools into a pluton. http: //herramientaslinker. com. ar/convergent-boundary-subduction&page=7
http: //www. smate. wwu. edu/teched/geology/vo-eruption 2. html Volcanoes… 1. What is lava? ü molten rock that has reached Earth’s surface 2. What is a volcano? ü A mountain or opening in Earth’s crust from which lava erupts Paricutin in Mexico, 1943
3. The Anatomy of a Volcano… Vent – the opening in the crust through which lava erupts b. Crater – bowl-shaped depression around the vent c. Caldera – larger depressions around a vent where the volcano has collapsed into the magma chamber d. Magma chamber – area under the volcano which holds the magma a.
4. Label the Volcano… http: //rbaadvisors. com/what-are-the-main-features-of-a-volcano&page=3
Types of Volcanoes… l Type of Volcano Ø l How It Forms Ø l Basaltic lava builds up (Quiet eruptions) Description Ø l Shield http: //www. cnn. com/2014/10/28/us/hawaiivolcano/index. html IN THE NEWS… Wide with gentlysloping sides Example Ø Ø Kilauea in Hawaii (hot spot) Iceland (divergent) http: //www. discoverhawaiitours. com/blog/tag/kilauea/
Types of Volcanoes… • Type of Volcano Ø Cinder cone • How It Forms Ø Ejected tephra falls back to earth and piles up (Explosive) • Description Ø Small but steep • Example Ø Paricutin in Mexico Ø Convergent boundary Paricutin, Mexico http: //volcano. oregonstate. edu/vwdocs/volc_images/img_paricutin. html
Types of Volcanoes… l l Type of Volcano Ø Composite How It Forms Ø Tephra eruptions alternate with lava flows Description Ø Large & steep Example Ø Krakatoa Ø Mt. St. Helens Ø Convergent http: //pubs. usgs. gov/fs/2005/3045/images/fig 1. jpg Mt. St. Helens Before and After!
A Composite Volcano… l http: //www. pbs. org/wgbh/nova/volcanocity/an at-flash. html
Lesson 6 Volcanoes: Effects on the Lithosphere
Tephra… 1. What is tephra? Ø Rock fragments thrown into the air during a volcanic eruption Tephra classified by size… Ø dust ash lapilli bombs blocks 2. A pyroclastic flow is… Ø Ø an eruption of gas, ash, and other tephra These types of eruptions can be extremely violent and deadly because… the PC flow moves very fast and is very hot. 3. Ash and dust from a pyroclastic flow blocks sunlight and lowers global temperatures.
Effects of a Volcanic Eruption… Lahars 1. A lahar is a mixture of mud & debris created when… ü ü heat from an eruption melts snow OR rain forms around dust or ash in the atmosphere. http: //volcanoes. usgs. gov/hazards/lahar/index. php
Earthquakes, Landslides and Tsunamis… 2. Earthquakes are caused when… Magma breaks rocks as it makes its way to the surface. 3. Landslides are caused in two ways… … a volcanic earthquake (EQ) or the eruption itself causes land to slide 4. Tsunamis are caused when… … the volcanic landslide “bulldozes” water ahead of it
Earthquakes, Landslides and Tsunamis…
6. Kilauea: Effects on Land… Basaltic lava… ü burns vegetation and buildings ü creates new land (16 acres a year!) http: //www. ncgeology. com/Eno_interactive_webs/Geologic_Principles_igneous%20 rocks. html
7. Krakatoa: Effects on Land… The eruption of Krakatoa… ü Created a caldera when it blew the island apart ü Caused a pyroclastic flow and tsunami (1883) http: //www. ncgeology. com/Eno_interactive_webs/Geologic_Principles_igneous%20 rocks. html
8. Iceland: Effects on Land… Iceland’s volcanoes in the rift valley are causing it to grow bigger – with older rocks on the east and west sides of the island.
Convergent Boundary Volcanoes Ø Ø Ocean plates subduct under other plates and melt to form magma Location – the Pacific Ring of Fire, the Mediterranean Belt Mt. Vesuvius and Pompeii Victims http: //mrbpielglobal. edublogs. org/files/2010/12/vesuvius_24417 -1 qnp 5 rt. jpg
The Ring of Fire… http: //pubs. usgs. gov/gip/dynamic/graphics/Fig 22. gif
Divergent Boundary Volcanoes Ø Ø As plates move apart, magma is forced upward into fractures and faults Location – East Africa Rift Valley, mid-ocean ridges, Iceland
A Plethora of Plutons… Stocks l Stocks are irregularlyshaped plutons similar to batholiths but smaller. http: //belmont. sd 62. bc. ca/teacher/geology 12/photos/volcanoes/plutons. jpg
http: //facweb. bhc. edu/academics/science/harwoodr/geol 101/study/Plutons. htm A Plethora of Plutons… Laccoliths l Laccoliths are mushroom-shaped plutons with a round top and a flat bottom.
http: //facstaff. gpc. edu/~pgore/geology/geo 101/plutons. php A Plethora of Plutons… Sills l A sill is a pluton that forms when magma intrudes parallel to layers of rock. The Palisades Sill, NY
