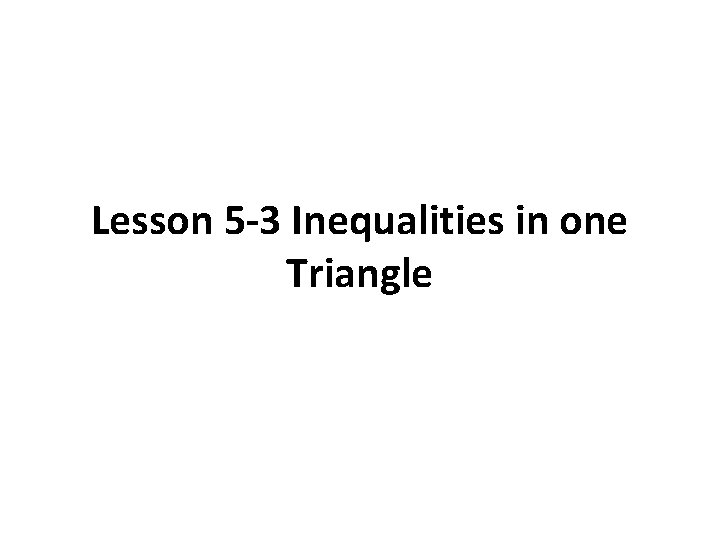

Lesson 5 -3 Inequalities in one Triangle

Lesson 5 -3 Inequalities in one Triangle

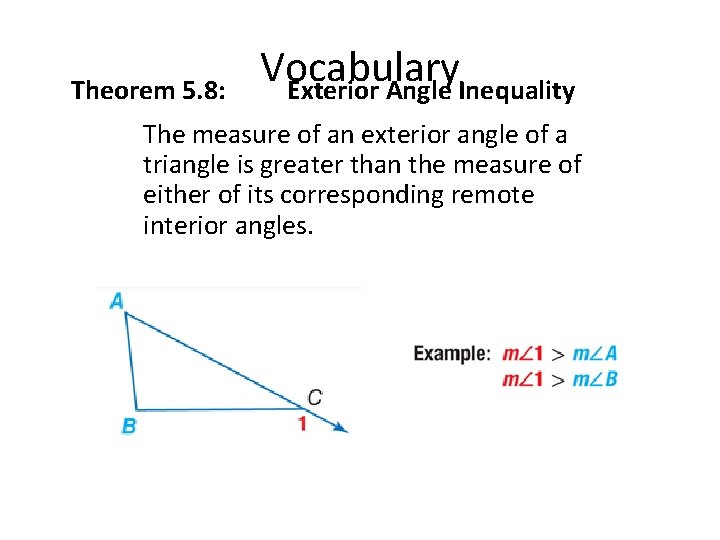

Theorem 5. 8: Vocabulary Exterior Angle Inequality The measure of an exterior angle of

Theorem 5. 8: Vocabulary Exterior Angle Inequality The measure of an exterior angle of a triangle is greater than the measure of either of its corresponding remote interior angles.

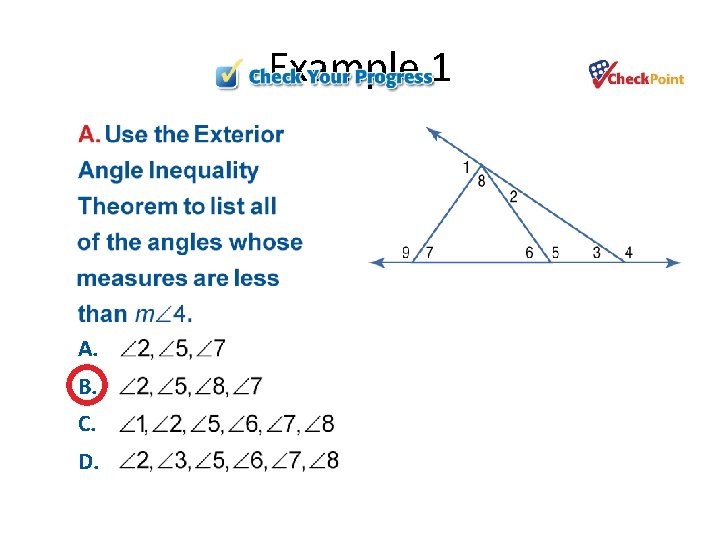

Example 1 A. B. C. D.

Example 1 A. B. C. D.

Example 1 A. B. C. D.

Example 1 A. B. C. D.

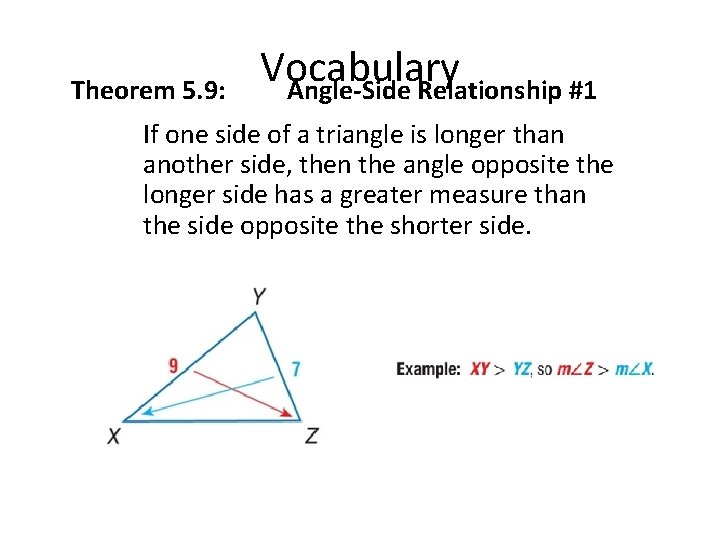

Theorem 5. 9: Vocabulary Angle-Side Relationship #1 If one side of a triangle is

Theorem 5. 9: Vocabulary Angle-Side Relationship #1 If one side of a triangle is longer than another side, then the angle opposite the longer side has a greater measure than the side opposite the shorter side.

Theorem 5. 10: Vocabulary Angle-Side Relationship #2 If one angle of a triangle has

Theorem 5. 10: Vocabulary Angle-Side Relationship #2 If one angle of a triangle has greater measure than another angle, then the side opposite the greater angle is longer than the side opposite the lesser angle.

Example 2 Order Triangle Angle Measures List the angles of ΔABC in order from

Example 2 Order Triangle Angle Measures List the angles of ΔABC in order from smallest to largest. Answer: C, A, B

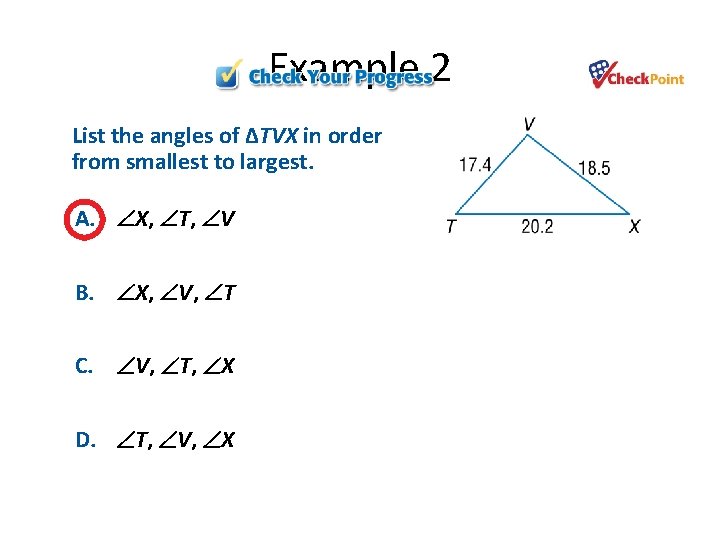

Example 2 List the angles of ΔTVX in order from smallest to largest. A.

Example 2 List the angles of ΔTVX in order from smallest to largest. A. X, T, V B. X, V, T C. V, T, X D. T, V, X

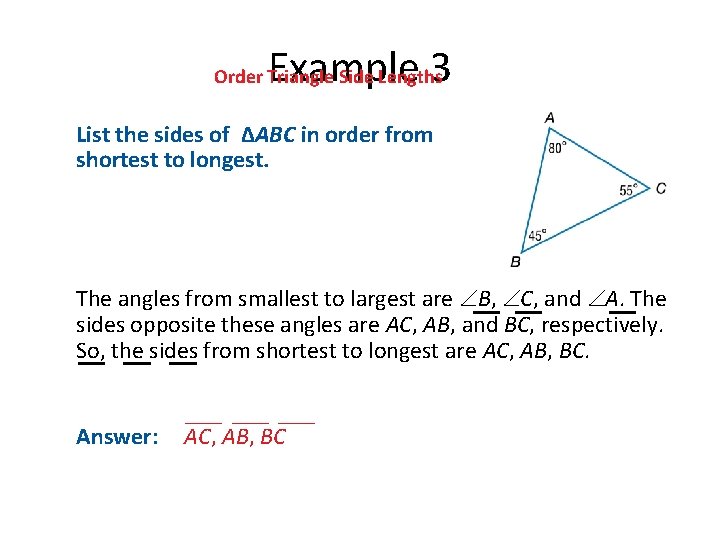

Example 3 Order Triangle Side Lengths List the sides of ΔABC in order from

Example 3 Order Triangle Side Lengths List the sides of ΔABC in order from shortest to longest. The angles from smallest to largest are B, C, and A. The sides opposite these angles are AC, AB, and BC, respectively. So, the sides from shortest to longest are AC, AB, BC. Answer: AC, AB, BC

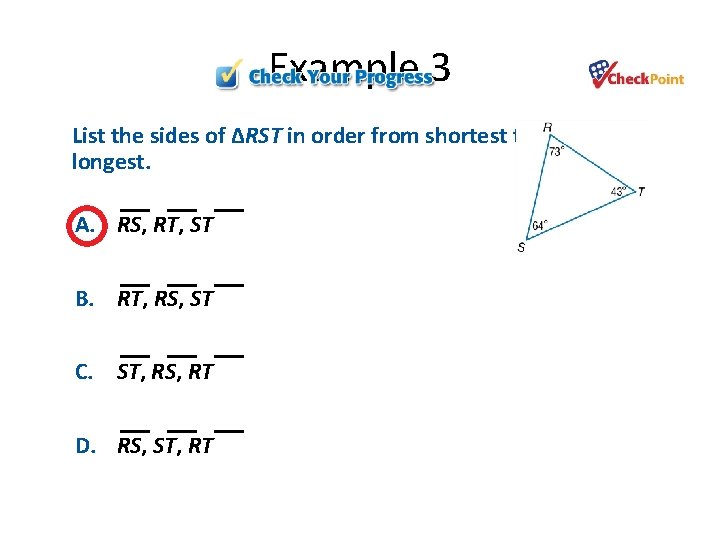

Example 3 List the sides of ΔRST in order from shortest to longest. A.

Example 3 List the sides of ΔRST in order from shortest to longest. A. RS, RT, ST B. RT, RS, ST C. ST, RS, RT D. RS, ST, RT

Example 4 Relationships Angle-Side HAIR ACCESSORIES Ebony is following directions for folding a handkerchief

Example 4 Relationships Angle-Side HAIR ACCESSORIES Ebony is following directions for folding a handkerchief to make a bandana for her hair. After she folds the handkerchief in half, the directions tell her to tie the two smaller angles of the triangle under hair. If she folds the handkerchief with the dimensions shown, which two ends should she tie? Answer: So, Ebony should tie the ends marked Y and Z.

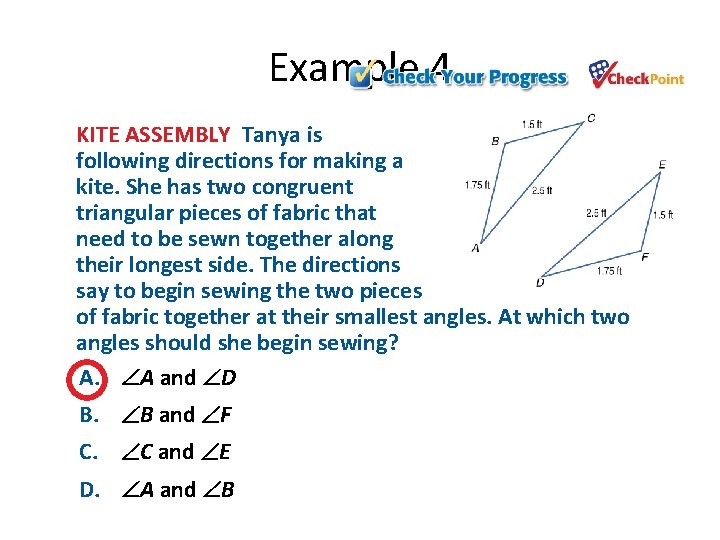

Example 4 KITE ASSEMBLY Tanya is following directions for making a kite. She has

Example 4 KITE ASSEMBLY Tanya is following directions for making a kite. She has two congruent triangular pieces of fabric that need to be sewn together along their longest side. The directions say to begin sewing the two pieces of fabric together at their smallest angles. At which two angles should she begin sewing? A. A and D B. B and F C. C and E D. A and B
