Lesson 4 7 Triangles and Coordinate Proof 5

Lesson 4 -7 Triangles and Coordinate Proof

5 -Minute Check on Lesson 4 -6 Transparency 4 -7 Refer to the figure. 1. Name two congruent segments if 1 2. 2. Name two congruent angles if RS RT. 3. Find m R if m RUV = 65. 4. Find m C if ABC is isosceles with AB AC and m A = 70. 5. Find x if LMN is equilateral with LM = 2 x – 4, MN = x + 6, and LN = 3 x – 14. 6. Find the measures of the base angles of an isosceles triangle if the measure of the vertex angle is 58. Standardized Test Practice: A 32 B 58 C 61 D 122

5 -Minute Check on Lesson 4 -6 Transparency 4 -7 Refer to the figure. 1. Name two congruent segments if 1 2. UW VW 2. Name two congruent angles if RS RT. S T 3. Find m R if m RUV = 65. 50 4. Find m C if ABC is isosceles with AB AC and m A = 70. 55 5. Find x if LMN is equilateral with LM = 2 x – 4, MN = x + 6, and LN = 3 x – 14. 10 6. Find the measures of the base angles of an isosceles triangle if the measure of the vertex angle is 58. Standardized Test Practice: A 32 B 58 C 61 D 122

Objectives • Position and label triangles for use in coordinate proofs • Write coordinate proofs

Vocabulary • Coordinate proof – uses figures in the coordinate plane and algebra to prove geometric concepts.

Classifying Triangles y …. Using the distance formula Find the measures of the sides of ▲DEC. Classify the triangle by its sides. D (3, 9) E (3, -5) D E C C (2, 2) x EC = = √ (-5 – 2)2 + (3 – 2)2 √(-7)2 + (1)2 √ 49 + 1 √ 50 DC = = √ (3 – 2)2 + (9 – 2)2 √(1)2 + (7)2 √ 1 + 49 √ 50 ED = = = √ (-5 – 3)2 + (3 – 9)2 √(-8)2 + (-6)2 √ 64 + 36 √ 100 10 DC = EC, so ▲DEC is isosceles

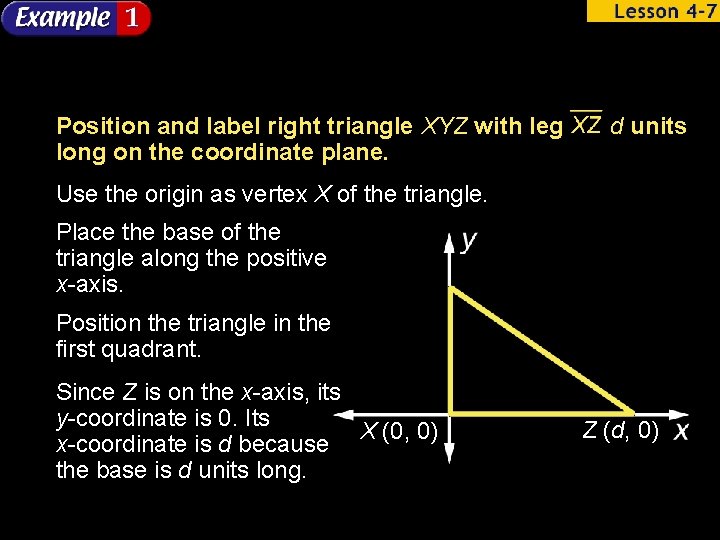

Position and label right triangle XYZ with leg long on the coordinate plane. d units Use the origin as vertex X of the triangle. Place the base of the triangle along the positive x-axis. Position the triangle in the first quadrant. Since Z is on the x-axis, its y-coordinate is 0. Its X (0, 0) x-coordinate is d because the base is d units long. Z (d, 0)

Since triangle XYZ is a right triangle the x-coordinate of Y is 0. We cannot determine the y-coordinate so call it b. Answer: Y (0, b) X (0, 0) Z (d, 0)

Position and label equilateral triangle ABC with side w units long on the coordinate plane. Answer:

Name the missing coordinates of isosceles right triangle QRS. Q is on the origin, so its coordinates are (0, 0). The x-coordinate of S is the same as the x-coordinate for R, (c, ? ). The y-coordinate for S is the distance from R to S. Since QRS is an isosceles right triangle, The distance from Q to R is c units. The distance from R to S must be the same. So, the coordinates of S are (c, c). Answer: Q(0, 0); S(c, c)

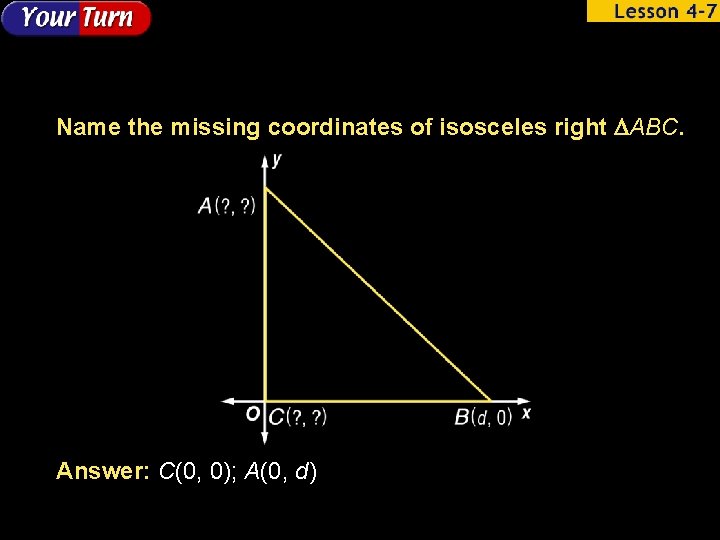

Name the missing coordinates of isosceles right ABC. Answer: C(0, 0); A(0, d)

Write a coordinate proof to prove that the segment drawn from the right angle to the midpoint of the hypotenuse of an isosceles right triangle is perpendicular to the hypotenuse. Proof: The coordinates of the midpoint D are The slope of or 1. The slope of therefore . is or – 1,

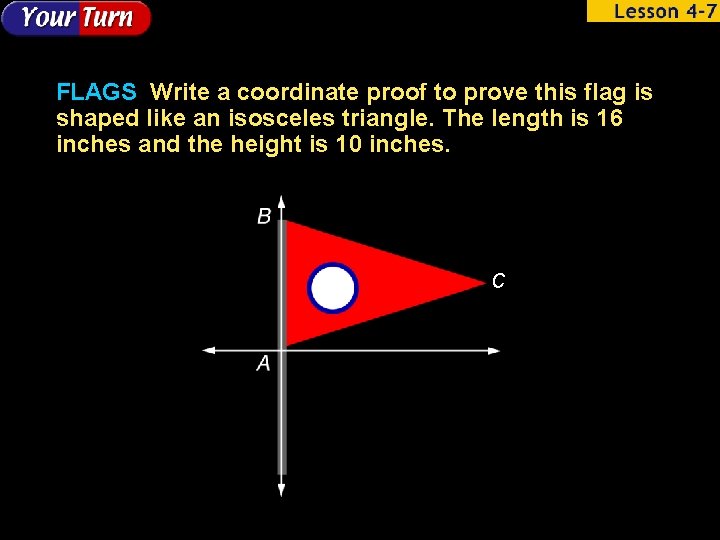

FLAGS Write a coordinate proof to prove this flag is shaped like an isosceles triangle. The length is 16 inches and the height is 10 inches. C

Proof: Vertex A is at the origin and B is at (0, 10). The x-coordinate of C is 16. The y-coordinate is halfway between 0 and 10 or 5. So, the coordinates of C are (16, 5). Determine the lengths of CA and CB. Since each leg is the same length, ABC is isosceles. The flag is shaped like an isosceles triangle.

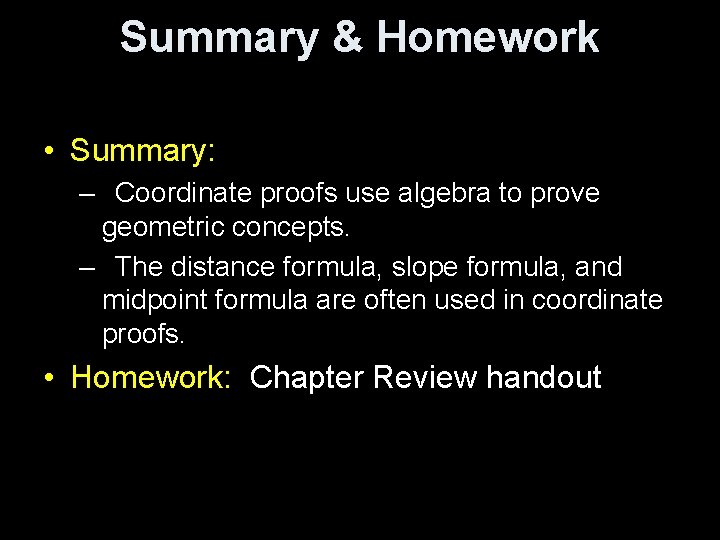

Summary & Homework • Summary: – Coordinate proofs use algebra to prove geometric concepts. – The distance formula, slope formula, and midpoint formula are often used in coordinate proofs. • Homework: Chapter Review handout
