Lenses Combining prisms Combine a series of prisms

Lenses

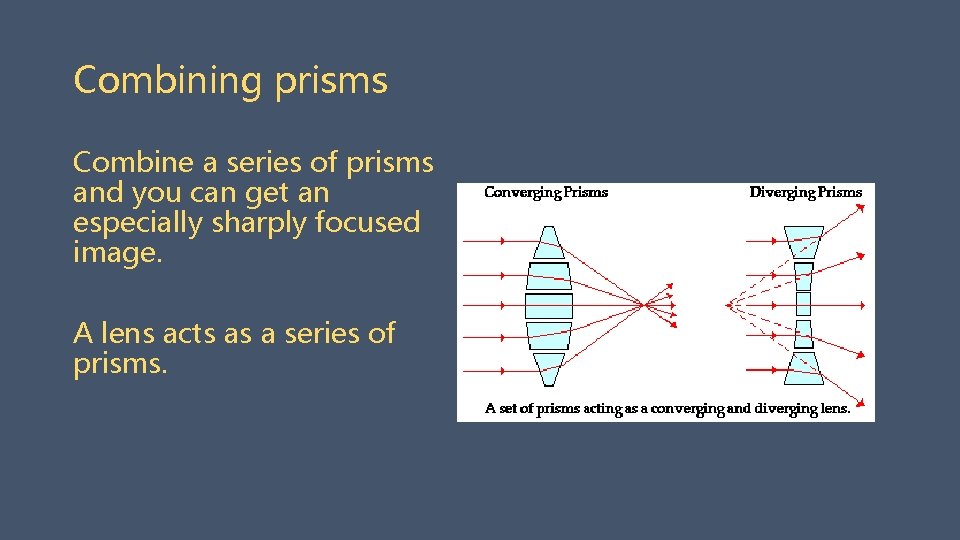

Combining prisms Combine a series of prisms and you can get an especially sharply focused image. A lens acts as a series of prisms.

Lenses allow us to manipulate light

Lenses allow us to manipulate light Converging lenses: • • thicker across the middle focus light Diverging lenses • • thinner across the middle causes light to diverge

Anatomy of a lens Principal axis An imaginary line through the center of the imaginary sphere of which the lens is an imaginary slice Focal length The point through which light traveling parallel to the principal axis will converge Vertical axis

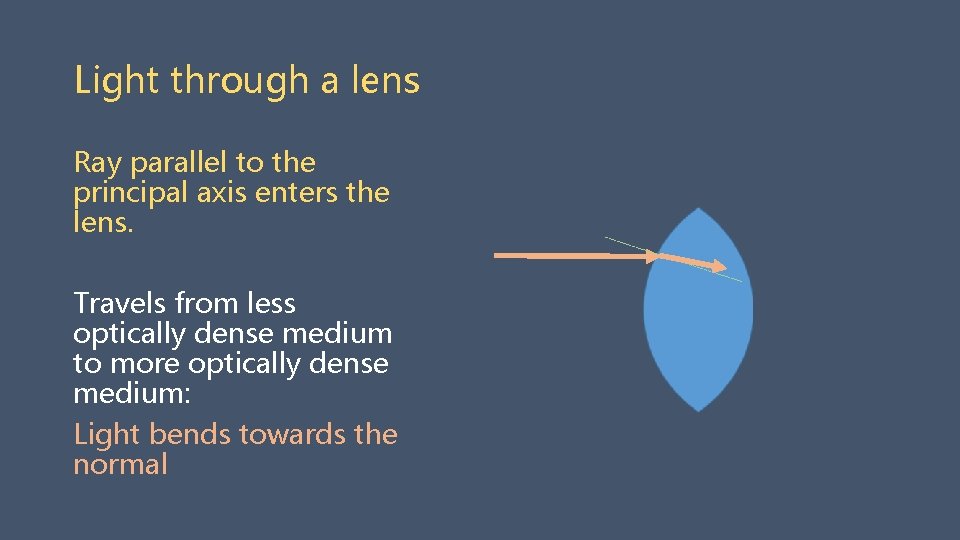

Light through a lens Ray parallel to the principal axis enters the lens. Travels from less optically dense medium to more optically dense medium: Light bends towards the normal

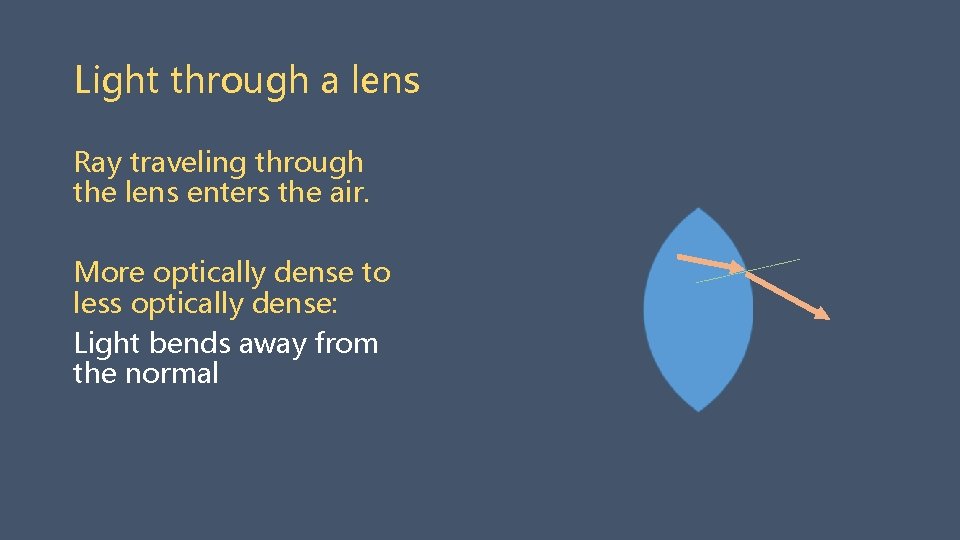

Light through a lens Ray traveling through the lens enters the air. More optically dense to less optically dense: Light bends away from the normal

Light converges on focal point i r Principal axis The distance from the center of the lens to the focal point is called the focal length. Rays passing through converging lens meet at focal point

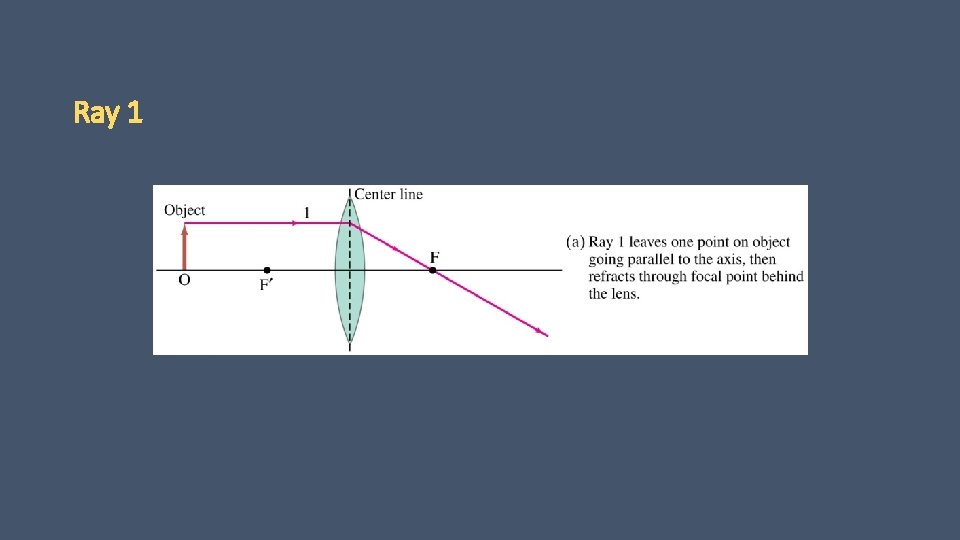

Ray 1

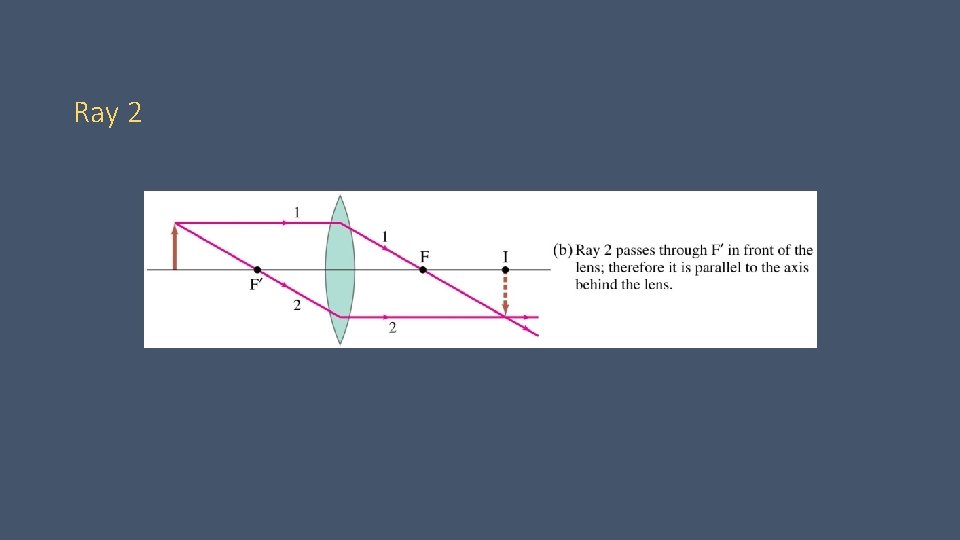

Ray 2

Ray 3

Rays converge? It’s a real image! Images inverted.

Eyes Cow eyes are quite similar to human eyes.

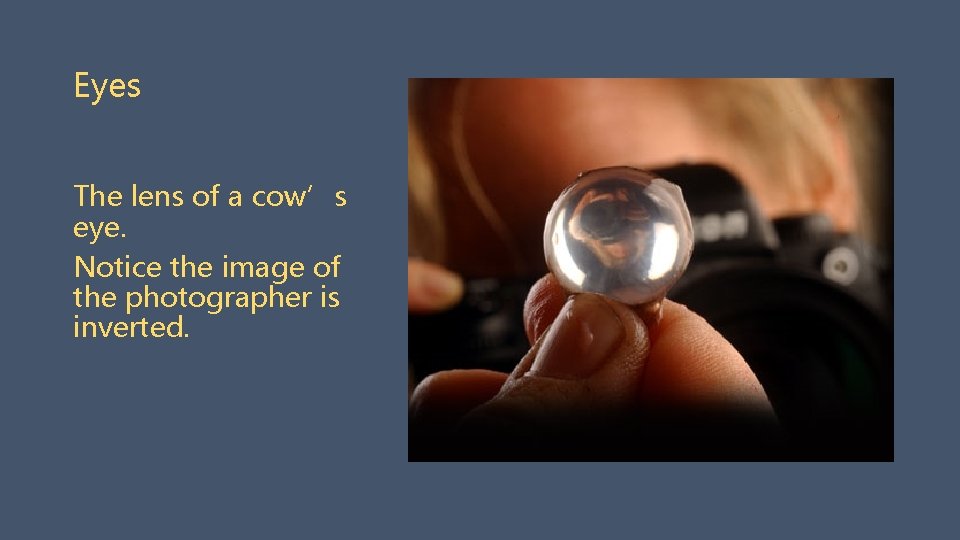

Eyes The lens of a cow’s eye. Notice the image of the photographer is inverted.

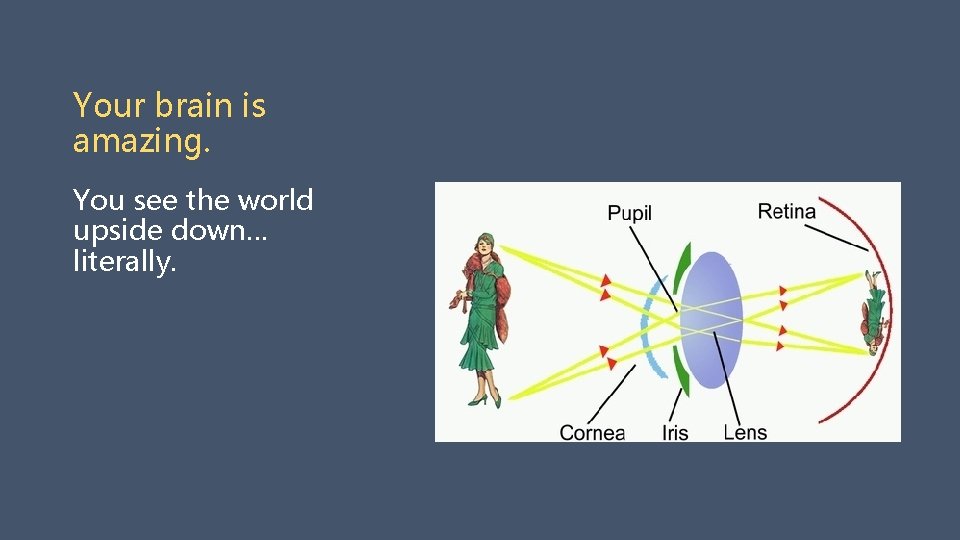

Your brain is amazing. You see the world upside down… literally.

Anatomy of the eye Cornea: Iris: Lens • • Protect the eye Refract light, n = 1. 38 • • Sphincter Controls how much light enters eye • Refract light, n=1. 40 • Fluid that gives eye its ~spherical shape Vitreous humor Retina • • ~12 M rods detect intensity of light ~6 M cones detect color of light

Accommodation When the muscles around your eye relax, the lens is relatively thin. Images from far away are focused on your retina. When the muscles around your eye contract, the lens is relatively large. Images from nearby are focused on your retina. Read more. It’s very interesting!

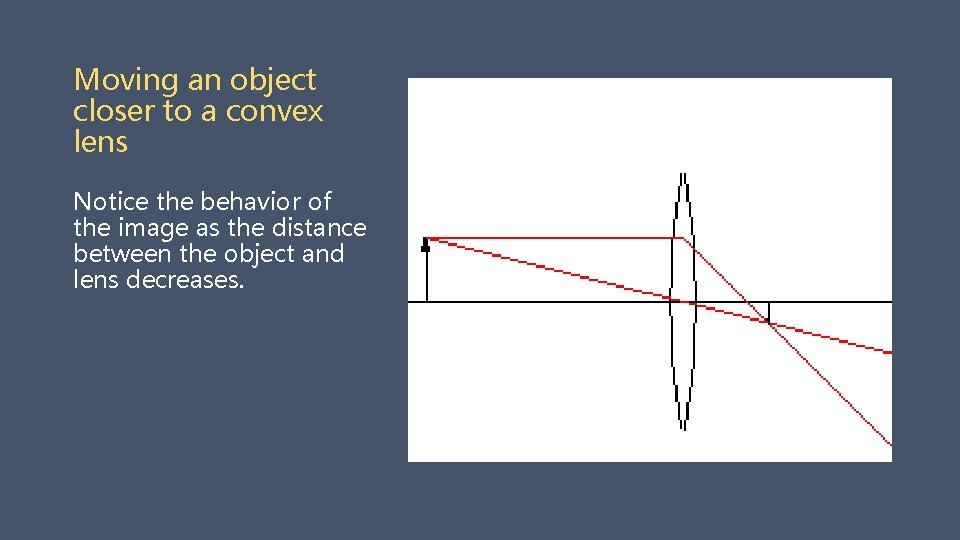

Moving an object closer to a convex lens Notice the behavior of the image as the distance between the object and lens decreases.

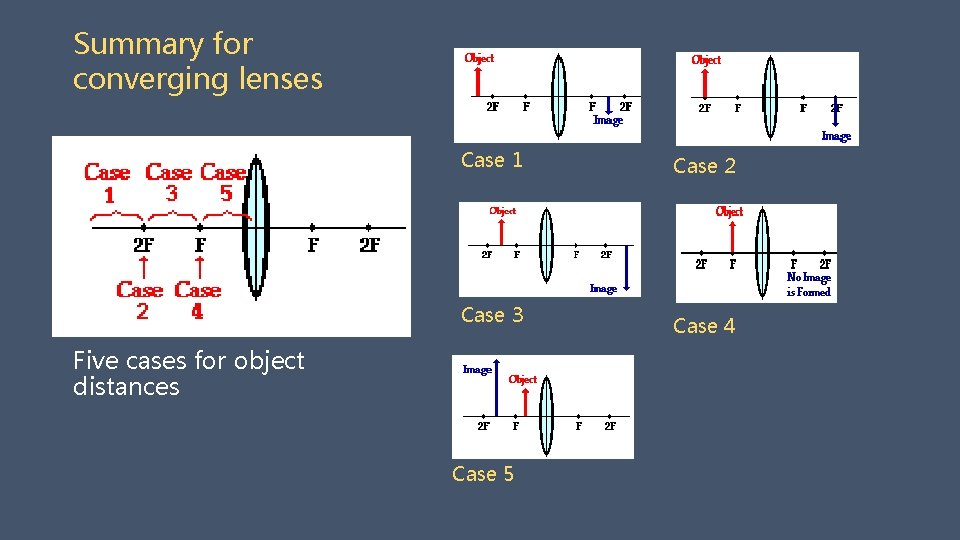

Summary for converging lenses Case 1 Case 3 Five cases for object distances Case 5 Case 2 Case 4

More useful predictive model F’ F

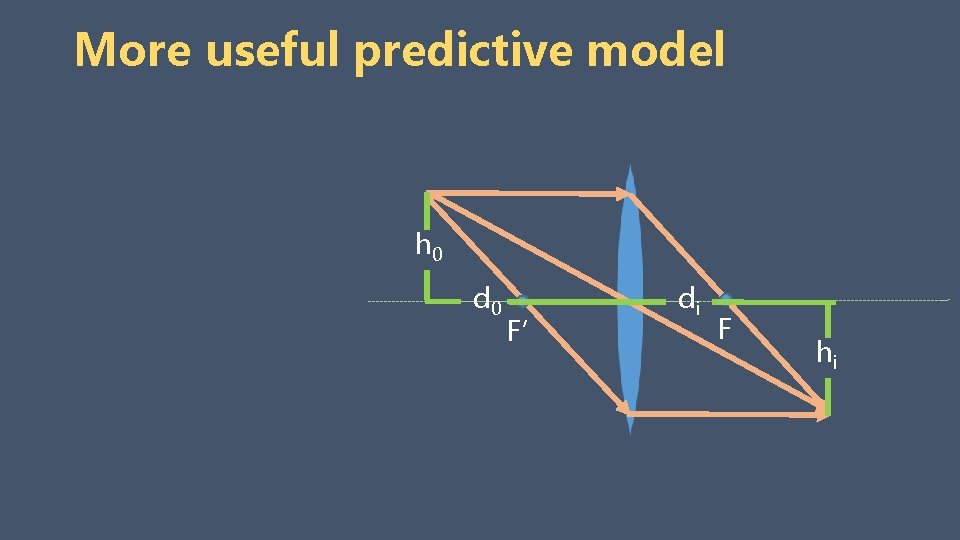

More useful predictive model h 0 d 0 F’ di F hi

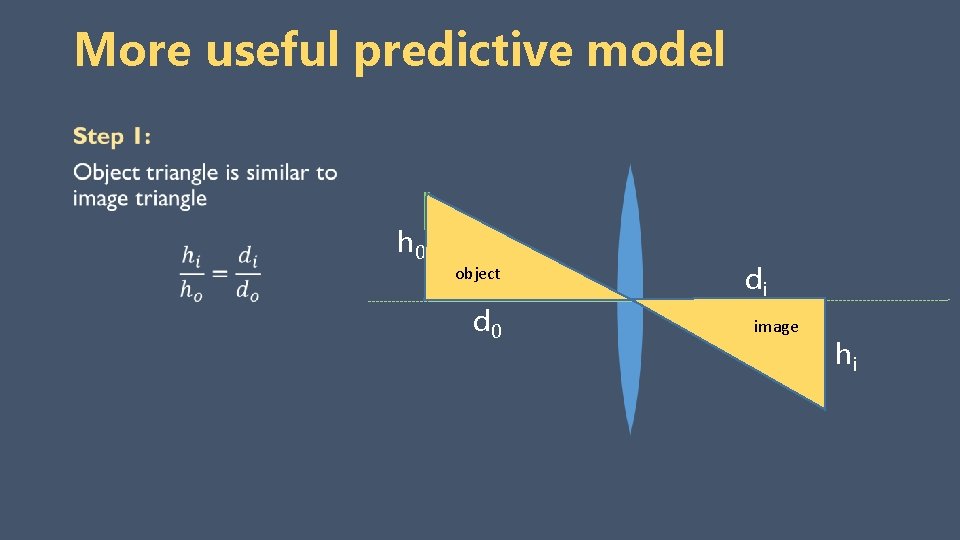

More useful predictive model h 0 di object d 0 F image hi

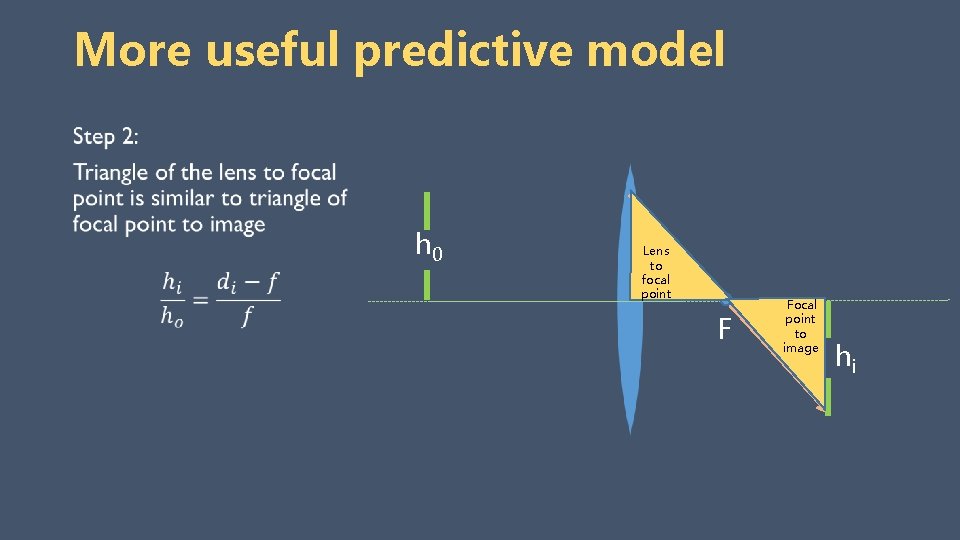

More useful predictive model h 0 Lens to focal point F Focal point to image hi

More useful predictive model

Thin Lens equation

Magnification

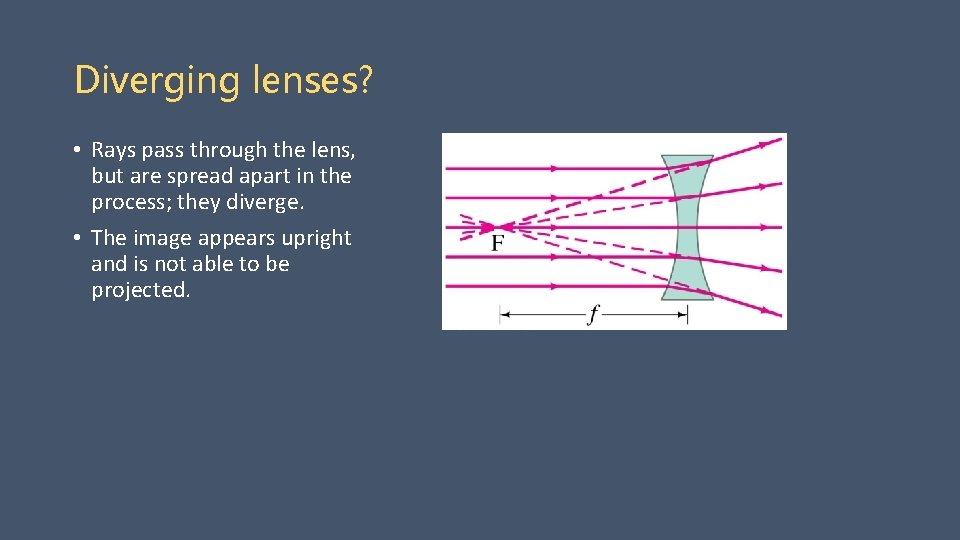

Diverging lenses? • Rays pass through the lens, but are spread apart in the process; they diverge. • The image appears upright and is not able to be projected.

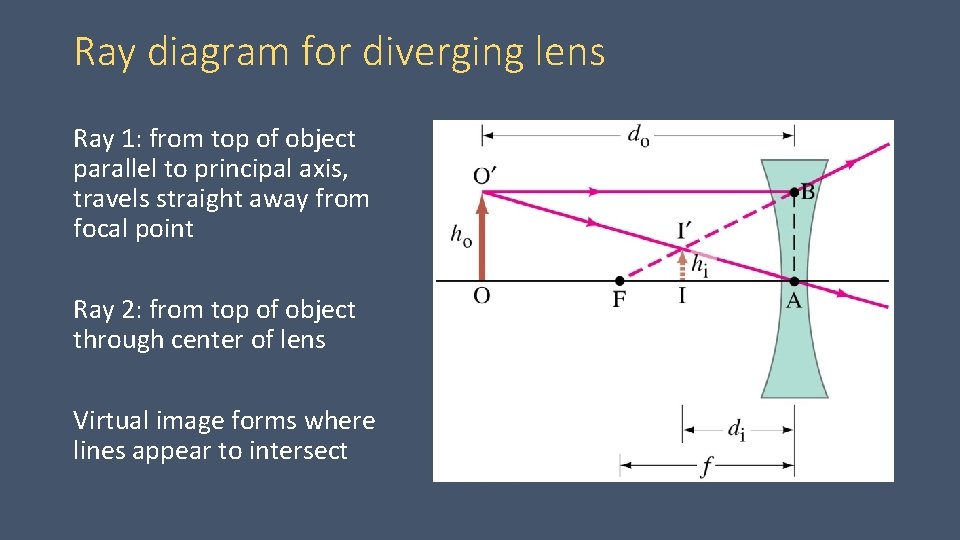

Ray diagram for diverging lens Ray 1: from top of object parallel to principal axis, travels straight away from focal point Ray 2: from top of object through center of lens Virtual image forms where lines appear to intersect

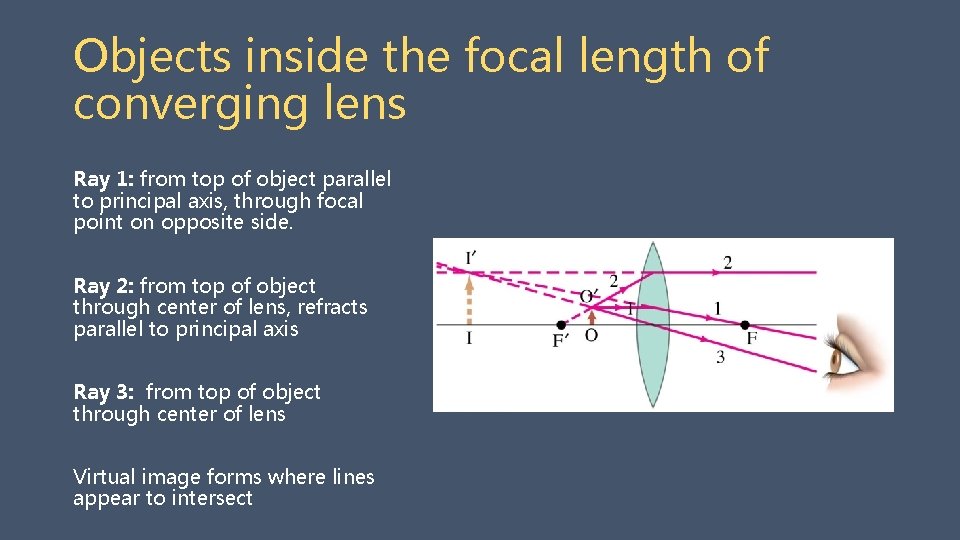

Objects inside the focal length of converging lens Ray 1: from top of object parallel to principal axis, through focal point on opposite side. Ray 2: from top of object through center of lens, refracts parallel to principal axis Ray 3: from top of object through center of lens Virtual image forms where lines appear to intersect

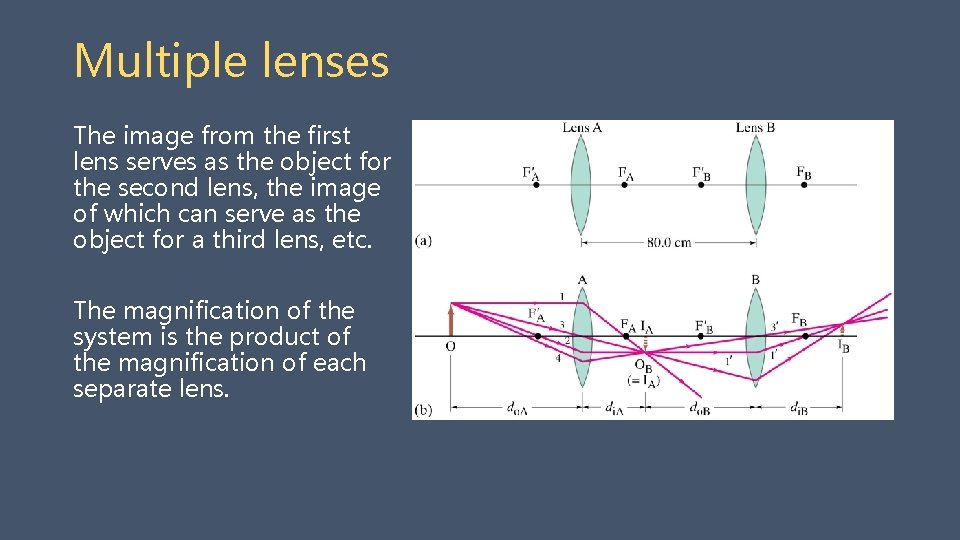

Multiple lenses The image from the first lens serves as the object for the second lens, the image of which can serve as the object for a third lens, etc. The magnification of the system is the product of the magnification of each separate lens.

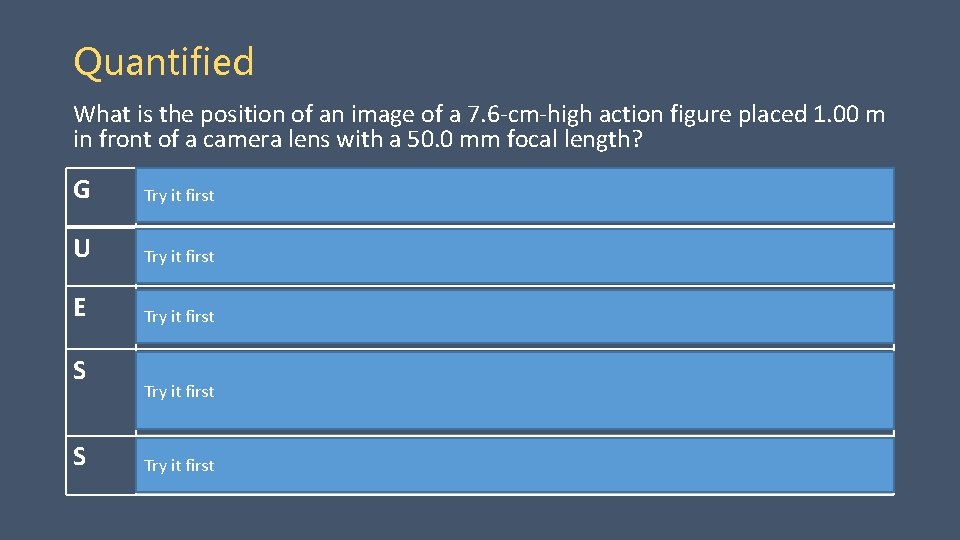

Quantified What is the position of an image of a 7. 6 -cm-high action figure placed 1. 00 m in front of a camera lens with a 50. 0 mm focal length? G d 100 cm; f = 5. 00 cm Tryo it=first U d ? Tryi = it first E Try it first S S Try it first

Quantified What is the size of an image of a 7. 6 -cm-high action figure placed 1. 00 m in front of a camera lens with a 50. 0 mm focal length? G d 100 cm; di = 5. 26 cm; ho = 7. 6 cm Tryo it=first U h ? Tryi = it first E Try it first S S Try it first

Summary of mathematical relationships
