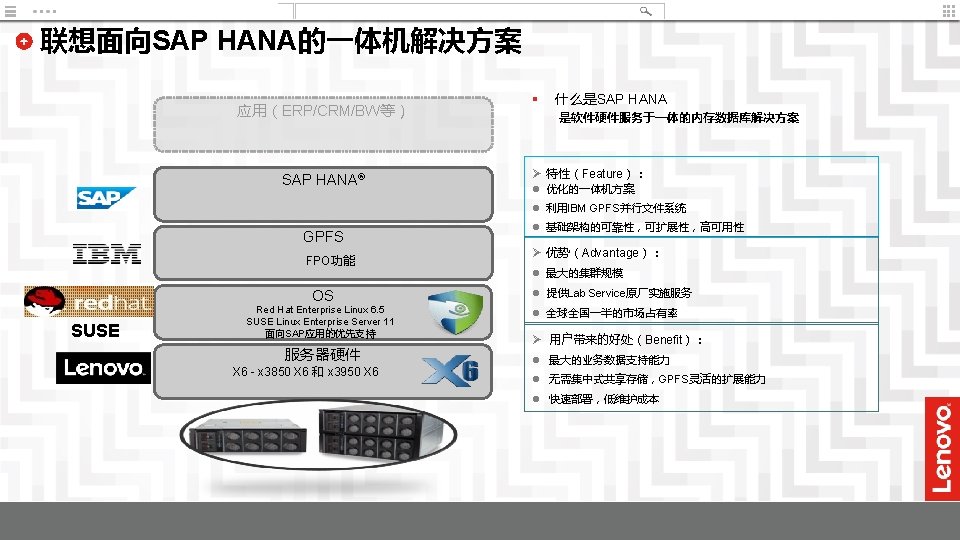

Lenovo Solution for SAP HANA with X 6

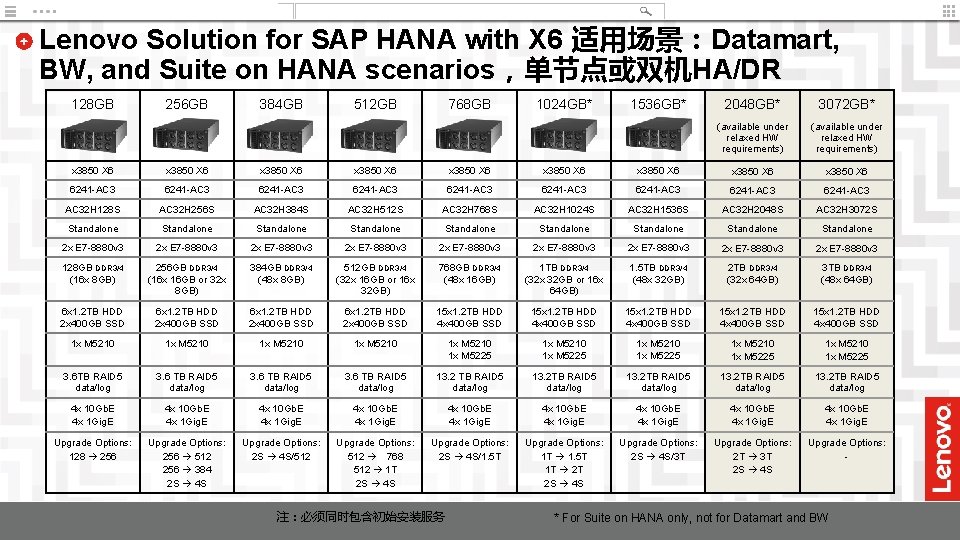

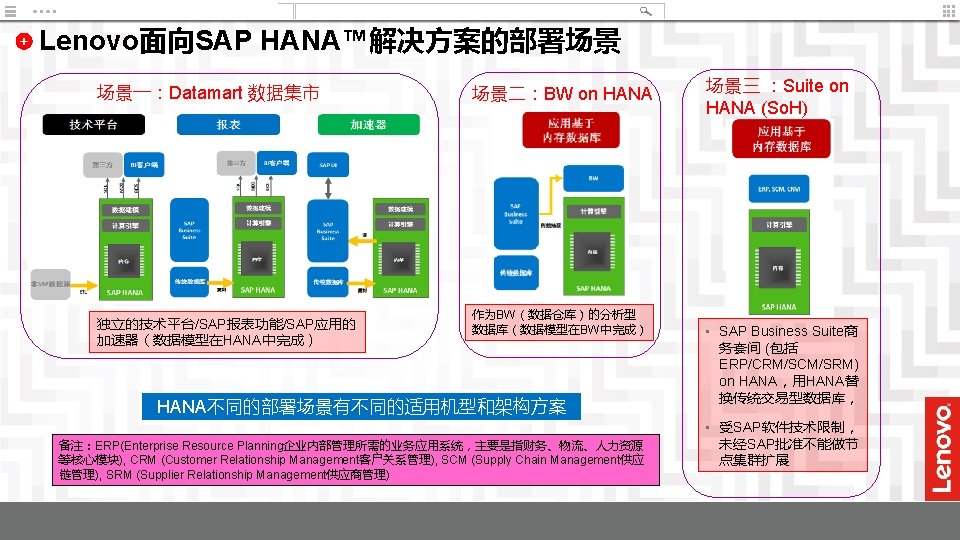

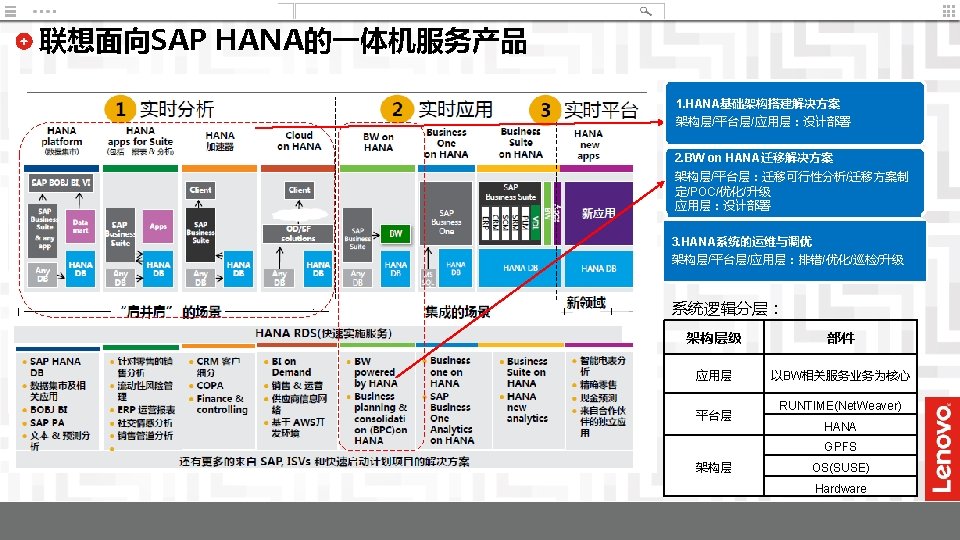

Lenovo Solution for SAP HANA with X 6 适用场景：Datamart, BW, and Suite on HANA scenarios，单节点或双机HA/DR 128 GB 256 GB 384 GB 512 GB 768 GB 1024 GB* 1536 GB* 2048 GB* 3072 GB* (available under relaxed HW requirements) x 3850 X 6 x 3850 X 6 x 3850 X 6 6241 -AC 3 6241 -AC 3 6241 -AC 32 H 128 S AC 32 H 256 S AC 32 H 384 S AC 32 H 512 S AC 32 H 768 S AC 32 H 1024 S AC 32 H 1536 S AC 32 H 2048 S AC 32 H 3072 S Standalone Standalone Standalone 2 x E 7 -8880 v 3 2 x E 7 -8880 v 3 2 x E 7 -8880 v 3 128 GB DDR 3/4 (16 x 8 GB) 256 GB DDR 3/4 (16 x 16 GB or 32 x 8 GB) 384 GB DDR 3/4 (48 x 8 GB) 512 GB DDR 3/4 (32 x 16 GB or 16 x 32 GB) 768 GB DDR 3/4 (48 x 16 GB) 1 TB DDR 3/4 (32 x 32 GB or 16 x 64 GB) 1. 5 TB DDR 3/4 (48 x 32 GB) 2 TB DDR 3/4 (32 x 64 GB) 3 TB DDR 3/4 (48 x 64 GB) 6 x 1. 2 TB HDD 2 x 400 GB SSD 15 x 1. 2 TB HDD 4 x 400 GB SSD 1 x M 5210 1 x M 5210 1 x M 5225 1 x M 5210 1 x M 5225 3. 6 TB RAID 5 data/log 3. 6 TB RAID 5 data/log 13. 2 TB RAID 5 data/log 4 x 10 Gb. E 4 x 1 Gig. E 4 x 10 Gb. E 4 x 1 Gig. E Upgrade Options: 128 256 Upgrade Options: 256 512 256 384 2 S 4 S Upgrade Options: 2 S 4 S/512 Upgrade Options: 512 768 512 1 T 2 S 4 S Upgrade Options: 2 S 4 S/1. 5 T Upgrade Options: 1 T 1. 5 T 1 T 2 T 2 S 4 S Upgrade Options: 2 S 4 S/3 T Upgrade Options: 2 T 3 T 2 S 4 S Upgrade Options: - 注：必须同时包含初始安装服务 * For Suite on HANA only, not for Datamart and BW

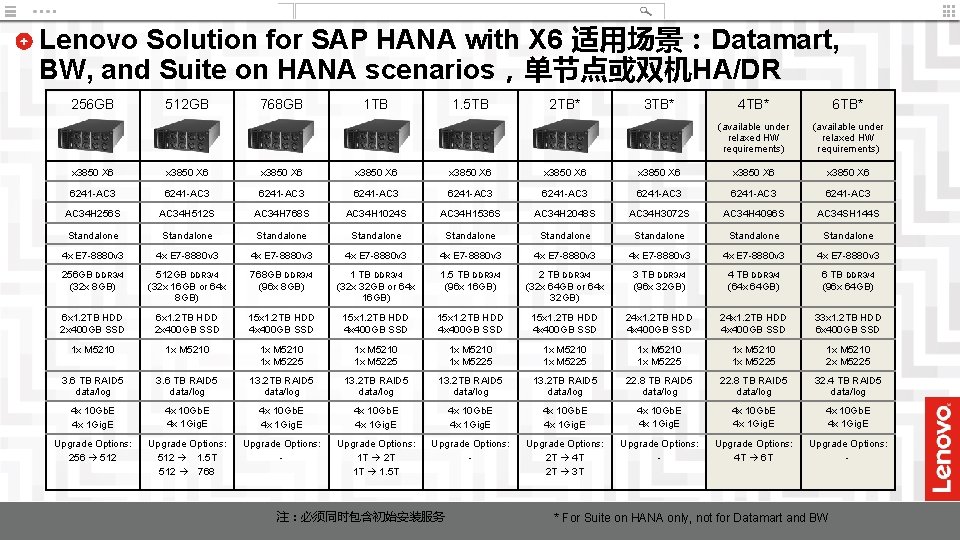

Lenovo Solution for SAP HANA with X 6 适用场景：Datamart, BW, and Suite on HANA scenarios，单节点或双机HA/DR 256 GB 512 GB 768 GB 1 TB 1. 5 TB 2 TB* 3 TB* 4 TB* 6 TB* (available under relaxed HW requirements) x 3850 X 6 x 3850 X 6 x 3850 X 6 6241 -AC 3 6241 -AC 3 6241 -AC 34 H 256 S AC 34 H 512 S AC 34 H 768 S AC 34 H 1024 S AC 34 H 1536 S AC 34 H 2048 S AC 34 H 3072 S AC 34 H 4096 S AC 34 SH 144 S Standalone Standalone Standalone 4 x E 7 -8880 v 3 4 x E 7 -8880 v 3 4 x E 7 -8880 v 3 256 GB DDR 3/4 (32 x 8 GB) 512 GB DDR 3/4 (32 x 16 GB or 64 x 8 GB) 768 GB DDR 3/4 (96 x 8 GB) 1 TB DDR 3/4 (32 x 32 GB or 64 x 16 GB) 1. 5 TB DDR 3/4 (96 x 16 GB) 2 TB DDR 3/4 (32 x 64 GB or 64 x 32 GB) 3 TB DDR 3/4 (96 x 32 GB) 4 TB DDR 3/4 (64 x 64 GB) 6 TB DDR 3/4 (96 x 64 GB) 6 x 1. 2 TB HDD 2 x 400 GB SSD 15 x 1. 2 TB HDD 4 x 400 GB SSD 24 x 1. 2 TB HDD 4 x 400 GB SSD 33 x 1. 2 TB HDD 6 x 400 GB SSD 1 x M 5210 1 x M 5225 1 x M 5210 1 x M 5225 1 x M 5210 2 x M 5225 3. 6 TB RAID 5 data/log 13. 2 TB RAID 5 data/log 22. 8 TB RAID 5 data/log 32. 4 TB RAID 5 data/log 4 x 10 Gb. E 4 x 1 Gig. E 4 x 10 Gb. E 4 x 1 Gig. E Upgrade Options: 256 512 Upgrade Options: 512 1. 5 T 512 768 Upgrade Options: - Upgrade Options: 1 T 2 T 1 T 1. 5 T Upgrade Options: - Upgrade Options: 2 T 4 T 2 T 3 T Upgrade Options: - Upgrade Options: 4 T 6 T Upgrade Options: - 注：必须同时包含初始安装服务 * For Suite on HANA only, not for Datamart and BW

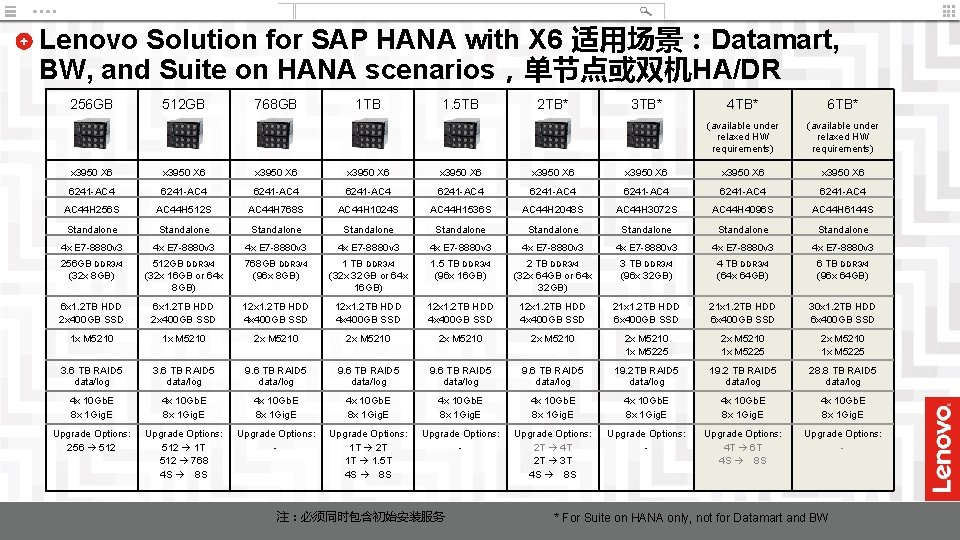

Lenovo Solution for SAP HANA with X 6 适用场景：Datamart, BW, and Suite on HANA scenarios，单节点或双机HA/DR 256 GB 512 GB 768 GB 1 TB 1. 5 TB 2 TB* 3 TB* 4 TB* 6 TB* (available under relaxed HW requirements) x 3950 X 6 x 3950 X 6 x 3950 X 6 6241 -AC 4 6241 -AC 4 6241 -AC 44 H 256 S AC 44 H 512 S AC 44 H 768 S AC 44 H 1024 S AC 44 H 1536 S AC 44 H 2048 S AC 44 H 3072 S AC 44 H 4096 S AC 44 H 6144 S Standalone Standalone Standalone 4 x E 7 -8880 v 3 4 x E 7 -8880 v 3 4 x E 7 -8880 v 3 256 GB DDR 3/4 (32 x 8 GB) 512 GB DDR 3/4 (32 x 16 GB or 64 x 8 GB) 768 GB DDR 3/4 (96 x 8 GB) 1 TB DDR 3/4 (32 x 32 GB or 64 x 16 GB) 1. 5 TB DDR 3/4 (96 x 16 GB) 2 TB DDR 3/4 (32 x 64 GB or 64 x 32 GB) 3 TB DDR 3/4 (96 x 32 GB) 4 TB DDR 3/4 (64 x 64 GB) 6 TB DDR 3/4 (96 x 64 GB) 6 x 1. 2 TB HDD 2 x 400 GB SSD 12 x 1. 2 TB HDD 4 x 400 GB SSD 21 x 1. 2 TB HDD 6 x 400 GB SSD 30 x 1. 2 TB HDD 6 x 400 GB SSD 1 x M 5210 2 x M 5210 2 x M 5210 1 x M 5225 3. 6 TB RAID 5 data/log 9. 6 TB RAID 5 data/log 19. 2 TB RAID 5 data/log 19. 2 TB RAID 5 data/log 28. 8 TB RAID 5 data/log 4 x 10 Gb. E 8 x 1 Gig. E 4 x 10 Gb. E 8 x 1 Gig. E Upgrade Options: 256 512 Upgrade Options: 512 1 T 512 768 4 S 8 S Upgrade Options: - Upgrade Options: 1 T 2 T 1 T 1. 5 T 4 S 8 S Upgrade Options: - Upgrade Options: 2 T 4 T 2 T 3 T 4 S 8 S Upgrade Options: - Upgrade Options: 4 T 6 T 4 S 8 S Upgrade Options: - 注：必须同时包含初始安装服务 * For Suite on HANA only, not for Datamart and BW

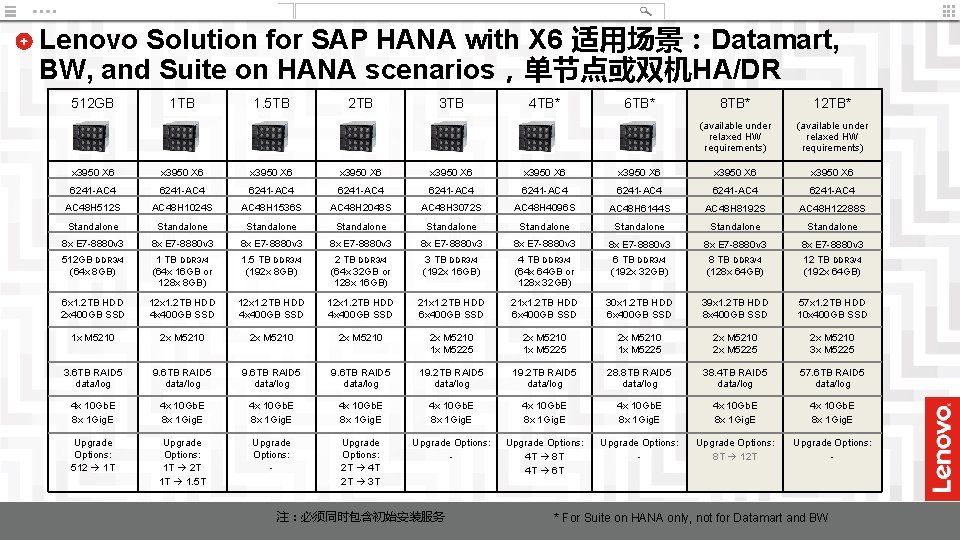

Lenovo Solution for SAP HANA with X 6 适用场景：Datamart, BW, and Suite on HANA scenarios，单节点或双机HA/DR 512 GB 1 TB 1. 5 TB 2 TB 3 TB 4 TB* 6 TB* 8 TB* 12 TB* (available under relaxed HW requirements) x 3950 X 6 x 3950 X 6 x 3950 X 6 6241 -AC 4 6241 -AC 4 6241 -AC 48 H 512 S AC 48 H 1024 S AC 48 H 1536 S AC 48 H 2048 S AC 48 H 3072 S AC 48 H 4096 S AC 48 H 6144 S AC 48 H 8192 S AC 48 H 12288 S Standalone Standalone Standalone 8 x E 7 -8880 v 3 8 x E 7 -8880 v 3 8 x E 7 -8880 v 3 512 GB DDR 3/4 (64 x 8 GB) 1 TB DDR 3/4 (64 x 16 GB or 128 x 8 GB) 1. 5 TB DDR 3/4 (192 x 8 GB) 2 TB DDR 3/4 (64 x 32 GB or 128 x 16 GB) 3 TB DDR 3/4 (192 x 16 GB) 4 TB DDR 3/4 (64 x 64 GB or 128 x 32 GB) 6 TB DDR 3/4 (192 x 32 GB) 8 TB DDR 3/4 (128 x 64 GB) 12 TB DDR 3/4 (192 x 64 GB) 6 x 1. 2 TB HDD 2 x 400 GB SSD 12 x 1. 2 TB HDD 4 x 400 GB SSD 21 x 1. 2 TB HDD 6 x 400 GB SSD 30 x 1. 2 TB HDD 6 x 400 GB SSD 39 x 1. 2 TB HDD 8 x 400 GB SSD 57 x 1. 2 TB HDD 10 x 400 GB SSD 1 x M 5210 2 x M 5210 1 x M 5225 2 x M 5210 2 x M 5225 2 x M 5210 3 x M 5225 3. 6 TB RAID 5 data/log 9. 6 TB RAID 5 data/log 19. 2 TB RAID 5 data/log 28. 8 TB RAID 5 data/log 38. 4 TB RAID 5 data/log 57. 6 TB RAID 5 data/log 4 x 10 Gb. E 8 x 1 Gig. E 4 x 10 Gb. E 8 x 1 Gig. E Upgrade Options: 512 1 T Upgrade Options: 1 T 2 T 1 T 1. 5 T Upgrade Options: - Upgrade Options: 2 T 4 T 2 T 3 T Upgrade Options: - Upgrade Options: 4 T 8 T 4 T 6 T Upgrade Options: - Upgrade Options: 8 T 12 T Upgrade Options: - 注：必须同时包含初始安装服务 * For Suite on HANA only, not for Datamart and BW

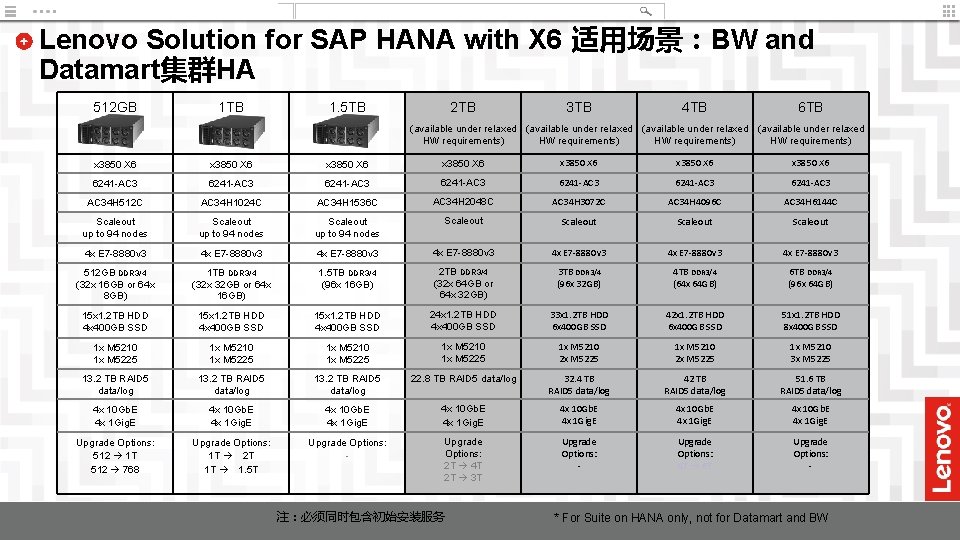

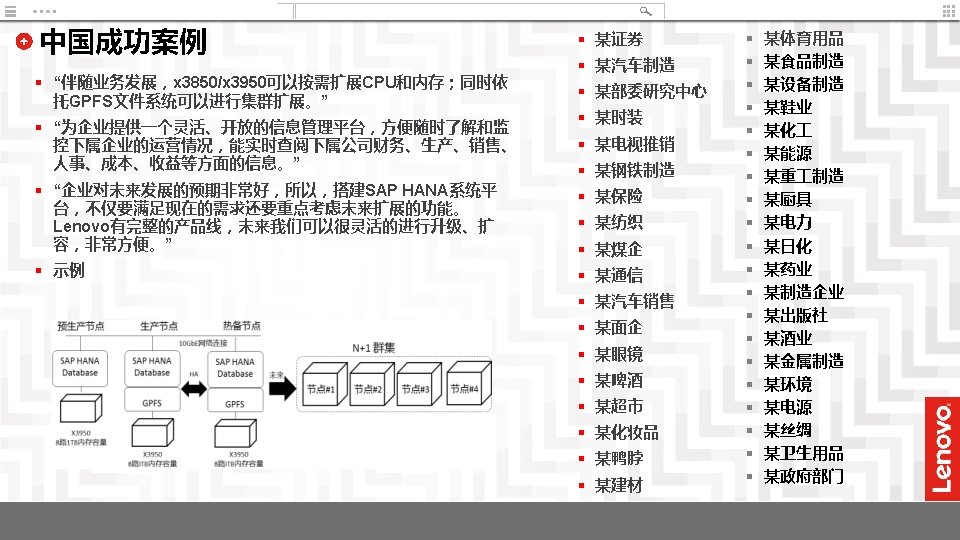

Lenovo Solution for SAP HANA with X 6 适用场景：BW and Datamart集群HA 512 GB 1 TB 1. 5 TB 2 TB 3 TB 4 TB 6 TB (available under relaxed HW requirements) x 3850 X 6 x 3850 X 6 6241 -AC 3 6241 -AC 3 AC 34 H 512 C AC 34 H 1024 C AC 34 H 1536 C AC 34 H 2048 C AC 34 H 3072 C AC 34 H 4096 C AC 34 H 6144 C Scaleout up to 94 nodes Scaleout 4 x E 7 -8880 v 3 4 x E 7 -8880 v 3 512 GB DDR 3/4 (32 x 16 GB or 64 x 8 GB) 1 TB DDR 3/4 (32 x 32 GB or 64 x 16 GB) 1. 5 TB DDR 3/4 (96 x 16 GB) 2 TB DDR 3/4 (32 x 64 GB or 64 x 32 GB) 3 TB DDR 3/4 (96 x 32 GB) 4 TB DDR 3/4 (64 x 64 GB) 6 TB DDR 3/4 (96 x 64 GB) 15 x 1. 2 TB HDD 4 x 400 GB SSD 24 x 1. 2 TB HDD 4 x 400 GB SSD 33 x 1. 2 TB HDD 6 x 400 GB SSD 42 x 1. 2 TB HDD 6 x 400 GB SSD 51 x 1. 2 TB HDD 8 x 400 GB SSD 1 x M 5210 1 x M 5225 1 x M 5210 2 x M 5225 1 x M 5210 3 x M 5225 13. 2 TB RAID 5 data/log 22. 8 TB RAID 5 data/log 32. 4 TB RAID 5 data/log 42 TB RAID 5 data/log 51. 6 TB RAID 5 data/log 4 x 10 Gb. E 4 x 1 Gig. E 4 x 10 Gb. E 4 x 1 Gig. E Upgrade Options: 512 1 T 512 768 Upgrade Options: 1 T 2 T 1 T 1. 5 T Upgrade Options: - Upgrade Options: 2 T 4 T 2 T 3 T Upgrade Options: - Upgrade Options: 4 T 6 T Upgrade Options: - 注：必须同时包含初始安装服务 * For Suite on HANA only, not for Datamart and BW

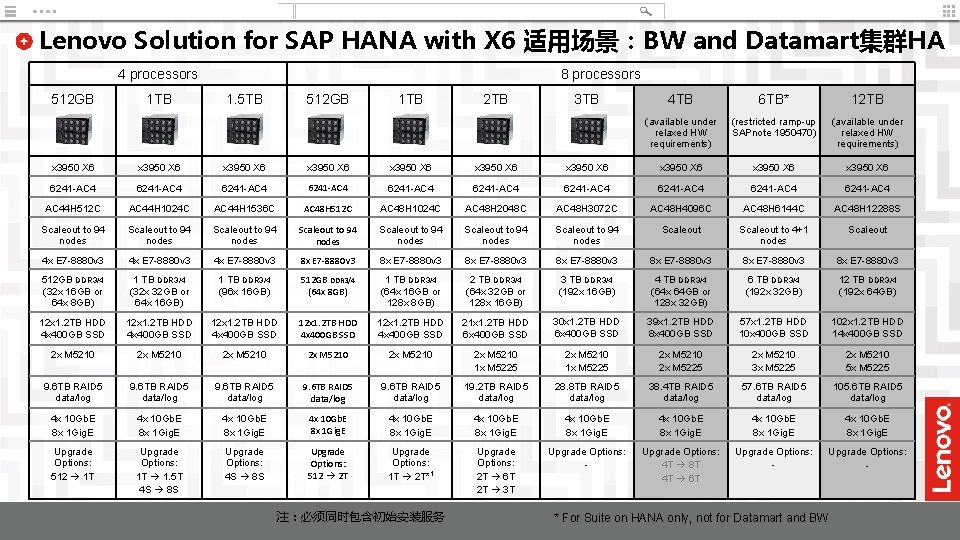

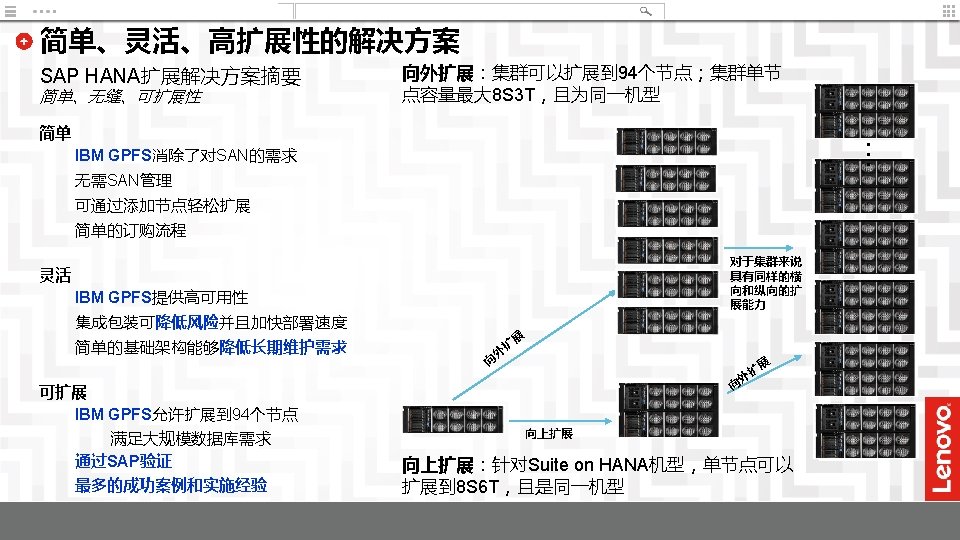

Lenovo Solution for SAP HANA with X 6 适用场景：BW and Datamart集群HA 4 processors 512 GB 1 TB 8 processors 1. 5 TB 512 GB 1 TB 2 TB 3 TB 4 TB 6 TB* 12 TB (available under relaxed HW requirements) (restricted ramp-up SAPnote 1950470) (available under relaxed HW requirements) x 3950 X 6 x 3950 X 6 x 3950 X 6 6241 -AC 4 6241 -AC 4 6241 -AC 44 H 512 C AC 44 H 1024 C AC 44 H 1536 C AC 48 H 512 C AC 48 H 1024 C AC 48 H 2048 C AC 48 H 3072 C AC 48 H 4096 C AC 48 H 6144 C AC 48 H 12288 S Scaleout to 94 nodes Scaleout to 94 nodes Scaleout to 4+1 nodes Scaleout 4 x E 7 -8880 v 3 8 x E 7 -8880 v 3 8 x E 7 -8880 v 3 512 GB DDR 3/4 (32 x 16 GB or 64 x 8 GB) 1 TB DDR 3/4 (32 x 32 GB or 64 x 16 GB) 1 TB DDR 3/4 (96 x 16 GB) 512 GB DDR 3/4 (64 x 8 GB) 1 TB DDR 3/4 (64 x 16 GB or 128 x 8 GB) 2 TB DDR 3/4 (64 x 32 GB or 128 x 16 GB) 3 TB DDR 3/4 (192 x 16 GB) 4 TB DDR 3/4 (64 x 64 GB or 128 x 32 GB) 6 TB DDR 3/4 (192 x 32 GB) 12 TB DDR 3/4 (192 x 64 GB) 12 x 1. 2 TB HDD 4 x 400 GB SSD 21 x 1. 2 TB HDD 6 x 400 GB SSD 30 x 1. 2 TB HDD 6 x 400 GB SSD 39 x 1. 2 TB HDD 8 x 400 GB SSD 57 x 1. 2 TB HDD 10 x 400 GB SSD 102 x 1. 2 TB HDD 14 x 400 GB SSD 2 x M 5210 2 x M 5210 1 x M 5225 2 x M 5210 2 x M 5225 2 x M 5210 3 x M 5225 2 x M 5210 5 x M 5225 9. 6 TB RAID 5 data/log 19. 2 TB RAID 5 data/log 28. 8 TB RAID 5 data/log 38. 4 TB RAID 5 data/log 57. 6 TB RAID 5 data/log 105. 6 TB RAID 5 data/log 4 x 10 Gb. E 8 x 1 Gig. E 4 x 10 Gb. E 8 x 1 Gig. E Upgrade Options: 512 1 T Upgrade Options: 1 T 1. 5 T 4 S 8 S Upgrade Options: 512 2 T Upgrade Options: 1 T 2 T*1 Upgrade Options: 2 T 6 T 2 T 3 T Upgrade Options: - Upgrade Options: 4 T 8 T 4 T 6 T Upgrade Options: - 注：必须同时包含初始安装服务 * For Suite on HANA only, not for Datamart and BW

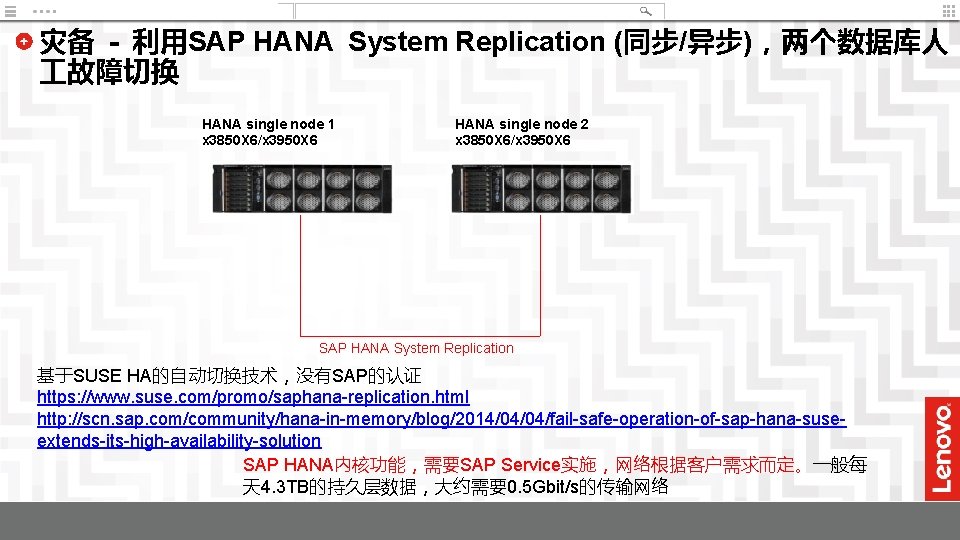

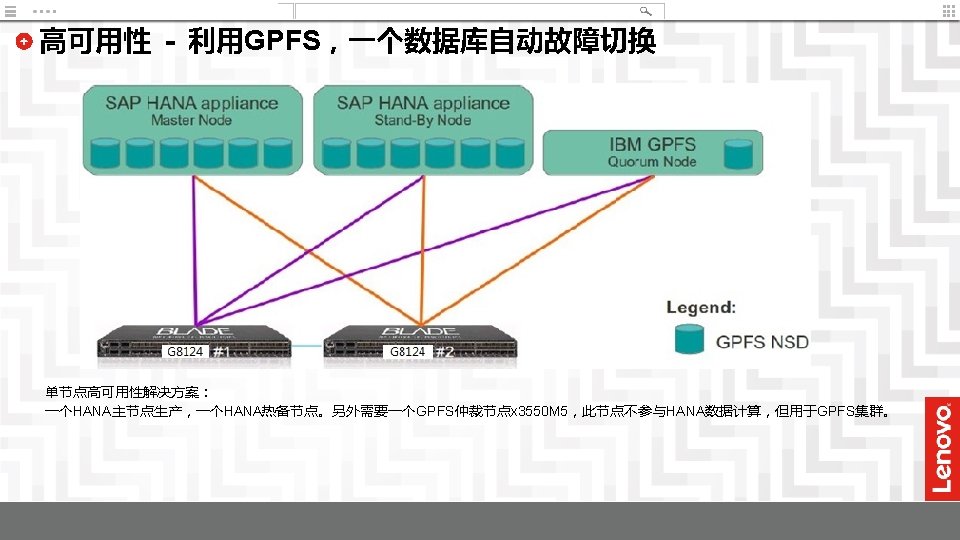

灾备 - 利用SAP HANA System Replication (同步/异步)，两个数据库人 故障切换 HANA single node 1 x 3850 X 6/x 3950 X 6 HANA single node 2 x 3850 X 6/x 3950 X 6 SAP HANA System Replication 基于SUSE HA的自动切换技术，没有SAP的认证 https: //www. suse. com/promo/saphana-replication. html http: //scn. sap. com/community/hana-in-memory/blog/2014/04/04/fail-safe-operation-of-sap-hana-suseextends-its-high-availability-solution SAP HANA内核功能，需要SAP Service实施，网络根据客户需求而定。一般每 天 4. 3 TB的持久层数据，大约需要0. 5 Gbit/s的传输网络

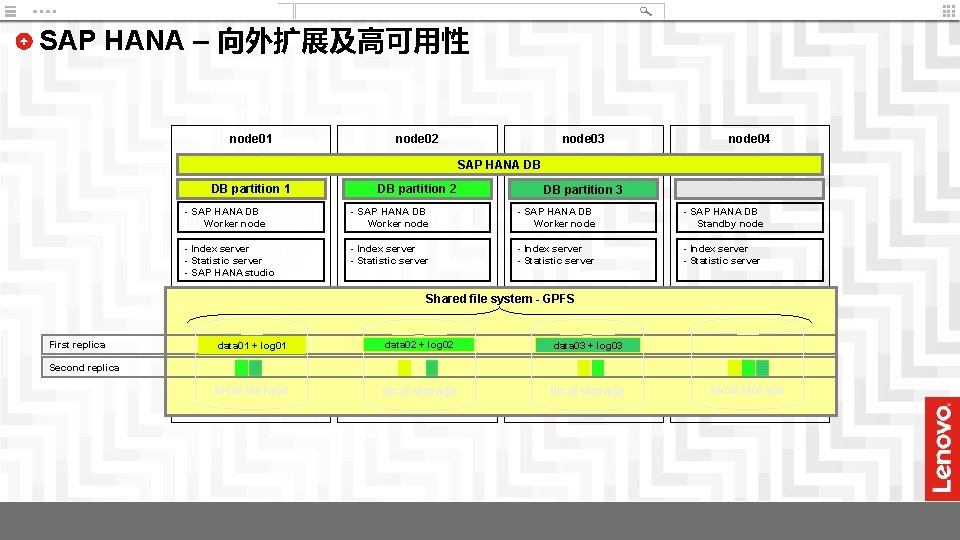

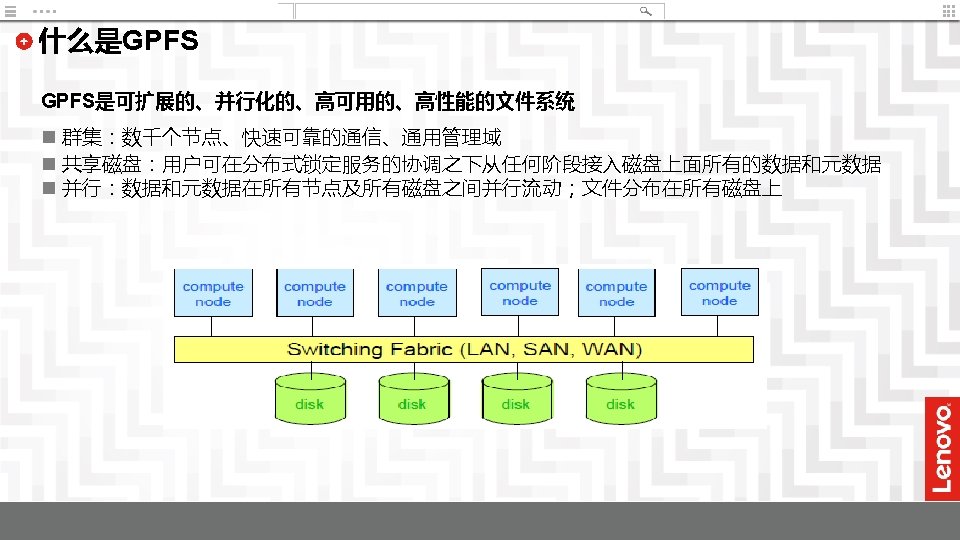

SAP HANA – 向外扩展及高可用性 node 01 node 02 node 03 node 04 SAP HANA DB DB partition 1 DB partition 2 DB partition 3 - SAP HANA DB Worker node - SAP HANA DB Standby node - Index server - Statistic server - SAP HANA studio - Index server - Statistic server Shared file system - GPFS First replica data 01 + log 01 data 02 + log 02 data 03 + log 03 local storage Second replica local storage

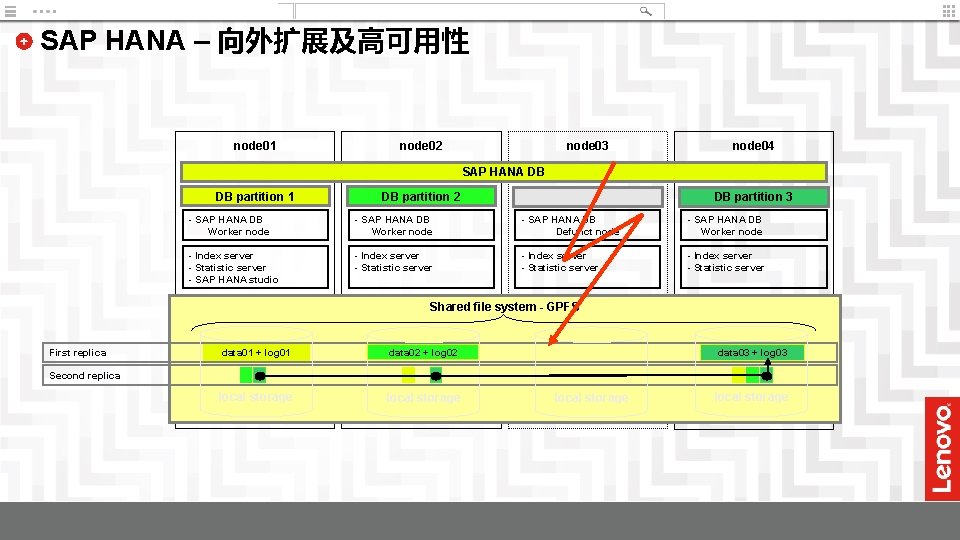

SAP HANA – 向外扩展及高可用性 node 01 node 02 node 03 node 04 SAP HANA DB DB partition 1 DB partition 2 DB partition 3 - SAP HANA DB Worker node - SAP HANA DB Defunct node - SAP HANA DB Worker node - Index server - Statistic server - SAP HANA studio - Index server - Statistic server Shared file system - GPFS First replica data 01 + log 01 data 02 + log 02 local storage data 03 + log 03 Second replica local storage

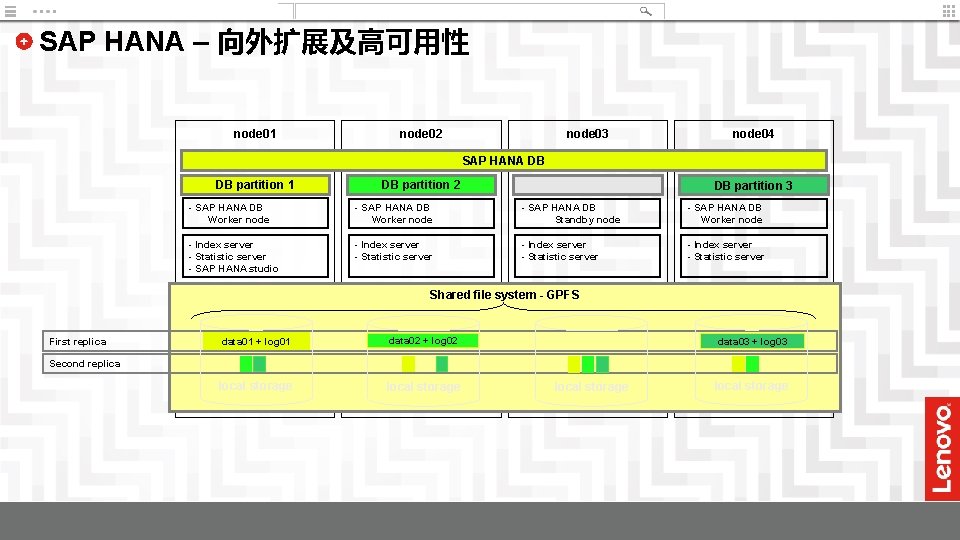

SAP HANA – 向外扩展及高可用性 node 01 node 02 node 03 node 04 SAP HANA DB DB partition 1 DB partition 2 DB partition 3 - SAP HANA DB Worker node - SAP HANA DB Standby node - SAP HANA DB Worker node - Index server - Statistic server - SAP HANA studio - Index server - Statistic server Shared file system - GPFS First replica data 01 + log 01 data 02 + log 02 local storage data 03 + log 03 Second replica local storage

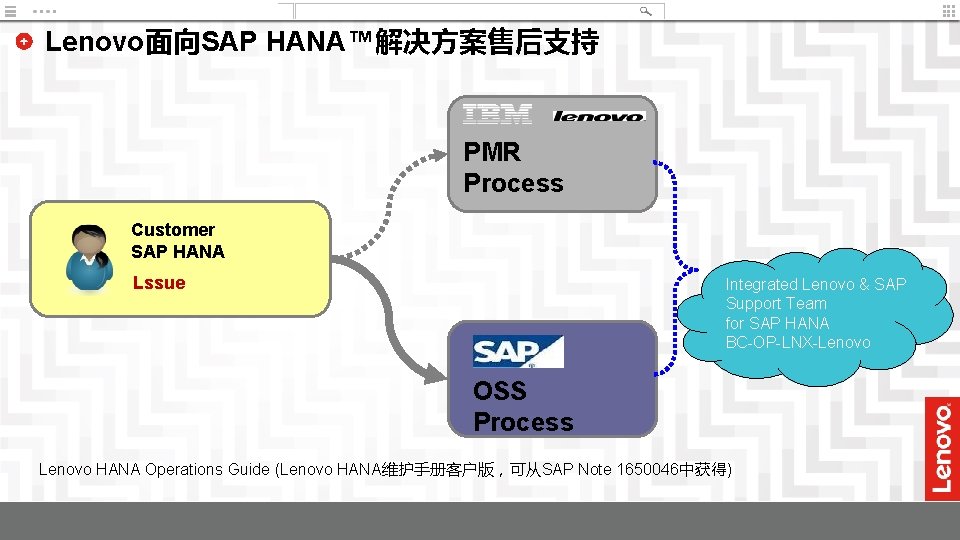

Lenovo面向SAP HANA™解决方案售后支持 PMR Process Customer SAP HANA Lssue Integrated Lenovo & SAP Support Team for SAP HANA BC-OP-LNX-Lenovo OSS Process Lenovo HANA Operations Guide (Lenovo HANA维护手册客户版，可从SAP Note 1650046中获得)
