Lenovo Blade Servers: Flex System x 240 M 5 Customer Presentation Patrick Moakley, Director of Product Marketing Flex Systems March, 2016 LENOVO. ALL RIGHTS RESERVED Under embargo until March 31, 2016
Agenda • Market Trends – Customer Drivers • Why Lenovo • Flex System • The x 240 M 5 – – – Overview x 240 M 5 Broadwell Update Key Features XClarity Management Lenovo Enterprise Services • Customer Example 2016 LENOVO. ALL RIGHTS RESERVED Under embargo until March 31, 2016 2
Top of mind for Enterprise customers § Gain better control of IT § Increase reliability & security § Continue to reduce TCO § Migrate to the cloud § Gain faster business insight Under embargo until March 31, 2016 3
What Resonates in the Enterprise Gain Better Control of IT Increase Reliability 30 B 71% Number of connected devices by 2020 Corporations require 99. 99% uptime or better 2016 Lenovo Internal. All rights reserved. Under embargo until March 31, 2016 Migrate to the Cloud 5 X Growth of allcloud companies by 2020 Business Insights Continue to Reduce TCO 70% 98% Businesses consider Big Data critical to their success IT operational budgets will not grow 4
Unlock your data center’s potential Gain insights faster Gain better IT control Maximize uptime Reduce TCO • CPU & memory performance gains • Lenovo XClarity • #1 Reliability, customer satisfaction • Increased performance of Intel Xeon E 5 -2600 V 4 processor • Cloud Reference Architectures • Big Data and Analytics solutions 22% • Lenovo Trusted Platform Assurance More cores vs previous generation 2016 Lenovo Internal. All rights reserved. 31% Faster CPU performance vs previous generation Under embargo until March 31, 2016 23% Faster Hadoop performance vs previous generation 21% Faster virtualization & OLTP performance vs previous generation • Lenovo XClarity Energy Manager • Energy efficient features 12% Faster memory 5
Evolution requires a new kind of data center partner Purpose Driven Innovation 2016 LENOVO. ALL RIGHTS RESERVED Under embargo until March 31, 2016 Choice & Flexibility Customer Experience 6

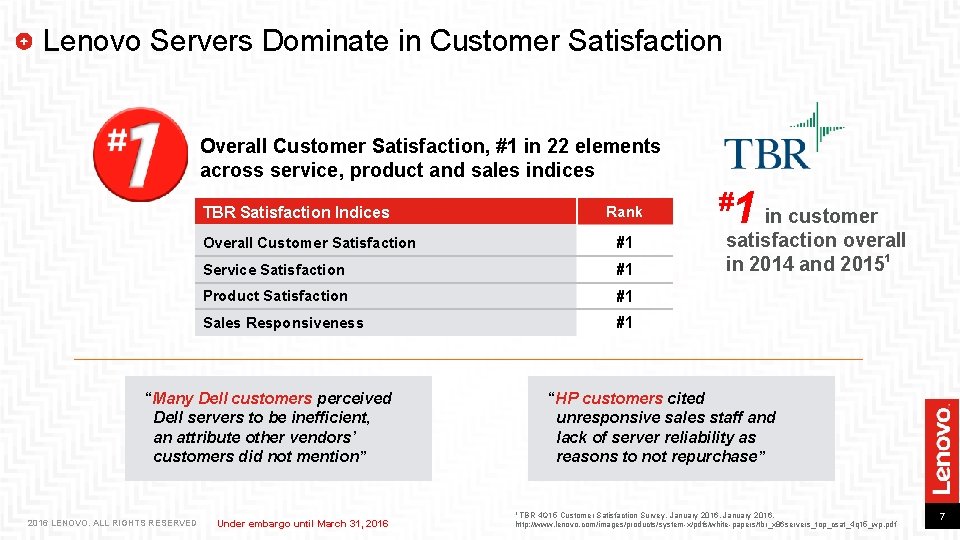

Lenovo Servers Dominate in Customer Satisfaction Overall Customer Satisfaction, #1 in 22 elements across service, product and sales indices TBR Satisfaction Indices Rank Overall Customer Satisfaction #1 Service Satisfaction #1 Product Satisfaction #1 Sales Responsiveness #1 “Many Dell customers perceived Dell servers to be inefficient, an attribute other vendors’ customers did not mention” 2016 LENOVO. ALL RIGHTS RESERVED Under embargo until March 31, 2016 # 1 in customer satisfaction overall in 2014 and 20151 “HP customers cited unresponsive sales staff and lack of server reliability as reasons to not repurchase” 1 TBR 4 Q 15 Customer Satisfaction Survey, January 2016, http: //www. lenovo. com/images/products/system-x/pdfs/white-papers/tbr_x 86 servers_top_csat_4 q 15_wp. pdf 7
Lenovo servers achieve highest reliability rating Lenovo: Dell # 9 of 11, 3 years running HP # 10 Oracle # 11 ITIC Global Server Hardware, Reliability Report 2015 -2016 LENOVO. ALL RIGHTS RESERVED Under embargo until March 31, 2016 http: //www. lenovo. com/images/products/system-x/pdfs/white-papers/itic_2016_reliability_wp. pdf 8
New expansion for open and flexible solutions Joint development for superior customer experience “SAP and Lenovo Plan to Bring Advanced Solutions to the New Digital Economy” “Lenovo and Nutanix to Bring Hyperconverged Infrastructure to Global Enterprises” “Lenovo and Red Hat Expand Trusted Portfolio of Cloud Offerings” 2016 Lenovo Internal. All rights reserved. Under embargo until March 31, 2016 9
Lenovo Flex System The Highest Capability Blade Systems in the Industry 2016 LENOVO. ALL RIGHTS RESERVED

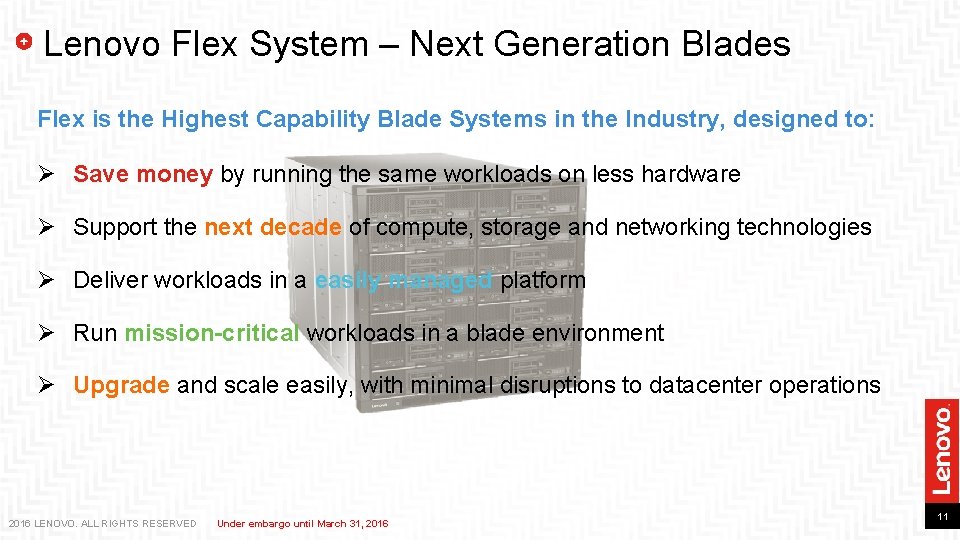

Lenovo Flex System – Next Generation Blades Flex is the Highest Capability Blade Systems in the Industry, designed to: Ø Save money by running the same workloads on less hardware Ø Support the next decade of compute, storage and networking technologies Ø Deliver workloads in a easily managed platform Ø Run mission-critical workloads in a blade environment Ø Upgrade and scale easily, with minimal disruptions to datacenter operations 2016 LENOVO. ALL RIGHTS RESERVED Under embargo until March 31, 2016 11

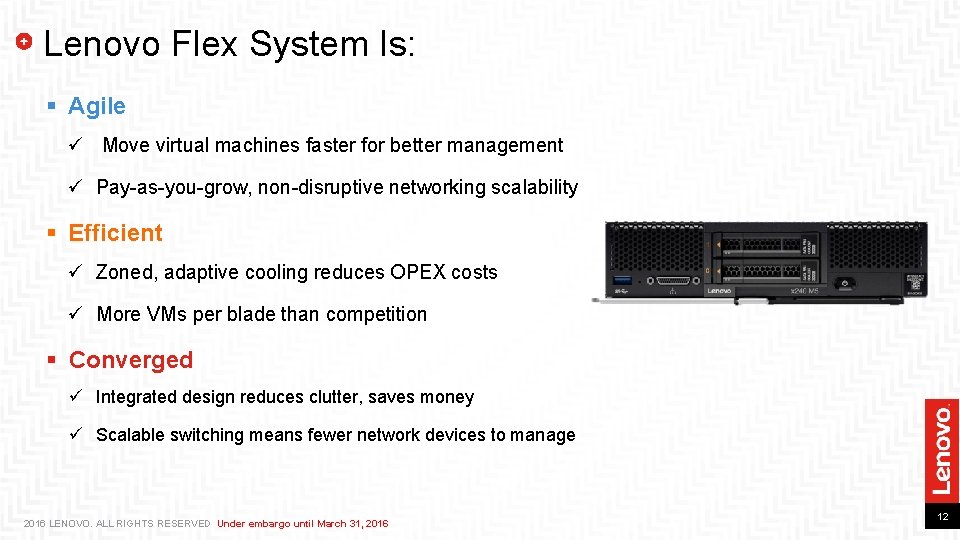

Lenovo Flex System Is: § Agile ü Move virtual machines faster for better management ü Pay-as-you-grow, non-disruptive networking scalability § Efficient ü Zoned, adaptive cooling reduces OPEX costs ü More VMs per blade than competition § Converged ü Integrated design reduces clutter, saves money ü Scalable switching means fewer network devices to manage 2016 LENOVO. ALL RIGHTS RESERVED Under embargo until March 31, 2016 12

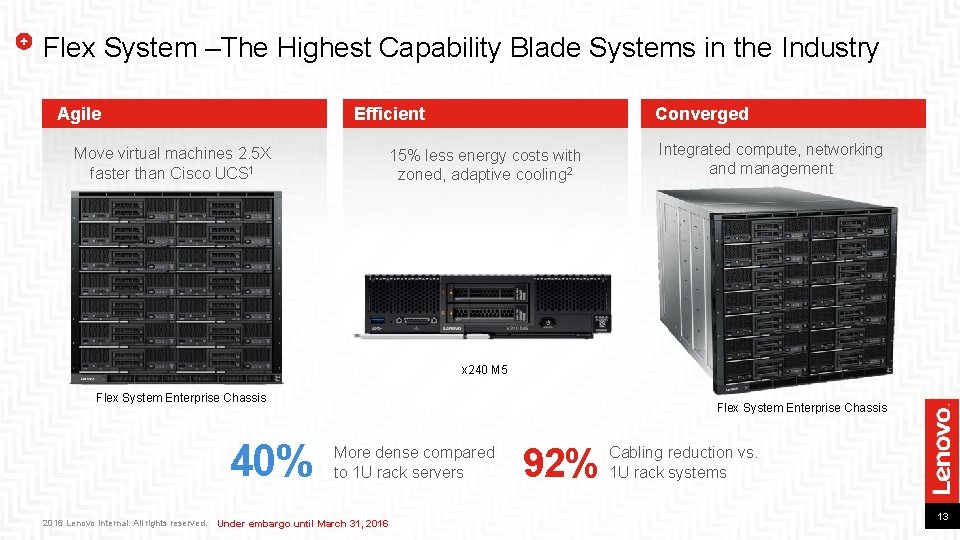

Flex System ‒The Highest Capability Blade Systems in the Industry Converged Efficient Agile Move virtual machines 2. 5 X faster than Cisco UCS 1 15% less energy costs with zoned, adaptive cooling 2 Integrated compute, networking and management x 240 M 5 Flex System Enterprise Chassis 40% 2016 Lenovo Internal. All rights reserved. Flex System Enterprise Chassis More dense compared to 1 U rack servers Under embargo until March 31, 2016 92% Cabling reduction vs. 1 U rack systems 13

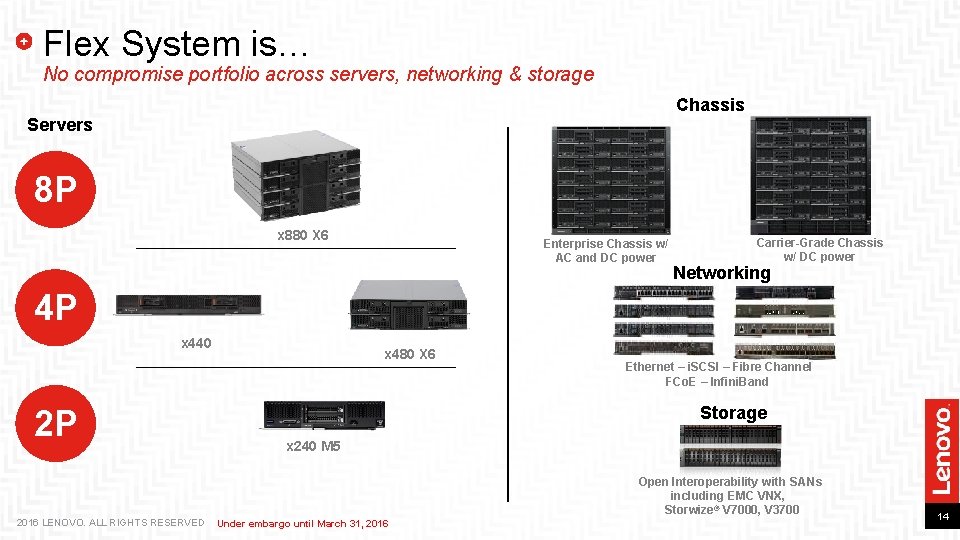

Flex System is… No compromise portfolio across servers, networking & storage Chassis Servers 8 P x 880 X 6 Enterprise Chassis w/ AC and DC power Carrier-Grade Chassis w/ DC power Networking 4 P x 440 2 P 2016 LENOVO. ALL RIGHTS RESERVED x 480 X 6 Ethernet – i. SCSI – Fibre Channel FCo. E – Infini. Band Storage x 240 M 5 Open Interoperability with SANs including EMC VNX, Storwize® V 7000, V 3700 Under embargo until March 31, 2016 14
Flex System x 240 M 5 2 P Half-Wide blade for virtualization and cloud workloads 2016 LENOVO. ALL RIGHTS RESERVED

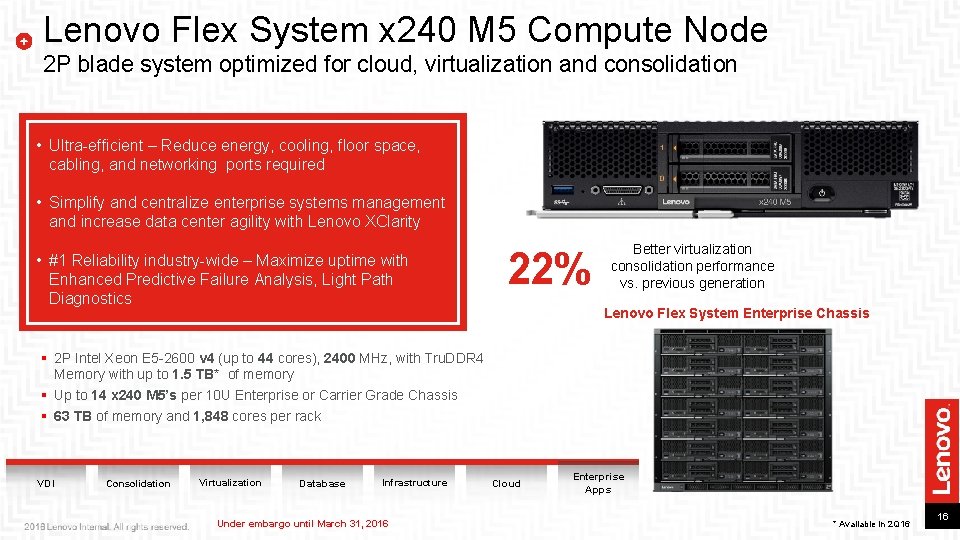

Lenovo Flex System x 240 M 5 Compute Node 2 P blade system optimized for cloud, virtualization and consolidation • Ultra-efficient – Reduce energy, cooling, floor space, cabling, and networking ports required • Simplify and centralize enterprise systems management and increase data center agility with Lenovo XClarity • #1 Reliability industry-wide – Maximize uptime with Enhanced Predictive Failure Analysis, Light Path Diagnostics 22% Better virtualization consolidation performance vs. previous generation Lenovo Flex System Enterprise Chassis § 2 P Intel Xeon E 5 -2600 v 4 (up to 44 cores), 2400 MHz, with Tru. DDR 4 Memory with up to 1. 5 TB* of memory § Up to 14 x 240 M 5’s per 10 U Enterprise or Carrier Grade Chassis § 63 TB of memory and 1, 848 cores per rack VDI Consolidation Virtualization Database Infrastructure Under embargo until March 31, 2016 Cloud Enterprise Apps * Available in 2 Q 16 16
Flex System x 240 M 5 Broadwell Refresh Feature x 240 M 5 Haswell x 240 M 5 Broadwell Benefits 9532 Same Machine Type, easy management E 5 -2600 v 3 Up to 145 W 18 cores E 5 -2600 v 4 Up to 145 W 22 cores +4 more cores, increased performance Consolidation of more apps on same machine, reducing costs 24 slots (R/LR DIMM) 1. 2 V 4 Channels, 3 DIMM per channel RDIMM: 4/8/16/32 GB, LRDIMM 32/64 GB Up to 2133 MHz, Up to 1. 5 TB (LRDIMM) 24 slots (R/LR DIMM) 1. 2 V 4 Channels, 3 DIMM per channel RDIMM: 8/16/32 GB, LRDIMM 64 GB* Up to 2 DPC@2400 MHz Up to 1. 5 TB* (LRDIMM) +266 MHz bandwidth, Better performance 2 DPC/3 DPC Delivered +266 MHz vs. Intel POR Support 2 DPC@2400 MHz for LRDIMM & RDIMMs Support 3 DPC@2133 MHz for LRDIMM Support 3 DPC@1866 MHz for RDIMMs Disk 2. 5” Gen 3 Tray 2 x 2. 5” HS SAS/SATA/SSD/NVMe PCIe SSD or 4 x 1. 8” HS SSD Support PEN/SEN RAID On board 12 Gb (Based on LSI 3004) RAID 0, 1 Optional 12 Gb M 5215 (Based on LSI 3108) RAID 0, with 2 GB Flash via Mezz 2 x PCIe Gen 3 x 16 Mezz Yes SD card RAIDed (USB 2. 0) Standard Machine Type Processor Memory Networking PCIe Light Path Internal card TPM/TCM 2016 LENOVO. ALL RIGHTS RESERVED Under embargo until March 31, 2016 17
Flex System x 240 M 5 Optimized for Performance Provides clients ability to run more workloads on a single system 12% faster memory with Tru. DDR 4 compared to Intel POR More memory for more virtual machines • 1. 5 TB max Tru. DDR 4 Memory 1 • Increased speed to 2400 MHz @ 2 DPC • Intel POR = 2133 MHz @ 2 DPC • Save 45% power (Tru. DDR 4 Memory vs. DDR 3) 8% to 44% increased workload performance over prior generation 23% mean increase in performance 2 over previous generation with New Intel Xeon E 5 -2600 v 4 series processors enable up to 22% more cores (up to 44 total per server) Provision systems in up to 75% less time 3 XClarity management reduces time & steps • Efficiently manage Flex System with Lenovo XClarity • Comes in two versions: Administrator & Pro IBM Flex System x 240 M 5 Compute Node 1 Available 2 Q 2016 2 Intel testing. For more information go to http: //www. intel. com/performance/datacenter. Copyright © 2016, Intel Corporation. 3 http: //www. principledtechnologies. com/Lenovo/XClarity_Administrator_management_comparison_0615. pdf , http: //www. principledtechnologies. com/Lenovo/XClarity_Administrator_management_comparison_0915. pdf Under embargo until March 31, 2016 18
Flex System x 240 M 5 2 -Processor, half-wide blade for virtualization & cloud Customer Benefits § 24 DIMM slots, up to 1. 5 TB** of memory – runs more workloads on same # of blades § 2 -processor Intel E 5– 2600 v 4 with up to 44 cores per node – greater performance § Up to 14 x 240 M 5 s in a 10 U chassis – density, power savings, & cable reduction Memory Flex x 240 M 5 HPE BL 460 c Dell PE M 630 DIMM Slots 24 16/12* 24/20* Max DIMM 64 GB Total Memory 1. 5 TB 1. 0 TB/768 GB 1. 5/1. 2 TB * CPU Dependent-High Core CPUs require larger heat sink that blocks some DIMM slots 2016 LENOVO INTERNAL. ALL RIGHTS RESERVED. § Sidecar expansion nodes for Storage & PCI – Scale up to accommodate any configuration or solution Virtualization Cloud **Available 2 Q 2016 Under embargo until March 31, 2016 19
Lenovo XClarity Simplified, repeatable system deployment Fast • Define systems in software using patterns • Provision systems in up to 75% less time 1 IT Application Integration XClarity Integrators and REST APIs HTML 5 User Interface ▪ Discover ▪ Define ▪ Deliver Agile • Anywhere management from Android and i. OS devices • Control and optimize system power usage and temperature Interoperable • Control systems from external IT applications by Scripting ▪ Optimize Power Mobile App integrating with REST APIs to automate end-to-end orchestration and service management tasks Lenovo Infrastructure 1. http: //www. principledtechnologies. com/Lenovo/XClarity_Administrator_management_comparison_0615. pdf, http: //www. principledtechnologies. com/Lenovo/XClarity_Administrator_management_comparison_0915. pdf 2016 LENOVO. ALL RIGHTS RESERVED Under embargo until March 31, 2016 20
Lenovo Enterprise Services Solutions Services Implementation Services Technology Services Tackle your most complex challenges with help from Lenovo Services professionals experienced in technology solutions Let the Lenovo experts deploy your equipment and keep it running so that you can focus on the business Protect your technology investment with services that support all of your operational requirements • Factory Integration • Warranty Service Upgrades • Hardware Installation • Post Warranty Services • Health Checks • Your. Drive Your. Data • Deployment • Technical Support Services • Remote Technical Consulting • Data Center Services ‒ Power and cooling • Proof of Technology Lab • Proof of Concept • Solution Design & Architecture • Assessments ‒ ‒ Implementation Configuration Integration Migration ‒ Enterprise HW Support Preferred Access ‒ Enterprise SW Support • Infrastructure Management Services • Training 2016 LENOVO. ALL RIGHTS RESERVED Under embargo until March 31, 2016 21

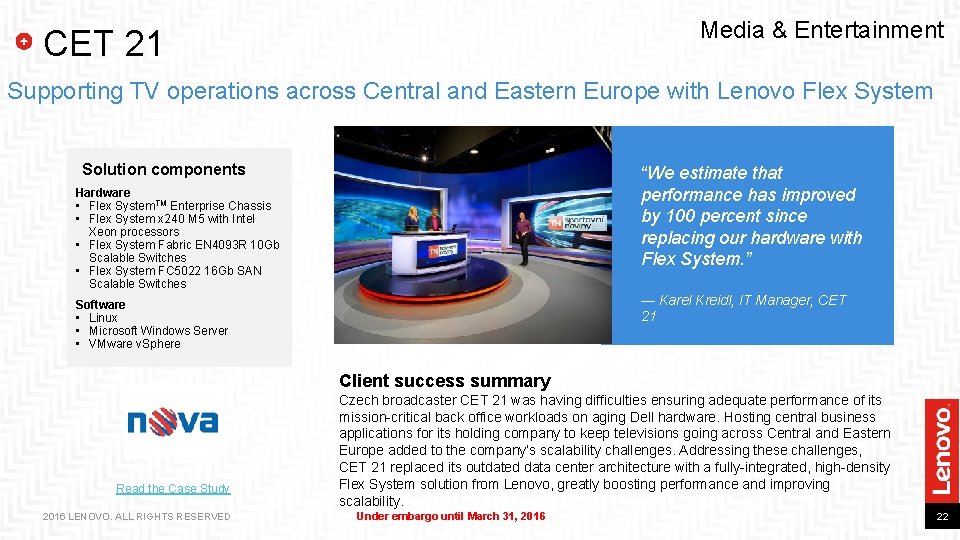

Media & Entertainment CET 21 Supporting TV operations across Central and Eastern Europe with Lenovo Flex System Solution components “We estimate that performance has improved by 100 percent since replacing our hardware with Flex System. ” Hardware • Flex System. TM Enterprise Chassis • Flex System x 240 M 5 with Intel Xeon processors • Flex System Fabric EN 4093 R 10 Gb Scalable Switches • Flex System FC 5022 16 Gb SAN Scalable Switches — Karel Kreidl, IT Manager, CET 21 Software • Linux • Microsoft Windows Server • VMware v. Sphere Client success summary Read the Case Study 2016 LENOVO. ALL RIGHTS RESERVED Czech broadcaster CET 21 was having difficulties ensuring adequate performance of its mission-critical back office workloads on aging Dell hardware. Hosting central business applications for its holding company to keep televisions going across Central and Eastern Europe added to the company’s scalability challenges. Addressing these challenges, CET 21 replaced its outdated data center architecture with a fully-integrated, high-density Flex System solution from Lenovo, greatly boosting performance and improving scalability. Under embargo until March 31, 2016 22
The Top 10 Reasons to Buy Flex System Reason Why it Matters 1. Designed for the next decade Gen 2 Flex is ready for tomorrow’s workloads, networking and Intel processors. 2. More memory per blade More memory = more workloads/VMs per blade, which = buying less hardware. 3. Scalable 2 to 8 -Processors Flex runs mission-critical applications like SAP HANA in a blade environment 4. 40% more dense and 92% less cables Saves space, power and eliminates the jungle of cables compared to 1 U rack servers 5. Feature on Demand scalability Upgrade existing switches “in-place” without “rip-&-replace” disruption to datacenter 6. Virtual Switching Flex requires fewer switches to buy and manage as you scale. HP – no virtual switching 7. Lenovo XClarity Management Integrates seamlessly into your datacenter using skills your admins already have 8. Open choice SAN Storage Use the SAN hardware you want and your storage admins know: EMC, IBM, HP Net. App 9. Run without a Top of Rack (TOR) switch Cisco UCS requires expensive TOR’s to buy and manage as you scale 10. Zoned Adaptive Cooling Fans independently self-adjust speed as needed to save power and money 2016 LENOVO. ALL RIGHTS RESERVED Under embargo until March 31, 2016 23
LAP 12730 -USEN-00
Footnotes 1. “IBM® Flex System® Network Architecture: VM Migration and Aggregate Network Performance versus Cisco UCS” Tolly Report #214104 © 2014 TOLLY ENTERPRISES, LLC 2. Compared to Blade. Center Under embargo until March 31, 2016 25
