Leica DISTO D 8 The versatile one for

Leica DISTO™ D 8 The versatile one for in- and outdoors

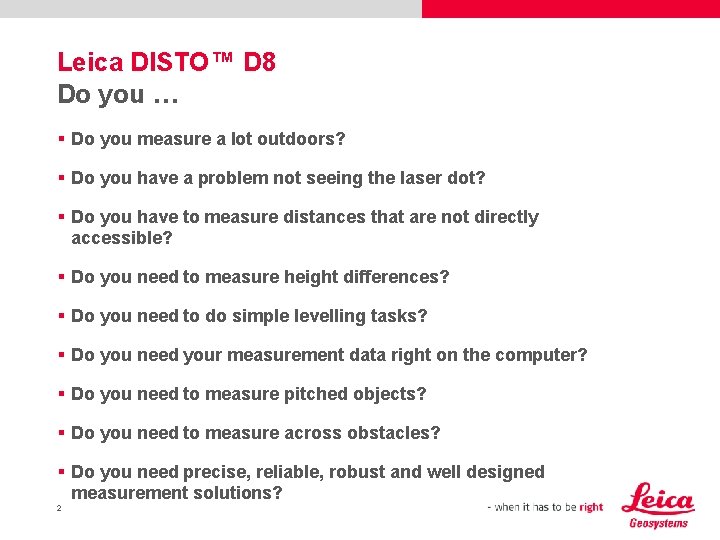

Leica DISTO™ D 8 Do you … § Do you measure a lot outdoors? § Do you have a problem not seeing the laser dot? § Do you have to measure distances that are not directly accessible? § Do you need to measure height differences? § Do you need to do simple levelling tasks? § Do you need your measurement data right on the computer? § Do you need to measure pitched objects? § Do you need to measure across obstacles? § Do you need precise, reliable, robust and well designed measurement solutions? 2

Leica DISTO™ D 8 With the new Leica DISTO™ D 8 you have the right solution for all of these challenges. It is the most versatile handheld laser distance meter ever!!! 3

New Leica DISTO™ D 8 USPs Digital Pointfinder with 4 x zoom Large 2, 4“ coloured TFT display 360° inclination sensor Bluetooth® technology 4

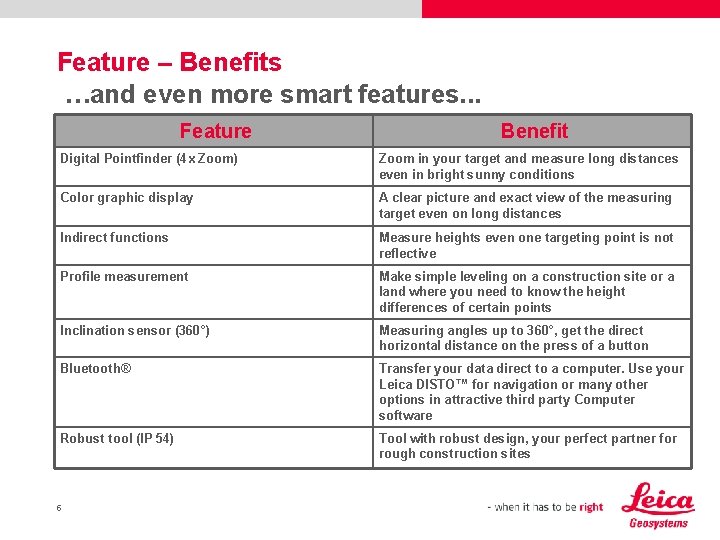

Feature – Benefits …and even more smart features. . . Feature Benefit Digital Pointfinder (4 x Zoom) Zoom in your target and measure long distances even in bright sunny conditions Color graphic display A clear picture and exact view of the measuring target even on long distances Indirect functions Measure heights even one targeting point is not reflective Profile measurement Make simple leveling on a construction site or a land where you need to know the height differences of certain points Inclination sensor (360°) Measuring angles up to 360°, get the direct horizontal distance on the press of a button Bluetooth® Transfer your data direct to a computer. Use your Leica DISTO™ for navigation or many other options in attractive third party Computer software Robust tool (IP 54) Tool with robust design, your perfect partner for rough construction sites 5

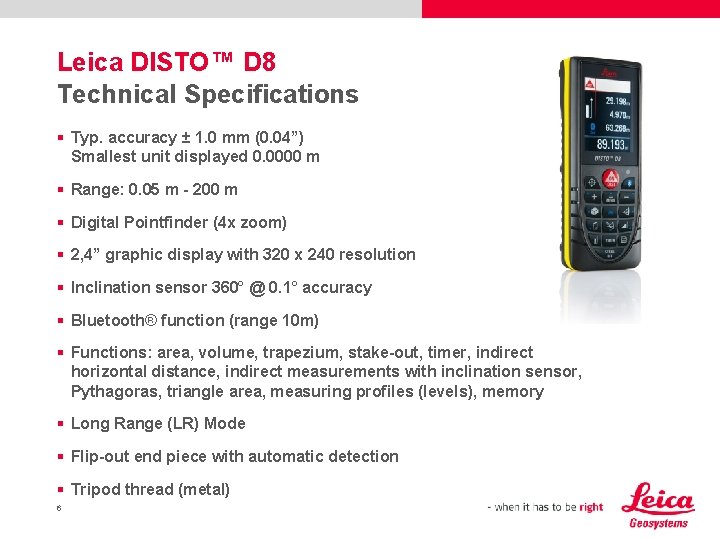

Leica DISTO™ D 8 Technical Specifications § Typ. accuracy ± 1. 0 mm (0. 04”) Smallest unit displayed 0. 0000 m § Range: 0. 05 m - 200 m § Digital Pointfinder (4 x zoom) § 2, 4” graphic display with 320 x 240 resolution § Inclination sensor 360° @ 0. 1° accuracy § Bluetooth® function (range 10 m) § Functions: area, volume, trapezium, stake-out, timer, indirect horizontal distance, indirect measurements with inclination sensor, Pythagoras, triangle area, measuring profiles (levels), memory § Long Range (LR) Mode § Flip-out end piece with automatic detection § Tripod thread (metal) 6

Measure distances like never before The new Human Machine Interface

Human Machine Interface Keypad Overview Equal / Menu ON / DIST 2 nd for switching to navigation mode Digital Pointfinder Bluetooth® Plus Minus Area / Volume Pythagoras Trapezium 1, 2 (1, 2, 3) Triangle area and stake-out Function key (angle Reference tracking, indirect measurement with tilt sensor (1, 2, 3), profiles) Constant / Memory Clear / Off 8 Timer

Human Machine Interface General Display Overview Additional functions behind current key Active Icon Level (if turned on) s Timer Measuring reference LR Mode, Offset, Battery Large fonts make measurements easy to read 2 nd Result is available 9

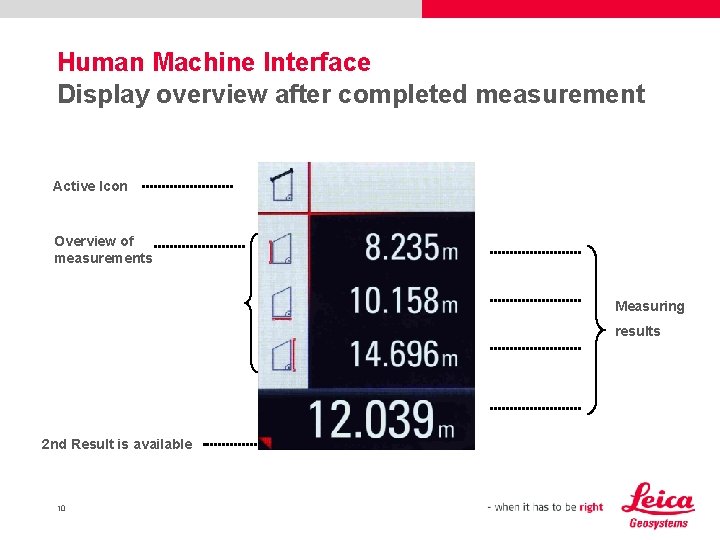

Human Machine Interface Display overview after completed measurement Active Icon Overview of measurements Measuring results 2 nd Result is available 10

Human Machine Interface Digital Pointfinder Zoom Stage (1 x, 2 x, 4 x) Level (if turned on) Crosshair Distance 11 Angle

New functions of the Leica DISTO™ D 8

Leica DISTO™ D 8 – Features Area, volume, digital Pointfinder Area, Volume Digital Pointfinder 13

Leica DISTO™ D 8 – Features Pythagoras, Memory Pythagoras 1, 2, 3 Memory Please note, the Leica DISTO™ D 8 saves the last 30 results (incl. intermedia results) 14

Leica DISTO™ D 8 – Features Triangle area/room angle, stake-out, trapezium Triangle area/room angle, stake-out Trapezium 15

Leica DISTO™ D 8 – Features Angle tracking, direct horizontal distance Angle tracking Direct horizontal distance 16

New Leica DISTO™ D 8 – Features Double tilt measurement with 1 measured distance § You have to measure the height of a tree? § You have to measure the heights of windows from the floor to set up a scaffold? § With this function you make a first measurement to a reference point as e. g. trunk of a tree or base of a building. After this you only have to aim to the point you want to measure the height of and take the reading. Since the second measurement is only a tilt measurement you don’t need a reflective target (e. g. leaves or windows). Please note that both measurements need to be in one vertical line and in one vertical plane. 17

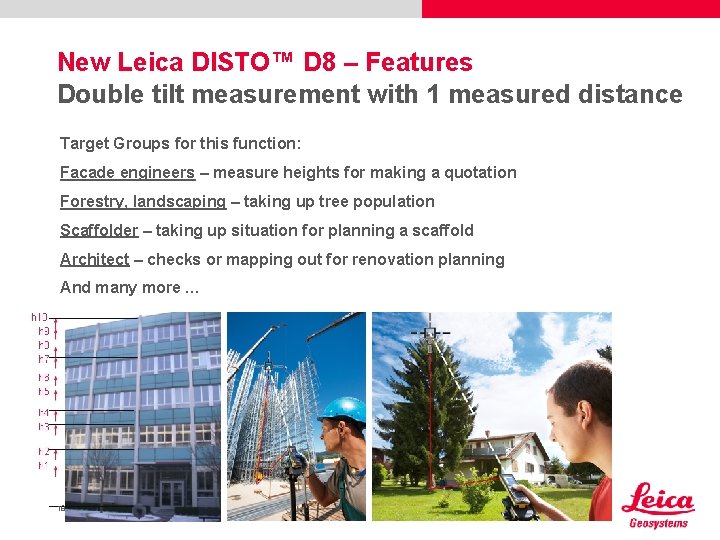

New Leica DISTO™ D 8 – Features Double tilt measurement with 1 measured distance Target Groups for this function: Facade engineers – measure heights for making a quotation Forestry, landscaping – taking up tree population Scaffolder – taking up situation for planning a scaffold Architect – checks or mapping out for renovation planning And many more … 18

New Leica DISTO™ D 8 – Features Double tilt measurement with 2 measured distances § You have to measure the length and pitch of a roof or the facade of a pitched building? § You have to measure the absolute height of a building? § With this function you make a first measurement to the upper point of the object and than to the lower point. Both times the Leica DISTO™ measures distance and angle. You will get the direct distance between these two measurement points. In the second result you will find additional information like the height difference, horizontal distance and the angle. Please note that both measurements need to be in one vertical line, but not in the same plane as explained in the previous function. 19

New Leica DISTO™ D 8 – Features Double tilt measurement with 2 measured distances Target Groups for this function: Architect – checks or mapping out for renovation planning Crane operator – measures the height of objects Roofer, carpenter – measure length and pitch of a roof for quotation Solar power plant or collectors – size and pitch for calculation General construction – measure on pitched objects And many more … 20

New Leica DISTO™ D 8 – Features Profile measurement § You have to measure the profile of a land to set up a scaffold? § You have to measure several heights on a base plate? § You need to check the topography of a land? § With this function you can measure repetitively height differences to a reference point. If the reference point has a defined height towards a system (has already a height to another reference or you need values above sea level) you can first enter a value H for such reference point. Please note that if you want to measure a profile you need to measure each point in vertical line and then go for more lines in a certain distance rectangular to the profile lines (e. g. a profile line each 1 m). Since too flat measurements on a surface can cause deviations please use the target plate or a reference staff and measure the same point for reference and profile points afterwards. 21

New Leica DISTO™ D 8 – Features Profile measurement Target Groups for this function: Architect – mapping out for planning Surveyor – mapping out Scaffolder – checking levels for setting up a scaffold Landscaper – checking levels General construction – checking levels of e. g. base plates And many more … 22

Leica DISTO™ D 8 – Features Bluetooth® § You have to measure often same procedures? § You want to prevent from expensive mistakes when e. g. twisting digits? § You are surveying with GPS and need to measure objects where there is no satellite access? § You want to transfer data from your Leica DISTO™ to a computer to make a drawing of a room layout in Auto. CAD®? § With Bluetooth® you are able to transfer wireless to a computer. You can send distances or angles from your Leica DISTO™ to a PC (Notebook, Tablet PC, UMPC) or Pocket PC. With the free Leica DISTO™ transfer software you are able to use the data in any software on your computer like e. g. Excel®, Word®, CAD. The also free Auto. CAD® plug-in allows you to transfer the data directly into the program so you can make the drawing just on the jobsite. The DISTO™ with its navigation keys will allow most of the control from itself. Please note that you can choose whether you want to transfer all data, result only, choose from any data in the display or even choose from the memory. 23

Leica DISTO™ D 8 – Features Bluetooth® § Please note that you can choose whether you want to transfer all data, result only, choose from any data in the display or even choose from the memory. § Please note, the complexity of installing a Leica DISTO™ to your PC and Pocket PC has been reprogrammed and is therefore improved with the latest versions of Leica DISTO™ transfer for PC and PPC 24

Leica DISTO™ D 8 – Features Bluetooth® Target Groups for this function: Architect – creates or updates blueprints Surveyor – measures hidden points for GPS applications Real estate, appraiser, insurance companies – surveying property Floor layer, painter – does quotations on jobsite Window maker – measures for window production And many more … 25

The offering … Experience the difference

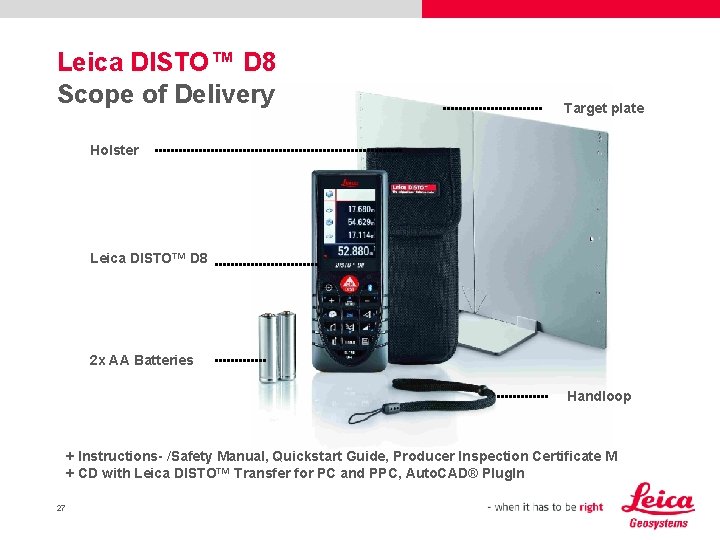

Leica DISTO™ D 8 Scope of Delivery Target plate Holster Leica DISTO™ D 8 2 x AA Batteries Handloop + Instructions- /Safety Manual, Quickstart Guide, Producer Inspection Certificate M + CD with Leica DISTO™ Transfer for PC and PPC, Auto. CAD® Plug. In 27

Leica DISTO™ D 8 Prices and availability Price: § 699. - Euro 1049. - CHF § Availability: CW 15 (PA CW 14) US version will be available in CW 16 28

Leica DISTO™ D 8 Available Accessories LSA 360 - Set up for pole and tripod Art. No. 769459 Set up for accurate measurements 29

Important accessories for Leica DISTO™ D 8 Strong partners for strong tools For measurements over long distances or doing indirect measurements we recommend to use one of the following accessories: + Stable stand + flexible use + allows accurate aiming for ind. Measurements - minor deviations possibe due to gap between moving axis and laser axis + Stable stand + flexible use + allows accurate aiming for ind. Measurements + absolute accurate due to moving point in laser axis 30 Tripod head removed

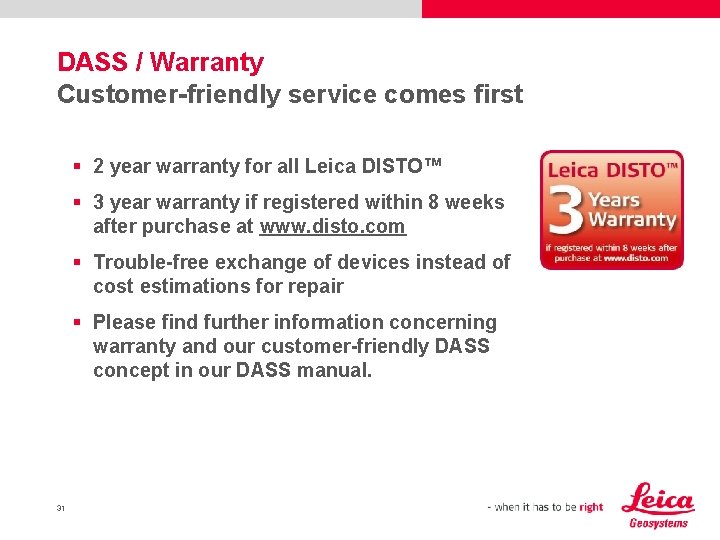

DASS / Warranty Customer-friendly service comes first § 2 year warranty for all Leica DISTO™ § 3 year warranty if registered within 8 weeks after purchase at www. disto. com § Trouble-free exchange of devices instead of cost estimations for repair § Please find further information concerning warranty and our customer-friendly DASS concept in our DASS manual. 31

Leica DISTO™ D 8 Different Product Variants § Leica DISTO™ D 8 (Art. No. 764555) Manual / Safety instructions Languages: D, GB, F, E, I, NL, P, CN, N, S, FIN, DK, SLO, TR, GR, ROK, RUS, SK, CZ, H, PL, EST, LV, BG, RO, JP) § Leica DISTO™ D 8 - US Version (Art. No. 764558) Manual / Safety instructions Languages: EN, E, F 32

Applications You never want to miss it again!

New Leica DISTO™ D 8 – Applications § Carpenter: Needs to know the exact inclination of the roof for follow up work like doing the isolation § With the 360° inclination sensor you can measure inclinations accurate by +/ - 0. 1° in all positions, like e. g. overhead 34

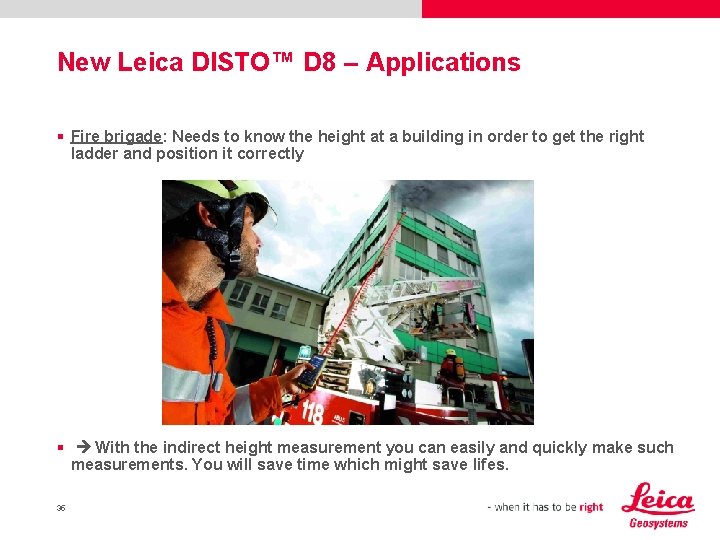

New Leica DISTO™ D 8 – Applications § Fire brigade: Needs to know the height at a building in order to get the right ladder and position it correctly § With the indirect height measurement you can easily and quickly make such measurements. You will save time which might save lifes. 35

New Leica DISTO™ D 8 – Applications § Landscaper: Needs to know the height of a tree for checking the space before cutting it down. § With the indirect height measurement you can measure heights even one point is not reflective for laser measurement 36

New Leica DISTO™ D 8 – Applications § Surveyor: Needs to add a building into a map he is taking up with a GPS system. § With measuring distance and angle at once and transferring the data via Bluetooth® a surveyor can measure up points that are not accessible with a GPS system (hidden points). The transfer with Bluetooth® will ensure that no mistakes are done when writing down. 37

New Leica DISTO™ D 8 – Applications § Window maker: Needs to measure up exactly before going in production. § With the Leica DISTO™ D 8 you can transfer data to an Excel® form from any measurement like e. g. distances, angles, max. tracking, … 38

New Leica DISTO™ D 8 – Applications § Property manager: Needs to measure up an appartment. § Measure up and just send all data into a PC (laptop, tablet PC, UMPC) or Pocket PC. You can prevent expensive errors when e. g. twisting digits during writing down data. 39

Leica DISTO™ D 8 Target Groups § Architects § Real Estate § General Construction § Gardening Companies § Painter § Educational Institutions § Facade worker § Electrical Services § Carpenter § Insurance companies § Joiner § Scaffolding § Fireman § Telecommunications § Surveyors § Police § Facility Managers § and many more… § Civil Engineer 40

Leica DISTO™ D 8 Testimonial „An instrument that measures distances and tilts, is robust and still fits into my pocket. Pure genius!“ Wilfried Fink (Carpenter) 41
