Leica Detection UK Detection Product Range For NEW
- Slides: 25
Leica Detection UK Detection Product Range For

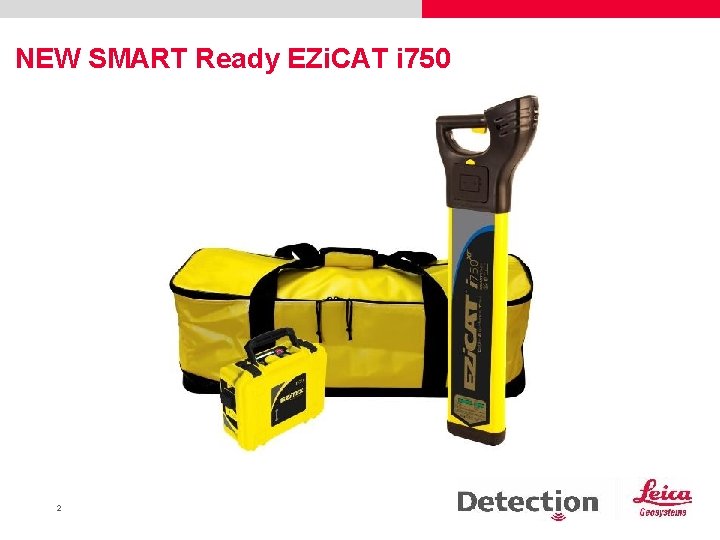

NEW SMART Ready EZi. CAT i 750 2

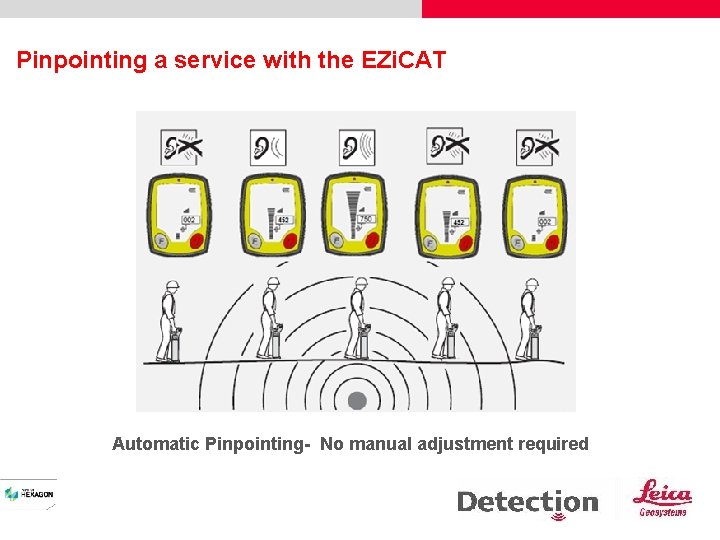

Pinpointing a service with the EZi. CAT Automatic Pinpointing- No manual adjustment required
Use and Applications – Pinpointing a service The sweep process can be used to identify additional utilities within the work area. Once you have pinpointed a utility continue with the sweep process. Additional utilities will be indicated on the Locators display.
EZi. CAT Features • Ease of Use • In-built Self Test • Hazard Zone • 512 Hz* , 640 Hz* , 8 k. Hz and 33 k. Hz frequencies • Unique Filter Design • Bluetooth, Data Logging and GPS
EZi. SYSTEM t-series range – Transmitters • EZi. TEX t 100 (xf) • EZi. TEX t 300 (xf) – Long Distance Tracing A powerful long range signal transmitter with a choice of 4 frequencies, *512 Hz, *640 Hz, 8 k. Hz, 33 k. Hz, • • Improved depth estimation when using a depth locator. Improved service detection in areas of high signal interference. 4 x adjustable output levels to select from dependent on site conditions. IP 67 lid closed (was IP 65) and IP 65 lid open (was IP 54). - External controls and accessory port means the user doesn’t need to open the transmitter to operate it, preventing water ingress
EZi. SYSTEM Accessories
EZi. CAT i 750 eliminates utility strikes No recorded service strikes whilst using the system by trained workforce *Source: Balfour Beatty Mott Mac. Donald JV 8

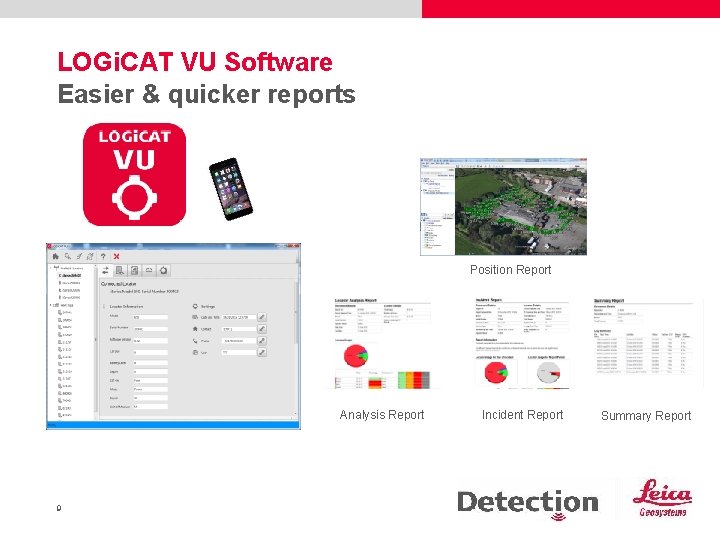

LOGi. CAT VU Software Easier & quicker reports Position Report Analysis Report 9 Incident Report Summary Report
LOGi. CAT VU Software Windows platform § Complete solution for EZICAT fleet management § Reports on best practice performance § Assess operation quality and performance § Provides incident reports 10
LOGi. CAT VU Software Smart mobile app § Free to download § Free to use § Transfer locator data back to the office § Transfer one or more locator data § Data can be stored for later transfer § Available for SMART phones and tablets 11
Dashboard Analysis

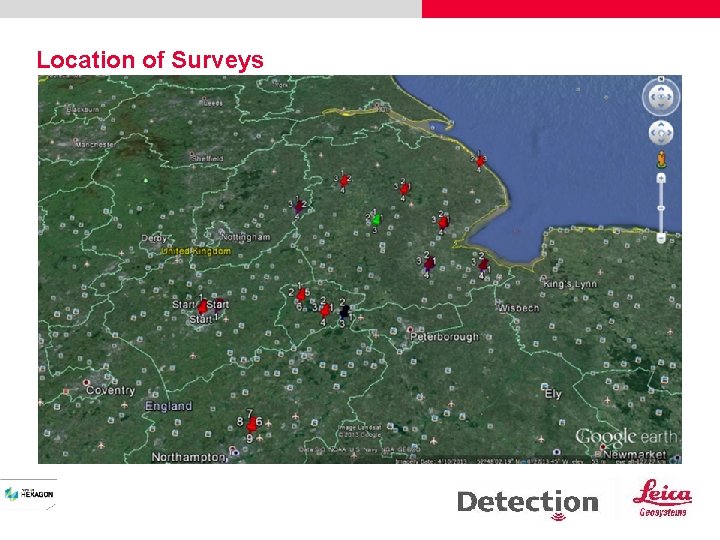

Location of Surveys
Modes of use and area covered on Survey
ULTRA The Leica ULTRA provides our most advanced precision utility tracing system. Intelligent signal processing has been integrated with unique flexible operating modes. ULTRA Locator • Multi frequency operation (configurable 50 Hz to 200 k. Hz) • Compass style utility direction indication • Selectable antenna configuration for operator preference • Direction enabled for superior utility identification and tracing • Remote control of transmitter • Bluetooth interface (GNSS data logging) and ASCII string export • AIM® signal interference monitoring system • Offset measuring of distance and depth ULTRA Advanced Transmitter • 12 Watt output power • Remote controlled from locator • Dual output operation for faster tracing of multiple utilities 15
GIS / GNSS Solutions High-accuracy capable GNSS devices designed to capture location and detailed asset information. Leica Zeno GG 04 Smart Antenna Leica Zeno 20 • Sub-meter, <40 cm, <5 cm, or 1 cm accuracy • Android OS • Ruggedized • Integrated cellular data modem • Windows or Android OS • Hot swappable battery • Backpack or pole mounted • Handheld, backpack or pole mounted • Scalable GNSS options 16 • Sub-meter, <60 cm, <40 cm, <10 cm, or 1 cm accuracy • Ruggedized • Scalable GNSS options
GIS / GNSS Solutions 17
DS 2000 Utility Radar Detection Segment tailored system offering with unbeatable performance
Hardware Available Versions • More access at narrow places and for utilities close to walls 2 wheels • • Convenient, less force needed to push No contact with floor, no wearing of sledge 4 wheels 19
Hardware Features All the parts are integrated in the main body of the products including a dual frequency 250 -700 MHz antenna, a 400 KHz control unit, a battery and two encoders. battery Dual frequency antenna and control unit 20 Encoders

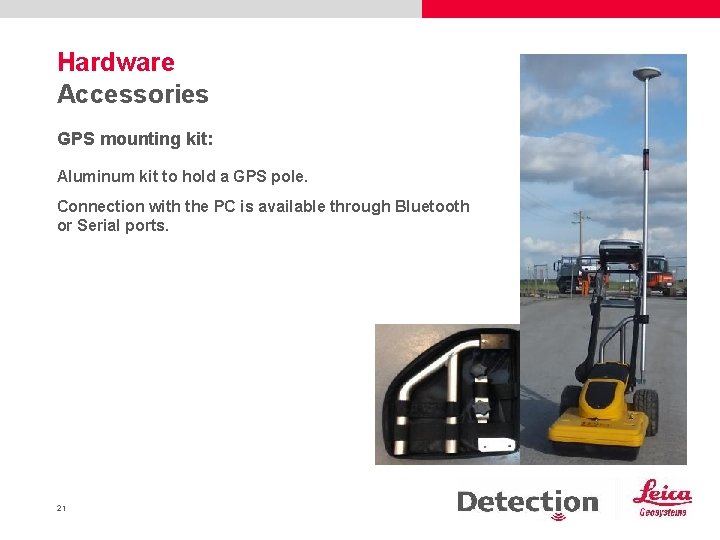

Hardware Accessories GPS mounting kit: Aluminum kit to hold a GPS pole. Connection with the PC is available through Bluetooth or Serial ports. 21
GPR (Ground Penetrating Radar) working principle Antenna Delay time Position of the antenna 22
DS 2000 Data capture Use on board Overture software Absolute position using GNSS receiver Total Station tracking with pseudo NMEA string 23
DS 2000 CAD Output 24
DS 2000 CAD Output 25
