Legible Cities: Focus-Dependent Multi-Resolution Visualization of Urban Relationships Remco Chang Ginette Wessel Robert Kosara Eric Sauda Department of Computer Science UNC Charlotte College of Architecture UNC Charlotte Bill Ribarsky Department of College of Department of Computer Science Architecture Computer Science UNC Charlotte

2/19 Legible Cities: Motivation • While working on a graphics problem to render large urban environments[1], we realized… • Visualizing a city should be more than rendering its geometric components • There is a lot of information directly tied to geographic locations • Question: how do people think about a city? [1] Remco Chang, Thomas Butkiewicz, Caroline Ziemkiewicz, Zachary Wartell, Nancy Pollard, William Ribarsky. Hierarchical Simplification of City Models to Maintain Urban Legibility. ACM SIGGRAPH 2006 Technical Sketch

3/19 Legible Cities: Survey How do you perceive the city? • Describe New York City… • Response 1: “New York is large, compact, and crowded. ” • Response 2: “The area where I lived had a strong mix of ethnicities. ” Geometric, Information, View Dependent (Cognitive)

4/19 Legible Cities: Demo • System Demo

5/19 Legible Cities: Research Collaboration Urban Visualization • 3 D Models of the City Architecture (Geometric) • Theories of City Design and Spatial Structure (Information) • City Conveys Meaning • Information Display through Visual Qualities Embedded in the City • User Interaction for (View Dependence) • Individual’s Experience of a City Choosing Point of View

6/19 Legible Cities: Geometric – Theory of Urban Legibility • Mental Sketch Maps of Cities • Finding commonalities • Elements of Urban Legibility • Urban Theorist Kevin Lynch Boston, MA UNC Charlotte Campus Boston, MA

7/19 Legible Cities: Geometric Modeling • Definable Elements in the City • “Imageability” Identity, Recognition, Meaning • Spatial Understanding of the City using Lynch’s Rules of Urban Legibility Path Edge District Node Kevin Lynch. The Image of the City. Cambridge: MIT Press, 1960. Landmark

8/19 Legible Cities: Information Modeling – Iconology • Robert Venturi and Denise Scott Brown • Iconology • Signs, Symbolism, Information • Information Overlay R. Venturi, D. S. Brown, and S. Izenour. Learning form Las Vegas. Cambridge: The MIT Press, 1977.

9/19 Legible Cities: View Dependence - Experiential • Gordon Cullen • Understanding of Architecture is based on optics, place, and content • Experience of Movement, Uncovering, and Texture G. Cullen. The Concise Townscape. Oxford: The Architectural Press, 1961.

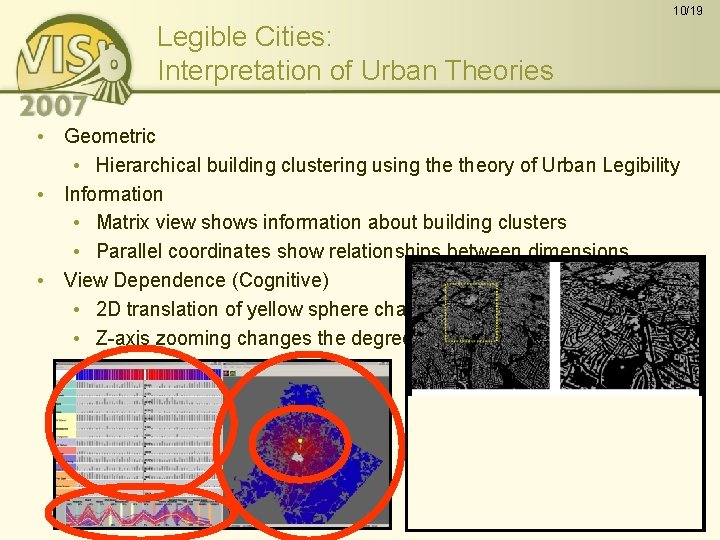

10/19 Legible Cities: Interpretation of Urban Theories • Geometric • Hierarchical building clustering using theory of Urban Legibility • Information • Matrix view shows information about building clusters • Parallel coordinates show relationships between dimensions • View Dependence (Cognitive) • 2 D translation of yellow sphere changes the position of focus • Z-axis zooming changes the degree of focus

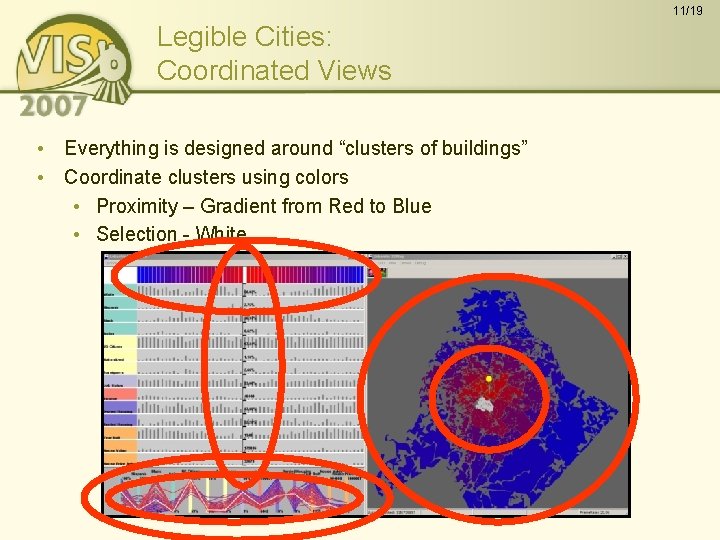

11/19 Legible Cities: Coordinated Views • Everything is designed around “clusters of buildings” • Coordinate clusters using colors • Proximity – Gradient from Red to Blue • Selection - White

12/19 Legible Cities: Querying • Identifying areas with specific attributes

13/19 Legible Cities: How To Use the System • Using 2000 US Census Data of Charlotte (Mecklenburg County) NC • Looking at: • Ethnicity • Citizenship status • Income • Housing Information • etc. • Other dimensions can be used: • Crime rate, traffic, etc

14/19 Legible Cities: Scenario 1: Identifying Neighborhoods • Task: Find areas around downtown Charlotte with high Hispanic populations • Select in the parallel coordinates view… • Finding additional information about High Hispanic population regions • Correlations with other dimensions…

15/19 Legible Cities: Scenario 2: Segregation

16/19 Legible Cities: Scenario 3: Comparing Regions Davidson, NC Downtown Charlotte, NC

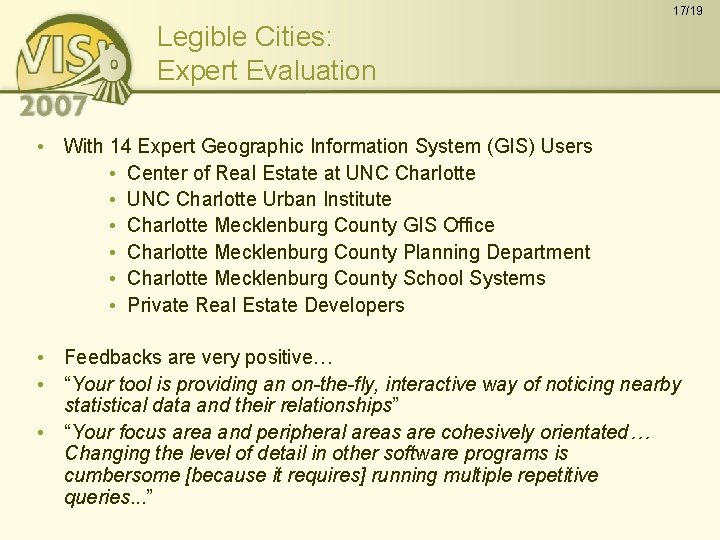

17/19 Legible Cities: Expert Evaluation • With 14 Expert Geographic Information System (GIS) Users • Center of Real Estate at UNC Charlotte • UNC Charlotte Urban Institute • Charlotte Mecklenburg County GIS Office • Charlotte Mecklenburg County Planning Department • Charlotte Mecklenburg County School Systems • Private Real Estate Developers • Feedbacks are very positive… • “Your tool is providing an on-the-fly, interactive way of noticing nearby statistical data and their relationships” • “Your focus area and peripheral areas are cohesively orientated… Changing the level of detail in other software programs is cumbersome [because it requires] running multiple repetitive queries. . . ”

18/19 Legible Cities: Summary • Urban Visualization • Geometry • Information • View Dependence • Contribution • Interpretation and visual implementation of Architectural theories • Implementing urban theories that are qualitative by nature • View-Dependent, Multi-Resolution display • Don’t have to zoom in and lose contextual information • Allows the user to explore the city while retaining spatial awareness

19/19 Questions? Thank you! www. viscenter. uncc. edu

20/19 Legible Cities: Backup Slides

21/19 Legible Cities : Three Modalities • “New York is large, compact, and crowded. ” • “The area where I live there has a strong mix of ethnicities. ” • Geometric • Information • Focus Dependent

22/19 Legible Cities: Information Theory - Koolhaas • Rem Koolhaas • Economic and Political Issues • Study of Symbolism • Information Overlay • City. org Approach Rem Koolhaas. S, M, L, XL. New York: The Monacelli Press, Inc. , 1998
